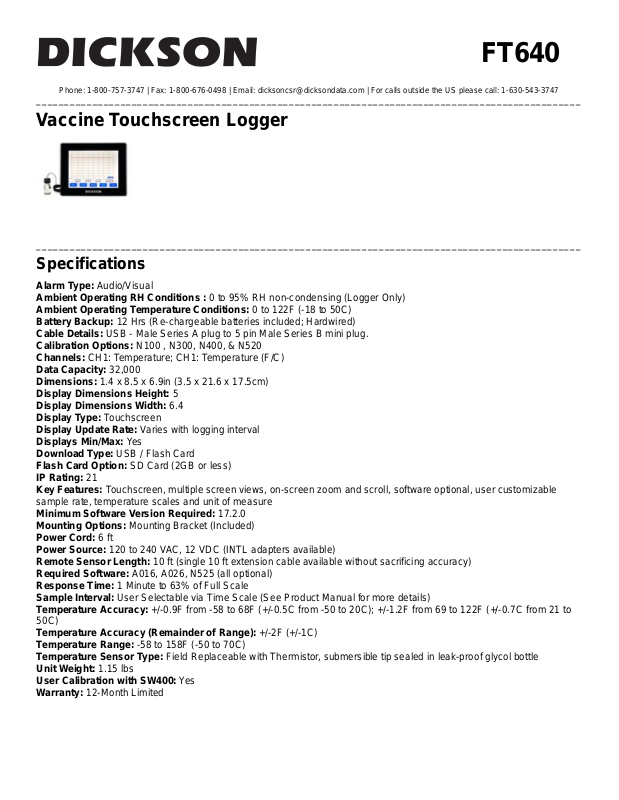

Page 1
FT640
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Vaccine Touchscreen Logger
_________________________________________________________________________________________________
Specifications
Alarm Type: Audio/Visual
Ambient Operating RH Conditions : 0 to 95% RH non-condensing (Logger Only)
Ambient Operating Temperature Conditions: 0 to 122F (-18 to 50C)
Battery Backup: 12 Hrs (Re-chargeable batteries included; Hardwired)
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug.
Calibration Options: N100 , N300, N400, & N520
Channels: CH1: Temperature; CH1: Temperature (F/C)
Data Capacity: 32,000
Dimensions: 1.4 x 8.5 x 6.9in (3.5 x 21.6 x 17.5cm)
Display Dimensions Height: 5
Display Dimensions Width: 6.4
Display Type: Touchscreen
Display Update Rate: Varies with logging interval
Displays Min/Max: Yes
Download Type: USB / Flash Card
Flash Card Option: SD Card (2GB or less)
IP Rating: 21
Key Features: Touchscreen, multiple screen views, on-screen zoom and scroll, software optional, user customizable
sample rate, temperature scales and unit of measure
Minimum Software Version Required: 17.2.0
Mounting Options: Mounting Bracket (Included)
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL adapters available)
Remote Sensor Length: 10 ft (single 10 ft extension cable available without sacrificing accuracy)
Required Software: A016, A026, N525 (all optional)
Response Time: 1 Minute to 63% of Full Scale
Sample Interval: User Selectable via Time Scale (See Product Manual for more details)
Temperature Accuracy: +/-0.9F from -58 to 68F (+/-0.5C from -50 to 20C); +/-1.2F from 69 to 122F (+/-0.7C from 21 to
50C)
Temperature Accuracy (Remainder of Range): +/-2F (+/-1C)
Temperature Range: -58 to 158F (-50 to 70C)
Temperature Sensor Type: Field Replaceable with Thermistor, submersible tip sealed in leak-proof glycol bottle
Unit Weight: 1.15 lbs
User Calibration with SW400: Yes
Warranty: 12-Month Limited
Page 2
FT640
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories FT640
Replaceable Sensor
Single Thermistor Temperature/Humidity Replaceable Sensor
Software
DicksonWare Software with USB Cable
Secure Software
DicksonWare Secure Software with USB Cable
Calibration Software
Logger Calibration Software
Page 3
Page 4
Memory Card
Removable Flash Memory Card
Card Reader Kit
Includes USB Reader and Flash Memory Card
Page 5
FT640
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories FT640
AC Adapter
AC Adapter
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
Page 6
Page 7
AC Adapter Extension Cable
10' Power Extension for AC Adapter
_________________________________________________________________________________________________
Calibrations
N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
