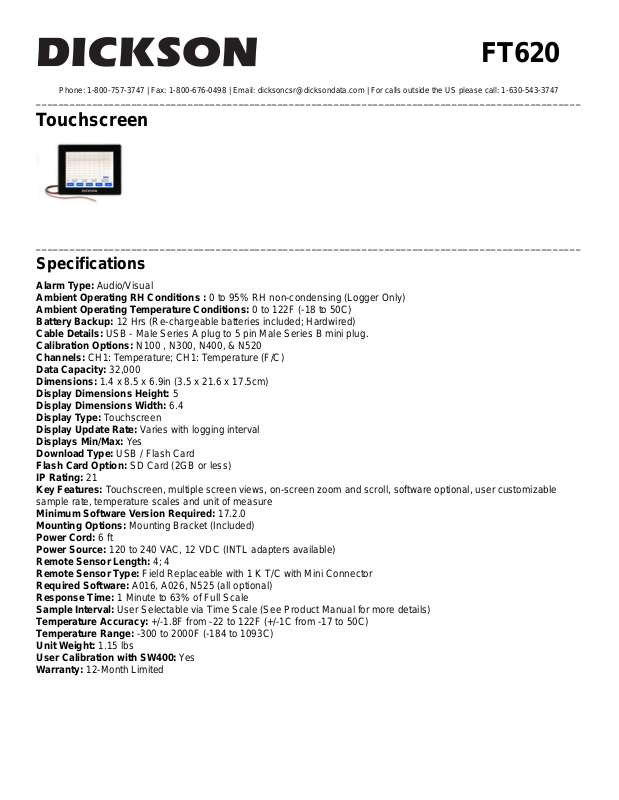

Dickson FT620 User Manual

FT620

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Touchscreen

_________________________________________________________________________________________________

Specifications

Alarm Type: Audio/Visual
Ambient Operating RH Conditions : 0 to 95% RH non-condensing (Logger Only)
Ambient Operating Temperature Conditions: 0 to 122F (-18 to 50C)
Battery Backup: 12 Hrs (Re-chargeable batteries included; Hardwired)
Cable Details: USB - Male Series A plug to 5 pin Male Series B mini plug.
Calibration Options: N100 , N300, N400, & N520
Channels: CH1: Temperature; CH1: Temperature (F/C)
Data Capacity: 32,000
Dimensions: 1.4 x 8.5 x 6.9in (3.5 x 21.6 x 17.5cm)
Display Dimensions Height: 5
Display Dimensions Width: 6.4
Display Type: Touchscreen
Display Update Rate: Varies with logging interval
Displays Min/Max: Yes
Download Type: USB / Flash Card
Flash Card Option: SD Card (2GB or less)
IP Rating: 21
Key Features: Touchscreen, multiple screen views, on-screen zoom and scroll, software optional, user customizable

sample rate, temperature scales and unit of measure

Minimum Software Version Required: 17.2.0
Mounting Options: Mounting Bracket (Included)
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL adapters available)
Remote Sensor Length: 4; 4
Remote Sensor Type: Field Replaceable with 1 K T/C with Mini Connector
Required Software: A016, A026, N525 (all optional)
Response Time: 1 Minute to 63% of Full Scale
Sample Interval: User Selectable via Time Scale (See Product Manual for more details)
Temperature Accuracy: +/-1.8F from -22 to 122F (+/-1C from -17 to 50C)
Temperature Range: -300 to 2000F (-184 to 1093C)
Unit Weight: 1.15 lbs
User Calibration with SW400: Yes
Warranty: 12-Month Limited

FT620

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories FT620

Replaceable Sensor

Single K-TC Replaceable Temperature Sensor

Software

DicksonWare Software with USB Cable

Temperature Probe

Replacement Bead Wire Temperature Probe

Secure Software

DicksonWare Secure Software with USB Cable

Memory Card

Removable Flash Memory Card

Calibration Software

Logger Calibration Software

FT620

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories FT620

Card Reader Kit

Includes USB Reader and Flash Memory Card

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

AC Adapter

AC Adapter

Probe Extension

K-Thermocouple 10' (3m) Extension Cable

Temperature Probe

6" (15cm) High Temperature Immersion Probe

Shielded Immersion Probe

15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip

FT620

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories FT620

Thermocouple Extension

K-Thermocouple 100' (30m) Extension Cable

AC Adapter Extension Cable

10' Power Extension for AC Adapter

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
