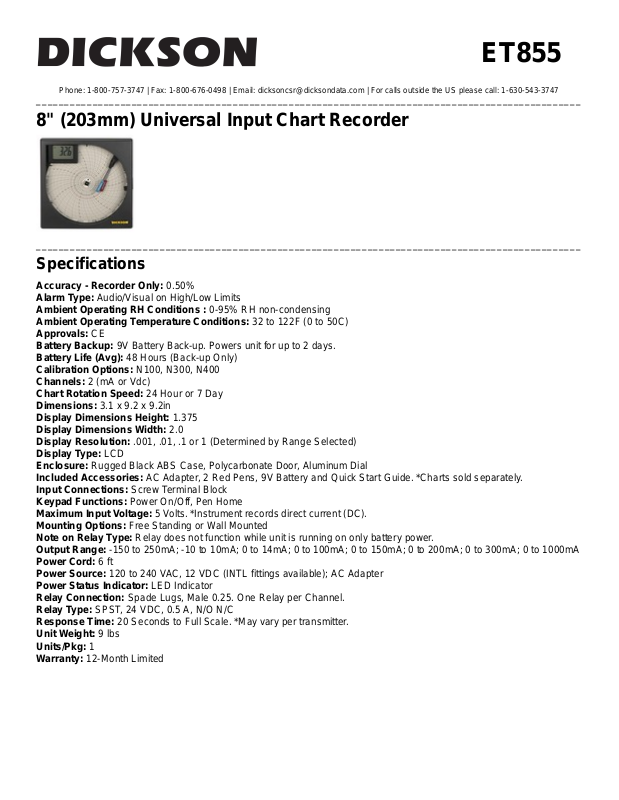

Page 1
ET855
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
8" (203mm) Universal Input Chart Recorder
_________________________________________________________________________________________________
Specifications
Accuracy - Recorder Only: 0.50%
Alarm Type: Audio/Visual on High/Low Limits
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: 32 to 122F (0 to 50C)
Approvals: CE
Battery Backup: 9V Battery Back-up. Powers unit for up to 2 days.
Battery Life (Avg): 48 Hours (Back-up Only)
Calibration Options: N100, N300, N400
Channels: 2 (mA or Vdc)
Chart Rotation Speed: 24 Hour or 7 Day
Dimensions: 3.1 x 9.2 x 9.2in
Display Dimensions Height: 1.375
Display Dimensions Width: 2.0
Display Resolution: .001, .01, .1 or 1 (Determined by Range Selected)
Display Type: LCD
Enclosure: Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
Included Accessories: AC Adapter, 2 Red Pens, 9V Battery and Quick Start Guide. *Charts sold separately.
Input Connections: Screw Terminal Block
Keypad Functions: Power On/Off, Pen Home
Maximum Input Voltage: 5 Volts. *Instrument records direct current (DC).
Mounting Options: Free Standing or Wall Mounted
Note on Relay Type: Relay does not function while unit is running on only battery power.
Output Range: -150 to 250mA; -10 to 10mA; 0 to 14mA; 0 to 100mA; 0 to 150mA; 0 to 200mA; 0 to 300mA; 0 to 1000mA
Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator: LED Indicator
Relay Connection: Spade Lugs, Male 0.25. One Relay per Channel.
Relay Type: SPST, 24 VDC, 0.5 A, N/O N/C
Response Time: 20 Seconds to Full Scale. *May vary per transmitter.
Unit Weight: 9 lbs
Units/Pkg: 1
Warranty: 12-Month Limited
Page 2
ET855
Phone: 1-800-757-3747 | Fax: 1-800-676-0498 | Email: dicksoncsr@dicksondata.com | For calls outside the US please call: 1-630-543-3747
_________________________________________________________________________________________________
Accessories ET855
Universal Plug Kit for AC Adapter
Set of Three International Power Plugs for AC Adapter
AC Adapter
AC Adapter
_________________________________________________________________________________________________
Calibrations
