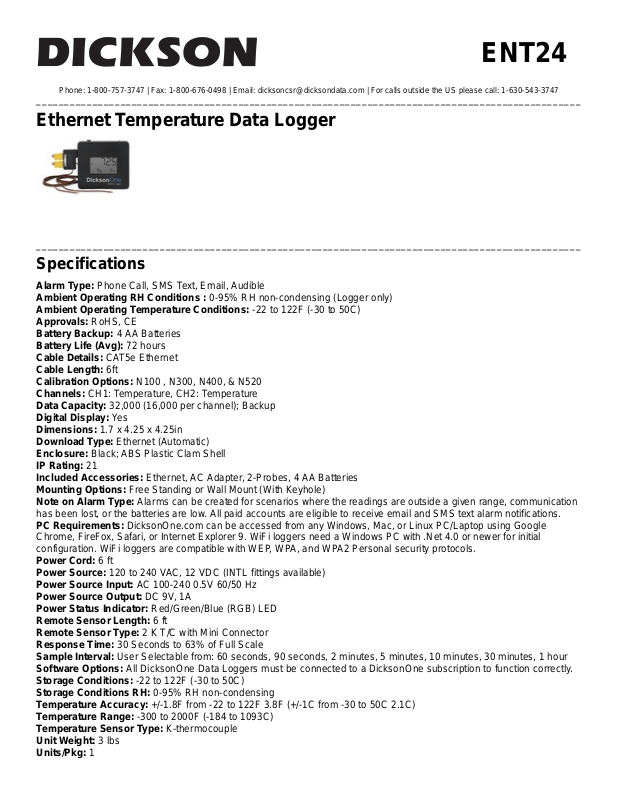

Dickson ENT24 User Manual

ENT24

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Ethernet Temperature Data Logger

_________________________________________________________________________________________________

Specifications

Alarm Type: Phone Call, SMS Text, Email, Audible
Ambient Operating RH Conditions : 0-95% RH non-condensing (Logger only)
Ambient Operating Temperature Conditions: -22 to 122F (-30 to 50C)
Approvals: RoHS, CE
Battery Backup: 4 AA Batteries
Battery Life (Avg): 72 hours
Cable Details: CAT5e Ethernet
Cable Length: 6ft
Calibration Options: N100 , N300, N400, & N520
Channels: CH1: Temperature, CH2: Temperature
Data Capacity: 32,000 (16,000 per channel); Backup
Digital Display: Yes
Dimensions: 1.7 x 4.25 x 4.25in
Download Type: Ethernet (Automatic)
Enclosure: Black; ABS Plastic Clam Shell
IP Rating: 21
Included Accessories: Ethernet, AC Adapter, 2-Probes, 4 AA Batteries
Mounting Options: Free Standing or Wall Mount (With Keyhole)
Note on Alarm Type: Alarms can be created for scenarios where the readings are outside a given range, communication

has been lost, or the batteries are low. All paid accounts are eligible to receive email and SMS text alarm notifications.
PC Requirements: DicksonOne.com can be accessed from any Windows, Mac, or Linux PC/Laptop using Google
Chrome, FireFox, Safari, or Internet Explorer 9. WiFi loggers need a Windows PC with .Net 4.0 or newer for initial
configuration. WiFi loggers are compatible with WEP, WPA, and WPA2 Personal security protocols.

Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available)
Power Source Input: AC 100-240 0.5V 60/50 Hz
Power Source Output: DC 9V, 1A
Power Status Indicator: Red/Green/Blue (RGB) LED
Remote Sensor Length: 6 ft
Remote Sensor Type: 2 K T/C with Mini Connector
Response Time: 30 Seconds to 63% of Full Scale
Sample Interval: User Selectable from: 60 seconds, 90 seconds, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour
Software Options: All DicksonOne Data Loggers must be connected to a DicksonOne subscription to function correctly.
Storage Conditions: -22 to 122F (-30 to 50C)
Storage Conditions RH: 0-95% RH non-condensing
Temperature Accuracy: +/-1.8F from -22 to 122F 3.8F (+/-1C from -30 to 50C 2.1C)
Temperature Range: -300 to 2000F (-184 to 1093C)
Temperature Sensor Type: K-thermocouple
Unit Weight: 3 lbs
Units/Pkg: 1

ENT24

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories ENT24

Replaceable Sensor

Dual K-Thermocouple Replaceable Temperature Sensor

DicksonOne IQOQ Validation Package

DicksonOne IQOQ Validation Package

Certificate of Validation

Certificate of Validation

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

Thermocouple Extension

K-Thermocouple 100' (30m) Extension Cable

Temperature Probe

6" (15cm) High Temperature Immersion Probe

ENT24

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories ENT24

Shielded Immersion Probe

15' (4.5m) Shielded Thermocouple with 4" (10cm) stainless steel tip

Piercing Probe

4" (10cm) Thermocouple Handled Piercing Probe

Probe Extension

K-Thermocouple 10' (3m) Extension Cable

Temperature Probe

Replacement Bead Wire Temperature Probe

AC Adapter

AC Adapter

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

ENT24

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories ENT24

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
