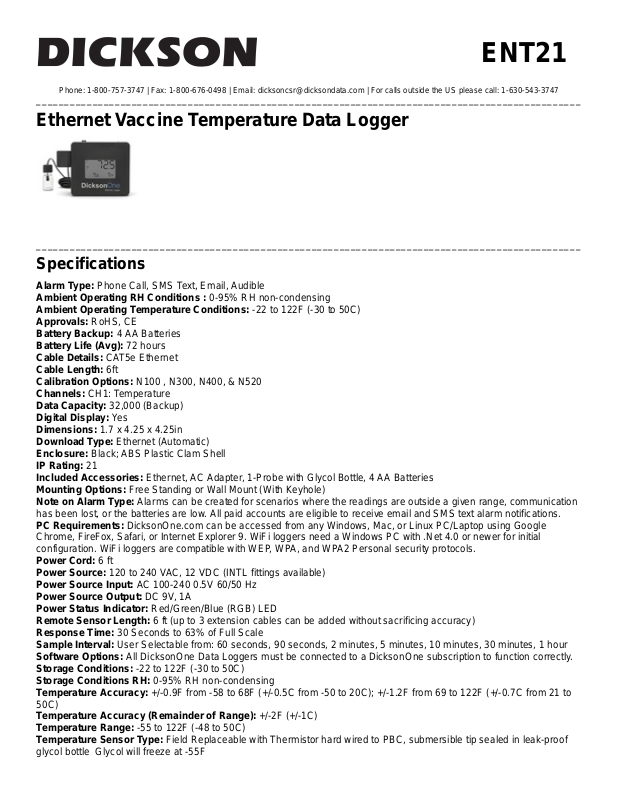

Ethernet Vaccine Temperature Data Logger

_________________________________________________________________________________________________

Specifications

Alarm Type: Phone Call, SMS Text, Email, Audible
Ambient Operating RH Conditions : 0-95% RH non-condensing
Ambient Operating Temperature Conditions: -22 to 122F (-30 to 50C)
Approvals: RoHS, CE
Battery Backup: 4 AA Batteries
Battery Life (Avg): 72 hours
Cable Details: CAT5e Ethernet
Cable Length: 6ft
Calibration Options: N100 , N300, N400, & N520
Channels: CH1: Temperature
Data Capacity: 32,000 (Backup)
Digital Display: Yes
Dimensions: 1.7 x 4.25 x 4.25in
Download Type: Ethernet (Automatic)
Enclosure: Black; ABS Plastic Clam Shell
IP Rating: 21
Included Accessories: Ethernet, AC Adapter, 1-Probe with Glycol Bottle, 4 AA Batteries
Mounting Options: Free Standing or Wall Mount (With Keyhole)
Note on Alarm Type: Alarms can be created for scenarios where the readings are outside a given range, communication

has been lost, or the batteries are low. All paid accounts are eligible to receive email and SMS text alarm notifications.
PC Requirements: DicksonOne.com can be accessed from any Windows, Mac, or Linux PC/Laptop using Google
Chrome, FireFox, Safari, or Internet Explorer 9. WiFi loggers need a Windows PC with .Net 4.0 or newer for initial
configuration. WiFi loggers are compatible with WEP, WPA, and WPA2 Personal security protocols.

Power Cord: 6 ft
Power Source: 120 to 240 VAC, 12 VDC (INTL fittings available)
Power Source Input: AC 100-240 0.5V 60/50 Hz
Power Source Output: DC 9V, 1A
Power Status Indicator: Red/Green/Blue (RGB) LED
Remote Sensor Length: 6 ft (up to 3 extension cables can be added without sacrificing accuracy)
Response Time: 30 Seconds to 63% of Full Scale
Sample Interval: User Selectable from: 60 seconds, 90 seconds, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour
Software Options: All DicksonOne Data Loggers must be connected to a DicksonOne subscription to function correctly.
Storage Conditions: -22 to 122F (-30 to 50C)
Storage Conditions RH: 0-95% RH non-condensing
Temperature Accuracy: +/-0.9F from -58 to 68F (+/-0.5C from -50 to 20C); +/-1.2F from 69 to 122F (+/-0.7C from 21 to

50C)

Temperature Accuracy (Remainder of Range): +/-2F (+/-1C)
Temperature Range: -55 to 122F (-48 to 50C)
Temperature Sensor Type: Field Replaceable with Thermistor hard wired to PBC, submersible tip sealed in leak-proof

glycol bottle Glycol will freeze at -55F

Unit Weight: 3 lbs
Units/Pkg: 1

ENT21

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories ENT21

Replaceable Sensor

Single Thermistor Temperature/Humidity Replaceable Sensor

DicksonOne IQOQ Validation Package

DicksonOne IQOQ Validation Package

Certificate of Validation

Certificate of Validation

Glycol Bottle

Bottle of Propylene Glycol Solution - dampen temperature swings.

AC Adapter

AC Adapter

Universal Plug Kit for AC Adapter

Set of Three International Power Plugs for AC Adapter

ENT21

Phone: [phone] | Fax: [phone] | Email: [e-mail] | For calls outside the US please call: 1-630-543-3747

_________________________________________________________________________________________________

Accessories ENT21

AC Adapter Extension Cable

10' Power Extension for AC Adapter

_________________________________________________________________________________________________

Calibrations

N100 1-Point NIST Traceable Calibration
N300 3-Point NIST Traceable Calibration
N400 3-Point Ultima NIST A2LA Accredited Calibration
