Page 1
HDL 2201
DICE fiber
optic iPod kit
for Porsche vehicles
User's Manual
Copyright 2007 DICE Electronics, LLC. The DICE Electronics logo is a trademark of DICE Electronics, LLC.
i-MOST-Porsche
rev.01MFO
Page 2
Table of contents
Introduction ................................................................................. 3
Warning .................................... ................................................... 3
Getting started ............................................................................. 3
Specifications ..............................................................................4
Icon legends ................................................................................ 4
General operation ........................................................................5
Easy access
MODE 1 - Selecting
MODE 2-5 - Browsing
MODE 6 - Extras
About browsing
Instrument cluster
Track sequence selection
Porsche radio controls
Disclaimer .................................................................................... 10
Warranty and support ..................................................................10
Registration ..................................................................................10
Page 3
Getting started - important information
Is Your iPod Up To Date?
Before you start, please check your iPod firmware version. For a complete list of
supported iPod firmware versions, please visit http://support.diceelectronics.com.
Warning
Introduction
4
3

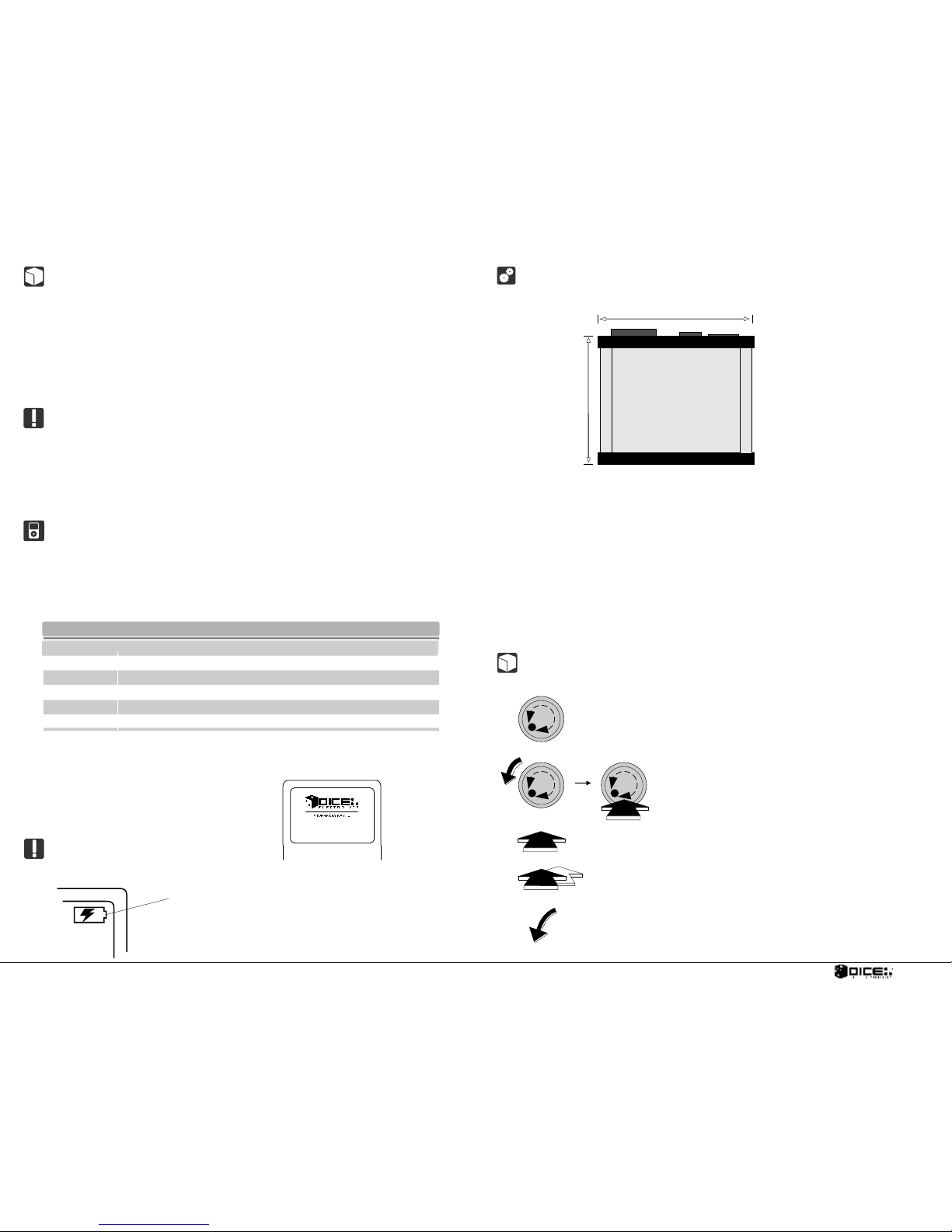

DICE fiber optic iPod interface specifications
View from top/bottom
1 - Power/AUX connector
2 - iPod input
3 - Fiber optic connector
3 3/4"
4"
Height: 1 1/4"
∀
Standby current consumption: ~ 22mA
Maximum current consumption: ~ 1A
Storage temperature: 0-150F
Operating ambient temperature: 30-120F
Assembled in the US
Factory radio compatible
Connect the iPod to your
vehicle's factory entertainment system and hear what an iPod should sound like.
CD quality sound* and controls from your radio, steering wheel or the iPod. The
DICE iPod integration keeps your iPod charged and ready to go. Radio will also
display text from your iPod, allowing you to view, select and browse Playlists,
Artists, Albums, Genres.
DICE fiber optic iPod integration is a direct iPod interface
developed for Porsche vehicles utilizing the fiber optic bus.
Don't allow the Apple iPod or operating the kit to distract you from driving! Only
operate the unit when stationary or ask passengers to operate it for you. Keep your
eyes on the road at all times! Neither DICE Electronics, LLC., NAV-TV Corp., Apple
Computer, Inc., its regional offices, distributors or resellers accept any responsibility
for any damage or injury as a result of using the DICE iPod integration kit. The use of
this product constitutes to your acceptance of our terms and conditions.
iPod Model
Required minimum FW version
4th Gen.
Video
mini
nano
Must have FW version 3.1.1
Must have FW version 1.2.1
Must have FW version 1.1.1
Must have FW version 1.1.1
Must have FW version 1.4.1
2nd Gen. nano
Must have FW version 1.1.1
Supported iPods.
Charging
The interface automatically charges the iPod's battery when connected.
Charging icon will appear on the upper
right corner of the iPod screen to indicate
charging
1
2
3
Icon legends
Press and hold button
Press button
Turn the dial left
Note that the iPod is locked when connected to the radio and a DICE Electronics
logo will be displayed in operation. You can select manual control in DISC 6 which
unlocks the iPod. If radio is turned off iPod becomes unlocked after 10-30 seconds
and eventually turns off.
Jog dial
Turn and then press jog dial
DIGITAL IN CAR ENTERTAINMENT
Page 4
DIGITAL IN CAR ENTERTAINMENT
6
DICE iPod
AUDIO
CD/CDC

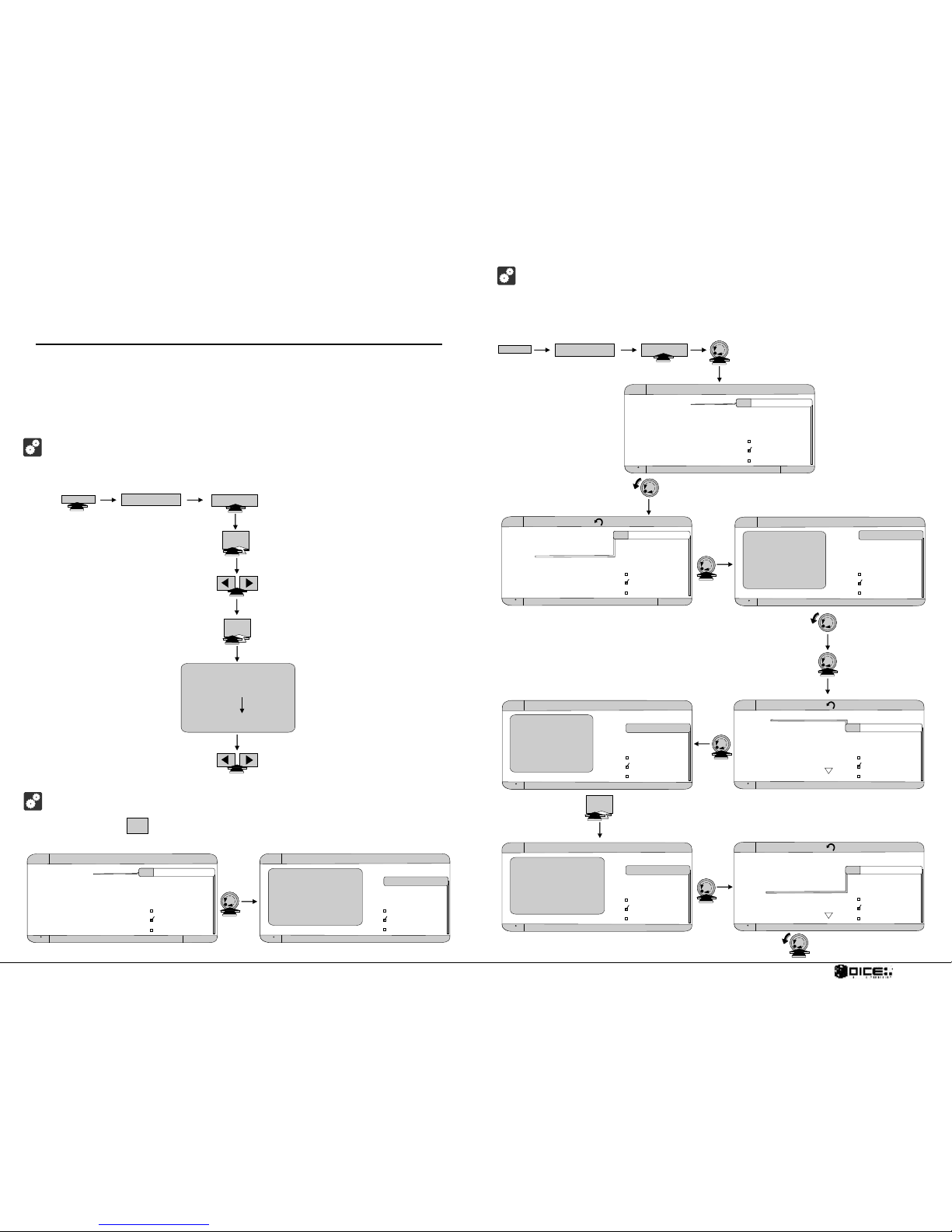

Accessing and operating the MOST fiber optic iPod interface
Press the CD/CDC button to access the interface and its features. The following is
an example of the operation in DISC 3. The same steps are to be followed in DISC 2,
4 and 5.
DISC 2-5 - Browsing
Easy access - Enjoy your iPod on the road.
Follow these steps to operate your iPod with the MOST fiber optic DICE kit.
DICE iPod
AUDIO
CD/CDC
2
1
CD
1 2 3 4 5 6
Play selection
Almost there
01:32 3/15
DISC 1 = Play selection
DISC 2 = Playlists
DISC 3 = Artists
DISC 4 = Albums
DISC 5 = Genres
DISC 6 = <Extras...>
to select Playlists
to select next/previous playlist
to play selection
to select next/previous track
Audio CD-Changer
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
95 F CD 1 Track 1 TP 03/14/2007
Play selectionPlay selection
Playlists
Artists
Albums
Genres
<Extras...>
to select Playlists/Artists/Albums/Genres/Extras
Audio CD-Changer CD List
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
95 F CD 3 Track 1 TP 03/14/2007
Play selection
Playlists
ArtistsArtists
Albums
Genres
<Extras...>
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
CD
1 2 3 4 5 6
Artists
Track 6... of 15
01:32
to go to Track List
Audio CD-Changer
95 F CD 3 Track 1 TP 03/14/2007
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
CD
1 2 3 4 5 6
Artists
Oasis
01:32 1/15
Audio CD-Changer
95 F CD 3 Track 1 TP 03/14/2007
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer Track List
95 F CD 3 Track 1 TP 03/14/2007
OasisOasis
Red Hot Chil
Prodigy
Tool
Evanescence
AC/DC
1
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer
95 F CD 1 Track 1 TP 03/14/2007
CD
1 2 3 4 5 6
Play selection
Little by little
01:32 1/15
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer Track List
95 F CD 1 Track 4 TP 03/14/2007
Little by little
Wonderwall
Champaign sup
HelloHello
Roll with it
Morning glory
to select a track
General operation
Professional installation is required. Find a local car audio dealer. The iPod kit takes the
place of the factory CD changer.
DISC 1 - Selecting
Press and hold the button for 3-5 seconds to choose your selection. See
details on page 6.
1
Audio CD-Changer
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
95 F CD 1 Track 1 TP 03/14/2007
Play selectionPlay selection
Playlists
Artists
Albums
Genres
<Extras...>
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer
95 F CD 1 Track 1 TP 03/14/2007
CD
1 2 3 4 5 6
Play selection
Almost there
01:32 1/15
5
Page 5
Audio CD-Changer CD List
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
95 F CD 6 Track 1 TP 03/14/2007
Play selection
Playlists
Artists
Albums
Genres
<Extras...><Extras...>
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer
95 F CD 6 Track 1 TP 03/14/2007
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer Track List
95 F CD 1 Track 30 TP 03/14/2007
Oasis
Red Hot Chil
Prodigy
Tool
Evanescence
[Next page][Next page]
CD
1 2 3 4 5 6
<Extras>
"Firmware version"
01:32 1/4
"Firmware version"
Radio Control
Manual ControlManual Control
Aux In
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer Track List
95 F
CD 6 Track 3 TP 03/14/2007
to go to Track List

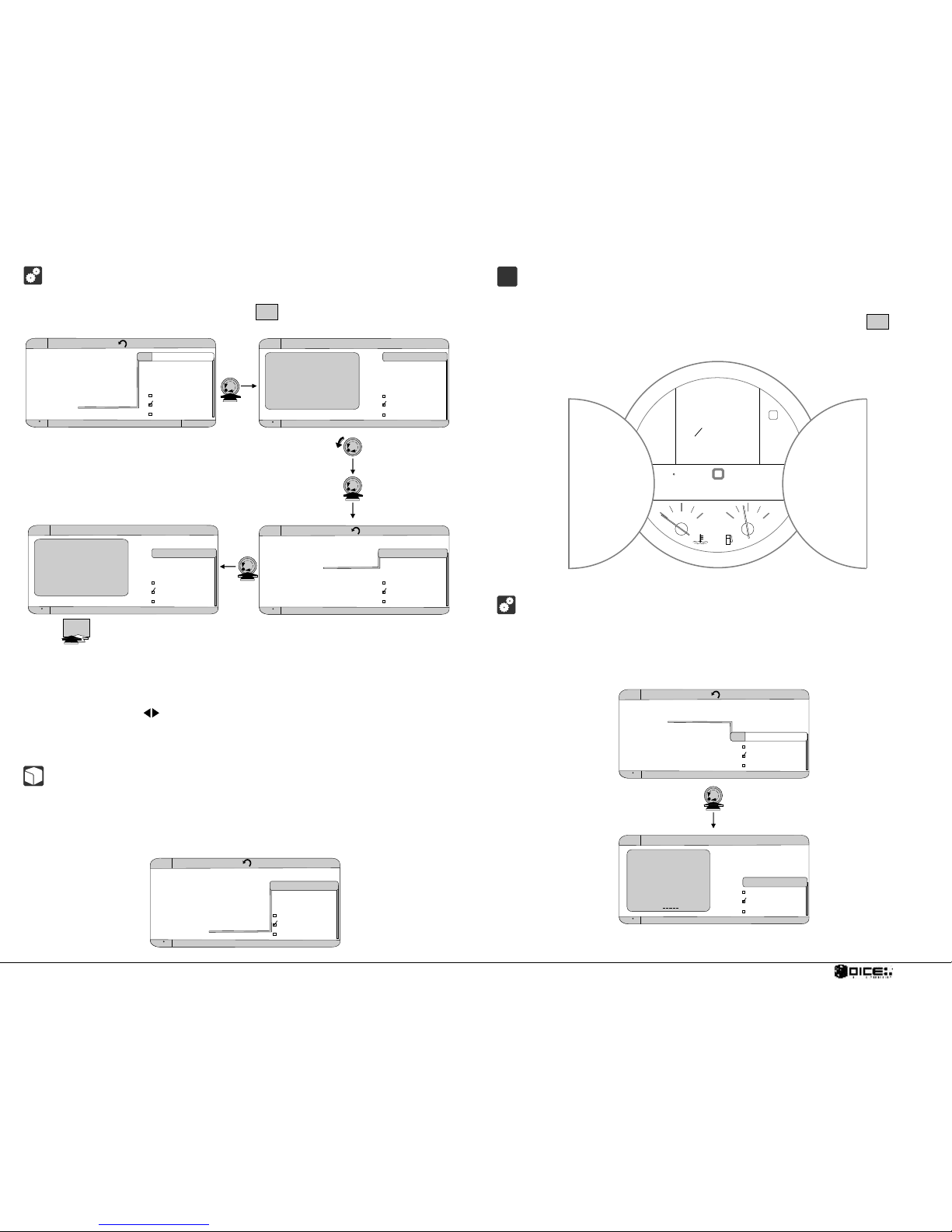

DISC 6 - Extras
In DISC 6 you can change between radio control, manual control and Aux in.
Once selection is made, press and hold the button to confirm selection.
1
1
to make selection
Radio Control - Select this option to control your iPod from the radio. This selection
locks your iPod.
Manual Control - Select this option and control music from your iPod. In this option
only next and previous functions are available from the radio.
Aux In - Select this option to be able to operate any other audio device.
When browsing, the radio displays 30 items per screen. To view the next 30 items,
scroll down to [Next page]. Transition from one screen to the next takes a few
seconds. Update time depends on the amount of data stored on the iPod.
About browsing
DIGITAL IN CAR ENTERTAINMENT
8
7
A
B
C
Instrument cluster
2/42/4
CD 2 T 65536CD 2 T 65536
o Speedo Speed
28mph28mph
6
5 P
4 R
3 N
2 D
1
6
5 P
4 R
3 N
2 D
1
mphmph
3:343:3473 F73 F
16914mls16914mls 156.5mls156.5mls
100100
180180
260260
00
4/44/4
Track sequence selection
CD x T 65536 is a confirmation that shows once the selected list is loaded. Use
the Next/Previous buttons to move in the list, then press and hold the button
to choose your selection.
1
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer
95 F CD 6 Track 3 TP 03/14/2007
CD
1 2 3 4 5 6
<Extras>
Manual Control
01:32 3/4
To adjust track sequence go to Track Seq. and select from "Repeat CD", "Repeat
Track" or "Normal" functions. Note that "Random" function is not available. See
illustration below.
Normal
Repeat CDRepeat CD
Repeat Track
Random
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
Audio CD-Changer Track Seq.
95 F
CD 6 Track 3 TP 03/14/2007
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
CD
1 2 3 4 5 6
Artists
Oasis
01:32 1/15
Audio CD-Changer
95 F CD 3 Track 1 TP 03/14/2007
Track Seq. Rept. CD Track Seq. Rept. CD
Page 6

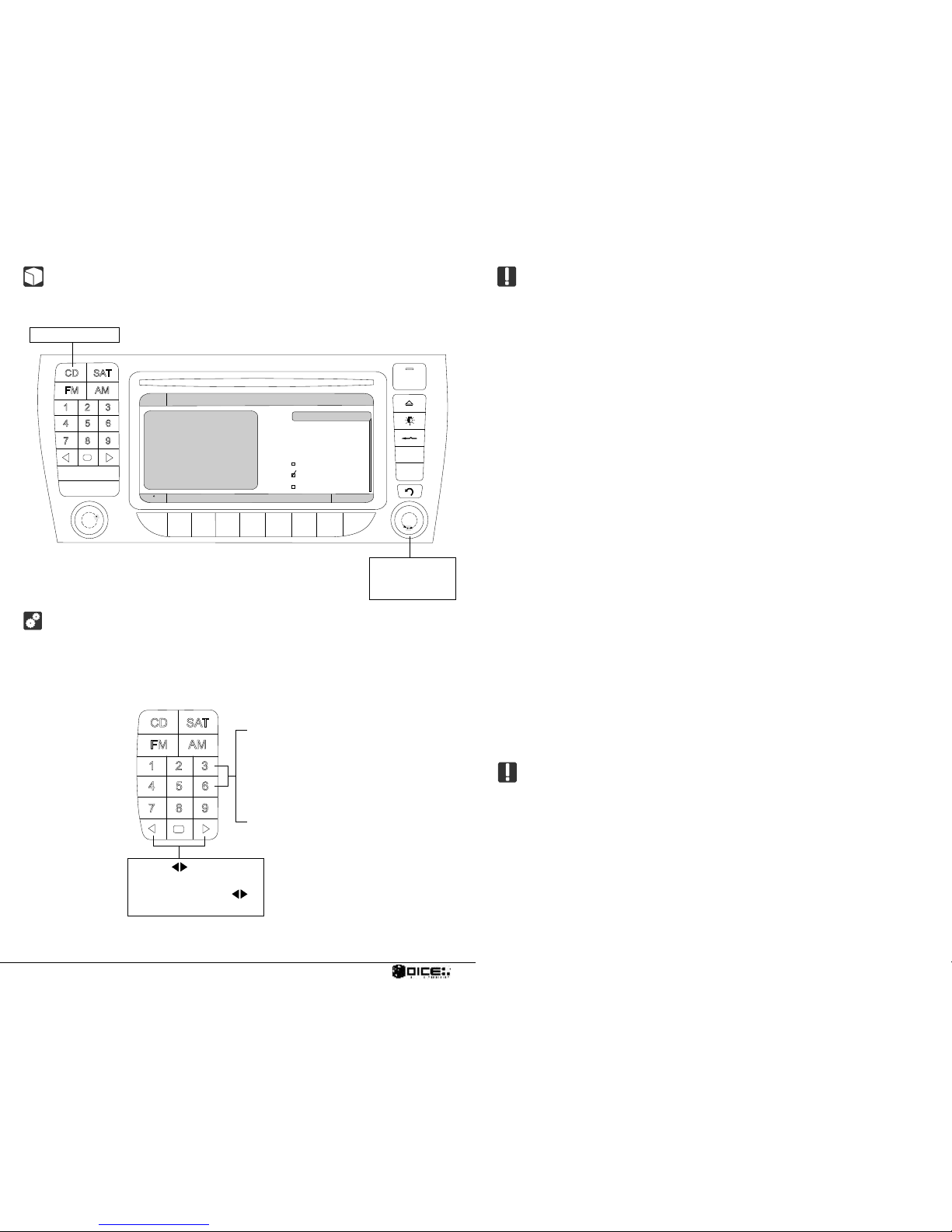

Important disclaimer, please read!
Driving could be dangerous and requires concentration. Do not allow the DICE iPod
integration to distract you from prevailing traffic conditions. If in doubt, operate the
unit only when stationary or ask a passenger to operate it for you.
Do not submerge or expose to water or other s.
, or visit our support site at
http://support.diceelectronics.com.
any part of the kit liquid DICE
components are NOT water resistant and will be damaged by water. You must
properly insulate its casing if your installation environment may subject the unit to
water, such as a convertible vehicle.
Keep away from children!
Interface components may contain small parts, can be broken or disassembled and
components may become loose from vibration and heat. Small components and
packaging materials may be a chocking hazard when handled by children.
Unauthorized reproduction or reverse engineering is strictly prohibited! Intellectual
property included is distributed under specific license agreement with respective
owners. No warranty, explicit or implied, is stated. Neither DICE Electronics nor any
of its agents, distributors, dealers or vendors shall be liable for damages.
IN NO EVENT SHALL DICE ELECTRONICS' LIABILITY EXCEED THE PRICE
PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE
PRODUCT, ITS ACCOMPANYING SOFTWARE OR ITS DOCUMENTATION. All
products are registered and copyrighted by their respective owners.
Warranty and Support
Products carry a 90 day limited warranty that protects you from defects in material
and workmanship of products sold by or DICE Electronics, or its authorized agents,
distributors and dealers. If experience any problems or need help, please contact
your local dealer or call 888-342-3999
Disclaimer
In order to validate your warranty period and to receive telephone or online
support, you MUST register your DICE product.
To register your DICE product, please complete the following steps:
1. Visit http://register.diceelectronics.com.
2. Complete the product registration form.
3. When asked for your serial number, enter the serial number that is on
the registration/support/warranty sheet in your retail box and also on the
bottom of the module.
4. Submit the form.
5. Save the registration/support/warranty sheet in a safe place for future
reference.
Registration is required!
repeatrepeat
MAINMAIN AUDIOAUDIO SOUNDSOUND ORGORG VOICEVOICE INFOINFO AVAV TRIPTRIP NAVINAVI
mapmap
setset
CD
1 2 3 4 5 6
Play selection
Almost there
01:32 3/15
Audio CD-Changer
CD List
Track List
Name CD
Track Seq.
Scan
Traffic Program
Mute
-- F CD 1 Track 3 TP 03/14/2007
Porsche audio controls
Source selector
Use the jog dial
to browse and
select lists
DISC 1 = Play selection
DISC 2 = Playlists
DISC 3 = Artists
DISC 4 = Albums
DISC 5 = Genres
DISC 6 = <Extras...>
Use the buttons to go
to next/previous track.
Press and hold the
buttons to RW or FFW.
Mode selection
Press and hold the DISC buttons for 3-5 seconds on your radio to activate modes.
9
DIGITAL IN CAR ENTERTAINMENT
Loading...
