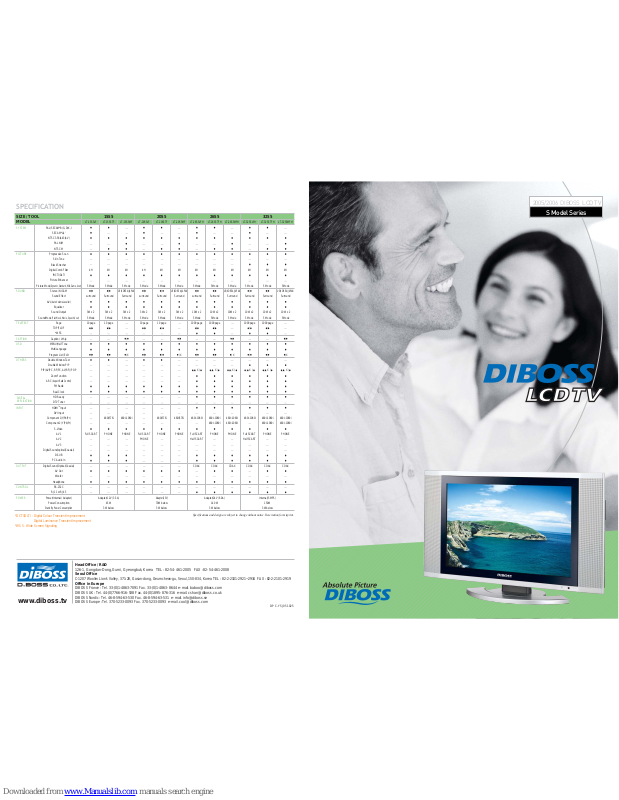

Page 1
SPECIFICATION
www.diboss.tv
Head Office / R&D
126-1, Gongdan-Dong, Gumi, Gyeongbuk, Korea TEL : 82-54-461-2005 FAX : 82-54-461-2008
Seoul Office
C-1207 Woolim Lion's Valley, 371-28, Gasan-dong, Geumcheon-gu, Seoul, 150-834, Korea TEL : 82-2-2101-2921~2934 FAX : 82-2-2101-2919
Office in Europe
DIBOSS France : Tel.
33-(0)1-4863-7091
Fax.
33-(0)1-4863-8644 e-mail. [email protected]
DIBOSS UK : Tel.
44-(0)7766-916-538
Fax.
44-(0)1895-876-316 e-mail. [email protected]
DIBOSS Nordic : Tel.
46-8-594-63-530
Fax.
46-8-594-63-531 e-mail. [email protected]
DIBOSS Europe : Tel.
370-5233-0093
Fax.
370-5233-0093 e-mail. [email protected]
SIZE / TOOL 15S5 20S5 26S5 32S5
MODEL
LT-15S5LF LT-15S5TF LT-15S5MF LT-20S5LF LT-20S5TF LT-20S5MF LT-26S5LFH LT-26S5TFH LT-26S5MFH LT-32S5LFH LT-32S5TFH LT-32S5MFH
SYSTEM PAL/SECAM*B/G, D/K, I
SECAM*L/L'
NTSC 3.58/4.43(AV)
PAL N/M
NTSC M
PICTURE Progressive Scan
Skin Tone
Black Strecher
Digital Comb Filter 4H 4H 4H 4H 4H 4H 4H 4H 4H 4H 4H 4H
*DCTI/DLTI
Picture Enhancer
Picture Mode
(Dynamic, Standard, Mild, Game, User)
5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode
SOUND Stereo / NICAM
/ /
US/KOREA/JAPAN
/ /
US/KOREA/JAPAN
/ /
US/KOREA/JAPAN
/ /
US/KOREA/JAPAN
Sound Effect surround Surround Surround surround Surround Surround surround Surround Surround Surround Surround Surround
AVL
(Auto Volume Leveller)
Equalizer
Sound Output 3W x 2 3W x 2 3W x 2 3W x 2 3W x 2 3W x 2 10W x 2 10W x 2 10W x 2 10W x 2 10W x 2 10W x 2
SoundMode
(Flat, Music, Movie, Speech, User)
5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode 5 Mode
TELETEXT Page 10 page 10 page
10 page 10 page 1000 page 1000 page 1000 page 1000 page
TOP/FLOF / / / / / / / /
*WSS
CAPTION Caption / Vchip
/ / / /
OSD MENU/Half Tone
Multi Language
Program List / Edit / / / X / / / X / / / X / / /X
OTHERS Double Window Text
Double Window PIP
PIP(AV/PC, RF/PC, AV/RF)/ POP , , X / , , X / , , X / , , X / , , X / , , X /
Zoom Function
ARC
(Aspect Ratio Control)
FM Radio
Real Clock
HD Ready
DTV Tuner
INPUT HDMITMInput
DVI Input
Component 1(Y/Pb/Pr) 480i/576i 480i~1080i 480i/576i 480i/576i 480i~1080i 480i~1080i 480i~1080i 480i~1080i 480i~1080i 480i~1080i
Component 2 (Y/Pb/Pr) 480i~1080i 480i~1080i 480i~1080i 480i~1080i
S-Video
AV 1 Full SCART PHONE PHONE Full SCART PHONE PHONE Full SCART PHONE PHONE Full SCART PHONE PHONE
AV 2 PHONE Half SCART Half SCART
AV 3
Digital Sound(optical/Coaxial)
D-SUB
PC Audio In
OUTPUT Digital Sound(Optical/Coaxial) COAX COAX COAX COAX COAX COAX
AV Out
Woofer
Headphone
CONTROL RS-232C
RJ11 or RJ45
POWER Power(Internal / Adapter) Adapter(12V / 3.5A)
Adaptor(15V)
Adapter(24V / 6.0A) Internal(SMPS)
Power Consumption 45W 70W below 140 W 150W
Stand By Power Consumption
3W below 3W below 3W below 3W below
DIGITAL
APPLICATION
DPC-YSJ051025
*DCTI/DLTI : Digital Colour Transient Improvement
Digital Luminance Transient Improvement
*WSS : Wide Screen Signaling
Specifications and design are subject to change without notice. Reservation for misprint.
S Model Series
2005/2006 DIBOSS LCD TV
Page 2
Brightness : 500 cd Contrast Ratio : 1000:1
Resolution : 1366 x 768 Viewing Angle : 170(H)x170(V)
Response Time : 8msec
DVB T (Option) ATSC (US)
HD Ready
Radio, Real Clock
1,000 TXT (EU)
LT-32S5*FH
Brightness : 500 cd
Contrast Ratio : 1000:1
Resolution : 1366 x 768
Viewing Angle : 170(H)x170(V)
Response Time : 8msec
DVB T (Option)
ATSC (US)
HD Ready
Radio, Real Clock
1,000 TXT (EU)
LT-26S5*FH
Brightness : 450 cd
Contrast Ratio : 500:1
Resolution: 640 x 480
Viewing Angle: 160(H)x140(V)
Response Time: 16msec
Radio, Real Clock
LT-20S5*F
Brightness : 450 cd
Contrast Ratio : 500:1
Resolution: 1024x768
Viewing Angle: 140(H)x125(V)
Response Time: 16msec
HD Ready(NTSC)
Radio, Real Clock
LT-15S5*F
S Model Series
This easy-to-handle, affordable model will bring you a neat and highly efficient space with its exceptionally
slim design and smart functions.
Its great versatility and many practical functions can be installed easily anywhere in the house at your own demand.
Slim and Smart for Satisfaction
