dibea C01 Instruction Manual

Model: C01

(2-in-1 DC sweeper)

Instruction Manual

Read this user manual carefully before first use. Keep this

manual for further guidance in case.

1 2

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.

RETAIN INSTRUCTIONS FOR FUTURE REFERRENCE.

Do not use in rain or leave outdoors while raining

WARNING: Basic safety precautions should always be observed when

using an electrical appliance, including the following to reduce the risk of fire, electrical

shock, or injury.

Personal Safety:

1, Store indoors in a dry place out of the reach of children;

2, Always use responsibly. This appliance can be used by children aged from 10 years

and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved;

3, Don’t let children play with the appliance; supervise children using or maintaining

the appliance;

4, Use only manufacturer’s recommended attachments as described in this manual;

misuse or use of any accessory or attachment other than those recommended, may

present a risk of personal injury;

5, Take extra care when cleaning stairs;

6, Keep the appliance and accessories away from hot surface;

7, Do not block the appliances openings or hinder air flow, keep openings free of any

objects including dust, lint, clothing, fingers (and all parts of the body);

8, Particularly keep hair away from openings and moving parts;

Electrical Safety:

1, Only use batteries and chargers supplied by the manufacturer;

2, Never modify the charger in any way;

3, The charger has been designed for a specific voltage. Always check that the mains

voltage is the same as that stated on the rating plate;

4, A charger that is suitable for one type of battery pack may create a risk of fire when

used with another battery pack;

5, Before use, check the charger cord for signs of damage or ageing. A damaged or

entangled charger cord increases the risk of fire and electric shock;

6, Don not abuse the charger cord;

7, Never carry the charger by the cord;

8, Do not pull the cord to disconnect from a socket, grasp the plug and pull to

disconnect;

9, Don’t wrap the cord around the charger when storing;

10, Keep the charger cord away from hot surfaces and sharp edges;

11, The supply cord cannot be replaced. If the cord is damaged the charger should be

discarded and replaced.

12, Do not handle the charger or the appliance with wet hands;

13, Do not store or charge the appliance outdoors;

14, The charger must be removed from the socket before removing the battery, cleaning

or maintaining the appliance.

Battery safety:

1, This appliance includes Li-ion batteries, do not incinerate batteries or expose to high

temperatures, as they may explode;

2, Liquid ejected from the battery may cause irritation or burns;

3, In an emergency situation contact professional help immediately;

4, Leaks from the battery cells can occur under extreme conditions. Do not touch any

liquid that leaks from the battery. If the liquid that gets on skin wash immediately with

soap and water. If the liquid gets into the eyes, flush them immediately with clean water

for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the

battery an dispose of immediately in accordance with local regulations;

5, Shorting the battery terminals may cause burns or fire;

6, When the battery pack is not in use, keep it away from paper clips, coins, keys, nails,

screws or other small metal objects that could make a connection from one terminal to

another.

7, When you dispose of the appliance remove the battery and dispose of the battery

safely in accordance with local regulations.

Service:

1, Before using the appliance and after any impact, check for signs of wear of damage

and repair as necessary;

2, Do not use the appliance if any part is damaged or defective;

3, Repairs should be carried out by a service agent or a suitably qualified person in

accordance with relevant safety regulations. Repairs by unqualified persons could be

dangerous;

4, Never modify the appliance in any way as this may increase the risk of personal injury;

5, Only use replacement parts or accessories provided or recommended by manufacturer.

3 4

Intended use:

1, This appliance has been designed for domestic dry vacuum cleaning only;

2, Do not pick up liquids or use on wet surfaces;

3, Do not pick up anything that is flammable, burning or smoking;

4, Use only as described in this manual;

5, Don’t use on concrete, tarmacadam or other rough surfaces.

WARNING:

1, Do not use water, solvents, or polishes to clean the outside of the appliance; wipe

clean with a dry cloth;

2, Never immerse the unit in water and do not clean in a dish washer.

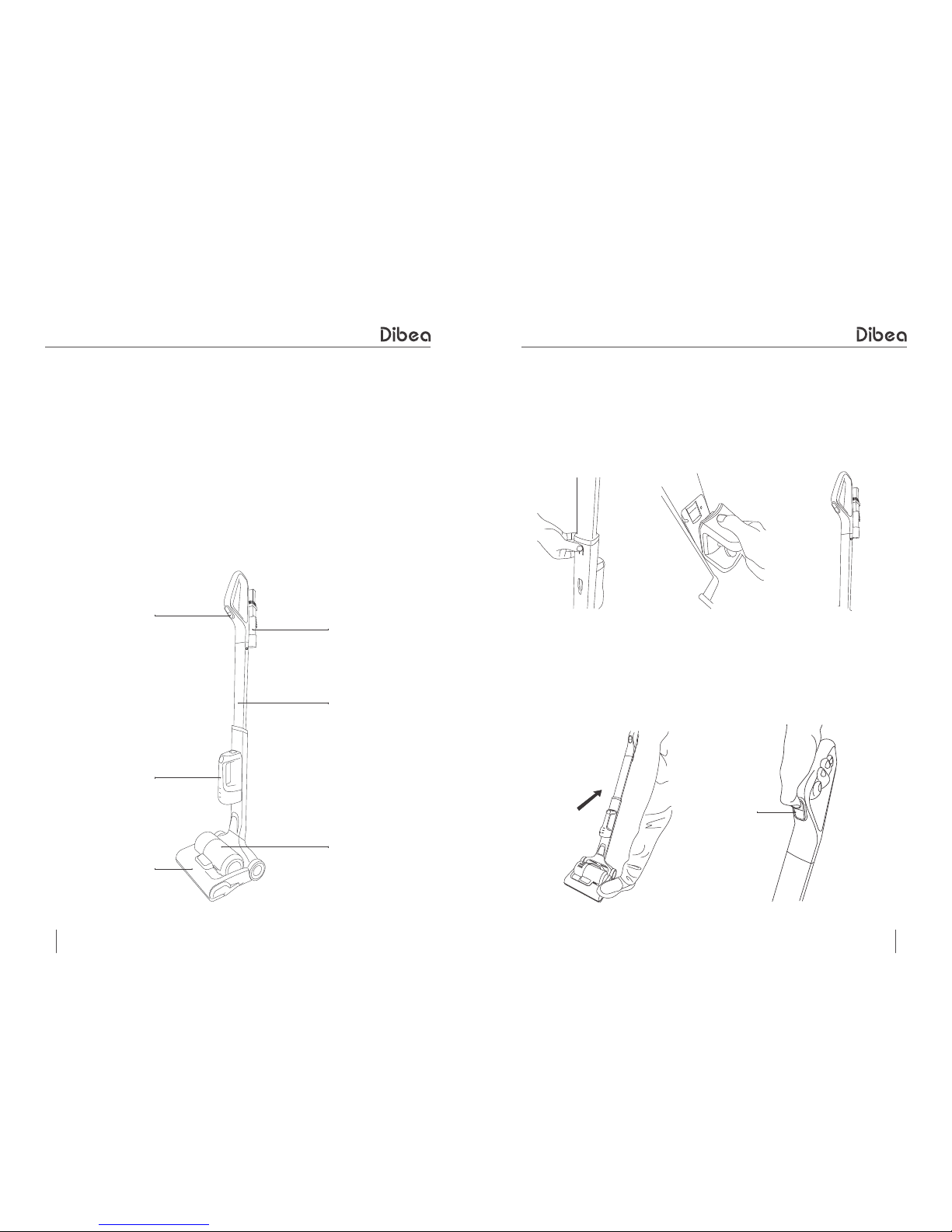

Introduction of components:

Switch button

and +/- button

Handle with

battery inside

Brush

Accessories

and the holder

Handle and

aluminium tube

Dust container

How to use:

I. Use as the sweeper:

1, Assembly:

(a) Slot the handle into place until it clicks;

(b) Pop the battery into place;

(c) Put the accessories and holder into place.

(a) (b) (c)

2, Operation:
(a) Place your foot on the body and pull the handle back;

(b) Press on/off button to turn on;

(c) Press +/- button to adjust speed (two speeds);

+/- button

5 6

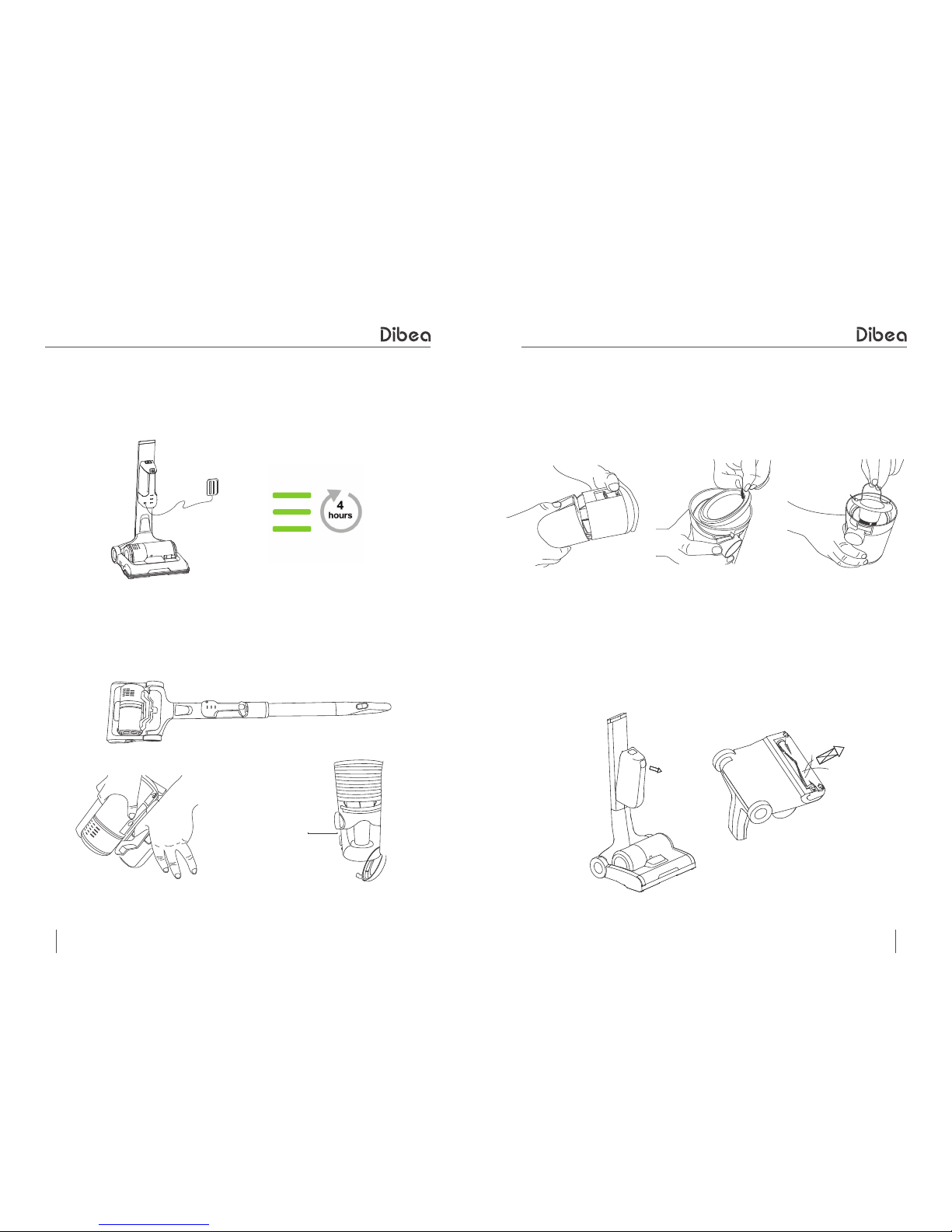

3, Battery charging:

(a) When three lights become off (one by one), recharge the battery;

(b) Plug the charger in and connect it to the battery;

(c) After 4 Hours charging complete, three lights is on green.

4, Emptying the dust bin:

(a) Turn the handle back on the floor;

(b) Using one hand pull the locker, and take off the dust bin with the other hand;

(c) Open the dust bin and clean it.

Bottom cover

releasing button

(a)

(b) (c)

5, Cleaning the filters – do this once a month:

(a) Open the dust bin from upper cover;

(b) Take the sponge filter and cone filter out;

(c) Wash under a tap. Squeeze out any excess water and leave the sponge filter to dry

thoroughly in a warm, well-ventilated place.

(a) (b) (c)

6, Clearing a jam:

(a) If the brush bar jams during use, it will stop and the lights will turn off;

(b) Before checking for a blockage, remove the battery;

(c) Carefully pull any hair or fiber from brush bar.

7 8

(b) Connect the battery pack and dust bin;

(c) Connect the accessory to the dust bin.

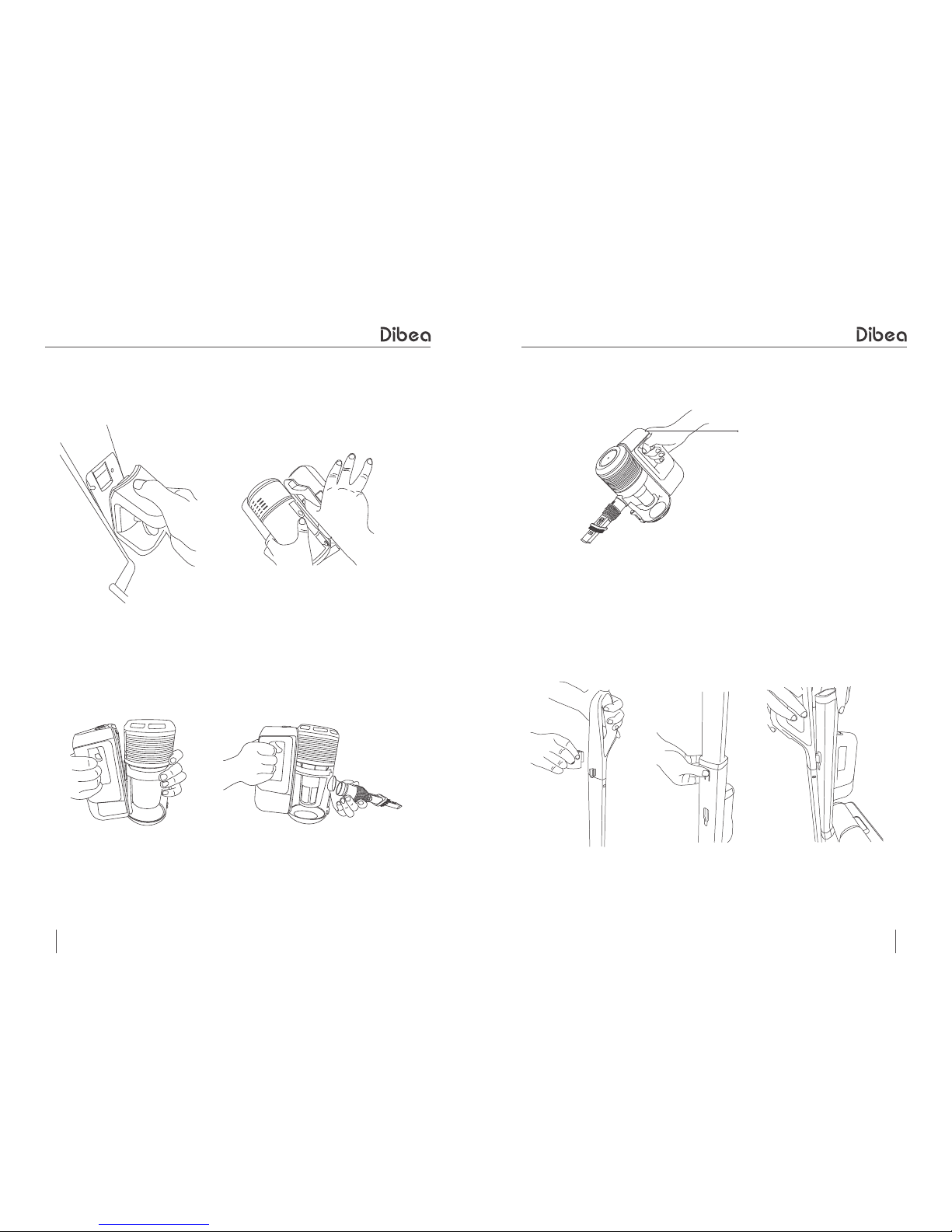

II. Use a handheld vac.:

1, Assembly:

(a) Take out the dust bin and take out the battery pack;

2, Operation:

(a) Press on/off button;

II. Storage of the unit:

(a) Take the accessory holder off the unit

(b) Press the button and take the handle out

(c) Hang the holder to the unit by the hook

(a)

(a)

(b)

(b)

(c)

(c)

On/off button

9 10

TECHNICAL SPECIFICATION:

Not cleaning Well

Stop or won’t work

Battery will not charge

1, Empty the dust bin

2, Check dust bin is correctly fitted

3, Check the filter is correctly fitted

4, Clean the filter

1, Charge battery

2, Clear debris from brush bar

1, Check connections

2, Check wall socket

Battery 22.2V/2200mAh

Charging period 4 hours

Battery charger output 26.5V/500mA

Net Weight 2.8kg

Usage time 40min (low speed), 25min (high speed)

Power 120W

Vacuum 7 Kpa

Airflow 20dm3/s

Providing one-stop household cleaning solution

Suzhou Dibea Electrical Technology Co.,Ltd.

Official website: www.dibea.com
