Page 1
User Guide manual
DIGITAL VOICE RECORDER
MODEL : DDR-5000
January, 2005
Printed in Korea
Page 2
INFORMATION TO THE USER
Changes or modifications not expressly approved by the manufacturer
could void the user’s authority operate the equipment.
This device complies with Part 15 of the FCC Results. Operation is
subject to the following
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
WARNING
two conditions:
Page 3
Preface Safety Precautions
Safety Precautions
Preface
2 3
Thank you for purchasing Diasonic MP3 Player.
Please read this instruction manual carefully before use.
Do not repair, disassemble or modify the unit at your own
discretion.
The memory content may be changed or lost due to misuse, static
electricity or electric shock during the repair or battery change. Be
sure to make a note of important content.
Diasonic assumes no responsibility for any damage caused by
change or loss of memory content.
Do not drop the unit in the water or keep it in any damp
environment.
This instruction manual is subject to change without notice for the
purpose of product improvement.
Precautions :
The MP3 files created for MP3 conversion shall not be used for any
commercial or public purposes. Any violation of the prohibition may
be a breach of copyright laws.
Any unauthorized reproduction of recorded files for any other
purposes than personal use is strictly prohibited by the relevant laws
and regulations.
Copyright
This instruction manual is required for the effective use of Diasonic MP3
Player. Pay special attention not to lose the manual as it is not provided
separately from the unit.
Note
Keep the batteries out of reach of the children. If a child swallowed
a battery, please consult a doctor immediately.
Do not have the battery shorted, disassembled, heated or put in
fire. This may cause leakage, heat, explosion or fire.
If the battery leakage gets in your eyes, wash it off with clean
water, and seek immediate medical treatment. If not, you may lose
your sight.
If the LCD is damaged, do not touch the liquid. If the liquid contacts
your eyes or skin, wash it off with clean water, and seek immediate
medical treatment.
If you use the rechargeable batteries, read the user manuals for
batteries and chargers carefully before use.
Read this instruction manual carefully before use.
Warning
Road safety
Do not use earphones while driving, cycling or operating any
motorized vehicle. It may cause a traffic hazard and is illegal in
some areas. It can also be dangerous to play your earphones at
high volume while walking, especially at pedestrian crossings.
Preventing hearing damage
Avoid using earphones at high volume.
Hearing experts advise against continuous, loud and extended play.
If you experience a ringing in your ears, reduce the volume or
discontinue use.
Using earphones
Page 4
Contents Functions and Features
Functions and Features
Contents
4 5
Preface 2
Safety Precautions 3
Functions and Features 5
Parts and Components 7
Basic Function 11
Buttons 14
FM Radio 19
Mode Menu 21
Main Menu 23
Record in Recording Mode 31
Connecting External Device 32
Installation of Windows 98SE Driver 34
Uninstallation of Windows 98SE Driver 38
Managing Folders and Files 39
Deleting Files 42
Downloading Files 43
Formatting Files 44
Firmware Upgrade 46
General Specification 47
Warranty 50
DIGITAL VOICE RECORDER
- UP TO 16,960 MIN RECORDING TIME(SP MODE AND 1GB)
- 8FOLDERS TO ORGANIZE FILES
- STORE UP TO 128 FILES FOR EACH FOLDER
- CONTINUE FOLDER FUNCTION: AUTOMATICALLY MOVE TO NEXT
FOLDER IF INDEX IS FULL.
- VARIABLE RECORDING MODE (SHQ/HQ/SP IN MP3 FORMAT AND
USER MODE IN MPEG1 LAYER3)
- MIC SESITIVITY ADJUSTABLE IN RECORDING.
- PLAY BACK OPTION IN SLOW/STANDARD/FAST WITHOUT SOUND
DISTORTION.(SPEED CONTROL IS NOT AVAILABLE FOR WMA,
VBR FORMAT FILE.)
- RECORDING INDICATOR WITH RED LED

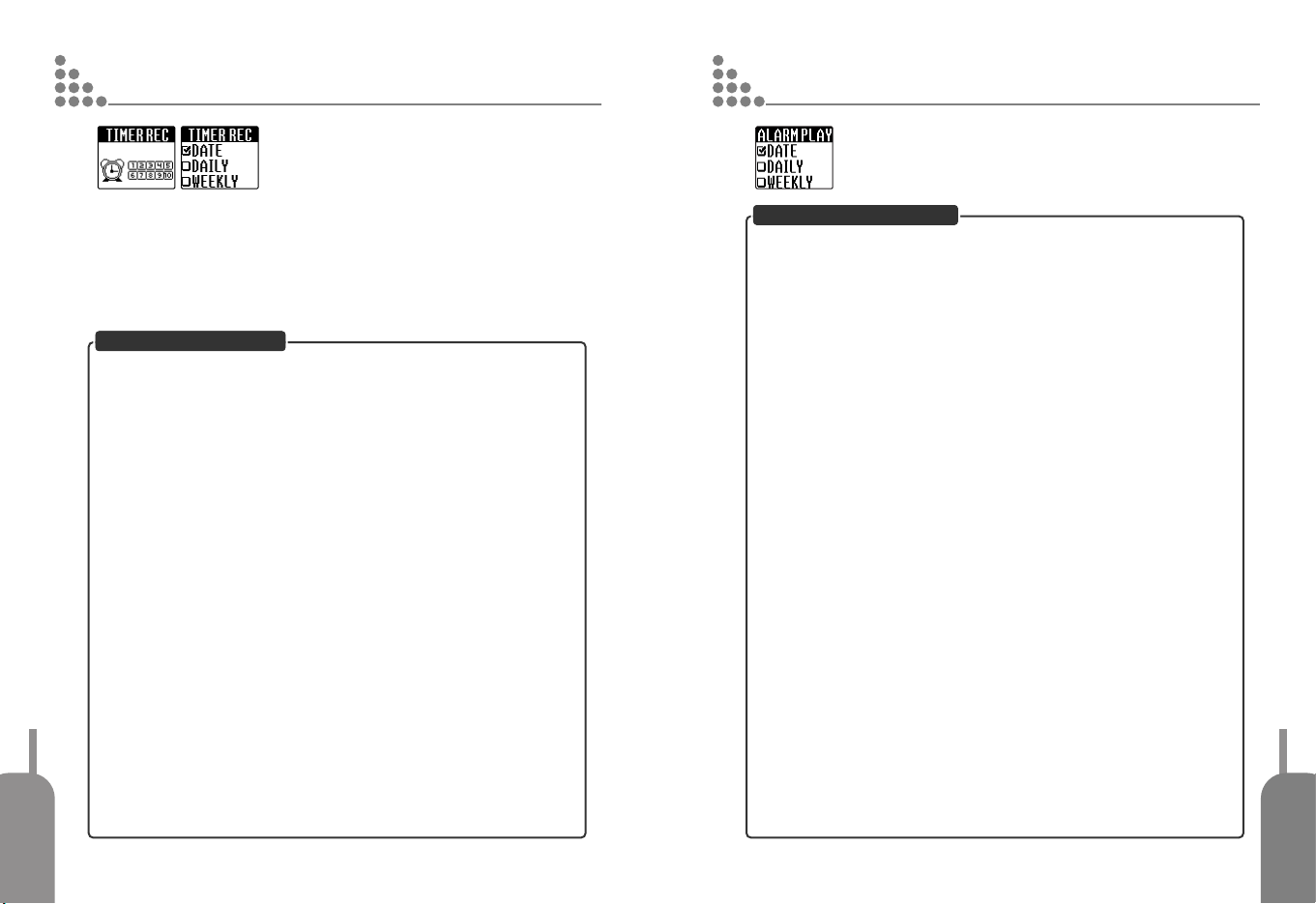

- TIMER RECORDER UP TO 3 DAILY, WEEKLY AND SPECIFIC DATE
- 2 MODES OF ARS(AUTOMATIC RECORDING SYSTEM)
MODE A: ALL MESSAGES ARE RECORDED INTO 1 INDEX
FILE.
MODE B: EACH MESSAGE HAS ITS OWN INDEX FILE IN
SEQUENCE AFTER 3 SECONDS WITH NO SOUND
BETWEEN PREVIOUS AND NEXT FILE.
- PAUSE AND RESUME
- MONITERING: MONITERING THE RECORDING BY EARPHONE ON
RECORDING.
MASS STORAGE
- SIMPLY CONNECT IT TO PC. NO REQUIRED OPERATING
PROGRAM & DRIVER CD(EXCEPTING WINDOWS 98SE)
- PC AND MAC COMPATIBLE
- EASY DRAG AND DROP FILE TRANSFERENCE
FM RADIO
- ENCODING FM BROADCASTING
- 10 FREQUENCY PRESET
Page 5
Functions and Features Parts and Components
Parts and Components
Functions and Features
6 7
MP3/WMA PLAYER & ENCODER
- ID3 TAG SUPPORT(ARTIST/TITLE)
- SCROLL SPEED CONTROLLING
- MULTI LANGUAGE SUPPORT
- 5EQ (NORMAL/CLASSIC/LIVE/POP/ROCK)
- SYNC FUNCTION:AUTOMATICALLY RECOGNIZE THE END AND
BEGINNING OF THE MUSIC FROM EXTERNAL
AUDIO DEVICE IN RECODING THRU
CONNECTING AUDIO CABLE AND RECORD.
USER EASILY UPGRADES NEW FIRMWARE PROVIDED BY MAKER
EASY-TO-USE BUTTON FOR QUICK NAVIGATION THROUGH FOLDERS
AND OPTIONS
SET UP THE ALARM TO PLAY AUTOMATICALLY AS A REMINDER TO
MEETING, BIRTHDAY AND MORE.
EASY-TO-READ ALL STATUS ON THE LARGE BACKLIGHT LCD DISPLAY
WITH DOT MATRIX
VARIABLE FLASH MEMORY UP TO
1G(64MB/128MB/256MB/512MB/1GB)
23HOURS PLAY BACK WITH 2 AAA BATTERIES(VOICE MODE)

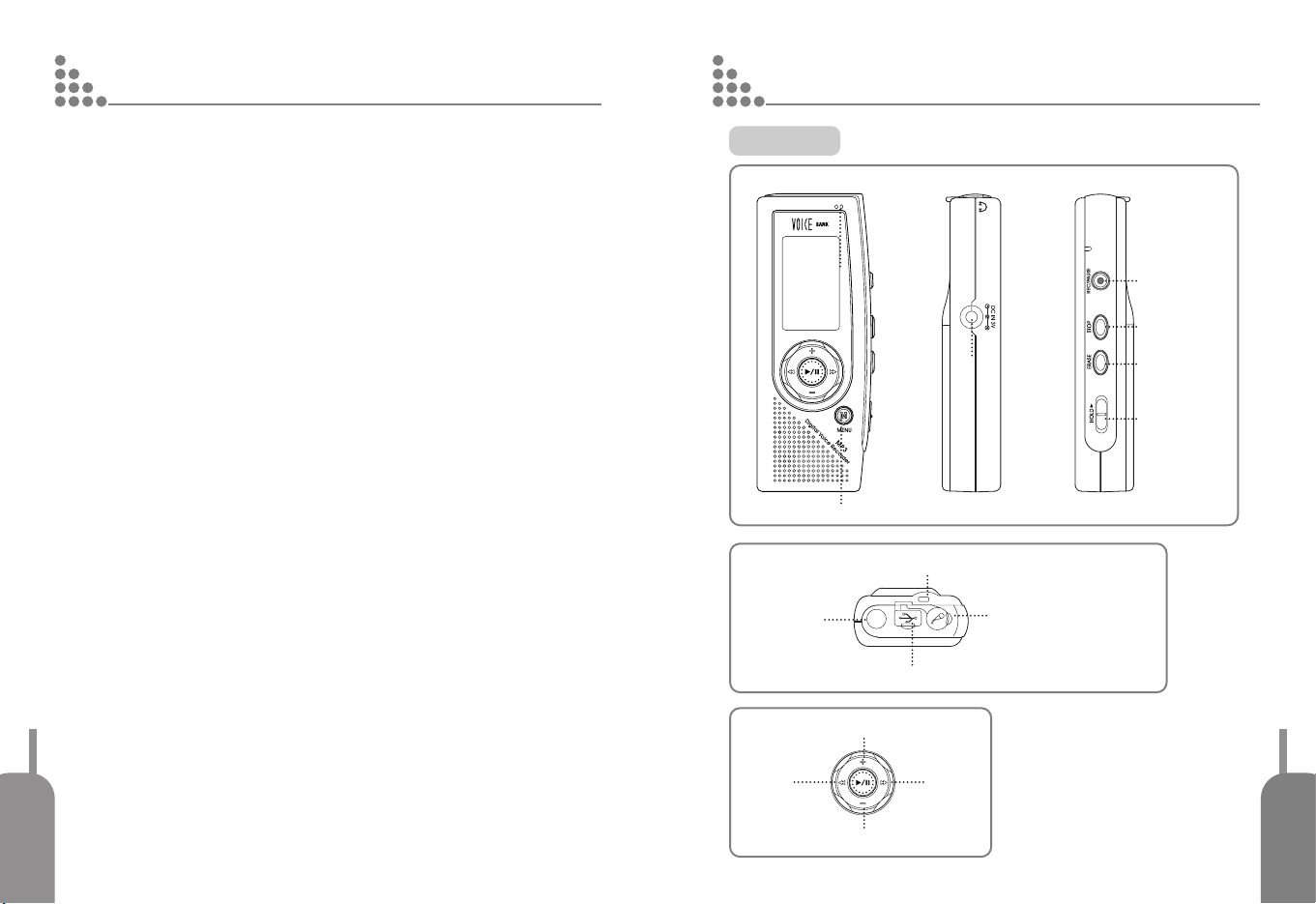

Main set
USB JACK
EARPHONE
NECK STRAP HOLDER
MIC & LINE-IN JACK
VOLUME -
REW
VOLUME +
FF
INTERNAL MIC
DC JACK
REC/PAUSE
STOP
ERASE
HOLD
MENU
Page 6
TIMER ON/OFF ALARM ON/OFF
ARS ON/OFF 3D SOUND ON/OFF
REPEAT INTRODUCTION PLAY BACK
L/R SPECTRUM BATTERY STATUS
Parts and Components Parts and Components
Parts and Components
Parts and Components
8 9

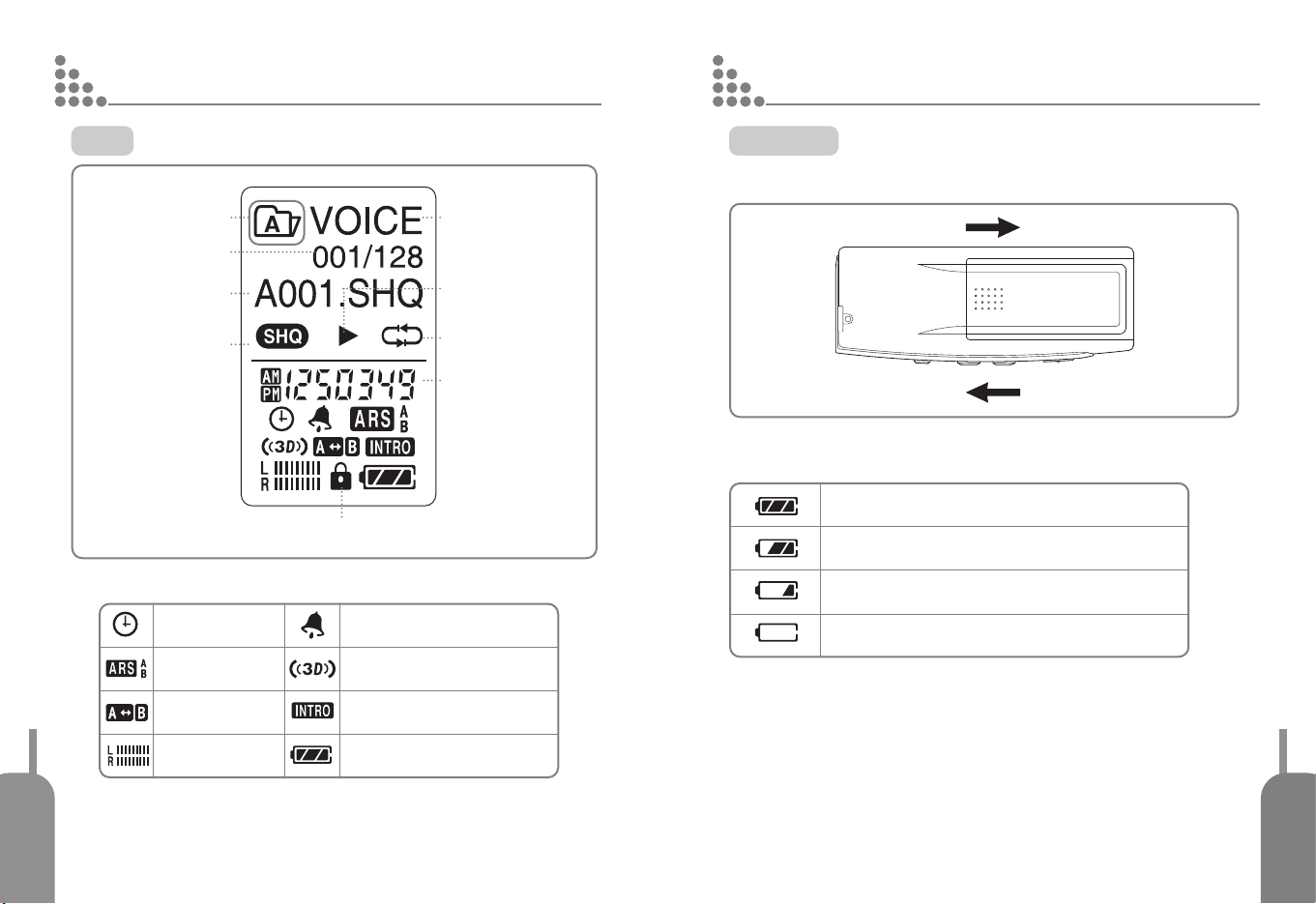

LCD BATTERY
FOLDER MODE
PLAY/STOP/PAUSE
/REC/REW/FF
REPEAT
TIME
FILE
INFORMATION
SYNC /BIT RATE
/EQ /SPEED
INDEX
INFORMATION
HOLD
1) P U T BAT T ER IES (LR03 TYPE)
2) BATTERY POWER STATUS INDICATOR
OPEN
CLOSE
FULL CHARGED
SOME POWER CUSTOMED
THINKING OF CHANGING BATTERY
CHANGE BATTERY
CHECK THE POLARITIES OF THE BATTERIES IF LCD DISPLAY
DOESN’T TURN ON AFTER INSERTING NEW BATTERIES.

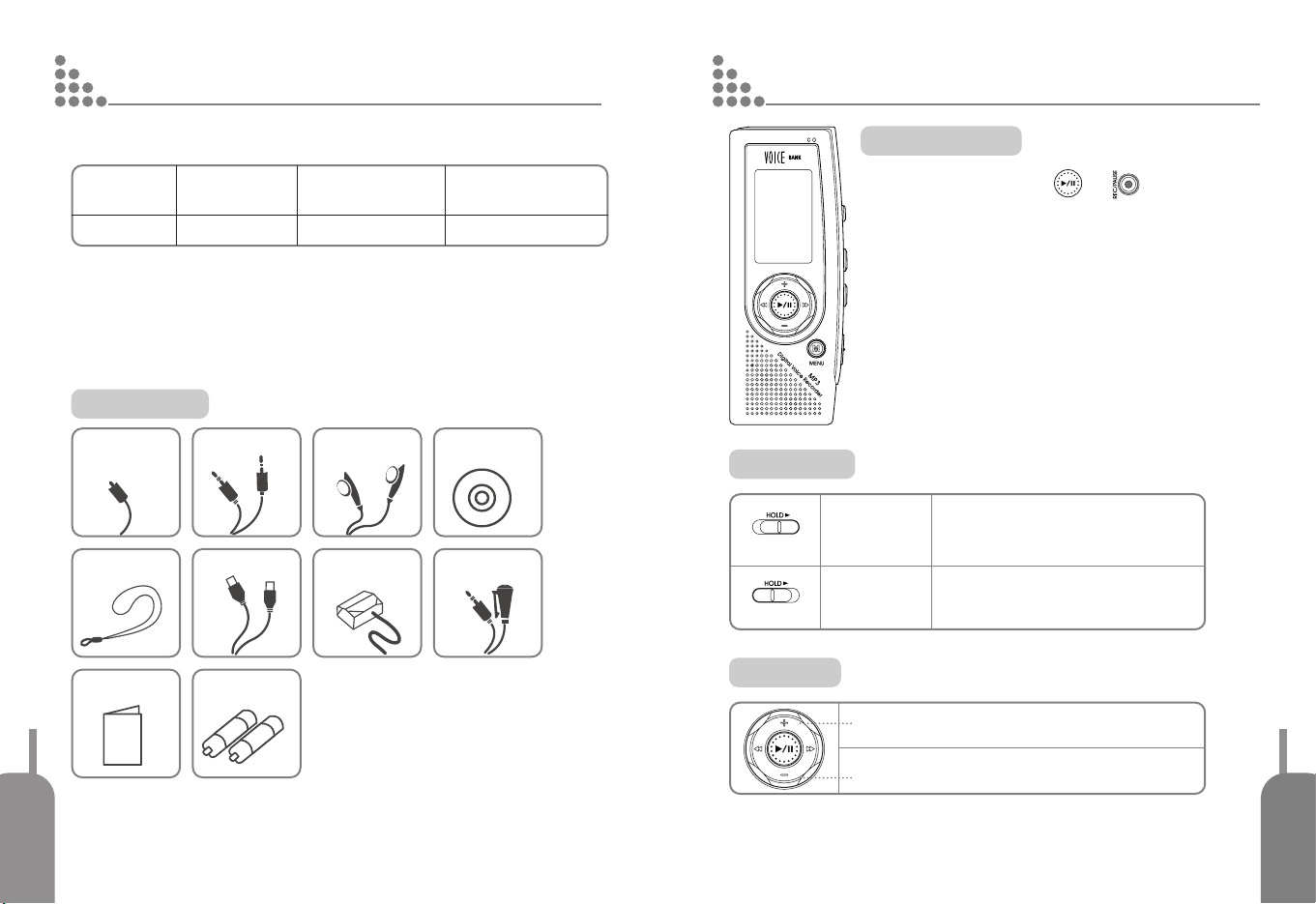

Page 7
Parts and Components Basic Function
Basic Function
Parts and Components
10 11
3) TYPICAL BATTERY LIFE TIME(VOICE MODE)
BATTERY TYPE RECORDING PLAYBACK VIA SPEAKER PLAYBACK VIA EARPHONE
(VOLUME:MEDIUM) (VOLUME:MEDIUM) (VOLUME:MEDIUM)
2 AAA LR03 APPROX. 13HRS APPROX. 13HRS APPROX.23HRS
- BATTERY LIFE MAY BE DIFFERENT FROM ABOVE MENTIONED TIME
ACCORDING TO BATTERY BRAND & CONDITION.
- DO NOT USE DIFFERENT TYPE AND BRAND BATTERY TOGETHER.
- WHEN THE DEVICE IS LEFT UNUSED FOR A LONG TIME, REMOVE
BATTERIES.
ACCESSARY
External
Antenna
Line-in/out
Cable
Storeo
Earphone
PC install
CD for win98SE
Neck Strap USB Cable Telephone
Adaptor
ExternalMic
User’s Guide Battery
TO TURN ON, HOLD THE OR KEY FOR 2-3
SECONDS.
TO TURN OFF, HOLD THE STOP KEY AGAIN WITH
LONG KEY(over 3secs).
IF USB CABLE IS CONNECTED, AUTOMATICALLY
POWER IS ON.
IF YOU PUT THE BATTERY TO DDR-5000 FOR THE
FIRST TIME, “A” FOLDER IN THE VOICE MODE WILL
DISPLAY.
BEFORE USING THE DEVICE, WE RECOMMAND TO
SET UP THE TIME AND DATE FOR ALARM &
RESERVED RECORDING FUNCTIONS.
TURN ON/OFF
HOLD KEY
HOLD ON ALL KEYS WON’T WORK.
WILL DISPLAY ON THE LCD.
HOLD OFF ALL KEYS WORK PROPERLY.
VOLUME
VOLUME UP BY PRESSING “+” KEY.
VOLUME DOWN BY PRESSING “-” KEY.
VOLUME CAN BE ADJUSTABLE WITHIN 30 LEVEL(0-30).
IF TURN ON, DEFAULT VOLUME(20) IS SET UP AUTOMATICALLY.
Page 8
Basic Function Basic Function
Basic Function
Basic Function
12 13

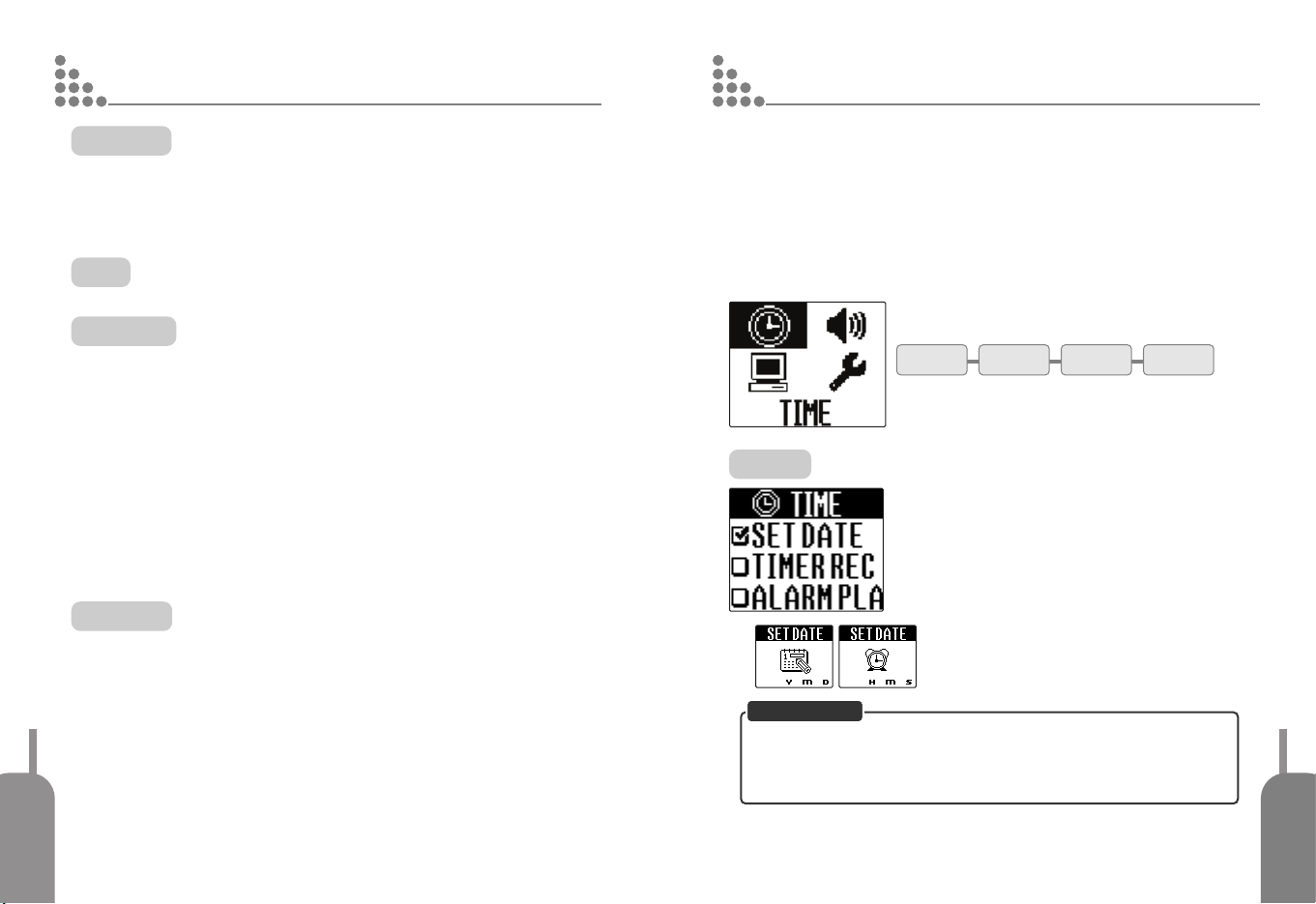

BY PRESSING MENU BUTTON FOR 1-2 SECONDS, MODE MENU WILL
DISPLAY.
FOR MOVING TO THE MODE WANTED, PRESS “REW/FF” BUTTON.
SELECT THE MODE BY PRESSING “PLAY/PAUSE” BUTTON.
CHANGING MODE
THIS IS FOR PLAYING THE FIRST FEW SECONDS OF EVERY TRACK
FOR QUICK REVIEW OF VOICE FILES OR MUSIC. PRESS “PLAY AND
PAUSE” BUTTON DURING PLAYING BACK. THE ICON APPEARS
ON THE LCD AND THE FIRST 5, 10 OR 15SECONDS OF EVERY TRACK
PLAY, DEPENDING ON THE SELECTED TIME.
MENE BUTTON WITH LONG KEY -> TIME -> INTRO TIME(5, 10 OR 15
SECONDS)
INTRO PLAY
TO DESIGNATE A SPECIFIC SECTION TO PLAY REPEATEDLY, PRESS
THE “REC/PAUSE” BUTTON AT THE BEGINNING OF THE DESIRED
SECTION FOR 1SECOND DURING PLAYING BACK. IF SO,THE IS
DISPLAYED AND PRESS “REC/PAUSE” BUTTON AGAIN AT THE ENDING
POINT. THE ICON APPEARS AND THE SELECTED SECTION
REPEATEDLY PLAYS. TO END THE “A<->B PLAY”, PRESS “REC/PAUSE”
BUTTON AGAIN.
A<->B REPEAT PLAY
VOICE MUSIC L-IN ENC FM ENC FM B-MARK FOLDER
A CURRENT SPEED DISPLAYS ON THE LCD BY PRESSING
“REC/PAUSE” BUTTON FOR 2-3SECONDS DURING PLAYBACK. TO
SELECT DESIRED SPEED (STANDARD(100%), FAST(120%) OR
SLOW(80%)) BY PRESSING “REC/PAUSE” BUTTON FOR 2-3SECONDS
DURING PLAYBACK. IF STOP, SPEED IS BACK TO STANDARD.
(SPEED CONTROL IS NOT AVAILABLE TO WMA, VBR FILE FORMAT.)
PLAYBACK SPEED CONTROL
WHEN FILE PLAYS BACK, REPEAT MODE CHANGES BY PRESSING
“ERASE” BUTTON FOR 2-3SECONDS.
REPEAT
TO BOOKMARK A SELECTED MP3, WMA FILE, PRESS “STOP” BUTTON
IN STOP FOR 1SECOND. FOR RELEASE THIS FUNCTION, PRESS
“STOP” BUTTON ONCE AGAIN.
“BOOKMARK” IS AVAILABLE IN THE MUSIC, LINE-IN ENC, FM ENC
MODE.
BOOKMARK SETTING
WHEN THE UNIT IS CONNECTED TO A PC VIA USB CABLE, USB ICON
APPEARS ON THE LCD. IN THIS CASE, PLAYBACK IS NOT AVAILABLE.
PC CONNECTION
ON PLAYING MP3 FILE BACK, USER CAN SELECT
NORMAL/CLASSIC/LIVE/POP/ROCK BY PRESSING “ERASE” BUTTON.
NORMAL/CLASSIC/LIVE/POP/ROCK IS CHANGED BY PRESSING
“ERASE”.
EQUALIZER
Page 9
Buttons Buttons
BUTTONS
BUTTONS
14 15
VOICE MODE
BUTTON OPERATION
THE STATUS OF SET
STOP PLAYBACK RECORDING
PLAY/ SHORT PLAYBACK PAUSE REMAINING TIME
PAUSE
LONG - INTRO PLAY -
SHORT
GO TO NEXT FILE GO TO NEXT FILE INCREASE INDEX
FF
AND PLAY (AFTER 5SECONDS)
LONG
GO TO NEXT FILE S-FORWARD
IN SEQUENCE CURRENT FILE -
SHORT
GO TO PREVIOUS GO TO BEGINNING
FILE OF THE FILE, IF PLAY
CURRENT FILE OVER
5SECONDS. PLAY -
REW PREVIOUS FILE,
IF PLAY FILE UNDER
5 SECONDS
LONG
GO TO PREVIOUS FILE
S-BACKWARD -
IN SEQUENCE
CURRENT FILE
SHORT
ENTERING MODE ENTERING MODE -
MENU
OR RELEASE OR RELEASE
/MODE
LONG
ENTERING MENU ENTERING MENU OR RELEASE OR RELEASE
VOLUME+
SHORT VOLUME UP VOLUME UP VOLUME UP
LONG AUTO VOLUME UP AUTO VOLUME UP AUTO VOLUME UP
VOLUME-
SHORT VOLUME DOWN VOLUME DOWN VOLUME DOWN
LONG AUTO VOLUME AUTO VOLUME AUTO VOLUME DOWN
DOWN DOWN
SHORT RECORDING A<->B REPEAT PAUSE
REC
LONG
RECORDING PLAYBACK SPEED -
/PAUSE CONTROL
BUTTON OPERATION
THE STATUS OF SET
STOP PALYBACK RECORDING
ERASE SHORT ERASE 1 FILE - -
ERASE ALL FILES
(HOLD 2SECOND)
LONG ERASE ALL CHANGING REPEAT -
FOLDER(HOLD
2SEC.+2SEC.)
STOP
SHORT
- STOP CURRENT FILE STOP RECORDING
FILE
LONG POWER OFF POWER OFF -
HOLD HOLD HOLD HOLD
Page 10
Buttons Buttons
BUTTONS
BUTTONS
16 17

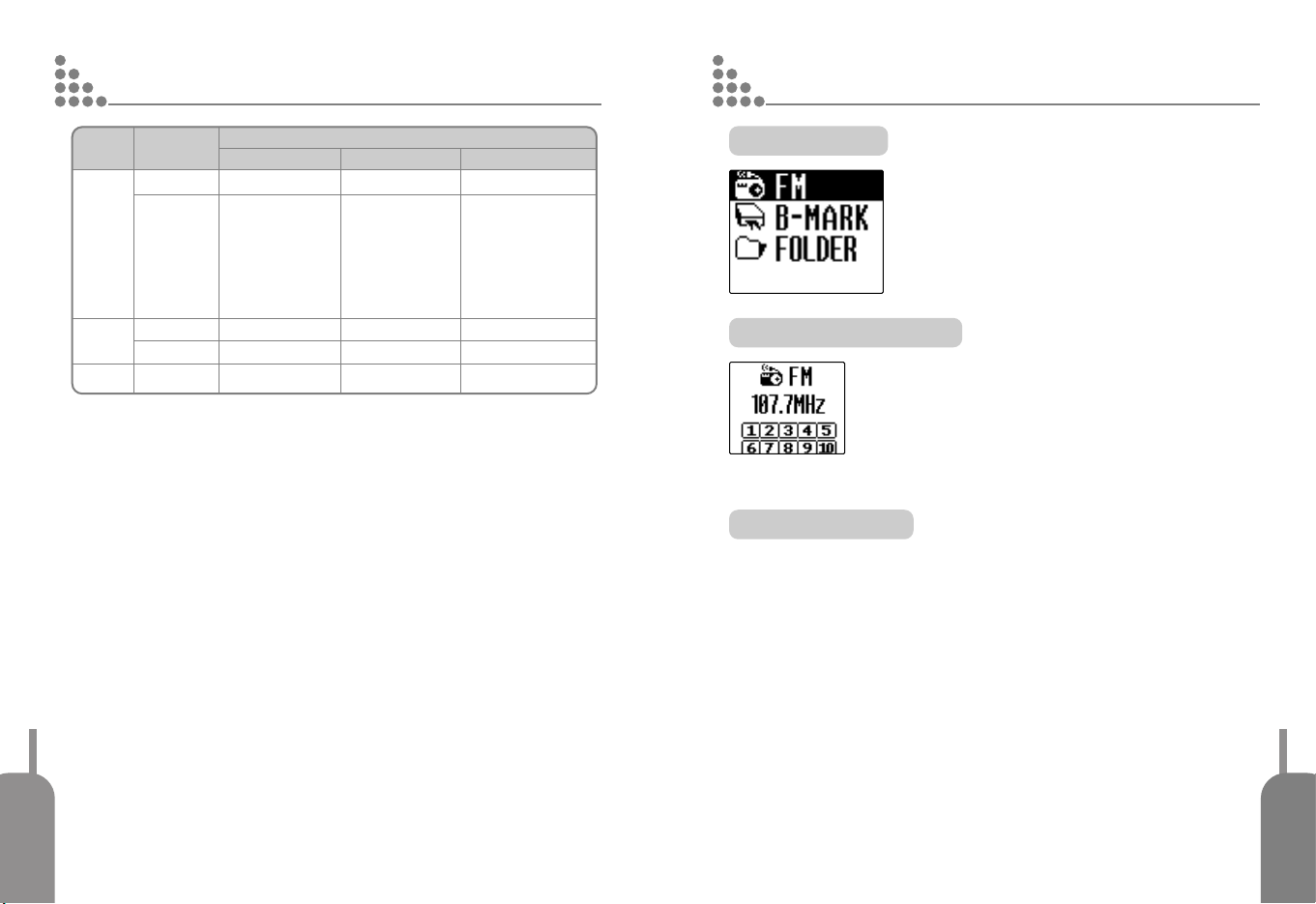

FM R ADIO MODE MUSIC/L-IN ENC/FM ENC MODE
BUTTON OPERATION
MODE
FREQUENCY MODE PRESET MODE SET UP THE STATION
PLAY
SHORT ENTERING SETTING - SETTING STATION
/PAUSE STATION
LONG PRESET FREQ. MODE -
SHORT TUNE FM FREQ. FORWARD NEXT CHANNEL UP
FF SLIGHTLY PRESET CH.
LONG AUTO SEEK + - -
SHORT TUNE FM FREQ. FORWARD PREVIOUS CHANNEL DOWN
REW SLIGHTLY PRESET CH.
LONG AUTO SEEK - -
SHORT VOLUME UP VOLUME UP VOLUME UP
VOLUME+ LONG VOLUME UP VOLUME UP VOLUME UP
AUTOMATICALLY AUTOMATICALLY AUTOMATICALLY
SHORT VOLUME DOWN VOLUME DOWN VOLUME DOWN
VOLUME- LONG VOLUME DOWM VOLUME DOWM VOLUME DOWM
AUTOMATICALLY AUTOMATICALLY AUTOMATICALLY
REC/PAUSE
RECORDING RECORDING -
ERASE - - -
STOP
SHORT STOP THE SEEK
LONG POWER OFF POWER OFF POWER OFF
HOLD HOLD HOLD HOLD
SHORT ENTERING MODE ENTERING MODE -
MENU OR RELEASE OR RELEASE
/MODE LONG ENTERING MENU ENTERING MENU -
OR RELEASE OR RELEASE
IF THERE IS NO KEY OPERATION WITHIN 5SECS, THIS
FUNCTION WILL BE RELEASED.
EARPHONE WORK AS AN EXTERNAL ANTENNA FOR INCREASING
RECEPTION. STRETCH IT OUT.
MP3/ L-IN/EM ENC MODE
BUTTON OPERATION
THE STATUS OF SET
STOP PLAYBACK RECORDING
PLAY/ SHORT PLAY PAUSE REMAINING TIME
PAUSE
LONG - INTRO PLAY -
SHORT
GO TO NEXT FILE GO TO NEXT FILE INCREASE INDEX
FF
AND PLAY (AFTER 5SECONDS)
LONG
GO TO NEXT FILE S-FORWARD
IN SEQUENCE CURRENT FILE -
SHORT
GO TO PREVIOUS GO TO BEGINNING
FILE OF THE FILE, IF PLAY
CURRENT FILE OVER
5SECONDS. PLAY -
REW PREVIOUS FILE,
IF PLAY FILE UNDER
5 SECONDS
LONG GO TO PREV S-BACKWARD -
IOUS FILE CURRENT FILE
IN SEQUENCE
MENU SHORT ENTERING MODE ENTERING MODE -
/MODE OR RELEASE OR RELEASE
LONG ENTERING MENU ENTERING MENU -
OR RELEASE OR RELEASE
VOLUME+
SHORT VOLUME UP VOLUME UP VOLUME UP
LONG AUTO VOLUME UP AUTO VOLUME UP AUTO VOLUME UP
SHORT VOLUME DOWN VOLUME DOWN VOLUME DOWN
VOLUME- LONG AUTO VOLUME AUTO VOLUME AUTO VOLUME DOWN
DOWN DOWN
SHORT RECORDING A
B REPEAT PAUSE
REC
/PAUSE LONG RECORDING PLAYBACK SPEED -
CONTROL
Page 11
Buttons FM Radio
FM Radio
BUTTONS
18 19
BUTTON OPERATION
THE STATUS OF SET
STOP PALY RECORDING
SHORT ERASE 1 FILE EQUALIZER -
ERASE ALL FILES
ERASE (HOLD 2SECOND)
LONG ERASE ALL FOLDER CHANGING REPEAT -
(HOLD 2SEC.
+2SEC.)
SHORT BOOKMARK STOP STOP RECORDING
STOP
LONG POWER OFF POWER OFF -
HOLD HOLDHOLD HOLD
TURN ON FM
AUTOMATIC TUNING
PRESET STATION
TURN ON THE SET AND SELECT FM
IN THE MENU.
FOR THE AUTOMATIC TUNING PRESS AND HOLD
FORWARD OR REWIND BUTTON FOR 2SECONDS. THE
TUNNER AUTOMATICALLY SCAN AND STOP ON THE
NEXT STATION WITH A STRONG SIGNAL. IN AREA
WITH WEAK RECEPTION, PRESS THE FAST FORWARD
OR REWIND BUTTON TO FIND A CLEAR STATION.
AFTER SELECTING THE WANTED FREQUENCY BY “REW/FF”, PRESS
“PLAY/PAUSE”. IF SO, THE CHANNEL 1 IS BLIKING. AT THIS TIME,
MOVE TO THE CHANNEL TO SAVE BY PRESSING REW/FF AND SAVE IT
BY PRESSING “PLAY/PAUSE”.
CHANNEL CAN BE CHECKED BY PRESSING “PLAY/PAUSE”
FOR 2-3SECONDS AT THE FREQUENCY MODE.
Page 12
FM Radio Mode Menu
Mode Menu
FM Radio
20 21
RECORDING FM
IF YOU WOULD LIKE TO RECORD THE PRESENT LISTENING TO
STATION, PRESS “REC” BUTTON.
THE RECORDED FILE IS STORED AT “FM ENC” FOLDER WITH FILE
NAME “FM001_048KBPS_20040101_010101.MP3” AND THE FILE NAME
IS SEQUENTLY NAMED IN ORDER.
NOISE MAY OCCUR WHEN RECORDING FM IN WEAK COVERAGE OR
INSIDE OF THE BUILDING. IF SO, MOVE TO STRONG COVERAGE
TO RECEIVE BETTER FM QUALITY.
THE EARPHONE WORKS AS AN ANTENNA, SO EXTEND IT AS MUCH
AS IT CAN DO.
FOR BETTER RECEPTION OF FM, USE THE EARPHONE AND WHEN
LISTENING TO FM THRU EXTERNAL SPEAKER, PLUG PROVIDED
EXTERNAL ANETNNA TO THE DEVICE.

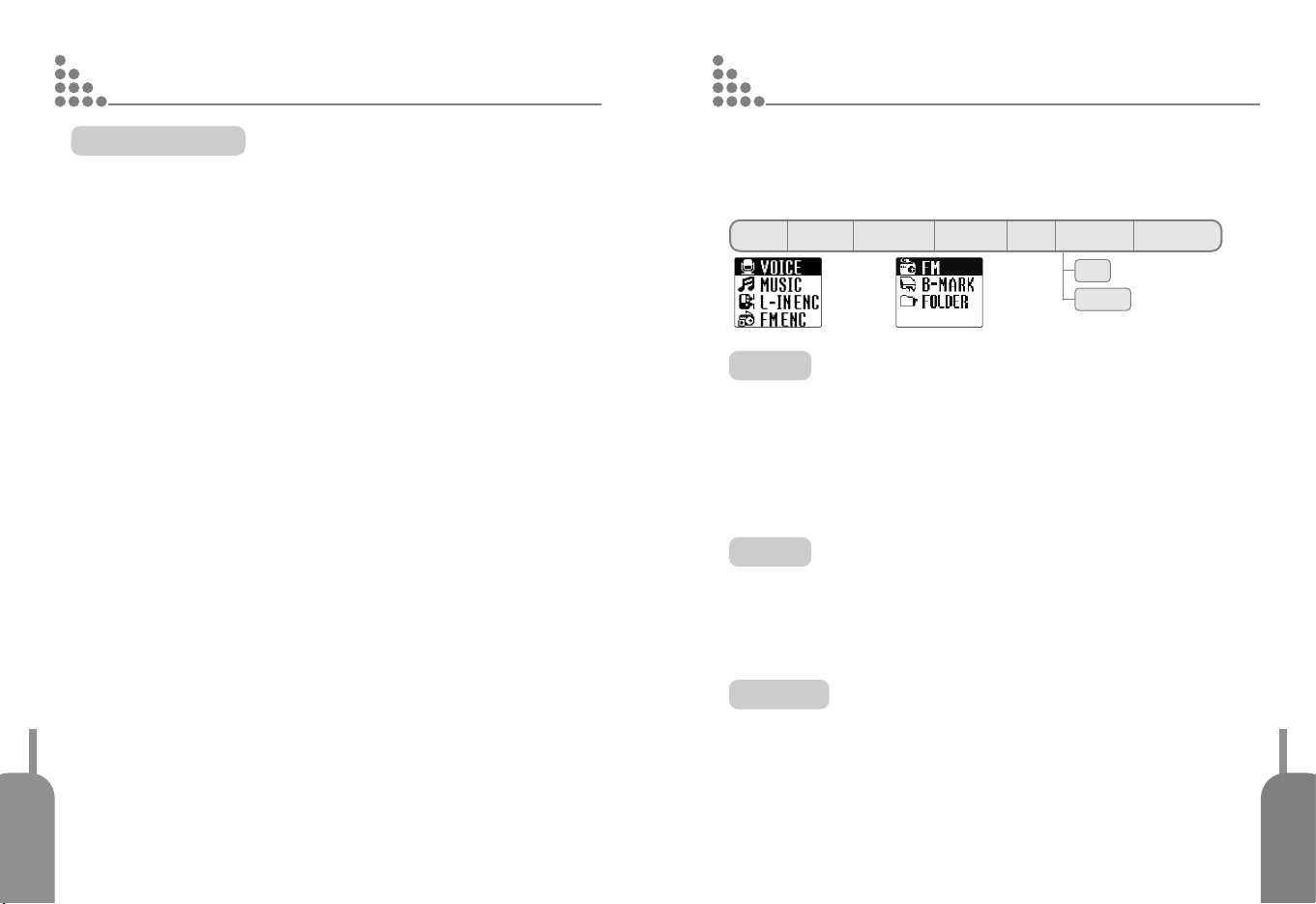

YOU CAN GO TO “MODE MENU” BY PRESSING “MENU” BUTTON FOR
1 SECOND.
MODE MENU IS CONSIST OF BELOW MODE. TO MOVE TO ANOTHER
MODE, USE “REW/FF” BUTTON.
VOICE MUSIC L-IN ENC FM ENC FM B-MARK FOLDER
M3U
B-MARK
VOICE
PLAY BACK VOICE FILE RECORDED IN VA001008KBPS_20040101_010101.MP3 TYPE. FILE NAME IS STAMPED IN
SEQUENCE.
VOICE MODE HAS 8 SUBORDINATED FOLDER AND WITHOUT
SELECTING THE SPECIFIC FOLDER THAT USER WANT TO SAVE, EACH
FOLDER CAN STORE 128FILES.
MUSIC
MP3 AND WMA PLAY IN THE SET, BUT IN VOICE, L-IN ENC AND FM
EM ENC FOLDER IS NOT PLAYED.
BOOKMARK ON PLAYING FILE IS AVAILABLE.
999 FILES CAN BE RECORDER AS MUCH AS MEMORY IS AVAILABLE.
L- I N E N C
PLAY THE FILE IN L-IN ENC FOLDER.
FILE IS STAMPED IN LI001_128KBPS_20040101_010101.MP3. IN
SEQUENCE.
256FILES CAN BE RECORDED AS MUCH AS MEMORY IS AVAILABLE.
Page 13
Mode Menu Main Menu
Main Menu
Mode Menu
22 23
FM ENC
PLAY THE FILE IN FM ENC FOLDER.
FILE IS STAMPED IN FM001_128KBPS_20040101_010101.MP3. IN
SEQUENCE.
256FILES CAN BE RECORDED AS MUCH AS MEMORY IS AVAILABLE.
TO ENTER INTO “MAIN MENU”, PRESS “MENU” BUTTON FOR 23SECONDS.
“REW/FF” BUTTON WORKS AS A MOVING BUTTON TO ANOTHER
FUNCTION AND PRESS “PLAY/PAUSE” BUTTON FOR SELECTION OF
THE FUNCTION YOU WANT. BY PRESSING MENU BUTTON AGAIN,
YOU CAN GO OUT OF SUBORDINATE MENU. IF YOU DO NOT
OPERATE ANY BUTTON AFTER ENTERING INTO MENU FOR 30
SECONDS, AUTOMATICALLY MENU FUNCTION WILL BE RELEASED.
FM
RECEVING RADIO STATION.
B-MARK
B-MARK
STORE FAVOITE SONGS.(2OFILES ARE AVAILABLE.)
BOOKMARK IS SET BY PRESSING STOP BUTTON ON THE MUSIC, L-IN
ENC, FM_ENC MODE.
BOOKMARK IS DISPLAYED ON THE FILE INFORMATION.
M3U(WIN AMP)
INITIALY PLAYLIST FOLDER OF M3U EXSITS AND M3U FORMAT FILE
CAN BE SAVED AND PLAYED.
32 FILES CAN BE STORAGED.
THE FONT IN THE SET MUST BE SAME AS THE FONT SELECTED IN
M3U FILE.
FOLDER
IF SETTING THIS MENU, ALL FOLDERS ARE DISPLAYED EXCEPTING VOICE,FM_ENC,
L-IN_ENC, PLAYLIST FOLDER.
IN SETING THE FOLDER, YOU CAN SEE FILE INFORMATION AND ONLY PLAY
MP3/WMA FILE IN THE SELECTED FOLDER. USER CAN ENTER INTO A SELECTED
FOLDER BY PRESSING “PLAY” BUTTON IN FOLDER MODE. BY PRESSING “VOL +” OR
“VOL –“, USER GOES INTO A SELECTED FOLDER OR ESCAPES FROM A CURRENT
SELECTED FOLDER.
FOLDER SUPPORT SPEC.
- ROOT:256ENTRY(FOLDER+FILE)
- SUB DIRECTORY DEPT: 10DEPT INCLUDING ROOT
- LIMITATION OF SUB DIRECTORY: 512( EXCLUDING ROOT AND RECORD FOLDER)
TIME SOUND DISPLAY SYSTEM
TIME
USER CAN SET UP THE TIME RELATED TO
PLAYER’S SYSTEM ON THIS MENU.
THIS MENU CONSISTS OF SET DATE, TIMER
REC, ALARM PLAY, POWER OFF TIME, SLEEP
TIME, INTRO TIME.
1.
SET DATE :
USER SETS UP DATE AND TIME.
SET UP DATE
- ENTER INTO TIME MENU AND SELECT “SET DATE”.
- SET UP THE YEAR, MONTH, DAY WHEN YOU WANT BY PRESSING “REW/FF”
BUTTON FOR MOVEMENT AND “PLAY/PAUSE” BUTTON FOR SELECTION.
Page 14
Main Menu Main Menu
Main Menu
Main Menu
24 25
2.
TIMER REC : RESERVATION RECORDING.
(UP TO 10 AVAILABLE)
USER MUST SET UP “SET DATE” FIRST.
- ON THE SETTING DISPLAY, NO. 1 CHANNEL WILL BE
BLINKING.
- MOVE TO THE SPECIFIC NO. YOU WANT TO SET UP BY
PRESSING “REW/FF” BUTTON AND PRESS “PLAY/PAUSE”
BUTTON FOR SELECTION.
SETTING UP TIMER REC
- THE FUNCTION HAS DATE/DAILY/WEEKLY, 3 MODES.
1. DATE (1 TIME)
a. ENTER INTO DATE.
SET UP YEAR, MONTH, DAY BY PRESSING “REW/FF” FOR MOVING AND
“PLAY/PAUSE” FOR SELECTION.
b. IF IT IS COMPLETED, AUTOMATICALLY DISPLAY TRANFERS TO TIME
SETTING DISPLAY.TIME SETTING IS SAME AS THE PROCEDURE OF DATE.
2. DAILY (PLAYBACK AT THE SAME TIME EVERYDAY)
a. ENTER INTO DAILY.SET UP HOUR, MINUTE AND SECOND BY PRESSING
“REW/FF” FOR MOVING AND “PLAY/PAUSE” FOR SELECTION.
3. WEEKLY (PLAYBACK AT THE SAME TIME PER WEEK)
a. ENTER INTO WEEKLY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR
MOVING AND “PLAY/PAUSE” FOR SELECTION AND THEN SET UP AS SAME
AS PROCEDURE OF DAILY.
- AFTER COMPLETING, “TIMER” MARK WILL DISPLAY AND THEN IT WILL BE
TRANSFERED TO INITIAL DISPLAY AND BLINKING NO.2 OR THE CHANNEL
WHICH DOES NOT SET.YOU CAN SET UP TO SAME FILE UP TO 10.
IF YOU WANT DELETE THE CHANNEL SET, PRESS “ERASE” BUTTON ON THE
CHANNEL SETTING DISPLAY.
* CAUTION
- RESEVATION MODE IS ONLY OPERATED IN VOICE AND FM MODES.
FOR RESEVATION RECORDING THRU LINE-IN, PLUG LINE-IN CABLE AND
THEN SELECT THE LINE-IN ON THE SYSTEM/INPUT SELECTOR MENU.
- IF DO NOT SET UP “SET DATE”, IT WON’T EXACTLY WORK.
- THE PAST CAN NOT BE SET UP.
- CHECK THE TIME AVAILABLE FOR RECORDING BEFORE OPERATING THIS.
- IF THE SELECTED FOLDER IS FULL OR MEMORY FULL, IT WON’T WORK.
<VOICE MODE : 128PCS EACH FOLDER/ FM ENC : 256PCS>
- RESERVATION RECORDING IS OPERATED FIRST THAN OTHER FUNCTIONS.
3.
ALARM PLAY : THE FILE SELECTED PLAYS BACK ON
TIME WHEN IS SET UP IN ADVANCE.
(10PCS AVAILABLE)
SETTING UP ALARM PLAY
- THIS FUNCTION HAS DATE/DAILY/WEEKLY MODE.
1. DATE (1 TIME)
a. ENTER INTO DATE.
SET UP YEAR, MONTH, DAY BY PRESSING “REW/FF” FOR MOVING AND
“PLAY/PAUSE” FOR SELECTION.
b. IF IT IS COMPLETED, AUTOMATICALLY DISPLAY TRANFERS TO TIME
SETTING DISPLAY.
TIME SETTING IS SAME AS THE PROCEDURE OF DATE.
2. DAILY (PLAYBACK AT THE SAME TIME EVERYDAY)
a. ENTER INTO DAILY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR
MOVING AND “PLAY/PAUSE” FOR SELECTION.
3. WEEKLY (PLAYBACK AT THE SAME TIME PER WEEK)
a. ENTER INTO WEEKLY.
SET UP HOUR, MINUTE AND SECOND BY PRESSING “REW/FF” FOR
MOVING AND “PLAY/PAUSE” FOR SELECTION AND THEN SET UP AS SAME
AS PROCEDURE OF DAILY.
- AFTER COMPLETING, “ALARM” MARK WILL DISPLAY AND THEN IT WILL BE
TRANSFERED TO INITIAL DISPLAY AND BLINKING NO.2 OR THE CHANNEL
WHICH DOES NOT SET.YOU CAN SET UP TO SAME FILE UP TO 10.
IF YOU WANT DELETE THE CHANNEL SET, PRESS “ERASE” BUTTON ON THE
CHANNEL SETTING DISPLAY.
* CAUTION
- IN ALARM PLAY, ONLY THE FILE WHICH IS SET PLAYS AND THEN STOPS.
IN CASE OF FM MODE, THE STATION WHICH IS SET IS ON AIR WITH
BLINKING ALARM MARK.
- SETTING UP THE ALARM PLAY CAN BE DONE UNDER ALL MODES IS
STOPPED. EXCEPTING “B-MARK” MODE.
- IF DO NOT SET UP “SET DATE”, IT WON’T WORK.
- IF YOU WANT TO SET UP THE PAST TIME, IT WON’T EXACTLY WORK.
- IF IT IS TIME FOR RESERVATION RECORDING WHEN ALARM PLAY, ALARM
PLAY WILL BE STOPPED.
- ALARM PLAY IS OPERATED FIRST THAN OTHER FUNCTIONS EXCEPTING
RECORDING.
Page 15
Main Menu Main Menu
Main Menu
Main Menu
26 27

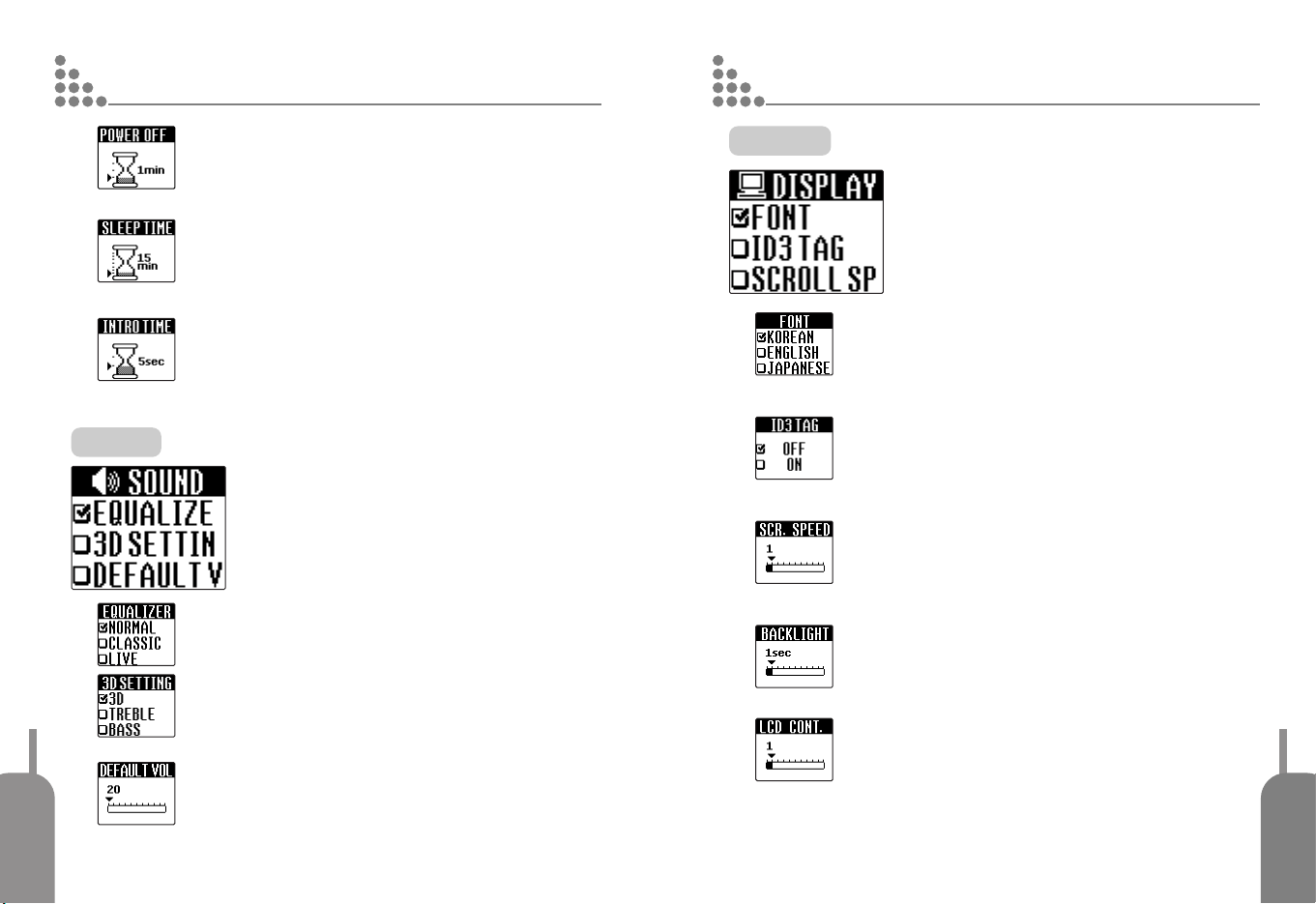

4.
POWER OFF TIME : 1MIN, 3MIN, 5MIN, ALWAYS ON
AUTOMATIC POWER OFF TIME.
5.
SLEEP TIME : OFF, 15MIN, 30MIN, 45MIN,
60MIN,75MIN, 90MIN, 105MIN, 120MIN
AUTOMATICALLY TURN OFF AFTER
THE TIME YOU SET UP.
6.
INTRO TIME : 5SEC, 10SEC, 15SEC
PLAYING FILE BACK FOR THE TIME
YOU SET UP.
SOUND
THIS MENU HAS EQUALIZER, 3D SETTING,
DEFAULT VOLUME.
1.
EQUALIZER : NORMAL, CLASSIC, LIVE, POP, ROCK,
LIVE YOU CAN SELECT THE EQUALIZER
YOU WANT.
2.
3D SETTING : BASS/TREBLE AT 1, 3, 5, 7, 9, 11, 13, 15
STEP PER EACH
ADJUST THE 3D-SOUND EFFECT LEVEL.
3.
DEFAULT VOLUME : 20~29, OFF
IF SET UP THIS FUNCTION, THE
DEFAULT VOLUME IS ON AT THE
LEVEL AFTER TURN ON.
DISPLAY
THIS MENU IS FOR SETTING UP DISPLAY AND
CONSISTS OF FONT, ID3 TAG, SCROLL SPEED,
BACKLIGHT TIME, LCD CONTRAST.
1.
FONT: KOREAN, ENGLISH, JAPANESE, CHINESE
(SIMPLIFY+TRADITIONAL), EUROPE, RUSSIAN
YOU CAN SELECT THE LANGUAGE YOU WANT
FOR ID3 TAG ON.
2.
ID3 TAG : ON, OFF
DISPLAY FILE INFORMATION
1. ON : DISPLAY Title, Artist
2. OFF : DISPLAY NAME ONLY
3.
SCROLL SPEED : 0~10
SPEED CONTROL FOR FLOWING FILE
INFORMATION ON THE LCD UP TO
10LEVEL.
4.
BACKLIGHT TIME : OFF, 1~9 SEC, ALWAYS ON
TIME FOR BACKLIGHT ON AND OFF
5.
LCD CONTRAST : 1~10
LEVEL FOR BRIGHTNESS OF LCD
(1-10LEVEL)
Page 16
Main Menu Main Menu
Main Menu
Main Menu
28 29

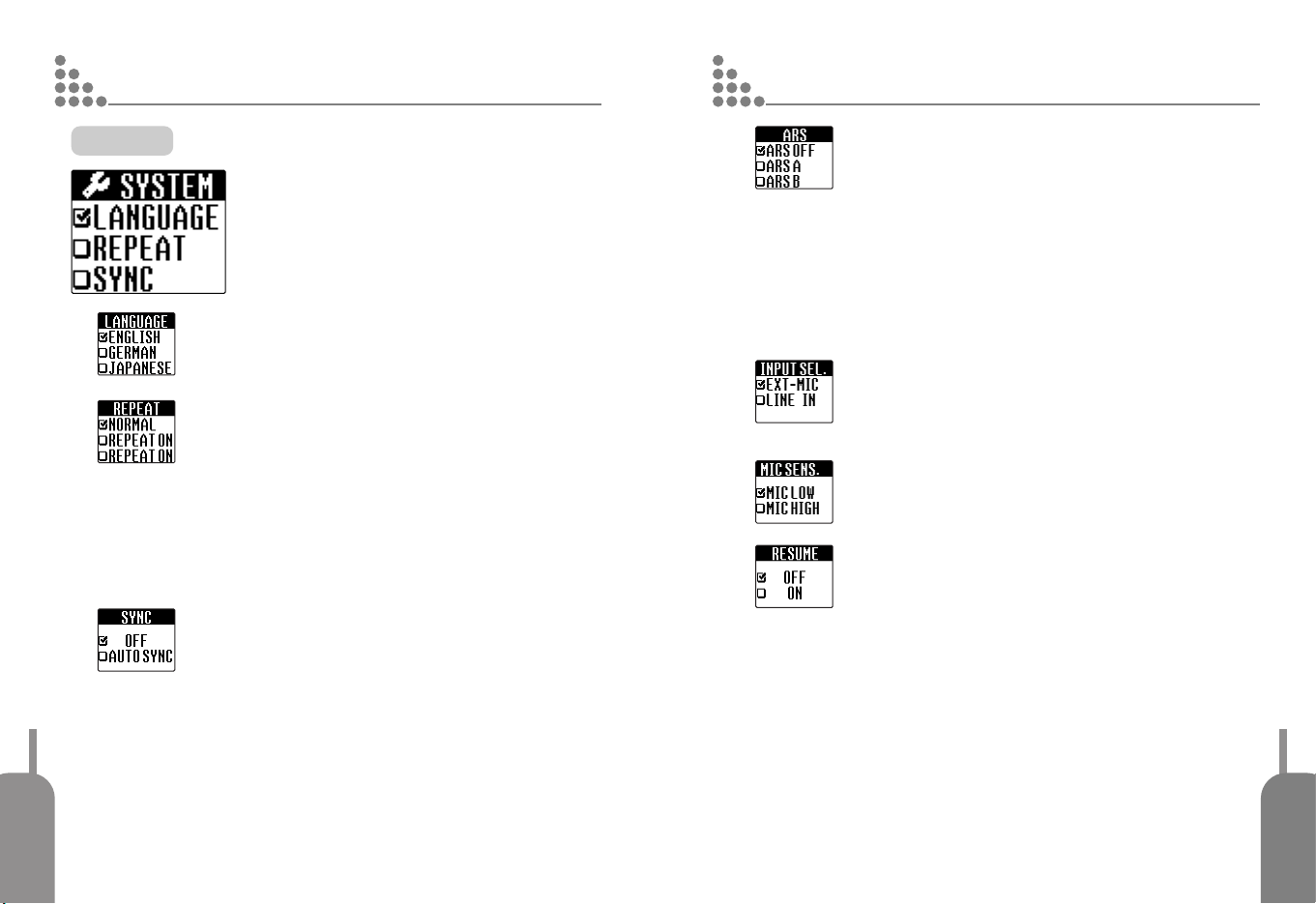

SYSTEM
THIS IS FOR PLAYER’S SYSTEM CONTROL.
THIS CONSISTS OF LANGUAGE, SYNC, ARS,
INPUT SELECTOR, MIC SENSITIVITY, RESUME,
BITRATE, FM BAND, CONTINUE FOLDER,
FORMAT, DEFAULT.
1.
LANGUAGE: ENGLISH, GERMAN, JAPANESE,
CHINESE(SIMPLIFY+ TRADITIONAL)
YOU CAN SELECT THE LANGUAGE YOU WANT
FOR MODE/MENU.
2.
REPEAT : NORMAL, REPEAT ONE, REPEAT ONE ALL,
REPEAT ALL, SHUFFLE
NORMAL: ALL FILES PLAY BACK IN SEQUENCE.
REPEAT ONE: ONLY CURRENT FILE PLAYS BACK ONE
TIME.
REPEAT ONE ALL: ONLY CURRENT FILE PLAYS BACK
REPEATEDLY
REPEAT ALL: ALL FILES PLAY BACK REPEATEDLY
SHUFFLE: PLAY BACK RANDOMLY
3.
SYNC(ONLY IN LINE-IN RECORDING) : AUTO SYNC, OFF
- AUTO SYNC : IN RECORDING THE SOUND FROM
EXTERNAL DEVICE THRU LINE-IN,
CREATING NEW FILE WITH STAMPING
FILE NAME BY RECOGNIZING
AUTOMATICALLY THE END AND
BEGINNING OF THE SONG.
- OFF : IN RECORDING THE SOUND FROM EXTERNAL
DEVICE THRU LINE-IN, ALL SOUNDS OR SONGS
ARE RECORDED INTO ONE FILE, IF YOU
SEPARATE.
4.
ARS : A, B, OFF
IN RECORDING, IF THERE IS SOUND AT A WEAK
SOUND FOR A CERTAIN TIME, RECORDING
PAUSES AUTOMATICALLY FOR SAVING MEMORY,
BUT IF THERE IS SOUND AT SPECIFIC LEVEL
AGAIN, START RECORDING AGAIN.
(AUTOMATIC RECORDING SYSTEM)
- A : ALL SOUNDS ARE RECORDED INTO ONE FILE.
- B : THE SOUND AFTER PAUSING FOR 3 SECONDS,
AUTOMATICALLY IT HAS ITS OWN INDEX.
5.
INPUT SELECTOR : LINE-IN / EXTERNAL-MIC
IN RECORDING, SELECT THE
RECORDING METHOD.
6.
7.
MIC SENSITIVITY : MIC LOW, MIC HIGH
SET UP THE SENSITIVENESS OF
MICROPHONE.
RESUME : ON, OFF
WHEN TURNNING ON AGAIN, THE SET
RETURNS TO ITS CONDITION BEFORE
TURNNING OFF.
FOR SETTING, PRESS “STOP” BUTTON FOR
2-3SECONDS IN PLAYING BACK
- ON : PLAYING BACK FROM THE COUNTER WHERE IT
STOPPED AT THE LAST.
- OFF : PLAYING BACK FROM THE INDEX WHERE IT
STOPPED AT THE LAST.
Page 17
Main Menu Record in Recording Mode
Record in Recording Mode
Main Menu
30 31

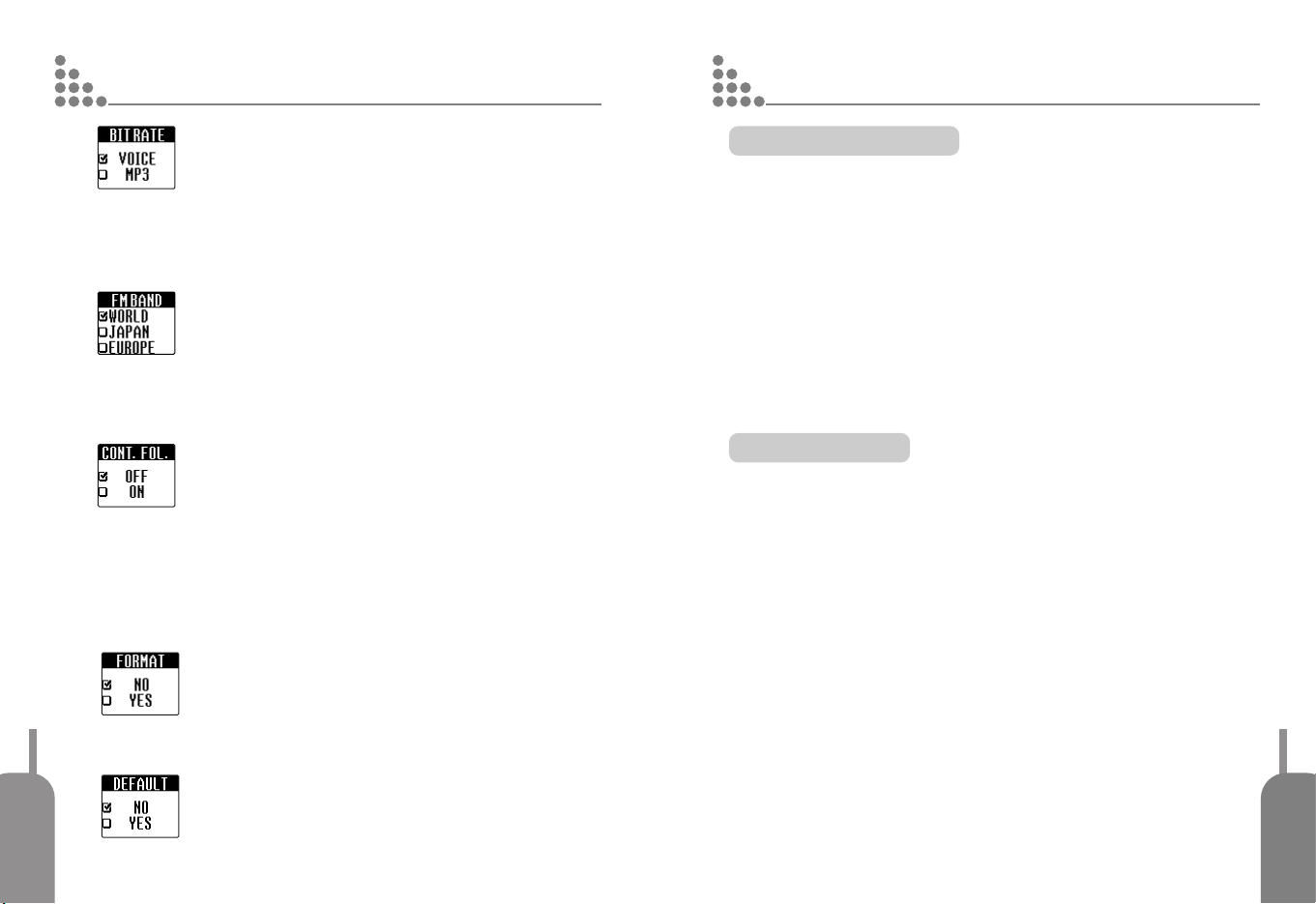

9.
FM BAND : WORLD, JAPAN, EUROPE
YOU CAN SELECT FM BAND YOU WANT.
1. WORLD: 87.50MHz ~ 108.00MHz, 100KHz STEP
2. JAPAN: 76.00MHz ~ 108.00MHz, 100KHz STEP
3. EUROPE: 87.50MHz ~ 108.00MHz, 50KHz STEP
(DEFAULT: 87.50MHz)
THE SET HAS 4 WAYS TO RECORD AS BELOW.
1) RECORDING THRU INTERNAL MIC : JUST PRESS “REC” BUTTON.
2) RECORDING THRU EXTERNAL MIC : PLUG EXTERNAL MIC INTO
LINE IN JACK. SELECT
EXTERNAL MIC ON
SYSTEM/INPUT SELECTOR.
PRESS “REC”
3) RECORDING THRU LINE IN FROM EXTERNAL DEVICE :
PLUG LINE-IN CABLE INTO LINE IN JACK. SELECT LINE-IN ON
SYSTEM/INPUT SELECTOR. PRESS “REC” REFER TO “CONNECTING
EXTERNAL DEVICE”
4) RECORDING FM RADIO : REFER TO “FM RECORDING”.
10.
CONTINUE FOLDER : ON, OFF
IT WORKS IN VOICE MODE
RECORDING.
- ON : IF INDEX RECORDED(128PCS) IS FULL FOR A
FOLDER, AUTOMATICALLY MOVE TO NEXT
FOLDER AND RECORDING CONTINUOUSLY.
- OFF : IF INDEX RECORDED(128PCS) IS FULL FOR A
FOLDER, STOP RECORDING AND DISPLAY
“INDEX FULL” ON THE LCD.
11.
FORMAT : YES, NO
FORMAT ALL DATA RECORDED ON MEMORY
IT WON’T WORK IN PLAY/PAUSE & FM MODE.
DO IT WITH ENOUGH BATTERY POWER.
DO NOT TAKE THE BATTERY OUT IN FORMATTING.
12.
DEFAULT : YES, NO
INITIALIZE ALL SETTING AND RETURN TO
DEFAULT.
RECORDING METHOD
1) MONITORING RECORDING STATUS
IN RECORDING, YOU CAN CHECK WHAT IS RECORDING THRU
EARPHONE.
2) CHECK REMAINNING TIME TO BE ABLE TO RECORD
YOU CAN CHECK THE REMAINNING TIME BY PRESSING “PLAY/
PAUSE” BUTTON IN RECORDING.
3) SEPARATING FILE IN RECORDING
YOU CAN SEPARATE FROM THE CURRENT RECORDING FILE
RECORDED OVER 5 SECONDS BY PRESSING “FF” BUTTON IN
RECORDING AND CREATING NEW INDEX.
IF THERE IS NO ENOUGH SPACE FOR RECORDING, THE FUNCTION
WON’T WORK.
IF RECORDING TIME IS FULL, “MEMORY FULL” IS DISPLAYED.
UP TO 256PCS AVAILABLE FOR RECORDING.
MAIN FEATURES
8.
BIT RATE : VOICE BITRATE, MP3 BITRATE
SET UP THE BIT RATE IN VOICE
RECORDING, LINE IN AND FM RECORDING.
- VOICE RECORDING : SHQ(32Kbps),
HQ(16Kbps), SP(8Kbps)
- MP3 ENCODE : 48Kbps, 64Kbps, 96Kbps,
128Kbps, 192Kbps, 256Kbps
Page 18
Connecting External Device
Connecting External Device

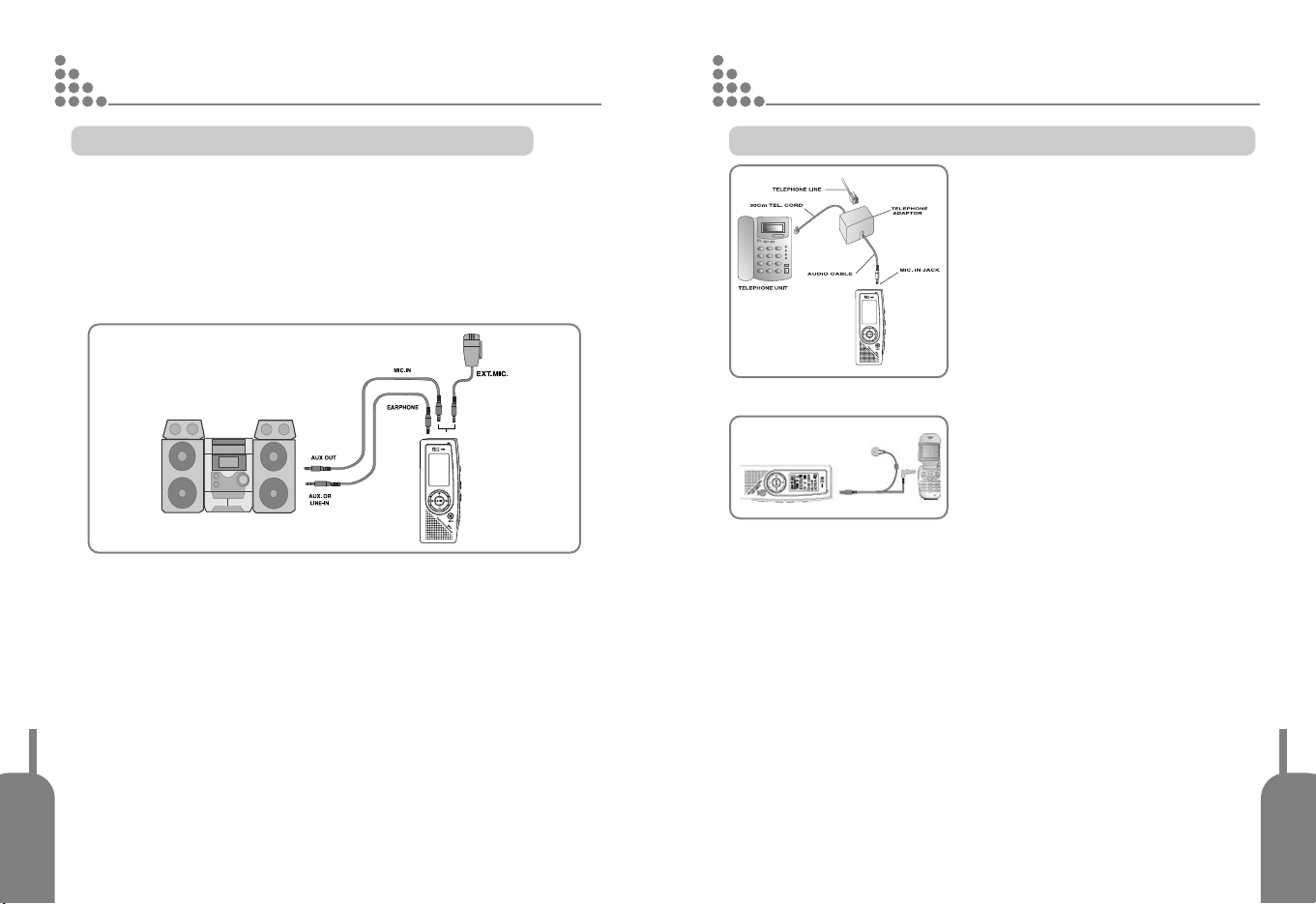

1) RECORDING EXTERNAL DEVICE TO DDR-5000
CONNECT THE PROVIDED AUDIO CABLE TO LINE IN JACK ON THE
SET.
2) RECORDING DDR-5000 TO EXTERNAL DEVICE
CONNECT THE PROVIDED AUDIO CABLE TO EARPHONE JACK ON
THE SET AND MICROPHONE OR LINE IN ON THE EXTERNAL
DEVICE.
WHEN CONNECTING EXTERNAL DEVICE, TURN OFF THE DEVICE
AND SET.
READ AN EXTERNAL DEVICE’S MANUAL YOU WOULD LIKE TO
CONNECT WITH ENOUGH TIME AND CAREFUL.
WHEN RECORDING FROM EXTERNAL DEVICE TO SET, VOLUME
DOWN THE EXTERNAL DEVICE.
WHEN RECORDING FROM SET TO EXTERNAL DEVICE, SET THE
VOLUME OF THE SET AT THE MIDDLE.
RECORDING FROM EXTERNAL DEVICE OR SET
32 33
Connecting External Device
Connecting External Device
CONNECT LINE-IN CABLE TO THE
MICROPHONE JACK ON THE VOICE
RECORDER AND TELEPHONE
ADAPTOR. CONNECT TELEPHONE
CABLE TO TELEPHONE ADAPTOR.
PRESS “REC” BUTTON FOR
RECORDING. IF YOU SET UP THE
“ARS”, AUTOMATICALLY START
RECORDING IF THERE IS ANY SOUND
AND PAUSING
IF THERE IS NO SOUND.
CONNECT “CELLULAR EAR
MICROPHONE” ONTO EXTERNAL
MICROPHONE ON THE SET AND
EARPHONE JACK ON THE MOBILE
PHONE.
CELLULAR EAR MICROPHONE IS OPTIONAL ITEM AND YOU MAY
ASK RETAILER THAT YOU CAN PURCHASE.
IF YOU CELLULAR IS NOKIA BRAND, YOU MUST CHECK “CELLULAR
EAR MICROPHONE” IS COMPATIBLE OR NOT.
RECORDING FROM TELEPHONE AND MOBILE PHONE
Page 19
Installation Of Windows 98SE Driver Installation Of Windows 98SE Driver
Installation Of Windows 98SE Driver
Installation Of Windows 98SE Driver
34 35

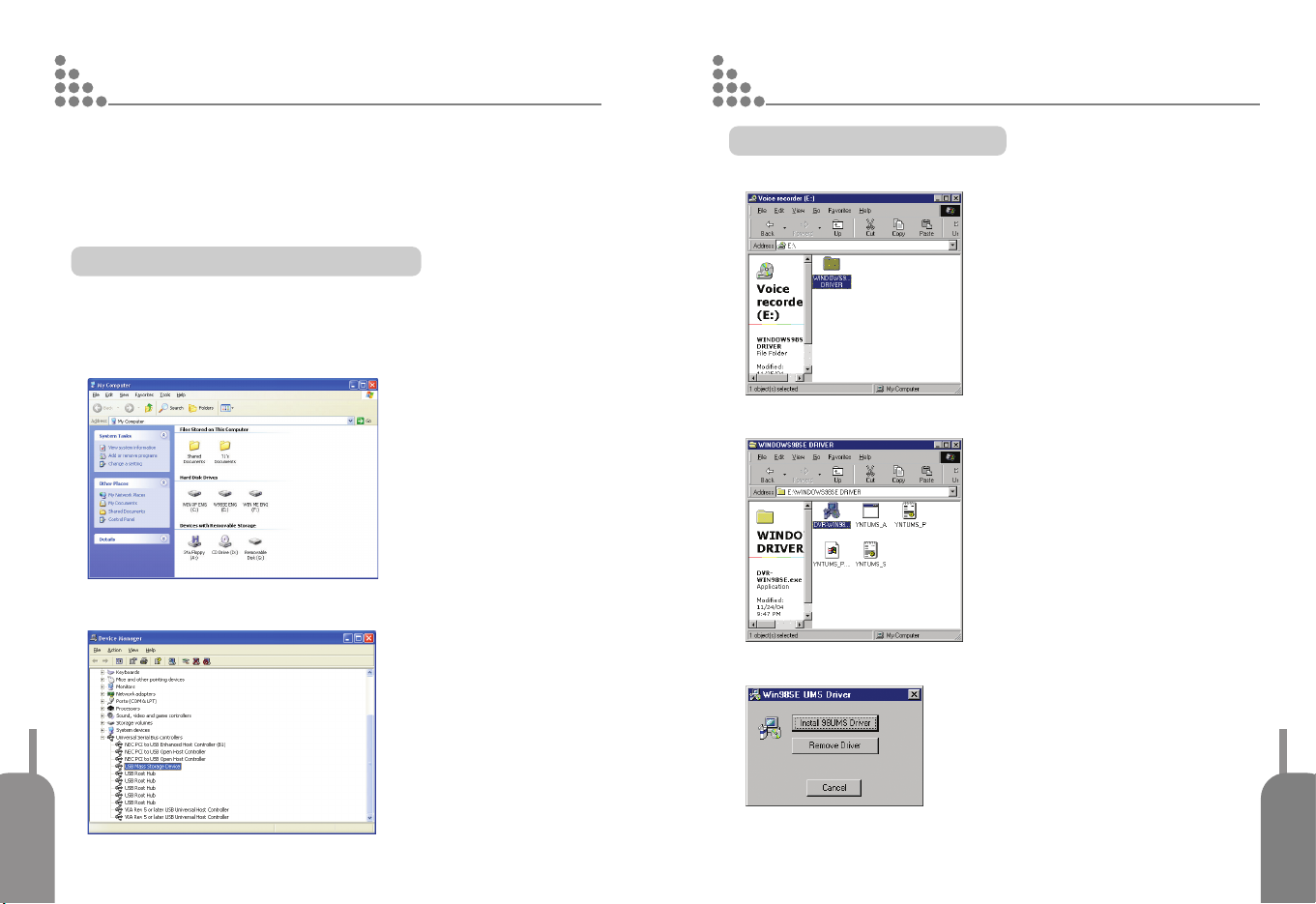

IT SUPPORTS USB MASS STORAGE AND IT CAN BE USED AS HARD
DRIVE. IT CAN BE CONNECTED TO PC DIRECTLY WITHOUT ANY
APPLICATION BY PLUG & PLAY METHOD ON WINDOWS ME, 2000, XP
EXCEPT FOR WINDOWS 98SE.
WHEN CONNECTING DEVICE TO PC BY USB PORT, “NEW HARDWARE
DETECTED” IS SHOWN AND INSTALLATION BEGINS AUTOMATICALLY.
* IF YOU CLICK [MY COMPUTER], THE SET IS RECOGNIZED AS A
PORTABLE DISK(F:) ON [MY COMPUTER] WINDOW. (*WINDOWS XP).
-How to install Drive-
In case of Windows ME, 2000, XP
1. INSERT THE PROVIDED CD & IT WILL INDICATE HOW TO INSTALL.
In case of Windows 98 SE
WHEN THE USB DRIVER IS INSTALLED NORMALLY, IT IS RECOGNIZED AS A USB
MASS STORAGE DEVICE AT DEVICE MANAGER IN MY COMPUTER.
2. CHECK “DVR-WIN98SE.EXE”
3. CLICK “INSTALL 98UMS DRIVER” AND AUTOMATICALLY INSTALL.
Page 20
Installation Of Windows 98SE Driver Installation Of Windows 98SE Driver
Installation Of Windows 98SE Driver
Installation Of Windows 98SE Driver
36 37

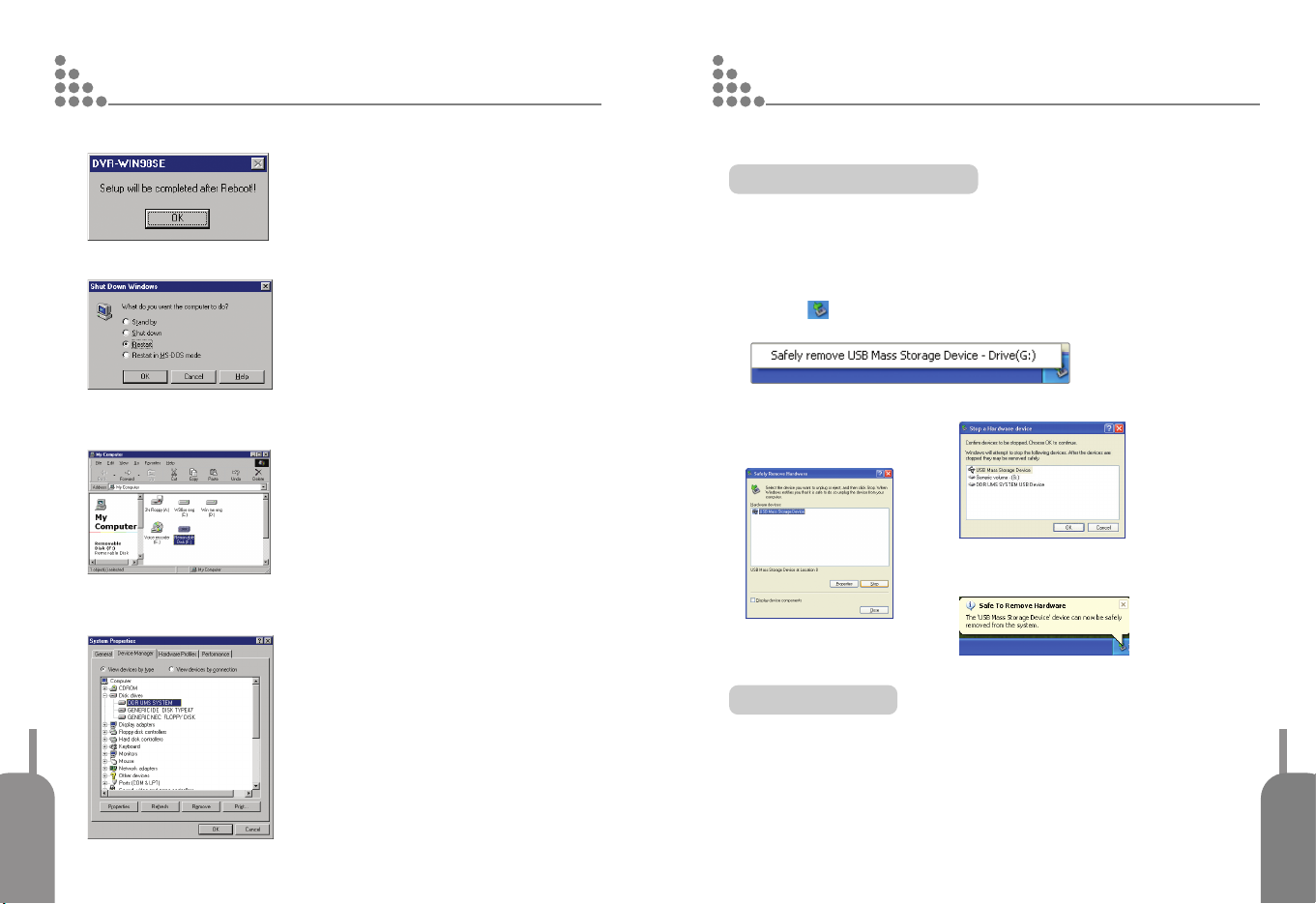

4. WHEN IT IS COMPLETED, BELOW POP-UP WILL APPEAR. CLICK “YES”
5. CLICK FOR REBOOTING THE COMPUTER.
6. AFTER REBOOTING, CONNECT THE SET & PC THRU USB CABLE.
BELOW WINDOW WILL APPEAR.
7. EVERYTHING IS SUCCEED, IT CAN BE APPEARED AT SYSTEM
PROPERTIES.
WHEN THE SET REMOVE FROM CONNECTION, IT SHOULD DO IT
THRU PROPER PROCEDURE AS BELOW. IF NOT, IT MIGHT CAUSE
SERIOUS PROBLEM IN DATA.
-REMOVING USB MASS STORAGE SAFELY-
Windows ME, 2000, XP
REMOVE IT FROM PC WITHOUT ANY PROCEDURE. AS Windows
ME, 2000, XP.
Windows 98SE
1. CLOSE THE FILE TO OPEN.
2. CLICK “ ” BELOW THE WINDOW OF PC. IF SO, TOOL BAR AS
BELWO WILL APPEAR AND CLICK THE TOOL BAR.
3. BELOW WINDOW WILL
APPEAR, SO FOLLOW UP
THE DIRECTION.
4. CLICK “DDR UMS SYSTEM USB DEVICE.
5. WHEN BELOW TOOL BAR APPEAR,
REMOVE THE SET FROM PC.
Page 21
Uninstallation of Windows 98SE Driver
Managing Folders and Files
Managing Folders and Files
Uninstallation of Windows 98SE Driver
38 39

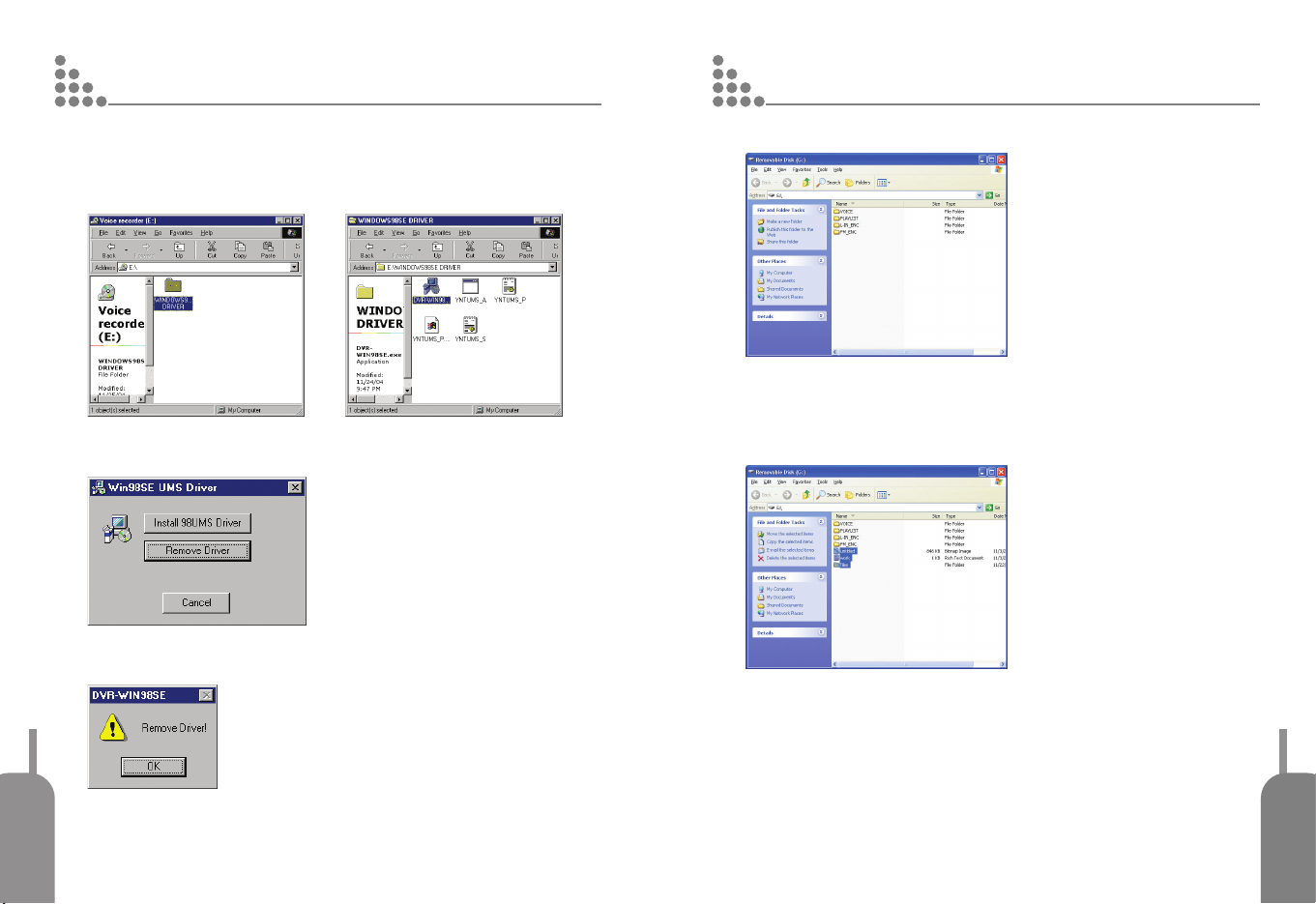

THE PROVIDED CD CONTAINS UNINSTALLING PROGRAM
AUTOMATICALLY.
1. INSERT THE PROVIDED CD. 2. BOUBLE CLICK “DVR WIN98SE.EXE”
3. CLICK “REMOVE DRIVER”
4. WHEN IT COMPLETE, BELOW WILL APPEAR AND CLICK “OK”.
1. DEFAULT FOLDERS
2. ALL FILE FORMATS CAN BE STORED AND REMOVED.
WHEN YOU CONNECT THE UNIT TO PC, YOU CAN FIND THAT THE VOICE, L-IN_ENC,
FM_ENC & PLAYLIST FOLDERS ARE CREATED AS A DEFAULT.
Page 22
Managing Folders and Files Managing Folders and Files
Managing Folders and Files
Managing Folders and Files
40 41

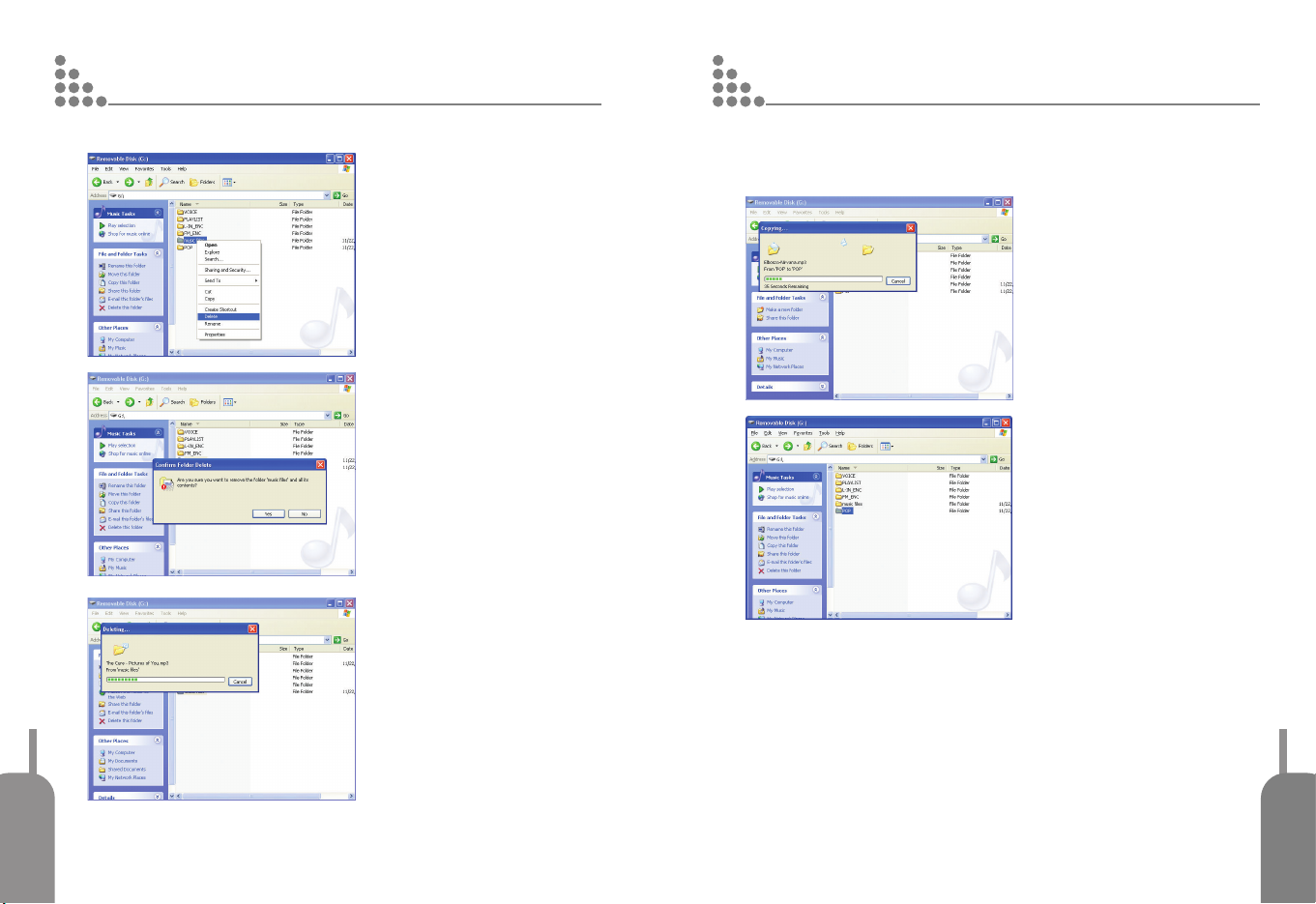

3. AUDIO MODE IS NOT DEFAULTED LIKE VOICE, L-IN_ENC, FM_ENC.
CREAT IT ON THE PC AND CAN CHECK IT AT FOLDER & MUSIC
MODE.
4. LINE IN MODE
THE CREATED FOLDER BY USER CAN BE CHECKED AT FOLDER ON THE MODE MENU
AND ONLY MUSIC FILE IS DISPLAYED ON MUSIC MODE. FOLDER DOES NOT
APPEAR.
LINE IN MODE CONTAINS THE RECORDED FILES FROM EXTERNAL DEVICES
THROUGH THE LINE-IN CABLE.
WHEN RECORDING DATA, UP TO 256 FILES CAN BE CREATED IN SEQUENCE. IF THE
NUMBER OF FILES EXCEEDS 256, THE “INDEX FULL” MESSAGE IS DISPLAYED.
5. FM_ENC MODE
6. VOICE MODE
FM_ENC MODE CONTAINS THE FILES RECORDED IN LISTENING TO RADIO.
WHEN RECORDING DATA, UP TO 256 FILES CAN BE CREATED IN SEQUENCE. IF THE
NUMBER OF FILES EXCEEDS 256, THE “INDEX FULL” MESSAGE IS DISPLAYED.
VOICE MODE CONTAINS THE VOICE RECORDING FILES.
WHEN RECORDING DATA, UP TO 1024 FILES CAN BE CREATED IN SEQUENCE. IF
THE NUMBER OF FILES EXCEEDS1024, THE “INDEX FULL” MESSAGE IS DISPLAYED.
Page 23
Deleting Files Downloading Files
Downloading Files
Deleting Files
42 43

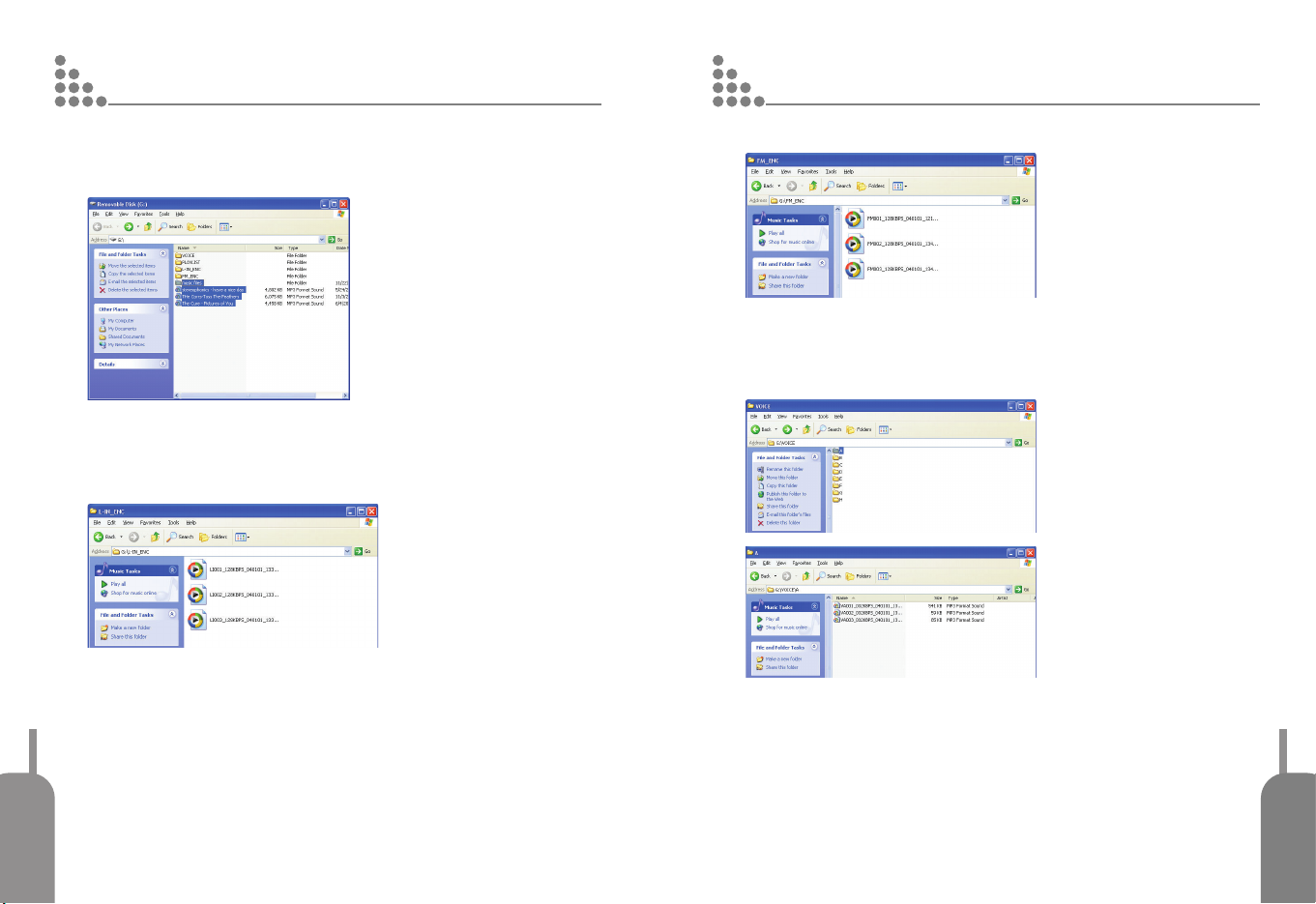

THIS WORK IS SAME AS DONE IN PC. COPY MUSIC FILES OR DATA FROM PC FOLDER AND DOWNLOAD
THEM TO DEVICE.
Page 24
Formatting Files Formatting Files
For matting Files
For matting Files
44 45

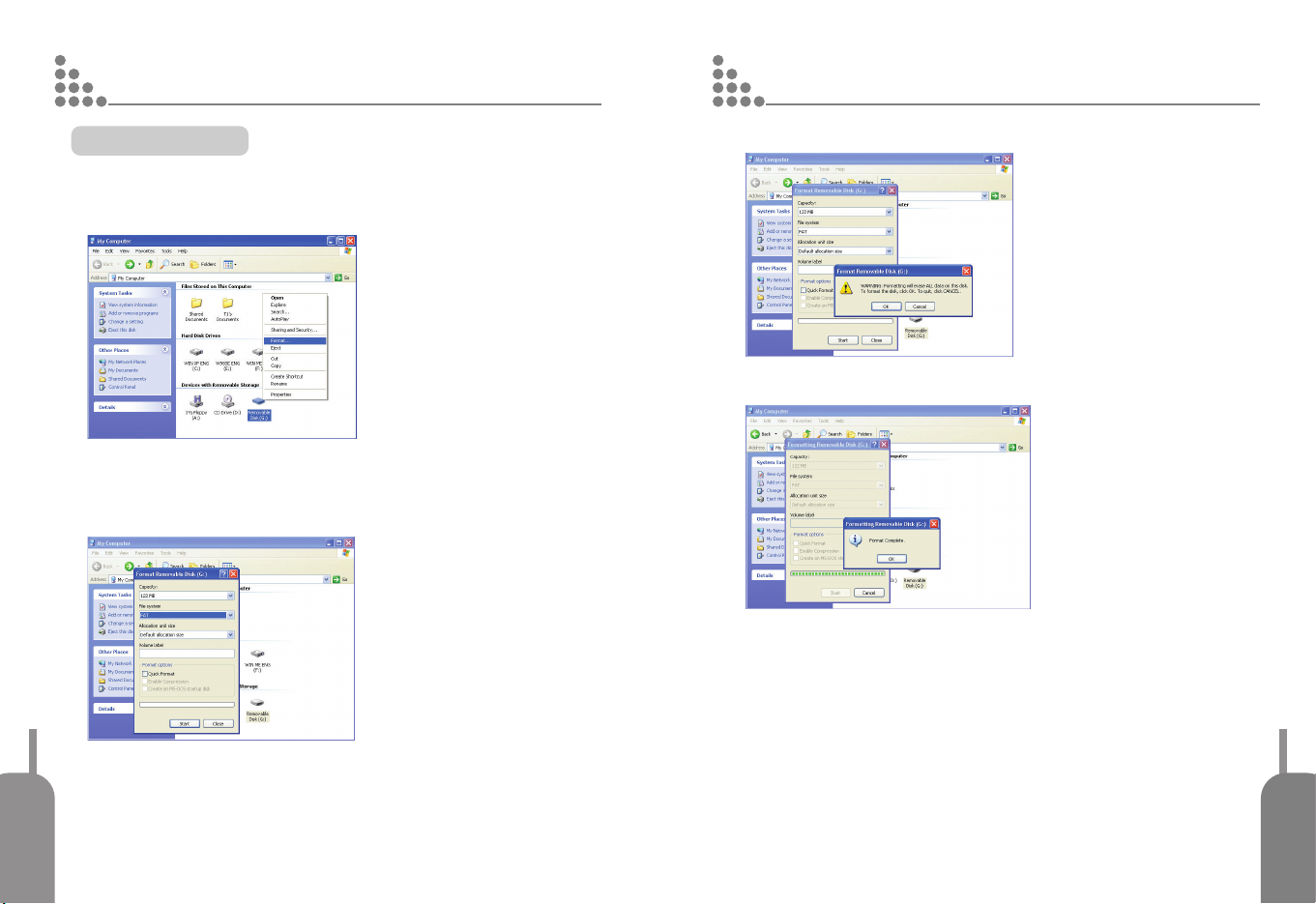

1. GO TO [MY COMPUTER], CHOOSE PORTABLE DISK(F:) AND CLICK
RIGHT BUTTON OF MOUSE. FOLLOWING TOOLBAR APPEARS. AT
THE TIME, CLICK FORMAT.
FORMAT on PC
3. CLICK “OK”.
4. FORMAT IS COMPLETED.
2. CLICK “START” WHEN FOLLOWING WINDOW APPEARS.
-THIS SET DOES NOT SUPPORT ”FAT32”. FORMAT MUST DO IN
SETTING “FAT”.
DO NOT TAKE THE SET AWAY DURING FORMATTING.
IT MAKE SERIOUS PROBLEM TO SET.
- IF FORMATTING IN FAT32, DO IT BY FAT AT THE PC AGAIN.
- AFTER REMOVING THE SET FROM PC IN FORMATTING WITH
FAT32, “SYSTEM ERROR PLEASE FORMAT” WILL BE NOTICED ON
THE SET. IF SO, PRESS “MENU” WITH LONG KEY AND THEN GO
INTO SYSTEM/FORMAT IN THE MENU AND TRY TO FORMAT
AGAIN.
Page 25
Firmware Upgrade General Specification
General Specification
Firmware Upgrade
46 47

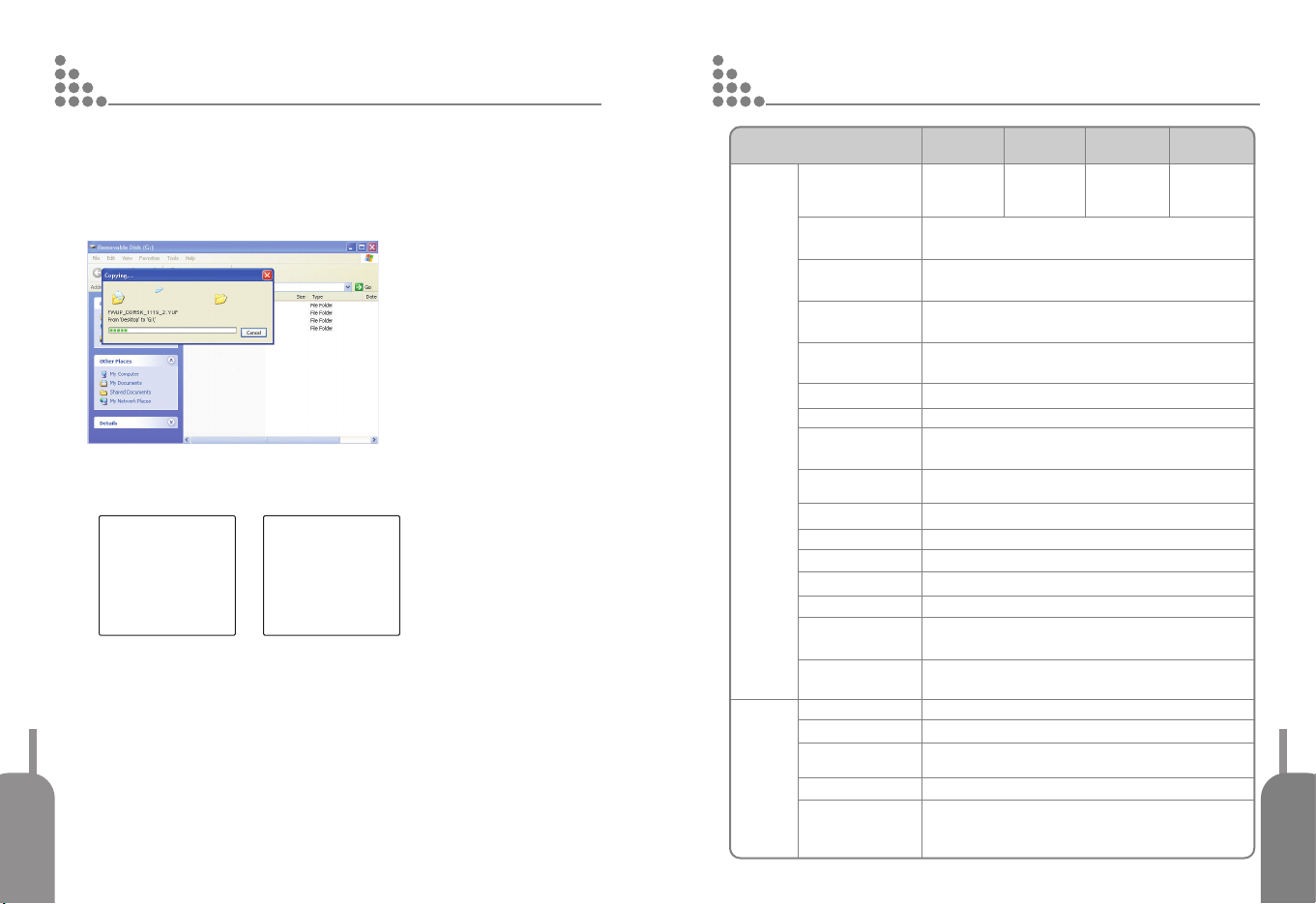

THIS DEVICE HAS THE FEATURE WHICH IS TO IMPROVE FUNCTION
AND CORRECT ERROR BY UPGRADING FIRMWARE.
YOU CAN DOWNLOAD UPGRADE FILE BY CONNECTING TO WEBSITE.
1) COPY THE FIRMWARE AT THE ROOT DIRECTORY IN THE SET.
2) REMOVE THE SET & TURN OFF.
3) WHEN TURN ON, IT WILL UPGRADING AUTOMATICALLY AS BELOW.
After completed upgrading, set turn off AND TURN ON automatically
BEFORE UPGRADING, BATTERY STATUS MUST BE CHECK. IF THE
STATUS IS LOW, CHANGE IT.
IT MIGHT CAUSE SERIOUS PROBLEM TO THE SET.
Firmware
Upgrading
00%
Upgrade
Completed
MODEL
DDR-5000R DDR-5000R DDR-5000R DDR-5000R
(064) (128) (256) (512)
RECORDING TIME SHQ:260min SHQ:530min SHQ:1060min SHQ:2120min
HQ:520min HQ:1060min HQ:2120min HQ:4240min
SP:1040min SP :2120min SP :4240min SP :8480min
RECORDING MODE MP3 FORMAT : SHQ(32Kbps) / HQ(16Kbps) / SP(8Kbps)
FOLDER A/B/C/D/E/F/G/H (8 FOLDER)
Total 1024 Messages with 8
Separate Folder (128 Messages in Each Folder)
ARS Automatic Recording System
(A-TYPE: ONE INDEX, B-TYPE: +INDEX)
FM RECORDING World Wide FM band / Japen FM band / Europe FM band
EX-MIC Pin Mic
MEMORY TYPE Built-in Flash Memory(64MB/128MB/256MB/512MB/1GB)
S/N
60dB (62dB input 1Khz, speaker output 50mW: SHQ mode)
VOICE DISTORTION 1.5%
0.2
RECORD
(62dB input 1KHz , speaker output 50mW : SHQ mode )
REQUENCY
RESPONSE 300Hz ~ 4.0KHz (-6dB)
OUTPUT Max 80mW(speaker 8ohm)
REPEAT MODE Normal/ One/ One All/ All/ Shuffle/A
B repeat
RECODING MDOE One messages / all messages in file
INTRO PLAY 5/10/15 sec in each messages
SEARCHING Easy file search & messages search
ALRAM PLAY 10 program (Date / weekly(sun/mon/tue/wed/thu/fri/sat)
/ daily)
TIMER RECORDING 10 program (Date / weekly(sun/mon/tue/wed/thu/fri/sat)
/ daily)
S/N 60dB at 1mv 98.1MHz
DISTORTION 0.8%(max) at 1mv 98.1MHz
f=22.5KHz
FREQUENCY
350Hz30Hz, 3KHz0.25KHz(100Hz~10KHz, 60dBuV)
FM RADIO RESPONSE
OUTPUT Max 80mW (speaker 8ohm)
FREQUENCY RANGE World Standards : 87.5 ~ 108MHz(100Hz step)
Europe Standards : 87.5 ~ 108MHz(50Hz step)
Japan Standards : 76 ~ 108MHz(100Hz step)
Page 26
General Specification General Specification
General Specification
General Specification
48 49
MODEL DDR-5000R with 256MB
BIT RATE MP3 FORMAT : (256/192/128/96/64/48Kbps)
S/N 85dB up (1KHz input 0dB)
DISTORTION 0.3%
0.1 (1KHz input 0dB)
FREQUENCY
20Hz~20KHz
RESPONSE
MP3
OUTPUT EARPHONE
Max 5mW (16ohm)
EQ EQ : Normal / Classic / Live / Pop / Rock
INTRO PLAY 5/10/15 sec in each track
SEARCHING Easy track search & track search
REPEAT Normal/ One/ One All/ All/ Shuffle/ A
B
INTERFACE Mass Storage USB 1.1
SYSTEM
CPU 200MHz more than , RAM 64MB more than,
PC 20MB of free space
interface
OS
Windows98SE , Windows2000 , Windows ME , Windows
XP, OVER Mac OS9.2, OS10
SOUND CARD Sound blaster 16 compatible
DISPLAY 640
480 more than
EXT. MIC
3.5 plug-in power microphone(mini plug/ stereo)
INPUT IMP less than 3K
/OUTPUT EARPHONE 3.5 earphone(mini plug/stereo) IMP less than 16
DEVICE DC JACK HOLE :2.6, Dia :0.65
USB Mini jack (PC : A TYPE)
SPEAKER
DIAMETER
23 (IMP 8)
MAX. OUTPUT 80mW (volume max)
VOLUME LEVEL. Digital volume (30 step)
BACK LIGHT LED COLOR (BLUE, ORANGE)
MEMORY NAND Flash Memory (64MB/128MB/256MB/512MB/1GB)
LED Recording indicator display LED(RED)
MODEL DDR-5000R with 256MB
DOT 80X64
ICON DISPLAY COUNTER,TIMER,ALARM,ARS,3DS,INTRO,
LCD L R SPECTRUM,HOLD,BATTARY
DOT DISPLAY MODE, MENU, INDEX, FILE NAME, EQ, REPEAT,
PLAY SPEED
PLAYBACK SPEED Slow (80%) , Fast (120%)
ADAPTER DC3V / 200mA (CE,CUL,T,FCC)
OPERATING KEY
FF / PLAY(PAUSE) / REW , MENU / REC(PAUSE) / STOP
/ ERASE / VOL+ / VOL- , HOLD
POWER 3V , LR03 , two alkaline battery( ‘AAA’ size or UM-4)
VOICE PLAY
Approx. 23hour during the voice
play(earphone output: volume middle position)
BATTERY
VOICE RECORDING
Approx. 13hour during the voice REC
LIFE (earphone output: volume middle position)
RADIO RECEPTION
Approx. 23hour during the radio play
(earphone output: volume middle position)
MP3 PLAY
Approx. 18hour during the MP3 play
(earphone output: volume middle position)
STEREO EARPHONE, LINE-IN CABLE, USB CABLE,
ACCESSORY TELEPHONE ADAPTOR, HAND STRAP, MANUAL,
CD FOR WINDOWS98SE DRIVER, EXTERNAL MIC,
EXTERNAL ANTENNA, BATTERY
OPTIONAL ITEM REMOTE CONTROLLER(MODE/ FF/ PLAY(STOP)/ REW/
REC(PAUSE)/ VOL+/-) DC ADAPTOR/ CELLULAR EAR
MICROPHONE
SIZE H 92
W 34 D 19
Page 27
Warranty Card(provisions)
51
Inquiry of A/S
50
When damage to device occurs, stop the use of the product and
request for after service from our customer support staff at DIASONIC
TECHNOLOGY CO.,LTD.
Phone: 82-31-474-0852 Ext.102, 103
4) Breakdown or damage by users own repair or modification.
5) Breakdown or damage caused by fire, pollution, and natural
disaster.
6) Breakdown or damage caused by lealcage from battery.
7) When accessories(battery) need replacement.
<Request when mailing>
Please beware of following when mailing.
1. Contact our customer service department to receive a RMA # before
mailing in the product.
2. Please enclose warranty card with the product when mailing during
warranty period.
Please wrap in shock absorb material and put in box, mailing fee,
wrapping fee, and any damage caused during mailing will be charge
to a customer.
3. To prevent loss, please use registered mail.
Warranty Card(provisions)
We offer free repair service for product that malfunction under normal
use, up to 1year from the original purchase date.
If breakdown occurs during warranty period mail product and the
warranty card.
Warranty will be invalid if purchased date, purchase price and place of
purchase price and place of purchase are missing from the receipt.
Please check and if the information is not written on the product refer
to customer service at DIASONIC TECHNOLOGY CO,.LTD.
This warranty will not be reissued, so keep it safely.
<Free repair regulation>
1. Our product has gone through strict quality control and inspection.
If breakdown occurs from normal condition during warranty period
you may receive free repair from our customer service department.
2. Even during warranty period, following situation will not grant free
repair service.
1) If you do not have a warranty card.
2) If purchased year, month, day, name of customer and sales market
are not written on the warranty card, Or if written information is
modified.
3) Breakdown or damage by mishandling of user.
Page 28
Warranty Card
52
Product Category : Digital Voice Recorder
Model : DDR-5000
The Term of Guarantee : 1 Year
Date of Purchase : . . .
DIASONIC TECHNOLOGY CO., LTD.
#321-43, Suksu-Dong, Manan-ku, Anyang-City, Gyunggi province, Korea
Tel)+82-(0)31-474-0852x102, 103 Fax)+82-(0)31-474-0856
E-mail : [email protected] Web : www.diasonic.com
Please refer to our customer service department for any information or
breakdown on the product
Exchange, repair(charge. Free), refund and parts keeping period is depended
on regulation of customer protection.
Any questions or if you want to know more information about the product
please contact DIASONIC TECHNOLOGY CO., LTD.
This warranty is only applicable to a product purchased through authorized
channel owned stores and dealers and to a product that is presented for
repair in a country where DIASONIC offers the product for sale.
Name
PURCHASER Address
Telephone
Name
SELLER Address
Telephone
Loading...
