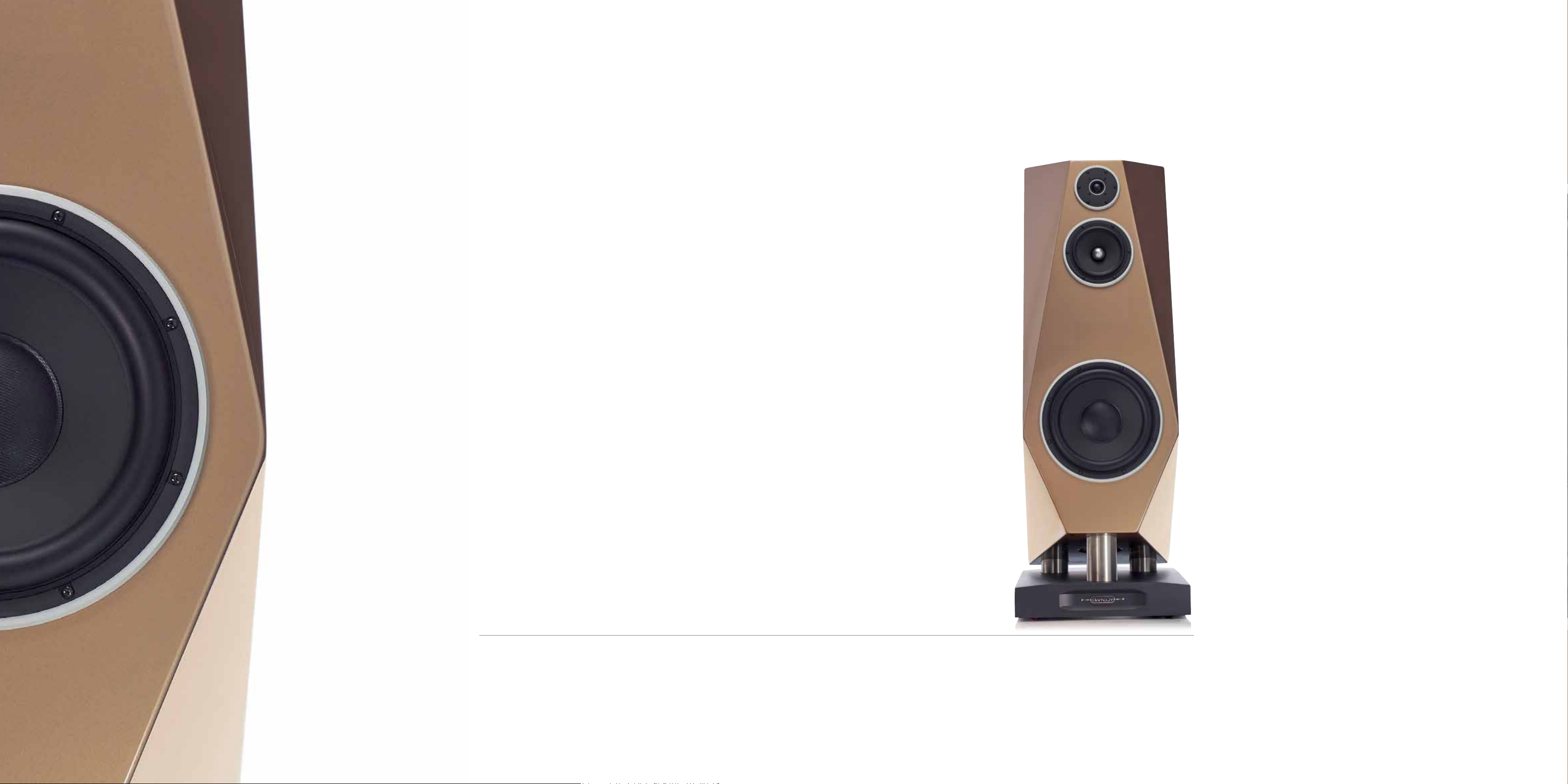

DYNAMIS
Page 2
DYNAMIS
Are you ready now for a truly unique and memorable listening eperience ?
Dynamis will give you a truly lifelike, natural and emotive feeling from the music;
because it can reproduce even the most minute harmonic resonances audible to the human ear.
Page 3
Beauty lies in the balance between harmony
of the whole and the proportion of the
details.
Beauty is Harmony and from here we begin,
to create a form which will provide the best
musical reproduction.
The sound-stage will open up in front of you: imagine
yourselves seated comfortably in the armchair of a theatre while you enjoy the artists` performance in a spectacularly involving way - from the most delicate single
instrument up to the might of a full orchestra.
You will be literally immersed in the ow of the music and
transported into living the emotion.
Page 4
DYNAMIS:
THE INNER POWER
The multi-faceted shape was the starting
point in 1989 with the Diapason Adamantes ,
a model in continuous production longer than
almost any loudspeaker in the world, and still
today a reference for the listener who wishes
to immerse himself in the emotion that it can
provide. Adamantes is a legend whose evolution brings forth now another legend: Dynamis.
The 14 sides of Dynamis have proportions and
planes carefully calculated to tune the loudspeaker, exactly in the manner of a musical instrument.
Its carefully-studied form with just two parallel sides minimizes internal standing-waves and enables the drivers to produce linear emission with optimum dispersion in
the listening area, thus giving a close approximation of the ideal single-point source.
Page 5

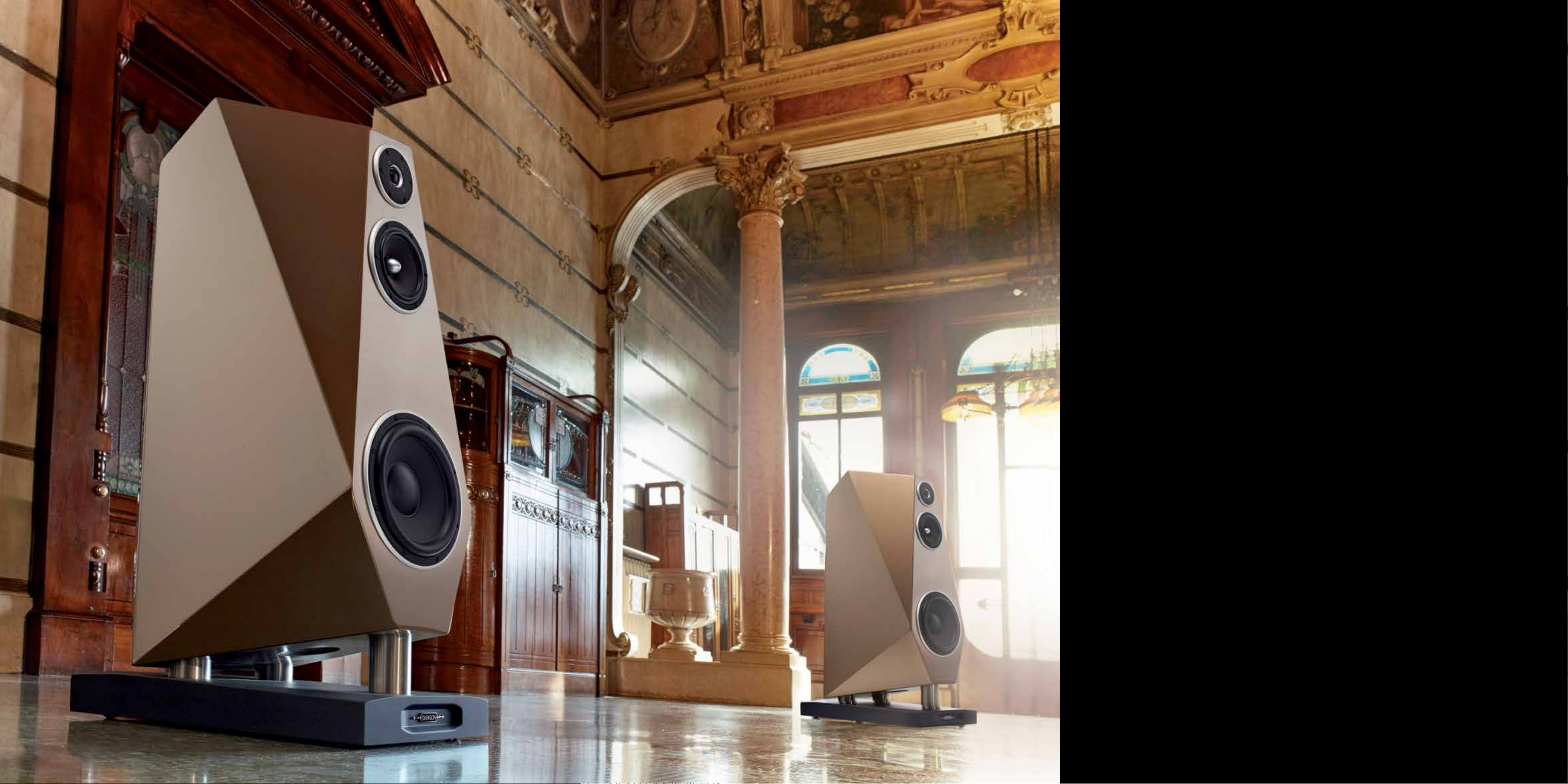

Hotel Laurin, Salò, Lago di Garda, Italia
Page 6
DYNAMIS
SPECIFICATIONS
Page 7
The cabinet is made from high-density MDF
using Diapason`s tried and tested assembly technology developed from years of building the
Astera, Adamantes and Karis models.
A special GRP covering layer is then applied to
give the loudspeaker long-term solidity as well
as an improvement in sonic performance.
Italian Master Craftsmen - specialists in luxury
nishing - then give the nal touch to Dynamis
by applying whatever colour or material that
your imagination may suggest, to create in any
listening environment a strong and original appearance statement.
Tradition and innovation blend together in harmony in the choice of technology for the drivers.

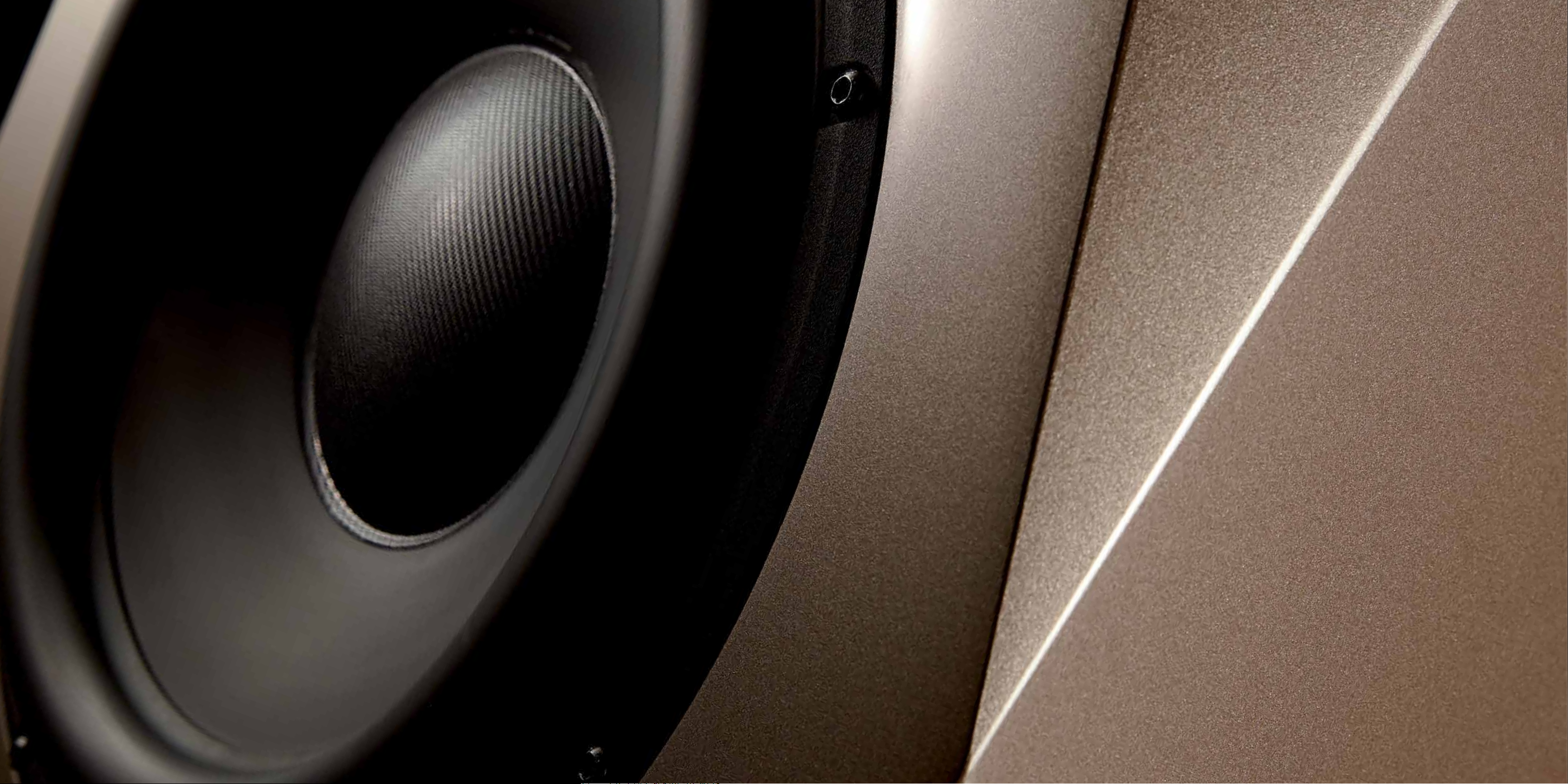

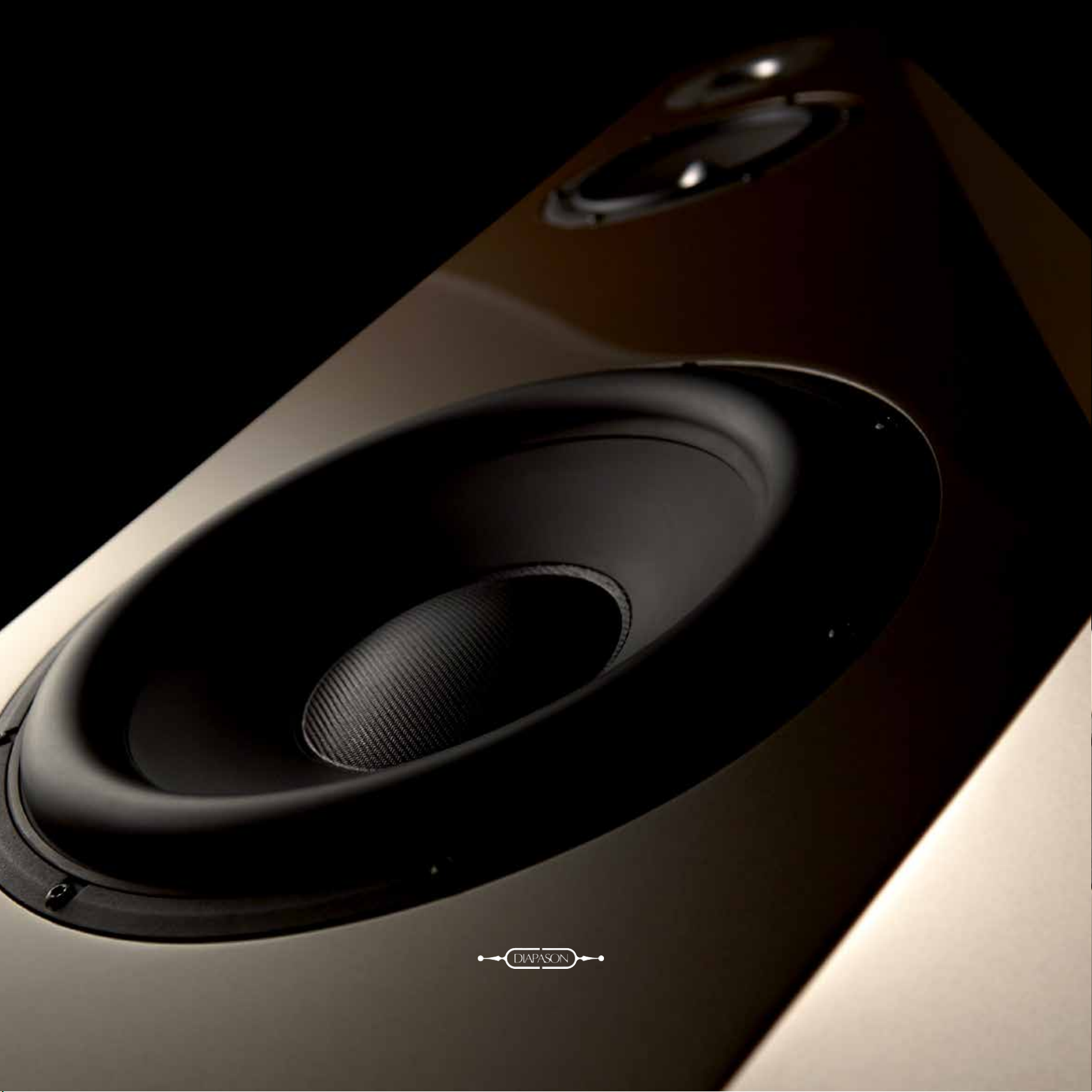

A large magnet system on paper Nextel coated
midrange driver is used in order to have a very
long coil excursion with very low distortion and
an excellent transient response. Midrange is
matched with an extraordinary silk soft dome
tweeter provided by large magnetic ow; woofer completes the frequencies range giving a
solid performance , impressive deep and controlled bass range performance.
SPECIFICATIONS:
Frequency response: 24/20.000 Hz (+/-3dB)
Tweeter Ø: 29 mm silk soft dome
Midrange Ø: 18 cm paper cone Nextel coated
Bass driver Ø: 30 cm Alu cone Fiber glass dust cup
Efciency: 89 dB/W/m
Frequency crossover: 150-1.500 Hz
Nominal impedance: 4 Ohm
Type: lower reex port
Finish: Sparkling Light Bronze, Glossy White,Dark Grey, China Red,
Metallic Silver, Glossy Gold leaf , Glossy Copper leaf , Glossy Silver leaf
Weight per Speaker: 100 Kg
Dimensions (W x D x H) in cm: 45x68,50x127,50
Diapason reverves the right to change specications to
allow product improvement.

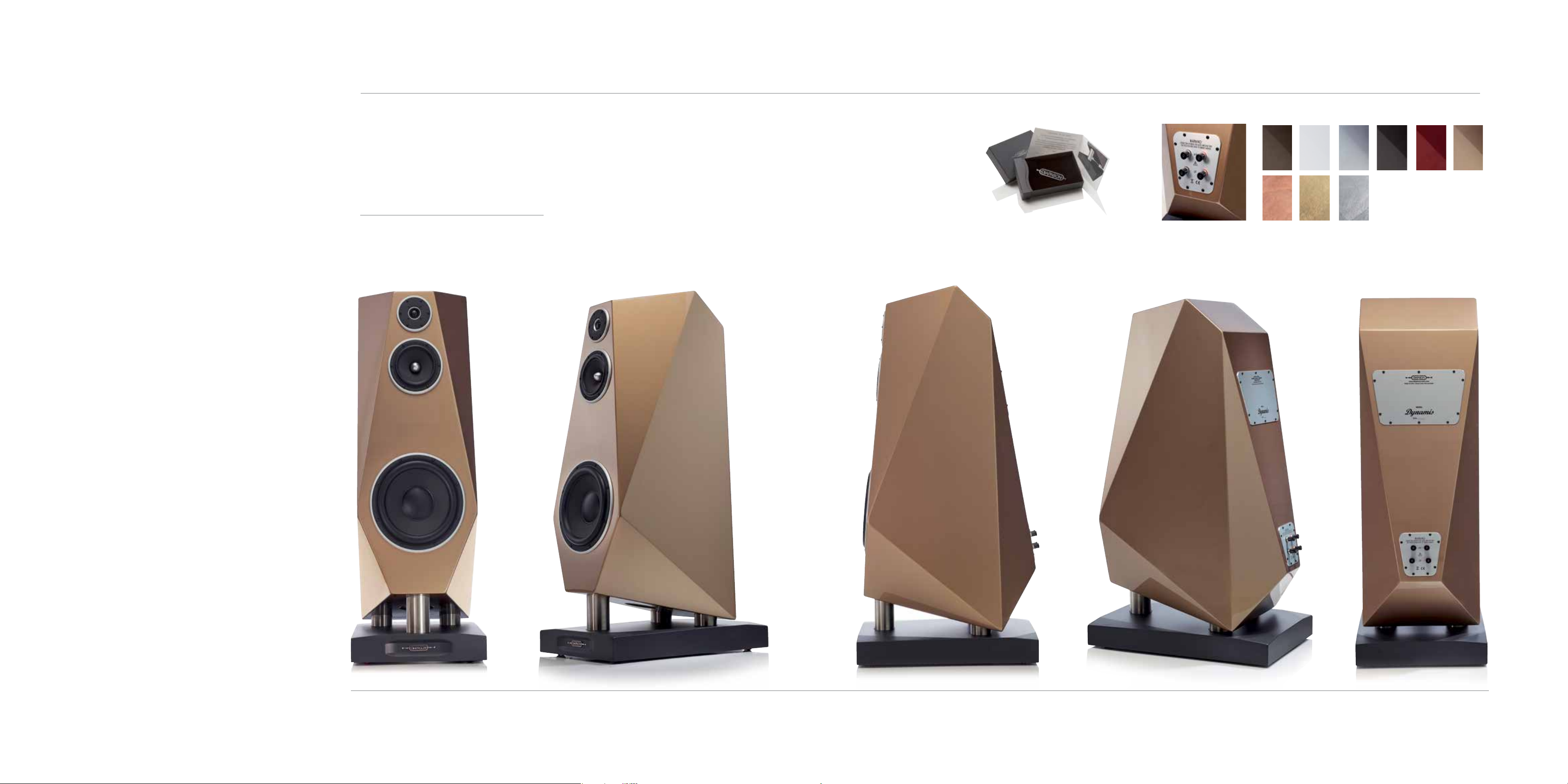

Finishings available
The elegant connectors made by
Diapason guarantee perfect contact
with any system of cabling.
ANY OTHER COLOUR AND
FINISHING ON DEMAND
The cross-over uses nest quality components
and is built and wired entirely by hand in order
to exclude any possibility of loss or phase rotation, and to ensure excellent dynamics under
all conditions.
The quest for perfection is inherent in this
loudspeaker and evident in the care taken with
every detail.
The elegant connectors made by Diapason
guarantee perfect contact with any system of
cabling; the plinth is supplied with anti-scratch swivelling castors to make room placement
easy, as too for the lower reex port. The front
bafe slope has been designed to allow pefect
alignment of the drive units. The drivers are
individually protected by a xed, acoustically
transparent grille which is attached to the loudspeaker by means of magnets, and which also
enhances the beauty of the Dynamis design.
Page 8
THE EVOLUTION OF THE SPECIES
A CONTINUOUS EVOLUTION IN THE MUSIC LISTENING ESPERIENCE...
Alessandro Schiavi has worked passionately on the
Dynamis project since 2005, developing it alongside the Astera, launched in 2009. His knowledge of
musical reproduction, shared with world-famous
musicians and master luthiers, together with his
experience in the eld of live sound recording and
amplication of live music events has come to-
gether over time to allow him to transfer all his passion and emotion for music into this project. With
Dynamis his goal has been to create a truly complete loudspeaker, in collaboration with Roberto
Pasetti for the appearance design. In his vision of a
truly full-range loudspeaker Alessandro Schiavi has
found a perfect balance between depth of bass,
power-handling, in-room sound pressure level and
timbric coherence. The listener is able to enjoy the
music with a quality and sense of naturalness that
is without compromise: Dynamis is so coherent in
the reproduction of live music that it allows us in our
imagination to perceive as real the presence of musical instruments, musicians and singers on the stage.

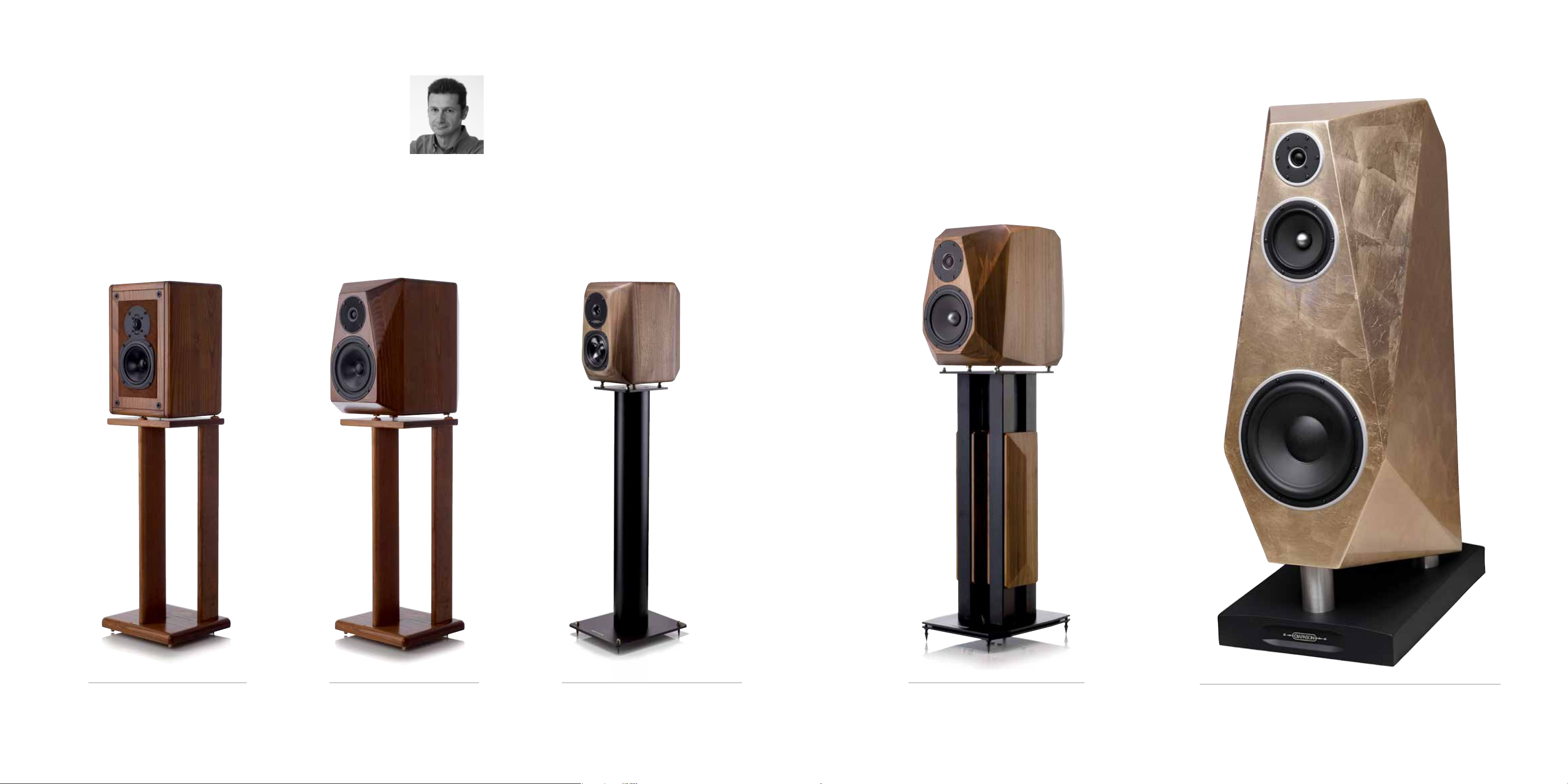

1987
Prelude
1989
Adamantes
1998
Karis
2009
Astera
2014
Dynamis
DYNAMIS IN GLOSSY GOLD LEAF FINISHING
