Diamond View DV171 User Manual

DIAMOND VIEW DV171

Colour TFT LCD Monitor

17” (43.18 cm) LCD Panel Size

User’s Manual

Copyright 2002, Mitsubishi Electric Australia Pty. Ltd. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system
or translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.

MA/MONDV 171/0302/1

Table of Contents

1 Important Safety Instructions...........................................1

1

2 Features .............................................................................2

2

3 Unpacking the Monitor......................................................3

3

4 Hardware Installation ........................................................4

4

VGA Cable Installation ......................................................4

Power Cable Installation ...................................................6

USB Cable Installation ......................................................6

5 Windows Software Installation.........................................7

5

Windows 95 ......................................................................7

Windows 98 ......................................................................7

Windows Millennium Edition (Windows Me)......................8

Windows 2000 and Windows XP ......................................8

6 Setting the Display Resolution.........................................9

6

Choosing The Best Resolution..........................................9

Supported Graphics Modes and Refresh Rates..............10

7 Adjusting the Monitor .....................................................13

7

Picture Optimisation ........................................................13

Manual Picture Adjustment .............................................13

8 Security Lock Installation ...............................................16

8

9 Frequently Asked Questions..........................................17

9

0 Specifications ..................................................................19

110

1 Service Contacts ............................................................. 21

111

Australian Service Contacts ............................................21

New Zealand Service Contacts .......................................22

i

Copyright Notice

Copyright 2002, Mitsubishi Electric Australia Pty. Ltd. All rights reserved. No
part of this publication may be reproduced, transmitted, transcribed, stored in
a retrieval system or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission.

Disclaimer

Mitsubishi Electric Australia Pty. Ltd. makes no representations or
warranties, either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Further, Mitsubishi Electric Australia reserves the right to
revise this publication and to make changes from time to time in the contents
hereof without obligation to notify any person of such revision or changes.

Diamond View is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
All other trademarks remain the property of their respective owners.

Reference Information

For future reference, write the following information about your
monitor in the space below. The serial number is on the back of
the product or on the bottom of its stand.

Monitor Information

Product Name: DV171

Serial Number:

Date of Purchase:

Dealer Information

Dealer:

Telephone
Number:

Address:

ii

Important Safety

11

Instructions

Please read the following safety instructions before installing or cleaning
your Diamond View monitor:

1. Unplug the monitor’s power cable from the wall outlet before cleaning.
Do not use liquid or aerosol cleaners. Use a soft cloth to clean the
monitor housing.

2. Slots and openings on the back or top of the cabinet are provided for
ventilation. They must not be blocked or covered. This product should
never be placed near or over a radiator or other heat source, or in a
built-in installation unless proper ventilation is provided.

3. Never push objects of any kind, or spill liquid of any kind into this
product.

4. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltages or other risks.

5. If any abnormal operation or accident (such as dropping the unit)
occurs, disconnect the monitor from the wall power outlet and contact
qualified service personnel.

6. Turn the audio volume control of the built-in speakers to minimum (0)
and turn the monitor off before connecting or disconnecting any audio
cable.

1

2 Features

2

Your Diamond View DV171 Monitor has the following features:

♦ High Resolution, 1280 x 1024 Pixel LCD Panel

♦ High Brightness and Contrast

250 cd/m² brightness and 400:1 contrast ratio

♦ Plug and Play Compatibility

With Microsoft Windows 95, 98, 2000, Millennium Edition and XP.

♦ Space Saving - only 208 mm deep including the stand

♦ Light Weight - only 6.6 kg

♦ Lower Power Consumption - 55 W maximum during operation

with audio and USB hub.

♦ Power Saving

Power management complies with VESA DPMS standard. When the
system is idle (in power saving mode), the monitor automatically cuts
its power consumption to less than 3 W.

♦ On Screen Display

Allows you to adjust all settings simply using on-screen menus.

♦ High Quality Ratiometric Expansion

With any resolution within the monitor’s specified range, your Diamond
View DV171 monitor can expand the image to full screen.

♦ True Colour Display

With dithering support, Diamond View DV171 monitor enhances the
visual effect and offers you better image quality.

♦ Auto Adjustment Function

The auto adjustment key automatically optimises the displayed image.

♦ Removable Stand with VESA Standard Mounting

♦ Built-in Stereo Amplifier and Speakers

♦ Built-in USB Hub - 2 ports downstream, 1 port upstream

3 Unpacking the Monitor

3

Please check that the following items are included with your monitor. If they
are missing or damaged, please contact your place of purchase immediately.

♦ LCD monitor

♦ User’s manual

♦ VGA cable

♦ Power cord

♦ Audio Cable

♦ USB Cable

♦ Utilities and Driver Floppy Diskette

Locate the model name and the serial number label on the back of your
monitor and write the details of the monitor and your place of purchase in the
space on page (ii) of this manual for future reference.

3

4 Hardware Installation

4

Your monitor is equipped with an automatic power supply with a voltage
range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz. Make sure
that your local power supply is within the supported range. If you are unsure,
please contact your electricity supplier.

To install your Diamond View DV171 monitor:

VGA Cable Installation

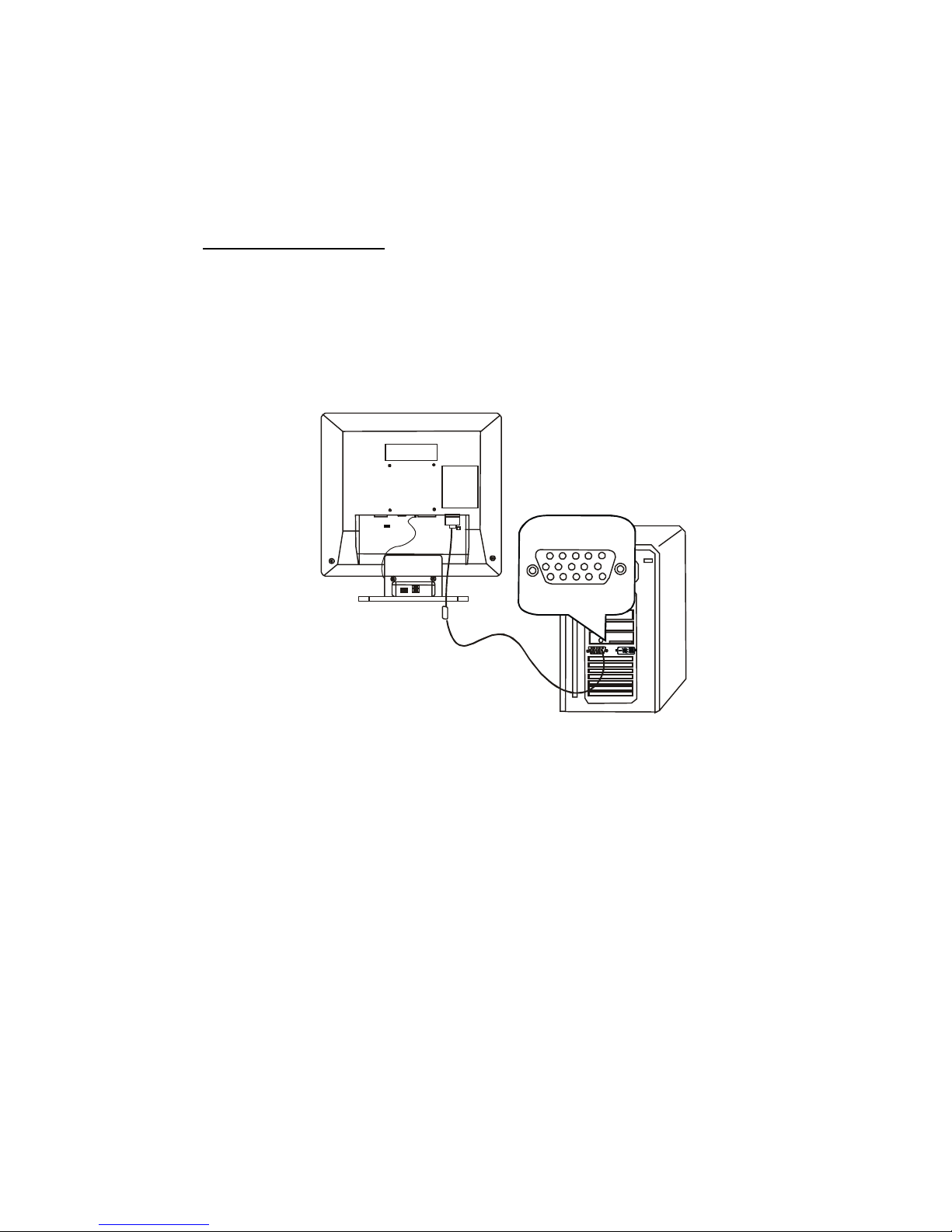

1. Make sure that the power to the computer and the power to the monitor
are both turned off.

2. Connect one end of the monitor’s VGA cable to the analog VGA
connector (15-pin socket) of the computer‘s conventional graphics card.

3. Connect the other end of the monitor’s VGA cable to the VGA connector

(15-pin socket) in the rear of the monitor.

4

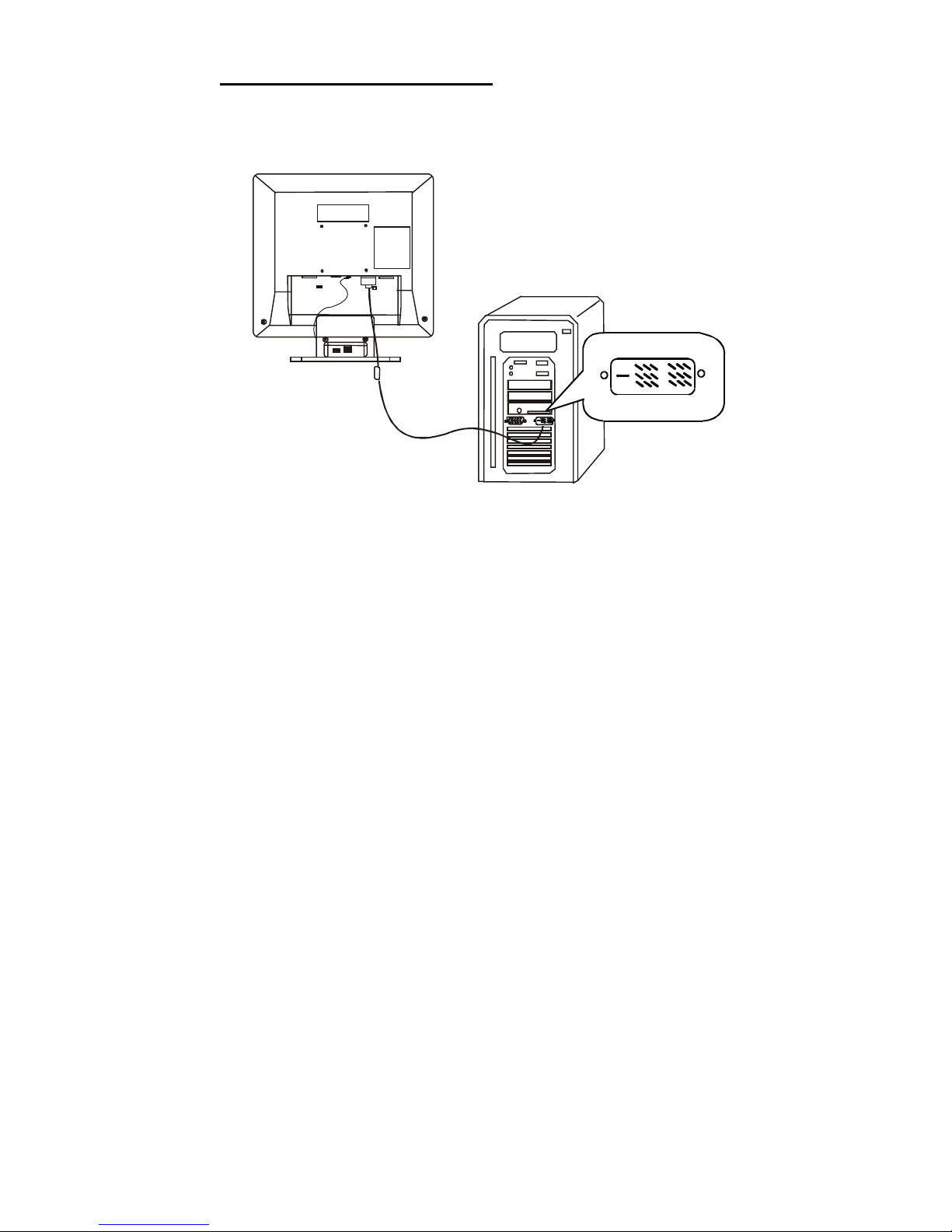

DVI-D Cable Installation(Optional)

1. Connect one end of the monitor’s DVI-D cable to the digital DVI-D
connector (24-pin socket) of the computer‘s graphics card.

2. Connect the other end of the monitor’s DVI-D cable to the VGA connector

(15-pin socket) rear of the monitor.

5

2 3

4

1

Power Cable Installation

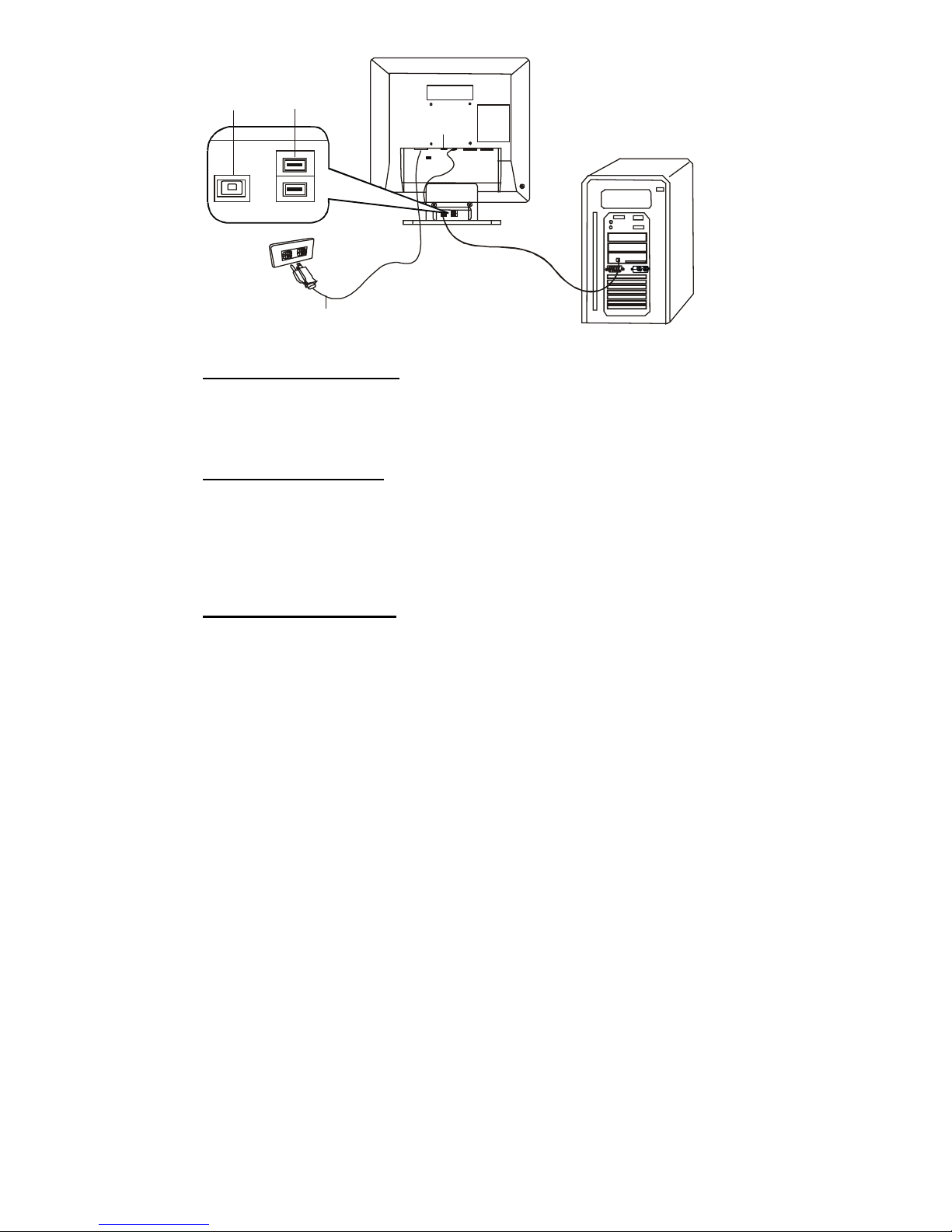

Connect one end of the power cord to the rear of the monitor, and the other
end to the grounded wall outlet (as shown - item 1).

USB Cable Installation

Connect the supplied USB cable from a USB port at the rear of the computer
to the single, upstream USB port at the rear of the monitor (2). The two
downstream USB ports of DV 171 can support two USB devices (3). (The
computer does not need to be turned off while you do this.)

Audio Cable Installation

With the computer and monitor turned off, connect the stereo audio cable
from the Audio output of your sound card to the Audio Input of the monitor
(4).

6

5 Windows Software

5

Installation

To get best performance with Windows 95, 98, Millennium Edition, 2000 or
XP you should set the PC to use the driver supplied with your DV171
monitor.

Windows 95

The first time you start Windows after connecting your new monitor, the
system will detect it and automatically install the driver for Plug and Play
displays. To install the Diamond View DV171 driver and colour profile:

1. Insert the Diamond View LCD Monitor Utilities floppy disk into your

floppy disk drive.

2. Right-click on the Windows desktop and select Properties or open the

Control Panel and double-click Display.

3. From the Display Properties window, select the Settings tab and then

click the Advanced Properties button at the bottom, right corner.

4. Select the Monitor tab and then click the Change button.

5. Click the Have Disk button at the bottom right corner. The Install From

Disk window will appear with the floppy drive A:\ selected. Click OK.

6. Select DV171 from the list and click OK again to install the driver.

7. You will be returned to the Advanced Graphics Properties dialogue.

Close this window by clicking OK and confirm the subsequent messages
by clicking Yes. Click OK and then Yes once more.

8. The installation is now complete, click OK to close Display Properties.

Windows 98

The first time you start Windows with a new monitor; the system will detect it
and automatically start the Add New Hardware wizard.

1. Click the Next button. Select Search for the best driver for your

device (recommended) and click Next.

2. Insert the Diamond View LCD Monitor Utilities floppy disk into your

floppy disk drive. Select the Floppy disk drive check box and click
Next.

7

3. Click Next again and then click Continue. The driver and monitor colour
profile will be installed. Click Finish to complete the installation.

Windows Millennium Edition (Windows Me)

The first time you start Windows with a new monitor; the system will detect it
and automatically start the Add New Hardware wizard.

1. Insert the Diamond View LCD Monitor Utilities floppy disk into your
floppy disk drive. Select the Floppy disk drive check box and click
Next.

2. Select Search for the best driver for your device (recommended), tick the
Removable Media (Floppy, CD-ROM,…) and click Next.

3. Click Next again and then Finish to complete the installation.

Windows 2000 and Windows XP

If the system will detects your DV171 monitor automatically and starts the
Add new hardware wizard, carry out these instructions beginning at step 7.
Otherwise, to install the monitor driver and ICC colour profile:

1. Click Start and then Settings and open the Control Panel.

2. Double click the Display icon.

3. From the Display Properties dialogue box, select the Settings tab.
Click the Advanced…. button at the bottom, right corner.

4. Select Monitor then click Properties.

5. Select the Driver tab and click Update Driver.

6. The Upgrade Device Driver Wizard will pop start. Click Next.

7. Insert the Diamond View LCD Monitor Utilities disk into your floppy disk
drive.

8. Select Display a list of the known drivers for this device so that I
can choose a specific driver and click Next.

9. In the next window, click Have Disk. The Install From Disk dialogue
will open. The default drive is the floppy disk drive, A:\. Click OK.

10. Select the DV171 LCD monitor from the list and then click Next twice.

11. The Digital Signature Not Found window will appear. Click Yes and
then click Finish to complete the driver installation.

8

6 Setting the Display

6

Resolution

Choosing The Best Resolution

All Liquid Crystal Displays (LCDs) have a fixed resolution that is the same as
the maximum resolution that may be displayed on the LCD. In the case of
the DV171 the LCD resolution is 1280 x 1024 pixels. This is also known as
the “native” resolution of the monitor. Lower resolutions can be displayed at
full screen through an interpolation circuit. Because the lower resolution
must be expanded, the quality of the displayed image is not as good as that
available when the native resolution is displayed. For optimal performance
from any LCD monitor, you must use the monitor’s native resolution.

If you are using Windows 95, 98, 2000, Me, XP or NT 4.0, you can change
the resolution as follows:

1. Double-click the Display icon in the control panel.

2. From the Display Properties dialogue box, select the Settings tab.
There is a slider on the right-hand side in the middle of the dialogue that
alters the displayed resolution. Set the resolution to 1280 x 1024.

3. For Windows NT users only: select a refresh rate of either 60Hz or 75
Hz and click Test. A test pattern will be displayed. Make sure that there
are no error messages shown by the monitor. If an error message is
displayed, check the resolution and refresh rate settings or choose a
different refresh rate.

4. Click OK to close Display Properties.

If you are using an Apple Macintosh, you may change the resolution by:

1. Click the Apple icon at the top, left corner of the screen, select Control
Panel and then select Monitors & Sound.

2. Select a resolution of 1280 x 1024pixels with either 60 Hz or 75 Hz
refresh rate.

3. If refresh rates of 60 Hz or 75 Hz are not available, click Recommended
in the Show drop-down box and change it to All. Select the resolution
and refresh rate as above.

4. A colour depth of either Thousands or Millions is recommended.

9

Supported Graphics Modes and Refresh Rates

There is no need to choose the highest possible refresh rate when using an
LCD monitor. It is not technically possible for an LCD monitor to flicker. Even
at a refresh rate of 60 Hz you will get an absolutely flicker-free image.

For best results, it is important that you set the graphics adaptor to use one
of the monitor’s preset display modes shown in Table 1 on the next page.
Other graphics signals may be displayed poorly or not at all. Note that the
DV171’s preset modes correspond to VESA standard graphics signals for
these resolutions. All recent models of graphics adaptor should be able to
support these modes. For the native resolution of 1280 x 1024 pixels, for
example, refresh rates of 60, 70 and 75 Hertz are supported.

With Windows 95, 98, 2000, Millennium Edition or XP you can change the
refresh rate of the graphics signal as follows:

1. Double click the Display icon in the control panel.

2. From the Display Properties dialogue, select the Settings tab and click
the Advanced Properties button.

3. Select the Adapter tab. The refresh rate selection field is located in the
centre, at the bottom of the dialogue box.

4. Choose a refresh rate that corresponds with one of the factory modes
from the table below.

5. Click Apply, and then OK twice.

Please Note:

• Graphics modes that are not listed in the table may not be supported.
For an optimal picture it is recommended that you choose a graphics
mode with a resolution of 1280 x 1024pixels that is listed in Table 1 on
the next page. All 22 modes are compatible with Microsoft Windows.
Resolutions of 640 x 480, 800 x 600, 1024 x 768 and 1280 x 1024
pixels are supported by most other operating systems, including the
Apple Macintosh’s Mac OS.

• The displayed image may show some distortion or noise. This can be
caused by the signal from the VGA card if it does not correspond with
the usual standard. This is not, however, a problem with the monitor. If
it is still visible after using the Automatic adjustment, you can usually
improve the displayed image by manually adjusting the phase,
horizontal position and pixel frequency settings using the "Fine Tune "

10

and “Position“ menu. See Chapter 7, Adjusting the Monitor, for more
details.

• When you shut Windows down you may see interference lines on your
screen. This caused by the manner in which Windows controls the
graphics card at this point and is normal with all LCD monitors.

• To extend the service life of the product, we recommend that you use
your computer's power management functions to turn the monitor off
after extended idle periods.

Input Signal (Multi-scan mode)

Resolution

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel

Frequency

(MHz)

Comments

640x350 31.47(P) 70.08(N) 25.17 DOS

720x400 31.47(N) 70.08(P) 28.32 DOS

640x480 31.47(N) 60.00(N) 25.18 DOS

640x480 37.86(N) 72.80(N) 31.50 VESA

640x480 37.50(N) 75.00(N) 31.50 VESA

640x480 35.00(N) 66.67(N) 30.24 Macintosh

800x600 37.88(P) 60.32(P) 40.00 VESA

800x600 48.08(P) 72.19(P) 50.00 VESA

800x600 46.87(P) 75.00(P) 49.50 VESA

832x624 49.72(N) 74.55(N) 57.29 Macintosh

1024x768 48.36(N) 60.00(N) 65.00 VESA

1024x768 56.48(N) 70.10(N) 75.00 VESA

Continued on next page…

Table 1

11

Input Signal (Multi-scan mode)

Resolution

Horizontal

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel

Frequency

(MHz)

Comments

1024x768 60.02(P) 75.00(P) 78.75 VESA

1024x768 60.24 (N) 74.93 (N) 80.00 Macintosh

1152x864 67.50(P) 75.00(P) 108.00 VESA

1152x870 68.68(N) 75.06(N) 100.00 Macintosh

1152x900 61.80(N) 66.00(N) 94.50 Sun

1152x900 61.80(N) 76.14(N) 108.00 Sun

1280x1024 64.00(P) 60.00(P) 108.00 VESA

1280x1024 75.83(N) 71.53(N) 128.00 IBM

1280x1024 80.00(P) 75.00(P) 135.00 VESA

1280x1024 81.18(N) 76.16(N) 135.09 Sun

Table 1 (continued from previous page)

12

7 Adjusting the Monitor

7

Picture Optimisation

The easiest way to obtain an optimal picture is by using the AUTO button.
This only works reliably if the graphics adaptor is set to use one of the
monitor’s factory modes (see Table 1 in the previous chapter) and if you are
displaying an appropriate full-screen test pattern.

Windows users should run the adjustment software (Auto.exe) from the
Utilities floppy disk to display the correct test pattern. Press the Auto button
once the test pattern is displayed. You can quit Auto.exe by clicking the left
mouse button once and clicking on Exit.

Test patterns in TIFF and JPEG file formats are also available from the File
Downloads section of Mitsubishi Electric Australia’s web site at
www.mitsubishi-electric.com.au. Follow the link to the TFT LCD monitors
page and download a pattern with the resolution that you need. Display the
test pattern at its actual size (100% zoom), preferably at full screen and then
press the monitor’s Auto button.

If you are still not satisfied with the result, you can enhance the image by
using the monitor’s manual adjustment functions.

Manual Picture Adjustment

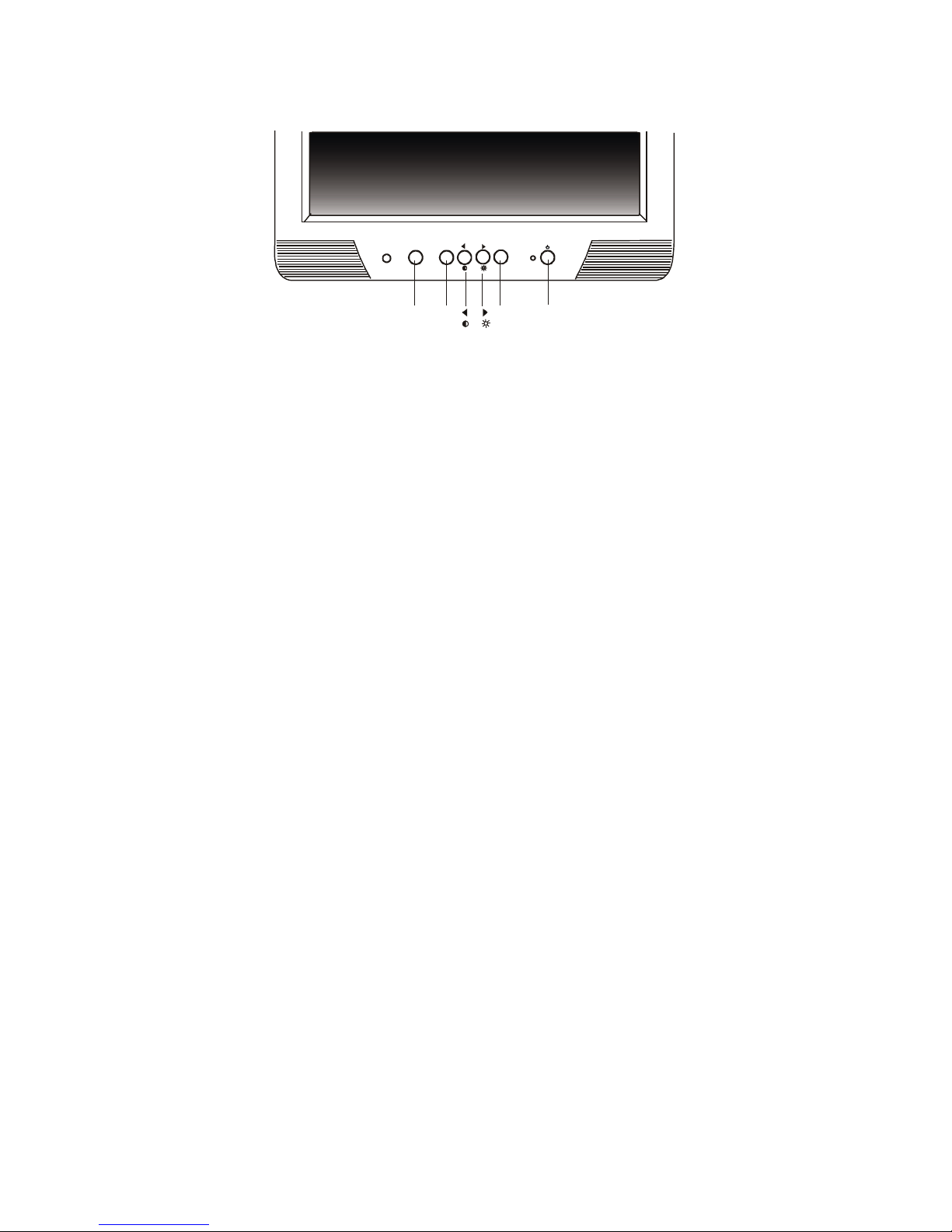

Adjustments to the displayed image and audio volume are made using the
On-Screen Display (OSD), controlled by 5 buttons on the front of the
monitor.

The user’s controls include Power, AUTO, Exit and Enter. < and > are used
to select menu items and to change the values of image parameters.

13

Auto E xit E nt er

A ut o Exi t En te r Pow er

Power on/ off: Turn the monitor on or off.

Auto: Automatically adjusts the vertical position, pixel phase,

horizontal position and pixel clock.

Exit: Return to the main menu or exit the OSD menu with saving.

Press the exit key when the OSD is not displayed to adjust
the audio volume.

Enter: Enter sub-menus, select items, save changes.

< >: Use these buttons to select a menu item or make an

adjustment when using the OSD. Also acts as a hot key for
Brightness and Contrast adjustment.

To manually adjust the image:

1. Display the adjustment test pattern. This is the best way to observe
changes as you adjust the image. Windows users should run the
Auto.exe test pattern program. For non-Windows operating systems, you
also can use the test pattern described in the previous section or
another full-screen image, such the desktop of the operating system.

2. Open the OSD menu by pressing the Enter button on the monitor.

3. Use < or > to select the Fine Tune submenu and then press Enter.

4. Five patterns will be shown at the top of the OSD window. Use </>t to
select Clock and then press Enter.

14

5. Check the current setting. Use < or > to tune the sampling clock to get
the optimum picture. Look at the centre section of the test pattern that
has alternating black and white vertical lines that are each 1 pixel wide.
There should be no vertical noise bands visible within the image. The
centre section will clearly show the alternating black and white lines or a
uniform level of noise will appear across the image. Close the clock
submenu by pressing Exit twice to main menu.

6. Use < or > to select Position and press Enter. Select H position and
press enter.

7. Adjust the horizontal position so that the image is centered. Its width
should be the same as the visible width of the screen. Press Exit twice
to go back to the main menu.

8. If some noise or distortion is still visible in the centre section of the test
pattern, use < or > to select Fine Tune and press Enter. Select the
Phase and press enter.

9. Adjust the Phase of the monitor’s sampling clock by turning the wheel to
optimise the displayed image. The alternating black and white lines
should be clearly visible. Press Exit twice to main menu.

If you are still not satisfied with the result, try repeating the procedure using a
graphics signal that has a different refresh rate.

Notes:

You must use one of the factory modes. If the AUTO button is not working,
or the NON PRESET MODE message is shown on the OSD you are not
using one of the supported modes. If you are having difficulties generating a
supported mode, ask your computer dealer or the distributor or manufacturer
of your graphics card for assistance.

The procedures described in this chapter should be performed for every
resolution and type of graphics signal that you wish to use. For example, if a
particular application requires a resolution of 800 x 600 pixels, but all other
applications use the monitor’s native resolution, you will need to display the
test pattern and make adjustments.

The monitor will remember your settings and use them whenever you turn
the monitor on. Note that you may need to readjust the monitor if it is
connected to a different computer or if the computer’s graphics adaptor is
replaced.

15

8 Security Lock

8

Installation

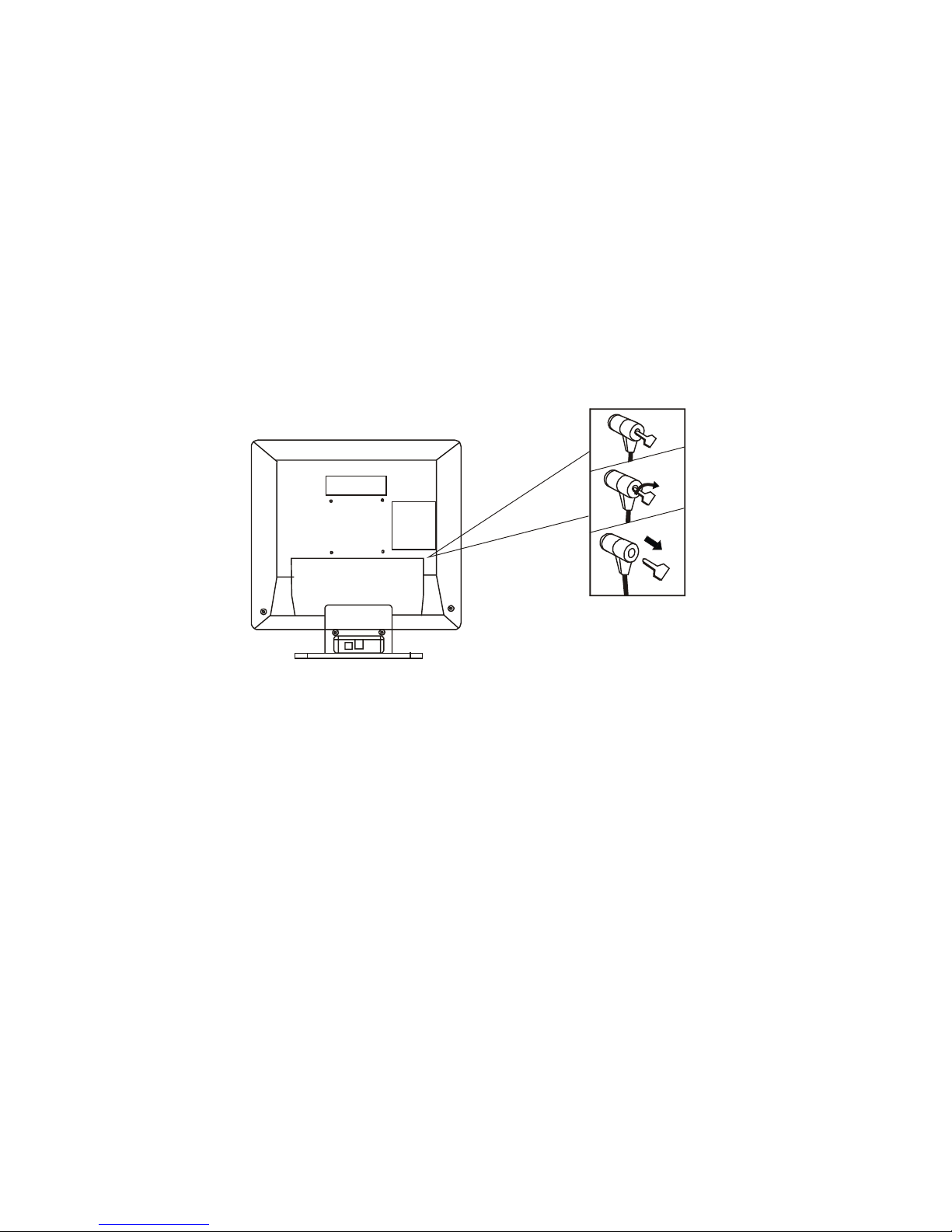

The Diamond View DV171 can be secured to your desk or any other fixed
object with a Kensington lock security product. The Kensington lock‘s cable
can be attached to a slot located at the rear of the monitor.

1. Insert the lock in the slot located on the rear of the monitor.

2. Turn the key to lock the Security Lock.

3. Remove the key and store it in a safe place.

Note: Kensington locks are not available from Mitsubishi Electric Australia.
Please contact your reseller for more information.

16

9 Frequently Asked

9

Questions

The image is blurred, how can I get the best quality picture?

- Read chapter 6, Setting the Display Resolution, and then select a
graphics signal with the correct resolution and refresh rate. Then read
chapter 7, Adjusting the Monitor, and make adjustments to the displayed
image based on these instructions.

- Have you used a VGA extension cable?

If so, remove the extension cable and check the displayed image. Is the
image quality improved? Optimise the image using the procedures in
chapter 7 with the extension cable removed. Reconnect the extension
cable once the image has been optimised. Depending on the
characteristics and type of the extension cable, some blurring or
distortion may occur due to conduction losses of the extension cable.
You can minimise these losses by using an extension cable with better
conduction quality or with a built-in booster.

- Does the blurring only occur at resolutions lower than the native
(maximum) resolution?

Please read chapter 6, Setting the Display Resolution. Select a
graphics signal that uses the monitor’s the native resolution (1280 x
1024 pixels).

Why does the image look yellow, blue or pink instead of showing the
correct colours?

- The most common cause of this problem is a loose VGA signal cable or
connector. Check that the cable is securely connected to the computer.

- Check the VGA signal cable for damage. If any pins are bent or broken
off, contact your dealer or an authorised Mitsubishi Electric service agent
(see Chapter 11 for details).

- Check the monitor’s colour settings. Press the Enter button and use < or
> to select the Color Settings menu. Select the Recall menu item and

press Enter.

17

No image is displayed, what can I do?

- Check that the light (LED) next to the monitor’s power button is lit and is
green in colour. If the LED is green, press the "Exit" button on the monitor
to access the On Screen Display. If the message "NON PRESET MODE"
appears there, please read chapter 6, Setting the Display Resolution and
reset the graphics card to one of the monitor’s supported graphics
signals.

- If the LED is orange the monitor is in power saving mode. Press a button
on the computer keyboard or move the mouse to wake the computer. If
that does not help, check that the VGA cable is securely plugged into the
computer. Also check the pins of the VGA cable’s connector. If any pins
are bent or broken off, then contact your dealer (see Chapter 11 for
details).

- If the LED is not lit at all, check that the monitor is plugged into the power
supply mains socket and that the power switch is turned on. Check that
the monitor’s power switch is also turned on.

The image is or distorted, flashes or flickers:

- Check that the monitor’s signal cable is securely connected to the
computer.

- Read the chapters 6 and 7 of this manual, then select the correct
resolution, refresh rate and make adjustments based on these
instructions.

The image is displaced in one direction:

- Use the Hor. Position (horizontal position) adjustment in the Position
menu of the monitor’s OSD to reposition the image.

- Read the chapters 6 and 7 and then select the correct resolution, refresh
rate and make adjustments based on these instructions.

18

0 Specifications

110

Model Diamond View DV171

Display Characteristics

Display Type

Viewable Diagonal Area 43.2 cm / 17”

Native (Maximum) Resolution 1280 x 1024 pixels

Colours 16.7 million

Contrast Ratio / Brightness 400:1 / 250 cd/m² (typical)

Response Time 40 ms (typical)

Viewing Angle (Left/Right, Up/Down) 70° / 70°, 60° / 60° (typical)

Dot Pitch 0.264 mm

User Interface

Controls

On-Screen Display Functions Contrast, Brightness, Fine Tune,

Microprocessor Controlled Graphics
Modes

Input Signal

17“ active matrix Thin Film
Transistor Liquid Crystal Display

power button, 4 buttons to control
On-Screen Display, Automatic
image adjustment

Auto Adjust, Position, Color,
Language, Recall, Volume, Input
select, OST Setup, INFO

22 factory modes:
3 DOS modes, 11 VESA modes

Line Frequency 31 – 81 kHz multi-frequency

Image Frequency (Refresh Rate) 56 - 75 Hz

Within the parameters detailed in
chapter 6

Video Signal RGB analog and digital

0.7 Vpp/75 Ohm

19

Synchronisation TTL separate, composite TTL

Signal Connection 15-pin mini D-sub cable

24- pin DVI-D cable

Physical Characteristics

Power Management VESA DPMS, Energy Star

Maximum Power Consumption 55 Watts

Power Saving Mode < 3 Watts

Operating Voltage

Automatic switched mode power
supply, 100 - 264 V, 50 - 60Hz

Dimensions (W x H x D) 407 x 430.4 x 208 mm

Net Weight

6.6kg

Temperature (Operating) 5°C - 35 °C

Air Humidity (Operating) 20% - 85%

Audio

Audio Output Power 1 Watt / Channel (at 1 kHz)

Frequency response 50 Hz – 12 kHz

THD / Signal/Noise < 10% at 1W / 50 dB

USB Hub

Ports 1 Upstream and 2 Downstream

USB Standard USB Specification Revision 1.1

Regulatory Certification

Safety AS/NZS 60950, CB

EMI/EMC AS/NZS 3548 Class B (C-Tick), FCC

Class B, CE Mark

Other MPR-II

20

Service Contacts

1111

If problems remain after checking this manual, please contact your place of
purchase or contact

Australian Service Contacts

Visit the Mitsubishi Electric Australia web site at

www.mitsubishi-electric.com.au

For details of your nearest Mitsubishi Electric Authorised Service Centre or
contact the Service Department for your state:

New South Wales and Australian Capital Territory

348 Victoria Road
Rydalmere, NSW, 2116

Telephone: [phone]

Fax: [phone]

Queensland

1 / 104 Newmarket Road
Windsor, Qld, 4030

Telephone: [phone]

Fax: [phone]

South Australia and Northern Territory

77 Port Road
Hindmarsh, SA, 5007

Telephone: [phone]

Fax: [phone]

21

Victoria and Tasmania

4 / 303 Burwood Hwy
East Burwood, Vic, 3151

Telephone: [phone]

Fax: [phone]

Western Australia

5 / 329 Collier Road
Bassendean, WA, 6054

Telephone: [phone]

Fax: [phone]

New Zealand Service Contacts

Contact:

Melco New Zealand Ltd.
1 Parliament St.
Lower Hutt
Wellington

Telephone: [phone]

Fax: [phone]

Web site: www.melco.co.nz

22
