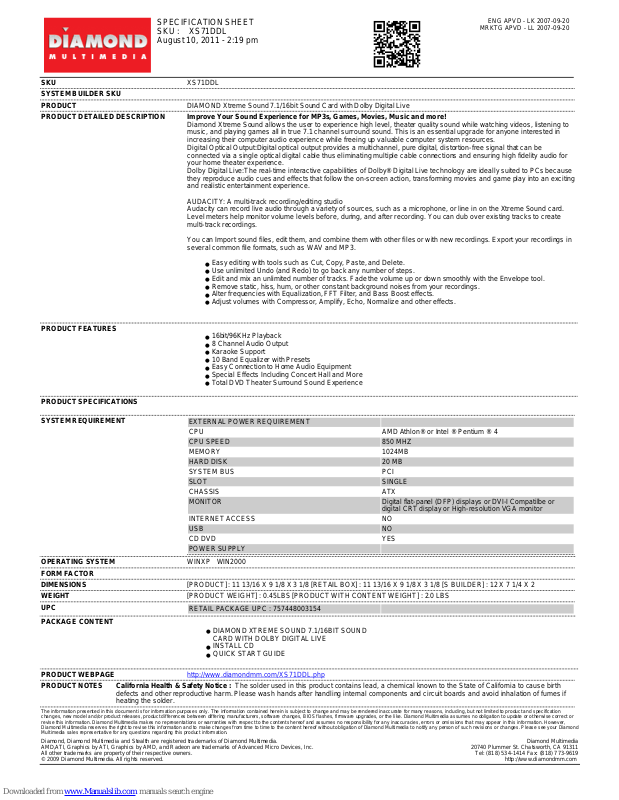

Diamond Multimedia XtremeSound 7.1DDL XS71DDL, Xtreme Sound 7.1 Specification Sheet

SPECIFICATION SHEET
SKU : XS71DDL
August 10, 2011 - 2:19 pm

ENG APVD - LK 2007-09-20

MRKTG APVD - LL 2007-09-20

SKU XS71DDL
SYSTEM BUILDER SKU
PRODUCT DIAMOND Xtreme Sound 7.1/16bit Sound Card with Dolby Digital Live
PRODUCT DETAILED DESCRIPTION Improve Your Sound Experience for MP3s, Games, Movies, Music and more!

Diamond Xtreme Sound allows the user to experience high level, theater quality sound while watching videos, listening to
music, and playing games all in true 7.1 channel surround sound. This is an essential upgrade for anyone interested in
increasing their computer audio experience while freeing up valuable computer system resources.
Digital Optical Output:Digital optical output provides a multichannel, pure digital, distortion-free signal that can be
connected via a single optical digital cable thus eliminating multiple cable connections and ensuring high fidelity audio for
your home theater experience.
Dolby Digital Live:The real-time interactive capabilities of Dolby® Digital Live technology are ideally suited to PCs because
they reproduce audio cues and effects that follow the on-screen action, transforming movies and game play into an exciting
and realistic entertainment experience.

AUDACITY: A multi-track recording/editing studio
Audacity can record live audio through a variety of sources, such as a microphone, or line in on the Xtreme Sound card.
Level meters help monitor volume levels before, during, and after recording. You can dub over existing tracks to create
multi-track recordings.

You can Import sound files, edit them, and combine them with other files or with new recordings. Export your recordings in
several common file formats, such as WAV and MP3.

●

Easy editing with tools such as Cut, Copy, Paste, and Delete.

●

Use unlimited Undo (and Redo) to go back any number of steps.

●

Edit and mix an unlimited number of tracks. Fade the volume up or down smoothly with the Envelope tool.

●

Remove static, hiss, hum, or other constant background noises from your recordings.

●

Alter frequencies with Equalization, FFT Filter, and Bass Boost effects.

●

Adjust volumes with Compressor, Amplify, Echo, Normalize and other effects.

PRODUCT FEATURES

●

16bit/96KHz Playback

●

8 Channel Audio Output

●

Karaoke Support

●

10 Band Equalizer with Presets

●

Easy Connection to Home Audio Equipment

●

Special Effects Including Concert Hall and More

●

Total DVD Theater Surround Sound Experience

PRODUCT SPECIFICATIONS

SYSTEM REQUIREMENT

EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 850 MHZ
MEMORY 1024MB
HARD DISK 20 MB
SYSTEM BUS PCI
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or

digital CRT display or High-resolution VGA monitor
INTERNET ACCESS NO
USB NO
CD DVD YES
POWER SUPPLY

OPERATING SYSTEM WINXP WIN2000
FORM FACTOR
DIMENSIONS [PRODUCT] : 11 13/16 X 9 1/8 X 3 1/8 [RETAIL BOX] : 11 13/16 X 9 1/8 X 3 1/8 [S BUILDER] : 12 X 7 1/4 X 2
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC

RETAIL PACKAGE UPC : 757448003154

PACKAGE CONTENT

●

DIAMOND XTREME SOUND 7.1/16BIT SOUND
CARD WITH DOLBY DIGITAL LIVE

●

INSTALL CD

●

QUICK START GUIDE

PRODUCT WEBPAGE http://www.diamondmm.com/XS71DDL.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth

defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
