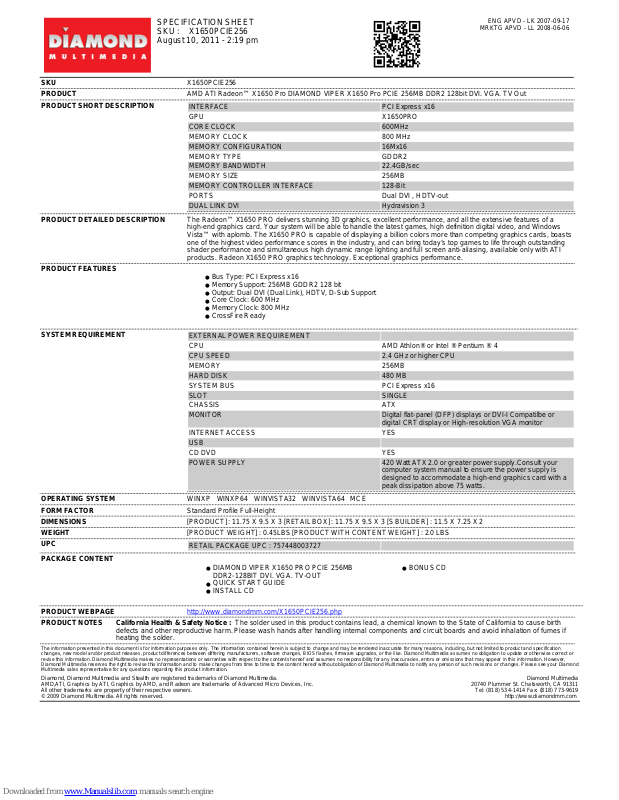

Diamond Multimedia Viper X1650PCIE256, VIPER X1650 Pro Specification Sheet
SPECIFICATION SHEET
SKU : X1650PCIE256
August 10, 2011 - 2:19 pm
ENG APVD - LK 2007-09-17
MRKTG APVD - LL 2008-06-06
SKU X1650PCIE256
PRODUCT AMD ATI Radeon™ X1650 Pro DIAMOND VIPER X1650 Pro PCIE 256MB DDR2 128bit DVI. VGA. TV Out
PRODUCT SHORT DESCRIPTION
INTERFACE PCI Express x16
GPU X1650PRO
CORE CLOCK 600MHz
MEMORY CLOCK 800 MHz
MEMORY CONFIGURATION 16Mx16
MEMORY TYPE GDDR2
MEMORY BANDWIDTH 22.4GB/sec
MEMORY SIZE 256MB
MEMORY CONTROLLER INTERFACE 128-Bit
PORTS Dual DVI , HDTV-out
DUAL LINK DVI Hydravision 3
PRODUCT DETAILED DESCRIPTION The Radeon™ X1650 PRO delivers stunning 3D graphics, excellent performance, and all the extensive features of a
high-end graphics card. Your system will be able to handle the latest games, high definition digital video, and Windows
Vista™ with aplomb. The X1650 PRO is capable of displaying a billion colors more than competing graphics cards, boasts
one of the highest video performance scores in the industry, and can bring today’s top games to life through outstanding
shader performance and simultaneous high dynamic range lighting and full screen anti-aliasing, available only with ATI
products. Radeon X1650 PRO graphics technology. Exceptional graphics performance.
PRODUCT FEATURES
●
Bus Type: PCI Express x16
●
Memory Support: 256MB GDDR2 128 bit
●
Output: Dual DVI (Dual Link), HDTV, D-Sub Support
●
Core Clock: 600 MHz
●
Memory Clock: 800 MHz
●
CrossFire Ready
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 2.4 GHz or higher CPU
MEMORY 256MB
HARD DISK 480 MB
SYSTEM BUS PCI Express x16
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB
CD DVD YES
POWER SUPPLY 420 Watt ATX 2.0 or greater power supply.Consult your
computer system manual to ensure the power supply is
designed to accommodate a high-end graphics card with a
peak dissipation above 75 watts.
OPERATING SYSTEM WINXP WINXP64 WINVISTA32 WINVISTA64 MCE
FORM FACTOR Standard Profile Full-Height
DIMENSIONS [PRODUCT] : 11.75 X 9.5 X 3 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.5 X 7.25 X 2
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC
RETAIL PACKAGE UPC : 757448003727
PACKAGE CONTENT
●
DIAMOND VIPER X1650 PRO PCIE 256MB
DDR2-128BIT DVI. VGA. TV-OUT
●
QUICK START GUIDE
●
INSTALL CD
●
BONUS CD
PRODUCT WEBPAGE http://www.diamondmm.com/X1650PCIE256.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
The information presented in this document is for information purposes only. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including, but not limited to product and specification
changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. Diamond Multimedia assumes no obligation to update or otherwise correct or
revise this information. Diamond Multimedia makes no representations or warranties with respect to the contents hereof and assumes no responsibility for any inaccuracies, errors or omissions that may appear in this information. However,
Diamond Multimedia reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of Diamond Multimedia to notify any person of such revisions or changes. Please see your Diamond
Multimedia sales representative for any questions regarding this product information.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
AMD,ATI, Graphics by ATI, Graphics by AMD, and Radeon are trademarks of Advanced Micro Devices, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia
20740 Plummer St. Chatsworth, CA 91311
Tel: (818) 534-1414 Fax: (818) 773-9619
http://www.diamondmm.com
