Diamond Multimedia VC500 User Manual

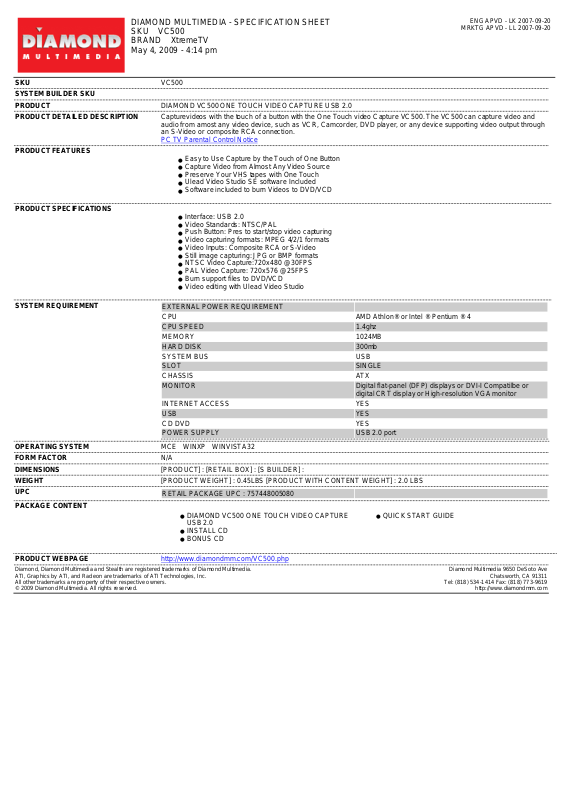

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU VC500
ENG APVD - LK 2007-09-20
MRKTG APVD - LL 2007-09-20
BRAND XtremeTV
May 4, 2009 - 4:14 pm
SKU VC500
SYSTEM BUILDER SKU
PRODUCT DIAMOND VC500 ONE TOUCH VIDEO CAPTURE USB 2.0
PRODUCT DETAILED DESCRIPTION Capturevideos with the touch of a button with the One Touch video Capture VC500. The VC500 can capture video and
PRODUCT FEATURES
audio from amost any video device, such as VCR, Camcorder, DVD player, or any device supporting video output through
an S-Video or composite RCA connection.
PC TV Parental Control Notice
Easy to Use Capture by the Touch of One Button
●
Capture Video from Almost Any Video Source
●
Preserve Your VHS tapes with One Touch
●
Ulead Video Studio SE software Included
●
Software included to burn Videos to DVD/VCD
●
PRODUCT SPECIFICATIONS
Interface: USB 2.0
●
Video Standards: NTSC/PAL
●
Push Button: Pres to start/stop video capturing
●
Video capturing formats: MPEG 4/2/1 formats
●
Video Inputs: Composite RCA or S-Video
●
Still image capturing: JPG or BMP formats
●
NTSC Video Capture:720x480 @30FPS
●
PAL Video Capture: 720x576 @25FPS
●
Burn support files to DVD/VCD
●
Video editing with Ulead Video Studio
●
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 1.4ghz
MEMORY 1024MB
HARD DISK 300mb
SYSTEM BUS USB
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB YES
CD DVD YES
POWER SUPPLY USB 2.0 port
OPERATING SYSTEM MCE WINXP WINVISTA32
FORM FACTOR N/A
DIMENSIONS [PRODUCT] : [RETAIL BOX] : [S BUILDER] :
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC
RETAIL PACKAGE UPC : 757448005080
PACKAGE CONTENT
DIAMOND VC500 ONE TOUCH VIDEO CAPTURE
●
USB 2.0
INSTALL CD
●
BONUS CD
●
QUICK START GUIDE
●
PRODUCT WEBPAGE http://www.diamondmm.com/VC500.php
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia 9650 DeSoto Ave
Tel: (818) 534-1414 Fax: (818) 773-9619
Chatsworth, CA 91311
http://www.diamondmm.com
