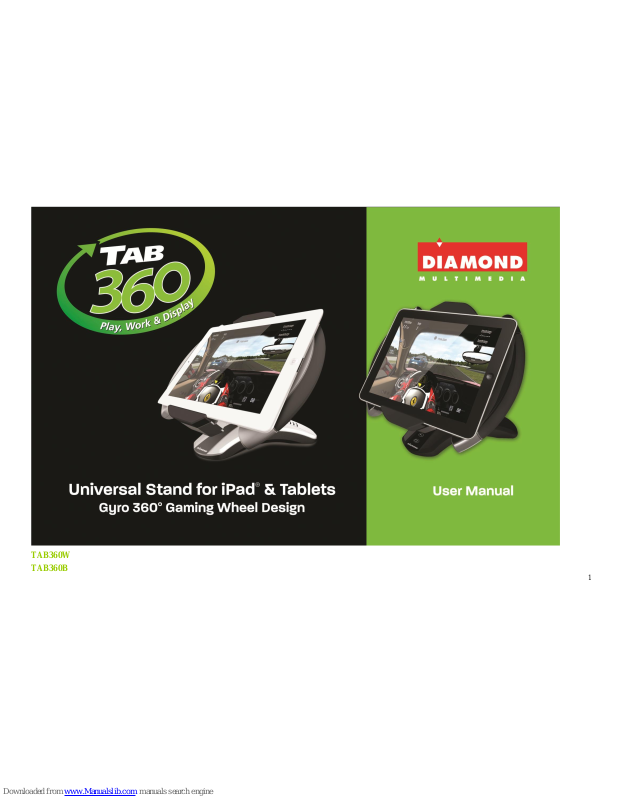

Diamond Multimedia TAB360W, TAB360B User Manual

1

TAB360W
TAB360B

2

Important Safety Instructions

1. Read and keep this manual

Safety Information

1. Do not use this product near water or moisture.

2. This product is NOT weatherproof.

3. Clean only with a dry lint-free cloth. Do not use any chemicals or cleaners.

4. Do not install or use near any open flame or heat sources, such as
heaters, stoves, grills, and or any other devices that can produce heat.

5. Do not expose to direct sunlight.

6. Only use accessories specified by the manufacturer.

Product & Accessory

1. TAB360 steering wheel

2. TAB360 stand

3. Manual

4. 3D Rod Joint Spring *

*(One pre installed low tension spring and one optional high tension spring for those expert extreme gamers. The high tension spring is also for those
using the TAB360 primarily as a universal stand).

Feature

- Ergonomic design for ultra comfort and control

- Retractable clips for Tablets with all dimensions (7”-10.1”)

3

Installation

Assemble TAB360 wheel to base

1. Align the gear to assemble TAB360 wheel onto Base.

2. Press the button in the back to assemble TAB360 wheel and Base.

3. Release the button to complete assembly.

2. Attach Tablet to TAB360

1. Adjust the TAB360 Wheel horizontally.

2. Push the button to extend the clips to maximum.

4

3. Loosen the knob according to different thickness of Tablet.

4. Press the clips by hands to accommodate Tablets with different dimensions ( 7”~ 10.1”)

5. Adjust clip height by fastening the knob to accommodate Tablets with different thickness ( 9mm~18.5mm)

Note: Please ensure that you have fully secured your tablet by tightening the knobs
