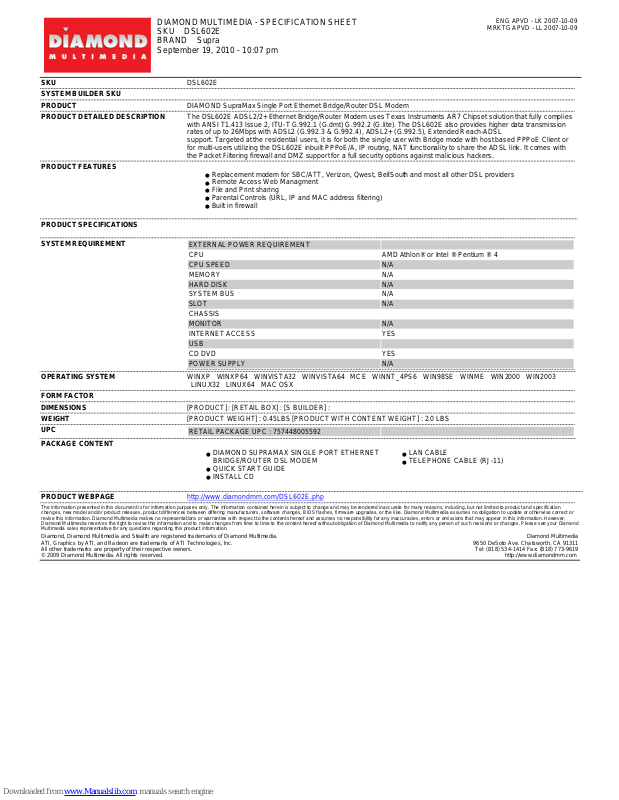

Diamond Multimedia SupraMax DSL602E Specification Sheet
DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU DSL602E
BRAND Supra
September 19, 2010 - 10:07 pm
ENG APVD - LK 2007-10-09
MRKTG APVD - LL 2007-10-09
SKU DSL602E
SYSTEM BUILDER SKU
PRODUCT DIAMOND SupraMax Single Port Ethernet Bridge/Router DSL Modem
PRODUCT DETAILED DESCRIPTION The DSL602E ADSL2/2+ Ethernet Bridge/Router Modem uses Texas Instruments AR7 Chipset solution that fully complies
with ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) G.992.2 (G.lite). The DSL602E also provides higher data transmission
rates of up to 26Mbps with ADSL2 (G.992.3 & G.992.4), ADSL2+ (G.992.5), Extended Reach-ADSL
support. Targeted at the residential users, it is for both the single user with Bridge mode with host based PPPoE Client or
for multi-users utilizing the DSL602E inbuilt PPPoE/A, IP routing, NAT functionality to share the ADSL link. It comes with
the Packet Filtering firewall and DMZ support for a full security options against malicious hackers.
PRODUCT FEATURES
●
Replacement modem for SBC/ATT, Verizon, Qwest, BellSouth and most all other DSL providers
●
Remote Access Web Managment
●
File and Print sharing
●
Parental Controls (URL, IP and MAC address filtering)
●
Built in firewall
PRODUCT SPECIFICATIONS
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED N/A
MEMORY N/A
HARD DISK N/A
SYSTEM BUS N/A
SLOT N/A
CHASSIS
MONITOR N/A
INTERNET ACCESS YES
USB
CD DVD YES
POWER SUPPLY N/A
OPERATING SYSTEM WINXP WINXP64 WINVISTA32 WINVISTA64 MCE WINNT_4PS6 WIN98SE WINME WIN2000 WIN2003
LINUX32 LINUX64 MAC OSX
FORM FACTOR
DIMENSIONS [PRODUCT] : [RETAIL BOX] : [S BUILDER] :
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC
RETAIL PACKAGE UPC : 757448005592
PACKAGE CONTENT
●
DIAMOND SUPRAMAX SINGLE PORT ETHERNET
BRIDGE/ROUTER DSL MODEM
●
QUICK START GUIDE
●
INSTALL CD
●
LAN CABLE
●
TELEPHONE CABLE (RJ-11)
PRODUCT WEBPAGE http://www.diamondmm.com/DSL602E.php
