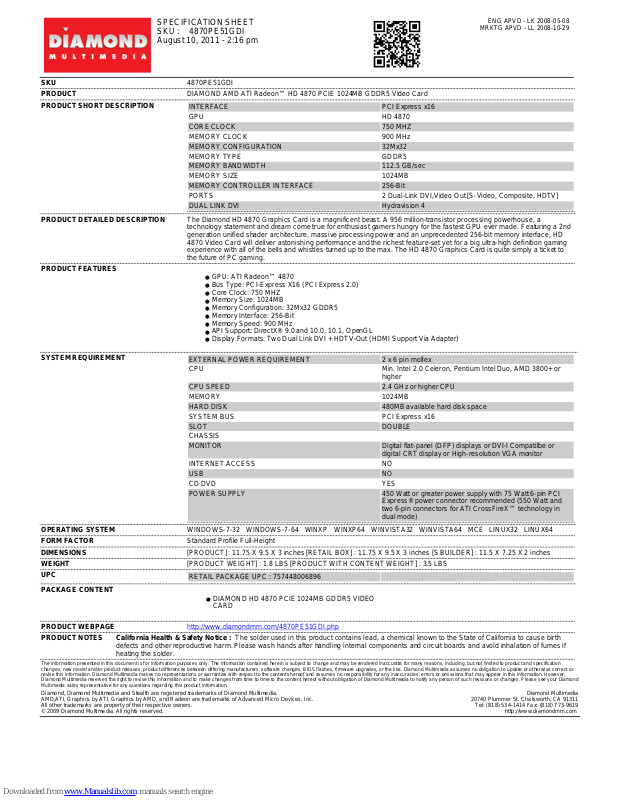

SPECIFICATION SHEET
SKU : 4870PE51GDI
August 10, 2011 - 2:16 pm
ENG APVD - LK 2008-05-08
MRKTG APVD - LL 2008-10-29
SKU 4870PE51GDI
PRODUCT DIAMOND AMD ATI Radeon™ HD 4870 PCIE 1024MB GDDR5 Video Card
PRODUCT SHORT DESCRIPTION
INTERFACE PCI Express x16
GPU HD 4870
CORE CLOCK 750 MHZ
MEMORY CLOCK 900 MHz
MEMORY CONFIGURATION 32Mx32
MEMORY TYPE GDDR5
MEMORY BANDWIDTH 112.5 GB/sec
MEMORY SIZE 1024MB
MEMORY CONTROLLER INTERFACE 256-Bit
PORTS 2 Dual-Link DVI,Video Out [S-Video, Composite, HDTV]
DUAL LINK DVI Hydravision 4
PRODUCT DETAILED DESCRIPTION The Diamond HD 4870 Graphics Card is a magnificent beast. A 956 million-transistor processing powerhouse, a
technology statement and dream come true for enthusiast gamers hungry for the fastest GPU ever made. Featuring a 2nd
generation unified shader architecture, massive processing power and an unprecedented 256-bit memory interface, HD
4870 Video Card will deliver astonishing performance and the richest feature-set yet for a big ultra-high definition gaming
experience with all of the bells and whistles turned up to the max. The HD 4870 Graphics Card is quite simply a ticket to
the future of PC gaming.
PRODUCT FEATURES
●
GPU: ATI Radeon™ 4870
●
Bus Type: PCI-Express X16 (PCI Express 2.0)
●
Core Clock: 750 MHZ
●
Memory Size: 1024MB
●
Memory Configuration: 32Mx32 GDDR5
●
Memory Interface: 256-Bit
●
Memory Speed: 900 MHz
●
API Support: DirectX® 9.0 and 10.0, 10.1, OpenGL
●
Display Formats: Two Dual Link DVI + HDTV-Out (HDMI Support Via Adapter)
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT 2 x 6 pin mollex
CPU Min. Intel 2.0 Celeron, Pentium Intel Duo, AMD 3800+ or
higher
CPU SPEED 2.4 GHz or higher CPU
MEMORY 1024MB
HARD DISK 480MB available hard disk space
SYSTEM BUS PCI Express x16
SLOT DOUBLE
CHASSIS
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS NO
USB NO
CD DVD YES
POWER SUPPLY 450 Watt or greater power supply with 75 Watt 6-pin PCI
Express® power connector recommended (550 Watt and
two 6-pin connectors for ATI CrossFireX™ technology in
dual mode)
OPERATING SYSTEM WINDOWS-7-32 WINDOWS-7-64 WINXP WINXP64 WINVISTA32 WINVISTA64 MCE LINUX32 LINUX64
FORM FACTOR Standard Profile Full-Height
DIMENSIONS [PRODUCT] : 11.75 X 9.5 X 3 inches [RETAIL BOX] : 11.75 X 9.5 X 3 inches [S BUILDER] : 11.5 X 7.25 X 2 inches
WEIGHT [PRODUCT WEIGHT] : 1.8 LBS [PRODUCT WITH CONTENT WEIGHT] : 3.5 LBS
UPC
RETAIL PACKAGE UPC : 757448006896
PACKAGE CONTENT
●
DIAMOND HD 4870 PCIE 1024MB GDDR5 VIDEO
CARD
PRODUCT WEBPAGE http://www.diamondmm.com/4870PE51GDI.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
