Diamond Multimedia ATI Radeon HD 4870 X2 PCIE, 4870X2PE52G, Radeon HD 4000 X2 Setup Sheet

4870X2PE52G_2G_setup_sheet2.xls

DIAMOND MULTIMEDIA

SKU
SYSTEM BUILDER SKU
PRODUCT
PRODUCT SHORT
DESCRIPTION

PRODUCT DETAILED DESCRIPTION

PRODUCT FEATURES

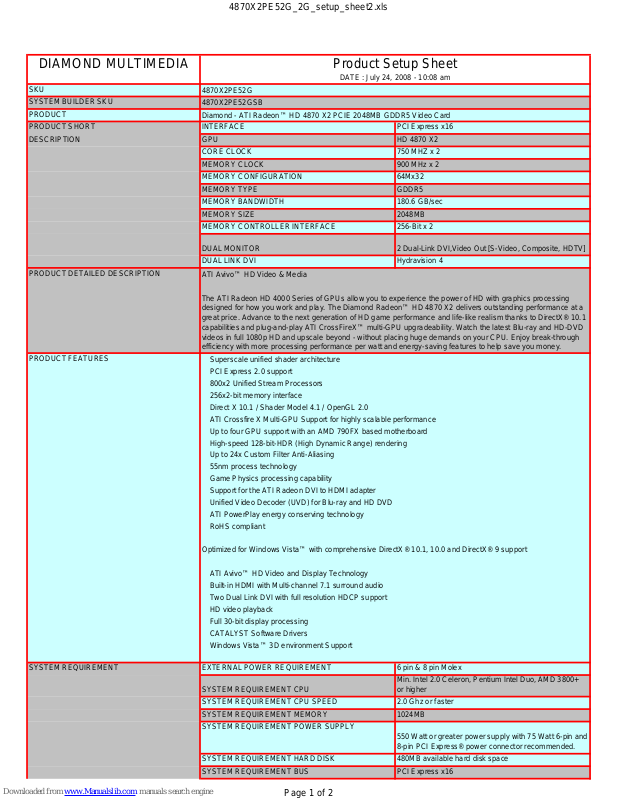

Product Setup Sheet

DATE : July 24, 2008 - 10:08 am
4870X2PE52G
4870X2PE52GSB
Diamond - ATI Radeon™ HD 4870 X2 PCIE 2048MB GDDR5 Video Card
INTERFACE PCI Express x16
GPU HD 4870 X2
CORE CLOCK 750 MHZ x 2
MEMORY CLOCK 900 MHz x 2
MEMORY CONFIGURATION 64Mx32
MEMORY TYPE GDDR5
MEMORY BANDWIDTH 180.6 GB/sec
MEMORY SIZE 2048MB
MEMORY CONTROLLER INTERFACE 256-Bit x 2

DUAL MONITOR 2 Dual-Link DVI,Video Out [S-Video, Composite, HDTV]
DUAL LINK DVI Hydravision 4

ATI Avivo™ HD Video & Media

The ATI Radeon HD 4000 Series of GPUs allow you to experience the power of HD with graphics processing
designed for how you work and play. The Diamond Radeon™ HD 4870 X2 delivers outstanding performance at a
great price. Advance to the next generation of HD game performance and life-like realism thanks to DirectX® 10.1
capabilities and plug-and-play ATI CrossFireX™ multi-GPU upgradeability. Watch the latest Blu-ray and HD-DVD
videos in full 1080p HD and upscale beyond - without placing huge demands on your CPU. Enjoy break-through
efficiency with more processing performance per watt and energy-saving features to help save you money.

Superscale unified shader architecture
PCI Express 2.0 support
800x2 Unified Stream Processors
256x2-bit memory interface
Direct X 10.1 / Shader Model 4.1 / OpenGL 2.0
ATI Crossfire X Multi-GPU Support for highly scalable performance
Up to four GPU support with an AMD 790FX based motherboard
High-speed 128-bit-HDR (High Dynamic Range) rendering
Up to 24x Custom Filter Anti-Aliasing
55nm process technology
Game Physics processing capability
Support for the ATI Radeon DVI to HDMI adapter
Unified Video Decoder (UVD) for Blu-ray and HD DVD
ATI PowerPlay energy conserving technology
RoHS compliant

Optimized for Windows Vista™ with comprehensive DirectX® 10.1, 10.0 and DirectX® 9 support

SYSTEM REQUIREMENT

EXTERNAL POWER REQUIREMENT 6 pin & 8 pin Molex

SYSTEM REQUIREMENT CPU
SYSTEM REQUIREMENT CPU SPEED 2.0 Ghz or faster
SYSTEM REQUIREMENT MEMORY 1024MB
SYSTEM REQUIREMENT POWER SUPPLY

SYSTEM REQUIREMENT HARD DISK 480MB available hard disk space
SYSTEM REQUIREMENT BUS PCI Express x16

ATI Avivo™ HD Video and Display Technology
Built-in HDMI with Multi-channel 7.1 surround audio
Two Dual Link DVI with full resolution HDCP support
HD video playback
Full 30-bit display processing
CATALYST Software Drivers
Windows Vista™ 3D environment Support

Min. Intel 2.0 Celeron, Pentium Intel Duo, AMD 3800+
or higher

550 Watt or greater power supply with 75 Watt 6-pin and
8-pin PCI Express® power connector recommended.

Page 1 of 2

4870X2PE52G_2G_setup_sheet2.xls

SYSTEM REQUIREMENT STANDARD SLOT
SOLUTION

SYSTEM REQUIREMENT CHASSIS N/A

OPERATING SYSTEM

PRODUCT DIMENSIONS
RETAIL BOX DIMENSIONS
SYSTEM BUILDER BOX DIMENSIONS
PRODUCT WEIGHT
PRODUCT WEIGHT WITH CONTENT
RETAIL PACKAGE UPC
SYSTEM BUILDER PACKAGE UPC
LINE CARD
SPECS SHEET
PRODUCT IMAGE
RETAIL PACKAGING IMAGE
PACKAGE INCLUDE

WEB PAGE

SYSTEM REQUIREMENT MONITOR
SYSTEM REQUIREMENT INTERNET ACCESS N/A
SYSTEM REQUIREMENT USB NO
SYSTEM REQUIREMENT CD DVD YES
SYSTEM REQUIREMENT OS WIN2003 NO
SYSTEM REQUIREMENT OS WINXP YES
SYSTEM REQUIREMENT OS WINXP64 YES
SYSTEM REQUIREMENT OS WINVISTA32 YES
SYSTEM REQUIREMENT OS WINVISTA64 YES

10.5 X 4.4 X 1.5

11.75 X 9.5 X 3

11.75 X 7.25 X 2

2.75 Lbs

3.55 Lbs
757448006490
757448006599

PACKAGE INCLUDE ITEM
PACKAGE INCLUDE ITEM 1 Quick Start Guide
PACKAGE INCLUDE ITEM 2 INSTALL CD
PACKAGE INCLUDE ITEM 3 S-VIDEO CABLE
PACKAGE INCLUDE ITEM 4 CROSSFIRE Bridge Interconnect
PACKAGE INCLUDE ITEM 5 Component HDTV ADAPTER
PACKAGE INCLUDE ITEM 6 DVI-TO-VGA ADAPTER
PACKAGE INCLUDE ITEM 7 DVI-TO-HDMI ADAPTER

Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor

DIAMOND ATI Radeon HD 4870X2 PCIE 2048MB
GDDR5 VIDEO CARD

Page 2 of 2
