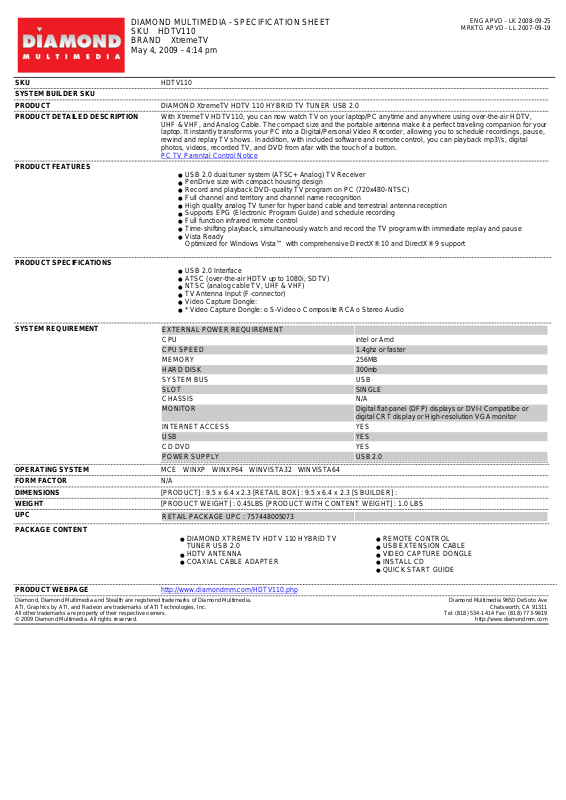

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU HDTV110
ENG APVD - LK 2008-09-25
MRKTG APVD - LL 2007-09-19
BRAND XtremeTV
May 4, 2009 - 4:14 pm
SKU HDTV110
SYSTEM BUILDER SKU
PRODUCT DIAMOND XtremeTV HDTV 110 HYBRID TV TUNER USB 2.0
PRODUCT DETAILED DESCRIPTION With XtremeTV HDTV110, you can now watch TV on your laptop/PC anytime and anywhere using over-the-air HDTV,
PRODUCT FEATURES
UHF & VHF, and Analog Cable. The compact size and the portable antenna make it a perfect traveling companion for your
laptop. It instantly transforms your PC into a Digital/Personal Video Recorder, allowing you to schedule recordings, pause,
rewind and replay TV shows. In addition, with included software and remote control, you can playback mp3\'s, digital
photos, videos, recorded TV, and DVD from afar with the touch of a button.
PC TV Parental Control Notice
USB 2.0 dual tuner system (ATSC+ Analog) TV Receiver
●
PenDrive size with compact housing design
●
Record and playback DVD-quality TV program on PC (720x480-NTSC)
●
Full channel and territory and channel name recognition
●
High quality analog TV tuner for hyper band cable and terrestrial antenna reception
●
Supports EPG (Electronic Program Guide) and schedule recording
●
Full function infrared remote control
●
Time-shifting playback, simultaneously watch and record the TV program with immediate replay and pause
●
Vista Ready
●
Optimized for Windows Vista™ with comprehensive DirectX® 10 and DirectX® 9 support
PRODUCT SPECIFICATIONS
USB 2.0 Interface
●
ATSC (over-the-air HDTV up to 1080i, SDTV)
●
NTSC (analog cable TV, UHF & VHF)
●
TV Antenna Input (F-connector)
●
Video Capture Dongle:
●
* Video Capture Dongle: o S-Video o Composite RCA o Stereo Audio
●
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU intel or Amd
CPU SPEED 1.4ghz or faster
MEMORY 256MB
HARD DISK 300mb
SYSTEM BUS USB
SLOT SINGLE
CHASSIS N/A
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB YES
CD DVD YES
POWER SUPPLY USB 2.0
OPERATING SYSTEM MCE WINXP WINXP64 WINVISTA32 WINVISTA64
FORM FACTOR N/A
DIMENSIONS [PRODUCT] : 9.5 x 6.4 x 2.3 [RETAIL BOX] : 9.5 x 6.4 x 2.3 [S BUILDER] :
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 1.0 LBS
UPC
RETAIL PACKAGE UPC : 757448005073
PACKAGE CONTENT
DIAMOND XTREMETV HDTV 110 HYBRID TV
●
TUNER USB 2.0
HDTV ANTENNA
●
COAXIAL CABLE ADAPTER
●
REMOTE CONTROL
●
USB EXTENSION CABLE
●
VIDEO CAPTURE DONGLE
●
INSTALL CD
●
QUICK START GUIDE
●
PRODUCT WEBPAGE http://www.diamondmm.com/HDTV110.php
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia 9650 DeSoto Ave
Tel: (818) 534-1414 Fax: (818) 773-9619
Chatsworth, CA 91311
http://www.diamondmm.com
