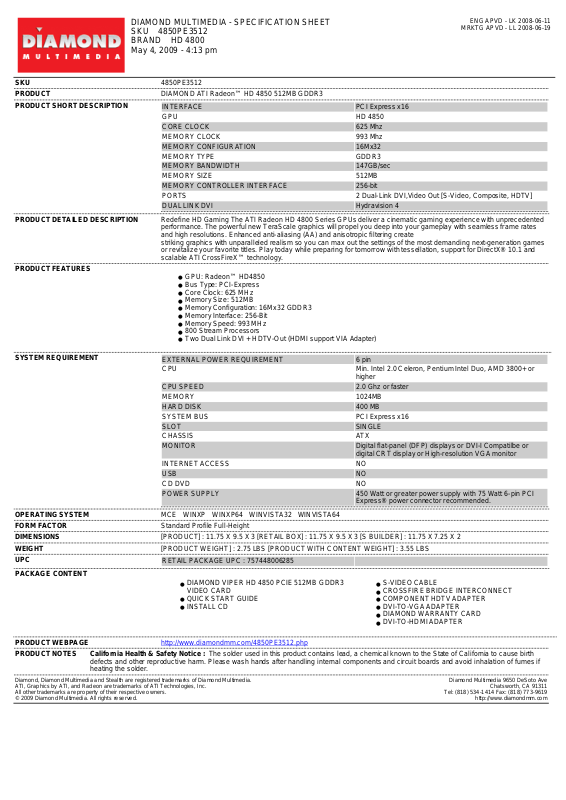

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU 4850PE3512
ENG APVD - LK 2008-06-11
MRKTG APVD - LL 2008-06-19
BRAND HD 4800
May 4, 2009 - 4:13 pm
SKU 4850PE3512
PRODUCT DIAMOND ATI Radeon™ HD 4850 512MB GDDR3
PRODUCT SHORT DESCRIPTION
PRODUCT DETAILED DESCRIPTION Redefine HD Gaming The ATI Radeon HD 4800 Series GPUs deliver a cinematic gaming experience with unprecedented
PRODUCT FEATURES
INTERFACE PCI Express x16
GPU HD 4850
CORE CLOCK 625 Mhz
MEMORY CLOCK 993 Mhz
MEMORY CONFIGURATION 16Mx32
MEMORY TYPE GDDR3
MEMORY BANDWIDTH 147GB/sec
MEMORY SIZE 512MB
MEMORY CONTROLLER INTERFACE 256-bit
PORTS 2 Dual-Link DVI,Video Out [S-Video, Composite, HDTV]
DUAL LINK DVI Hydravision 4
performance. The powerful new TeraScale graphics will propel you deep into your gameplay with seamless frame rates
and high resolutions. Enhanced anti-aliasing (AA) and anisotropic filtering create
striking graphics with unparalleled realism so you can max out the settings of the most demanding next-generation games
or revitalize your favorite titles. Play today while preparing for tomorrow with tessellation, support for DirectX® 10.1 and
scalable ATI CrossFireX™ technology.
GPU: Radeon™ HD4850
●
Bus Type: PCI-Express
●
Core Clock: 625 MHz
●
Memory Size: 512MB
●
Memory Configuration: 16Mx32 GDDR3
●
Memory Interface: 256-Bit
●
Memory Speed: 993 MHz
●
800 Stream Processors
●
Two Dual Link DVI + HDTV-Out (HDMI support VIA Adapter)
●
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT 6 pin
CPU Min. Intel 2.0 Celeron, Pentium Intel Duo, AMD 3800+ or
higher
CPU SPEED 2.0 Ghz or faster
MEMORY 1024MB
HARD DISK 400 MB
SYSTEM BUS PCI Express x16
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS NO
USB NO
CD DVD NO
POWER SUPPLY 450 Watt or greater power supply with 75 Watt 6-pin PCI
Express® power connector recommended.
OPERATING SYSTEM MCE WINXP WINXP64 WINVISTA32 WINVISTA64
FORM FACTOR Standard Profile Full-Height
DIMENSIONS [PRODUCT] : 11.75 X 9.5 X 3 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.75 X 7.25 X 2
WEIGHT [PRODUCT WEIGHT] : 2.75 LBS [PRODUCT WITH CONTENT WEIGHT] : 3.55 LBS
UPC
RETAIL PACKAGE UPC : 757448006285
PACKAGE CONTENT
DIAMOND VIPER HD 4850 PCIE 512MB GDDR3
●
VIDEO CARD
QUICK START GUIDE
●
INSTALL CD
●
S-VIDEO CABLE
●
CROSSFIRE BRIDGE INTERCONNECT
●
COMPONENT HDTV ADAPTER
●
DVI-TO-VGA ADAPTER
●
DIAMOND WARRANTY CARD
●
DVI-TO-HDMI ADAPTER
●
PRODUCT WEBPAGE http://www.diamondmm.com/4850PE3512.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia 9650 DeSoto Ave
Tel: (818) 534-1414 Fax: (818) 773-9619
Chatsworth, CA 91311
http://www.diamondmm.com
