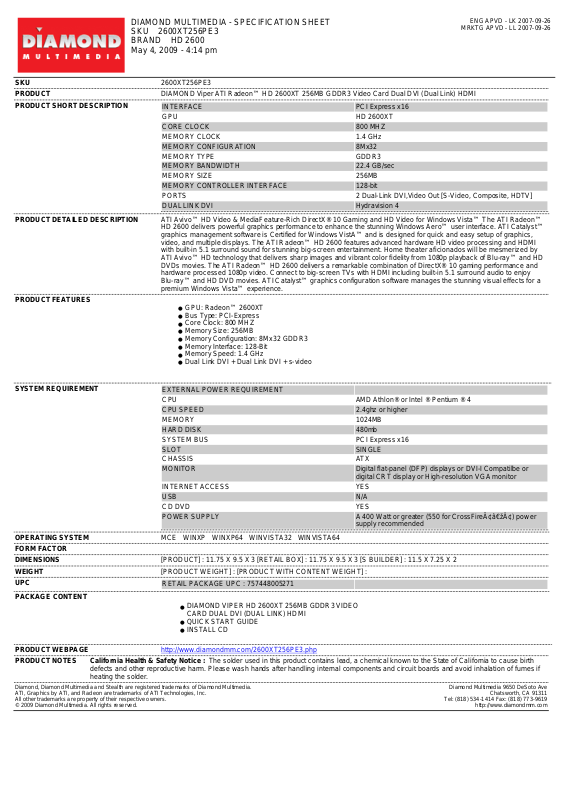

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU 2600XT256PE3
ENG APVD - LK 2007-09-26
MRKTG APVD - LL 2007-09-26
BRAND HD 2600
May 4, 2009 - 4:14 pm
SKU 2600XT256PE3
PRODUCT DIAMOND Viper ATI Radeon™ HD 2600XT 256MB GDDR3 Video Card Dual DVI (Dual Link) HDMI
PRODUCT SHORT DESCRIPTION
PRODUCT DETAILED DESCRIPTION ATI Avivo™ HD Video & MediaFeature-Rich DirectX® 10 Gaming and HD Video for Windows Vista™ The ATI Radeon™
PRODUCT FEATURES
INTERFACE PCI Express x16
GPU HD 2600XT
CORE CLOCK 800 MHZ
MEMORY CLOCK 1.4 GHz
MEMORY CONFIGURATION 8Mx32
MEMORY TYPE GDDR3
MEMORY BANDWIDTH 22.4 GB/sec
MEMORY SIZE 256MB
MEMORY CONTROLLER INTERFACE 128-bit
PORTS 2 Dual-Link DVI,Video Out [S-Video, Composite, HDTV]
DUAL LINK DVI Hydravision 4
HD 2600 delivers powerful graphics performance to enhance the stunning Windows Aero™ user interface. ATI Catalyst™
graphics management software is Certified for Windows VistA™ and is designed for quick and easy setup of graphics,
video, and multiple displays. The ATI Radeon™ HD 2600 features advanced hardware HD video processing and HDMI
with built-in 5.1 surround sound for stunning big-screen entertainment. Home theater aficionados will be mesmerized by
ATI Avivo™ HD technology that delivers sharp images and vibrant color fidelity from 1080p playback of Blu-ray™ and HD
DVDs movies. The ATI Radeon™ HD 2600 delivers a remarkable combination of DirectX® 10 gaming performance and
hardware processed 1080p video. Connect to big-screen TVs with HDMI including built-in 5.1 surround audio to enjoy
Blu-ray™ and HD DVD movies. ATI Catalyst™ graphics configuration software manages the stunning visual effects for a
premium Windows Vista™ experience.
GPU: Radeon™ 2600XT
●
Bus Type: PCI-Express
●
Core Clock: 800 MHZ
●
Memory Size: 256MB
●
Memory Configuration: 8Mx32 GDDR3
●
Memory Interface: 128-Bit
●
Memory Speed: 1.4 GHz
●
Dual Link DVI + Dual Link DVI + s-video
●
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 2.4ghz or higher
MEMORY 1024MB
HARD DISK 480mb
SYSTEM BUS PCI Express x16
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB N/A
CD DVD YES
POWER SUPPLY A 400 Watt or greater (550 for CrossFireâ„¢) power
supply recommended
OPERATING SYSTEM MCE WINXP WINXP64 WINVISTA32 WINVISTA64
FORM FACTOR
DIMENSIONS [PRODUCT] : 11.75 X 9.5 X 3 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.5 X 7.25 X 2
WEIGHT [PRODUCT WEIGHT] : [PRODUCT WITH CONTENT WEIGHT] :
UPC
RETAIL PACKAGE UPC : 757448005271
PACKAGE CONTENT
DIAMOND VIPER HD 2600XT 256MB GDDR3 VIDEO
●
CARD DUAL DVI (DUAL LINK) HDMI
QUICK START GUIDE
●
INSTALL CD
●
PRODUCT WEBPAGE http://www.diamondmm.com/2600XT256PE3.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia 9650 DeSoto Ave
Tel: (818) 534-1414 Fax: (818) 773-9619
Chatsworth, CA 91311
http://www.diamondmm.com
