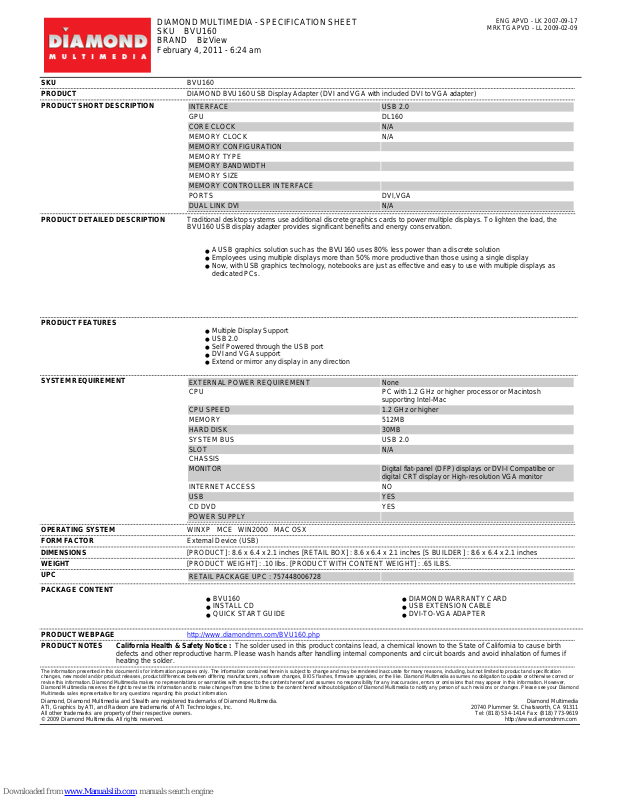

Diamond Multimedia Diamond BVU160 Specification Sheet

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU BVU160
BRAND BizView
February 4, 2011 - 6:24 am

ENG APVD - LK 2007-09-17

MRKTG APVD - LL 2009-02-09

SKU BVU160
PRODUCT DIAMOND BVU160 USB Display Adapter (DVI and VGA with included DVI to VGA adapter)
PRODUCT SHORT DESCRIPTION

INTERFACE USB 2.0
GPU DL160
CORE CLOCK N/A
MEMORY CLOCK N/A
MEMORY CONFIGURATION
MEMORY TYPE
MEMORY BANDWIDTH
MEMORY SIZE
MEMORY CONTROLLER INTERFACE
PORTS DVI,VGA
DUAL LINK DVI N/A

PRODUCT DETAILED DESCRIPTION Traditional desktop systems use additional discrete graphics cards to power multiple displays. To lighten the load, the

BVU160 USB display adapter provides significant benefits and energy conservation.

●

A USB graphics solution such as the BVU160 uses 80% less power than a discrete solution

●

Employees using multiple displays more than 50% more productive than those using a single display

●

Now, with USB graphics technology, notebooks are just as effective and easy to use with multiple displays as
dedicated PCs.

PRODUCT FEATURES

●

Multiple Display Support

●

USB 2.0

●

Self Powered through the USB port

●

DVI and VGA support

●

Extend or mirror any display in any direction

SYSTEM REQUIREMENT

EXTERNAL POWER REQUIREMENT None
CPU PC with 1.2 GHz or higher processor or Macintosh

supporting Intel-Mac
CPU SPEED 1.2 GHz or higher
MEMORY 512MB
HARD DISK 30MB
SYSTEM BUS USB 2.0
SLOT N/A
CHASSIS
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or

digital CRT display or High-resolution VGA monitor
INTERNET ACCESS NO
USB YES
CD DVD YES
POWER SUPPLY

OPERATING SYSTEM WINXP MCE WIN2000 MAC OSX
FORM FACTOR External Device (USB)
DIMENSIONS [PRODUCT] : 8.6 x 6.4 x 2.1 inches [RETAIL BOX] : 8.6 x 6.4 x 2.1 inches [S BUILDER] : 8.6 x 6.4 x 2.1 inches
WEIGHT [PRODUCT WEIGHT] : .10 Ilbs. [PRODUCT WITH CONTENT WEIGHT] : .65 ILBS.
UPC

RETAIL PACKAGE UPC : 757448006728

PACKAGE CONTENT

●

BVU160

●

INSTALL CD

●

QUICK START GUIDE

●

DIAMOND WARRANTY CARD

●

USB EXTENSION CABLE

●

DVI-TO-VGA ADAPTER

PRODUCT WEBPAGE http://www.diamondmm.com/BVU160.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth

defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
