Diamond Multimedia S9250PCI, 9250 User Manual

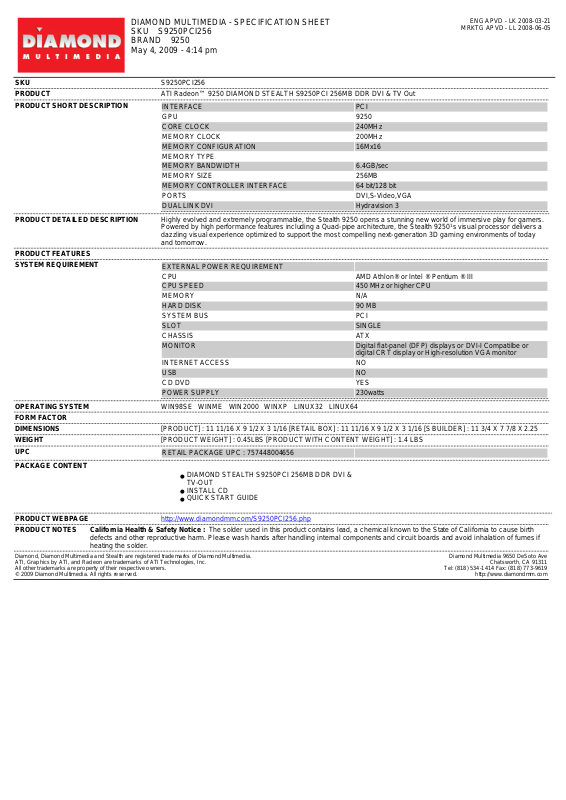

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU S9250PCI256
ENG APVD - LK 2008-03-21
MRKTG APVD - LL 2008-06-05
BRAND 9250
May 4, 2009 - 4:14 pm
SKU S9250PCI256
PRODUCT ATI Radeon™ 9250 DIAMOND STEALTH S9250PCI 256MB DDR DVI & TV Out
PRODUCT SHORT DESCRIPTION
PRODUCT DETAILED DESCRIPTION Highly evolved and extremely programmable, the Stealth 9250 opens a stunning new world of immersive play for gamers.
PRODUCT FEATURES
SYSTEM REQUIREMENT
OPERATING SYSTEM WIN98SE WINME WIN2000 WINXP LINUX32 LINUX64
FORM FACTOR
DIMENSIONS [PRODUCT] : 11 11/16 X 9 1/2 X 3 1/16 [RETAIL BOX] : 11 11/16 X 9 1/2 X 3 1/16 [S BUILDER] : 11 3/4 X 7 7/8 X 2.25
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 1.4 LBS
UPC
PACKAGE CONTENT
INTERFACE PCI
GPU 9250
CORE CLOCK 240MHz
MEMORY CLOCK 200MHz
MEMORY CONFIGURATION 16Mx16
MEMORY TYPE
MEMORY BANDWIDTH 6.4GB/sec
MEMORY SIZE 256MB
MEMORY CONTROLLER INTERFACE 64 bit/128 bit
PORTS DVI,S-Video,VGA
DUAL LINK DVI Hydravision 3
Powered by high performance features including a Quad-pipe architecture, the Stealth 9250¹s visual processor delivers a
dazzling visual experience optimized to support the most compelling next-generation 3D gaming environments of today
and tomorrow.
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® III
CPU SPEED 450 MHz or higher CPU
MEMORY N/A
HARD DISK 90 MB
SYSTEM BUS PCI
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS NO
USB NO
CD DVD YES
POWER SUPPLY 230watts
RETAIL PACKAGE UPC : 757448004656
DIAMOND STEALTH S9250PCI 256MB DDR DVI &
●
TV-OUT
INSTALL CD
●
QUICK START GUIDE
●
PRODUCT WEBPAGE http://www.diamondmm.com/S9250PCI256.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia 9650 DeSoto Ave
Tel: (818) 534-1414 Fax: (818) 773-9619
Chatsworth, CA 91311
http://www.diamondmm.com
