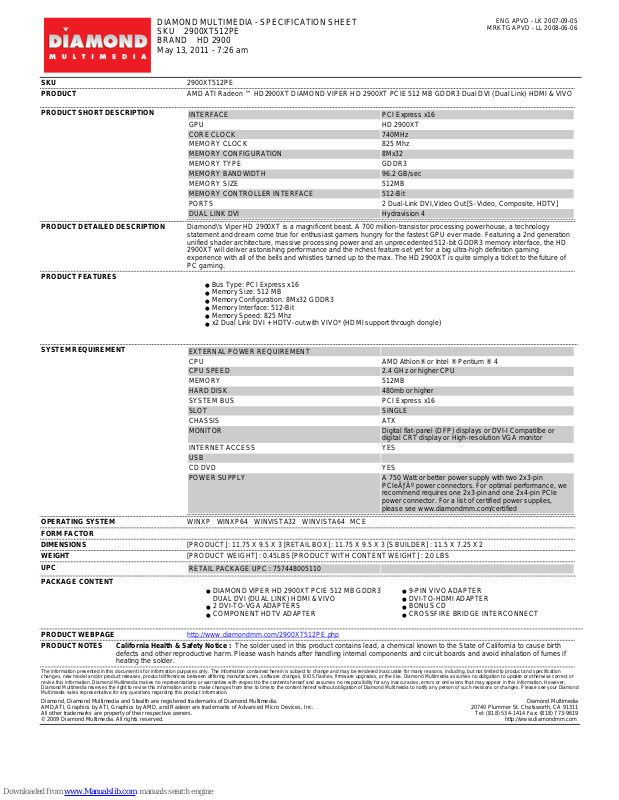

Diamond Multimedia ATI Radeon HD2900XT, 2900XT512PE Specification Sheet
DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU 2900XT512PE
BRAND HD 2900
May 13, 2011 - 7:26 am
ENG APVD - LK 2007-09-05
MRKTG APVD - LL 2008-06-06
SKU 2900XT512PE
PRODUCT AMD ATI Radeon ™ HD2900XT DIAMOND VIPER HD 2900XT PCIE 512 MB GDDR3 Dual DVI (Dual Link) HDMI & VIVO
PRODUCT SHORT DESCRIPTION
INTERFACE PCI Express x16
GPU HD 2900XT
CORE CLOCK 740MHz
MEMORY CLOCK 825 Mhz
MEMORY CONFIGURATION 8Mx32
MEMORY TYPE GDDR3
MEMORY BANDWIDTH 96.2 GB/sec
MEMORY SIZE 512MB
MEMORY CONTROLLER INTERFACE 512-Bit
PORTS 2 Dual-Link DVI,Video Out [S-Video, Composite, HDTV]
DUAL LINK DVI Hydravision 4
PRODUCT DETAILED DESCRIPTION Diamond\'s Viper HD 2900XT is a magnificent beast. A 700 million-transistor processing powerhouse, a technology
statement and dream come true for enthusiast gamers hungry for the fastest GPU ever made. Featuring a 2nd generation
unified shader architecture, massive processing power and an unprecedented 512-bit GDDR3 memory interface, the HD
2900XT will deliver astonishing performance and the richest feature-set yet for a big ultra-high definition gaming
experience with all of the bells and whistles turned up to the max. The HD 2900XT is quite simply a ticket to the future of
PC gaming.
PRODUCT FEATURES
●
Bus Type: PCI Express x16
●
Memory Size: 512 MB
●
Memory Configuration: 8Mx32 GDDR3
●
Memory Interface: 512-Bit
●
Memory Speed: 825 Mhz
●
x2 Dual Link DVI + HDTV-out with VIVO* (HDMI support through dongle)
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 2.4 GHz or higher CPU
MEMORY 512MB
HARD DISK 480mb or higher
SYSTEM BUS PCI Express x16
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB
CD DVD YES
POWER SUPPLY A 750 Watt or better power supply with two 2x3-pin
PCIeú power connectors. For optimal performance, we
recommend requires one 2x3-pin and one 2x4-pin PCIe
power connector. For a list of certified power supplies,
please see www.diamondmm.com/certified
OPERATING SYSTEM WINXP WINXP64 WINVISTA32 WINVISTA64 MCE
FORM FACTOR
DIMENSIONS [PRODUCT] : 11.75 X 9.5 X 3 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.5 X 7.25 X 2
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC
RETAIL PACKAGE UPC : 757448005110
PACKAGE CONTENT
●
DIAMOND VIPER HD 2900XT PCIE 512 MB GDDR3
DUAL DVI (DUAL LINK) HDMI & VIVO
●
2 DVI-TO-VGA ADAPTERS
●
COMPONENT HDTV ADAPTER
●
9-PIN VIVO ADAPTER
●
DVI-TO-HDMI ADAPTER
●
BONUS CD
●
CROSSFIRE BRIDGE INTERCONNECT
PRODUCT WEBPAGE http://www.diamondmm.com/2900XT512PE.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
The information presented in this document is for information purposes only. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including, but not limited to product and specification
changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. Diamond Multimedia assumes no obligation to update or otherwise correct or
revise this information. Diamond Multimedia makes no representations or warranties with respect to the contents hereof and assumes no responsibility for any inaccuracies, errors or omissions that may appear in this information. However,
Diamond Multimedia reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of Diamond Multimedia to notify any person of such revisions or changes. Please see your Diamond
Multimedia sales representative for any questions regarding this product information.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
AMD,ATI, Graphics by ATI, Graphics by AMD, and Radeon are trademarks of Advanced Micro Devices, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
