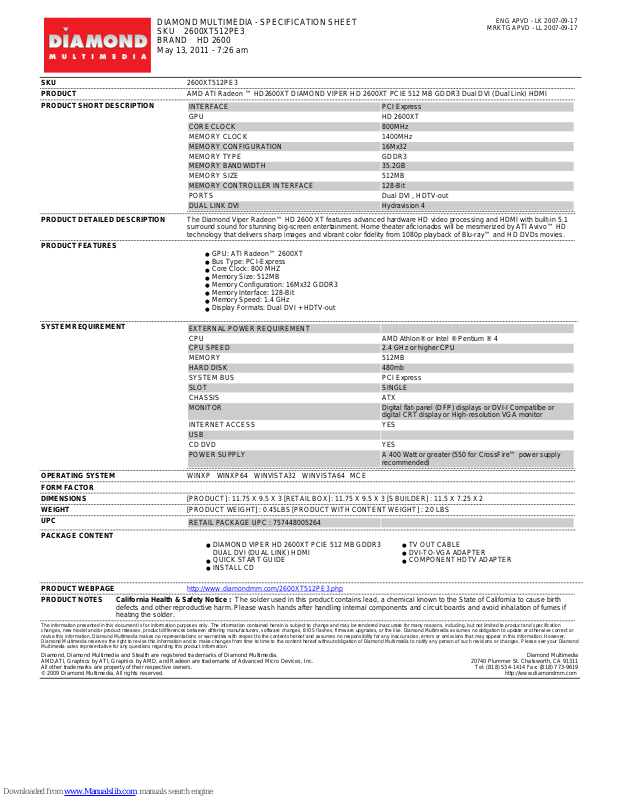

Diamond Multimedia Diamond Viper HD 2600XT PCIE, 2600XT512PE3 Specification Sheet
DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU 2600XT512PE3
BRAND HD 2600
May 13, 2011 - 7:26 am
ENG APVD - LK 2007-09-17
MRKTG APVD - LL 2007-09-17
SKU 2600XT512PE3
PRODUCT AMD ATI Radeon ™ HD2600XT DIAMOND VIPER HD 2600XT PCIE 512 MB GDDR3 Dual DVI (Dual Link) HDMI
PRODUCT SHORT DESCRIPTION
INTERFACE PCI Express
GPU HD 2600XT
CORE CLOCK 800MHz
MEMORY CLOCK 1400MHz
MEMORY CONFIGURATION 16Mx32
MEMORY TYPE GDDR3
MEMORY BANDWIDTH 35.2GB
MEMORY SIZE 512MB
MEMORY CONTROLLER INTERFACE 128-Bit
PORTS Dual DVI , HDTV-out
DUAL LINK DVI Hydravision 4
PRODUCT DETAILED DESCRIPTION The Diamond Viper Radeon™ HD 2600 XT features advanced hardware HD video processing and HDMI with built-in 5.1
surround sound for stunning big-screen entertainment. Home theater aficionados will be mesmerized by ATI Avivo™ HD
technology that delivers sharp images and vibrant color fidelity from 1080p playback of Blu-ray™ and HD DVDs movies.
PRODUCT FEATURES
●
GPU: ATI Radeon™ 2600XT
●
Bus Type: PCI-Express
●
Core Clock: 800 MHZ
●
Memory Size: 512MB
●
Memory Configuration: 16Mx32 GDDR3
●
Memory Interface: 128-Bit
●
Memory Speed: 1.4 GHz
●
Display Formats: Dual DVI + HDTV-out
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 2.4 GHz or higher CPU
MEMORY 512MB
HARD DISK 480mb
SYSTEM BUS PCI Express
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB
CD DVD YES
POWER SUPPLY A 400 Watt or greater (550 for CrossFire™ power supply
recommended)
OPERATING SYSTEM WINXP WINXP64 WINVISTA32 WINVISTA64 MCE
FORM FACTOR
DIMENSIONS [PRODUCT] : 11.75 X 9.5 X 3 [RETAIL BOX] : 11.75 X 9.5 X 3 [S BUILDER] : 11.5 X 7.25 X 2
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC
RETAIL PACKAGE UPC : 757448005264
PACKAGE CONTENT
●
DIAMOND VIPER HD 2600XT PCIE 512 MB GDDR3
DUAL DVI (DUAL LINK) HDMI
●
QUICK START GUIDE
●
INSTALL CD
●
TV OUT CABLE
●
DVI-TO-VGA ADAPTER
●
COMPONENT HDTV ADAPTER
PRODUCT WEBPAGE http://www.diamondmm.com/2600XT512PE3.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
The information presented in this document is for information purposes only. The information contained herein is subject to change and may be rendered inaccurate for many reasons, including, but not limited to product and specification
changes, new model and/or product releases, product differences between differing manufacturers, software changes, BIOS flashes, firmware upgrades, or the like. Diamond Multimedia assumes no obligation to update or otherwise correct or
revise this information. Diamond Multimedia makes no representations or warranties with respect to the contents hereof and assumes no responsibility for any inaccuracies, errors or omissions that may appear in this information. However,
Diamond Multimedia reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of Diamond Multimedia to notify any person of such revisions or changes. Please see your Diamond
Multimedia sales representative for any questions regarding this product information.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
AMD,ATI, Graphics by ATI, Graphics by AMD, and Radeon are trademarks of Advanced Micro Devices, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
Diamond Multimedia
20740 Plummer St. Chatsworth, CA 91311
Tel: (818) 534-1414 Fax: (818) 773-9619
http://www.diamondmm.com
