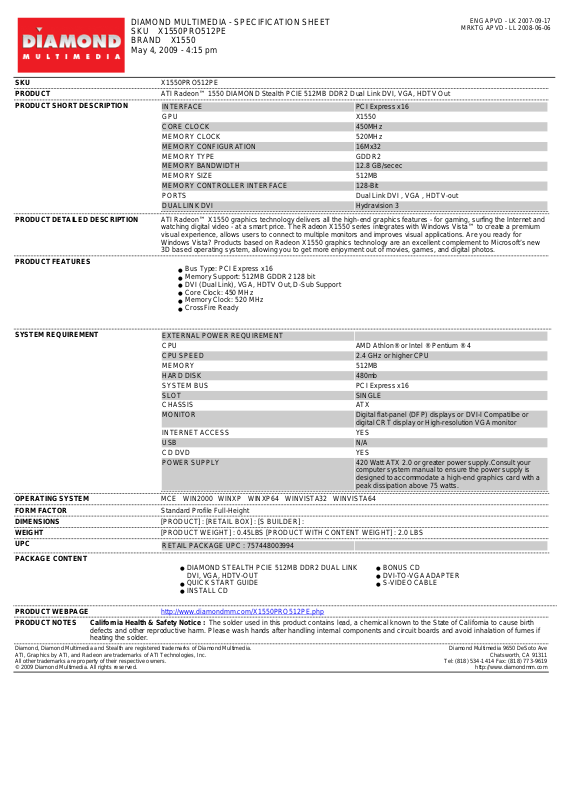

DIAMOND MULTIMEDIA - SPECIFICATION SHEET
SKU X1550PRO512PE
ENG APVD - LK 2007-09-17
MRKTG APVD - LL 2008-06-06
BRAND X1550
May 4, 2009 - 4:15 pm
SKU X1550PRO512PE
PRODUCT ATI Radeon™ 1550 DIAMOND Stealth PCIE 512MB DDR2 Dual Link DVI, VGA, HDTV Out
PRODUCT SHORT DESCRIPTION
PRODUCT DETAILED DESCRIPTION ATI Radeon™ X1550 graphics technology delivers all the high-end graphics features - for gaming, surfing the Internet and
PRODUCT FEATURES
INTERFACE PCI Express x16
GPU X1550
CORE CLOCK 450MHz
MEMORY CLOCK 520MHz
MEMORY CONFIGURATION 16Mx32
MEMORY TYPE GDDR2
MEMORY BANDWIDTH 12.8 GB/secec
MEMORY SIZE 512MB
MEMORY CONTROLLER INTERFACE 128-Bit
PORTS Dual Link DVI , VGA , HDTV-out
DUAL LINK DVI Hydravision 3
watching digital video - at a smart price. The Radeon X1550 series integrates with Windows Vista™ to create a premium
visual experience, allows users to connect to multiple monitors and improves visual applications. Are you ready for
Windows Vista? Products based on Radeon X1550 graphics technology are an excellent complement to Microsoft’s new
3D based operating system, allowing you to get more enjoyment out of movies, games, and digital photos.
Bus Type: PCI Express x16
●
Memory Support: 512MB GDDR2 128 bit
●
DVI (Dual Link), VGA, HDTV Out, D-Sub Support
●
Core Clock: 450 MHz
●
Memory Clock: 520 MHz
●
CrossFire Ready
●
SYSTEM REQUIREMENT
EXTERNAL POWER REQUIREMENT
CPU AMD Athlon® or Intel ® Pentium ® 4
CPU SPEED 2.4 GHz or higher CPU
MEMORY 512MB
HARD DISK 480mb
SYSTEM BUS PCI Express x16
SLOT SINGLE
CHASSIS ATX
MONITOR Digital flat-panel (DFP) displays or DVI-I Compatilbe or
digital CRT display or High-resolution VGA monitor
INTERNET ACCESS YES
USB N/A
CD DVD YES
POWER SUPPLY 420 Watt ATX 2.0 or greater power supply.Consult your
computer system manual to ensure the power supply is
designed to accommodate a high-end graphics card with a
peak dissipation above 75 watts.
OPERATING SYSTEM MCE WIN2000 WINXP WINXP64 WINVISTA32 WINVISTA64
FORM FACTOR Standard Profile Full-Height
DIMENSIONS [PRODUCT] : [RETAIL BOX] : [S BUILDER] :
WEIGHT [PRODUCT WEIGHT] : 0.45LBS [PRODUCT WITH CONTENT WEIGHT] : 2.0 LBS
UPC
RETAIL PACKAGE UPC : 757448003994
PACKAGE CONTENT
DIAMOND STEALTH PCIE 512MB DDR2 DUAL LINK
●
DVI, VGA, HDTV-OUT
QUICK START GUIDE
●
INSTALL CD
●
BONUS CD
●
DVI-TO-VGA ADAPTER
●
S-VIDEO CABLE
●
PRODUCT WEBPAGE http://www.diamondmm.com/X1550PRO512PE.php
PRODUCT NOTES California Health & Safety Notice : The solder used in this product contains lead, a chemical known to the State of California to cause birth
defects and other reproductive harm. Please wash hands after handling internal components and circuit boards and avoid inhalation of fumes if
heating the solder.
Diamond, Diamond Multimedia and Stealth are registered trademarks of Diamond Multimedia.
ATI, Graphics by ATI, and Radeon are trademarks of ATI Technologies, Inc.
All other trademarks are property of their respective owners.
© 2009 Diamond Multimedia. All rights reserved.
