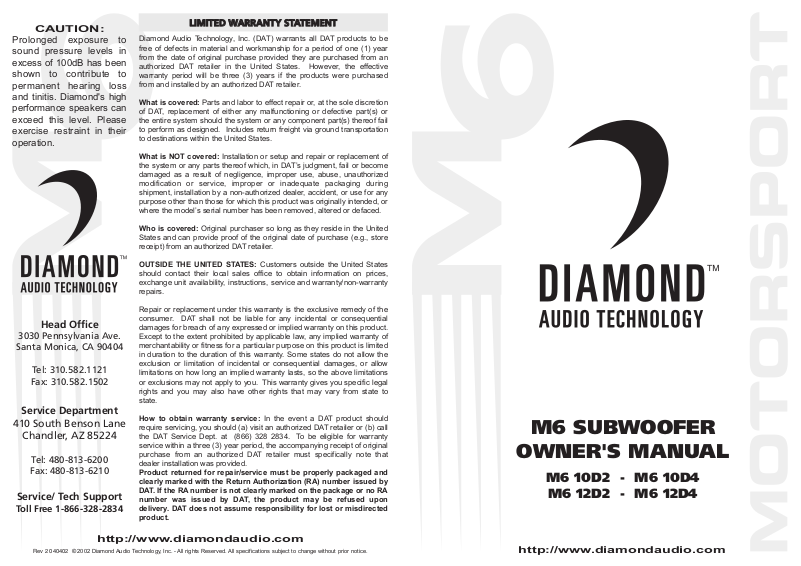

Diamond Audio Technology M6 12D4, M6 12D2, M6 10D2, M6 10D4 User Manual

CAUTION:

Prolonged exposure to
sound pressure levels in
excess of 100dB has been
shown to contribute to
permanent hearing loss
and tinitis. Diamond's high
performance speakers can
exceed this level. Please
exercise restraint in their
operation.

LIMITED WARRANTY STATEMENT

Diamond Audio Technology, Inc. (DAT) warrants all DAT products to be
free of defects in material and workmanship for a period of one (1) year
from the date of original purchase provided they are purchased from an
authorized DAT retailer in the United States. However, the effective
warranty period will be three (3) years if the products were purchased
from and installed by an authorized DAT retailer.

What is covered: Parts and labor to effect repair or, at the sole discretion
of DAT, replacement of either any malfunctioning or defective part(s) or
the entire system should the system or any component part(s) thereof fail
to perform as designed. Includes return freight via ground transportation
to destinations within the United States.

What is NOT covered: Installation or setup and repair or replacement of
the system or any parts thereof which, in DAT’s judgment, fail or become
damaged as a result of negligence, improper use, abuse, unauthorized
modification or service, improper or inadequate packaging during
shipment, installation by a non-authorized dealer, accident, or use for any
purpose other than those for which this product was originally intended, or
where the model’s serial number has been removed, altered or defaced.

Who is covered: Original purchaser so long as they reside in the United
States and can provide proof of the original date of purchase (e.g., store
receipt) from an authorized DAT retailer.

OUTSIDE THE UNITED STATES: Customers outside the United States
should contact their local sales office to obtain information on prices,
exchange unit availability, instructions, service and warranty/non-warranty
repairs.

Repair or replacement under this warranty is the exclusive remedy of the

Head Office

3030 Pennsylvania Ave.

Santa Monica, CA 90404

Tel: [phone]

Fax: [phone]

Service Department

410 South Benson Lane

Chandler, AZ 85224

Tel: [phone]

Fax: [phone]

Service/ Tech Support

Toll Free 1-866-328-2834

consumer. DAT shall not be liable for any incidental or consequential
damages for breach of any expressed or implied warranty on this product.
Except to the extent prohibited by applicable law, any implied warranty of
merchantability or fitness for a particular purpose on this product is limited
in duration to the duration of this warranty. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or allow
limitations on how long an implied warranty lasts, so the above limitations
or exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights that may vary from state to
state.

How to obtain warranty service: In the event a DAT product should
require servicing, you should (a) visit an authorized DAT retailer or (b) call
the DAT Service Dept. at [phone]. To be eligible for warranty
service within a three (3) year period, the accompanying receipt of original
purchase from an authorized DAT retailer must specifically note that
dealer installation was provided.

Product returned for repair/service must be properly packaged and
clearly marked with the Return Authorization (RA) number issued by
DAT. If the RA number is not clearly marked on the package or no RA
number was issued by DAT, the product may be refused upon
delivery. DAT does not assume responsibility for lost or misdirected
product.

http://www.diamondaudio.com

Rev 2 040402 © 2002 Diamond Audio Technology, Inc. - All rights Reserved. All specifications subject to change without prior notice.

M6 SUBWOOFER

OWNER'S MANUAL

M6 10D2 - M6 10D4

M6 12D2 - M6 12D4

http://www.diamondaudio.com

FEATURES

TECHNICAL SPECIFICATIONS

Titanium Magnesium Alloy Cone - High rigidity, smooth linear response
Die-cast Alloy Chassis - High strength maintains critical parts alignment
NBR Rubber Surround - Durable at environmental extremes. Large roll allows long stroke
Machined Backplate/Pole - Precision engineered to exacting tolerance
Aluminum VC Former - 400% stronger than Kapton®, excellent heat transfer
3" Dia. Pure Copper Coil - 4-layer design. High thermal/current capacity for high power handling.
Mirror Image Dual Nomex® Spiders with woven lead wires -Enormous controlled

excursion, ultimate durability, no lead slap.

3-Year Warranty - If purchased from and installed by an Authorized Diamond Retailer.

DIMENSIONS AND VOLUMES

METRIC DIMENSIONS

DIMENSION

A (bolt circle diameter)
B (outside diameter)
C (height)
D(Thru Hole diameter)
Displacement

IMPERIAL DIMENSIONS

DIMENSION

A (bolt circle diameter)
B (outside diameter)
C (height)
D(Thru Hole diameter)
Displacement

M6 10

246mm
270mm
138mm
228mm

2.63 L

M6 10

9.685"

10.629"

5.433"

8.976"

0.093 ft

3

M6 12

294mm
320mm
150mm
276mm

3.33L

M6 12

11.575"

12.598"

5.905"

10.866"

0.117ft

3

D

B

A

C

INSTALLATION

The information below is provided to enable custom enclosure design and is
intended for professional use only. Please consult your Authorized Diamond Retailer
for an enclosure which best suits your requirements.

THIELE/SMALL PARAMETERS

M6 12D4

8*
86

0.54

0.49

32.0

28.9

0.083
298

0.0497

26.2

6.2
16

Impedance (ohm)
SPL 1w/1m(dB)
Qes
Qts
Fs (Hz)
Vas (L)
Cms (mm/N)
Mms (g)
Sd (M²)
BL (T·M)
Re
Xmax (mm)

M6 10D2

4*

84.5

0.54

0.49

32.0

14.6

0.095
296

0.033

18.5

3.3
15

M6 10D4

8*

84.5

0.55

0.50

33.0

13.9

0.090
267

0.033

24.8

6.2
16

M6 12D2

4*
86

0.55

0.49

31.0

30.3

0.087
311

0.0497

19.0

3.3
15

*parameters shown are with voice coils wired in series

RECOMMENDED ENCLOSURES

Diamond's M6 Series subwoofers are primarily designed for use with small sealed
enclosures. Good results have also been achieved in vented and bandpass
enclosures. Although “free-air” (infinite-baffle) applications are NOT recommended,
they may be used successfully in low-power systems (e.g., 75W or less per sub).
HIGH PASS ("SUBSONIC") FILTERS MUST BE USED WITH NON-SEALED APPLICATIONS
TO PREVENT OVER-EXCURSION AT INFRASONIC FREQUENCIES.
The enclosure volumes shown below are NET INTERNAL VOLUMES. Driver, vent and
brace displacement must be taken into account when designing your enclosure.

M6 12D4

1.75~.6
44~35
800~600

0.9~1.2

SEALED ENCLOSURE

Vb (Net vol ft3)
F3 (Hz)
Pe (Watts)
Qtc (@ max pwr)

M6 10D2

.75~.3
42~37
800~600

0.9~1.2

M6 10D4

.75~.3
42~37
800~600

0.9~1.2

M6 12D2

1.75~.6
44~35
800~600

0.9~1.2

The installations and enclosures shown in this manual are offered as a suggestion
only. Since enclosure design is as important to sound quality as the speaker itself, it
is recommended that your Authorized Diamond Retailer assist you in designing and
building an enclosure to suit your vehicle. For more information on selecting the
best subwoofer enclosure, consult the "FAQ" page of our web site,
www.diamondaudio.com

VENTED ENCLOSURE
Vb (Net vol ft3)
F3 (Hz)
Fb (Tuning freq.)
Pe (Watts)
Ports
Port I.D.
Port Length

0.75
33
32
600
2
2"
20"

0.75
33
32
600
2
2"
20"

1.5
35
31
600
1
4"
18"

1.5
35
31
600
1
4"
18"
