Diamond Antenna K400 User Manual

Installing the K400

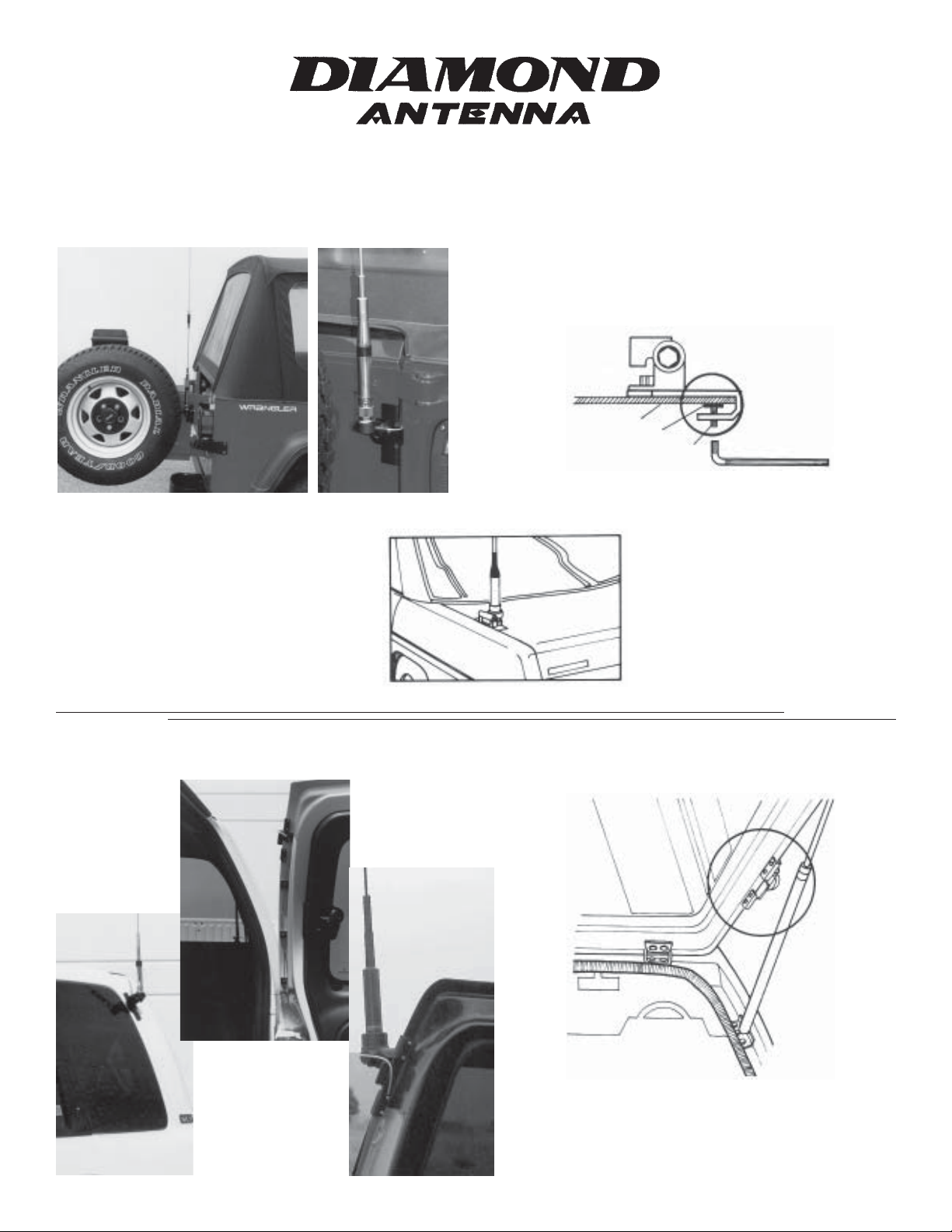

The K400 can be installed on trunk lid, door or hatchback. Install the bracket on desired location as shown in the
following photos.

Trunk Lid

• Installing on trunk lid

The K400 bracket is basically installed as shown in
the following figure. To avoid damaging car body, use
protection plate.

bracket

car body

protection plate

Use set screws attached to install the bracket.

set screw

hexagonal wrench (small)

Hatchback or Door

• Installing on hatchback

Install the bracket on hatchback as shown in the above
figure with set screws and small hexagonal wrench.
To avoid damaging the car body, insert protection plate
into the place where set screws and the body contact.

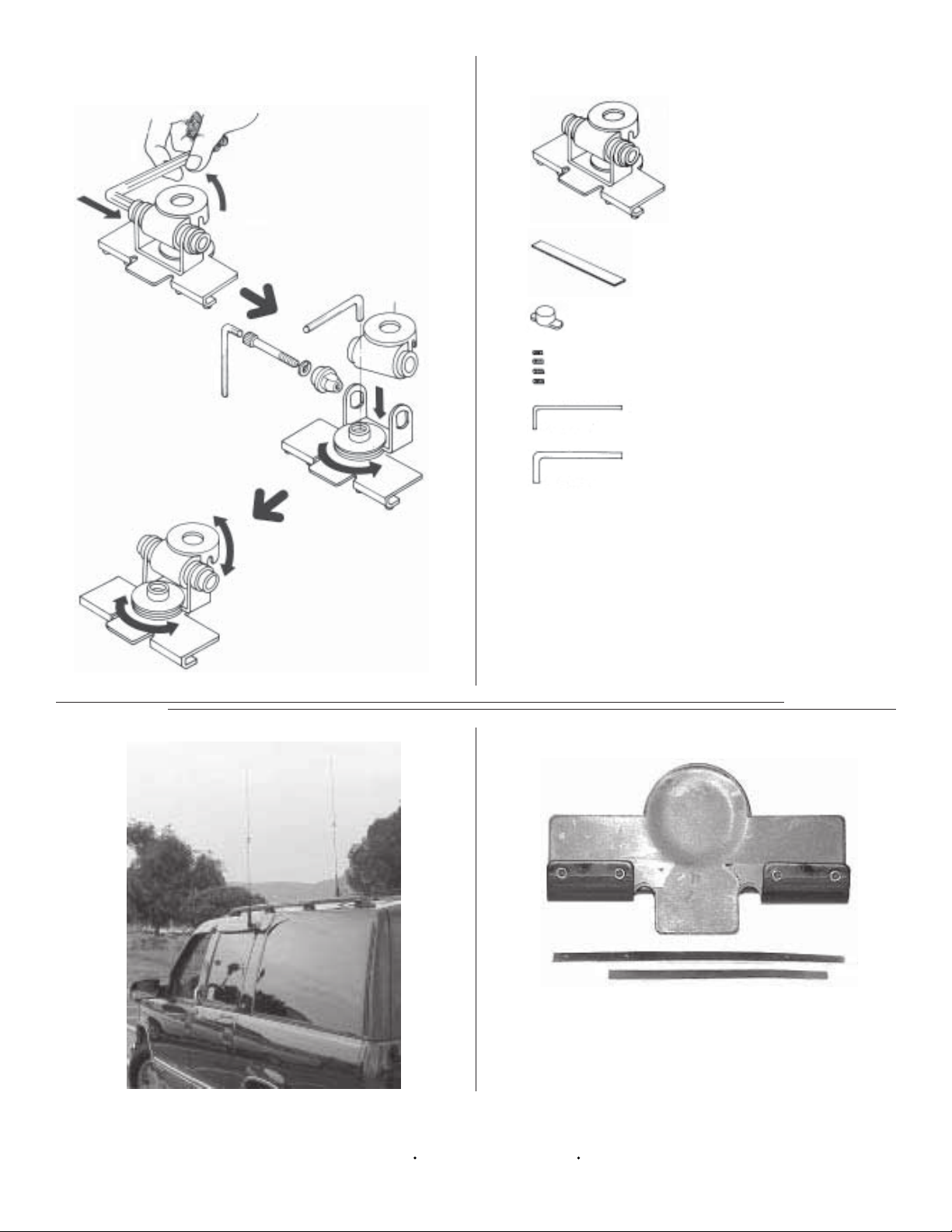

Tilt angle adjustment of the

K400 bracket

1) Remove socket bolt with large
hexagonal wrench.

K400 Parts List

Trunk lid, hatchback mount bracket

2) Remove antenna mounting section
of the bracket, and rotate it as shown
in the gure. Loosen bottom screw
with large hexagonal wrench.

3) Rebuild antenna mounting section

loosen bottom

screw

as shown in the gure, and adjust
tilt angle to make the antenna vertical.

antenna mounting

section

Protection plate

Rubber protection cap

Set screws (short)

Hexagonal wrench (small)

Hexagonal wrench (large)

K400 Mount Only
K400C UHF base w/6.5 ft. RG316 teon

coax & PL259
K400CNMO NMO base w/6.5 ft. RG316 teon
coax & PL259
K400-3/8C 3/8 24 base w/6.5 ft. RG316 teon
coax & PL259

K400 Grounding

K400 Series Mounts

K400 series mounts may be grounded by trimming
1/2” from the aluminum reinforcement strip supplied
with mount. Outside two set screws to ground.
