Diamond Black SX122, Black SX124, Black SX152, Black SX154 Installation Manual

©2011 Diamond Audio Technologies. All rights reserved.

• Hard Anodized Aluminum Alloy Cone

• Oz Cast Aluminum Frame with Aluminum Radiating Heatsink

• Dual 3” Four Layer Voice Coil

• Intercooled Motor Design with Vented Pole Piece

• Dual Mirror Image Flat Spiders

FEATURES

About the Diamond Audio Experience.

Congratulations, you have purchased the nest audio product on the market. At Diamond Audio,
our mobile audio products represent the latest advances in acoustic technology. Diamond Audio
products are designed and engineered using innovative components and materials resulting in
exceptional sound reproduction. Installed properly, Diamond Audio products will provide many
years of the ultimate listening experience.

Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please exercise
restraint in its operation in order to preserve your ability to enjoy its high delity in the future.

Diamond Audio recommends our products be professionally installed by an authorized Diamond
Audio dealer to achieve the best listening possibilities. This will ensure a proper installation and
extend your one year warranty to two years.

Go ahead, Hear The Music.

©2011 Diamond Audio Technologies. All rights reserved.

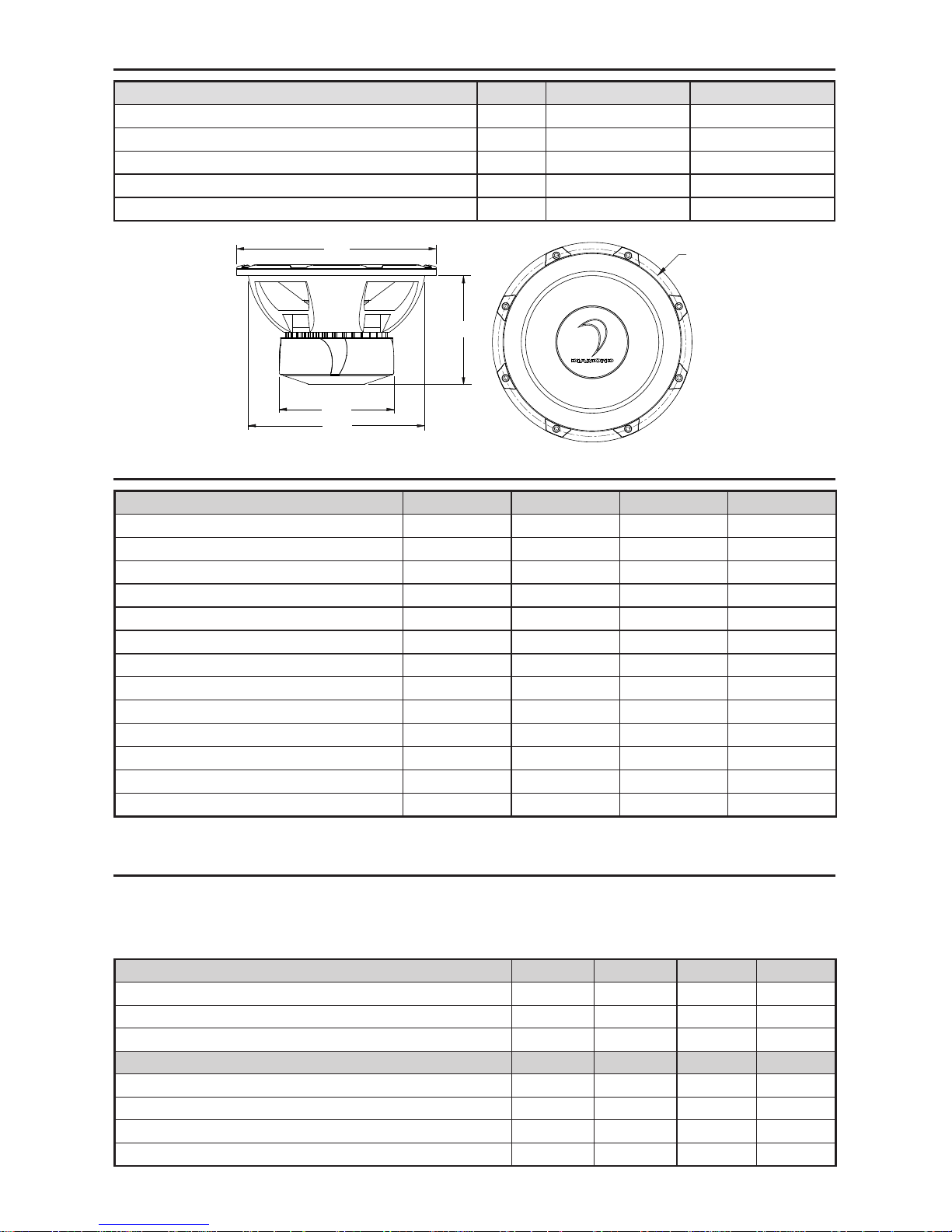

PHYSICAL DIMENSIONS

Dimension Unit

SX122/124 SX152/154

Total Diameter (A)

in. (mm) 12.4 (315.0) 15.4 (391.2)

Mounting Diameter (B)

in. (mm) 11.1 (281.9) 13.9 (353.1)

Hole Diameter (C)

in. (mm) 11.7 (297.2) 14.6 (370.8)

Mounting Depth (D)

in. (mm) 6.2 (157.5) 7.4 (188.0)

Magnet Diameter (E)

in. (mm) 6.5 (165.1) 6.5 (165.1)

Parameter (unit) SX122 SX124 SX152 SX154
SPL (dB) 85.5 85.5 87.0 87.0
Re (Ω) [series] 3.9 6.0 3.7 6.0

Qms 5.24 4.60 6.0 4.52
Qes 0.56 0.57 0.57 0.58
Qts 0.51 0.51 0.52 0.51

Fs (Hz) 32.4 34.0 25.2 28.0
Vas (L) 12.6 33.1 88.5 74.0
Cms (mm/N) 0.070 0.098 0.097 0.081
Mms (g) 346 223 411 398
Sd (m2) 0.049 0.049 0.080 0.080
BL (T*M) 22.1 24.2 20.6 27.2
Xmax (mm) 17.8 16.5 16.0 15.0
Pwr (W) NOM/MAX 600/1200 600/1200 750/1500 750/1500

(C)

(B)

(E)

(D)

(A)

THIELE/SMALL PARAMETERS

Sealed SX122 SX124 SX152 SX154
Vb (ft3) 0.88 0.88 2.25 2.25
F3 (Hz)/QTC 53 / .71 53 / .71 31 / 1.1 31 / 1.1
Pe (W) 800 800 800 800
Vented
Vb (ft3) 1.25 1.25 3.0 3.0
Fp/F3 (Hz) 40 / 35 40 / 35 30 / 24 30 / 24
Port (in.) [dia. x length] 4” x 16.5” 4” x 16.5” 4” x 10.5” 4” x 10.5”
Pe (W) 800 800 800 800

ENCLOSURES

The enclosures below are offered as a suggestion only. Assistance from an authorized Diamond
Audio retailer is recommended. All volumes are gross internal, driver and vent displacement has
been accounted for. The use of a 30hz sub-sonic lter is recommended.

©2011 Diamond Audio Technologies. All rights reserved.

LIMITED SPEAKER WARRANTY STATEMENT

Diamond Audio Technologies, LLC (DAT) warrants this product to be free from defects in material and workmanship for a period of one (1)
year from the original date of purchase provided it was purchased from an authorized DAT retailer within the United States. However, if this
product was installed by the authorized DAT retailer, the warranty period will be extended to two (2) years.

THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER OF THIS PRODUCT IN ITS
ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be able to provide proof of purchase and installation with
the sales receipt from the authorized DAT retailer that sold and installed the product.

Should a manufacturing defect occur during above said warranty period, DAT will replace or repair the defective product with a product of the
same or equivalent value and performance.

Damage or failure caused by any of the following is not covered under this warranty policy: negligence, improper use, abuse, product
modication, unauthorized repair attempts, accident, acts of God, misrepresentations by DAT retailers, and improper/inadequate packaging
during return shipping.

Warranty is void if serial numbers have been removed, altered or defaced.

HOW TO OBTAIN WARRANTY SERVICE

In the event a DAT product should require service, you should visit the authorized DAT retailer you purchased the product from and they can
expedite your claim. All claims must fall into the guidelines listed above and be accompanied by a copy of the original sales and installation
receipt from that authorized DAT retailer.

Product returned for warranty service must be freight-prepaid, properly packaged and clearly marked with the Return Authorization (RA)
number issued by DAT. Any product returned to DAT that is improperly packaged, does not have a RA number clearly marked on the
package, or never received a RA number may be refused upon delivery. DAT does not assume responsibility for lost or misdirected product.

Repair or replacement under this warranty is the exclusive remedy of the consumer. DAT shall not be liable for any incidental or
consequential damages for breach of any expressed or implied warranty on this product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may
not apply to you. This warranty gives you specic legal rights and you may also have other rights that may vary from state to state.

Customers outside the United States should contact their local sales ofce to obtain information on pricing, exchange unit availability,
instructions, service and warranty/non-warranty replacement or repair.

Diamond Audio Technologies

6915 West Frye Road
Chandler, AZ 85226 USA
Tel: [phone]
Fax: [phone]
Web: diamondaudio.com
Facebook.com/diamondaudio

Service/Tech Support:

480.820.2075

Tech Support Email

[e-mail]

®
