Dialog Semiconductor DA14695 ProDK, DA14695-00HQDB-P, DA14695-00HQDEVKT-P User Manual

Download
User Manual
DA1469x Getting Started
Guide with the
Development Kit
UM-B-090

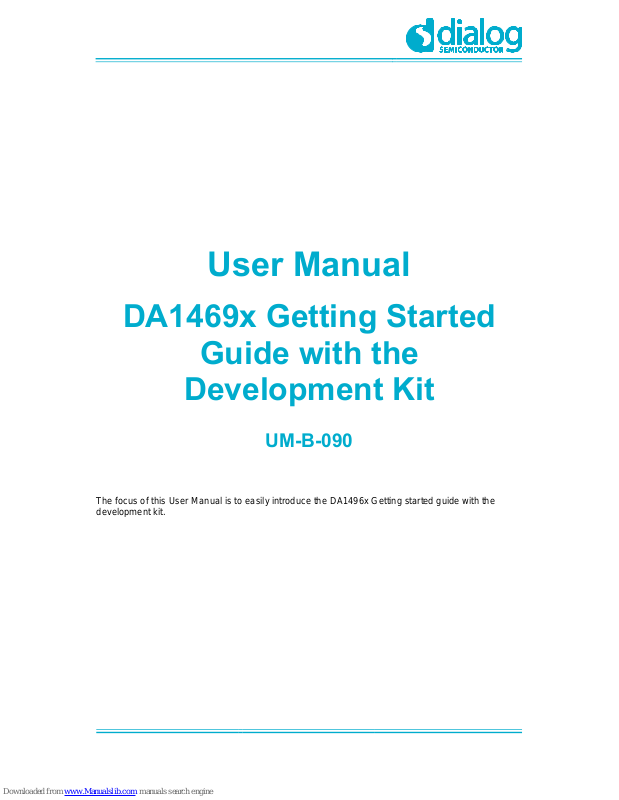

The focus of this User Manual is to easily introduce the DA1496x Getting started guide with the development kit.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
2 of 46
Contents
Contents ............................................................................................................................................... 2
Figures .................................................................................................................................................. 3
Tables ................................................................................................................................................... 4
1 Abstract .......................................................................................................................................... 5
2 Prerequisites .................................................................................................................................. 5
3 Terms and Definitions ................................................................................................................... 5
4 Introduction.................................................................................................................................... 5
4.1 Guide Purpose ...................................................................................................................... 6
4.2 How long should it take? ....................................................................................................... 6
4.3 Kit Content ............................................................................................................................ 6
5 DA1469x – The hardware .............................................................................................................. 7
5.1 The ProDK main board ......................................................................................................... 7
5.2 The ProDK daughter board ................................................................................................... 9
5.3 Configuring the Pro Kit main Board by Jumper Settings .................................................... 10
5.4 Connecting the ProDK to the host PC ................................................................................ 11
6 DA14695 Connecting the Board ................................................................................................ 12
6.1 Introduction ......................................................................................................................... 12
6.2 Requirements of the Development PC ............................................................................... 12
6.3 Driver installation ................................................................................................................. 13
6.3.1 Microsoft Windows ............................................................................................... 13
6.3.2 Linux .................................................................................................................... 14
6.3.3 COM port usage .................................................................................................. 15
6.4 Configuring the serial port for UART2 ................................................................................. 15
6.4.1 Windows Host ...................................................................................................... 15
6.4.2 Linux Host ............................................................................................................ 17
6.5 Troubleshooting .................................................................................................................. 18
7 Software Development Tools ..................................................................................................... 18
7.1 SmartSnippets™ Introduction ............................................................................................. 18
7.2 SmartSnippets™ Studio Installation and Starting ............................................................... 18
7.2.1 Windows .............................................................................................................. 19
7.2.2 Linux .................................................................................................................... 24
7.3 Package structure and Folders ........................................................................................... 28
7.4 Extracting and using the SDK ............................................................................................. 29
7.5 Additional Software ............................................................................................................. 30
8 Run the Pre-Loaded Demo ......................................................................................................... 31
9 Building a DA14695 Application – Advertising Demo ............................................................. 34
9.1 Introduction ......................................................................................................................... 34
9.2 Software Architecture .......................................................................................................... 34
9.3 Software Build ..................................................................................................................... 35
9.3.1 Build the project to run from RAM ....................................................................... 36
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
3 of 46
9.3.2 Build the project to run from QSPI Flash ............................................................. 38
9.4 Configure SmartSnippets™ to write to Flash ...................................................................... 39
9.5 Running the project in the Debugger .................................................................................. 41
9.6 How to Program the original FW back into the QSPI Flash ................................................ 42
9.7 What is Next ? ..................................................................................................................... 43
10 Appendices .................................................................................................................................. 44
10.1 Appendix A: ......................................................................................................................... 44
11 Revision history .......................................................................................................................... 45
12 Status Definitions ........................................................................................................................ 45
13 Disclaimer .................................................................................................................................... 45
14 RoHS Compliance ....................................................................................................................... 46
Figures
Figure 1: The DA1469x Product Family ................................................................................................ 7
Figure 2: The DA14695 ProDK DK ....................................................................................................... 8
Figure 3: Main board - daughter board alignment ................................................................................. 9
Figure 4: The DA14695 daughter board Layout .................................................................................... 9
Figure 5: ProDK Development Kit Jumper setting .............................................................................. 11
Figure 6: ProDK Development Kit connections ................................................................................... 12
Figure 7: Windows driver installation ................................................................................................... 13
Figure 8: Device Manager Ports .......................................................................................................... 14
Figure 9: Ports assigned to ProDK ...................................................................................................... 15
Figure 10: Terminal output via Tera Term (Windows) ......................................................................... 16
Figure 11: Setting port and testing connectivity in Linux ..................................................................... 17
Figure 12: Terminal output via putty (Linux ......................................................................................... 17
Figure 13: Automatically install J-Link ................................................................................................. 19
Figure 14: Select Smart Snippets Studio install directory ................................................................... 20
Figure 15: Smart Snippets Studio installation completed .................................................................... 20
Figure 16: SDK Tools Summary .......................................................................................................... 21
Figure 17: Start Ozone download ........................................................................................................ 22
Figure 18: Set SEGGER J-Link Installation Folder ............................................................................. 22
Figure 19: GCC Tools Installation ....................................................................................................... 23
Figure 20: SEGGER SystemView Tool Installation ............................................................................. 23
Figure 21: Installed tools summary ..................................................................................................... 24
Figure 22: Automatically install the J-Link ........................................................................................... 25
Figure 23: Select SmartSnippets™ Studio install directory ................................................................. 25
Figure 24: SDK Tools Summary (Linux) .............................................................................................. 26
Figure 25: Set the Ozone installation directory ................................................................................... 26
Figure 26: Set SEGGER J-Link Installation directory .......................................................................... 27
Figure 27: GCC Installation directory .................................................................................................. 27
Figure 28: SEGGER SystemView Installation directory ...................................................................... 28
Figure 29: Installed tools summary under Linux.................................................................................. 28
Figure 30: Software SDK Directory Structure (on Windows) .............................................................. 29
Figure 31: No SDK selected error popup message ............................................................................ 30
Figure 32: SmartSnippets™Toolbox : Mode to download the application .......................................... 30
Figure 33: LEDs Status ....................................................................................................................... 31
Figure 34: Pre-Loaded Demo: Interacting with BLE Application ......................................................... 32
Figure 35: Pre-Loaded Demo: Alerting Manual testing ....................................................................... 33
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
4 of 46
Figure 36: SmartSnippets™ Studio welcome page ............................................................................ 35
Figure 37: Project import ..................................................................................................................... 36
Figure 38: Build ADV BLE in Debug RAM configuration ..................................................................... 37
Figure 39: Start Debug in RAM mode ................................................................................................. 37
Figure 40: Build ADV BLE in Debug QSPI configuration .................................................................... 38
Figure 41: Write ADV BLE to QSPI Flash ........................................................................................... 38
Figure 42: Start Debug in QSPI mode ................................................................................................ 39
Figure 43: Configuration Summary ..................................................................................................... 39
Figure 44: Select Product ID ............................................................................................................... 40
Figure 45: Select Flash configuration .................................................................................................. 40
Figure 46: Executing the ADV BLE project in SmartSnippets™ ......................................................... 41
Figure 47: ADV BLE: Interacting with BLE Application ....................................................................... 42
Figure 48: Write binary to the QSPI Flash using cli_programmer ....................................................... 43
Figure 49: PRO-Mainboard breakout headers .................................................................................... 44
Tables
Table 1: The DA14695 ProDK main elements ...................................................................................... 8
Table 2: DA14695 Daughter Board main elements ............................................................................ 10
Table 3: Default jumper settings .......................................................................................................... 11
Table 4: Parameters for connecting to UART2 ................................................................................... 16
Table 5: Revision history ..................................................................................................................... 45
Table 6: Status Definitions................................................................................................................... 45
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
5 of 46
1 Abstract
This guide is intended to help customers setup the hardware development environment, install required software and download and run an example application on the DA1469x development platform.
2 Prerequisites
• SmartSnippets™ Studio package
• Dialog’s Semiconductor SmartSnippets™ DA1469x SDK
• Operating System (Windows or Linux)
• Pro DK DA1469x
• Serial-port terminal software (e.g. Tera Term)
• A USB connection supporting USB-Serial (FTDI)
3 Terms and Definitions
BLE
Bluetooth Low Energy
CLI
Command Line Interface
COM
Communication Port
FTDI
Future Technology Devices International
GPIO
General Purpose Input/Output
HW
Hardware
iOS
iPhone OS
JTAG
Joint Test Action Group (test interface)
LED
Light Emitting Diode
LDO
Low Drop Out
mikroBUs™
Standard defines mainboard sockets
OS
Operating System
OTP
One Time Programmable
PC
Personal Computer
PCB
Printed Circuit Board
ProDK
Pro Development Kit
RAM
Random Access Memory
SDK
Software Development Kit
SOC
System On Chip
SPI
Serial Peripheral Interface
SW
Software
UART
Universal Asynchronous Receiver/Transmitter
USB
Universal Serial Bus
4 Introduction
The DA14695x is a family of wireless MCU dual core ARM + M0+. It is the World’s Most Advanced Wireless SOC. Comparing to DA1468x, the DA1469x has:
• 2x Processing power
• 2x Battery lifetime
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
6 of 46
• 4x More resources The DA1469x SoCs combine :
• The newest ARM Cortex application processor with floating point unit
• Advanced power management functionality
• A cryptographic security engine
• Analog and digital peripherals
• A dedicated sensor node controller
• Software configurable protocol engine accompanied by a radio compliant to the Bluetooth® 5.0
low energy standard.
For further reading, more information can be found in the DA1496x Datasheet .
4.1 Guide Purpose
The purpose of this guide is to provide an overview of the DA14695 Pro Development Kit (ProDK) Board and describe the setup of the hardware and installation of the software tools to fully use the board.
The following hardware and software elements are required to use the DA14695 Pro Development Kit:
• The Pro Development Kit and Software Development Kit (SDK)
• SmartSnippets™ Studio 2.0 which can be installed on Windows or Linux hosts
• Windows users should download and install terminal software such as RealTerm, Putty or
Teraterm. The rest of the document uses RealTerm. Linux users can use Putty The rest of guide is organized as follows: Section 5 describes the hardware components and their initial installation and setup. Sections 6 and 7 describe the installation of the SmartSnippets™ DA14695 SDK software, along with
all necessary tools. Section 9 contains all steps for downloading and executing your first DA14695 Application.
4.2 How long should it take?
This tutorial requires 45-60 minutes to complete. For more information the user may consult the accompanied documentation these are mentioned as for further reading.
4.3 Kit Content
The DA14695 ProDK Kit parts can be ordered via various distributors. The DA14695 Pro Development Kit contains the following:
• DA14695-00HQDEVKT-P main Board: Figure 2
• Mini USB-cable
• The DA14695-00HQDB-P daughter board Figure 4
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
7 of 46
5 DA1469x – The hardware
The Pro Development Kit (ProDK) consists of a main board (MB-PRO) DA14695-00HQDEVKT-P and a DA14695-00HQDB-P daughter board featuring DA14695 SoC of the desired package (BGA100). A DA14699-00HRDB-P daughter board is also available. More details about the DA1469x products family is shown in Figure 1.
Figure 1: The DA1469x Product Family
5.1 The ProDK main board
Figure 2 illustrates the physical layout of the ProDK. The daughter board containing DA14695 device
is shown in
Figure 4
.
The ProDK main board provides all necessary hardware to enable:
• Full functional verification of the DA14695 family of products with the ability to take precise power
measurements by isolating the DA14695 device.
• Full digital connectivity with external hardware using UART, SPI and I2C.
• USB based debugging capabilities using the SEGGER J-Link on-board debugger for Cortex M33.
• USB based UART communication with the host PC using a Future Technology Devices
International (FTDI FT2232H) chipset which converts UART to USB.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
8 of 46
Figure 2: The DA14695 ProDK DK
Table 1: The DA14695 ProDK main elements
Reference
Description
1
U12: FTDI Chip
2
User button (K1)
3
Arduino sockets
4
Trimmer to define the adjustable LDO voltage (R127)
5
USB connector for power and communication interface
6
sockets
7
(J8.1-2) for enabling user button and (J8.3-4) for Software trigger header
8
Signal/Power breakout headers (J3, J4): Refer to
Appendix A:
9
DIP switch (S1) connecting the debugging interface signals (JTAG/UART)
10
(J9.1-2: Input) and (J9.3-4: Output) for Header for current measurement circuit
11
LRA/ERM interface header
12
J1/J2 Daughter Board connectors
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
9 of 46
NOTE
J3 and J4 (Reference 8 in
Figure 2
) are the Breakout Headers (2 pcs 2x20pin) for monitoring GPIO and
power signals, with markings of signal names on the PCB top silkscreen.
NOTE
For current measurement circuit by SmartSnippets Toolbox (driven from a DA14695 GPIO, P0_16 ) you should power the main board by the USB connector.
5.2 The ProDK daughter board
The ProDK main board can be combined with the daughter board shown in Figure 6. Both ProDK main board and daughter board have alignment arrows printed to indicate the proper
combination of the two boards, as shown in Figure 3.
Figure 3: Main board - daughter board alignment
Figure 4 presents the DA14695 daughter board Layout.
Figure 4: The DA14695 daughter board Layout
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
10 of 46
Table 2: DA14695 Daughter Board main elements
Reference
Description
1
U1: DA14695 in micro-BGA package
2
USB connector, alternative power option and connecting to DA14695 USB pins
3
U2: QSPI Flash (MX25U3235F :32Mbit)
4
Printed RF antenna
5
J4: Debug
6
Power Select
7
Reset
8
Y1 : Cristal 32 Mhz
9
Y2 : Cristal 32.768 KHz
10
J7: Coaxial switch for conducted RF measurements
NOTE
The daughter board has a switch (reference 6 in The DA14695 daughter board Layout) to select the power supply for the device:
• Power switch pos1 (left-default): VBAT LDO (default, this is the only option where the current is monitored by Studio - Toolbox)
• Power switch pos2 (right): Battery, Li-Ion (default) or Coin Cell
NOTE
The daughter board has the possibility to operate stand-alone (without the main board), powered from one of these options:
• Li-Ion/LiPo/coin Battery
• USB connector
• CIB interface (providing also JTAG/UART debugging functions)
5.3 Configuring the Pro Kit main Board by Jumper Settings
The jumper settings are displayed below:
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
11 of 46
Figure 5: ProDK Development Kit Jumper setting
Table 3: Default jumper settings
Jumper
Default Position
Comment
J5
2-3
Selects 3.0V as default VBAT
J6
Not Placed
2-pin connector for Li-Ion/LiPo Battery/
J8
1-2 & 3-4
button (K1) and C_TRIG
J9
1-2 & 3-4
Current measurement input and output
J10
no jumper caps
Haptic driver outputs and ground
5.4 Connecting the ProDK to the host PC
The ProDK Development Kit allows functional verification of the DA14695 family of devices. It supports connecting external hardware by exporting DA14695 pins to standard headers and enables the user to do precise power measurements through the integrated power measurements circuitry. Additionally.
The ProDK motherboard also includes:
• An embedded J-Link debugger U4 SAM3U2CA which ensures the USB to JTAG function by loading the software from Segger to the ROM of U4. The chip is supplied with a 3.3V from U14 which is enabled by PWR_ENABLE signal.
• FTDI chipset U12 FT2232HL which allow easy communication with the development host over USB. The FT2232HL implements the USB to UART function and ensure the connectivity of PC to the DA14695 SoC UART port and to current sense circuitry through SPI connection with ADC. The chip is supplied with a 3.3V from U14. A 12MHz crystal Y4 is required for the chip operation.
The ProDK Development Kit is connected to the host PC over the connector marked as USB1, as shown in reference 6 in Figure 2 and Figure 6 using a standard mini-USB cable. For further reading
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
12 of 46
you can refer to the Application Note: AN-B-061 DA1469x Application Hardware Design
Guidelines and UM-B-093 The hardware of DA1469x Development kit.
NOTE
Before connecting the ProDK Development Kit to the host PC make sure that:
• The main board and the desired daughter board module are properly connected.
• The power switch on the daughter board is in the left position (VBAT) to select USB from motherboard.
Figure 6: ProDK Development Kit connections
6 DA14695 Connecting the Board
6.1 Introduction
This Section describes the installation procedure for the drivers, the configuration of the serial port, and all necessary steps to verify the connection with the PC as well as solutions to any problems that may occur.
6.2 Requirements of the Development PC
For proper evaluation and application development using the DA14695 SoC and the ProDK an external host is required. This external host must have an operating system already installed (Windows or Linux) and USB ports as described in 2.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
13 of 46
6.3 Driver installation
6.3.1 Microsoft Windows
On first connection to a host PC running Microsoft Windows, the system will detect several devices and will automatically install all necessary drivers. If the system is configured to use Microsoft Windows Update, this may take several minutes to complete.
When the driver installation is complete, the system displays a Microsoft windows similar to the one presented in Figure 7.
Figure 7: Windows driver installation
There are two virtual COM ports created by the Windows driver. The first COM port (lower number, COM25 in this example) provides a UART interface between the PC and the DA1469x device. The second (higher number, COM26 in this example) is used to export measurement data from the current sense circuitry on the ProDK Kit to the Power Profiler tool. For more information on the Power Profiler, see the SmartSnippets Toolbox User Manual (UM-B-083).
NOTE
The COM port numbers assigned to the ProDK Kit motherboard might be different to the ones shown in
Figure 7
NOTE
If Your PC has a serial port on it, then that's the COM1 you're seeing. Hence you can't make a communication between the ProDK Kit board and the Windows on that port. But you can do it only by using the other lowest COM port, COM25 in this case.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
14 of 46
The COM port numbers can be found in the Windows Device Manager (Control Panel > Device
Manager > Ports (COM & LPT)) as shown in Figure 8.
Figure 8: Device Manager Ports
6.3.2 Linux
When ProDK is connected to a host PC running a Linux distribution (such as Ubuntu or CentOS) and has Internet connectivity, the system will detect several devices and all necessary drivers will be silently installed. Provided that the process has properly finished, two additional devices will appear in the /dev directory under the names ttyUSB0 and ttyUSB1, as shown in Figure 9. These names might be different in case other serial converters are connected to the system beforehand. If no other serial port converters are connected, the device that should be used with the terminal or programmer utility will be called /dev/ttyUSB0. If there are more devices with the name ttyUSBx, note which ones showed up when the ProDK was connected and use the lower number of the two devices.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
15 of 46
Figure 9: Ports assigned to ProDK
6.3.3 COM port usage
There are two virtual COM ports created by the driver with either Windows or Linux. The first (lower number) is used to export a UART from the DA14695 device. In the previous sections this was either COM5 or /dev/ttyUSB0. The second (higher number) is used to export measurement data from the current sense circuitry on the ProDK to the Power Profiler tool.
6.4 Configuring the serial port for UART2
Several development tools require UART2 to be routed to the FTDI serial port. Please refer to Development Kit Pro User Manual for details on how to properly configure the specific port. ProDK board connection verification can be made using the pre-existing Terminal application.
6.4.1 Windows Host
On a Windows Host the utility Tera Term can be used to fully validate the connection to the ProDK. Tera Term is a free software terminal emulator (communication program) which supports multiple
communication including Serial port connections. Download Teraterm from https://ttssh2.osdn.jp. Run the teraterm-x.yy.exe and follow the installation wizard.
To make sure that the communication between the ProDK board and the development host is properly established, it is necessary to verify the UART connection between the two nodes. To do so, execute the following steps:
• Step 1 Connect the ProDK board to the PC board via USB cable to USB2(DBG) as described in Figure 6.
• Step 2 Verify that the host discovered two serial ports – the first is connected to UART2 (see
6.3.1).
• Step 3 Open Tera Term from the Windows Start menu.
• Step 4 In the Tera Term: New connection dialog, select Serial, then select the COM Port to
use, and click OK.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
16 of 46
• Step 5 Select Setup > Serial Port a as shown in Figure 10 and configure your UART port using the parameters as shown in Table 4.
Table 4: Parameters for connecting to UART2
Settings
Values
Baud rate
115200
Data bits
8
Parity
None
Stop bits
1
Handshaking
None
Warning
To get the control of the COM port You need to be an administrator on your local machine.
• Step 6 Open the the Lowest COM port number assigned to the ProDK, refer to Figure 9 to figure out which port number is used by Windows by running the Windows Device Manager. Make sure that the UART is configured as shown in Table 4. Once you have a connection, you should start to see something as shown in Figure 10. The DA1496X device use random BLE addresses, new address is generated on every reset button push.
Figure 10: Terminal output via Tera Term (Windows)
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
17 of 46
6.4.2 Linux Host
Under Linux there is a simpler approach to validate the connection using a basic terminal such as putty. Connect putty to /dev/ttyUSB0 at 115200 baud using this linux command sudo putty /dev/ttyUSB0 -serial -sercfg 115200,8,n,1,N or run putty as in shown in Figure 11.
Figure 11: Setting port and testing connectivity in Linux
Once you have a connection, you should start to see something as shown in Figure 12. This is the output under Linux with putty.
Figure 12: Terminal output via putty (Linux
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
18 of 46
6.5 Troubleshooting
If there any problems with the ProDK connection to PC some possible solutions might be:
• Make sure that the Host PC is connected to Internet
• Make sure that no old FTDI drivers are installed. Drivers are available from the FTDI website.
• Check for possible cabling issue by using a different USB cable
• Connect the two elements using a different USB port on the host PC
Note:
NOTE
If none of these actions resolved the issue, please contact Dialog Software Forum.
7 Software Development Tools
7.1 SmartSnippets™ Introduction
Dialog SmartSnippets™ Studio is a royalty-free software development platform for Smartbond™ devices. It fully supports the DA1469X family of devices.
SmartSnippets™ Studio contains:
• SmartSnippets™ IDE: Eclipse CDT based IDE with pre-configured plugins to provide the build/debug environment
• SmartSnippets™ DA1469X SDK
• SmartSnippets™ Toolbox: A tool suite covering all software development requirements,
including:
• Programming and loading of firmware into integrated RAM, OTP and Flash
• Power profiling
• SmartSnippets™ Documentation
The SmartSnippets™ IDE is enabled by an on-board J-Link debugger from SEGGER. This offers standard debug capabilities such as single stepping, setting breakpoints, software download and many more. For more details on the debugger capabilities, visit https://www.segger.com/.
7.2 SmartSnippets™ Studio Installation and Starting
This section describes the installation of SmartSnippets™ Studio. For further reading the installation procedure is described in detail in UM-B-057 SmartSnippets Studio User Manual.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
19 of 46
NOTE
• The SmartSnippets™version should be 2.0.6 and above if you wish to use Eclipse/GCC
• Registration is required in order to download the SmartSnippets™.
Warning
Please be aware that if you have an Antivirus software is installed in your machine, it could slow down the SmartSnippets™ installation due to the scan.
7.2.1 Windows
Run the SmartSnippets™ Studio installer (.msi). Several of the required tools will automatically install and others need to be manually downloaded and installed.
• Select the recommended version or a newer one from of SEGGER J-Link GDB server and Click Next.
Figure 13: Automatically install J-Link
• Select the destination folder for the SmartSnippets™ Studio and click "Next". The default installation location C:/DiaSemi is recommended
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
20 of 46
Figure 14: Select Smart Snippets Studio install directory
• The installation of the SmartSnippets™ Studio will then start.
• After the successful installation of the SmartSnippets™ Studio next screen will appear.
Figure 15: Smart Snippets Studio installation completed
• Click Finish and wait for the SmartSnippets™ Studio to start.
When SmartSnippets™ Studio starts for the first time, the user must configure it. The necessary configurations are the following:
• Select the workspace folder for SmartSnippets™ Studio. This should be the created directory inside workspace_SmartSnippets_Studio.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
21 of 46
• All the other tools required by the SDK and SmartSnippets™ Studio will be automatically installed, such as GNU ARM GCC, SmartSnippets Toolbox, SEGGER drivers etc. On a clean PC they will probably not be there and so the next steps are to download and install them.
Figure 16: SDK Tools Summary
• Tick the download and install radio button and then press Download button for SEGGER Ozone tool
• This will install the tool to C:\Program Files (x86)\SEGGER\Ozone V2.60c. Then press
Next.
NOTE
• Users are required to download and install tools marked as mandatory by clicking the download button or specifying an installation folder if the tool is already installed externally. Some tools can be optional, in which case Skip button will show
• The Next button is enabled only after the mandatory tools are successfully installed or a valid installation path is specified.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
22 of 46
Figure 17: Start Ozone download
• Then, the installer will guide user to install SEGGER JLink version 6.42b or later. They are available from the SEGGER website Refer to Figure 18.
Figure 18: Set SEGGER J-Link Installation Folder
• The SDK Tools Installer will prompt for the installation of GCC. Select Download and install the required version and click Download. After the download is complete, the green completion mark appears. Then press the Next button to continue as shown in Figure 19.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
23 of 46
Figure 19: GCC Tools Installation
• The SDK Tools Installer will prompt for the installation of SEGGER SystemView, Refer to
Figure 20.
Figure 20: SEGGER SystemView Tool Installation
• The last page of the wizard shows a summary of all installed tools. Installation of optional tools can be skipped in the wizard. The user’s choice to skip an optional tool is remembered by SmartSnippets™ Studio so that the wizard does not ask again for the installation of this tool the next time the wizard is launched.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
24 of 46
Figure 21: Installed tools summary
7.2.2 Linux
Before running the installer, it is necessary to install some Linux packages that are mandatory for the execution of SmartSnippets™ Studio. Without them SmartSnippets™ Studio will not run correctly but will fail with no reported error.
• For CentOS 7:
sudo yum install install epel-release sudo yum install webkitgtk.x86_64 sudo yum install glibc.i696 ncurses-libs.i696 sudo yum install qt-x11 (required for SystemView tool)
• For Fedora 25:
sudo yum install webkitgtk.x86_64 sudo yum install glibc.i696 ncurses-libs.i696 sudo yum install gcc-c++ sudo yum install libncurses.so.5
• For Ubuntu 16.04.1 install:
sudo apt-get install libz1:i386 libncurses5:i386 libbz2-1.0:i386 sudo apt-get install libwebkitgtk-1.0-0 libwebkitgtk-3.0-0 sudo apt-get install gawk
• The first step is to make the SmartSnippets™ Studio installer executable.
• $chmod a+x SmartSnippets_Studio-linux.gtk.x86_64-1.6.3.run
• And then run it.
• $./SmartSnippets_Studio-linux.gtk.x86_64-1.6.3.run
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
25 of 46
• Several of the required tools will automatically install and others need to be manually downloaded and installed.
• Install the recommended version of SEGGER J-Link GDB server. The V6.14h version will be installed by default. If you have recent SEGGER J-Link version you have just to select the path where it is already installed, as shown in Figure 26.
Figure 22: Automatically install the J-Link
• Select the destination folder for the SmartSnippets™ Studio
Figure 23: Select SmartSnippets™ Studio install directory
• The installation of the SmartSnippets™ Studio will then start.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
26 of 46
• After the successful installation of the SmartSnippets™ Studio click Finish on the next screen that will appear and wait for the SmartSnippets™ Studio to start.
• When SmartSnippets™ Studio starts it will check which SEGGER tools are installed. On a clean PC they will probably not be there and so the next steps are to download and install them
Figure 24: SDK Tools Summary (Linux)
• Tick the download and install radio button and then press Download button for SEGGER Ozone tool. The download will then start and the SEGGER Ozone tool will be installed automatically. This will install the tool to /opt/SEGGER/ozone/2.60c. Use the Browse button to find this folder and then press Next.
Figure 25: Set the Ozone installation directory
• Then, the installer will guide user to install SEGGER JLink.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
27 of 46
Figure 26: Set SEGGER J-Link Installation directory
• Then, the installer will guide user to install GCC. Browse button to find this folder and then press Next.
Figure 27: GCC Installation directory
• The final stage is to install SEGGER SystemView.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
28 of 46
Figure 28: SEGGER SystemView Installation directory
The last page of the wizard shows a summary of all installed tools. Installation of optional tools can be skipped in the wizard. The user’s choice to skip an optional tool is remembered by SmartSnippets™ Studio so that the wizard does not ask again for the installation of this tool the next time the wizard is launched.
Figure 29: Installed tools summary under Linux
7.3 Package structure and Folders
The directory structure of the SDK is shown in Figure 30.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
29 of 46
Figure 30: Software SDK Directory Structure (on Windows)
7.4 Extracting and using the SDK
As SmartSnippets™ Studio is an Eclipse based Integrated Development Environment (IDE) all the source files are contained within a workspace folder which contains all the project sources, build configurations etc.
In the user directory (Windows or Linux) create a directory called: workspace_SmartSnippets_Studio. Extract the contents of the SDK zip file to the workspace folder.
Warning
When selecting the SDK directory in the SmartSnippets™, please make sure to select the level with the name (i.e. DA14695_SDK_10.x.y.z) otherwise the projects will not build. It must contain the contents of the directory as shown in Figure 30. This shows a Windows file system; the principle is the same for a Linux filesystem.
As the workspace is the same directory as the SDK it means that all edits to files in the workspace change the contents of the SDK. This means that all projects should be developed in different workspaces and so each workspace needs to be created with an extraction from the original SDK zip file as there is no longer a clean copy of the SDK on which to base new projects.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
30 of 46
NOTE
In case the selected workspace does not correspond to a valid SDK and the user selected the “Take no action” option in the dialog asking how to treat the selected workspace Figure 31. Different level needs to be selected.
Figure 31: No SDK selected error popup message
7.5 Additional Software
The SmartSnippets™ Toolbox, Figure 32, is focused on enabling the process of programming flash and optimizing code for optimal power performance by allowing:
• The re-programming of the internal QSPI with the actual application compiled image.
• An accurate examination of the power profile and the effects of any executed application software.
• The seamless download and execution of a certain software image to RAM over UART.
Figure 32: SmartSnippets™Toolbox : Mode to download the application
SmartSnippets™ Toolbox is also supported by other utilities such as the Command Line Interface (CLI) Programmer. The CLI Programmer is a command line tool for programming the DA14695 family of devices. It allows erasing and programming the device Flash or OTP memory. This tool may be used
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
31 of 46
both in development and on the production line. The CLI Programmer will be installed as an integrated part of the SmartSnippets™ DA14695 SDK.
The SmartSnippets™ framework makes maximum use of the available features on the motherboard like the on board current sensing circuitry to allow developers of Bluetooth applications to work without expensive and bulky equipment such as a Digital Multi Meter (DMM). The tool provides full visibility on the chip activity, which is crucial in the developing of ultra-low power wireless applications.
8 Run the Pre-Loaded Demo
This section describes how to quickly get started with the DA1469x ProDK and run the preloaded demo.
• Step 1: Take the daughter board and Plug it to the main board through the dedicated connector
Figure 3. Take care to match the orientation.
• Step 2: Connect a USB type A to mini-B USB cable on the micro USB header on the ProDK to power On. The other side of the USB cable can be connected to a PC/Laptop. Figure 6
• Step 3: After the ProDK is powered, and If everything works fine then the following LEDs status can be seen as shown Figure 33.
– On the daughter board, Red LED 1 is blinking – On the main board Blue LED D1, Green LED 4 and Green LED 5 are ON.
Figure 33: LEDs Status
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
32 of 46
• Step 4: The ProDK now starts to advertise over Bluetooth. The Pre-Loaded demo application is executed from QSPI flash. Open your BLE scanner application to scan and connect to the Dialog DA14695 device. Refer to Figure 34.
Figure 34: Pre-Loaded Demo: Interacting with BLE Application
NOTE
In this example, we used an Android application, but you can also use the LightBlue iOS application to connect an iPad/iPod/iPhone device to the application.
NOTE
The number shown in Figure 34 is aligned with the number observed on the Terminal program Figure 10 for windows.
• Step 5 As Feature, alerting is done using the RED LED available on the daughter board, refer to
Figure 33. You can write value to Alert Level characteristic in Immediate Alert service:
– 0x00 (No alert) - the white LED on ProDK device does not blink
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
33 of 46
– 0x01 (Mild alert) - the white LED on ProDK blinks slow immediately – 0x02 (High Alert) - the white LED on ProDK blinks fast immediately
Figure 35: Pre-Loaded Demo: Alerting Manual testing
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
34 of 46
9 Building a DA14695 Application – Advertising Demo
9.1 Introduction
The following sections explain how the user can build, program and run a simple software application called Advertising Demo ble_adv on the ProDK development board using the SmartSnippets™ DA1469X SDK.
The application is first described, then step by step instructions are given to build and run it.
9.2 Software Architecture
In order to be familiar with building and executing ble_adv project is better to run it in debug mode first. This is the easiest setup and does not need any Flash programming prior to executing the binary.
When the application starts running the first thing that is executed is the Reset_Handler, which is located in startup > startup_ARMCM0.s. This is followed by setting IRQ priorities and initializing variables.
Next, code execution continues with the main subroutine in file main.c. Here, the main routine creates the task SysInit and starts the RTOS scheduler. From now on the RTOS scheduler is running and it will start the first task which is SysInit.
The SysInit first initializes the clock and the low power clock and sets the clock dividers for AHB and APB buses. Then BLE Adv is initialized which leads to function initialization of BLE manager.
Last thing done before SysInit task exits is to create another task ble_adv_demo_task which is the main application task running until the program gets stopped. The function code implementing this main task is as follows:
Code 1 The main task in SysInit() the ble_adv_demo_task()
static void ble_adv_demo_task(void *pvParameters)
{ int8_t wdog_id;
/* Just remove compiler warnings about the unused parameter */ ( void ) pvParameters;
/* Register ble_adv_demo_task to be monitored by watchdog */ wdog_id = sys_watchdog_register(false);
/* Start BLE device as a peripheral */ ble_peripheral_start();
/* Set device name */ ble_gap_device_name_set("Dialog ADV Demo", ATT_PERM_READ);
/* Set advertising data */ ble_gap_adv_data_set(sizeof(adv_data), adv_data, 0, NULL);
/* Start advertising */ ble_gap_adv_start(GAP_CONN_MODE_UNDIRECTED);
for (;;) { ble_evt_hdr_t *hdr;
/* Notify watchdog on each loop */ sys_watchdog_notify(wdog_id);
/* Suspend watchdog while blocking on ble_get_event() */ sys_watchdog_suspend(wdog_id);
/*
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
35 of 46
* Wait for a BLE event - this task will block * indefinitely until something is received. */
hdr = ble_get_event(true);
/* Resume watchdog */ sys_watchdog_notify_and_resume(wdog_id);
if (!hdr) { continue; }
switch (hdr->evt_code) { case BLE_EVT_GAP_CONNECTED: handle_evt_gap_connected((ble_evt_gap_connected_t *) hdr); break; case BLE_EVT_GAP_DISCONNECTED: handle_evt_gap_disconnected((ble_evt_gap_disconnected_t *) hdr); break; case BLE_EVT_GAP_PAIR_REQ: handle_evt_gap_pair_req((ble_evt_gap_pair_req_t *) hdr); break; default: ble_handle_event_default(hdr); break; }
/* Free event buffer (it's not needed anymore) */ OS_FREE(hdr); } }
9.3 Software Build
This section describes all the steps required to import, build and run this first project.
1. In the SmartSnippets™ Studio welcome page click on the IDE icon from the Tools tab as shown in Figure 6
Figure 36: SmartSnippets™ Studio welcome page
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
36 of 46
2. Import the template project : ble_adv from: <sdk_root_directory>/projects/dk_apps/demos/ble_adv into the selected
workspace. Press the browse button highlighted in the Resources tab (reference 1) and navigate to the folder which contains the specific project as shown in Figure 37.
Figure 37: Project import
3. In the same way import the python_scripts project from:
<sdk_root_directory>\utilities\python_scripts
9.3.1 Build the project to run from RAM
The first build to try is a RAM build. This is the simplest one as there is no need to write the code to external QSPI Flash, the debugger will load it directly into RAM from where it can be run. This is not the normal method of development.
Build the project with the Build button and select Debug RAM configuration DA1469X-00-Debug- RAM as shown in Figure 38.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
37 of 46
Figure 38: Build ADV BLE in Debug RAM configuration
Once the Debug RAM binary is built, the next step is to start the Debugger using as shown in Figure
39. As this is a RAM build the debugger will download the binary file via J-Link debugger into the
system RAM. To enable this the system RAM is mapped to address 0 by the debugger.
Figure 39: Start Debug in RAM mode
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
38 of 46
9.3.2 Build the project to run from QSPI Flash
1. This will be the normal development flow which has three steps: build the code, write it to QSPI Flash and then run it in the debugger. Some questions may pop-up about which Flash device etc, as explained later in the next section: Configure SmartSnippets™ to write to Flash
2. Build the project pressing the build button and select the Debug QSPI configuration DA1469X- 00-Debug-QSPI as shown in Figure 40.
Figure 40: Build ADV BLE in Debug QSPI configuration
The next step is to write the binary file to QSPI Flash. This is done by using a script selected from the External Tool button. In Figure 41 select program_qspi_jtag to program the QSPI Flash memory. Alternatively, use Run > External Tools > program_qspi_jtag.
Figure 41: Write ADV BLE to QSPI Flash
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
39 of 46
Finally start the debugger as shown in Figure 42. This will start the debug perspective in SmartSnippets™ and load the symbols for the current project into the debugger.
Figure 42: Start Debug in QSPI mode
9.4 Configure SmartSnippets™ to write to Flash
In order to write an image to another Flash version a configuration must be done first. To access configuration menu alternatively, use:
Run > External Tools > program_qspi_config program_qspi_config, refer to Figure 41. This will open the window as shown in Figure 43 with a summary of the current QSPI configuration and supported device.
Figure 43: Configuration Summary
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
40 of 46
Press change to apply a new configuration. The first question has to do with the Product Id Select DA1469x-00 product family
Figure 44: Select Product ID
Next you will asked about the Flash configuration. For ProDK of the DA1469x family select MX25U3235F.
Figure 45: Select Flash configuration
Finally, you will be asked to insert an address about: Active FW image address and Update FW image address. Please keep in both entries the
default value 0x2000.
Warning
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
41 of 46
Warning
Once your project is loaded and it is not working, it could that a wrong flash version was chosen. make sure to select the right flash version refer to Figure 45
9.5 Running the project in the Debugger
1. Now that the binary has been loaded to memory (either RAM by debugger or QSPI by script) and the debugger has the symbols for the project loaded it is possible to run project in the debugger.
2. Start execution of the ADV BLE project by selecting Resume inside the SmartSnippets™ Run menu or by hitting the play icon as indicated in Figure 46
Figure 46: Executing the ADV BLE project in SmartSnippets™
The correct functionality of the ADV BLE project can be checked by noticing in the BLE scanner application.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
42 of 46
Figure 47: ADV BLE: Interacting with BLE Application
9.6 How to Program the original FW back into the QSPI Flash
In this section we will describes how you can Program the original FW back into the QSPI Flash In This
Small SW example : DA1469x_dev_kit_demo , You can built and write to the QSPI flash as it shown
in: Build the project to run from QSPI Flash or you can compile it and write the built .bin to the Flash using <sdk_root_directory>/binaries/cli_programmer.exe as shown in Figure 48.
Code 2 Command to Write binary to the QSPI Flash using cli_programmer
./cli_programmer.exe gdbserver write_qspi 0x0 pro_kit_demo.bin
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
43 of 46
Figure 48: Write binary to the QSPI Flash using cli_programmer
9.7 What is Next ?
This tutorial does not cover all the topics relevant to software development environments, it describes the first steps necessary to get started with the Pro Development Kit. For further reading the following links provide more information on DA1496X:
• DA1469x Product Brief : To know more about the SmartBond™ DA1469x SoC.
• UM-B-092: DA1469x Software Platform Reference : To know more about software architecture.
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
44 of 46
10 Appendices
10.1 Appendix A:
Figure 49: PRO-Mainboard breakout headers
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
45 of 46
11 Revision history
Table 5: Revision history
Revision
Date
Description
1.0
24-Feb-2019
First released version
12 Status Definitions
Table 6: Status Definitions
Status
Definition
DRAFT
The content of this document is under review and subject to formal approval, which may result in modifications or additions.
APPROVED or unmarked
The content of this document has been approved for publication.
13 Disclaimer
Disclaimer
Information in this document is believed to be accurate and reliable. However, Dialog Semiconductor does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information. Dialog Semiconductor furthermore takes no responsibility whatsoever for the content in this document if provided by any information source outside of Dialog Semiconductor.
Dialog Semiconductor reserves the right to change without notice the information published in this document, including without limitation the specification and the design of the related semiconductor products, software and applications.
Applications, software, and semiconductor products described in this document are for illustrative purposes only. Dialog Semiconductor makes no representation or warranty that such applications, software and semiconductor products will be suitable for the specified use without further testing or modification. Unless otherwise agreed in writing, such testing or modification is the sole responsibility of the customer and Dialog Semiconductor excludes all liability in this respect.
Customer notes that nothing in this document may be construed as a license for customer to use the Dialog Semiconductor products, software and applications referred to in this document. Such license must be separately sought by customer with Dialog Semiconductor.
All use of Dialog Semiconductor products, software and applications referred to in this document are subject to Dialog Semiconductor"s
Standard Terms and Conditions of Sale, available on the company website (www.dialog-semiconductor.com) unless otherwise stated.
Dialog and the Dialog logo are trademarks of Dialog Semiconductor plc or its subsidiaries. All other product or service names are the property of their respective owners.
© 2019 Dialog Semiconductor. All rights reserved.
Contacting Dialog Semiconductor
United Kingdom (Headquarters)
Dialog Semiconductor (UK) LTD
Phone: +44 1793 757700
Germany
Dialog Semiconductor GmbH
Phone: +49 7021 805-0
The Netherlands
Dialog Semiconductor B.V.
Phone: +31 73 640 8822
North America
Dialog Semiconductor Inc.
Phone: +1 408 845 8500
Japan
Dialog Semiconductor K. K.
Phone: +81 3 5769 5100
Taiwan
Dialog Semiconductor Taiwan
Phone: +886 281 786 222
Hong Kong
Dialog Semiconductor Hong Kong
Phone: +852 2607 4271
Korea
Dialog Semiconductor Korea
Phone: +82 2 3469 8200
China (Shenzhen)
Dialog Semiconductor China
Phone: +86 755 2981 3669
China (Shanghai)
Dialog Semiconductor China
Phone: +86 21 5424 9058
Email:
enquiry@diasemi.com
Web site:
www.dialog-semiconductor.com
UM-B-090
DA1469x Getting Started Guide with the Development Kit
User Manual
Revision 1.0
CFR0012
46 of 46
14 RoHS Compliance
Dialog Semiconductor complies to European Directive 2001/95/EC and from 2 January 2013 onwards to European Directive 2011/65/EU concerning Restriction of Hazardous Substances (RoHS/RoHS2). Dialog Semiconductor’s statement on RoHS can be found on the DA1496x RoHS 2 declaration. RoHS certificates from our suppliers are available on request.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
