Dialog Semiconductor DA14580 User Manual

Download
Company confidential
User manual
DA14580 Range extender v.2
reference application
UM-B-045
Abstract
This document describes the Bluetooth Range Extender v.2 module, based on the DA14580 SoC. Target hardware: 580 RD QFN40 Module_RF PA_vC – Board Number: 078-56-C.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
2 of 56
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
3 of 56
Contents
Contents .................................................................................................................................... 3
1 Terms and definitions ........................................................................................................... 9
2 References ........................................................................................................................... 9
3 Introduction ........................................................................................................................10
4 System overview .................................................................................................................10
Features .............................................................................................................................. 10 4.1
General description............................................................................................................. 11
4.2
Bluetooth SoC ..................................................................................................................... 12 4.3
RF front end ........................................................................................................................ 14 4.4
Radio front end control signals ............................................................................ 15 4.4.1
4.4.1.1 Radio front end control signals .......................................................... 15
4.4.1.2 Suggested pin assignment ................................................................. 18
Power amplifier .................................................................................................... 20 4.4.2
Low pass filter ....................................................................................................... 21
4.4.3
Antenna ................................................................................................................ 22 4.4.4
4.4.4.1 Range Extender v.2 on Interposer ..................................................... 22
4.4.4.2 Range Extender v.2 stand alone......................................................... 25
Power system and requirements ........................................................................................ 27 4.5
Trimming the 16MHz Xtal ................................................................................................... 27 4.6
PCBA .................................................................................................................................... 28 4.7
Development Mode-Peripheral Pin Mapping ..................................................................... 31
4.8
Software .............................................................................................................................. 33 4.9
5 Measurements ....................................................................................................................38
Basic performance measurements ..................................................................................... 38 5.1
Receiver sensitivity (conducted) .......................................................................... 38 5.1.1
5.1.1.1 Test description .................................................................................. 38
5.1.1.2 Test setup ........................................................................................... 38
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
4 of 56
5.1.1.3 Test results ......................................................................................... 38
Transmitter output power (conducted) ............................................................... 40 5.1.2
5.1.2.1 Test description .................................................................................. 40
5.1.2.2 Test setup ........................................................................................... 40
5.1.2.3 Test results ......................................................................................... 40
Current consumption ........................................................................................... 42 5.1.3
5.1.3.1 Test setup ........................................................................................... 42
5.1.3.2 Advertisement mode ......................................................................... 42
5.1.3.3 Connection mode ............................................................................... 43
5.1.3.4 Extended sleep mode ......................................................................... 44
FCC/ ETSI Measurements .................................................................................................... 45 5.3
Emission limitation conducted (transmitter) ....................................................... 45 5.3.1
5.3.1.1 Test description .................................................................................. 45
5.3.1.2 Test setup ........................................................................................... 45
5.3.1.3 Test results ......................................................................................... 45
Emission limitation radiated (transmitter) ........................................................... 45 5.3.2
5.3.2.1 Test description .................................................................................. 45
5.3.2.2 Test setup ........................................................................................... 45
5.3.2.3 Test results ......................................................................................... 46
6 FCC/IC Certification and CE marking .....................................................................................53
Standards and conformity assessment ............................................................................... 53 6.1
FCC requirements regarding the end product and end user .............................................. 53 6.2
End product marking ............................................................................................ 53 6.2.1
End product literature .......................................................................................... 53 6.2.2
Permissive changes ............................................................................................................. 53 6.3
Industry Canada requirements regarding the end product and end user .......................... 53 6.4
End product marking ............................................................................................ 53 6.4.1
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
5 of 56
End product literature .......................................................................................... 53 6.4.2
7 Appendix A: Range Extender v.2 with SPI Data Flash .............................................................53
8 Revision history ...................................................................................................................55
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
6 of 56
List of Figures and Tables
Figure 1: DA14580 Range Extender v.2 module .................................................................................. 10

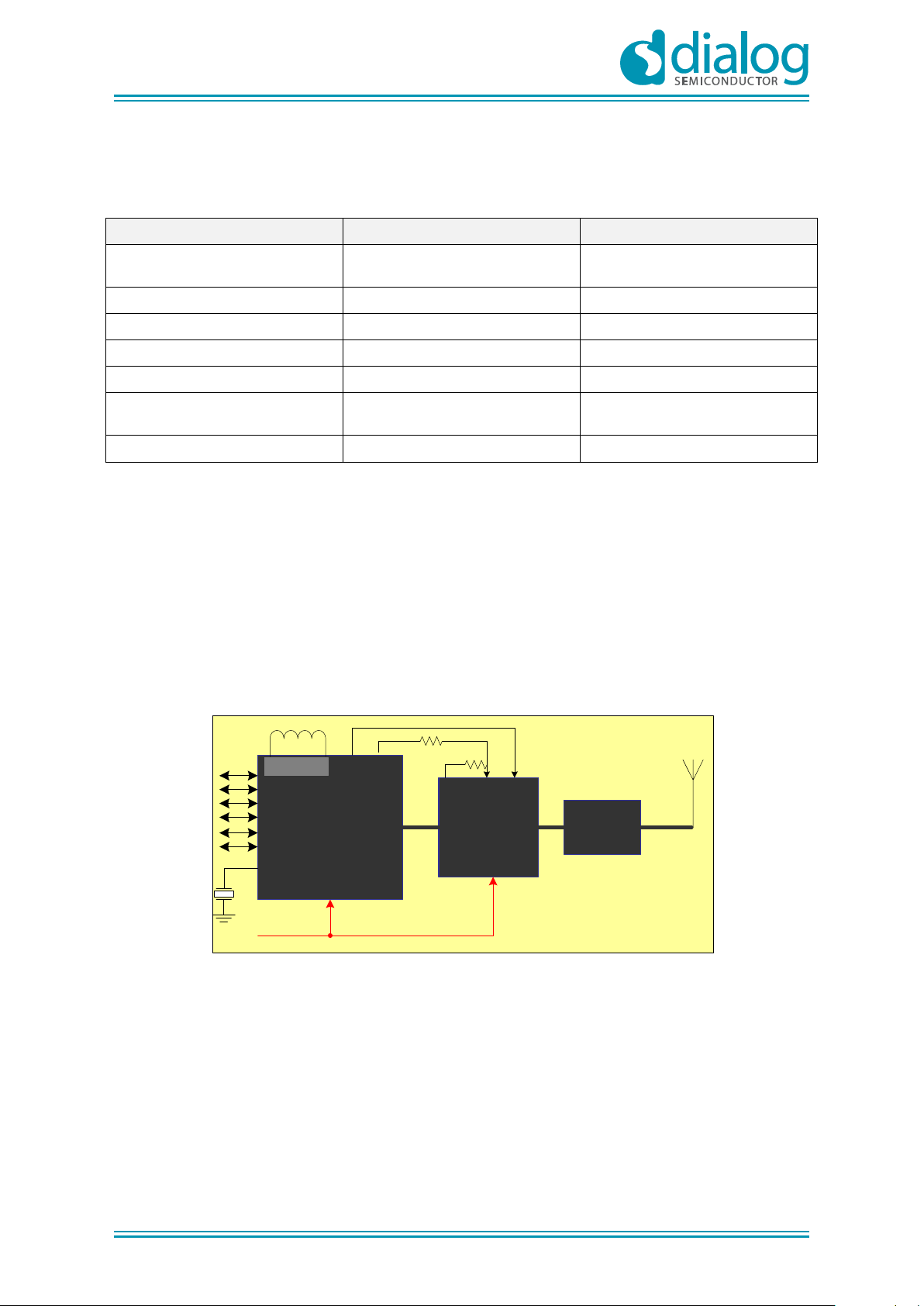

Figure 2: Block diagram ....................................................................................................................... 11

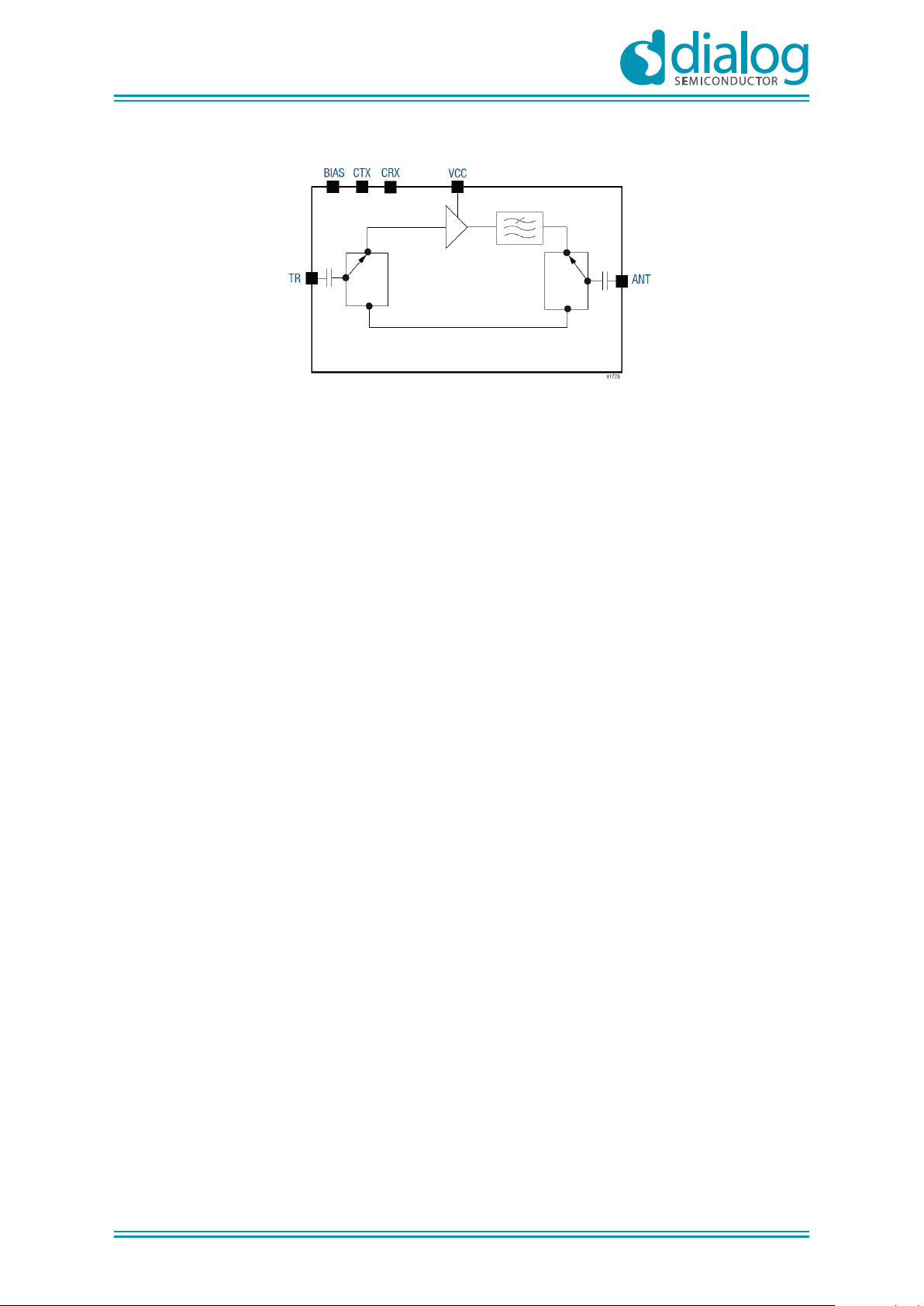

Figure 3: Sky66111-11 Power Amplifier .............................................................................................. 12
Figure 4: DA14580 QFN40 SoC, Range Extender ver.2 module .......................................................... 13

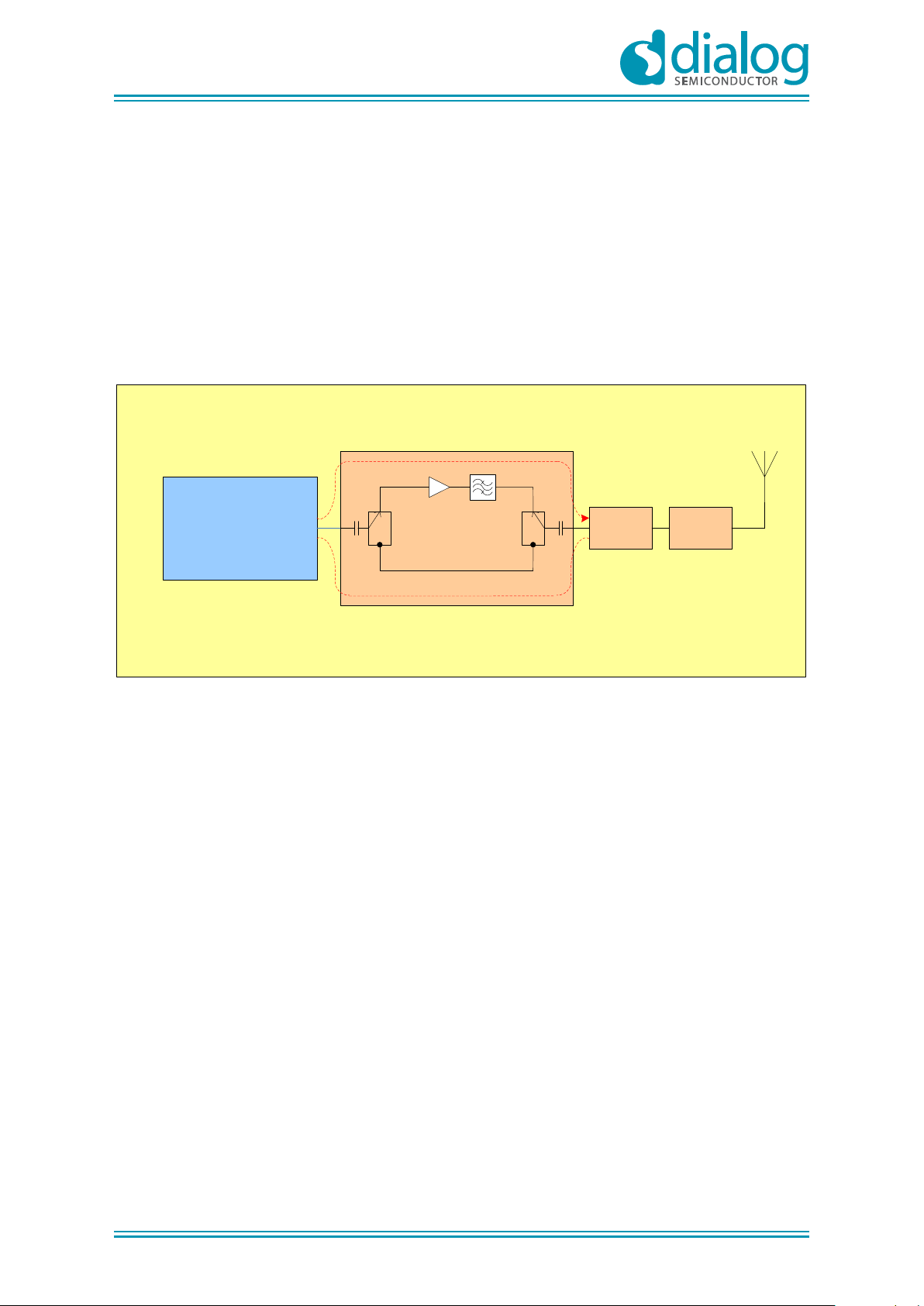

Figure 5: RF front end signal paths ...................................................................................................... 14

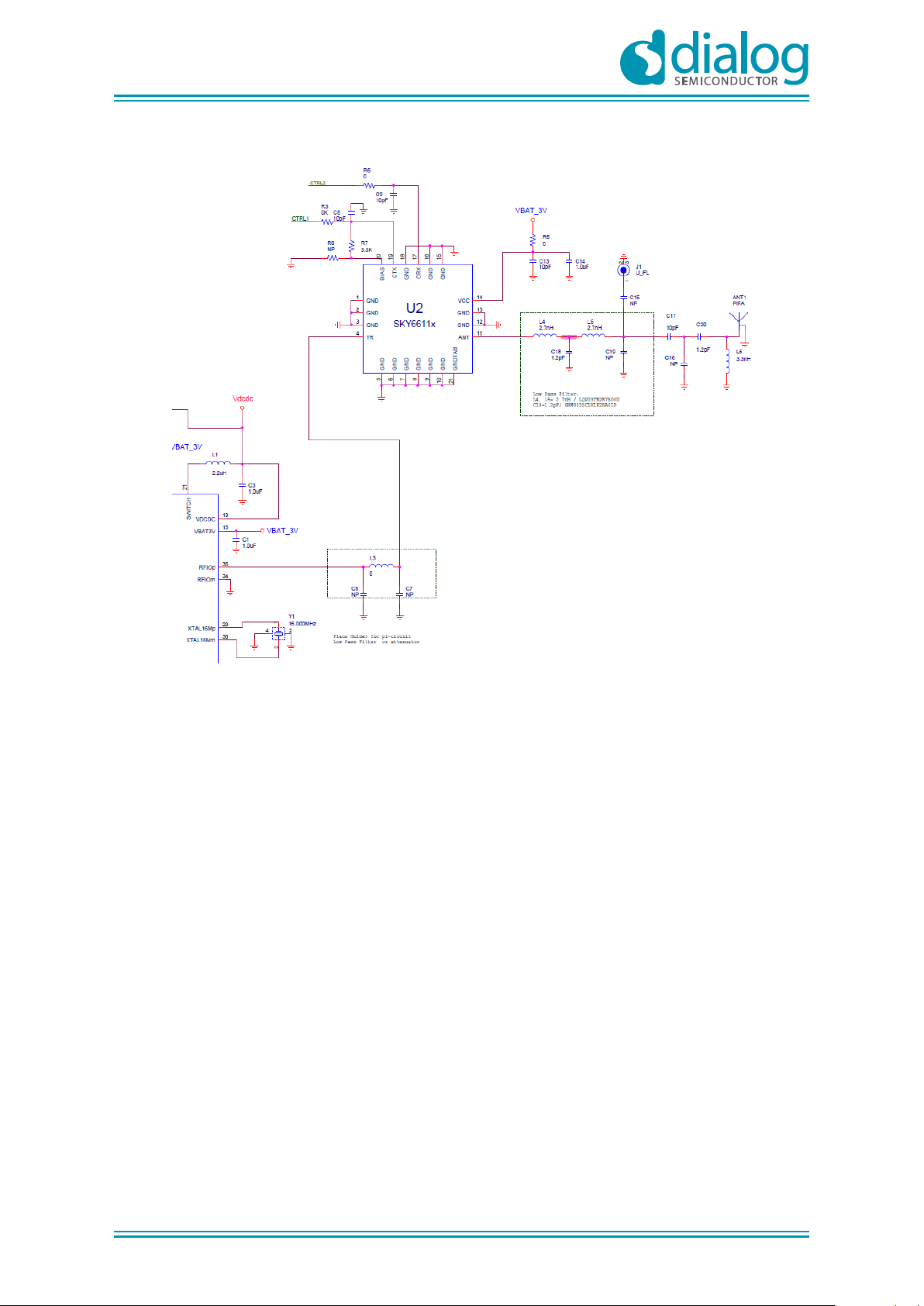

Figure 6: RF front end schematic ........................................................................................................ 15
Figure 7: Diagnostic port to pins assignment and register settings .................................................... 17

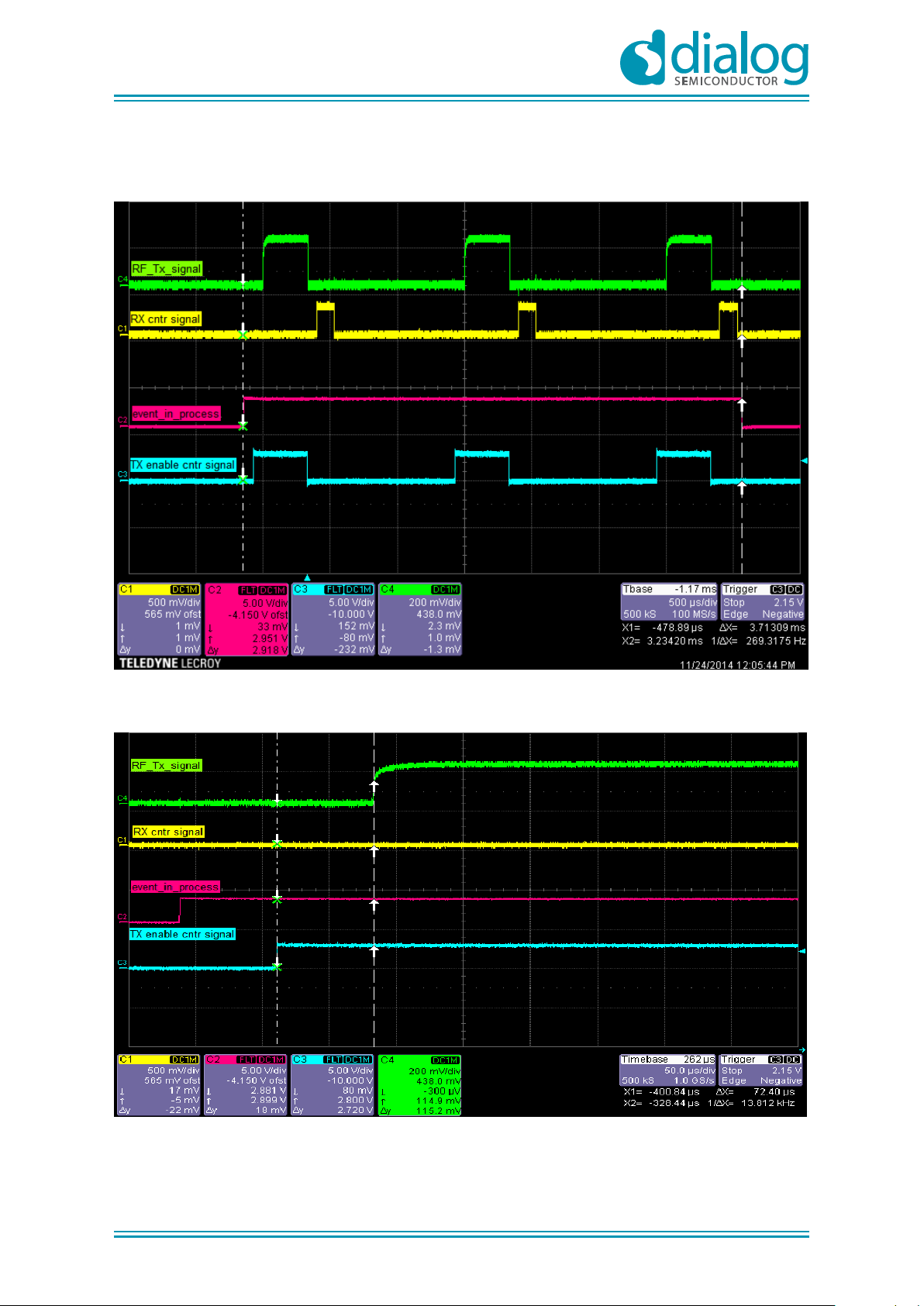

Figure 8: The RF control signals ........................................................................................................... 19
Figure 9: Rising edge of Tx_En control signal ...................................................................................... 19

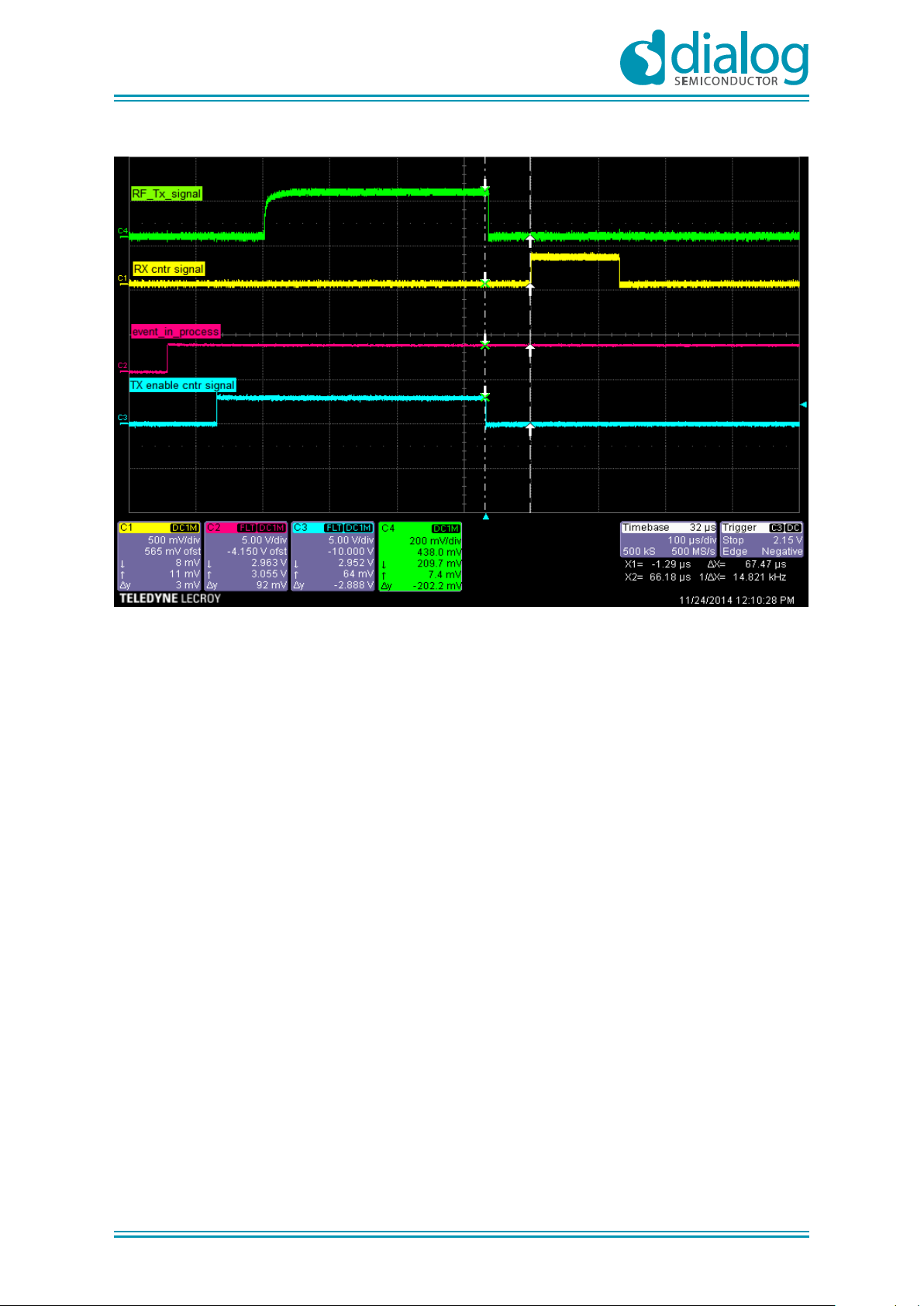

Figure 10: Detail from Tx_En to Rx_En signal ..................................................................................... 20

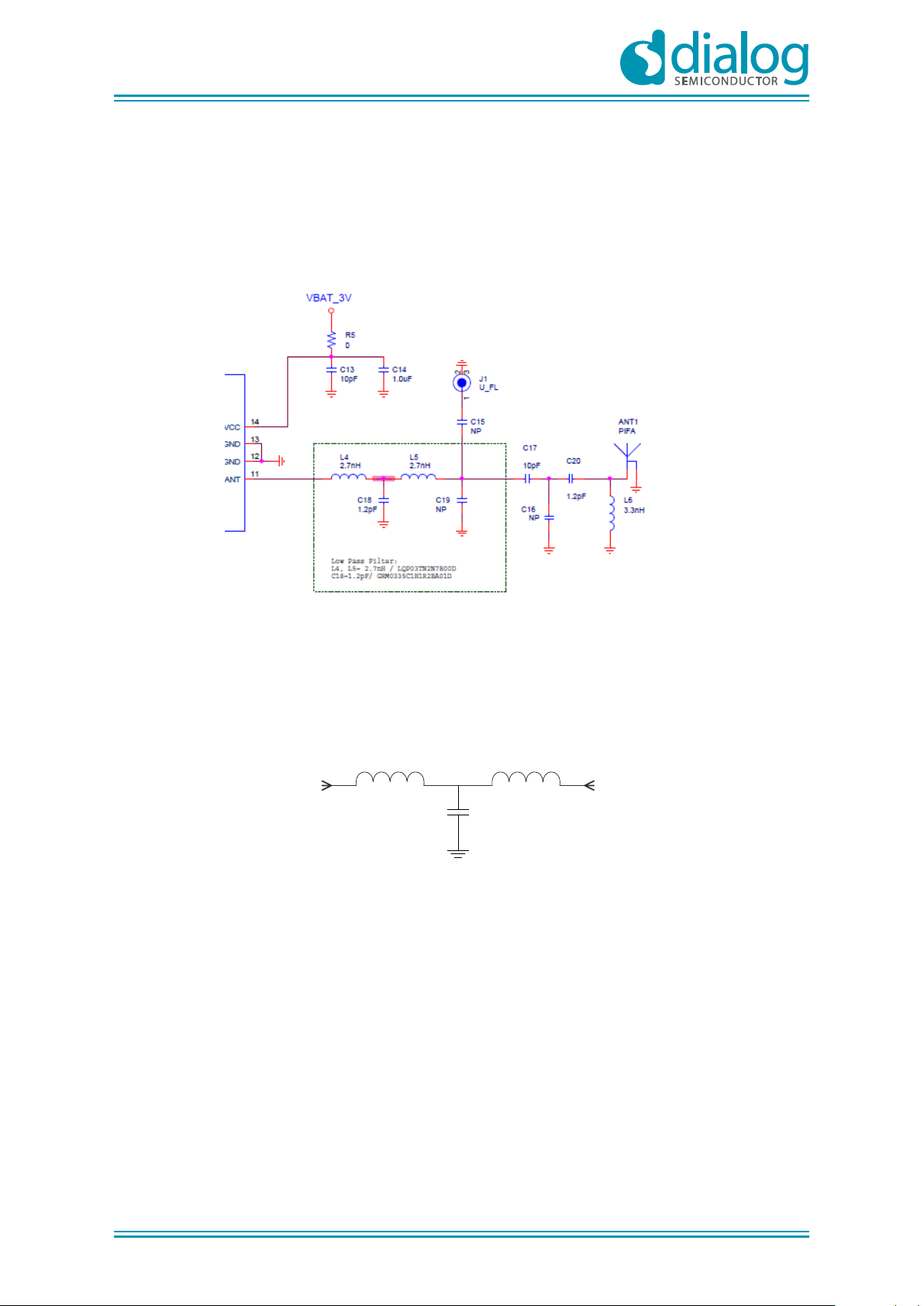

Figure 11: Low pass filter..................................................................................................................... 21
Figure 12: T- shaped, 3-poles, Low Pass Filter .................................................................................... 21
Figure 13: Simulation results of LPF response .................................................................................... 22
Figure 14: Range Extender v.2 on interposer ...................................................................................... 22

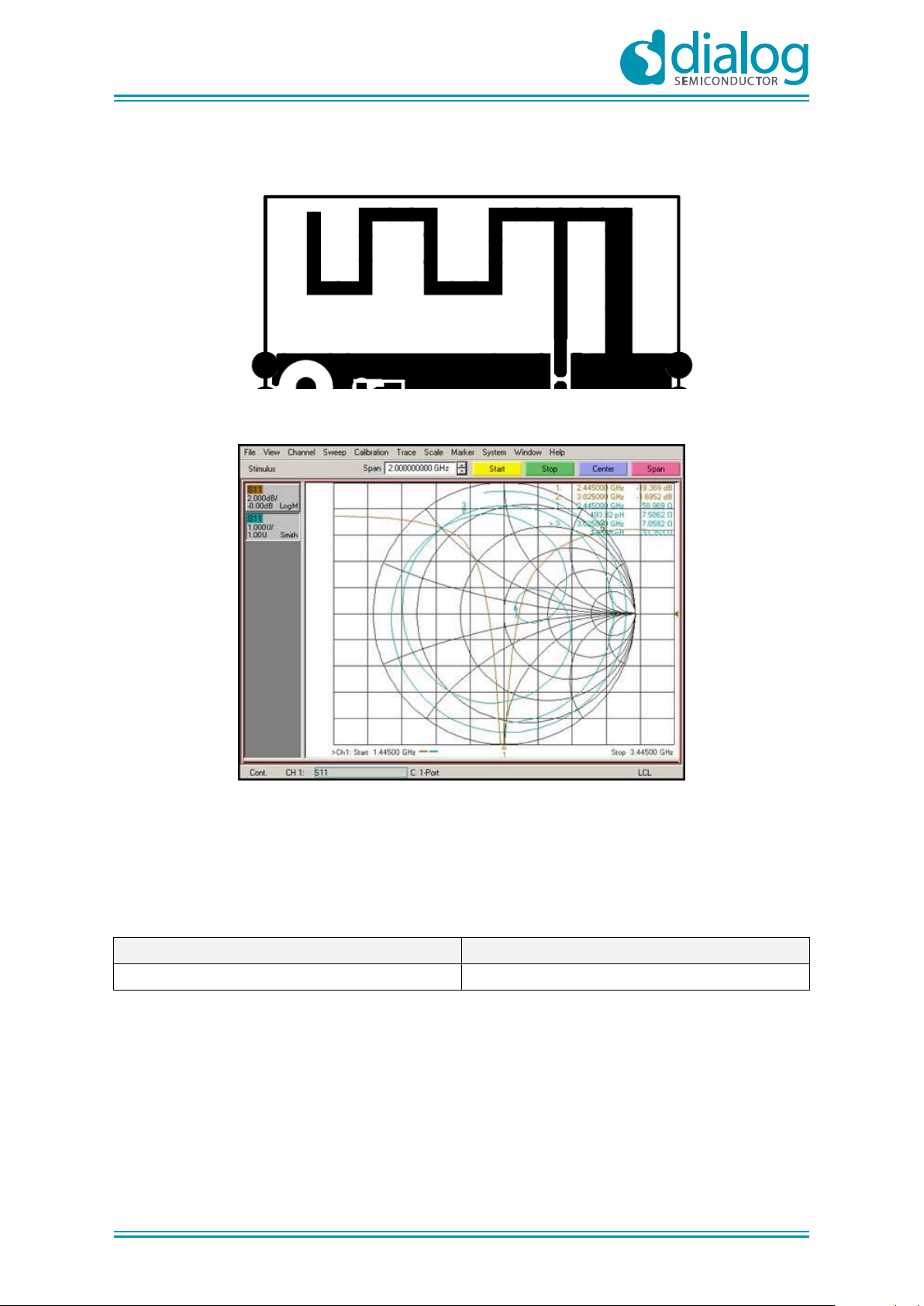

Figure 15: Antenna geometry on Range Extender v.2 ........................................................................ 23

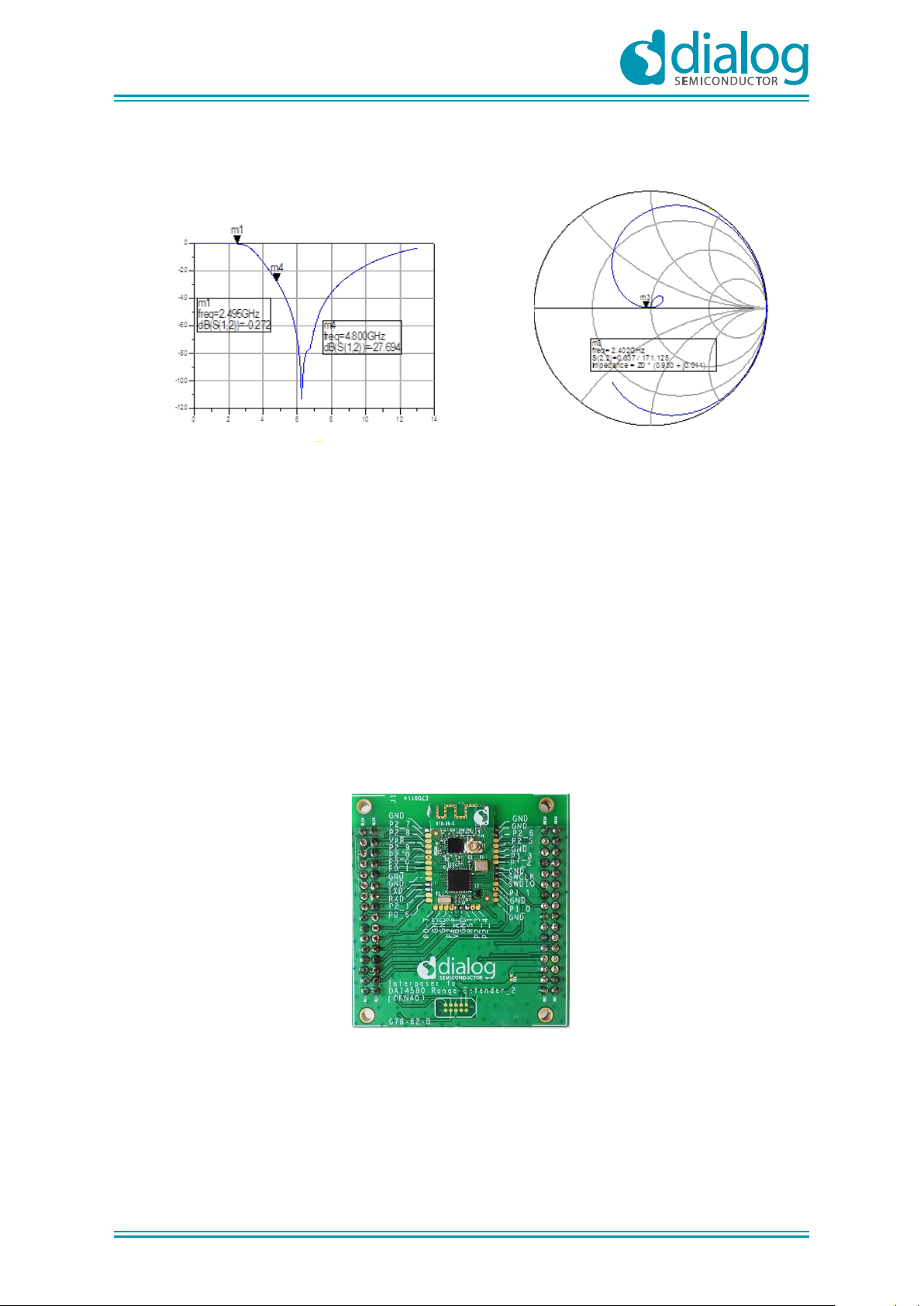

Figure 16: Measured S11 paramater for IFA ....................................................................................... 23

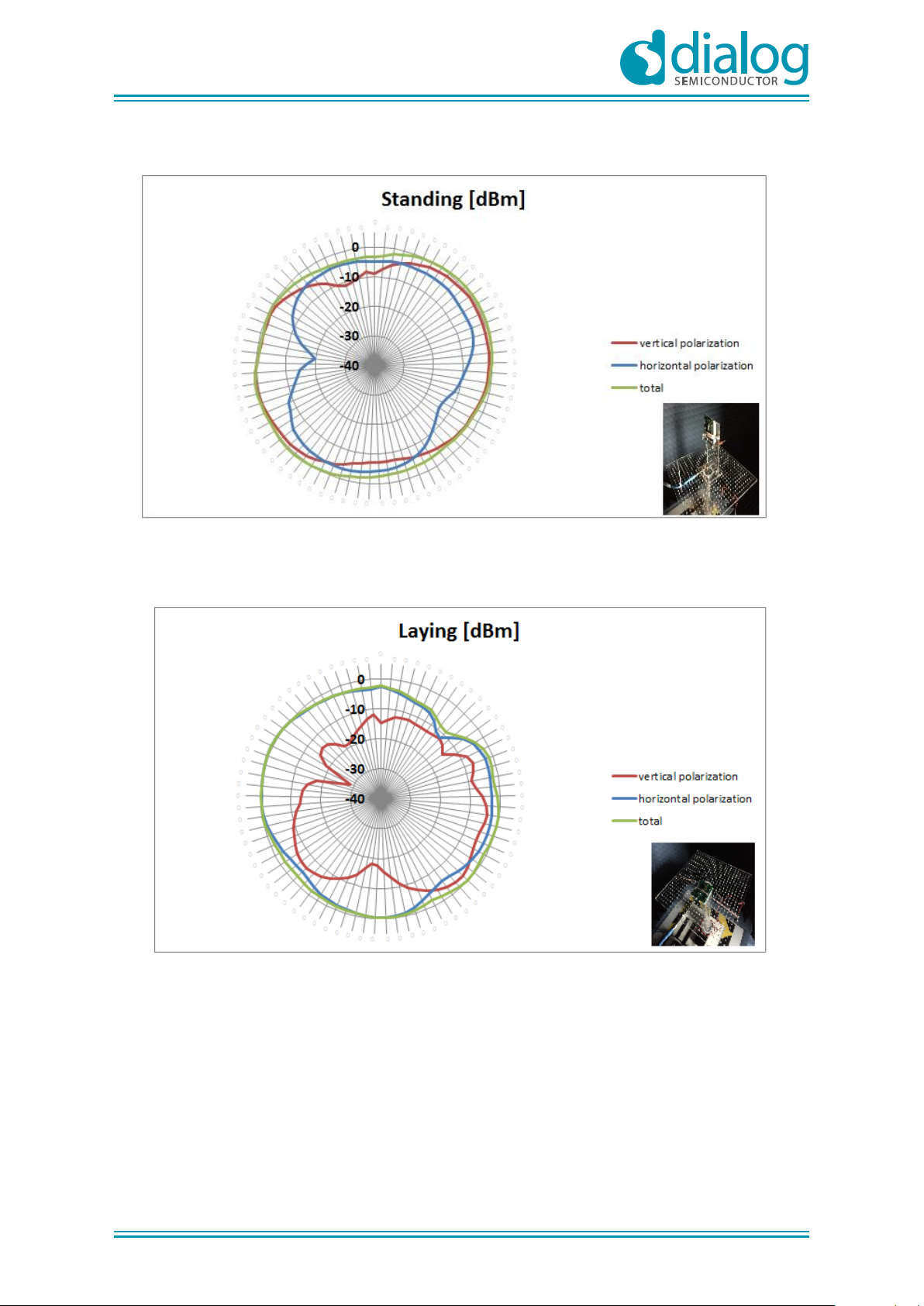

Figure 17: Radiation diagram for the board placed vertically on the short edge ............................... 24
Figure 18: Radiation diagram for the board placed horizontally ........................................................ 24

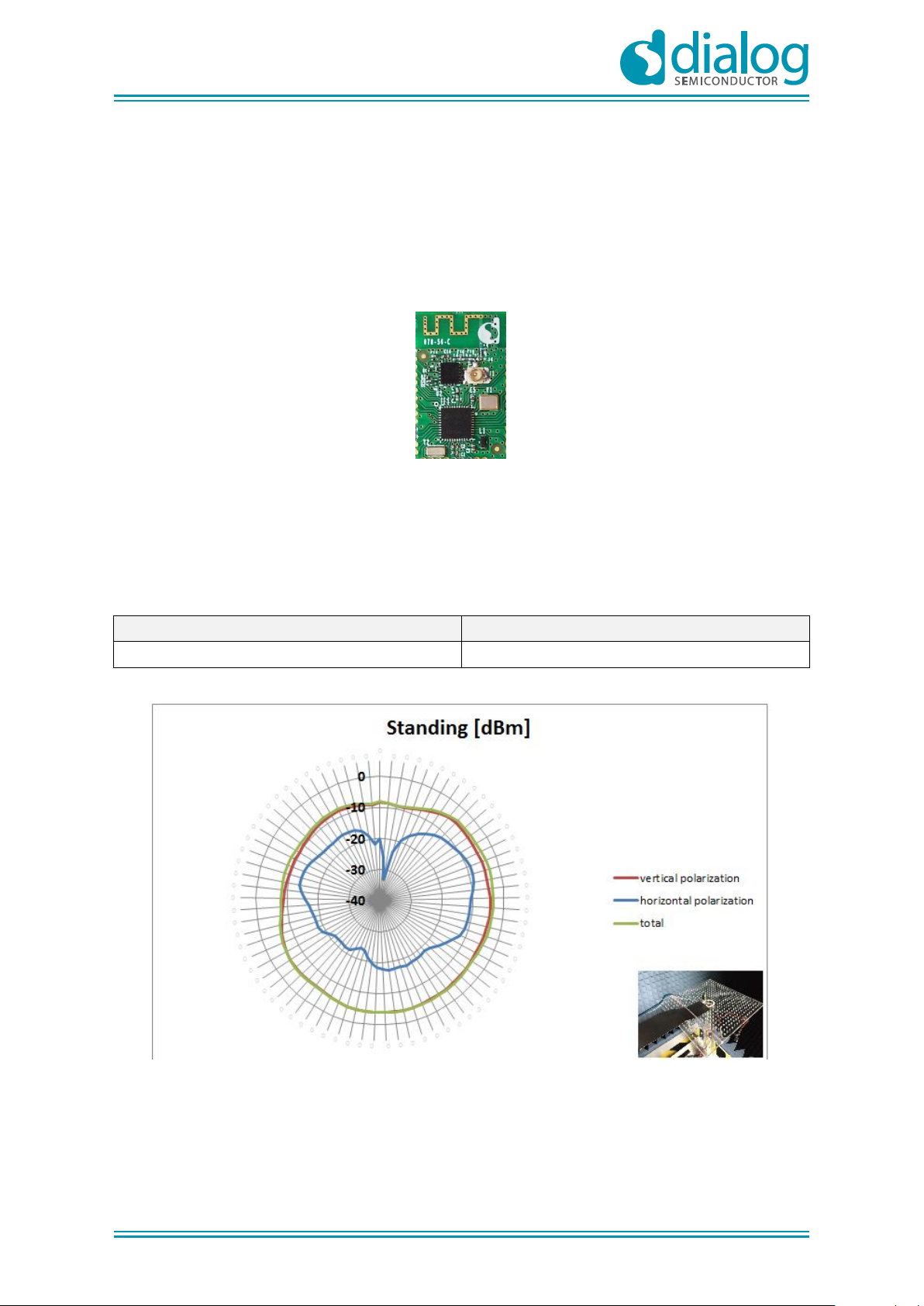

Figure 19: Range Extender v.2 stand-alone ........................................................................................ 25
Figure 20: Radiation diagram for the board placed vertically on the short edge ............................... 25

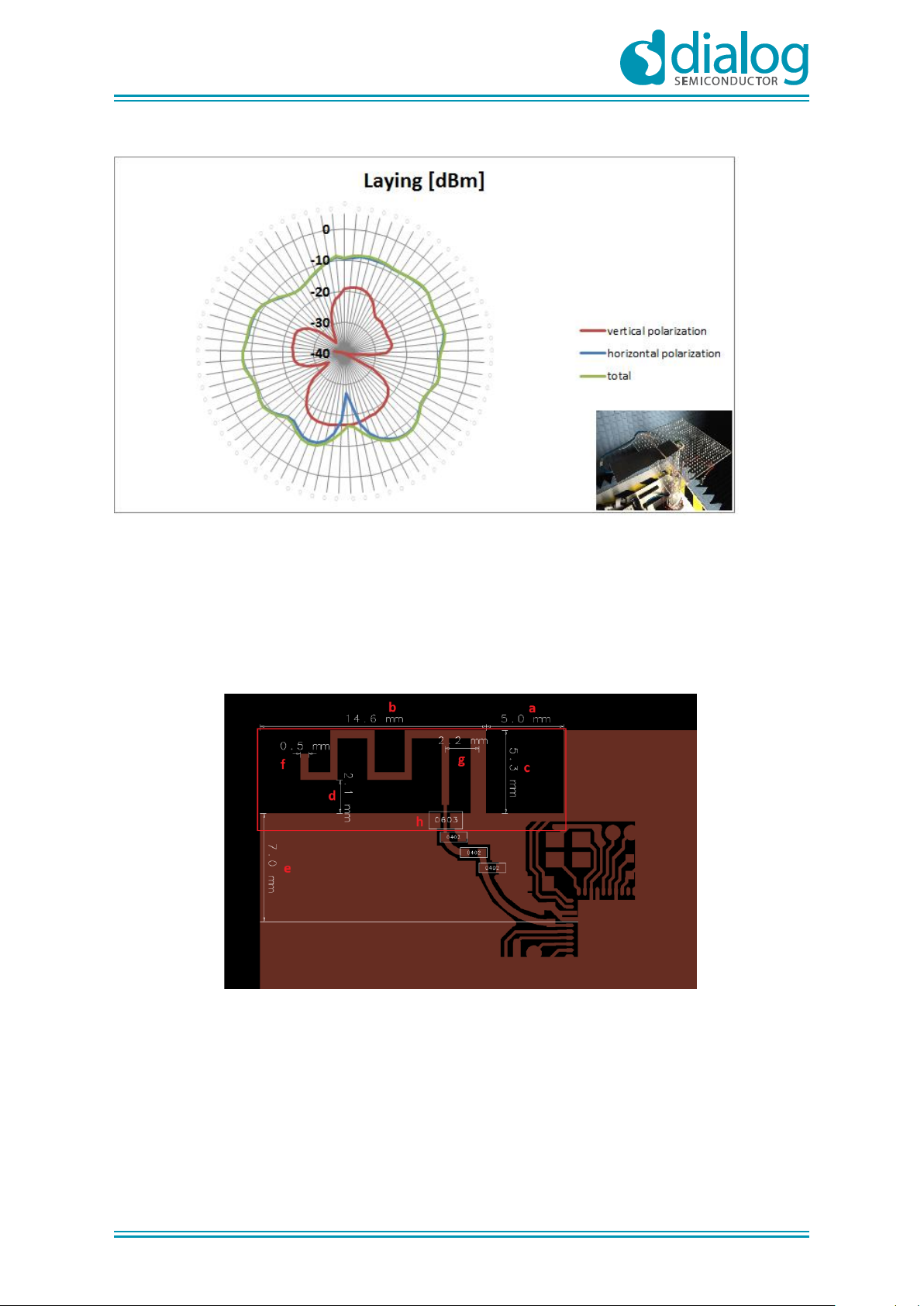

Figure 21: Radiation diagram for the board placed horizontally ........................................................ 26
Figure 22: IFA antenna implementation ............................................................................................. 26
Figure 23: Current consumption for Advertisement frame ................................................................ 27

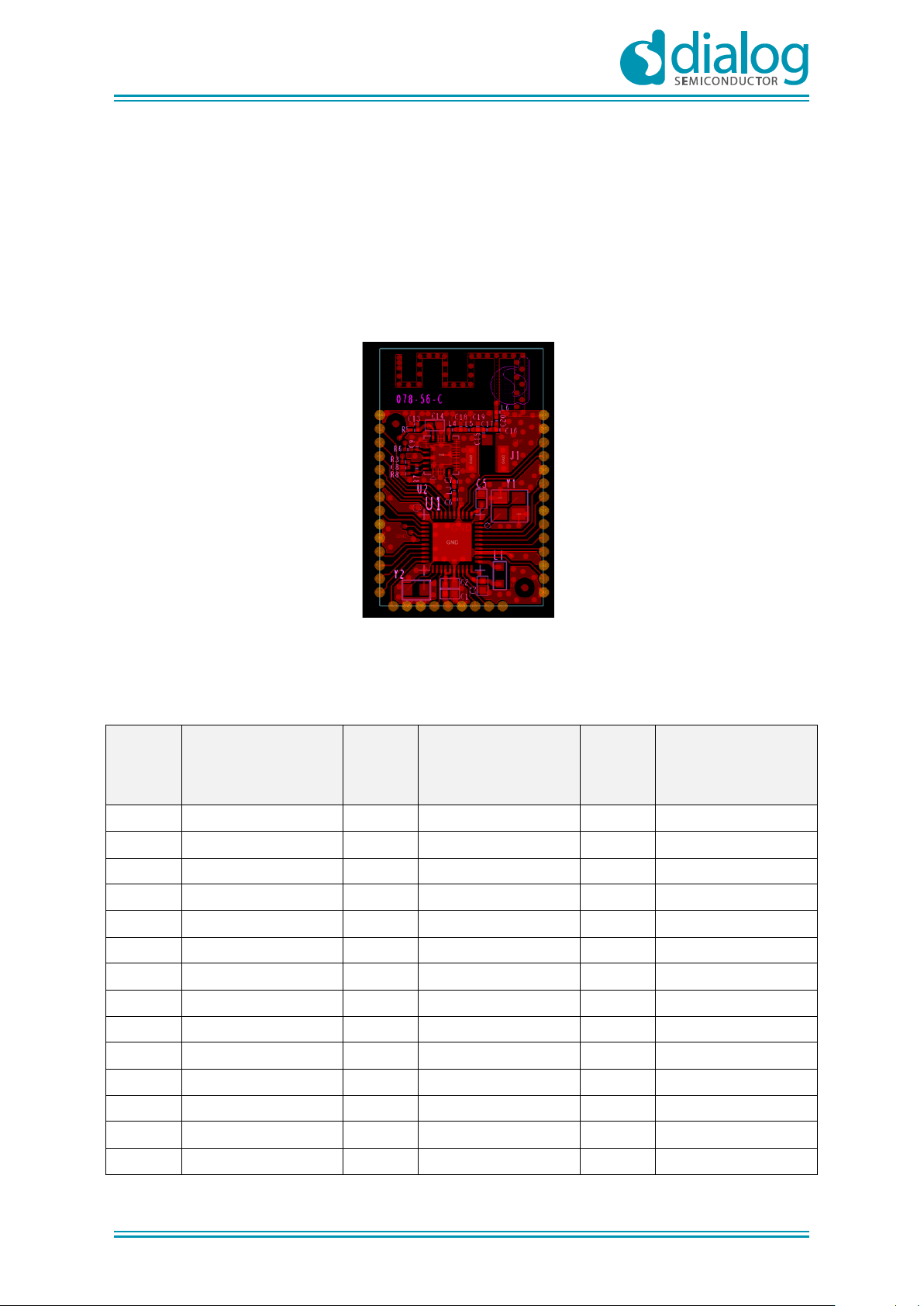

Figure 24: Top view of PCBA ............................................................................................................... 28

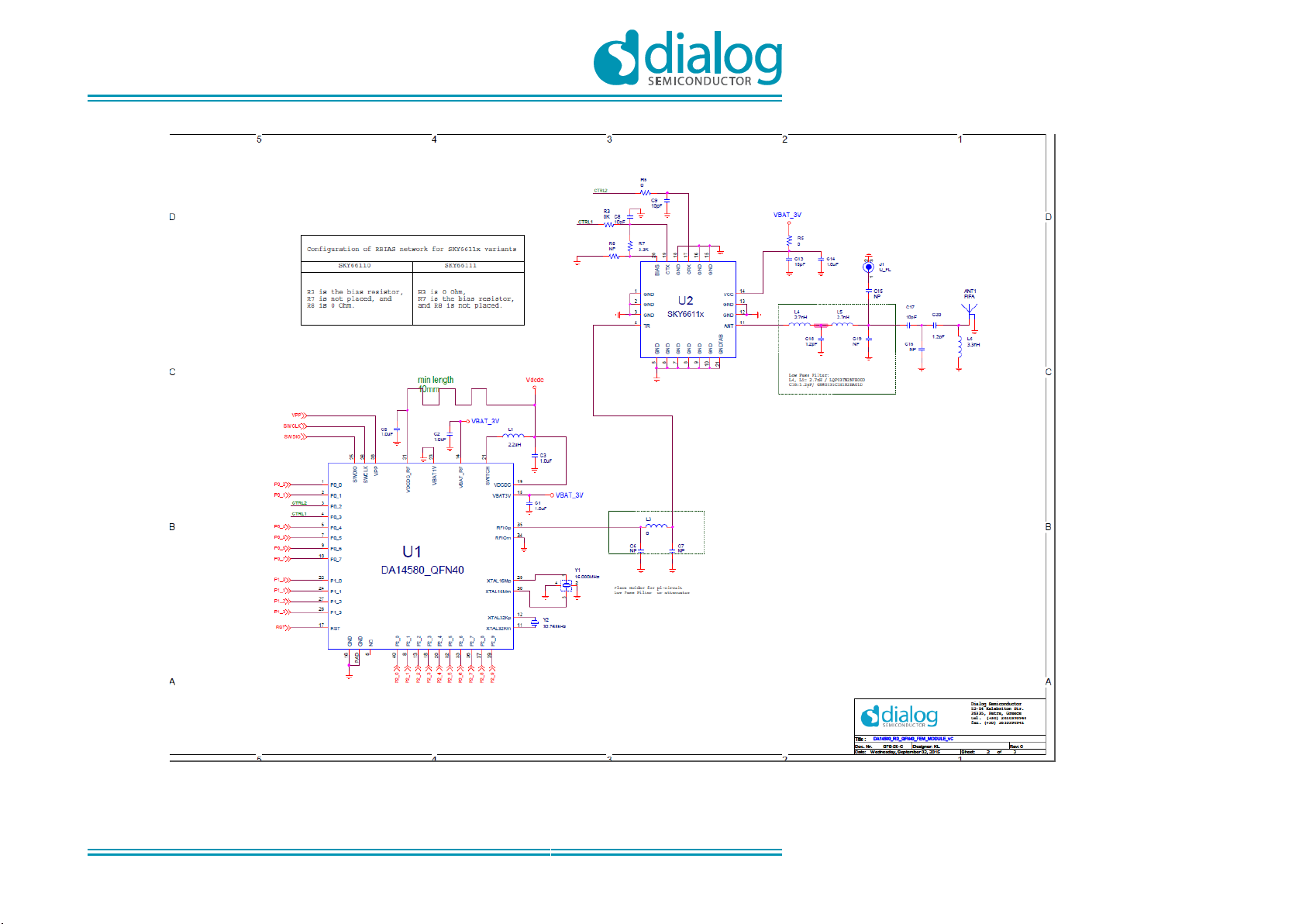

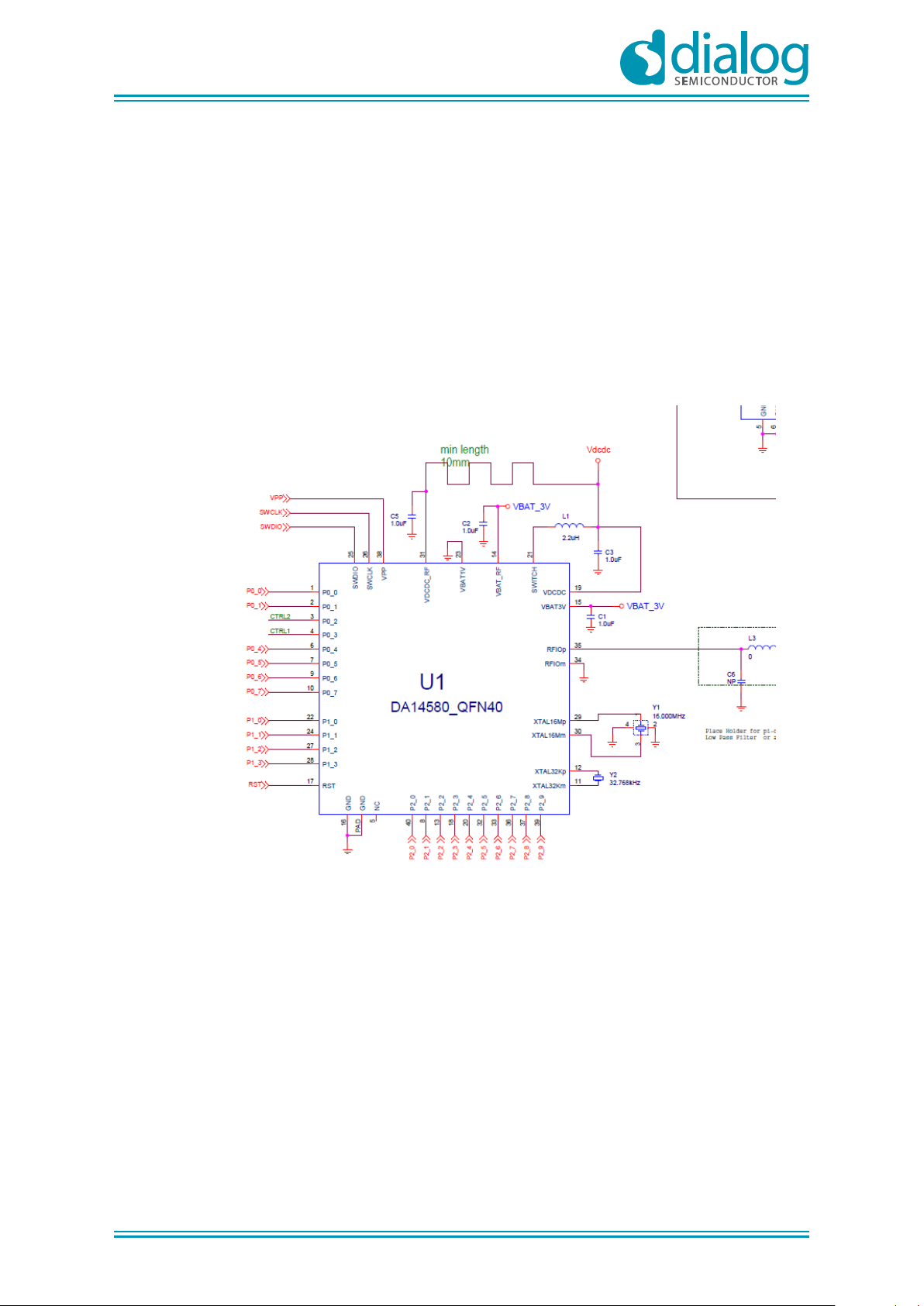

Figure 25: Schematic of DA14580 Range Extender v.2 Module .......................................................... 29
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
7 of 56
Figure 26: DA14580/581/583 configuration settings for peripherals, periph_setup.h ...................... 32

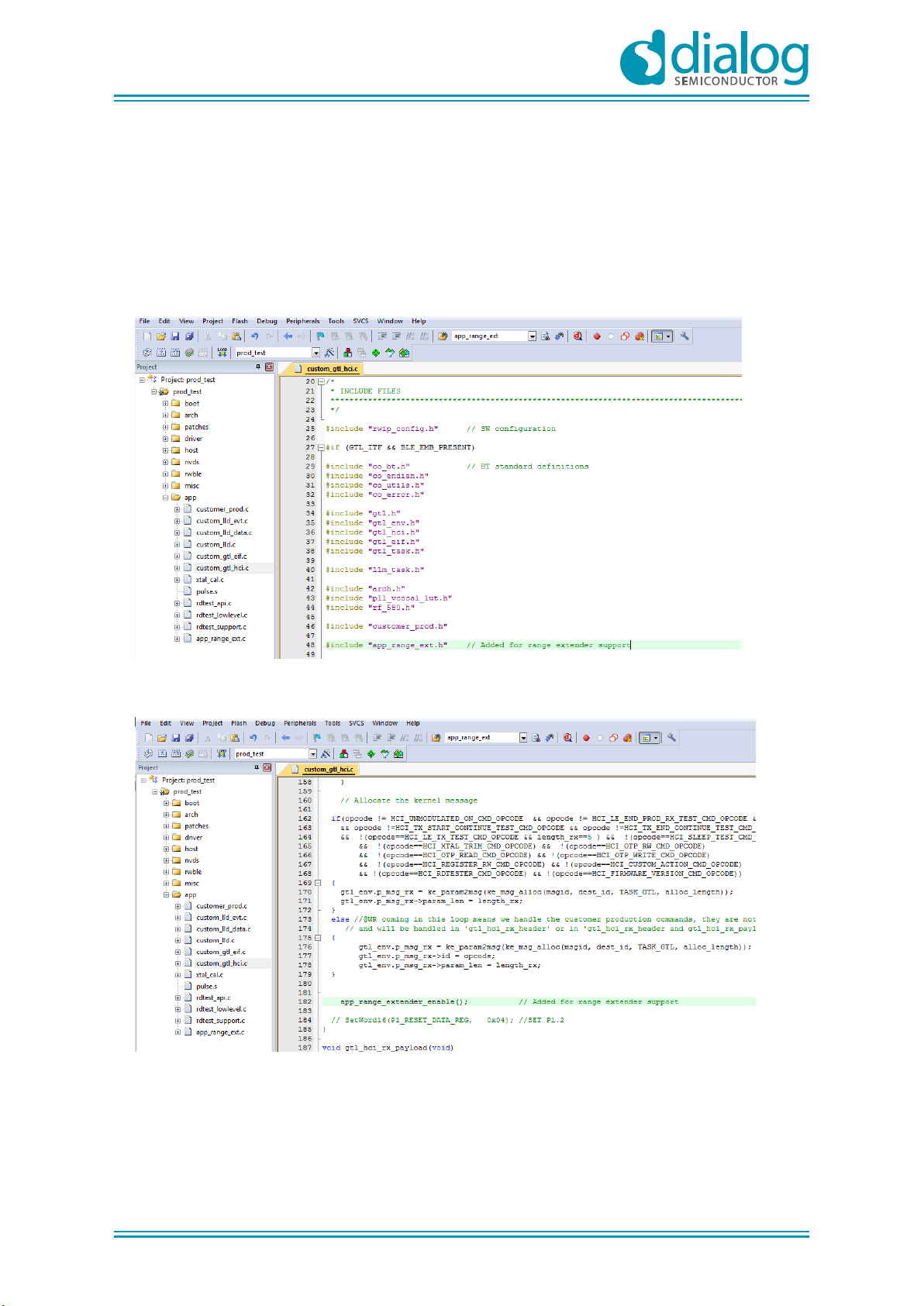

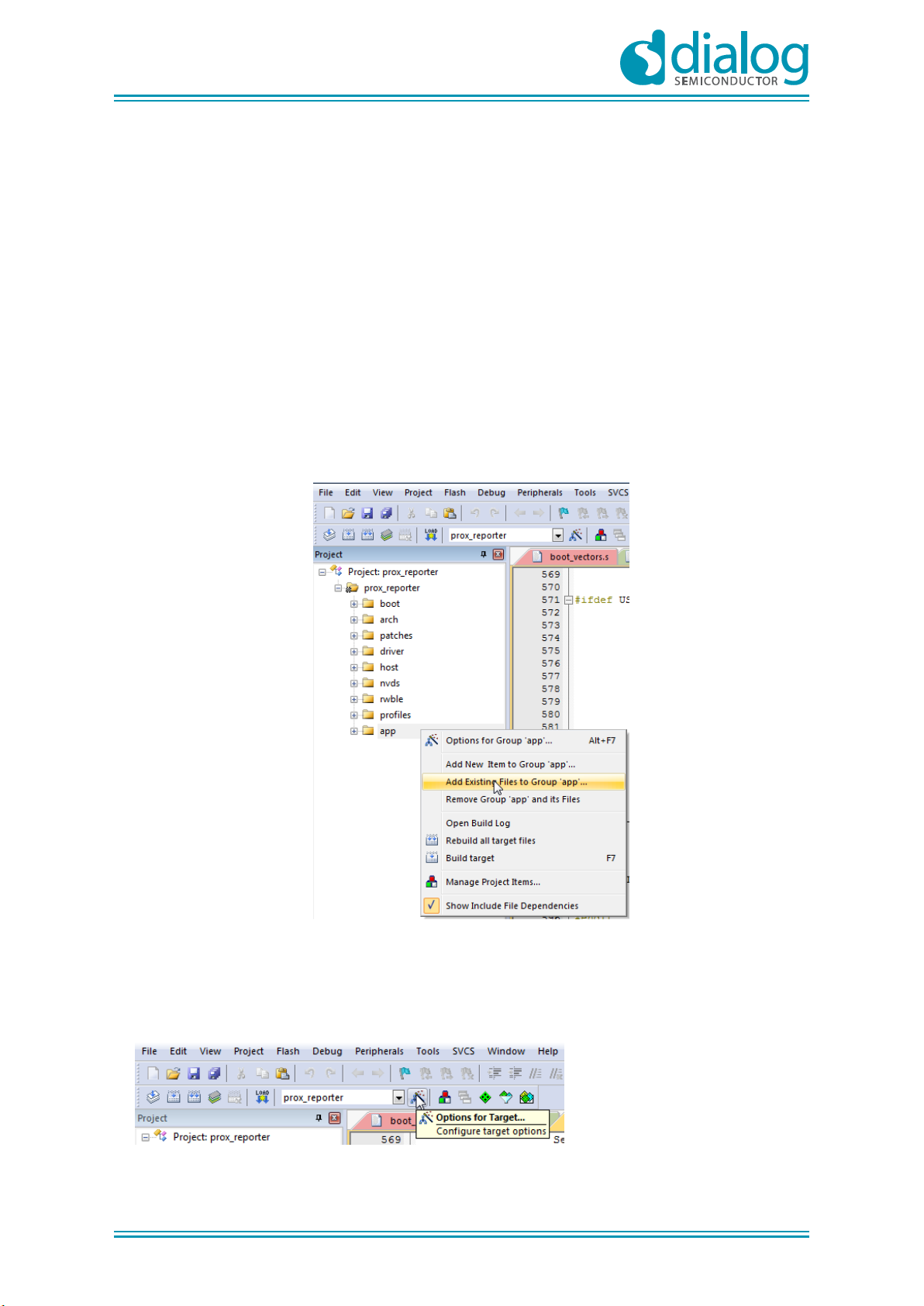

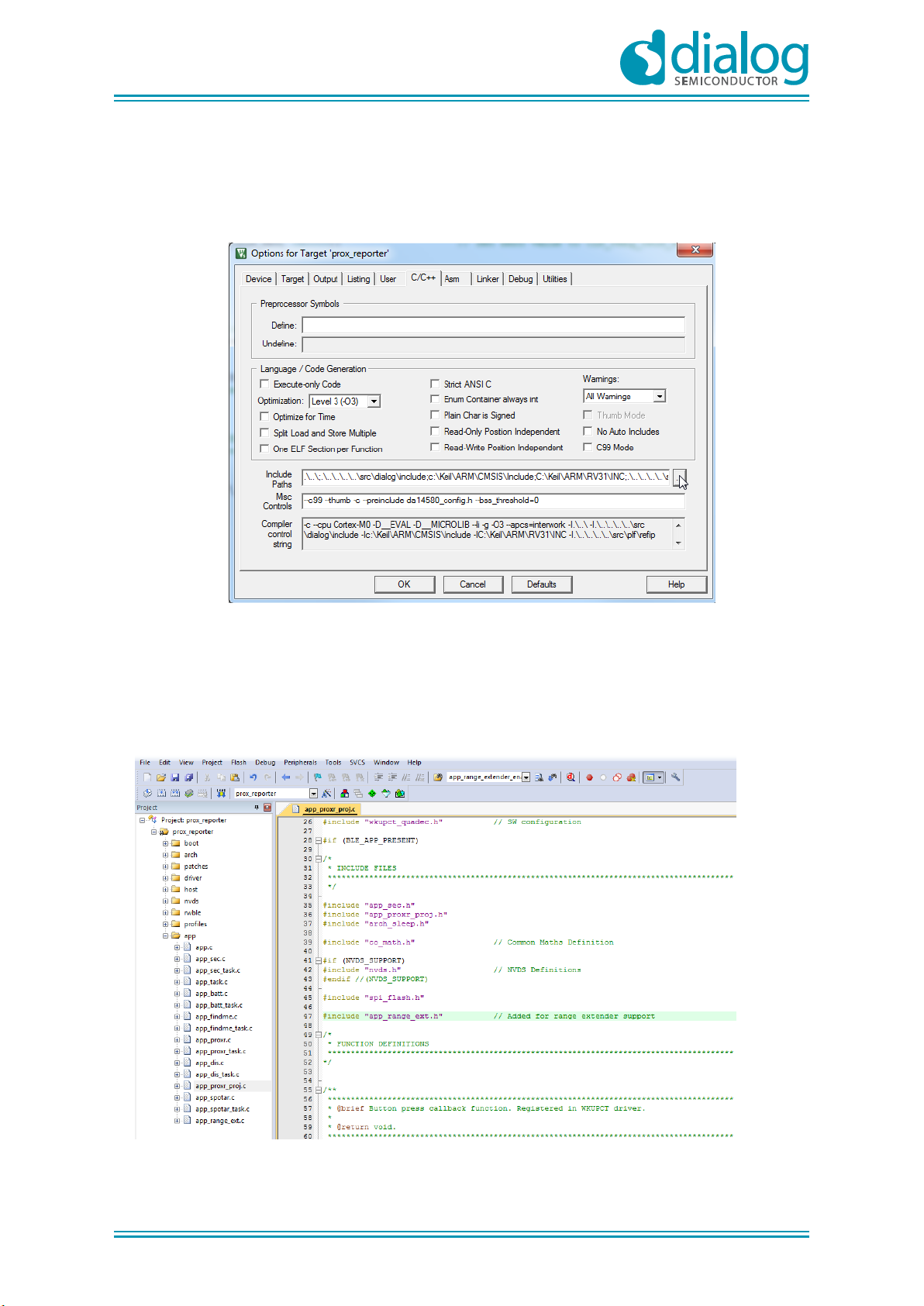

Figure 27: Step 2 of adding app_range_extender ............................................................................... 33
Figure 28: Step 3a of adding app_range_extender ............................................................................. 33
Figure 29: Step 3b of adding app_range_extender ............................................................................. 34

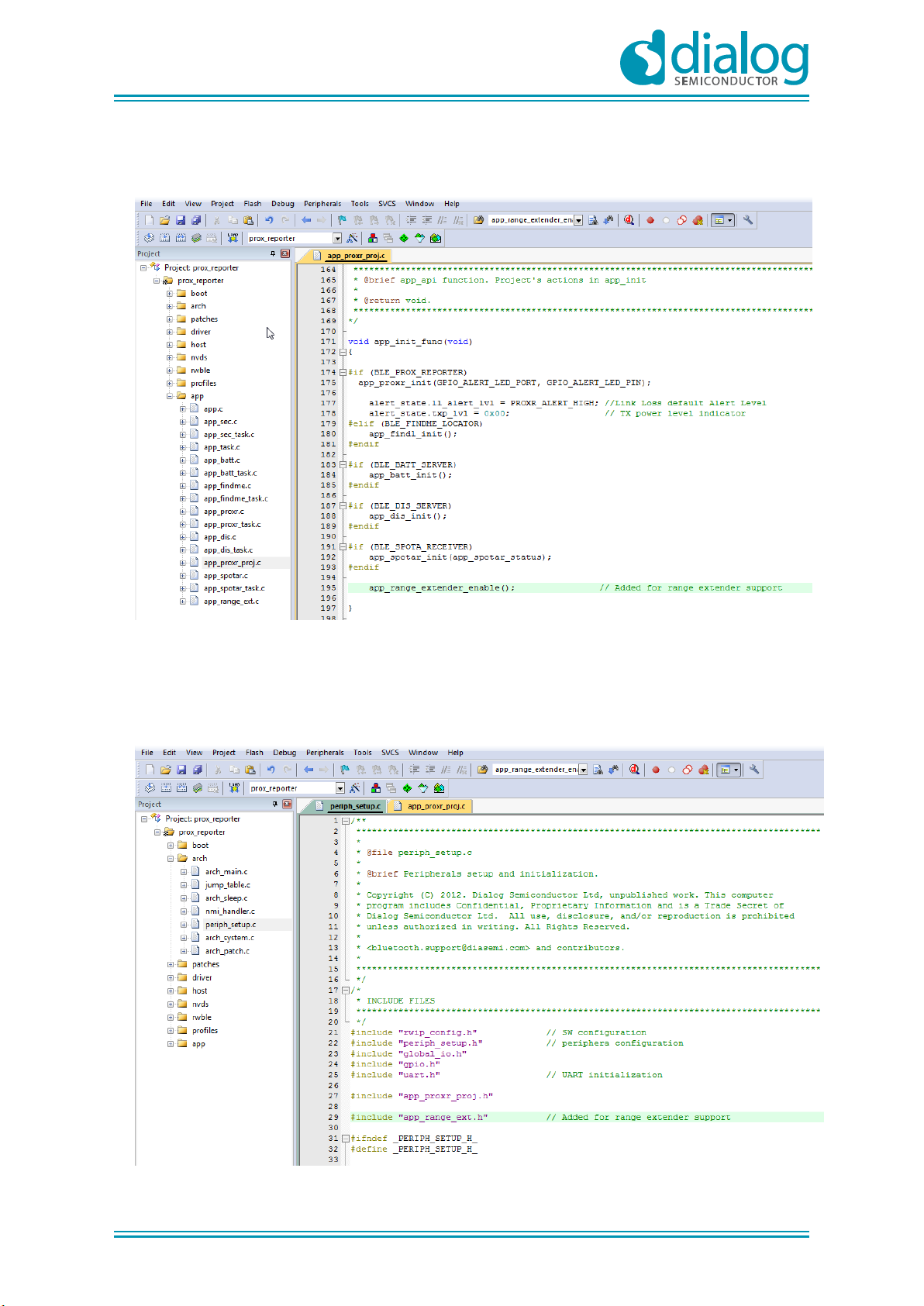

Figure 30: Step 4a of adding app_range_extender ............................................................................. 34
Figure 31: Step 4b of adding app_range_extender ............................................................................. 35

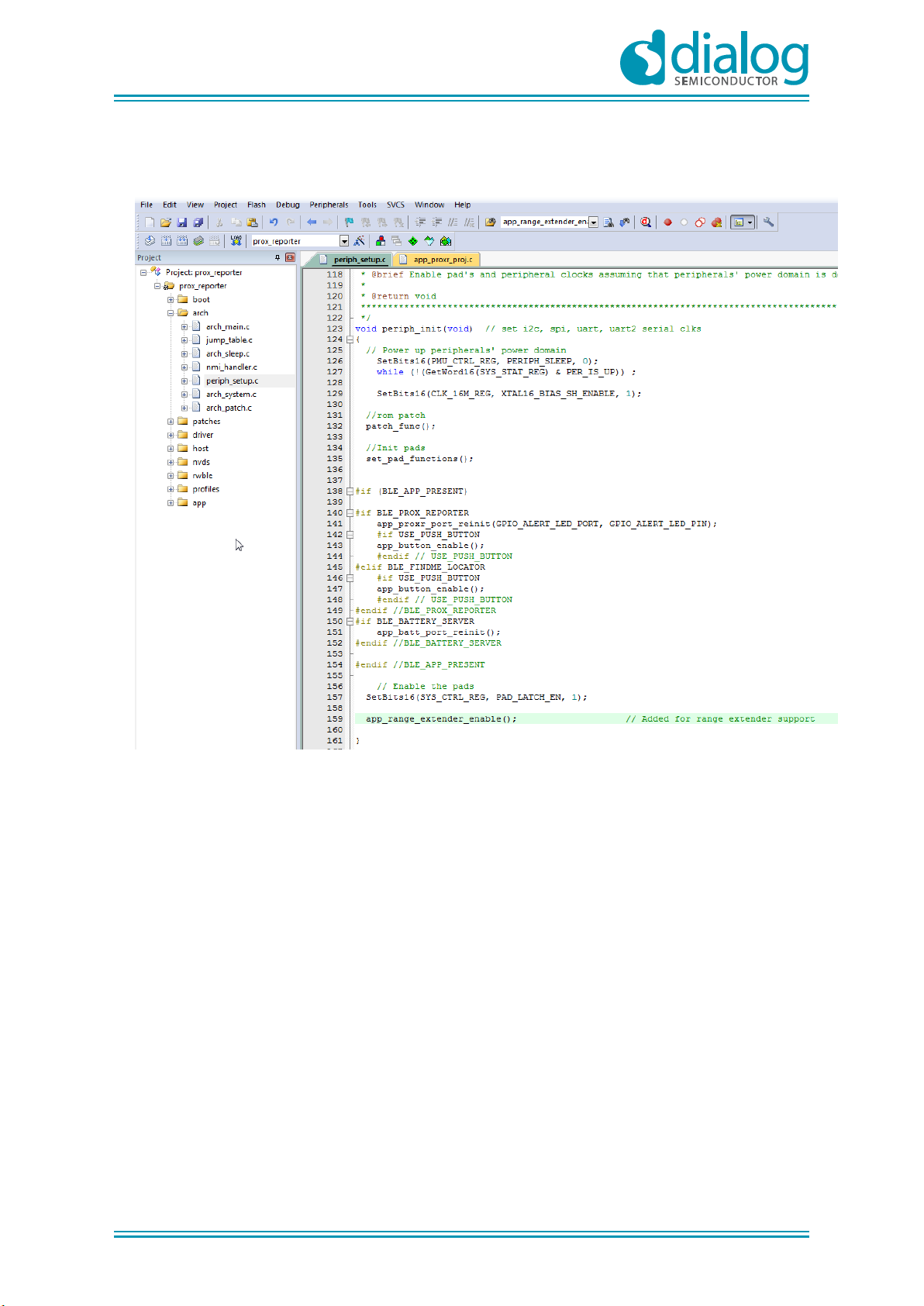

Figure 32: Step 5a of adding app_range_extender ............................................................................. 35
Figure 33: Step 5b of adding app_range_extender ............................................................................. 36
Figure 34: Inserting app_range_extender in the production test tool ............................................... 37

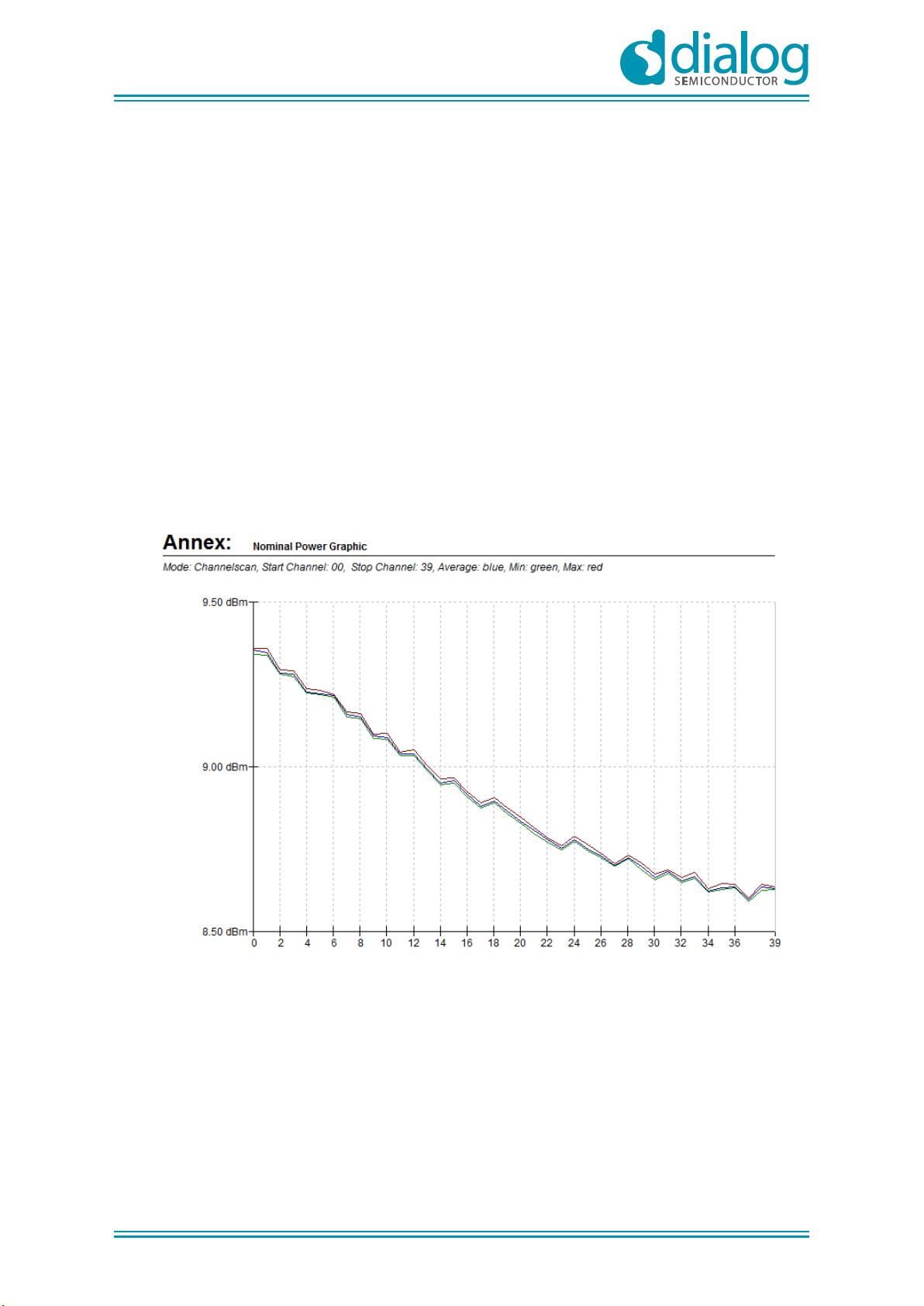

Figure 35: Nominal conducted output power per channel ................................................................. 40

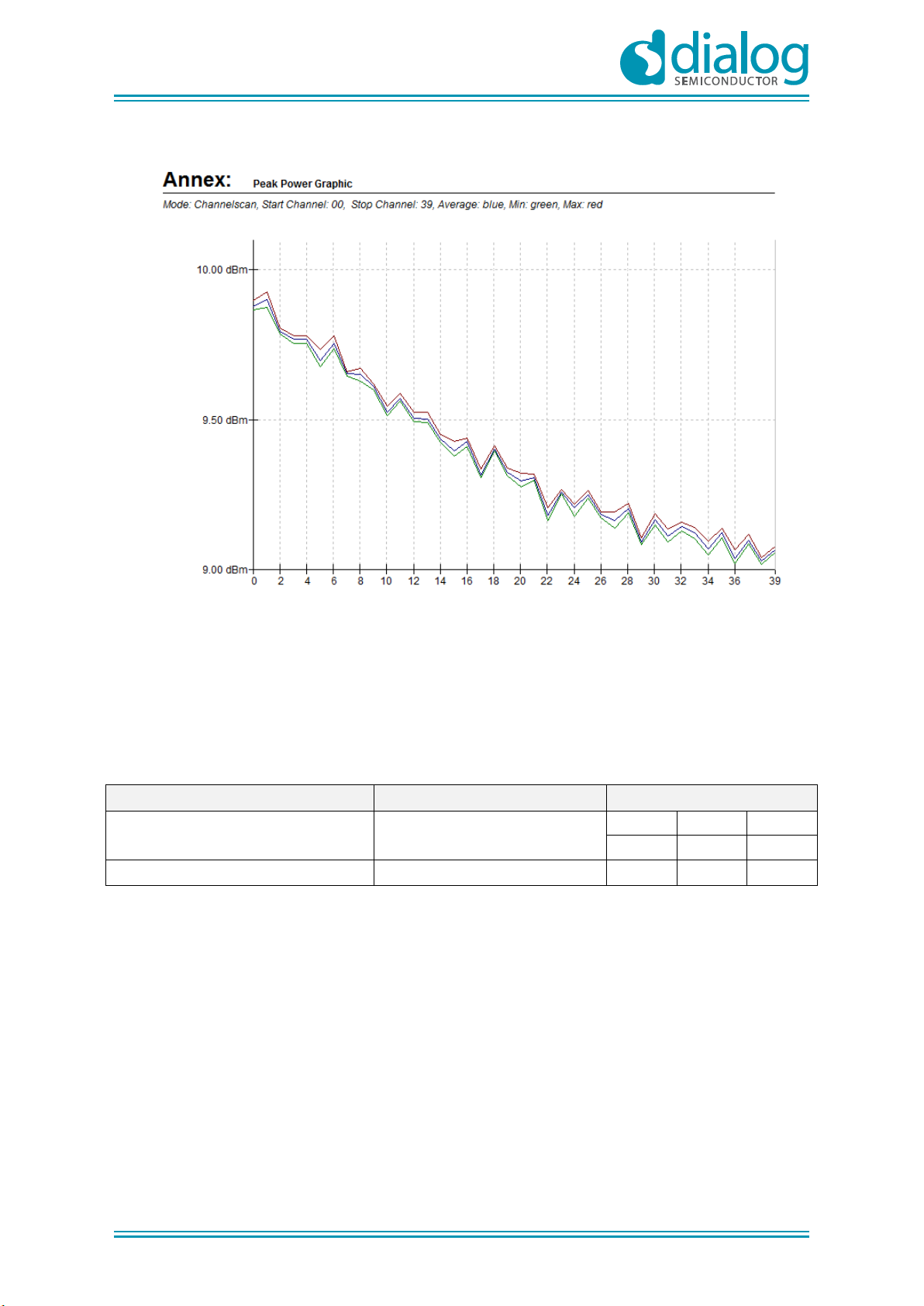

Figure 36: Peak conducted output power per channel ....................................................................... 41

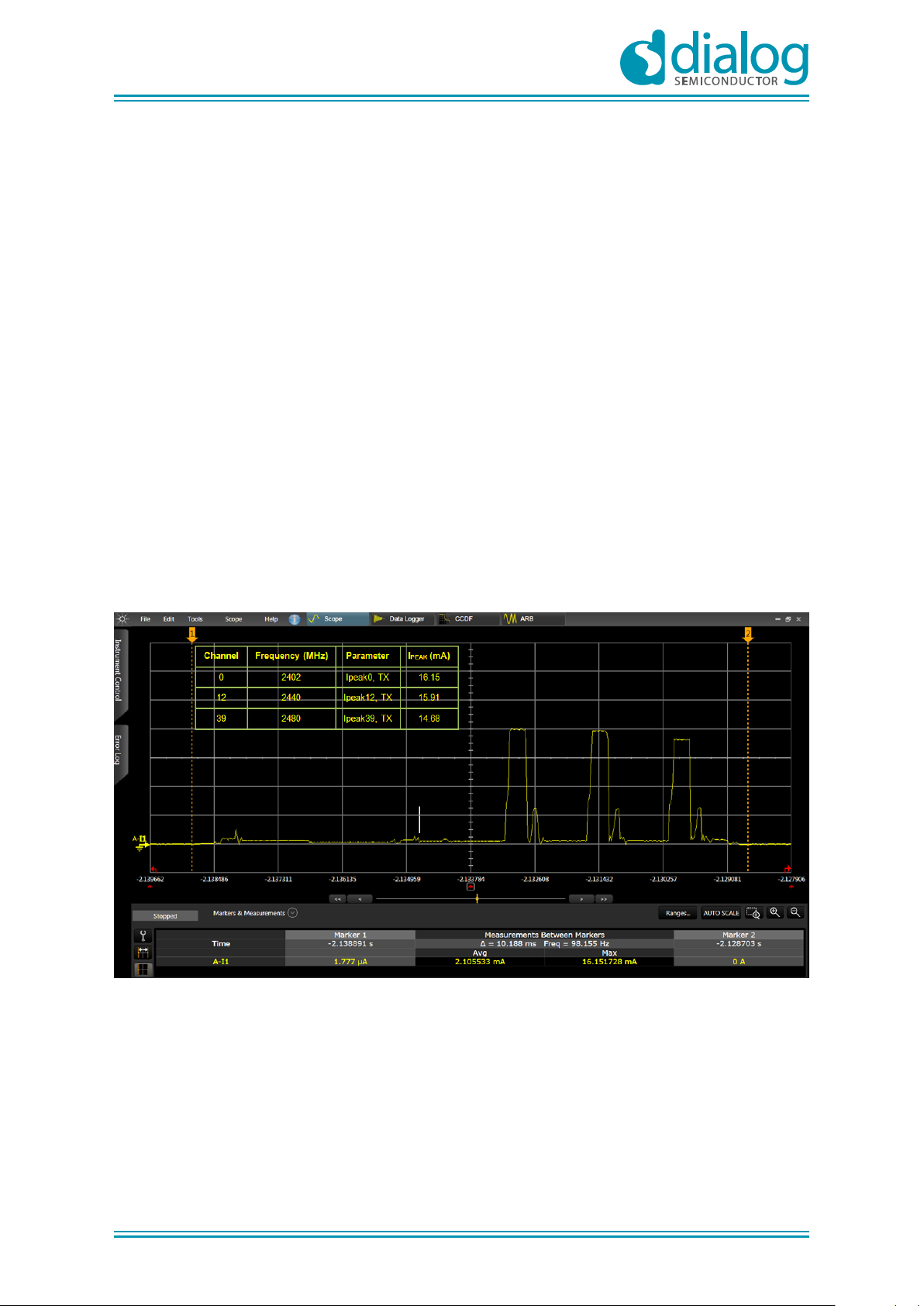

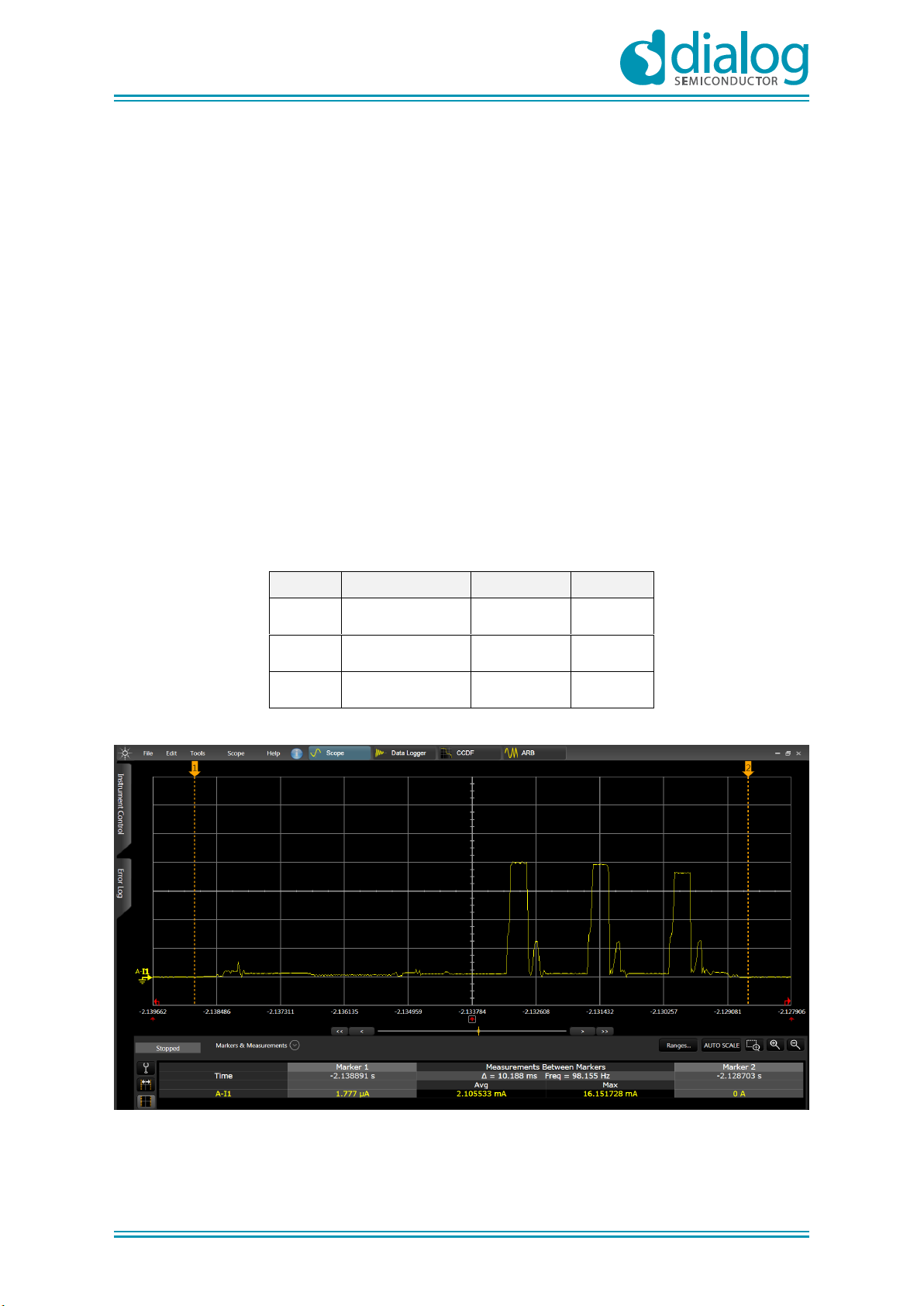

Figure 37: Supplu current during an Advertisement frame ................................................................ 42
Figure 38: Supply current during a Connection frame ........................................................................ 43

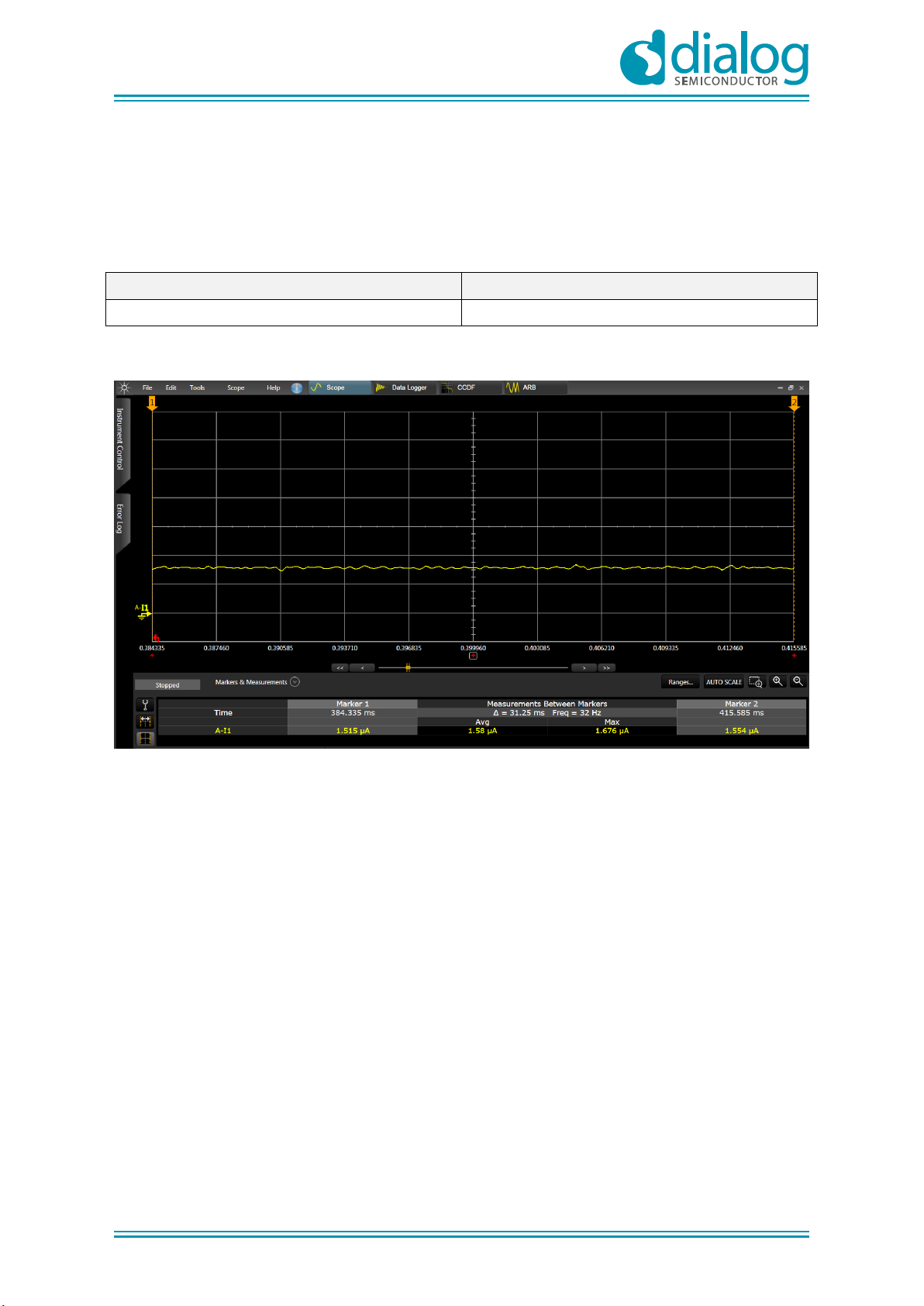

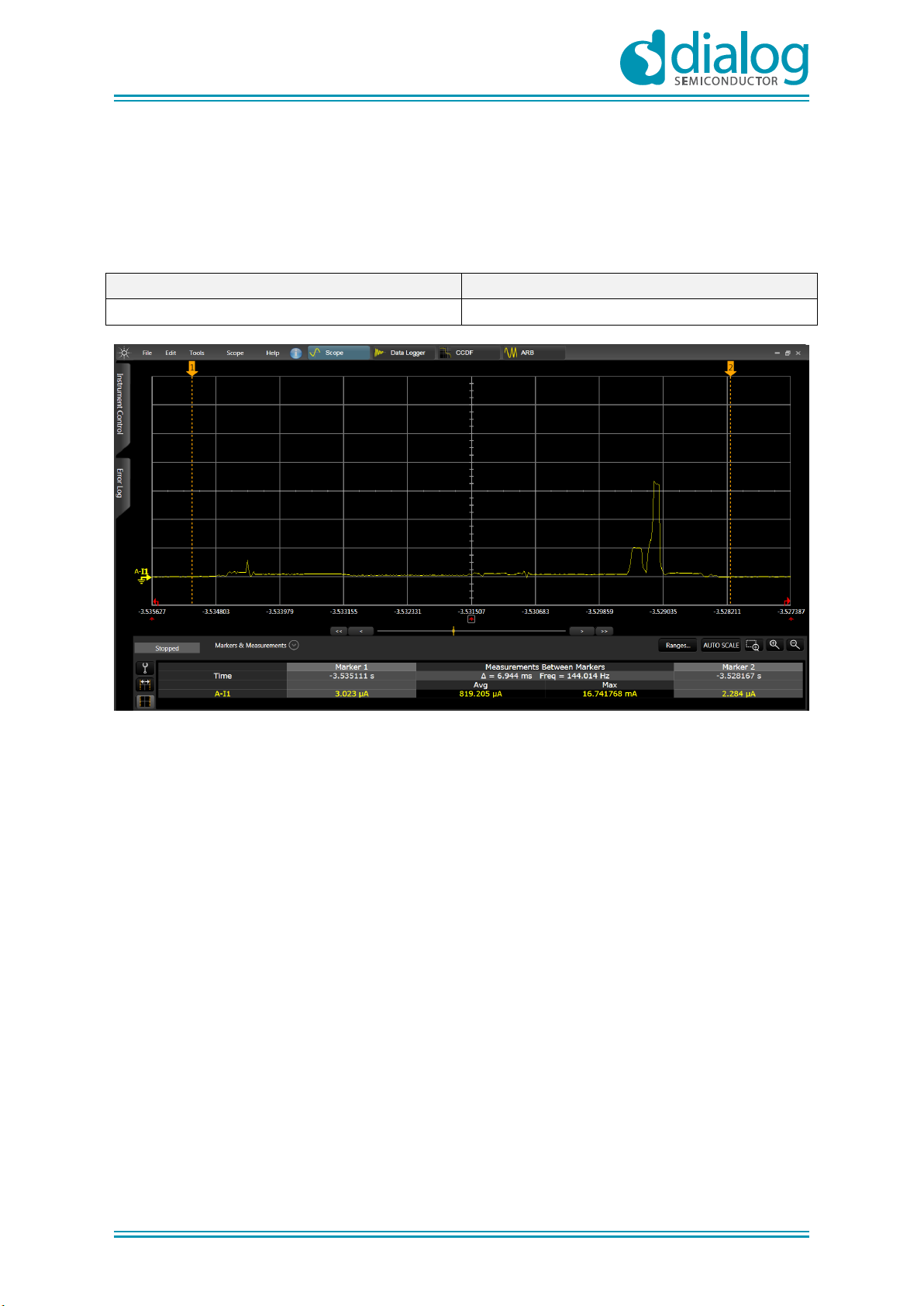

Figure 39: Supply current during Extended Sleep mode ..................................................................... 44
Figure 40: Range Extender v.2 mounted on the interposer board for radiated measurements ........ 46

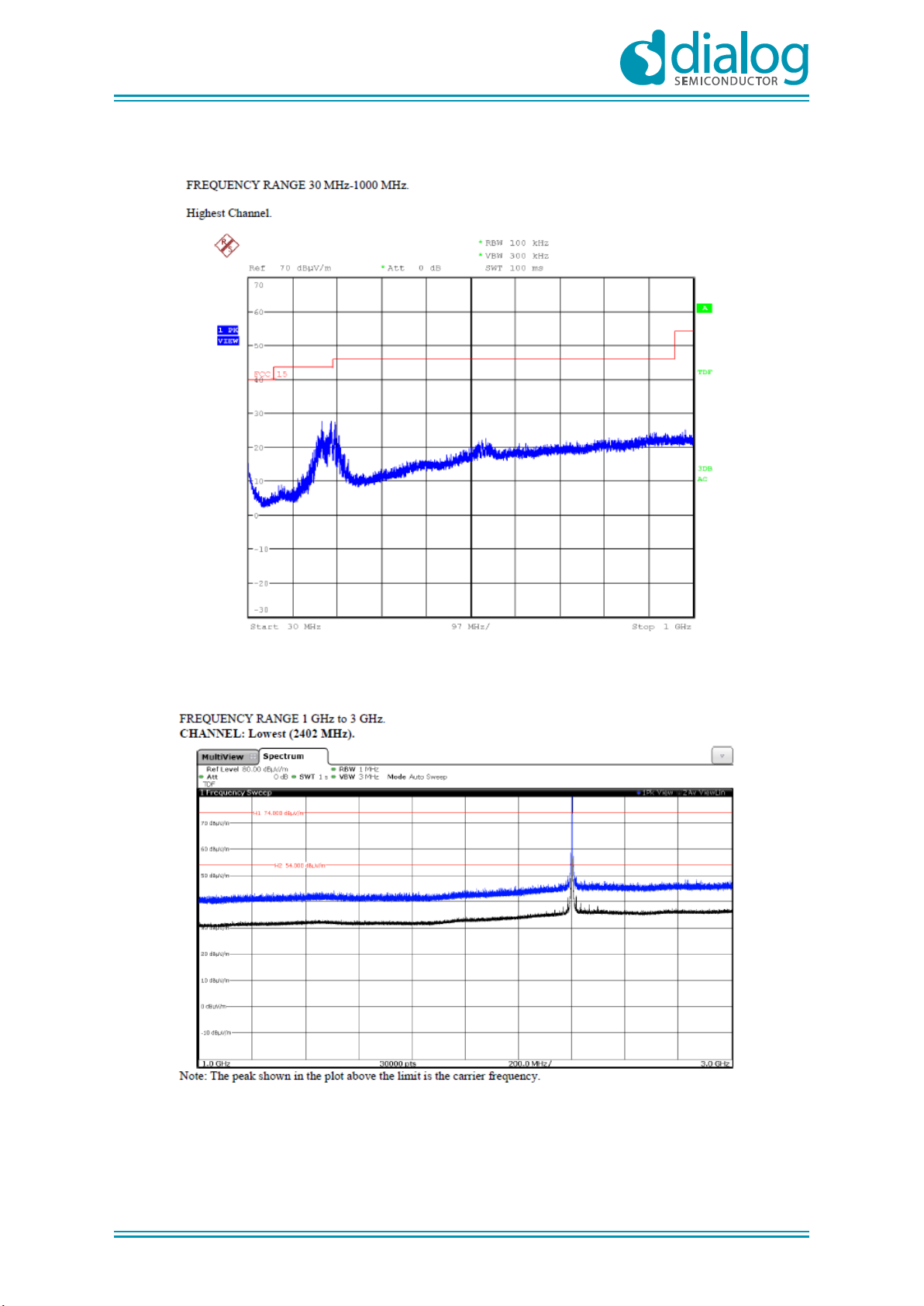

Figure 41: FCC, Frequency Range from 30MHz to 1 GHz, CH39 ......................................................... 47
Figure 42: FCC, Frequency from 1GHz to 3GHz, CH00 ........................................................................ 47

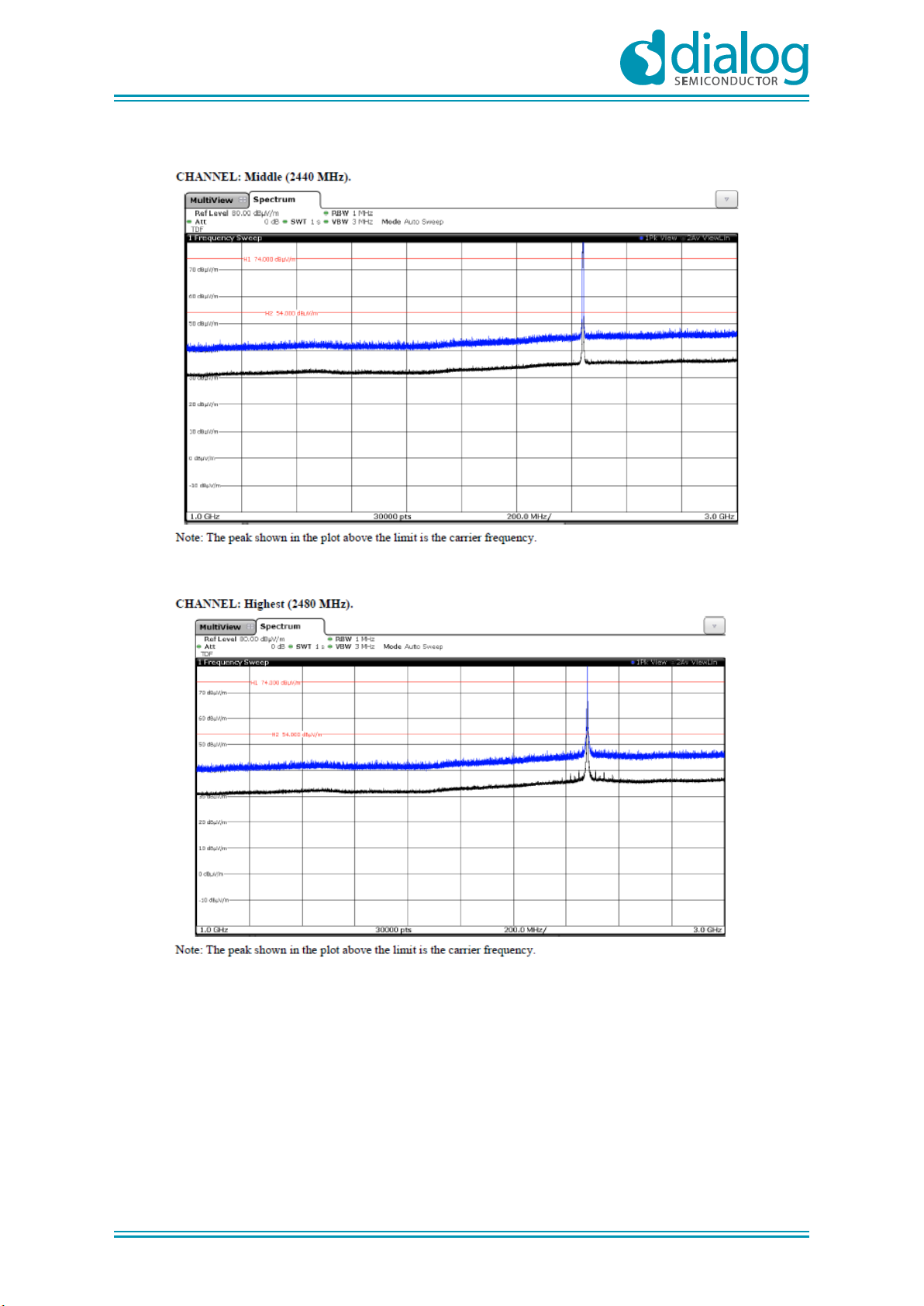

Figure 43: FCC, Frequency from 1GHz to 3GHz, CH19 ........................................................................ 48
Figure 44: FCC, Frequency from 1GHz to 3GHz, CH39 ........................................................................ 48

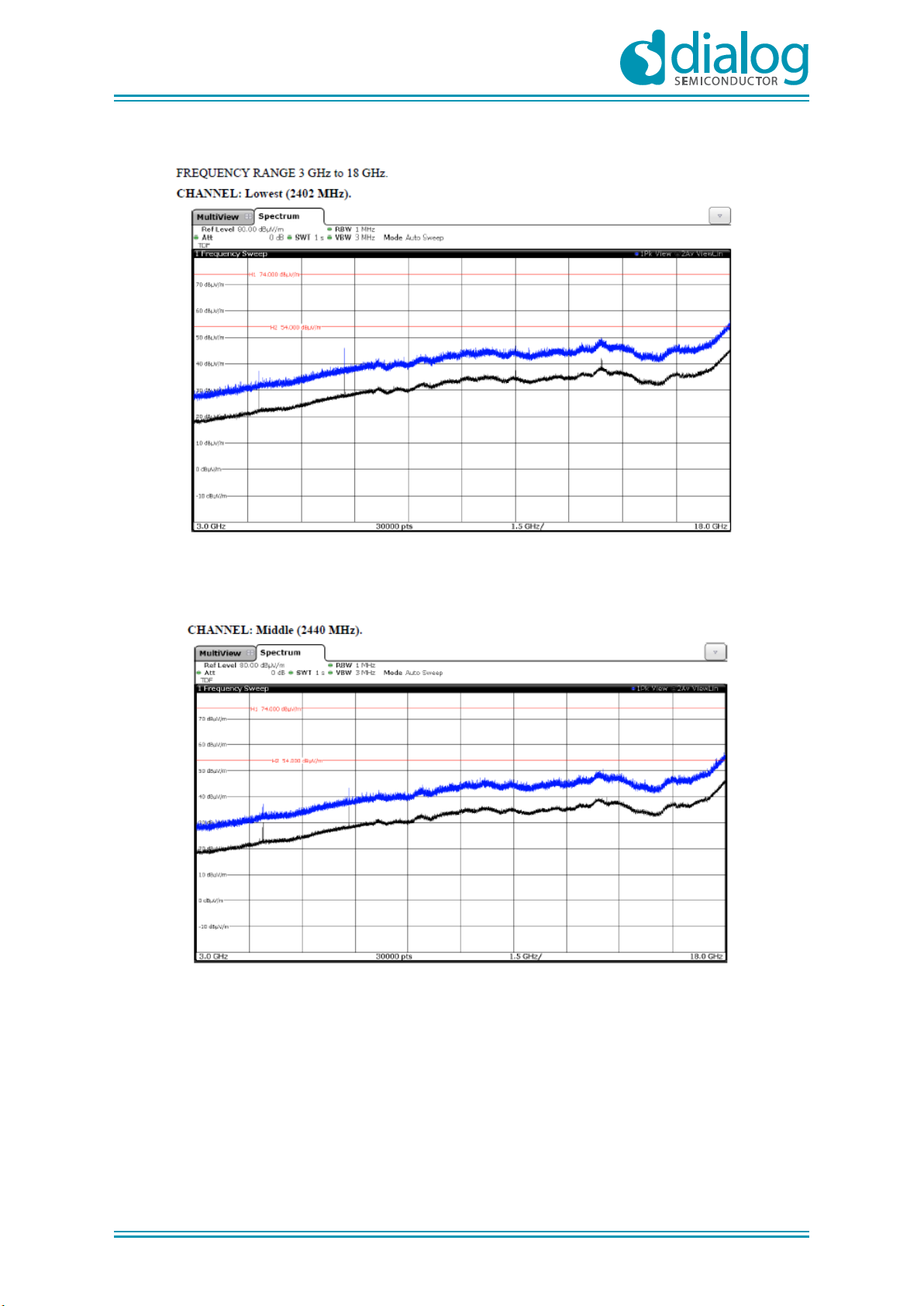

Figure 45: FCC, Frequency from 3GHz to 18GHz, CH00 ...................................................................... 49
Figure 46: FCC, Frequency from 3GHz to 18GHz, CH19 ...................................................................... 49

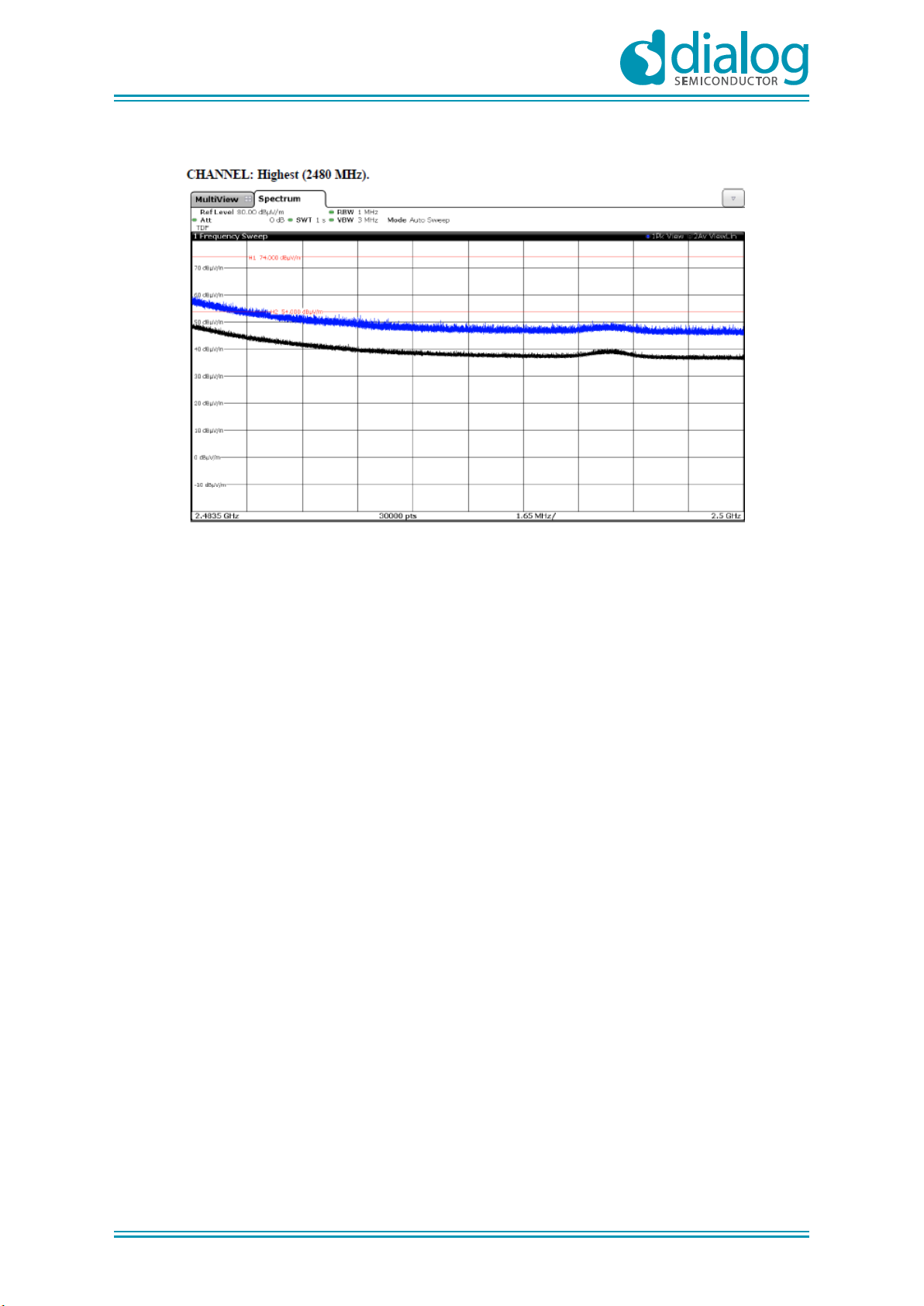

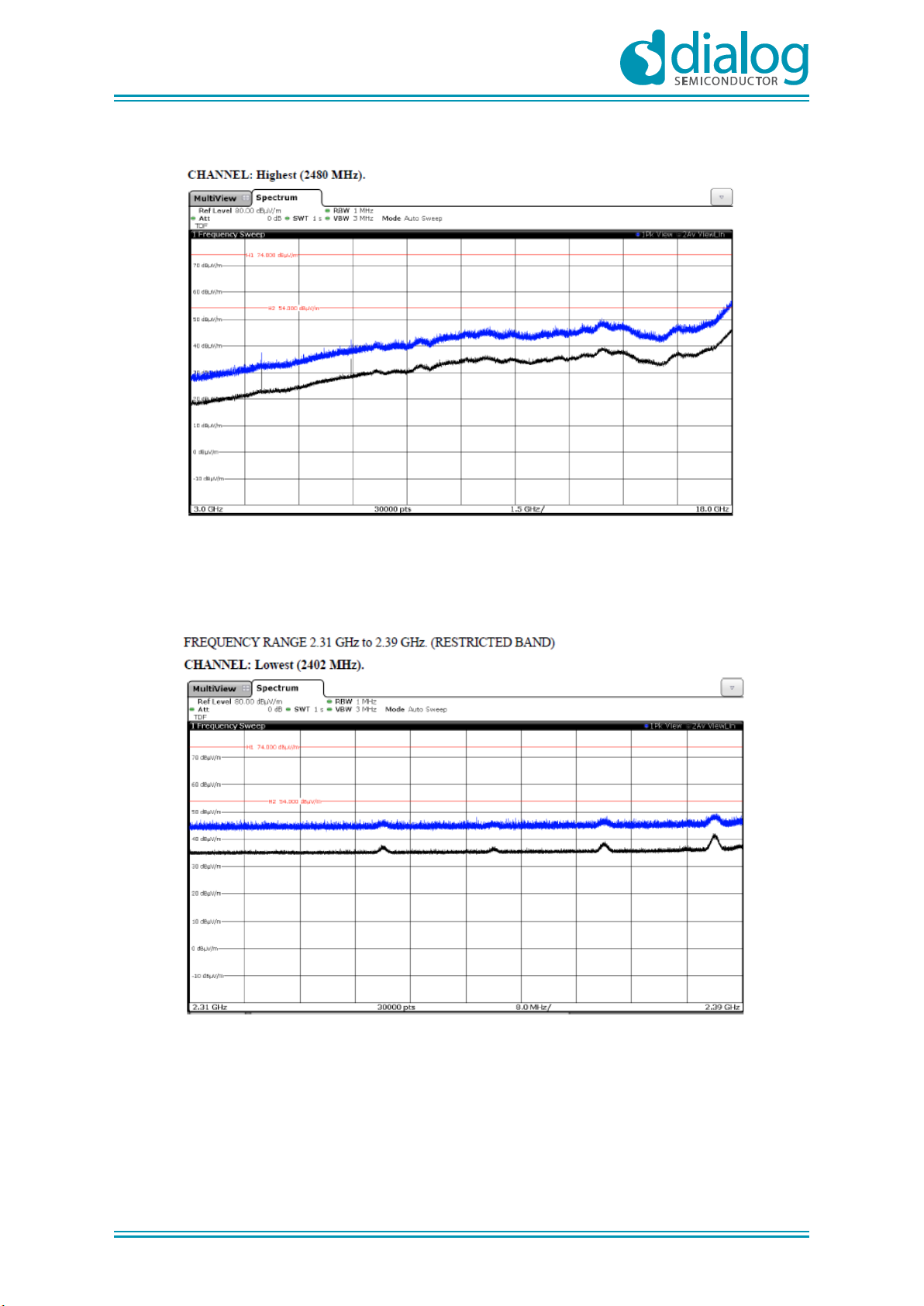

Figure 47: FCC, Frequency from 3GHz to 18GHz, CH39 ...................................................................... 50
Figure 48: FCC, Frequency Range 2.31 GHz to 2.39 GHz (Restricted band- CH00) ............................. 50

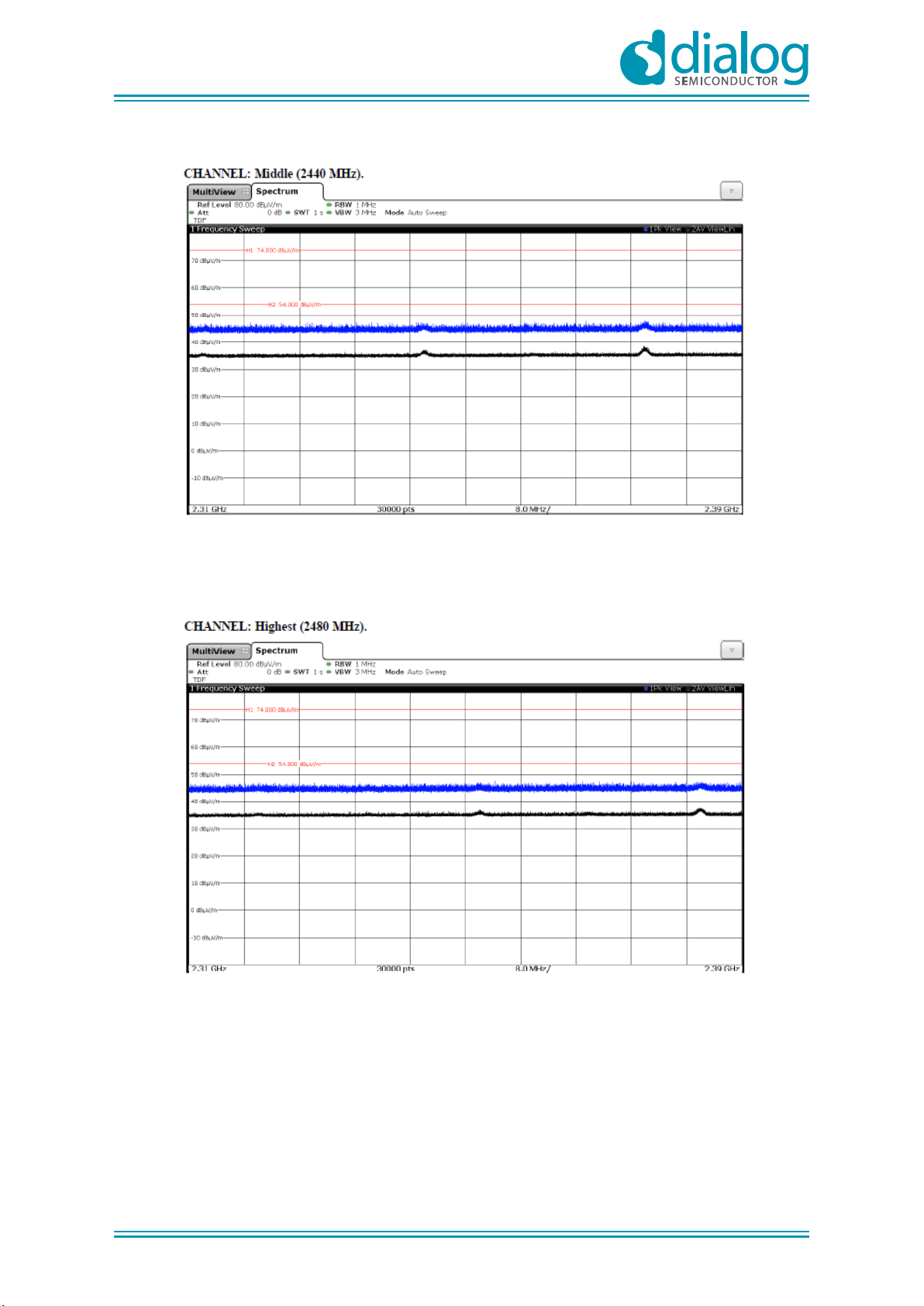

Figure 49: FCC, Frequency Range 2.31 GHz to 2.39 GHz (Restricted band- CH19) ............................. 51
Figure 50: FCC, Frequency Range 2.31 GHz to 2.39 GHz (Restricted band- CH39) ............................. 51

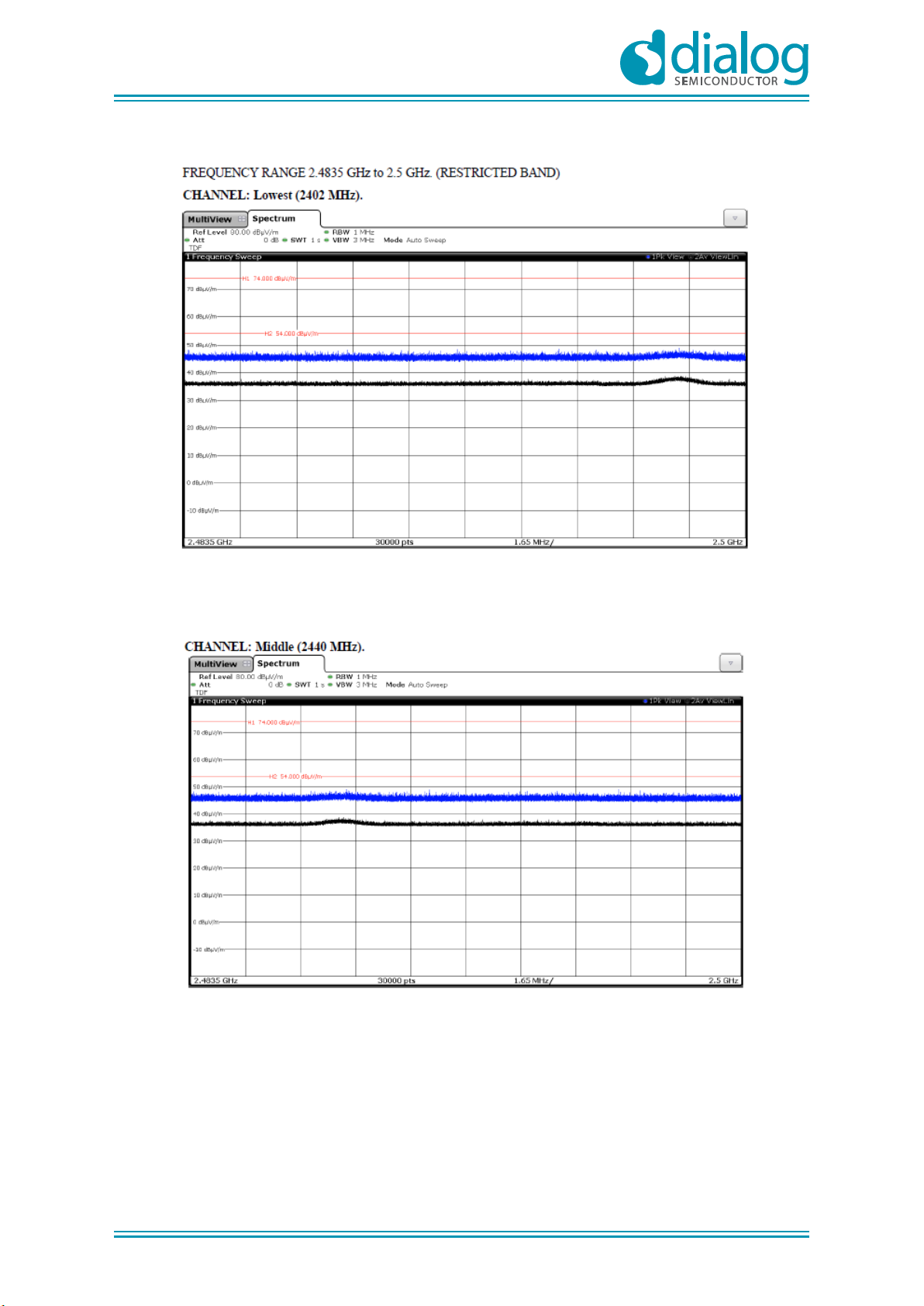

Figure 51: FCC, Frequency Range 2.4385 GHz to 2.5 GHz (Restricted band- CH00) ........................... 52
Figure 52: FCC, Frequency Range 2.4385 GHz to 2.5 GHz (Restricted band- CH19) ........................... 52
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
8 of 56
Figure 53: FCC, Frequency Range 2.4385 GHz to 2.5 GHz (Restricted band-CH39) ............................ 53

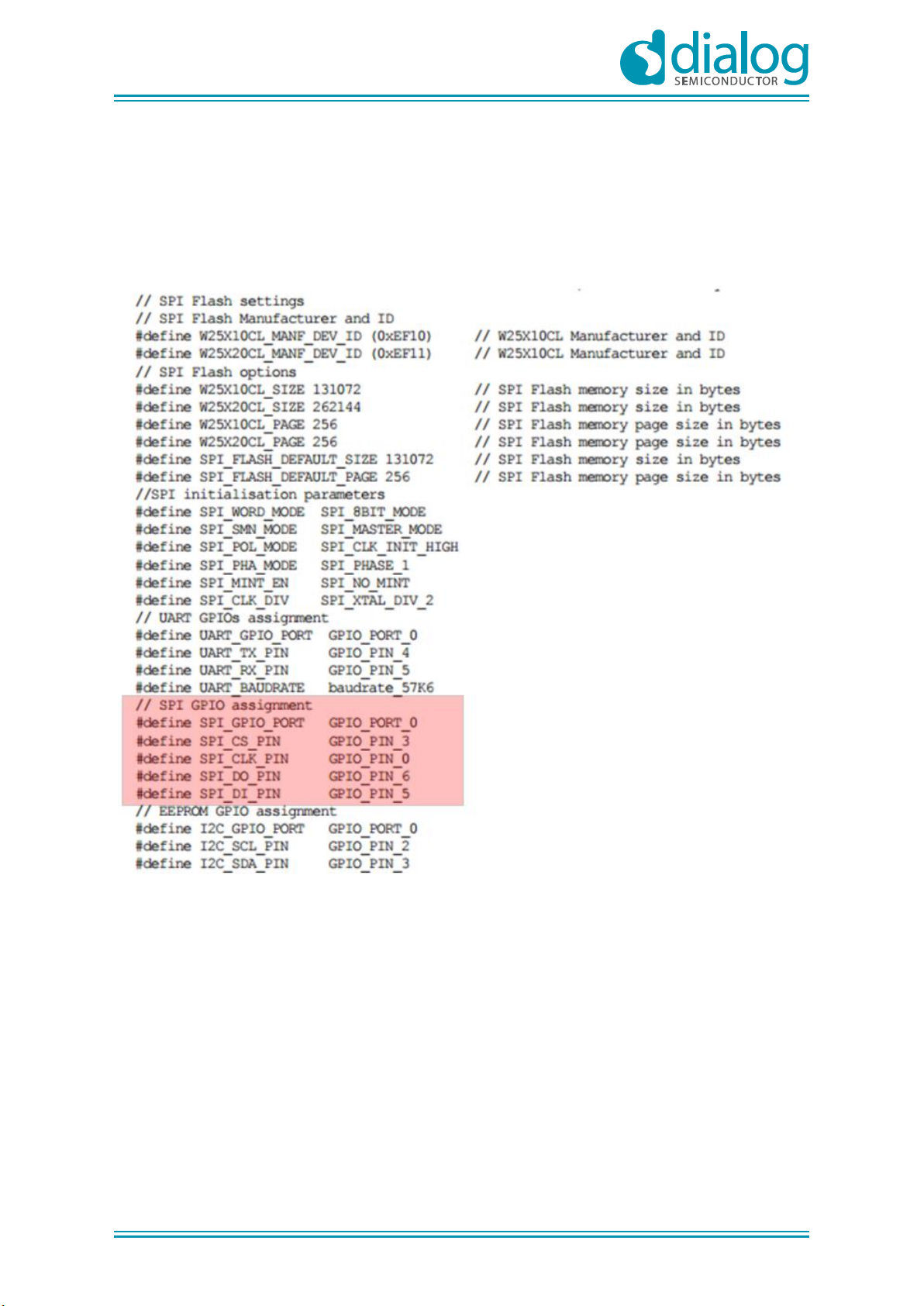

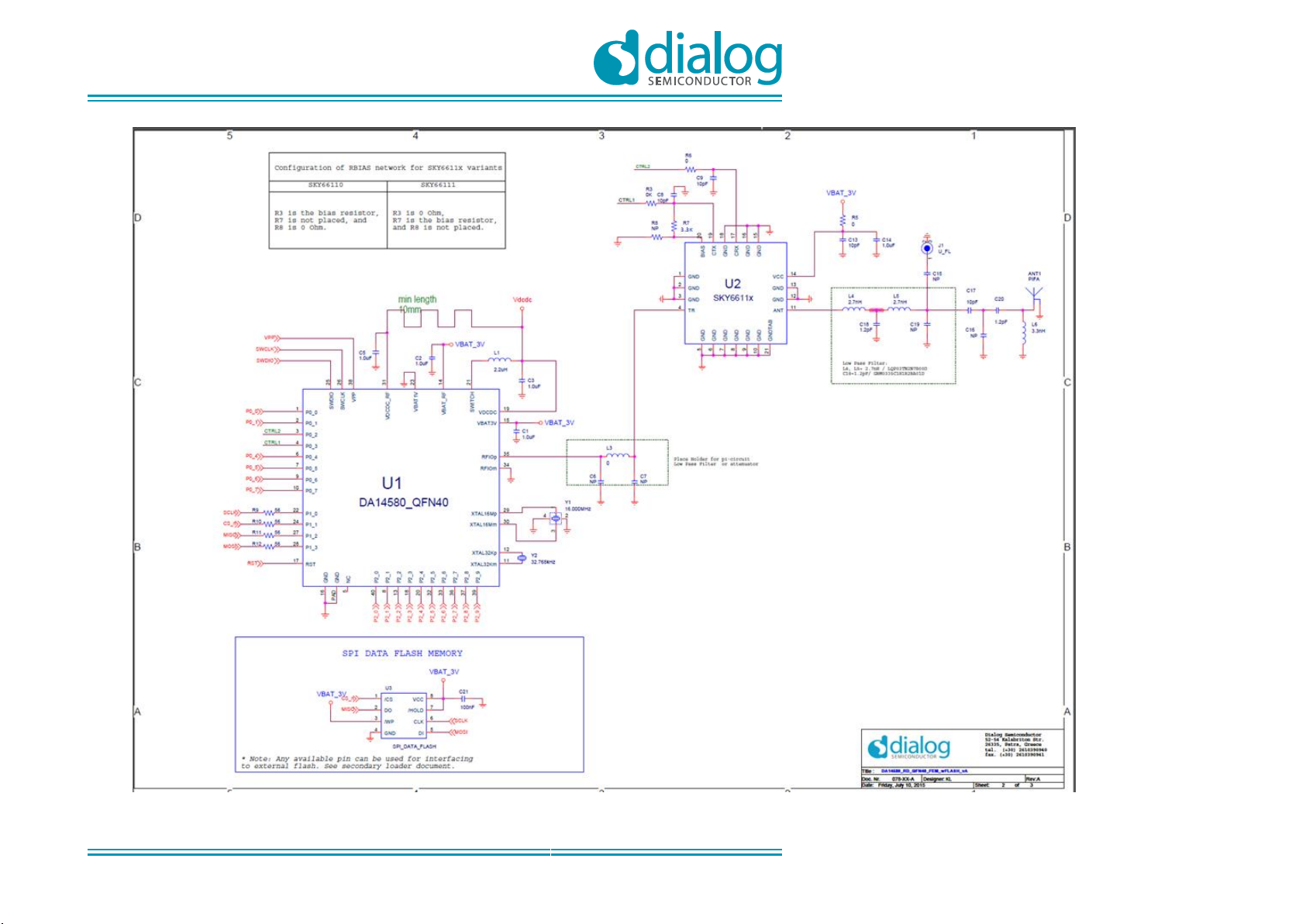

Figure 54: Range Extender v.2 Module with external SPI Flash .......................................................... 54
Table 1: Electrical characteristics ........................................................................................................ 11

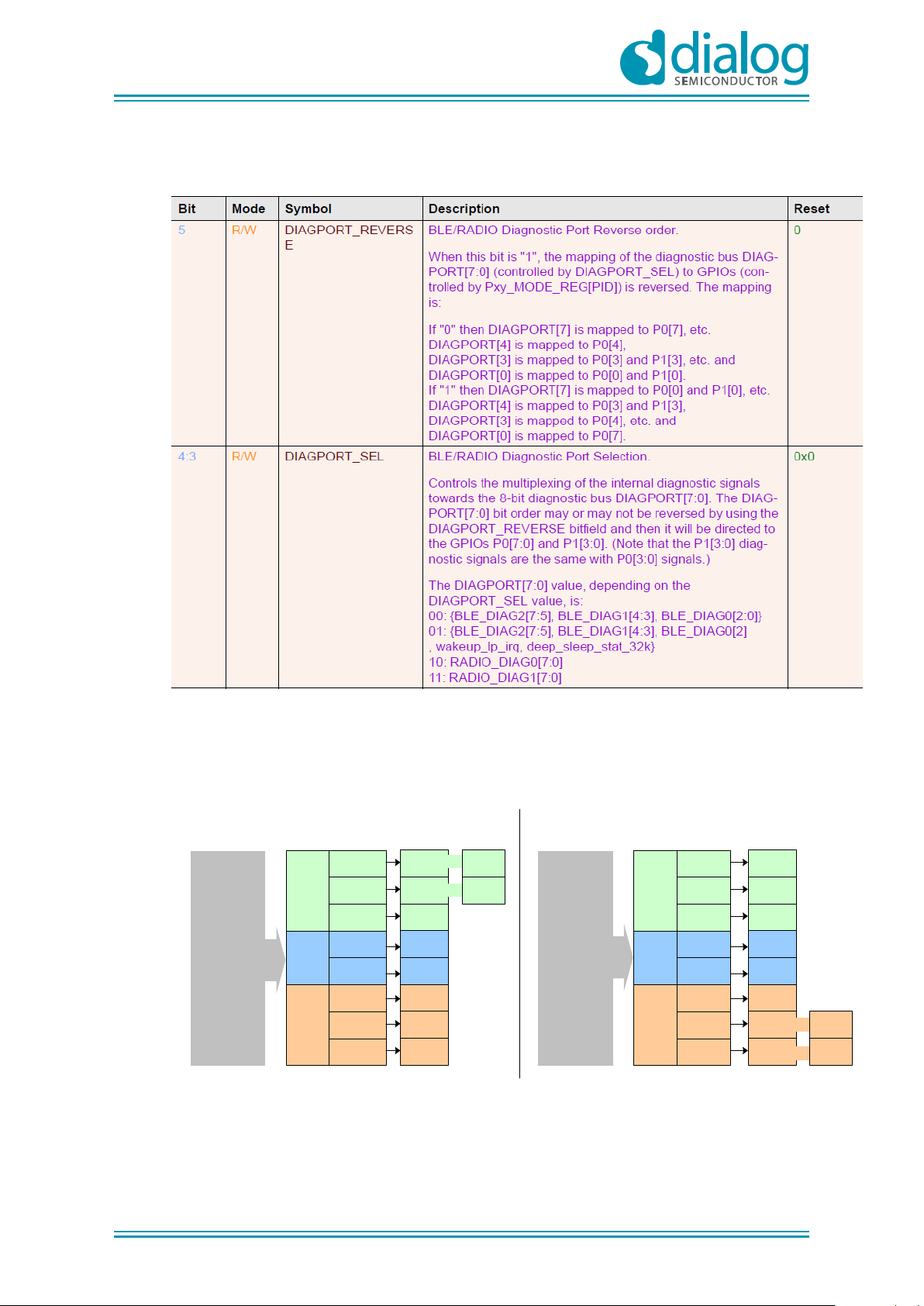

Table 2: BLE_ DIAGCNTL_REG (0x40000050) register specification ................................................... 16
Table 3: BLE_CNTL2_REG (0x40000200) register specification........................................................... 17
Table 4: Diagnostic port availability and settings for control pins ...................................................... 18
Table 5: Suggested pin assignment for extracting all RF control signals ............................................ 18
Table 6: Antenna gain Range Extender v.2 with interposer ................................................................ 23
Table 7: Antenna gain Range Extender v.2 stand-alone ..................................................................... 25
Table 8: Module Pin assignment ......................................................................................................... 28
Table 9: Bill of Materials ...................................................................................................................... 30
Table 10: Development/ testing mode pin mapping .......................................................................... 31

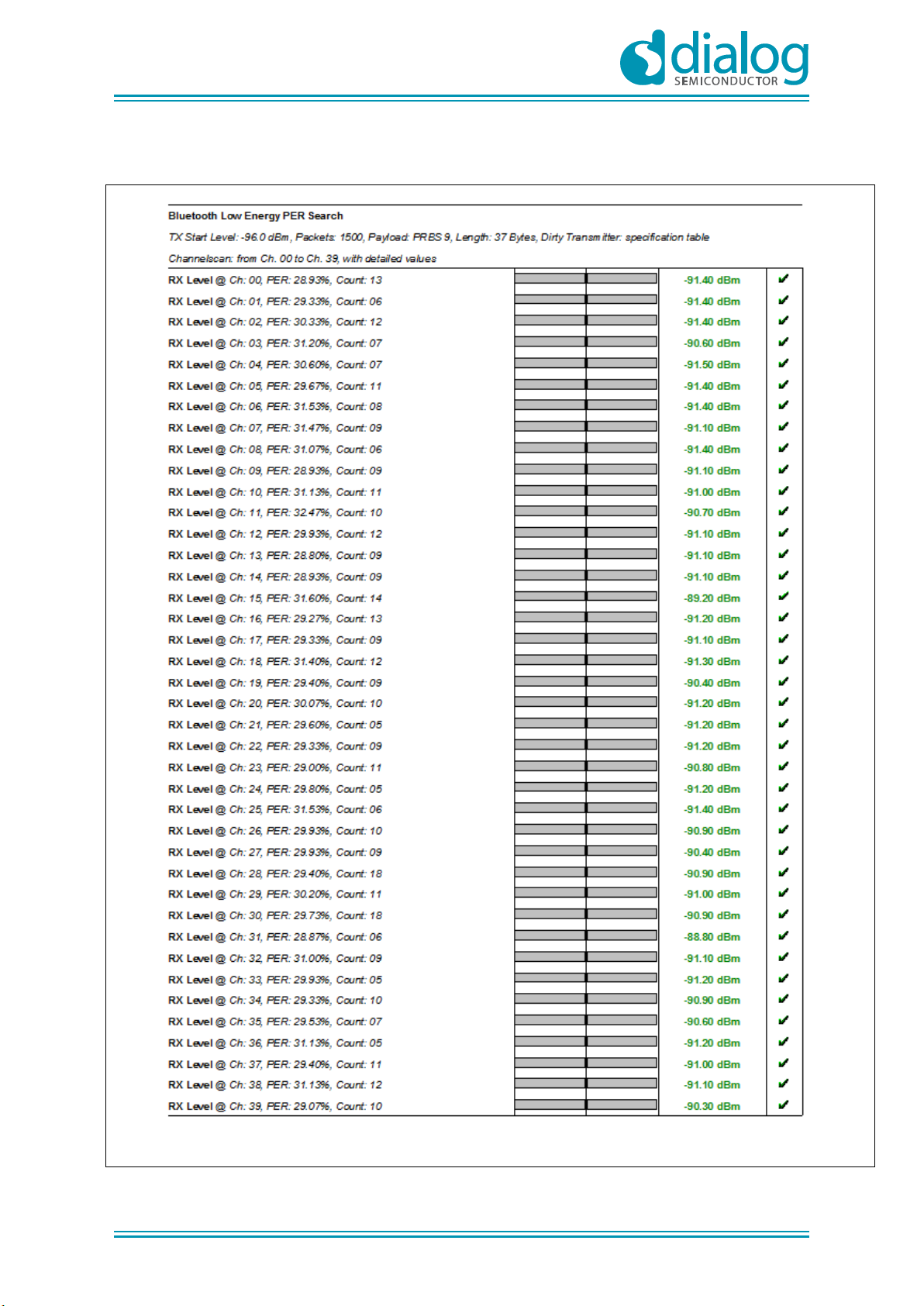

Table 11: Conducted Rx sensitivity ...................................................................................................... 39
Table 12: Tx output power .................................................................................................................. 41
Table 13: Peak current during Advertisement mode .......................................................................... 42
Table 14: Peak current during Connection mode ............................................................................... 43
Table 15: Average current in Extended Sleep mode ........................................................................... 44
Table 16: Conducted Tx harmonics at V
= 3.0 V @ CH00, CH19, CH39 ....................................... 45
BAT_3V
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
9 of 56
1 Terms and definitions
BLE Bluetooth Low Energy BOM Bill Of Materials DUT Device Under Test ERP Effective Radiated Power FW Firmware LPF Low Pass Filter PA Power Amplifier PCBA Printed Circuit Board Assembled PCB Printed Circuit Board RF Radio Frequency SoC System on Chip SPDT Single Pole Double Throw
2 References
1. DA14580 Low Power Bluetooth Smart SoC, Datasheet, Dialog Semiconductor
2. SKY66111-11 Datasheet
3. AN-B-020 End product testing and programming guidelines.(This document is susceptible to be replaced)
4. UM-B-012 DA14580/581/583 Creation of a secondary boot loader
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
10 of 56
3 Introduction
The DA14580 Range Extender v.2 module design is based on the Dialog Semiconductor DA14580 BLE Smart SoC, where enhanced RF transmitted power is presented. This module serves as reference design to potential customers requesting BLE functionality with Nominal RF Output power up to +9.3 dBm (Peak RF Output Power +9.8 dBm). From physical perspective, the module is a two layer PCBA where the digital and power interfaces of the DA14580 are accessible to the user. This document presents the system, technical specifications, physical dimensions and test results.

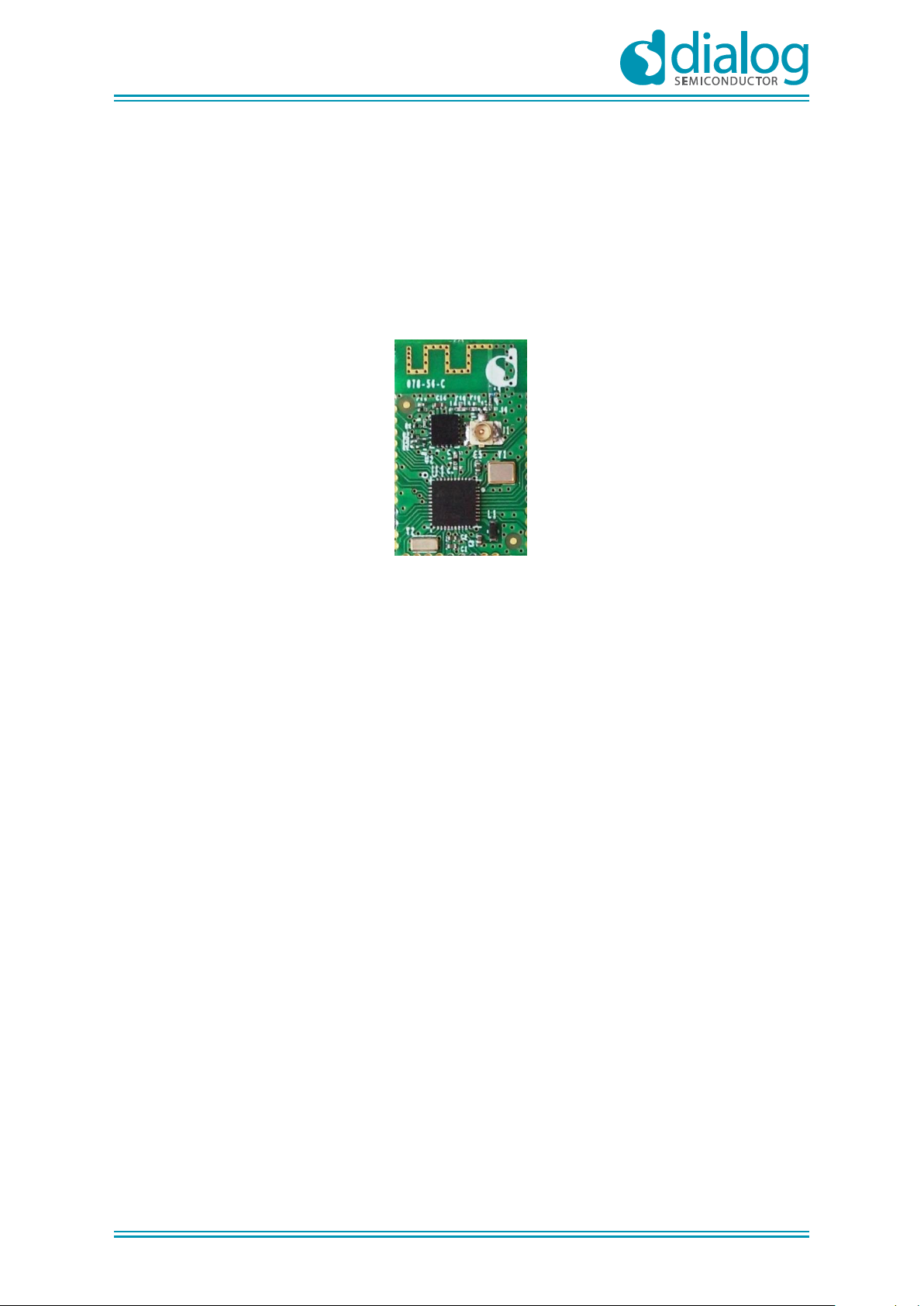

Figure 1: DA14580 Range Extender v.2 module
4 System overview
Features
4.1
■ Highly integrated Dialog Semiconductor DA14580 Bluetooth ® Smart SoC
■ Module can be used as either stand-alone or as a data pump on a system with an external
processor
■ Module satisfies all Bluetooth requirements
■ No external crystal or additional passive components are required for module operation, as the
module is equipped with two crystal oscillators one at 16MHz (XTAL16M) and a second at
32.738KHz (XTAL32K). The 32.738 KHz is used as the clock of Extended/ Deep Sleep modes.
■ Access to processor via JTAG, SPI, UART or I2C
■ 22 GPIOs available on module at a 1.27 mm pitch, suitable for keyboard designs
■ Operating voltage: 2.4 V to 3.3 V. Suitable for operation from a single coin cell battery.
■ On-board printed inverted F-type antenna (Figure 1)
■ RF connector for conducted measurements( Figure 1)
■ Up to +9.3 dBm Nominal Maximum Output Power (+9.8dBm Peak Maximum Output Power).
■ Rx sensitivity: better than -90 dBm
■ Supply current:
-Tx : less than 17 mA peak current @ 3.0 V
-Rx: less than 6 mA peak current @ 3.0 V
-Extended - Sleep current: less than 1.6A @ 3.0 V
■ 15.25 mm x 24 mm, 37 pins, two layer PCBA
■ Operating temperature: –40
■ Test FW based on DA14580_581_583_SDK_3.0.10.1
º
C to +85 ºC
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
11 of 56
Characteristic
Value
Comments
Battery voltage (V
BAT_3V
)
2.4 V to 3.3 V
Specification tested at typical voltage of 3.0 V
Operating frequency range
2400 MHz to 2483.5 MHz
Conducted output power
+9.3 dBm
V
BAT_3V
= 3 V, TA = +15 to +35 °C
Maximum bypass loss
0.6 dB
V
BAT_3V
= 3 V, TA = +15 to +35 °C
Receiver sensitivity
Better than -90 dBm
V
BAT_3V
= 3 V, TA = +15 to +35 °C
Peak Tx current
<17mA
Tx Power = +9.3 dBm, V
BAT_3V
= 3 V, TA = +15 to +35 °C
Peak extended-sleep current
<1.6A
V
BAT_3V
= 3 V, TA = +15 to +35 °C
DA14580
QFN40
Sky6611-11
Discrete
LPF
cRx
Bias
P0_2 P0_3
buck
VBAT_3V
gpios
RBIAS
cTx
CTRL1
CTRL2
Table 1: Electrical characteristics
General description 4.2
The system consists of the DA14580 Bluetooth Low power SoC, the SKY6611-11 Front-end module and a discrete low pass filter. The radio front end is connected to a PCB trace antenna as Figure 2 shows.
The power amplifier is controlled by the CTRL1 and CTRL2 signals. CTRL1 is generated from pin P0_3 and CTRL2 is generated from P0_2 of the DA14580. On pin P0_3 and pin P0_2 the internal Radio_TXEN and Radio_RXEN signals are software allocated.
Figure 2: Block diagram
The amplifier circuit is the SKY66111-11 from Skyworks. The CTX pin is used as the TX control signal and amplifier bias voltage. CTX pin is connected to the amplifier BIAS pin via resistor RBIAS. The resistor value is adjusted in order to get a Nominal RF Output Power of +9.3 dBm. More information for the power output adjustment can be found in Sky66111-11 datasheet2.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
12 of 56
Figure 3: Sky66111-11 Power Amplifier
Bluetooth SoC 4.3
The DA14580 integrated circuit has a fully integrated radio transceiver and baseband processor for Bluetooth ® Smart. It can be used as an application processor as well as a data pump in systems with an external processor.
The DA14580 contains an embedded One-Time-Programmable (OTP) memory for storing Bluetooth profiles as well as custom application code. The qualified Bluetooth® Smart protocol stack, which is stored in a dedicated ROM, and the customer application software which is stored in system RAM, run on the embedded ARM Cortex M0 processor. Low leakage Retention RAM is used to store sensitive data and connection information while in Deep Sleep mode.
The Radio Transceiver implements the RF part of the Bluetooth Smart protocol. Together with the Bluetooth 4.0 PHY layer, it provides a 93 dB RF link budget for reliable wireless communication. All RF blocks are supplied by on-chip low drop out regulators (LDOs). The RF port is single ended 50 , so no external balun is required.
The DA14580 has dedicated hardware for the Link Layer implementation of Bluetooth® Smart and interface controllers for enhanced connectivity capabilities.
The reset line of the DA14580 (pin RST) is active high. On this module the RST pin is available on module pin 21.
Main debug port for the DA14580 is the JTAG. JTAG consists of two signals, SWDIO and SWCLK. The frequency tolerance specification for BLE is 50 ppm. In order to compensate ageing and offset
effects, an external crystal shall have an accuracy of ±15 ppm or better. The DA14580 crystal (Y1) has a fundamental frequency of 16 MHz and load capacitance not higher than 10 pF. The crystal is located on the module itself. Also, an internal programmable capacitance bank is available in the DA14580. In this way, the crystal oscillator frequency can be tuned.
For sleep mode the on chip RCX oscillator is utilized. In addition, a 32 kHz crystal (Y2) with a tolerance of 50 ppm (500 ppm max) can be assembled on the module. The crystal load capacitance shall not be higher than 10 pF.
The external digital interfaces available for the module are:
● 2 UARTs with hardware flow control up to 1 MBd
● SPI interface
● I2C bus at 100 kHz, 400 kHz
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
13 of 56
Figure 4: DA14580 QFN40 SoC, Range Extender ver.2 module
● 3-axis capable Quadrature Decoder
There is also a 4-channel 10-bit ADC available externally to the module. The module includes 22 GPIOs (including JTAG signals) that are available externally. The interfaces
are multiplexed with the GPIOs and can be enabled by appropriate programming. The DA14580 is equipped with a DC-DC converter that can be configured as either Buck or Boost.
For this module, the DC-DC converter is configured as a Buck converter (C5, C2, L1, C3). The DA14580 is available in three packages: WLCSP34, QFN40 and QFN48. In this reference
application the QFN40 has been used.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
14 of 56
DA14580
QFN40
BTLE SoC
Low Pass
Filter
Matching
circuit
Amplifier
SKY66111-11
Amplifier bypass path
Power Amplifier Path
RFIOP
RF front end 4.4
This part of the design is implementing the amplification of the RF transmitted signal while the transmitted harmonics as well as the Tx spurious emissions remain within the FCC/ETSI specification.
The operation of the RF front end is controlled by the DA14580. There are two RF paths: one through the amplifier and one bypass path. The amplifier path is enabled during transmission. The RF signal passes through the PA, the low pass filter and the RF matching network. In the bypass path, the RF signal received at the antenna is driven directly to the BLE transceiver.
Figure 5: RF front end signal paths
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
15 of 56
Figure 6: RF front end schematic
Radio front end control signals 4.4.1
4.4.1.1 Radio front end control signals
In general, three different radio control signal can be extracted from DA14580:
- extrc_txen, it can be used as Tx_En control signal of the RF front end.
- extrc_rxen or radcntl_rxen radio. Both signals are of the same duration. They can be used as Rx_En control signals for the RF front end.
- event_in_process that can be used for wlan co-existence signal.
The signals are extracted by using the BLE diagnostic port. Two registers need to be programmed:
- BLE_DIAGCNTL_REG where it is defined which signals will be extracted from each port. Register specification of BLE_ DIAGCNTL_REG :
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
16 of 56

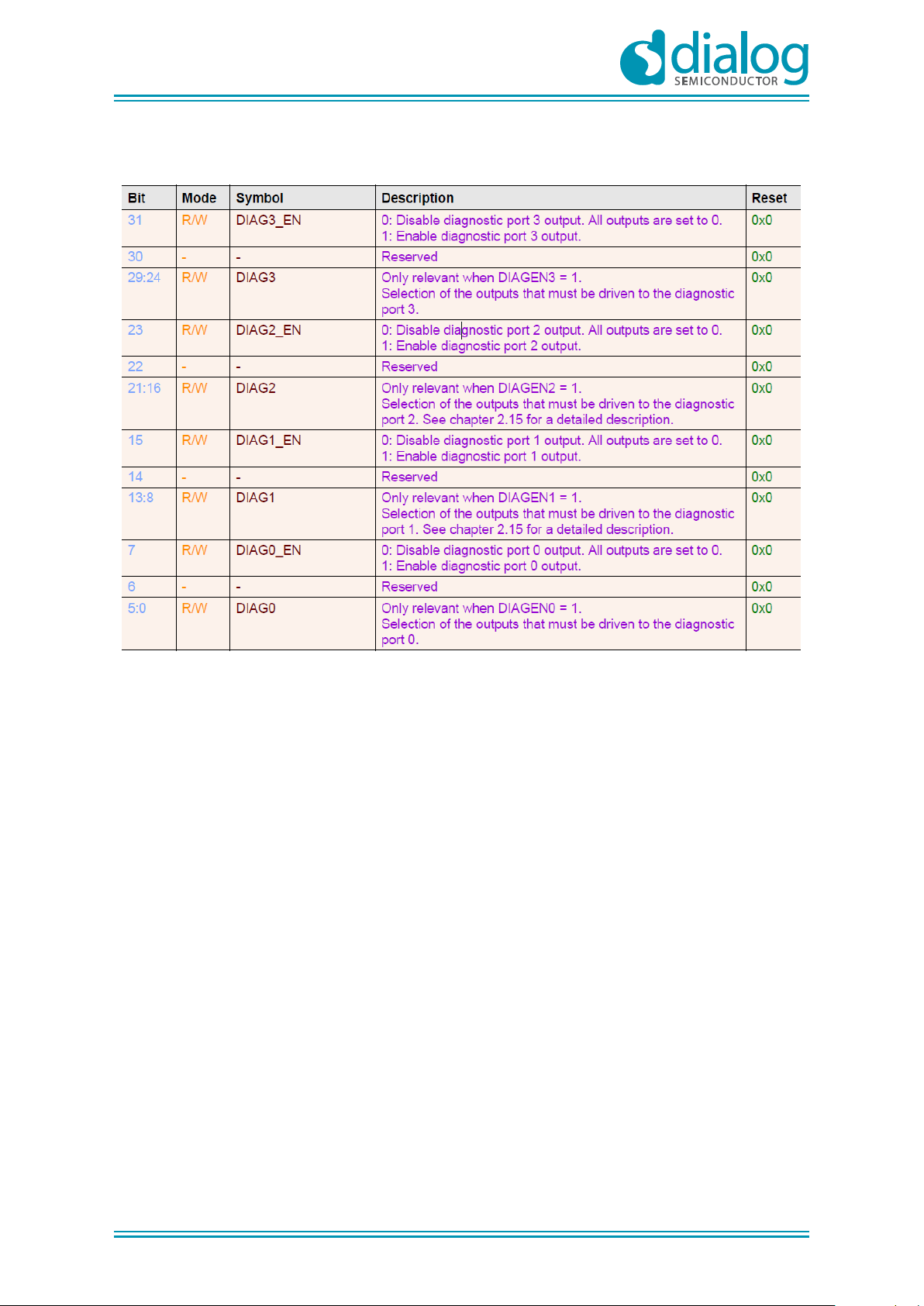

Table 2: BLE_ DIAGCNTL_REG (0x40000050) register specification
- BLE_CNTL2_REG where the BLE diagnostic port is enabled and the straight or reverse pin assignment is defined. This function is controlled by two register bit-fields, DIAGPORT_SEL and DIAGPORT_REVERSE. Description presented below on Table 3.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
17 of 56
DIAG0
DIAG1
DIAG2
DiagOut[0] DiagOut[1] DiagOut[2] DiagOut[3] DiagOut[4] DiagOut[5] DiagOut[6] DiagOut[7]
P0_0
P0_1
P0_2
P0_3
P0_4
P0_5
P0_6
P0_7
P1_0
P1_1
BLE
DIAGNOSTIC
BLE_DIAGCNTL_REG
[DIAG0, DIAG1, DIAG2]
BLE_CNTL2_REG
(DIAGPORT_ REVERSE =1)
or
or
BLE_CNTL2_REG
(DIAGPORT_ SELECT =0 )
DIAG0
DIAG1
DIAG2
DiagOut[0] DiagOut[1] DiagOut[2] DiagOut[3] DiagOut[4] DiagOut[5] DiagOut[6] DiagOut[7]
P0_0 P0_1 P0_2 P0_3 P0_4 P0_5 P0_6 P0_7
P1_0 P1_1
BLE
DIAGNOSTIC
BLE_DIAGCNTL_REG
[DIAG0, DIAG1, DIAG2]
BLE_CNTL2_REG
(DIAGPORT_ REVERSE =0 )
or
or
BLE_CNTL2_REG
(DIAGPORT_ SELECT =0 )
Table 3: BLE_CNTL2_REG (0x40000200) register specification
In BLE_CNTL2_REG the port and the pins assignment order is defined. Only port 0 (P0_[0:7]) and port 1 (P1_[0:3]) of the chip can be utilized.
Figure 7: Diagnostic port to pins assignment and register settings
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
18 of 56
Function
Diagnostic port settings
DA14580 assigned Pins
BLE_DIAGCNTL_REG
BLE_CNTL2_REG
DIAG port
DIAGx
DIAGPORT_
REVERSE = 0
DIAGPORT_
REVERSE = 1
Tx_Enable
DIAG1
0x28
P0_3
P0_4
Rx_Enable
DIAG1
0x28
P0_4
P0_3
DIAG2
0x08
P0_5
P0_2
DIAG2
0x0c
P0_6
P0_1, P1_1
DIAG0
0x1F
P0_2
P0_5
Wlan coexist
DIAG2
0x08
P0_7
P0_0, P1_0
DIAG2
0x0D
P0_7
P0_0, P1_0
DIAG2
0x1F
P0_6
P0_1, P1_1
function
Signal used
Diagnostic port settings
DA14580 assigned Pins
BLE_DIAGCNTL_REG
BLE_CNTL2_REG
DIAG port
DIAGx
DIAGPORT_ REVERSE = 0
PA_Tx Enable
extrc_txen
DIAG1
0x28
P0_3
PA_Rx Enable
radcntl_rxen
DIAG0
0x1F
P0_2
Wlan coexist
event_in_
process
DIAG2
0x08
P0_7
For having all pins extracted in parallel, a combination of register setting and pin availability must be arranged. For example it is preferable to avoid assigning P0_4 and P0_5 to RF control signals. P0_4 and P0_5 are used for UART ports in testing and production tests.
The available pins are presented below:
Table 4: Diagnostic port availability and settings for control pins
4.4.1.2 Suggested pin assignment
A suggested pin assignment for extracting all rf control signals at the same time is presented below:
Table 5: Suggested pin assignment for extracting all RF control signals
For more options on the pin assignment please read paragraph 4.8: Development mode-peripheral pin mapping.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
19 of 56
Below, screenshots from the radio control signals during operation are presented. The proximity reporter_fh application was used.
Figure 8: The RF control signals
Figure 9: Rising edge of Tx_En control signal
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
20 of 56
Figure 10: Detail from Tx_En to Rx_En signal
Power amplifier 4.4.2
The amplifier circuit is the SKY66111-112 from Skyworks. The VBIAS pin is connected to the bias voltage via resistor R7. The resistor value is adjusted so that the +9.3 dBm output power is achieved at maximum 16.15 mA current consumption.
There are two Low Pass Filters options for the power amplifier. The first one is at the input of the Skyworks amplifier and is formed by C6, C7 and L3 and the second is at the output of the Skyworks amplifier and is formed by L4, L5, C18 and C19. The second LPF is used in the current design.
The power amplifier is supplied from pin VBAT_3V directly.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
21 of 56
RFPA
ANT
2n7
1p2
2n7
Low pass filter 4.4.3
The low pass filter is placed after the amplifier matching network in order to suppress the harmonics generated due to the amplifier’s nonlinearity. The filter presents low losses in the 2.4 GHz to 2.5 GHz frequency range (max. loss: 0.5 dB). The ripple on the pass band was chosen equal to 0.1dB.
Figure 11: Low pass filter
Figure 12: T- shaped, 3-poles, Low Pass Filter
The filter is a T- type Chebyshev 3rd order low pass filter. The filter configuration is presented in
Figure 12.
Component value:
- 2,7nH : LQG15HN2N7S02 / Murata
- 1.2pF: GRM1555C1H1R2CZD1/ Murata
Frequency response measurements are presented in Figure 13 below.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
22 of 56
DB(S(S2,1))
DB(S(S1,2))
Freq
(GHz)
S(2,2)
S(1,1)
Freq
0.1 to 13.00 GHz
Figure 13: Simulation results of LPF response
Antenna 4.4.4
4.4.4.1 Range Extender v.2 on Interposer
The antenna is a printed Inverted F Antenna (IFA). The antenna was designed according to the size of the module and the available antenna space (15.24 mm x 24 mm). The measurements for the characterization of the antenna radiation pattern were performed with Range Extender v.2 module mounted on an interposer board. The matching components values for the antenna measurement are: C20= 1.2pF and L6=3.3nH.
Figure 14: Range Extender v.2 on interposer
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
23 of 56
Parameter
G (dBi)
Maximum gain
0
Figure 15: Antenna geometry on Range Extender v.2
Figure 16: Measured S11 paramater for IFA
Gain measurements were performed in an anechoic chamber. The maximum gain was measured at 0 dBi.
Table 6: Antenna gain Range Extender v.2 with interposer
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
24 of 56
Figure 17: Radiation diagram for the board placed vertically on the short edge
Figure 18: Radiation diagram for the board placed horizontally
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
25 of 56
Parameter
G (dBi)
Maximum gain
-10
4.4.4.2 Range Extender v.2 stand alone
Measurements for the characterization of the antenna radiation pattern were also performed with Range Extender v.2 not soldered on interposer. In this case the matching components values differ from the values of the module on the interposer. The matching values of the components are: C20=
1.2pF and C16=1pF.
Figure 19: Range Extender v.2 stand-alone
Gain measurements were performed in an anechoic chamber. The maximum gain was measured at
-10 dBi.
Table 7: Antenna gain Range Extender v.2 stand-alone
Figure 20: Radiation diagram for the board placed vertically on the short edge
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
26 of 56
Figure 21: Radiation diagram for the board placed horizontally
The stand-alone board presents lower antenna gain than the board mounted on the interposer. This is explained due the small ground size of the board. It is recommended for Range Extender v.2 to be mounted on a pcb with bigger ground surface or when embedded to a new design to follow the dimensions in Figure 22.
Figure 22: IFA antenna implementation
The dimensions above are given for a typical FR1 PCB substrate, 1mm thick. The antenna length is adjusted for resonance including a 1mm plastic enclosure placed in contact with the PCB antenna. The red outline indicates the antenna footprint, i.e. required allocation of PCB space. The footprint of the antenna is available per request in dxf format.
Legend (Figure 22): Clearance between antenna arm and GND plane right a.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
27 of 56
Antenna width b. Antenna height c. Clearance between the antenna arm and GND plane below d. Minimum GND plane size required for correct operation of the antenna e. Antenna traces width f.
Power system and requirements 4.5
The Range Extender v.2 module is supplied by a single power supply through pins VBAT_3V. For the DA14580 SoC, the VBAT_3V voltage variations are handled by the internal DC-DC converter. The DC-DC converter’s external components are an inductor L1 (2.2 uH) and three capacitors C3, C1 and C2 (all three capacitors are equal to 1 uF).
The RF power amplifier and its circuitry are supplied directly from the external power source. The module is intended for use with a +3 V coin cell battery (e.g CR2450 type). The V is 2.4 V to 3.0 V, whereas the absolute maximum voltage is 3.6 V.
voltage range
BAT_3V
The overall current consumption in Tx mode does not exceed 17 mA @ 3.0 V supply. The current consumption by the front end circuits (amplifier) does not exceed 11 mA, whereas in extended- sleep mode the consumption of the system is expected to be in less than 1.6 uA.
Figure 23: Current consumption for Advertisement frame
Trimming the 16MHz Xtal 4.6
For ensuring best operation of the Module, the 16MHz XTAL must be trimmed. The frequency is trimmed by two on-chip variable capacitor banks. Both capacitor banks are controlled by the same register. For trimming the XTAL apply procedure described on AN-B-0203: End product testing and programming guidelines.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
28 of 56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
37
36
35
34
33
32
31
30
29
28
27
26
25
24
15 16 17 18 19 20 21 22 23
Pin
Signal name
(Left side of the PCB
seen from the top)
Pin
Signal name
(Bottom side of the
PCB seen from the
top)
Pin
Signal name
(Right side of the
PCB seen from the
top)
1
GND
15
P0_7
29
SWCLK
2
P2_7
16
GND
30
GND
3
P2_8
17
GND
31
P1_2
4
VPP
18
P2_2
32
P1_3
5
P2_9
19
VBAT_3V
33
GND
6
P2_0
20
GND
34
P2_5
7
P0_0
21
RST
35
P2_6
8
P0_1
22
P2_3
36
GND
9
GND
23
P2_4
37
GND
10
GND
24
GND
11
P0_4
25
P1_0
12
P0_5
26
GND
13
P2_1
27
P1_1
14
P0_6
28
SWDIO
PCBA 4.7
A 2-layer FR4 PCB with 1.024 mm standard thickness is used. The PCB size is 15.25x24 mm. There are 37 connection pads which are made as castellation (1/2 open drill) with 1.27 mm pitch.
The connection pad assignment is shown in Table 8 below. The pin numbering is counter clockwise, as seen from the PCB top starting in the top left corner.
Schematic and BOM are presented in Figure 25 and Table 9.
Figure 24: Top view of PCBA
Table 8: Module Pin assignment
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
14-September-2015
CFR0012-00 Rev 1
29 of 56
© 2015 Dialog Semiconductor
Figure 25: Schematic of DA14580 Range Extender v.2 Module
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
30 of 56
Ref.
Value
Description
Manuf.
MPN
Footpr.
U1
DA1458
0_QFN4
0
BT Low Energy System on a Chip
Dialog
Semiconductor
DA14580-01AT1
QFN40
U2
SKY661
11
Front-End Module, 2.4GHz-
2.485GHz
Skyworks
Solutions, Inc.
SKY66111-11
MCM
L3, R3,
R5, R6
0
RES 0.0 OHM 1/20W 0201 SMD
Vishay/Dale
CRCW02010000Z0ED
0201
R7
3.3K
RES 3.3K OHM 50mW 1% 0201
SMD
Vishay/Dale
CRCW02013K30FKED
0201
Y1
16.000M Hz
CRYSTAL 16MHZ 10PF SMD
TXC
Corporation
7M-16.000MEEQ-T
Y2
32.768k Hz
CRYSTAL 32.768KHZ 7PF SMD
Abracon
Corporation
ABS07-32.768KHZ-7-T
C1, C2, C3, C5,
C14
1.0uF
CAP MLCC 1.0uF 10V X5R 10%
TDK
Corporation
C1005X5R1A105K050BB
0402
C8, C9,
C13, C17
10pF
CAP MLCC 0201 10pF 25volts
C0G
Murata
GRM0335C1E100JA01D
0201
C18, C20
1.2pF
CAP MLCC 0201 1.2pF 25volts
C0G +/-0.25pF
Murata
GRM0335C1E1R2CA01D
0201
L1
2.2uH
INDUCTOR Power 2.2uH,
500mA, 400MHz
Taiyo Yuden
BRL1608T2R2M
0603
L4,L5
2.7nH
Fixed Inductors 2.7 NH +-.1NH
Murata
LQP03TN2N7B00D
0201
L6
3.3nH
Fixed Inductors 3.3nH 0.1nH
500MHz
Murata
LQP03TN3N3B02D
0201
Not Populated Components
Ref.
Value
Description
Manuf.
MPN
Footpr.
C6,C7,C
15,C16,C
19
NP
Capacitors
R8
NP
Resistors
ANT1 Printed Antenna
TP1,TP2 Test Points
J1
NP
RF Connectors / Coaxial
Connectors UMC STRT JACK
RECEP SURFACE MOUNT
Johnson / Cinch
Connectivity
Solutions
128-0711-201
UMC
Table 9: Bill of Materials
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
31 of 56
SoC
Pin #
DA14580
assigned
Pins
Function
SoC
Pin #
DA14580
assigned
Pins
Function
1
P0_0
Available External Use
21
SWITCH
Connection for the external DCDC-converter inductor.
2
P0_1
Available External Use
22
P1_0
Available External Use
3
P0_2
PA_Rx Enable
23
VBAT1V
4 P0_3
PA_Tx Enable
24
P1_1
Available External Use
5
NC 25
P1_5
SWDIO
6
P0_4
UART TX
26
P1_4
SWCLK
7
P0_5
UART RX
27
P1_2
Available External Use
8
P2_1
Available External Use
28
P1_3
Available External Use
9
P0_6
Available External Use
29
XTAL16Mp
10
P0_7
WLAN coexist
30
XTAL16Mm
11
XTAL32Km
31
VDCDC_RF
12
XTAL32Kp
32
P2_5
Available External Use
13
P2_2
Available External Use
33
P2_6
Available External Use
14
VBAT_RF
34
RFIOm
15
VBAT3V
35
RFIOp
16
GND
36
P2_7
Available External Use
17
RST
RESET
37
P2_8
Available External Use
18
P2_3
Available External Use
38
VPP
19
VDCDC
39
P2_9
Available External Use
20
P2_4
Available External Use
40
P2_0
Available External Use
*Note: Any available pin can be used for interfacing external SPI data Flash. See secondary boot loader document for further details
4
Development Mode-Peripheral Pin Mapping 4.8
On the following table the pins used for development/ testing are described.
Table 10: Development/ testing mode pin mapping
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
32 of 56
By default in the secondary boot loader4 all the SPI GPIO signals are assigned to Port0. However as it has been mentioned in paragraph 4.4.1, P0_2 and P0_3 pins are utilized to extract the radio control signals. So if SPI communication with a peripheral is needed, a modification in the configuration settings for the peripherals contained in header file periph_setup.h can be made.
Figure 26: DA14580/581/583 configuration settings for peripherals, periph_setup.h
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
33 of 56
Software 4.9
The following instructions are based DA14580_581_583_SDK_3.0.10.1. Instructions are valid for both Keil 4 and Keil 5 projects. Screenshots shown are in Keil 5.
Inserting in a project (example in proximity reporter)
1. Copy app_range_extender folder to dk_apps\src\modules\app\src\app_utils
2. Open the project and add app_range_extender.c in app group of the keil project
Right click ‘apps’ and select “Add existing files to Group ‘app’ ”. Add
app_range_extender.c
Figure 27: Step 2 of adding app_range_extender
3. Add the app_range_extender folder in the compiler include paths.
Figure 28: Step 3a of adding app_range_extender
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
34 of 56
In the target options, select the C/C++ tab and in the end add: .\..\..\..\..\ src\modules\app\src\app_utils\app_range_extender (separate from the previous path with a semicolon)
Figure 29: Step 3b of adding app_range_extender
4. In app_<project>_proj file, add the line:
#include "app_range_ext.h" in the Include files section
Figure 30: Step 4a of adding app_range_extender
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
35 of 56
and call app_range_extender_enable() in app_init_func()
Figure 31: Step 4b of adding app_range_extender
5. In periph_setup.c, add the line:
#include "app_range_ext.h" in the Include files section
Figure 32: Step 5a of adding app_range_extender
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
36 of 56
and call app_range_extender_enable()at the end of periph_init()
Figure 33: Step 5b of adding app_range_extender
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
37 of 56
Inserting in the production test tool
1. Follow above steps 1-3
2. In custom_gtl_hci.c, add the line:
#include "app_range_ext.h" in the Include files section
and call app_range_extender_enable()in gtl_hci_rx_header_func()
Figure 34: Inserting app_range_extender in the production test tool
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
38 of 56
5 Measurements
Basic performance measurements 5.1
Receiver sensitivity (conducted) 5.1.1
5.1.1.1 Test description
In this test the Rx sensitivity of Range Extender v.2 Module was measured.
5.1.1.2 Test setup

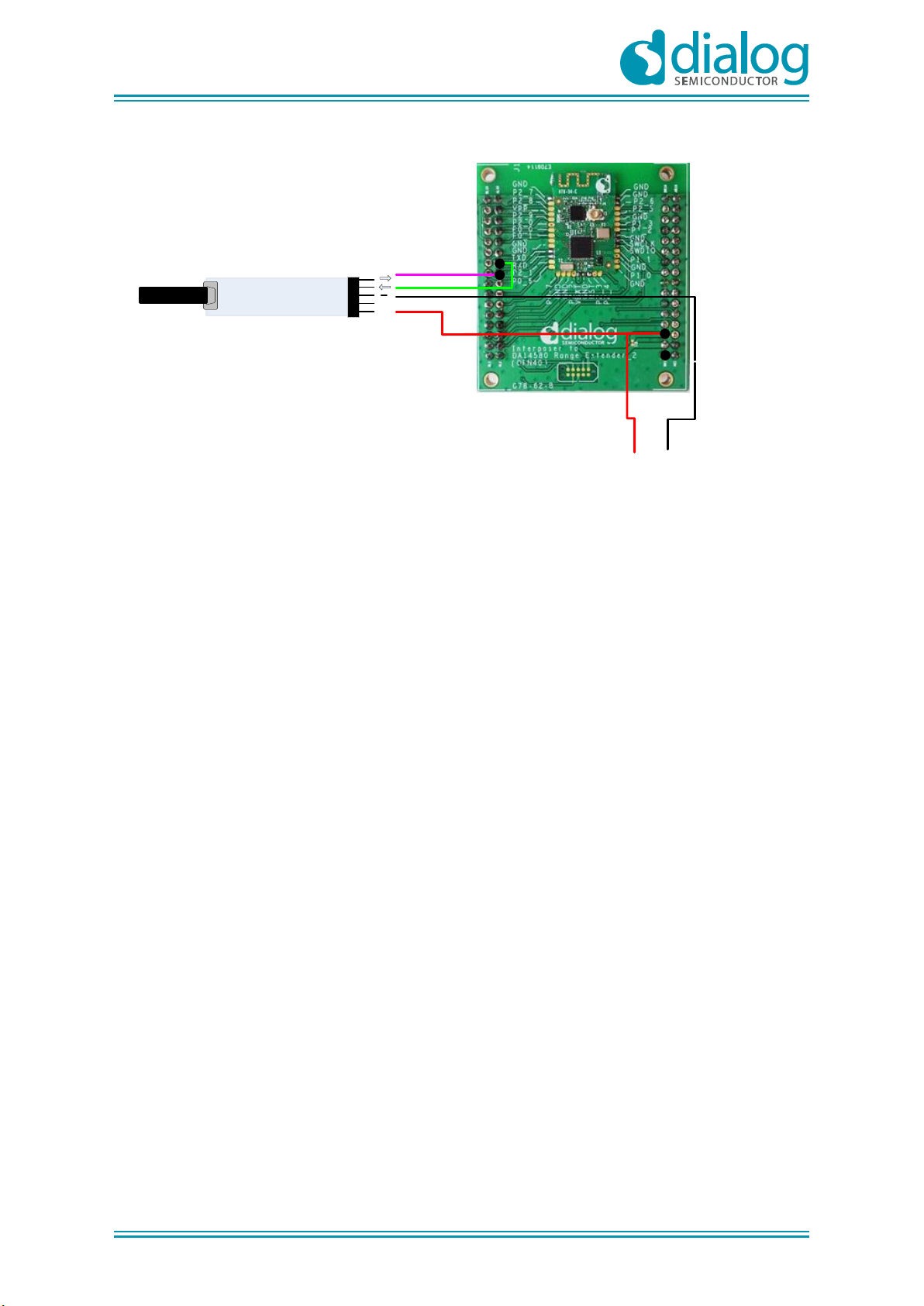

The Range Extender v.2 Module was mounted on a DK Development Board with the use of an intermediate interposer board. The R&S®CBT Bluetooth® Tester from Rohde & Schwarz was used. An RF cable assembly was connected to J1 connector (UMC RF Series) and at the other end through an attenuator to the R&S®CBT Bluetooth® Tester from Rohde & Schwarz. The results from a dirty transmitter on one of the boards are reported below.
5.1.1.3 Test results
The conducted RF sensitivity with dirty transmitter shows that the sensitivity is better than -90 dBm for the most of the channels.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
39 of 56
Table 11: Conducted Rx sensitivity
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
40 of 56
Transmitter output power (conducted) 5.1.2
5.1.2.1 Test description
In this test the conducted RF output power of Range Extender v.2 Module was measured.
5.1.2.2 Test setup
The Range Extender v.2 Module was mounted on a DK Development Board with the use of an intermediate interposer board. In order to evaluate the TX output power, production test firmware was used. Conducted transmitted output power was measured by using the R&S®CBT Bluetooth® Tester from Rohde & Schwarz. An RF cable assembly was connected to J1 connector (UMC RF Series) and at the other end through an attenuator to the R&S®CBT Bluetooth® Tester. Bursts of 10 packets were transmitted by the DA14580. The packet length was 37 and the pattern was “01010101”. Three channels were recorded, channels 0, 19 and 39.
5.1.2.3 Test results
Measurements were performed on a number of samples.
Figure 35: Nominal conducted output power per channel
Red: maximum
Blue: average
Green: minimum
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
41 of 56
Parameter
V
BAT_3V
(V)
P
OUT
(dBm)
Nominal Tx output power, average
+3.0
CH00
CH19
CH39
9.35
8.87
8.57
Peak Tx output power, average
+3.0
9.88
9.34
9.03
Figure 36: Peak conducted output power per channel
Table 12: Tx output power
Red: maximum
Blue: average
Green: minimum
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
42 of 56
Channel
Frequency (MHz)
Parameter
I
PEAK
(mA)
0
2402
Ipeak0, TX
16.15
12
2440
Ipeak12, TX
15.91
39
2480
Ipeak39, TX
14.68
Current consumption 5.1.3
5.1.3.1 Test setup
The board used in the test presented optimal RF performance. The integrated printed antenna was used to perform the measurements.
Following instruments were used for the test:
● Multimeter
● 3 V, 100 mA power source
● Agilent N6705B
The current profiles were evaluated using proximity reporter firmware with embedded PA control. During this test the Advertisement, Connection and Extended Sleep modes were evaluated.
5.1.3.2 Advertisement mode
For this measurement the DUT was supplied by 3 V. FW was downloaded and the JTAG programmer and then it was disconnected.
Table 13: Peak current during Advertisement mode
Figure 37: Supplu current during an Advertisement frame
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
43 of 56
Parameter
I
PEAK
(mA)
Ipeak, TX
16.74
5.1.3.3 Connection mode
For this measurement the DUT was supplied by 3 V. FW was downloaded and the JTAG programmer was disconnected and connection with an iPhone 4S was established.
Table 14: Peak current during Connection mode
Figure 38: Supply current during a Connection frame
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
44 of 56
Parameter
IAV (A)
Imean
1.58
5.1.3.4 Extended sleep mode
For this measurement the DUT was supplied by 3 V. FW was downloaded and the JTAG programmer was disconnected. FW was setting the RF path to Rx.
Table 15: Average current in Extended Sleep mode
Figure 39: Supply current during Extended Sleep mode
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
45 of 56
Parameter (dBm)
CH00 – 2402MHz
CH19 – 2440MHz
CH39 – 2480 MHz
2nd harmonic power
-52.40
-52.56
-52.40
3rd harmonic power
-58.54
-58.04
-56.76
4th harmonic power
-55.70
-55.64
-56.81
5th harmonic power
-59.52
-58.06
-56.66
FCC/ ETSI Measurements 5.3
Emission limitation conducted (transmitter) 5.3.1
5.3.1.1 Test description
In this test the level of the harmonics produced by the Tx path was measured.
5.3.1.2 Test setup
The Range Extender v.2 Module was mounted on a DK Development Board with the use of an intermediate interposer board. In order to evaluate the harmonics levels production, the production test firmware with embedded PA signal control was used. The boards under test, were set into continuous transmit mode. An RF cable assembly was connected to J1 connector (UMC RF Series) and in the other end were connected to the spectrum analyser. Three channels were tested, channels 0, 19 and 39.
5.3.1.3 Test results
Table 16: Conducted Tx harmonics at V
= 3.0 V @ CH00, CH19, CH39
BAT_3V
All measurements comply with the limits specified in FCC 15.247/ Sub clause (d). Please note that the 2nd harmonic power is has a 11.2 dBm margin to the FCC limits (-41.2 dBm).
Emission limitation radiated (transmitter) 5.3.2
5.3.2.1 Test description
In this test the level of radiated spurious emissions produced in the Tx mode was measured in the certified semi-anechoic RF chamber at AT4W labs.
5.3.2.2 Test setup
For the measurements, the device under test comes with its OTP preloaded with the production test firmware with embedded PA signal control. This software can be configured to generate the required test patterns. The hardware configuration for the test is shown in Figure 40.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
46 of 56
Rx of QFN40 module
GND
VCC(+3V)
Power Supply
Cable
UART cable
Tx of QFN40 module
V
USB cable to PC
Figure 40: Range Extender v.2 mounted on the interposer board for radiated measurements
The board was set to continuous transmission mode with a 100% duty cycle. The measurements were conducted for the range of 30 to 1000MHz, 1 GHz to 3 GHz and from 3GHz
to 18 GHz according to FCC Part 15C and for the range of 30 to 1000 MHz and 1 to 12.75 GHz for ETSI EN 300 328 1.8.1.
A board with Nominal RF Output Power equal to +9.3 dBm was used for this test. The situation and orientation was varied to find the maximum radiated emission. It was also rotated
360º and the antenna height was varied from 1 to 4 meters to find the maximum radiated emission. Measurements were made in both horizontal and vertical planes of polarization. All tests were performed in a semi-anechoic chamber at a distance of 3 m for the frequency range 30 MHz-1000 MHz and at distance of 1m for the frequency ranges above 1 GHz.
5.3.2.3 Test results
The results of the radiated measurements are given on Figure 41 to Figure 53. All measured FCC values comply with the emission limits specified in FCC 14.247/ Sub-clause (d). Additionally radiated emissions limits which fall in restricted bands, as defined in FCC 15.205(a) also comply with the radiated emissions limits specified in 15.209.
As far as ETSI transmitter unwanted emission in the spurious domain, they all comply to the limits described in ETSI 300 328 1.8.1 paragraph 4.3.1.9.2.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
47 of 56
Figure 41: FCC, Frequency Range from 30MHz to 1 GHz, CH39
Figure 42: FCC, Frequency from 1GHz to 3GHz, CH00
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
48 of 56
Figure 43: FCC, Frequency from 1GHz to 3GHz, CH19
Figure 44: FCC, Frequency from 1GHz to 3GHz, CH39
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
49 of 56
Figure 45: FCC, Frequency from 3GHz to 18GHz, CH00
Figure 46: FCC, Frequency from 3GHz to 18GHz, CH19
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
50 of 56
Figure 47: FCC, Frequency from 3GHz to 18GHz, CH39
Figure 48: FCC, Frequency Range 2.31 GHz to 2.39 GHz (Restricted band- CH00)
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
51 of 56
Figure 49: FCC, Frequency Range 2.31 GHz to 2.39 GHz (Restricted band- CH19)
Figure 50: FCC, Frequency Range 2.31 GHz to 2.39 GHz (Restricted band- CH39)
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
52 of 56
Figure 51: FCC, Frequency Range 2.4385 GHz to 2.5 GHz (Restricted band- CH00)
Figure 52: FCC, Frequency Range 2.4385 GHz to 2.5 GHz (Restricted band- CH19)
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
53 of 56
Figure 53: FCC, Frequency Range 2.4385 GHz to 2.5 GHz (Restricted band-CH39)
6 FCC/IC Certification and CE marking
Standards and conformity assessment
6.1
FCC requirements regarding the end product and end user 6.2
End product marking 6.2.1
End product literature 6.2.2
Permissive changes 6.3
Industry Canada requirements regarding the end product and end user 6.4
End product marking 6.4.1
End product literature 6.4.2
7 Appendix A: Range Extender v.2 with SPI Data Flash
Range Extender v.2 can be used with external SPI Data Flash Memory. Any available pins can be used to interface the external data Flash. The appropriate configuration settings for peripherals must be set in secondary boot loader as described in paragraph 4.8. The following application example schematic contains Range Extender v.2 with external SPI Data Flash.
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
14-September-2015
CFR0012-00 Rev 1
54 of 56
© 2015 Dialog Semiconductor
Figure 54: Range Extender v.2 Module with external SPI Flash
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
55 of 56
Revision
Date
Description
1.0
16-07-2015
Initial version. FCC/ETSI final certification reports pending for end of September 2015. All measurement regarding compliance to FCC/ETSI will be updated from the final certification reports. All FCC/ ETSI tests have been found to pass.
1.1
14-09-2015
Initial version: modification related to reduction of the output power.
2.0
With final FCC/ETSI reports
The document will be updated in the following sections.
- Chapter 4.9: Software: upgrade with version SDK 5.02
- Chapter 4.10: Test platform ( future chapter): PRO DK
Interposer Description
- Chapter 5.3: FCC/ETSI Measurements: upgrade with
final results
- Chapter 6: FCC/IC Certification and CE marking
8 Revision history
UM-B-045
DA14580 Range extender v.2 reference application
Company confidential
User manual
Revision 1.1
CFR0012-00 Rev 1
56 of 56
Status
Definition
DRAFT
The content of this document is under review and subject to formal approval, which may result in modifications or additions.
APPROVED or unmarked
The content of this document has been approved for publication.
Contacting Dialog Semiconductor
United Kingdom (Headquarters)
Dialog Semiconductor PLC
Phone: +44 1793 757700
Germany Headquarters
Dialog Semiconductor GmbH
Phone: +49 7021 805-0
The Netherlands
Dialog Semiconductor B.V.
Phone: +31 73 640 8822
