2 Introduction
This document describes changes in SDK structure and IAR projects in DA16200 SDK v2.3.4.0 to
make porting for the user easier compared to the previous version.
3 SDK Structure
The DA16200 SDK v2.3.4.0 has eight folders:
● build: build scripts, temporary build artifacts, or environment files
● customer: IAR project files and applications for customer
● doc: user documents (user guides, programmer guides, etc)
● img: to which the images built / pre-compiled are copied
● lib: to which the pre-compiled lib files (.a) are saved
● sample: to demonstrate common use cases of what the DA16200 SDK provides
● src: core source codes
● src_tim: source codes for TIM
● version: version files to include when Image created
3.1 Changes in SDK Structure
DA16200 Generic SDK v2.3.4.0 adds the new customer folder for customer code to be developed
independently of the SDK core code.

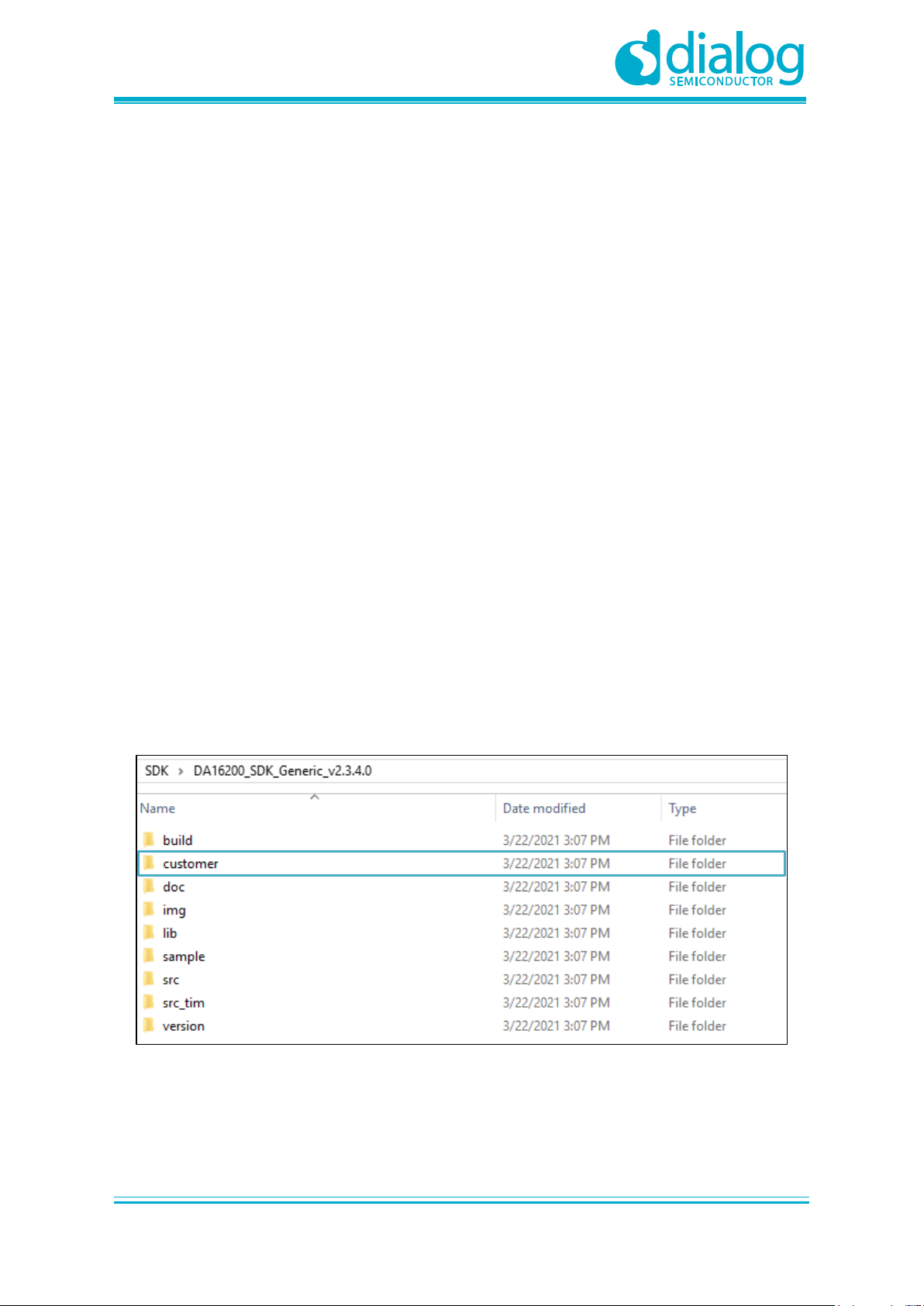

Figure 1: SDK Structure in v2.3.4.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
4 of 11
© 2021 Dialog Semiconductor
3.2 Customer Folder
The user application codes of v2.3.4.0 are combined in new customer folder that is composed of
three sub-folders:
● apps: user application code and header files
● main: start code and configuration header files
● project: customer SDK project files
Figure 2: New Customer Folder in v2.3.4.0
3.3 User Application Codes
The user application codes of v2.3.3.0 are distributed in several folders.
Figure 3: User Application Code in v2.3.3.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
5 of 11
© 2021 Dialog Semiconductor
The user application codes of v2.3.4.0 are combined in \customer\apps\src folder.
Figure 4: User Application Code in v2.3.4.0
4 IAR Project
4.1 IAR Workspace File
The IAR IDE workspace file in v2.3.3.0 is \build\DA16xxx.eww.
Figure 5: IAR IDE Workspace File in v2.3.3.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
6 of 11
© 2021 Dialog Semiconductor
The IAR IDE workspace file in v2.3.4.0 is \customer\project\DA16xxx.eww.
Figure 6: IAR IDE Workspace File in v2.3.4.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
7 of 11
© 2021 Dialog Semiconductor
4.2 IAR Project Structure
The DA16200 SDK v2.3.4.0 has 11 projects:
● common_host: Host interface initialize functions project
● sys_common: system common project
● atcmd: AT commands project
● http: HTTP client and server project
● ota: Over the air firmware update project
● mqtt: MQTT subscriber and publisher project
● coap: CoAP client and server project
● Iperf: NetX/NetX Duo IPerf project
● src_tim: PTIM project
● customer_app: customer application project
● main: main project
Figure 7: IAR Project Structure in v2.3.3.0
Figure 8: IAR Project Structure in v2.3.4.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
8 of 11
© 2021 Dialog Semiconductor
4.3 Change in IAR Project
4.3.1 User Application Code
The user application codes move to customer_app project from main project.
Figure 9: User Application Code in v2.3.3.0
Figure 10: User Application Code in v2.3.4.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
9 of 11
© 2021 Dialog Semiconductor
4.3.2 Provision Project
The provision project moves to the sample project of \sample\ETC\SoftAp_Provisioning.
Figure 11: Provision Project Location in v2.3.4.0
UM-WI-045
DA16200 SDK Porting Guide
User Manual
Revision 1.0
30-Mar-2021
CFR0012
10 of 11
© 2021 Dialog Semiconductor
