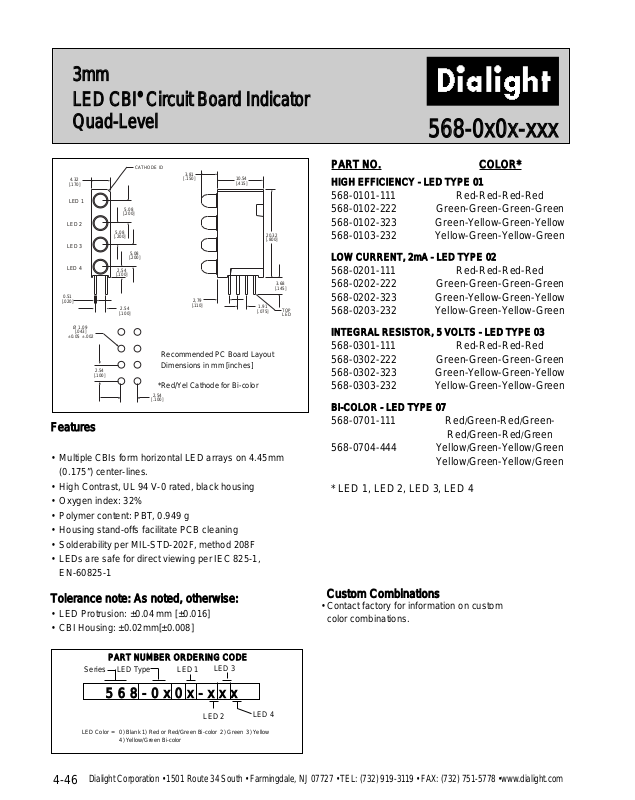

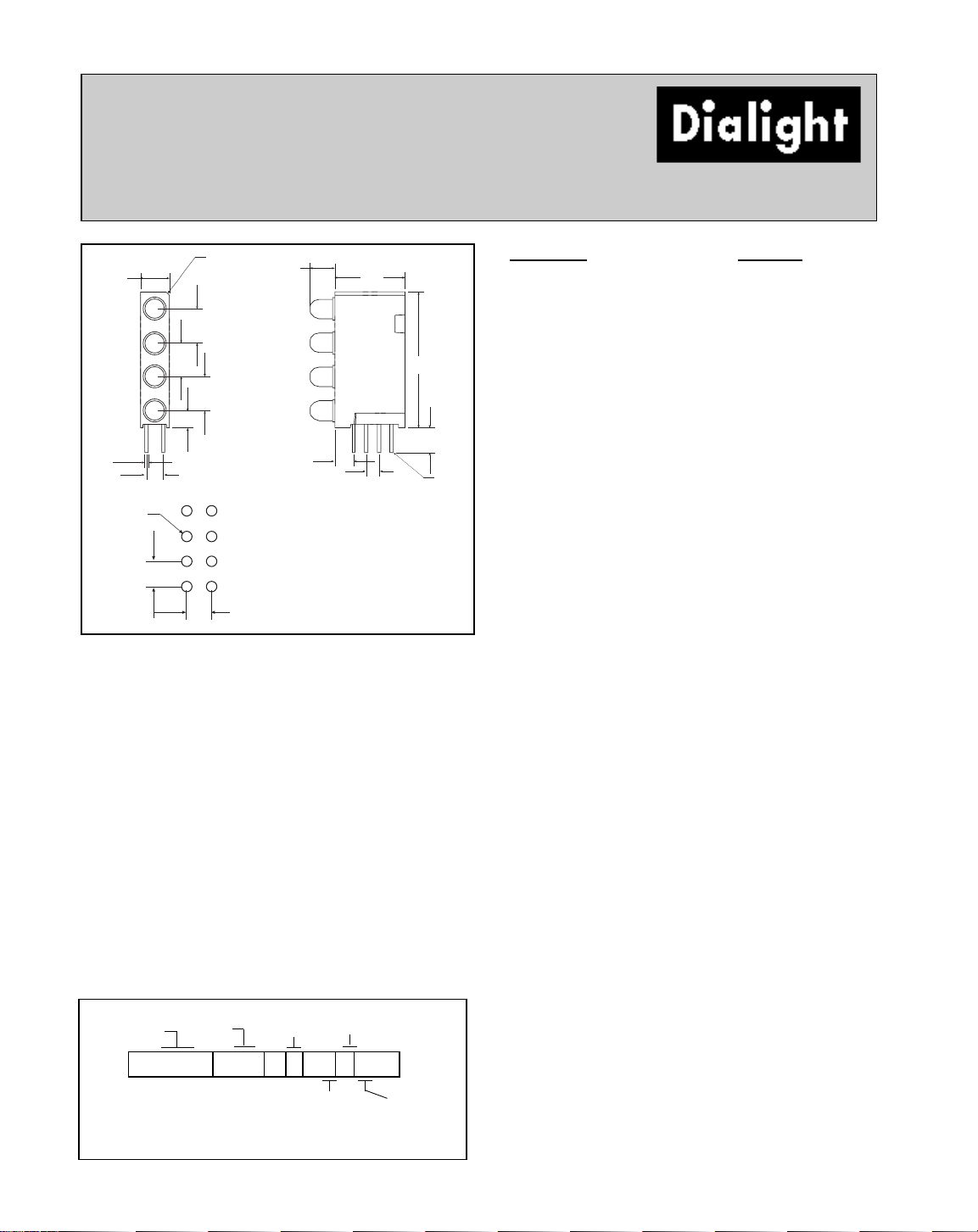

Page 1
4-46
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3mm
LED CBI
®
Circuit Board Indicator
Quad-Level
568-0x0x-xxx
CATHODE ID
PART NO. COLOR*
HIGH EFFICIENCY - LED TYPE 01
568-0101-111 Red-Red-Red-Red
568-0102-222 Green-Green-Green-Green
568-0102-323 Green-Yellow-Green-Yellow
568-0103-232 Yellow-Green-Yellow-Green
LOW CURRENT, 2mA - LED TYPE 02
568-0201-111 Red-Red-Red-Red
568-0202-222 Green-Green-Green-Green
568-0202-323 Green-Yellow-Green-Yellow
568-0203-232 Yellow-Green-Yellow-Green
INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 03
568-0301-111 Red-Red-Red-Red
568-0302-222 Green-Green-Green-Green
568-0302-323 Green-Yellow-Green-Yellow
568-0303-232 Yellow-Green-Yellow-Green
BI-COLOR - LED TYPE 07
568-0701-111 Red/Green-Red/Green-
Red
/Green-Red/Green
568-0704-444 Yellow
/Green-Yellow/Green
Yellow
/Green-Yellow/Green
* LED 1, LED 2, LED 3, LED 4
Features
• Multiple CBIs form horizontal LED arrays on 4.45mm
(0.175”) center-lines.
• High Contrast, UL 94 V-0 rated, black housing
• Oxygen index: 32%
• Polymer content: PBT, 0.949 g
• Housing stand-offs facilitate PCB cleaning
• Solderability per MIL-STD-202F, method 208F
• LEDs are safe for direct viewing per IEC 825-1,
EN-60825-1
Tolerance note: As noted, otherwise:
• LED Protrusion: ±0.04 mm [±0.016]
• CBI Housing: ±0.02mm[±0.008]
Recommended PC Board Layout
Dimensions in mm [inches]
5 6 8 - 0 x 0 x - x x x
LED Type
Series
PART NUMBER ORDERING CODE
*Red/Yel Cathode for Bi-color
LED Color = 0) Blank 1) Red or Red/Green Bi-color 2) Green 3) Yellow
4) Yellow/Green Bi-color
LED 1
LED 3
LED 2
LED 4
Custom Combinations
• Contact factory for information on custom
color combinations.
3,81
4.32
[.170]
LED 1
LED 2
LED 3
LED 4
0.51
[.020]
Ø 1.09
[.043]
±0.05 ±.002
2.54
[.100]
5.08
[.200]
[.100]
2,54
2.54
[.100]
5.08
[.200]
5.08
[.200]
[.150]
2,79
[.110]
2.54
[.100]
10.54
[.415]
1.91
[.075]
20.32
[.800]
3.68
[.145]
TOP
LED
Page 2
4-47
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4
568-0x0x-xxx
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ½Data sheet Page #
Red 635 10 2* 10 60° 521-9216 4-58
568-010x-xxx
Green 565 12.6 2.1* 10 60° 521-9210 4-58
Yellow 585 10 2.1* 10 60° 521-9211 4-58
HIGH EFFICIENCY
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ½Data sheet Page #
Red 635 1.6 1.7 2 60° 521-9324 4-60
568-020x-xxx Green 565 1.6 1.9 2 60° 521-9326 4-60
Yellow 585 1.6 1.8 2 60° 521-9325 4-60
LOW CURRENT
Peak I
V
Test Forward Viewing LED
Part Number Color Wavelength nm mcd Voltage Current (mA) Angle 2
ΘΘ½Data sheet Page #
Red 635 29 5 10 60° 521-9215 4-59
568-030x-xxx Green 565 19 5 10 60° 521-9323 4-59
Yellow 585 12.6 5 10 60° 521-9322 4-59
INTEGRAL RESISTOR, 5 VOLTS
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ½Data sheet Page #
568-0701-111 Red/Green 635/565 4.7/10 2/2.1 10 50° 521-9459 4-63
568-0704-444 Yellow/Green 585/565 4.3/6.3 2.1*/2.1* 10 80° 521-9478 4-62
BI-COLOR
Typical Operating Characteristics
(T
A
=25°C)
See LED data sheet for additional information
See Pages 4-73 and 4-74 for LED Drive Circuit Examples
See Page 4-72 for Pin Out
* IF= 20mA
* I
F
= 20mA

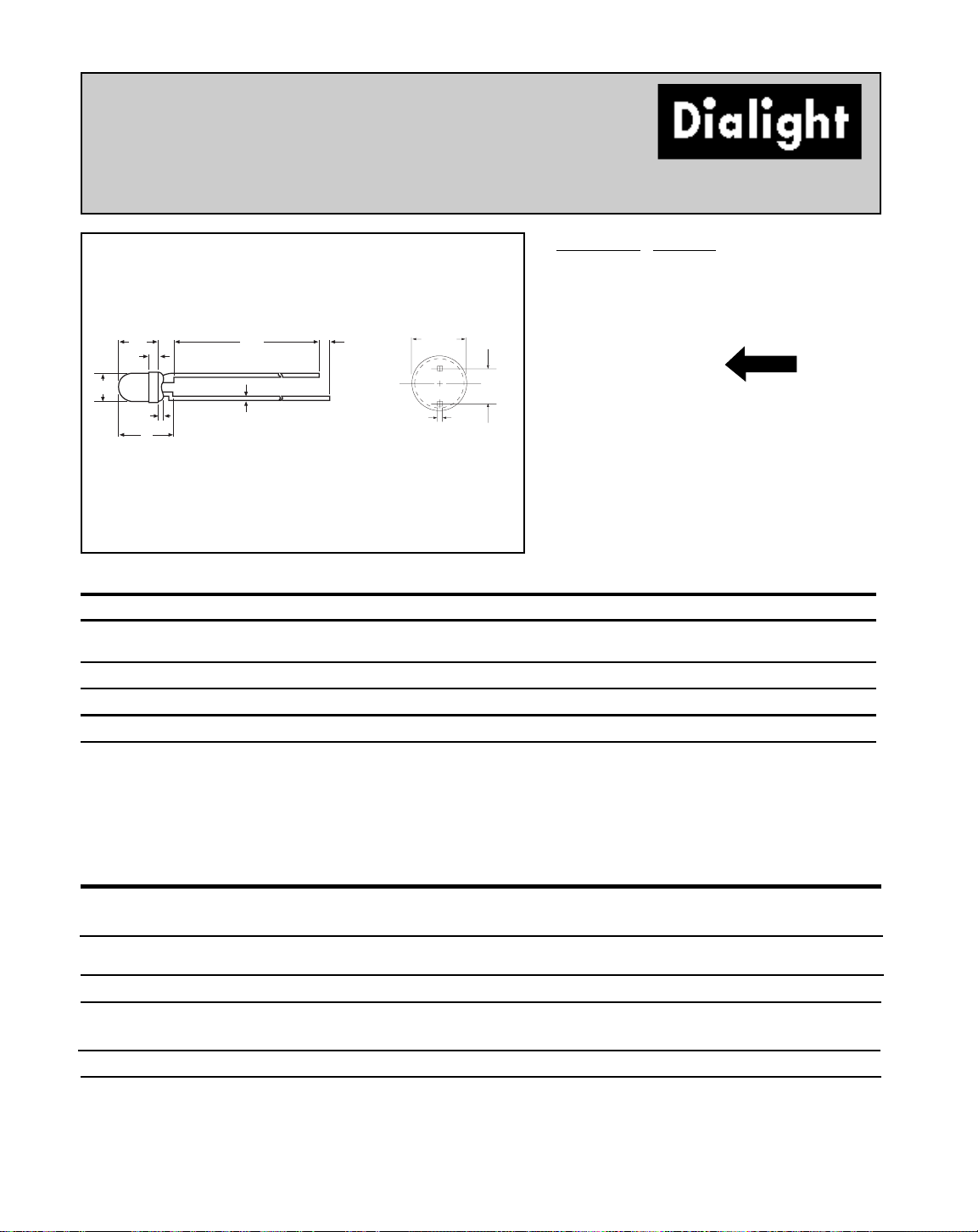

Page 3
4-58
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
Green Yellow Red Orange Red
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9210 -9211 -9216 -9498 -9636
Power Dissipation (mW) 100 60 100 135 100
Forward Current (mA) 30 20 30 25 40
Derating (mA/°C)
From 50°C
1
from 25°C .4 .25 .4 .5 .5
1
Operating Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from body
3mm Discrete LED
High Efficiency
Diffused
521-9210, -9211, -9216, -9498, -9636
PART NO. COLOR
521-9210 Green
521-9211 Yellow
521-9216 Red
521-9498 Orange
521-9636 Red
Green Yellow Red Orange Red
OPERATING CHARACTERISTICS (TA=25°C)
-9210 -9211 -9216 -9498 -9636
Luminous Intensity (mcd) Min. 4.7 7.4 7.4 3.4 8.7
1
IF=10mA1 IF=20mA Typical 12.6 10 10 7 48
1
Peak Wavelength (nm) Typical 565 585 635 600 660
λ Peak
Viewing Angle (2Θ ½) Typical 60° 60° 60° 60° 60°
Forward Voltage (V) Typical 2.1
1
2.1
1
2
1
2.2 1.8
1
IF=10mA1IF=20mA Max. 2.8
1
2.8
1
2.8
1
3 2.4
1
Reverse Voltage (V), IR=100µA Max. 5 5 5 5 4
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
short lead cathode all colors except 521-9636 Red.
For 521-9636 Red, short lead is anode.
NEW
[.016]
3.30
[.13]
2.54
[.100]
.40
4.45
[.175]
1.02
[.040]
3.00
[.118]
1.50
[.059]
MAX
6.00
[.236]
25.4
[1.0] MIN
.45
[.016 ]
1.02
[.040]
MIN
Page 4
4-59
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4
3mm Discrete LED
Integral Resistor, 5V
Diffused
521-9215, -9322, -9323
PART NO. COLOR
521-9215 Red
521-9322 Yellow
521-9323 Green
Red Yellow Green
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9215 -9322 -9323
Forward Voltage (V) 7.5 7.5 7.5
Derating (V/°C)
From 50°C
.086 .086 .071
Operating Temperature (°C) -40/+85 -40/+85 -20/+85
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red Yellow Green
OPERATING CHARACTERISTICS (TA=25°C)
-9215 -9322 -9323
Luminous Intensity (mcd) Min. 8.7 3.7 5.6
VF=5V Typical 29 12.6 19
Peak Wavelength (nm) Typical 635 585 565
λ Peak
Viewing Angle (2
Θ½) Typical 60° 60° 60°
Forward Current (mA) Typical 10 10 10
VF=5V Max. 20 20 20
Reverse Voltage (V), IR=100µA Min. 5 5 5
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
4.40 [.175]
1.01
[.040]
2.90
3.20
[.115]
[.125]
5.97 [.235] 2.41 [.950] MAX
1.0
[.040]
.457
[.018]
SQ.
1.27
[.050]
2.54
[.100]
CATHODE

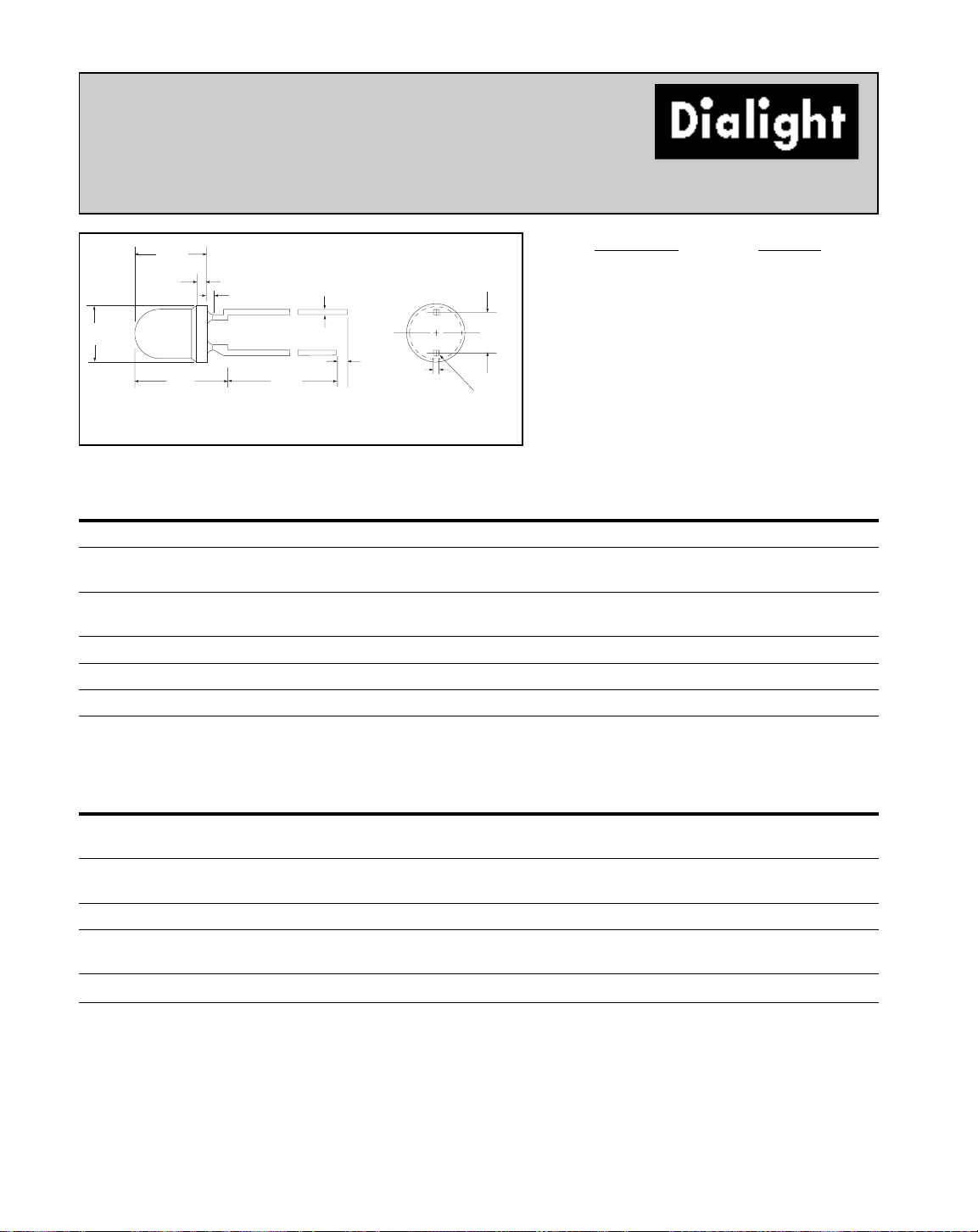

Page 5
4-60
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3mm Discrete LED
Low Current
Diffused
521-9324, -9325, -9326
4.4
PART NO. COLOR
521-9324 Red
521-9325 Yellow
521-9326 Green
Red Yellow Green
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9324 -9325 -9326
Power Dissipation (mW) 20 20 20
Forward Current (mA) 7 7 7
Derating (mA/°C)
From 90°C
.7 .7 .7
Peak Current (mA) 500 500 500
Pulse width = 10 µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red Yellow Green
OPERATING CHARACTERISTICS (TA=25°C)
-9324 -9325 -9326
Luminous Intensity (mcd) Min. 1 1 1
IF=2mA Typical 1.6 1.6 1.6
Peak Wavelength (nm) Typical 635 585 565
λ Peak
Viewing Angle (2
Θ
½
) Typical 60° 60° 60°
Forward Voltage (V) Typical 1.7 1.8 1.9
IF=2mA Max. 2.2 2.7 2.2
Reverse Voltage (V), IR=50µA Min. 5 5 5
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
[.175]
1.01
[.040]
3.3
[.130]
5.97
[.235]
1.0
[.040]
26.67
[1.05]
MIN.
[.016]
1.00
[.040]
.40
.40
[.016]
2.54
[.100]
CATHODE

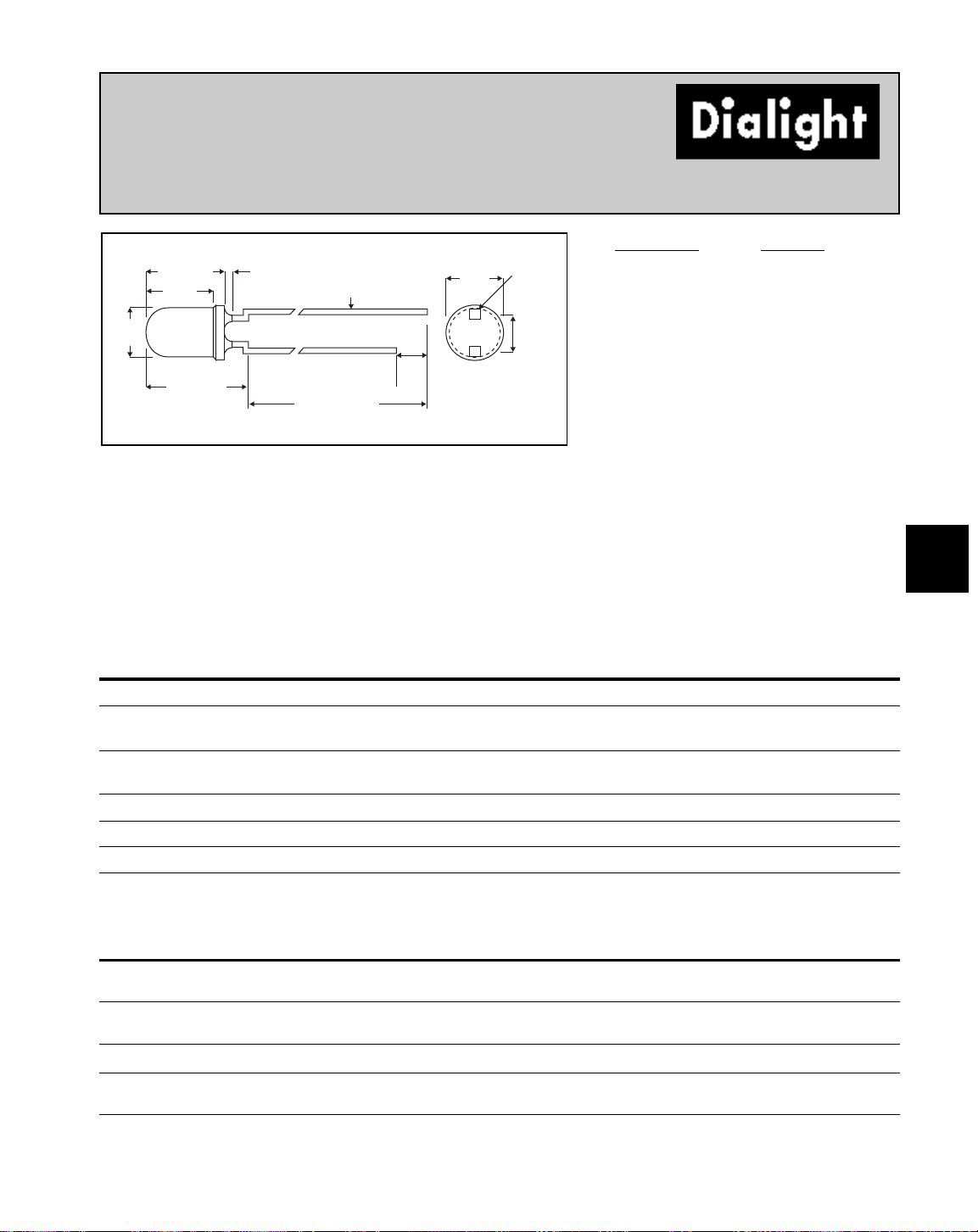

Page 6
4-62
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3mm Discrete LED
Bi-Color
Non-Tinted, Diffused
521-9478, -9628, -9768
PART NO. COLOR
521-9478 Yellow/Green
521-9628 Red/Green
521-9768 Red/Yellow
Yellow/Green Red/Green Red/Yellow
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9478 -9628 -9768
Power Dissipation (mW) 60/100 140/100 100/60
Forward Current (mA) 20/30 40/30 30/20
Derating (mA/°C)
From 25°C 1From 50°C
.251/.40
1
.5/.4 .41/.25
1
Peak Current (mA) 80/120 200/120 120/80
Pulse width = 10µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.66 mm from case
Yellow/Green Red/Green Red/Yellow
OPERATING CHARACTERISTICS (TA=25°C)
-9478 -9628 -9768
Luminous Intensity (mcd) Min. 2.5/2.5 3.7*/1.1* 1.7*/1.7*
IF=10mA * IF=20mA Typical 4.3/6.3 12.6*/3.7* 5.6*/5.6*
Peak Wavelength (nm) Typical 585/565 660/565 630/585
λ Peak
Viewing Angle (2
Θ
½
) Typical 80° 200° 80°
Forward Voltage (V) Typical 2.1/2.1 1.8/2.1 2/2.1
IF=20mA Max. 2.8/2.8 2.4/2.8 2.8/2.8
Reverse Voltage (V) IR=100ua Min. 5 5 5
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
25.40
[1.00]
MIN
RED CATHODE 521-9768
YELLOW CATHODE 521-9478
GREEN CATHODE 521-9628
3.00
[.118]
1.02
[.040]
4.45
[.175]
5.20 ±.5
[.205 ±.02]
NOTE:
MENISCUS MAY EXTEND 1.0MM [.040]
DOWN FROM HOUSING
2.54
.50
[.020]
TYP
[.100]
NOM
3.20
[.126]
MAX
2.54
[.100]
Page 7
4-63
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4
3mm Discrete LED
Bi-Color
Non-Tinted, Diffused
521-9459
PART NO. COLOR
521-9459 Red/Green
Red/Green
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9459
Power Dissipation (mW) 140
Forward Current (mA) 45
Derating (mA/°C)
From 25°C
.6
Peak Current (mA) 1000
Pulse width = 10µs
Operating Temperature (°C) -55/+100
Storage Temperature (°C) -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red/Green
OPERATING CHARACTERISTICS (TA=25°C)
-9459
Luminous Intensity (mcd) Min. 2.5/3.7
IF=10mA Typical 4.7/10
Peak Wavelength (nm) Typical 635/565
λ Peak
Viewing Angle (2
Θ½) Typical 50°
Forward Voltage (V) Typical 2/2.1
IF=10mA Max. 2.8/2.8
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
4.59 [.181]
4.0
[.158]
3.00
[.118]
6.10 [.240]
1.0
[.040]
.50
[.020] SQ.
NOM.
26.92 [1.06] MIN
1.80
[.071]
MAX
3.40
[.134]
MAX
CATHODE
GREEN
2.54
[.100]
