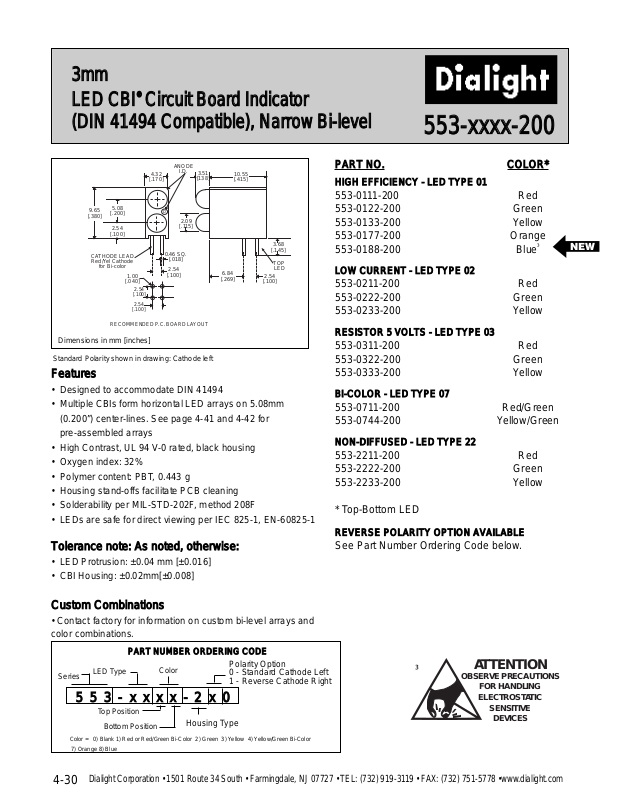

3mm
LED CBI
®
Circuit Board Indicator
(DIN 41494 Compatible), Narrow Bi-level
553-xxxx-200
ANODE
PART NO. COLOR*
HIGH EFFICIENCY - LED TYPE 01
553-0111-200 Red
553-0122-200 Green
553-0133-200 Yellow
553-0177-200 Orange
553-0188-200 Blue
³
LOW CURRENT - LED TYPE 02
553-0211-200 Red
553-0222-200 Green
553-0233-200 Yellow
RESISTOR 5 VOLTS - LED TYPE 03
553-0311-200 Red
553-0322-200 Green
553-0333-200 Yellow
BI-COLOR - LED TYPE 07
553-0711-200 Red/Green
553-0744-200 Yellow/Green
NON-DIFFUSED - LED TYPE 22
553-2211-200 Red
553-2222-200 Green
553-2233-200 Yellow
* Top-Bottom LED
REVERSE POLARITY OPTION AVAILABLE
See Part Number Ordering Code below.
Features
• Designed to accommodate DIN 41494
• Multiple CBIs form horizontal LED arrays on 5.08mm
(0.200”) center-lines. See page 4-41 and 4-42 for
pre-assembled arrays
• High Contrast, UL 94 V-0 rated, black housing
• Oxygen index: 32%
• Polymer content: PBT, 0.443 g
• Housing stand-offs facilitate PCB cleaning
• Solderability per MIL-STD-202F, method 208F
• LEDs are safe for direct viewing per IEC 825-1, EN-60825-1
Tolerance note: As noted, otherwise:
• LED Protrusion: ±0.04 mm [±0.016]
• CBI Housing: ±0.02mm[±0.008]
Custom Combinations
• Contact factory for information on custom bi-level arrays and
color combinations.
Dimensions in mm [inches]
Standard Polarity shown in drawing: Cathode left
Color
5 5 3 - x x x x - 2 x 0
Top Position
Bottom Position
LED Type
Series
PART NUMBER ORDERING CODE
Housing Type
Polarity Option
0 - Standard Cathode Left
1 - Reverse Cathode Right
NEW
³
I.D.
0.46 SQ.
[.018]
2.54
[.100]
2.09
[.115]
3.51
[138]
4.32
[.170]
5.08
9.65
[.200]
[.380]
2.54
[.100]
CATHODE LEAD
Red/Yel Cathode
for Bi-color
1.00
[.040]
RECOMMENDED P.C. BOARD LAYOUT
2.54
[.100]
2.54
[.100]
D
6.84
[.269]
10.55
[.415]
2.54
[.100]
3.68
[.145]
TOP
LED
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES

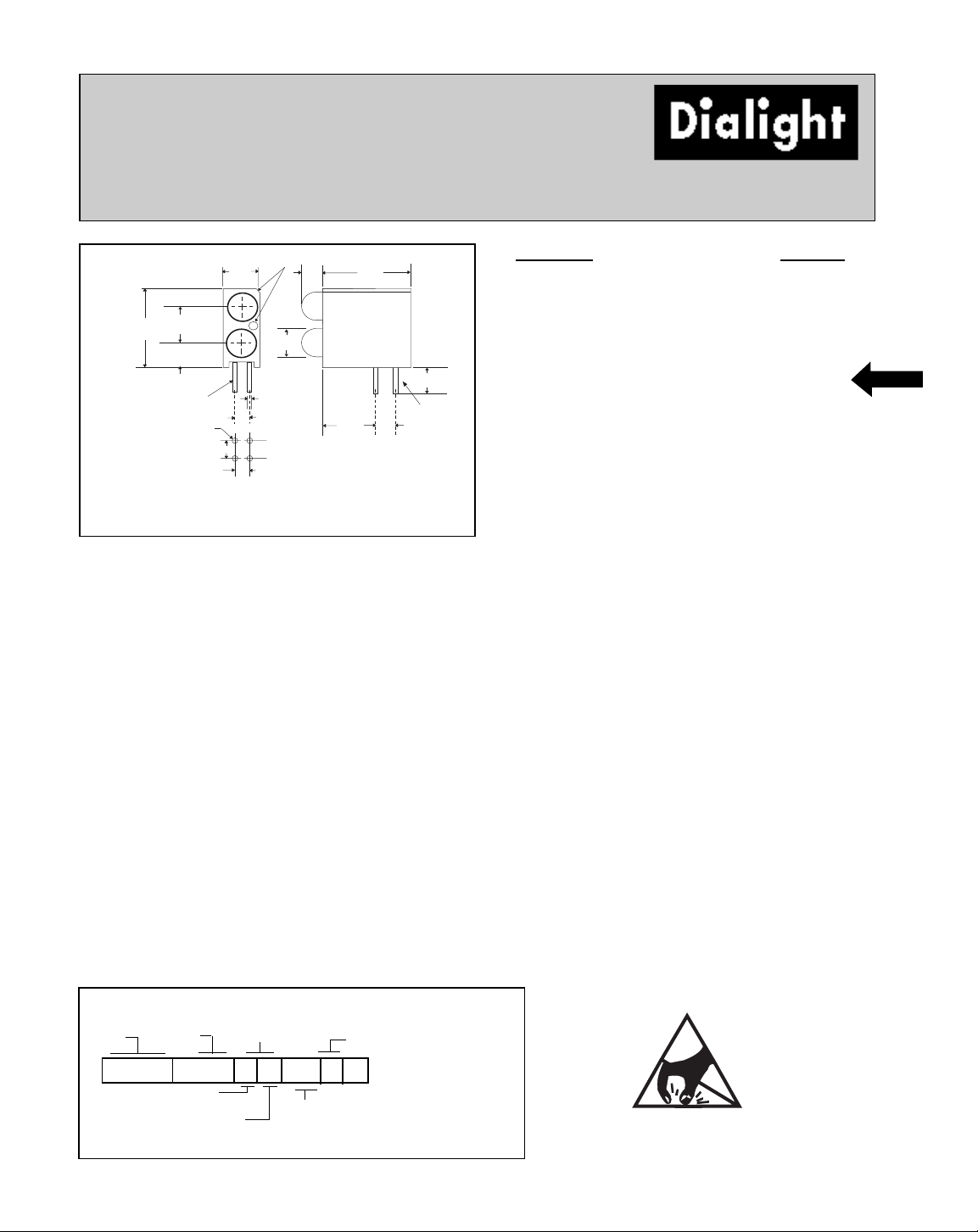

Page 2
4-31
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4
553-xxxx-200
(DIN 41494 compatible)
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ½Data sheet Page #
553-0111-200 Red 635 10 2* 10 60° 521-9216 4-58
553-0122-200 Green 565 12.6 2.1* 10 60° 521-9210 4-58
553-0133-200 Yellow 585 10 2.1* 10 60° 521-9211 4-58
553-0177-200 Orange 600 7 2.2 10 60° 521-9498 4-58
553-0188-200 Blue 428 12 3.5 10 70° 521-9831 4-57
HIGH EFFICIENCY
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ½Data sheet Page #
553-0211-200 Red 635 1.6 1.7 2 60° 521-9324 4-60
553-0222-200 Green 565 1.6 1.9 2 60° 521-9326 4-60
553-0233-200 Yellow 585 1.6 1.8 2 60° 521-9325 4-60
LOW CURRENT
Peak I
V
Test Forward Viewing LED
Part Number Color Wavelength nm mcd Voltage Current (mA) Angle 2
ΘΘ
½
Data sheet Page #
553-0311-200 Red 635 29 5 10 60° 521-9215 4-59
553-0322-200 Green 565 19 5 10 60° 521-9323 4-59
553-0333-200 Yellow 585 12.6 5 10 60° 521-9322 4-59
INTEGRAL RESISTOR, 5 VOLTS
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts Current (mA) Angle 2
ΘΘ½Data sheet Page #
553-0711-200 Red/Green 635/565 4.7/10 2/2.1 10 50° 521-9459 4-63
553-0744-200 Yellow/Green 585/565 4.3/6.3 2.1*/2.1* 10 80° 521-9478 4-62
BI-COLOR
Peak I
V
V
F
Test Viewing LED
Part Number Color Wavelength nm mcd Volts* Current (mA) Angle 2
ΘΘ½Data sheet Page #
553-2211-200 Red 635 29 2 10 45° 521-9432 4-61
553-2222-200 Green 565 50 2.1 10 45° 521-9430 4-61
553-2233-200 Yellow 585 20 2.1 10 45° 521-9431 4-61
NON-DIFFUSED
Typical Operating Characteristics
(TA=25°C)
See LED data sheet for additional information
See page 4-70 and 4-71 for Reference Only LED Drive Circuit Examples. See page 4-72 for Pin Out
CBI ARRAYS .200 PITCH
Dialight offers its Multiarray to reduce insertions and to assure indicator alignment. Multiarrays mount indicators on .200 centers. These
assemblies are available in arrays of 2 to 6. See pages 4-41 and 4-42 for information. Call factory for information on .185 pitched arrays.
* IF= 20mA
* I
F
= 20mA
* I
F
= 20mA
Page 3
4-57
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4

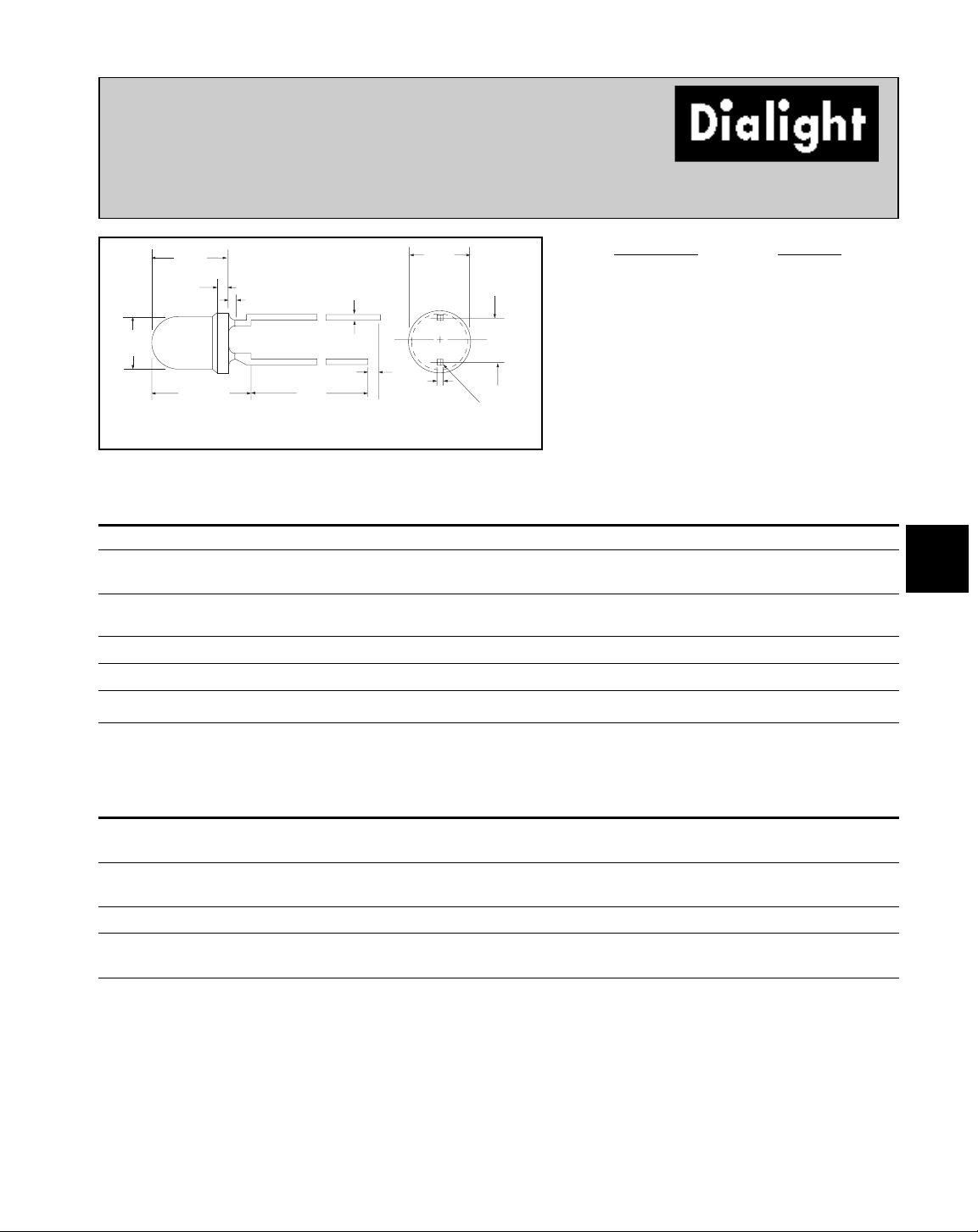

3mm Discrete LED
Tinted, Diffused
521-9831
SURFACE NOT FLAT
PART NO. COLOR
521-9831 Blue
³
Blue
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9831
Power Dissipation (mW) 100
Forward Current (mA) 20
Derating (mA/°C)
From 55°C
.44
Operating Temperature (°C) -40/+100
Storage Temperature (°C) -40/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Blue
OPERATING CHARACTERISTICS (TA=25°C)
-9831
Luminous Intensity (mcd) Min. 6.3
IF=10mA Typical 12
Peak Wavelength (nm) Typical 428
λ Peak
Viewing Angle (2
Θ½) Typical 70°
Forward Voltage (V) Typical 3.5
IF=10mA Max. 4.2
Reverse Voltage (V) IR=10µA Min. 3
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
³
NEW
0.7 [.028]
1.8 [.071]
1.2 [.047]
0.4 [.016]
4.8 [.189]
4.4 [.173]
2.9 [.114]
ø
2.7 [.106]
3.7 [.145]
3.5 [.138]
6.1 [.240]
5.7 [.224]
4.8 [.189]
4.4 [.173]
CATHODE
29 [1.142]
27 [1.063]
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
0.6 [.024]
0.4 [.016]
2.54 [.100]
3.4 [.134]
3.1 [.122]
0.6 [.024]
0.4 [.016]
Page 4
4-58
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
Green Yellow Red Orange Red
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9210 -9211 -9216 -9498 -9636
Power Dissipation (mW) 100 60 100 135 100
Forward Current (mA) 30 20 30 25 40
Derating (mA/°C)
From 50°C
1
from 25°C .4 .25 .4 .5 .5
1
Operating Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from body

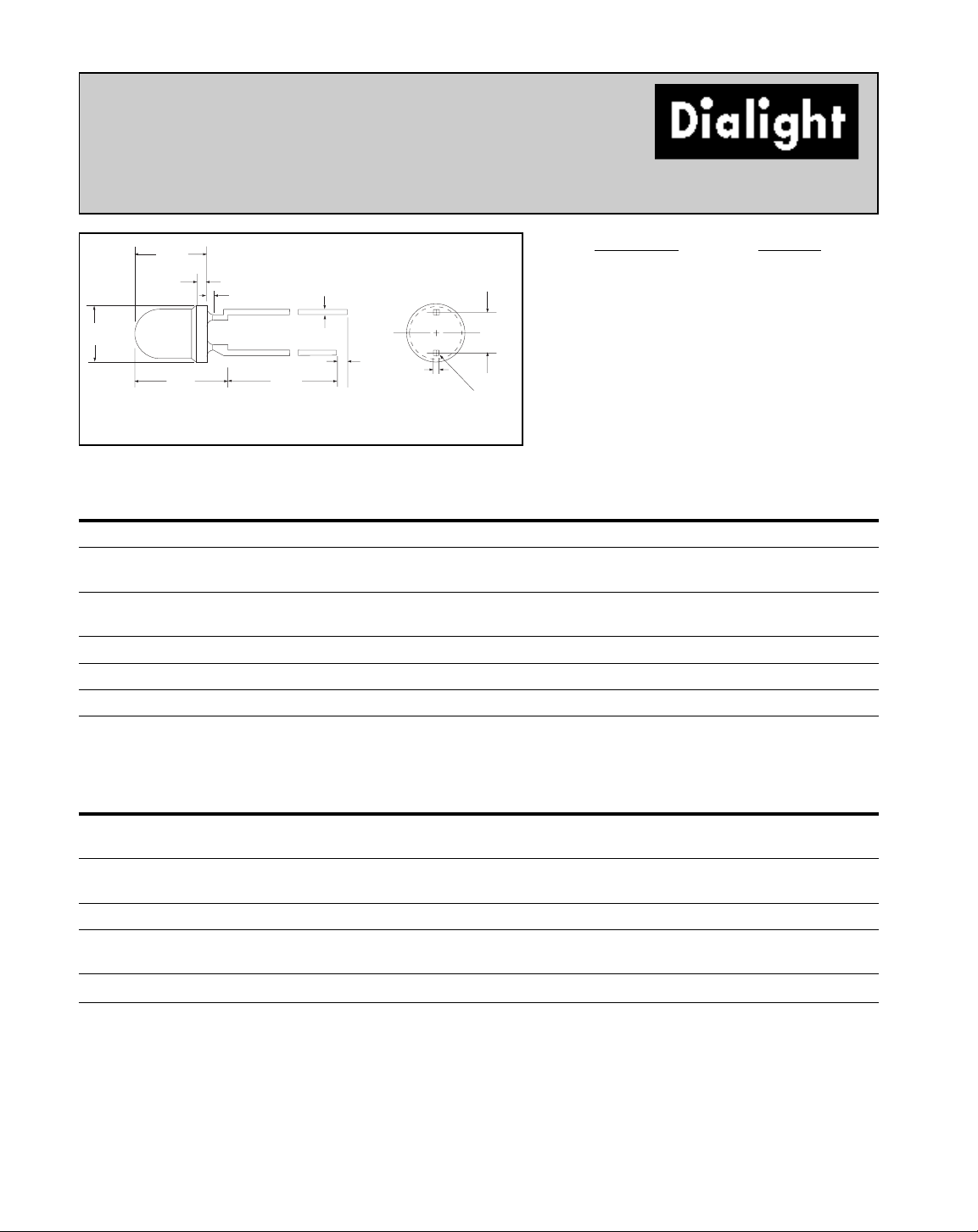

3mm Discrete LED
High Efficiency
Diffused
521-9210, -9211, -9216, -9498, -9636
PART NO. COLOR
521-9210 Green
521-9211 Yellow
521-9216 Red
521-9498 Orange
521-9636 Red
Green Yellow Red Orange Red
OPERATING CHARACTERISTICS (TA=25°C)
-9210 -9211 -9216 -9498 -9636
Luminous Intensity (mcd) Min. 4.7 7.4 7.4 3.4 8.7
1
IF=10mA1 IF=20mA Typical 12.6 10 10 7 48
1
Peak Wavelength (nm) Typical 565 585 635 600 660
λ Peak
Viewing Angle (2Θ ½) Typical 60° 60° 60° 60° 60°
Forward Voltage (V) Typical 2.1
1
2.1
1
2
1
2.2 1.8
1
IF=10mA1IF=20mA Max. 2.8
1
2.8
1
2.8
1
3 2.4
1
Reverse Voltage (V), IR=100µA Max. 5 5 5 5 4
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
short lead cathode all colors except 521-9636 Red.
For 521-9636 Red, short lead is anode.
NEW
[.016]
3.30
[.13]
2.54
[.100]
.40
4.45
[.175]
1.02
[.040]
3.00
[.118]
1.50
[.059]
MAX
6.00
[.236]
25.4
[1.0] MIN
.45
[.016 ]
1.02
[.040]
MIN
Page 5
4-59
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4

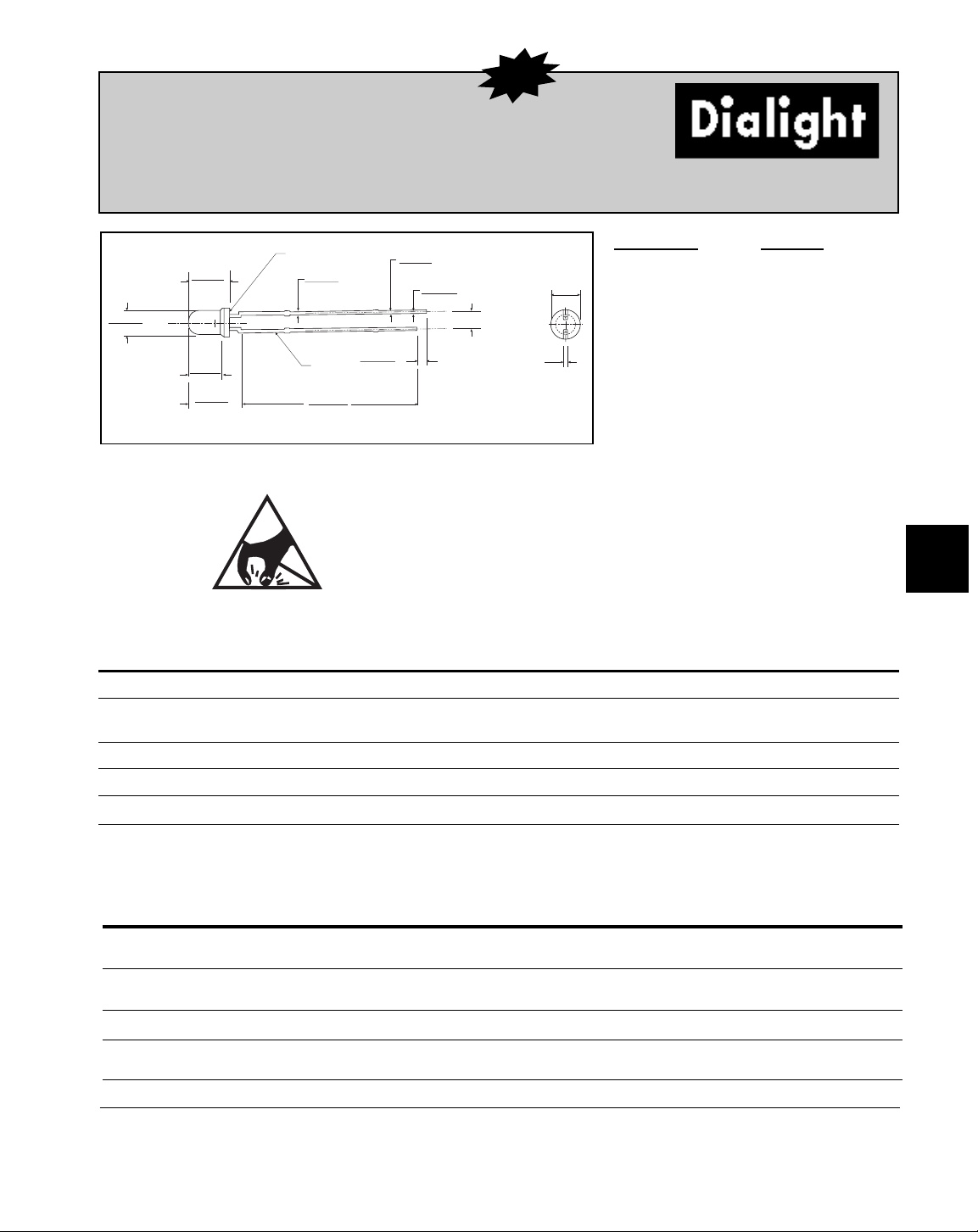

3mm Discrete LED
Integral Resistor, 5V
Diffused
521-9215, -9322, -9323
PART NO. COLOR
521-9215 Red
521-9322 Yellow
521-9323 Green
Red Yellow Green
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9215 -9322 -9323
Forward Voltage (V) 7.5 7.5 7.5
Derating (V/°C)
From 50°C
.086 .086 .071
Operating Temperature (°C) -40/+85 -40/+85 -20/+85
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red Yellow Green
OPERATING CHARACTERISTICS (TA=25°C)
-9215 -9322 -9323
Luminous Intensity (mcd) Min. 8.7 3.7 5.6
VF=5V Typical 29 12.6 19
Peak Wavelength (nm) Typical 635 585 565
λ Peak
Viewing Angle (2
Θ½) Typical 60° 60° 60°
Forward Current (mA) Typical 10 10 10
VF=5V Max. 20 20 20
Reverse Voltage (V), IR=100µA Min. 5 5 5
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
4.40 [.175]
1.01
[.040]
2.90
3.20
[.115]
[.125]
5.97 [.235] 2.41 [.950] MAX
1.0
[.040]
.457
[.018]
SQ.
1.27
[.050]
2.54
[.100]
CATHODE
Page 6
4-60
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com

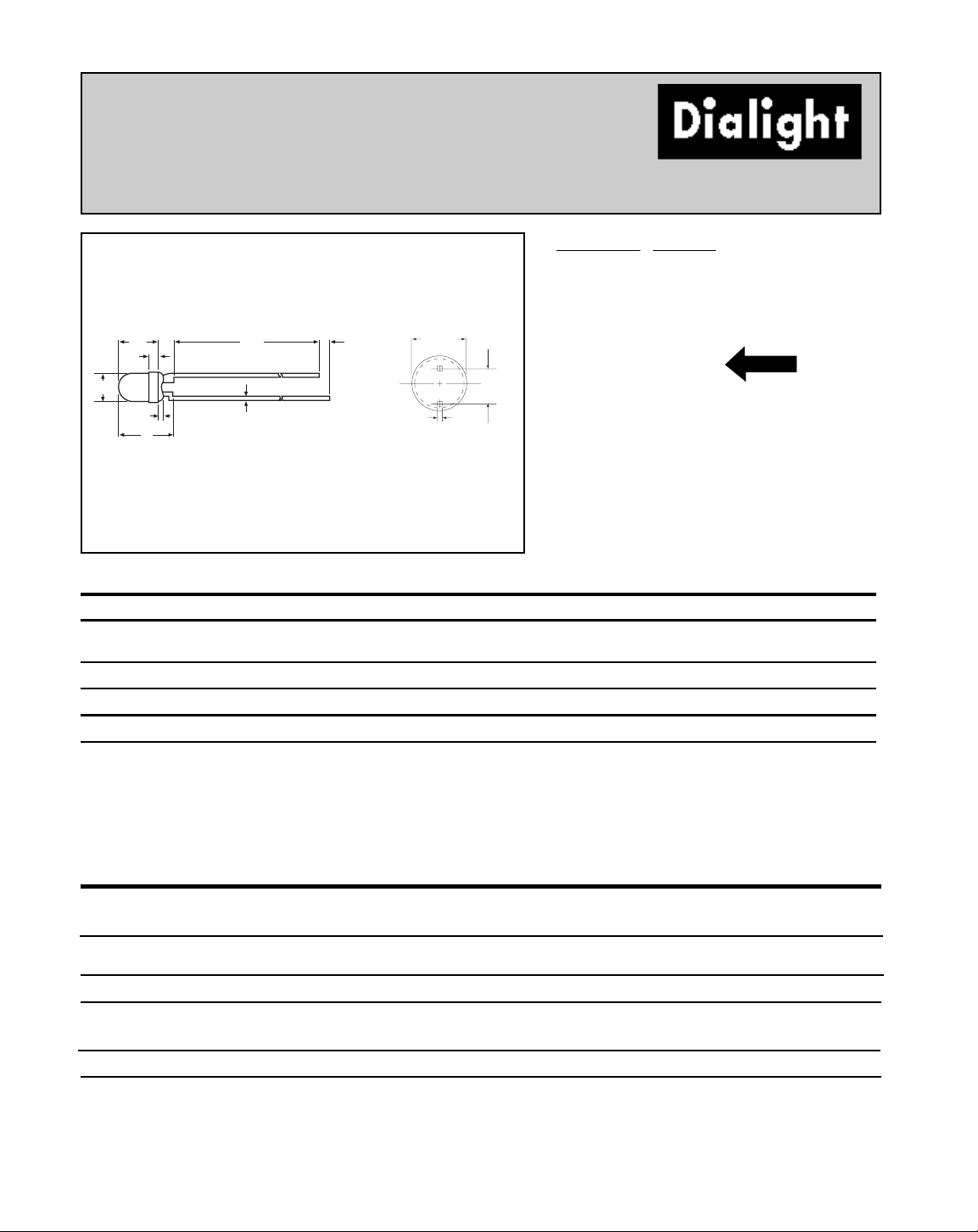

3mm Discrete LED
Low Current
Diffused
521-9324, -9325, -9326
4.4
PART NO. COLOR
521-9324 Red
521-9325 Yellow
521-9326 Green
Red Yellow Green
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9324 -9325 -9326
Power Dissipation (mW) 20 20 20
Forward Current (mA) 7 7 7
Derating (mA/°C)
From 90°C
.7 .7 .7
Peak Current (mA) 500 500 500
Pulse width = 10 µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Red Yellow Green
OPERATING CHARACTERISTICS (TA=25°C)
-9324 -9325 -9326
Luminous Intensity (mcd) Min. 1 1 1
IF=2mA Typical 1.6 1.6 1.6
Peak Wavelength (nm) Typical 635 585 565
λ Peak
Viewing Angle (2
Θ
½
) Typical 60° 60° 60°
Forward Voltage (V) Typical 1.7 1.8 1.9
IF=2mA Max. 2.2 2.7 2.2
Reverse Voltage (V), IR=50µA Min. 5 5 5
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
[.175]
1.01
[.040]
3.3
[.130]
5.97
[.235]
1.0
[.040]
26.67
[1.05]
MIN.
[.016]
1.00
[.040]
.40
.40
[.016]
2.54
[.100]
CATHODE
Page 7
4-61
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
4
3mm Discrete LED
High Efficiency
Tinted, Non-Diffused
521-9430, -9431, -9432
3.2
E
PART NO. COLOR
521-9430 Green
521-9431 Yellow
521-9432 Red
Green Yellow Red
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9430 -9431 -9432
Power Dissipation (mW) 100 60 100
Forward Current (mA) 30 20 30
Derating (mA/°C)
From 50°C
.4 .25 .4
Peak Current (mA) 120 80 120
Pulse width = 100µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.6 mm from case
Green Yellow Red
OPERATING CHARACTERISTICS (TA=25°C)
-9430 -9431 -9432
Luminous Intensity (mcd) Min. 32 10 8.7
IF=10mA Typical 50 20 29
Peak Wavelength (nm) Typical 565 585 635
λ Peak
Viewing Angle (2
Θ½) Typical 45° 45° 45°
Forward Voltage (V) Typical 2.1 2.1 2
IF=20mA Max. 2.8 2.8 2.8
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
4.44
[.175]
1.0
[.040]
3.0
[.118]
5.97 MAX
[.235]
1.0
[.040]
25.4
[.100]
MIN
.457
[.018]
1.27
[.050]
.40
[.016]
[.126]
2.54
[.100]
CATHOD
Page 8
4-62
Dialight Corporation • 1501 Route 34 South • Farmingdale, NJ 07727 • TEL: (732) 919-31 19 • FAX: (732) 751-5778 •www.dialight.com
3mm Discrete LED
Bi-Color
Non-Tinted, Diffused
521-9478, -9628, -9768
PART NO. COLOR
521-9478 Yellow/Green
521-9628 Red/Green
521-9768 Red/Yellow
Yellow/Green Red/Green Red/Yellow
ABSOLUTE MAXIMUM RATINGS (TA=25°C)
-9478 -9628 -9768
Power Dissipation (mW) 60/100 140/100 100/60
Forward Current (mA) 20/30 40/30 30/20
Derating (mA/°C)
From 25°C 1From 50°C
.251/.40
1
.5/.4 .41/.25
1
Peak Current (mA) 80/120 200/120 120/80
Pulse width = 10µs
Operating Temperature (°C) -55/+100 -55/+100 -55/+100
Storage Temperature (°C) -55/+100 -55/+100 -55/+100
Soldering Temperature 260°C, 5 seconds, 1.66 mm from case
Yellow/Green Red/Green Red/Yellow
OPERATING CHARACTERISTICS (TA=25°C)
-9478 -9628 -9768
Luminous Intensity (mcd) Min. 2.5/2.5 3.7*/1.1* 1.7*/1.7*
IF=10mA * IF=20mA Typical 4.3/6.3 12.6*/3.7* 5.6*/5.6*
Peak Wavelength (nm) Typical 585/565 660/565 630/585
λ Peak
Viewing Angle (2
Θ
½
) Typical 80° 200° 80°
Forward Voltage (V) Typical 2.1/2.1 1.8/2.1 2/2.1
IF=20mA Max. 2.8/2.8 2.4/2.8 2.8/2.8
Reverse Voltage (V) IR=100ua Min. 5 5 5
Dimensions in mm [inches]
Θ
is the off axis angle at which the luminous intensity is half the axial luminous intensity
Solder Adherence per MIL-STD-202E, Method 208C
MOUNTING CLIP:
515-0006
located on page 4-65
25.40
[1.00]
MIN
RED CATHODE 521-9768
YELLOW CATHODE 521-9478
GREEN CATHODE 521-9628
[.020]
3.00
[.118]
1.02
[.040]
4.45
[.175]
5.20 ±.5
[.205 ±.02]
NOTE:
MENISCUS MAY EXTEND 1.0MM [.040]
DOWN FROM HOUSING
2.54
.50
TYP
[.100]
NOM
3.20
[.126]
MAX
2.54
[.100]
Loading...
