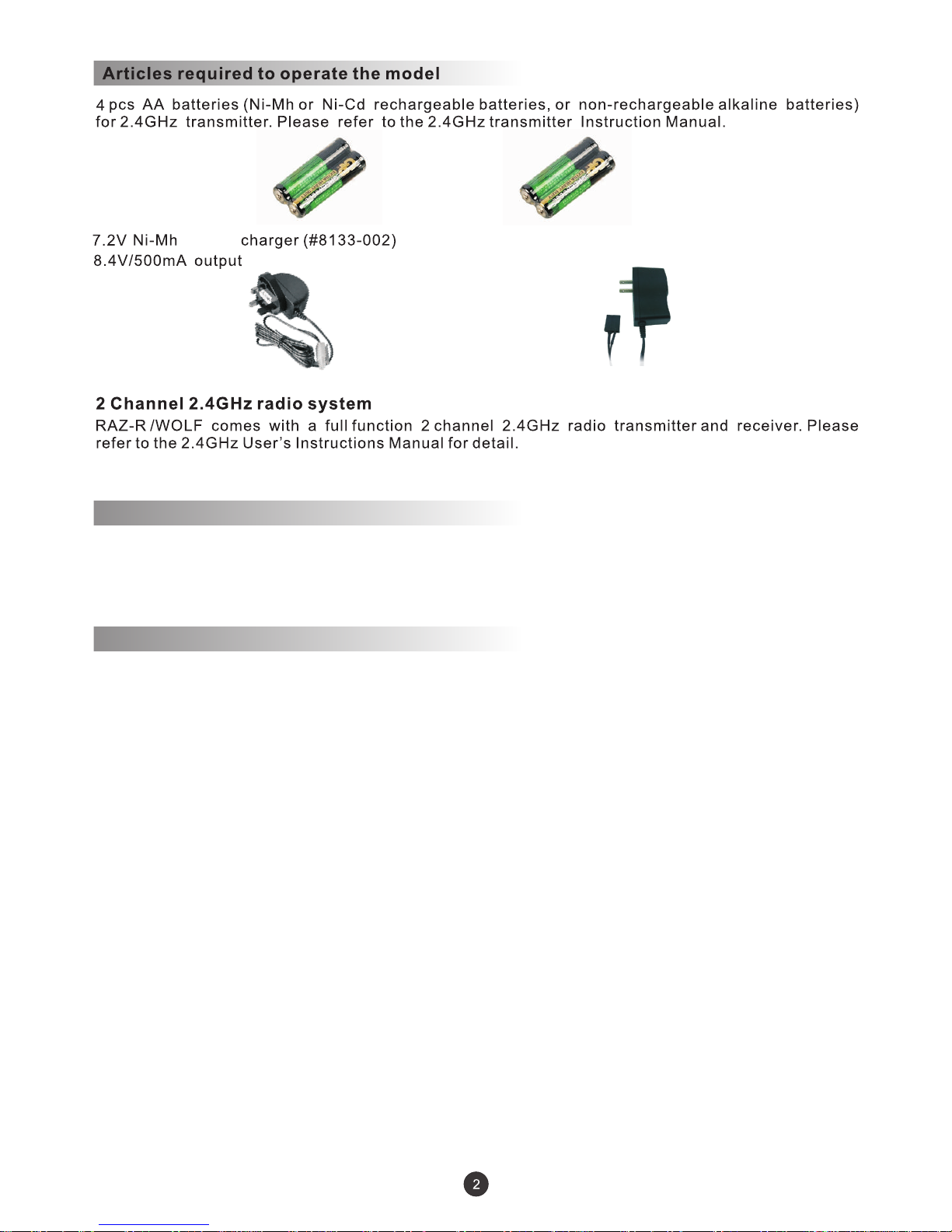

8.4V NiMh battery charger (#H131) 9.8V/800mA
output
battery
Raz-R/Wolf comes with 45A brushed electronic speed controller (Version A).
Version A (6-cell NiMh battery)
For this version, the battery that comes with the Raz-R/Wolf is a 6-cell 7.2V SC type NiMh battery. The
battery is with Tamiya style connector, so does the battery charger. Besides, the ESC also has a Tamiya
connector to match it on the battery.
Below you may read the features and specifications of the ESC that’s equipped on Raz-R/Wolf.
Instructions on ESC (Part# H111) V2.3
The brushed ESC is for brushed RC models. To maximize its function, you are kindly advised to read the
following notes.
This ESC is compatible with Lipo battery, NiCd and NiMh battery. For Lipo battery, 2S cell only. The ESC
complies with as high as 7.2V NiCd/NiMh battery. It works with low voltage from 4.8V.
Speficiations
Input: 6V-8.4V
BEC: 2A/5.6V
Continuous current: 80A
Burst current: 320A (forward), 250A(brake), 160A(backward)
Peak current: 320A
Fail safe device: Yes
Low voltage protection: Yes
Over voltage protection: Yes
Compatible with 550 motor: 10T-23T (Preferably with 15T motor)
Dimension: 34*34*15.2mm
Operations
1>Plug in battery wire, Red pin is positive pole, Black pin is negative pole. Connecting to standard DC plug is
also fine.
2>Switch on the power, there comes alarming sound if no signal is sent. The alarming sound stops when
signal is sent out.
3>Switch on the transmitter. Move the trim to neutral point at which location red or green LED stops flashing.
Push the throttle trigger, green LED is on, the model goes forward. Pull the trigger back after neutral point
brings you to brake status. The more you pull the trigger backward, the greater the brake is being
commended. Release the trigger to neutral point, and pull it back to brake the model. At this time, the red
LED is on.
Warning
Avoid water. Avoid reverse connection.
Special features
The low voltage protection stops the unit when the average voltage reaches 5V, this greatly avoids battery
damage. This also helps to reduce negative impact to nearby electronic devices. As compact a device as
this ESC is, it provides powerful energy, but with as low resistance as 0.0013Ω. The emulated brake
technology greatly improves the stableness, it also effectively reduces the sparks produced by the brush
and motor turns to prolong the brush life span.
Raz-R truck also comes with 7-cell NiMh battery (Version B) to improve its performance and speed.
Version B (7-cell NiMh battery)
For this version, the battery that comes with the Raz-R truck is a 7-cell 8.4V SC type NiMh battery. The
battery is with T-connector, so does the battery charger. Besides, the ESC also has a T-connector to match
it on the battery.
Below you may read the features and specifications of the high voltage ESC for your Raz-R truck.
High Voltage ESC (Part# H126)
Features
1. Auto search throttle neutral point.
2. HF drive system
3. Over-heat protection (90C°)
4. Lipo battery low-voltage protection (2S Lipo-6.6V cutoff, 3S Lipo-9.9V shut down)
5. Low internal resistance & big capacity PCB board, providing great resistance to high current.
6. Forward, brake and reverse functions, good for both vehicles and boats.
Specifications
Forward current: 380A
Reverse current: 190A
Brake current: 250A
Voltage range: 4.8V-12.6V
PWM frequency: 1.5KHz
BEC voltage: 5V/2A
Operation
To obtain forward, brake and reverse functions and to switch battery types, kindly refer to the following
Skipping Needles Matrix for detail. This matrix provides clear information for operation.
Skipping Needles Matrix
3
1, 2
2, 3
Forward, brake, no reverse
3, 4
Lipo battery
5, 6
NiMh battery
Needles Functions
Forward, brake, reverse
Needles placement and corresponding
functions
①
②
③
④ ⑤
⑥
4
This model comes with single pack high rate NiMh stick-type battery.
This model comes with single pack high rate NiMh stick-type battery.
5
Part# Desc
8133-100
Assembly of diff gear box
8133-101 Diff set
8133-102 Crow n gear-41T (large)/pinion gear-11T (small)
8133-103 Assembly of the pinion gear
8381-102 Diff outdrive/pins (dia 2*10mm)
8381-103 Pins(dia 2*10mm) (16 pcs )
8381-104
Flathead screw -coarse thread(KB2.6*10mm)
(16 pcs)
8381-106 Diff case set/diff cas e cov er/diff gas ket
8381-107 Washer-A/w asher-B (8 pcs each)
8381-108 Gear-18T (2 pcs)/gear-12T (4 pcs )
8381-109 O Ring(dia 8mm*dia 2mm) (16 pcs)
8381-110 Ball bearing(dia 10mm*dia 15*4mm) (2 pcs)
8381-111 Diff pins(dia 4*25.8mm) (4 pcs)
8381-113 Flathead screw (KM2.6X6mm) (16 pcs)
8381-114 Ball bearing(dia 8mm*dia14*4mm) (2 pcs)
8381-115 Pins(dia 2*8mm) (16 pcs )
8381-116 Pinion gear outdrive/pins(dia 2*8mm)
8381-117 Ball bearing(dia 5mm*dia 11*4mm) (2 pcs)
8381-118 Diff gear box-F/R
8381-119
B head screw -coarse thread(BB3*16mm) (16
pcs)
8131-200 Diff box assembly
8131-201 Diff outdrive/pins (dia 2*10mm)
8131-202 Brackets (2 pcs)
8131-203 Diff gear box (diff gear cover upper/low er)
8131-204 Spur gear-53T (plastic) (2 pcs)
8131-205 Center diff outdrive/lock nut(M4*4mm)
8381-204 Set screw s (M4*4mm) (16 pcs)
8131-300 Shock absorber complete (2 PCS)
8131-301 Shock spring (4 pcs)
8381-305 Shock ball (8 pcs)
8381-306 M3 nylon nut (8 pcs)
8381-309 Shock shaf t (4 pcs)
8381-404 Set screw s (M3*3mm) (8 pcs)
8131-50L Assembly of upper sus .arm-Left
8131-50R A ss embly of upper sus.arm-Right
8131-501 Upper sus.arm/rod end (2 sets)
8131-502 Upper sus.arm linkage (2 pcs)
8381-501 Upper sus.arm ball (4 pcs)
8131-600 Servo saver assembly-complete
Part# Desc
8131-602
Steering plate
8381-601 Brass w asher (4 pcs)
8381-602 Servo saver bushing/adjustment ring
8381-604
Servo saver sus. Arm-upper/low er/steering
sus. Arm
8381-605
B head screw -coarse thread(BB3*12mm) (16
pcs)
8381-606 Screw bushing (16 pcs)
8381-608 Shaft (2 pcs)
8131-6Z0 Assembly of steering linkage (2PCS)
8381-6Z2 Plastic rod end (8 pcs)
8381-6Z3 Double w ay ball end (8 pcs)
8131-701 Low er sus.arm-f ront (2 pcs)
8131-702 Drive shaft set-A (2 pcs)
8131-703 Wheel axle (2 pcs)
8131-704 T head screw (TM4*17mm) (16 pcs)
8131-705 Steering arm (2 pcs)
8131-706 Hex adaptor (4 pcs)/12mm nut
8131-707 M6 lock nut (4 pcs)
8381-701 Upper sus.arm mount-rear/suspension mount
8381-702
B head screw -coarse thread(BB3*14mm) (16
pcs)
8381-703
B head screw -coarse thread(BB3*10mm) (16
pcs)
8381-710 Ball bearing(dia 6mm * dia 12*4mm) (2 pcs)
8381-715 B head screw (BM3*20mm) (16 pcs)
8381-716 Set screw s (M4*10mm) (16 pcs)
8381-717 Shock tow er (2 pcs)
8381-718 Pivot ball mount (4 pcs)
8381-719 Upper sus.arm shaft (4 pcs)
8381-720 Front bumper/upper sus.arm mount-front
8381-721 Low er sus.arm plate-front
8381-726
B head screw -coarse thread(BB3*18mm) (16
pcs)
8381-727 B head screw (BM3*56mm) (8 pcs)
8131-801 Low er sus.arm-rear (2 pcs)
8131-802 Sus.arm short axle (4 pcs)
8131-803 Rear hub-L/R
8131-804 Rear w ing (black)
8381-803 B head screw (BM3*18mm) (16 pcs)
8381-804 Wing mount/w ing brace-L/R
8381-805 B head screw (BM3*10mm) (16 pcs)
8381-806 Rear w ing rod-long/short
8381-807 Pin-A(dia 1.5mm) (16 pcs)
6
The following parts are suitable for cars only
where there are √
Optional parts
8131-012 Side guard (left/right) & aluminium chassis
D302HT 2.4GHz LCD transmitter
Part#
Desc
8131-9S1
8381-9S2
8381-9S3
8381-9Z0
8381-9Z1
8131-9M1
8131-001
8131-002
8131-003
8131-004
8131-005
8131-006
8131-007
8131-008
8133-002
8382-005
8381-008
8381-009
8381-010
8381-011
8381-012
8381-014
8381-015
H111
H112
H113
D302T
D302S
H125
Servo mount
Servo arm (2 pcs)
B head screw(BM3*6mm) (16 pcs)
Assembly of steering tie rod
Steering tie rod (2 pcs)
Motor mount
Chassis
Upper deck mount-F/R
Central drive shaft-E
Battery mount-A/B
Receiver cover-upper/lower
Upper deck-F
Upper deck-G
Wire mount (2 pcs)
7.2V NiMh battery charger 8.5V 500mAh output,
100-240V input (Raz-R & Wolf, Version A)
Central drive shaft-C
Antenna tube (3pcs)
Pin-B(dia 1.2mm) (16 pcs)
Screw washer(4 pcs)
Flathead screw(KM3X10mm) (16 pcs)
Flathead screw-coarse thread
(KB3*10mm) (16 pcs)
Flathead screw (KM3*5mm) (16 pcs)
Flathead screw(KM3X18mm) (16 pcs)
Brushed ESC 45A (Raz-R & Wolf, Version A)
Brushed motor 550
7.2V SC 1800mAh NiMh battery (Raz-R & Wolf,
Version A)
2.4GHz transmitter
2.4GHz receiver
8.4V/SC/1800mAh battery (Raz-R, Version B)
H126 High voltage ESC (Raz-R, Version B)
7-cell 8.4V NiMh battery charger-T connector
(Raz-R, Version B)
8133
8134
8131-9M2
8131-009
8131-010
8131-013
8131-015
8131-016
8131-017
8131-018
8132-001
8132-003
8132-005
8132-006
8133-001
8133-001C
8133-9M1
8134-001
8134-001C
8382-705
D303
D304
Motor gear-18T/Lock nut
(M3*3), zinc alloy
Body post-F/R
Rear tires (for buggy 8133)
(2 pcs/set)
Front tires (for buggy 8133)
(2 pcs/set)
Buggy front wheels (2 pcs)
Buggy front tires
(with foams)-unglued (2 sets)
Buggy rear wheels (2 pcs)
Buggy rear tires
(with foams)-unglued (2 sets)
Truggy tires
Body post holder/body post
Truggy wheels (2 pcs)
Truggy tires
(with foams)-unglued (2 sets)
Buggy painted body
(for 8133) (PVC body)
Clear buggy body (PVC, with
window cutout and body decals
Motor gear-21T/Lock nut(M3*
3), bronze
Truggy painted body (for 8134)
(PVC body)
Clear truggy body (PVC, with
window cutout and body decals
B head screw(BM3*24mm)
(16 pcs)
Servo (6kg ) (for 8134)
Servo (3kg ) (for 8133)
H126
H131
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
√
H125
Diff out dri ve/ pin s (di a 2*1 0mm )
D302S
8134-001C Clear truggy body
(PVC, with window cutout and
body decals
8131-013 Front tires
(for buggy 8131)
H125 8.4V/
SC/1800mAh
NiMh batter
H113 N iMh
battery 7.2V/
SC/1800mAh
Brushed ESC 45A
(Raz-R & Wolf , Vers ion A)
8133-002 7.2V NiMh battery
charger 8.5V 500mAh output,
100-240V input (Raz-R & Wo lf,
Version A)
8131-018 Buggy rear tires
(with foams)-unglued (2 sets)
8132-005 Truggy wheels (2 pcs)
8132-006 Truggy tires
(with foams)-unglued (2 sets)
Optional parts
H125 8.4V/SC/1800mAh battery
(Raz-R, Version B)
H126 High voltage
ESC (Raz-R, Version B)
H131
(#H131) 9.8V/800mA output
8.4V NiMh battery charger
Parts Diagrams
Frequency range
2.4GHz modulation
Sensitivity
Working voltage
Working current
Size
Weight
: 2.4GHz
: AFHDS
: -100dbm
: DC4.8-6.0V
: 5.7*26*15.2mm
: 11.2g
Receiver Functions
3
Parts Diagrams
LCD Functions and Operations
Key Operations
Display Interface
BATT: battery status, function reset settings
MOD: Setting up mode and naming
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment. This device co mp li es with Part
15 of th e FC C Rules. Operation is subject to two conditions: (1) This device may not cause harmful
interference, an d (2) This device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
