DHK Hobby 8136, 8137 User Instruction Manual

8136

Model :8137

1:10 Scale 4WD Monster Truck

(Brushed & Brushless Versions)

Thank you for choosing DHK’s R/C model! This model is designed in thorough research and
assembled with utmost craftsmanship. This high performance 1:10 scale 4WD monster truck can run
very fast. It is easy to drive and it uses quality parts to achieve its best performance. With proper and
regular maintenance, you will enjoy a lot of fun and joy when you drive this R/C kit.

Before you drive this model, kindly take some time to read through this instruction manual for a better
and safer operation. This instruction aims to provide a general guideline for end-users. Kindly note
that a good understanding of the model, its relevant parts and other accessories packed in the
consumer box will enable you to have fun when driving. Meanwhile, users are recommended to
conduct regular maintenance for high performance and durability. Failure to do so might shorten the
lifespan of the model. If you come across any problems or need any support, please contact us. We
will always be very happy to assist you.

Before you operate this R/C kit, kindly make sure that you understand the following.

1.Make sure that all screws and nuts are tightened securely.

2.Make sure that the battery(ries) are fresh or fully charged so the model won’t lose control.

3.Do not drive the model in the following places/areas to avoid injury of people and damage to the
public property.
i.On public streets or in parks, causing injury or death of pedestrians, young children, animals and

pets.
ii.On highways, leading to accidents or damage of the model.
iii.In water, resulting in damage to electronic components and parts, or direct failure of the model.

Drive your model in open areas.

4. Check all signals and electronic parts are working properly.

After driving, battery(ries), ESC, and motor can be very hot. Please do not touch them with bare
hands.

Warning:
This high performance R/C kit can run very fast. It is designed and produced for people of 14+ years
of age to operate. Players under this age should be guided by adult supervision. Entry level players
should seek guidance and supervision from experienced model players. Players are responsible for
any/all accidental occurrences (human or animal injury, damage to property and possessions,
breakage of the model itself) due to improper operation of this model.

Brushed Truck Model Specifications

Length: 455mm(17.9”) (incl. F/R bumpers)
Width: 366mm(14.4”)
Height: 225mm(8.8”) (incl. body shell)
Wheelbase: 290mm(11.4”)
Front track/rear track: 293mm/298mm(11.5”/11.7”)
Tire size: Ф122*68mm(Ф4.8”/2.7”)
Wheel size: Ф72*48mm(Ф2.8”/1.9”)
Ground clearance: 74mm(2.9”)
Gear ratio: 10.97:1
Steering servo: 6kg

Brushless Truck Model Specifications

Length: 455mm(17.9”) (incl. F/R bumpers)
Width: 366mm(14.4”)
Height: 225mm(8.8”) (incl. body shell)
Wheelbase: 290mm(11.4”)
Front track/rear track: 293mm/298mm(11.5”/11.7”)
Tire size: Ф122*68mm(Ф4.8”/2.7”)
Wheel size: Ф72*48mm(Ф2.8”/1.9”)
Ground clearance: 76mm(3.0”)
Gear ratio: 15.19:1
Steering servo: 6kg

Radio System

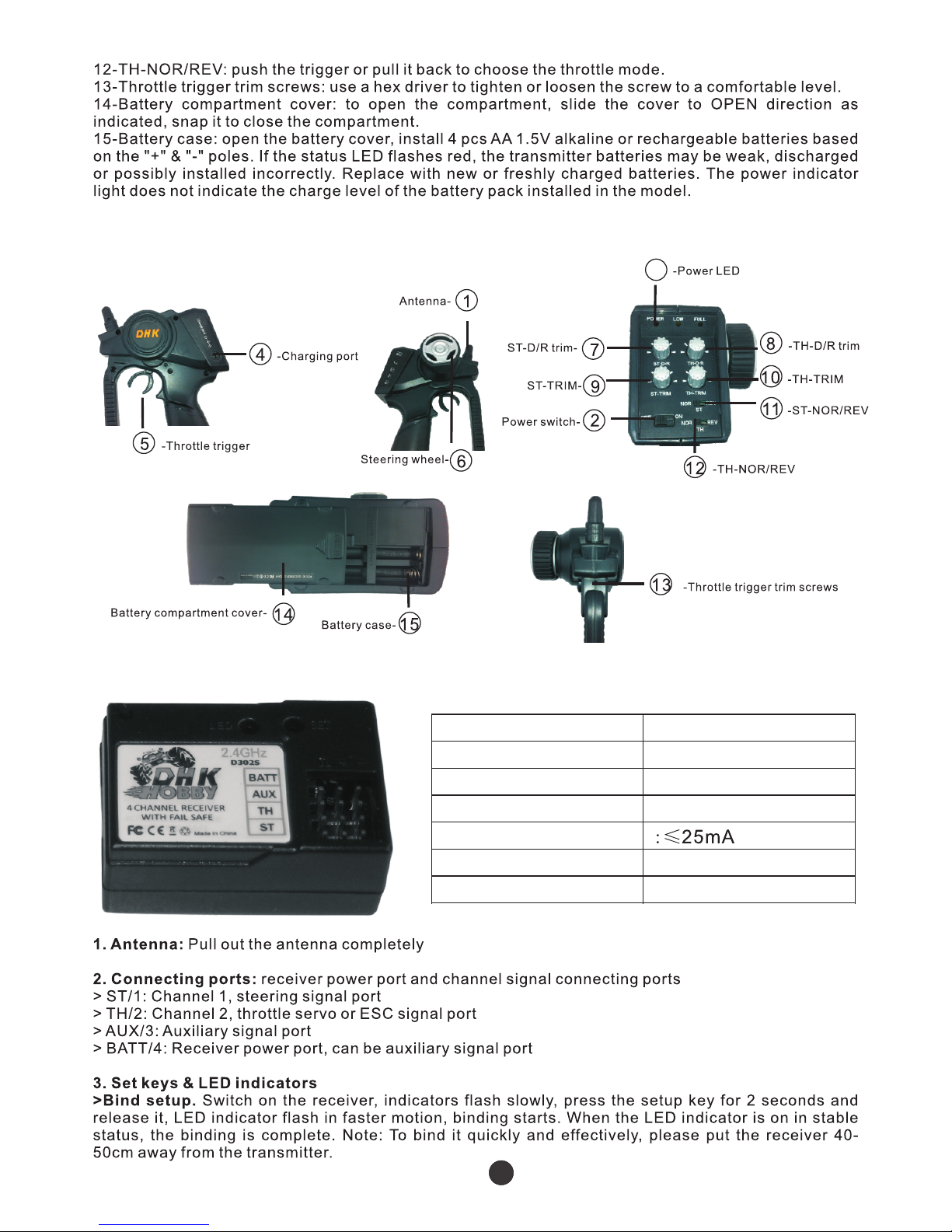

A 2-channel radio system is required for the model. This includes 2.4GHz transmitter and receiver.
Please refer to 2.4GHz Transmitter Manual.

Battery and ESC information for brushed truck

The brushed truck comes with a 7-cell 8.4V SC type NiMh battery. The battery is with T-connector, so
does the battery charger. Besides, the ESC also has a T-connector to match it on the battery.

Below you may find the features and specifications of the high voltage ESC.

High Voltage ESC (Part# H126)

Features

1. Auto search throttle neutral point.

2. HF drive system

3. Over-heat protection (90C°)

4. Lipo battery low-voltage protection (2S Lipo-6.6V cutoff, 3S Lipo-9.9V shut down)

5. Low internal resistance & big capacity PCB board, providing great resistance to high current.

6. Forward, brake and reverse functions, good for both vehicles and boats.

Specifications

Forward current: 380A
Reverse current: 190A
Brake current: 250A
Voltage range: 4.8V-12.6V
PWM frequency: 1.5KHz
BEC voltage: 5V/2A

Operation

To obtain forward, brake and reverse functions and to switch battery types, kindly refer to the

2

following Skipping Needles Matrix for detail. This matrix provides clear information for operation.

Skipping Needles Matrix

Needles placement and corresponding functions

550 brushed motor parameters (For brushed truck)

3

1, 2
2, 3

Forward, brake, no reverse

4, 5

Lipo battery

5, 6

NiMh battery

Needles Functions

Forward, brake, reverse

①

②

③

④ ⑤

⑥

Motor 3650 KV(RPM):

3970

Power:

21.0V

Empty load current:

2.0A (10V)

Resistance(Ω):

11Ω

Length (including motor shaft):

70mm

Diameter:

36mm

Weight :

170g

Shaft diameter:

3.175mm

Features:

6kg

Gears:

Plastic gears, ball bearings

Working voltage:

4.8-6.0V

Speed (seconds/60°):

0.18-0.16 sec/60°

Torque:

6kg/cm

Net weight:

40g

Size(LxWxH):

40.8*20.1*38mm

Constant voltage: 7.4V Direction: CCW

Brushless electric motor (For brushless truck)

Servo (For both trucks)

The brushless truck comes with a 7.4V 2S Lipo battery. It runs over 80A brushless ESC. Please refer to
the ESC information below.

Note: When the motor temperature is over 120℃(248℉), please add a fan over the motor for better
ventlation. Please refer to the parts list foroptional part motor cooling fan and heat sink.

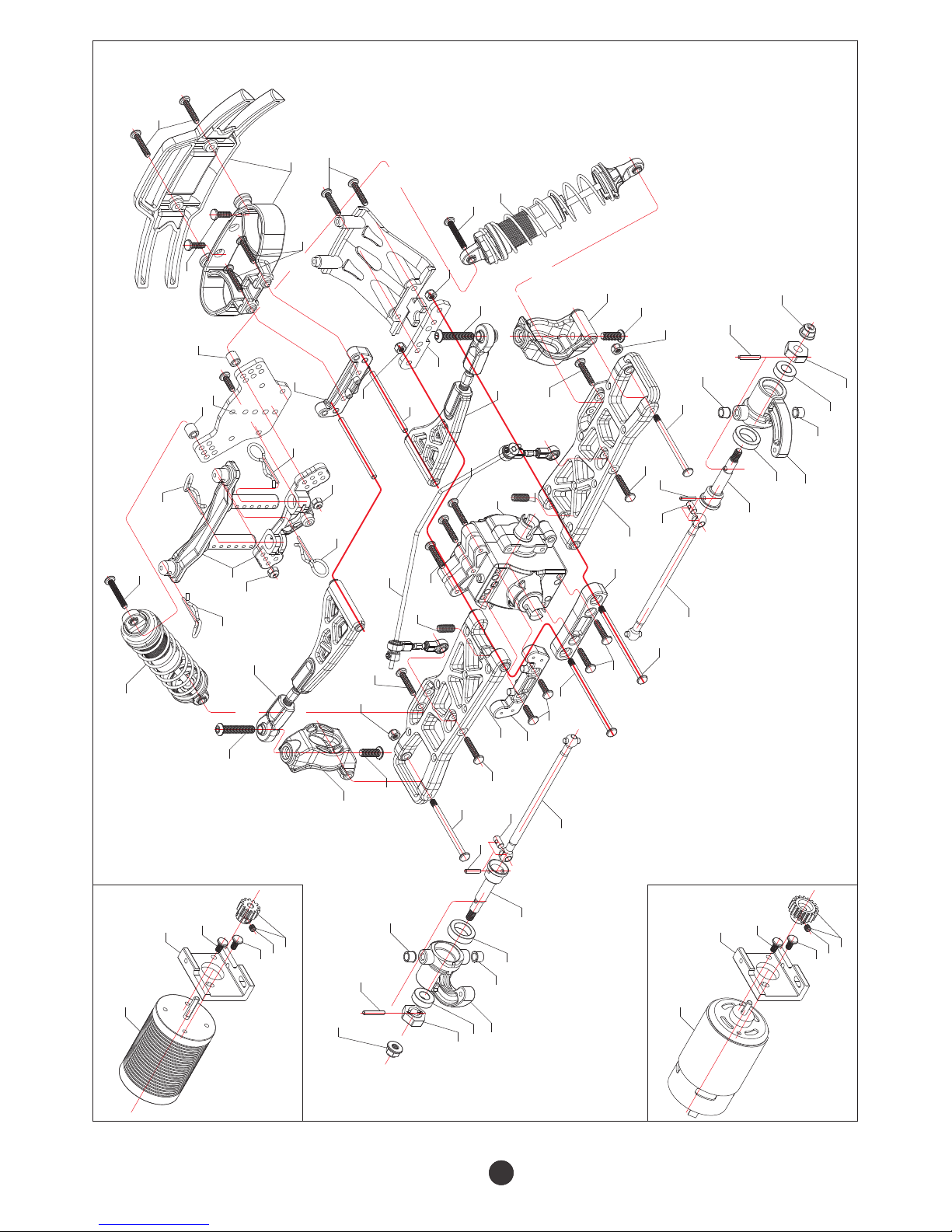

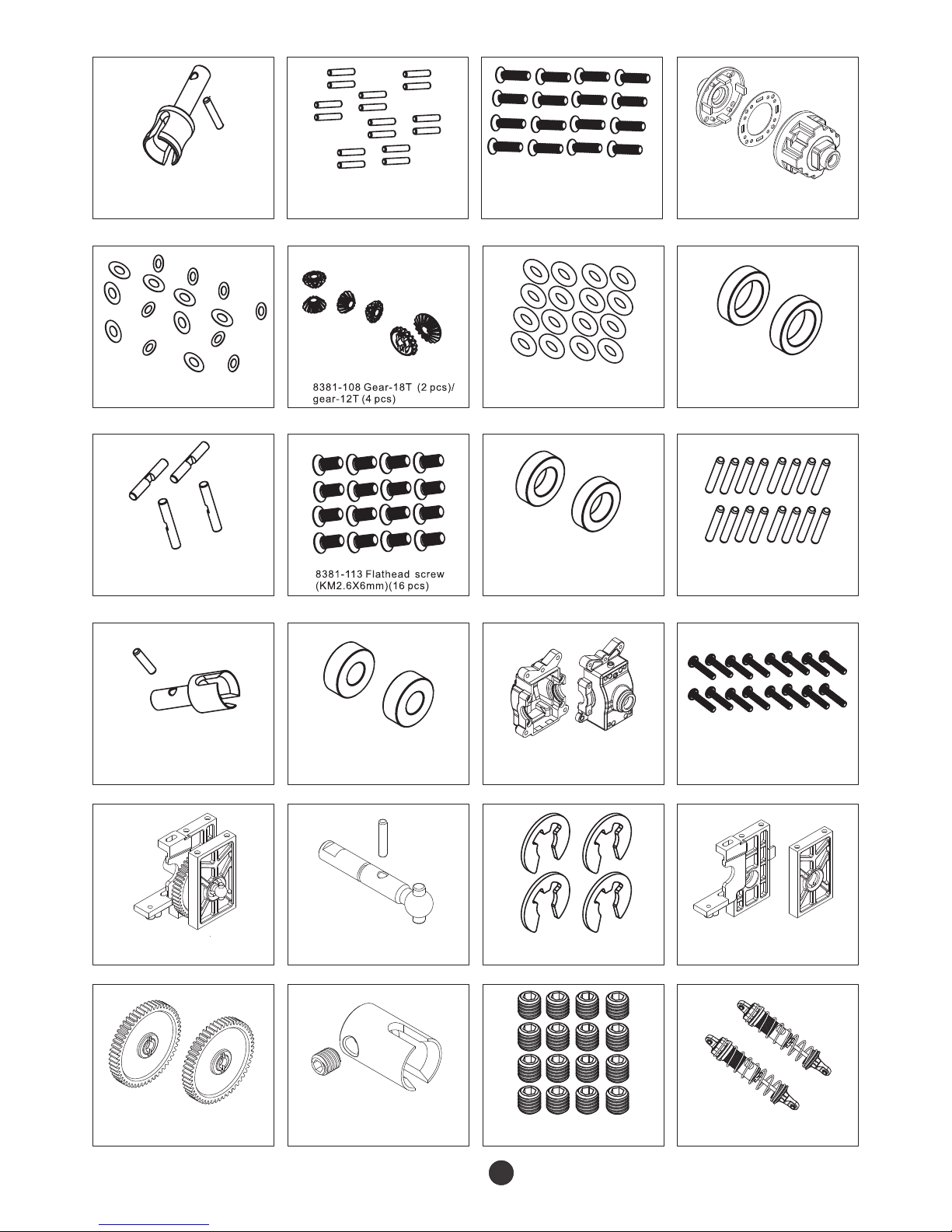

8381-102 Diff outdrive/pins (Ф2*10mm)

8381-103 Pins(Ф2*10mm) (16 pcs)

8381-104 Flathead screw-coarse

thread(KB2.6*10mm) (16 pcs)

8381-106 Diff case set/diff case cover/gasket

8381-107 Washer-A/B (8 pcs each)

8381-108 Gear-18T (2 pcs)/gear-12T (4 pcs)

8381-109 O Ring(Ф8*Ф2mm) (16 pcs)

8381-110 Ball bearing(Ф10*Ф15*4mm) (2 pcs)

8381-111 Diff pins(Ф4*25.8mm) (4 pcs)

8381-113 Flathead screw(KM2.6X6mm) (16 pcs)

8381-114 Ball bearing(Ф8*Ф14*4mm) (2 pcs)

8381-115 Pins(Ф2*8mm) (16 pcs)

8381-116 Pinion gear outdrive/pins(Ф2*8mm)

8381-117 Ball bearing(Ф5*Ф11*4mm) (2 pcs)

8381-118 Diff gear case cover-F/R

8381-119 B head screw-coarse

thread(BB3*16mm) (16 pcs)

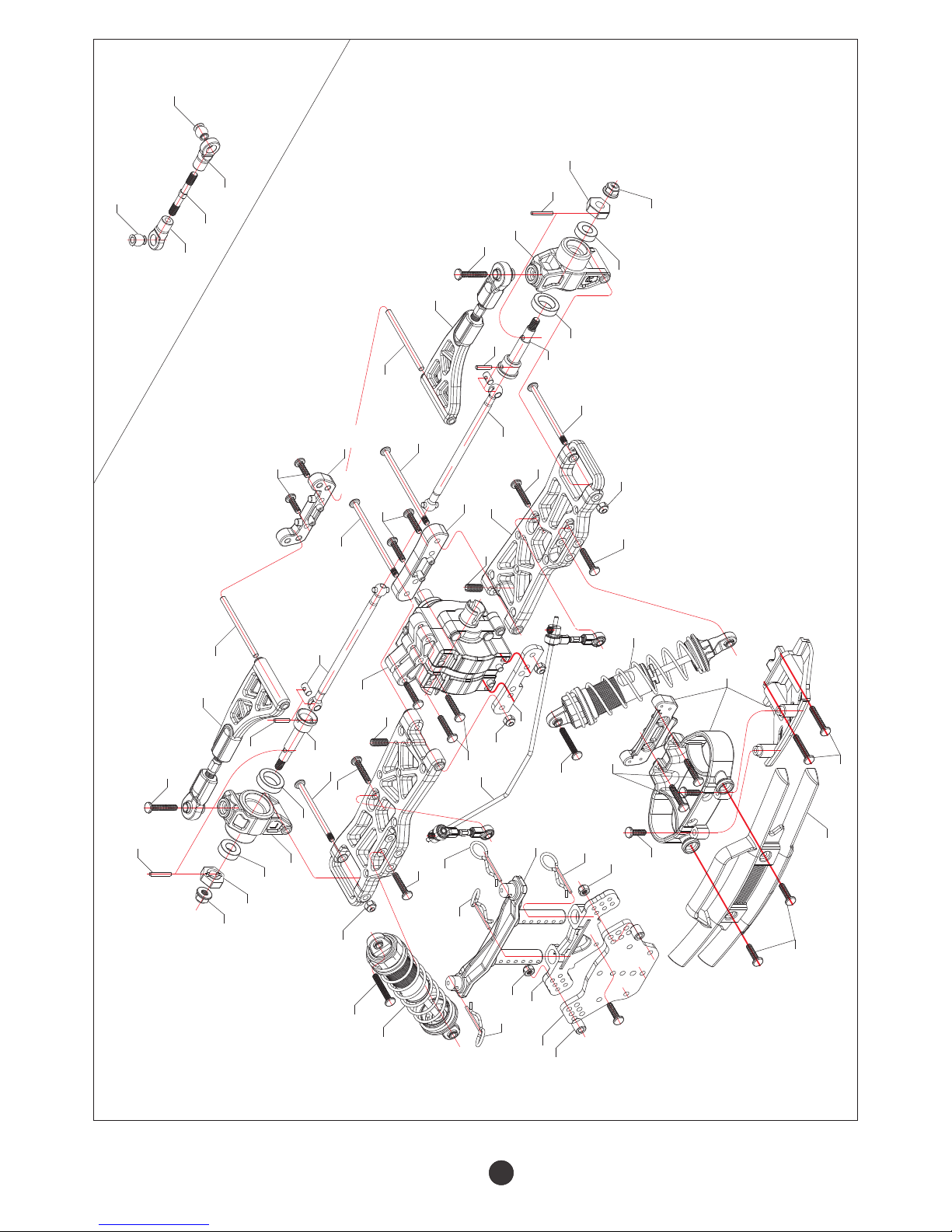

8136-200 Assembly of reduction gearbox

8136-201 Reduction connecting axle/pins

(Ф2*10mm)

8136-202 E-type clamping spring(4 pcs)

8136-203 Reduction mounting plate A/B

8131-204 Spur gear-53T(plastic) (2 pcs)

8131-205 Center diff outdrive/lock nut(M4*4mm)

8381-204 Set screws (M4*4mm) (16 pcs)

8136-300 Shock absorber complete (2 pcs)

8136-302 Shock spring (4 pcs)

8381-305 Shock ball (8 pcs)

8381-306 M3 nylon nut (8 pcs)

8381-309 Shock shaft (4 pcs)

8381-50L Assembly of upper sus.arm-Left

8381-50R Assembly of upper sus.arm-Right

8381-501 Upper sus.arm ball (4 pcs)

8381-502 Upper sus.arm/rod end (2 sets)

8381-503 Upper sus.arm linkage (2 pcs)

8136-600 Servo saver assembly-complete

8131-601 Servo saver spring (4 pcs)

8131-602 Steering plate

8382-601 Servo saver sus. Arm-

upper/lower/steering sus. Arm

8381-601 Brass washer (4 pcs)

8381-602 Servo saver bushing/adjustment ring

8381-605 B head screw-coarse

thread(BB3*12mm) (16 pcs)

8381-606 Screw bushing (16 pcs)

4

8381-608 Shaft (2 pcs)

8136-6Z0 Assembly of steering linkage (2 pcs)

8136-6Z1 Steering linkage (2 pcs)

8381-6Z2 Plastic rod end (8 pcs)

8381-6Z3 Double way ball end (8 pcs)

8381-701 Upper sus.arm mount-rear/suspension

mount

8381-702 B head screw-coarse

thread(BB3*14mm) (16 pcs)

8381-703 B head screw-coarse

thread(BB3*10mm) (16 pcs)

8381-706 Lower sus.arm-front (2 pcs)

8381-707 Drive shaft set/revolving shaft (2 sets)

8381-710 Ball bearing(Ф6*Ф12*4mm) (2 pcs)

8381-714 C-hub (2 pcs)

8381-717 Shock tower (2 pcs)

8381-718 Pivot ball mount (4 pcs)

8381-719 Upper sus.arm shaft (4 pcs)

8381-721 Lower sus.arm plate-front

8381-723 C-hub screw bushing (16 pcs)

8381-724 T head screw(TM4*12mm) (16 pcs)

8381-725 T head screw(TM4*22mm) (16 pcs)

8381-726 B head screw-coarse

thread(BB3*18mm) (16 pcs)

8381-727 B head screw(BM3*56mm) (8 pcs)

8381-728 B head screw(BM3*43mm) (8 pcs)

8382-703 Body post holder/body post

8382-705 B head screw(BM3*24mm) (16 pcs)

8135-701 Wheel axle (2 pcs)

8135-702 Steering arm (2 pcs)

8135-703 Hex adapter (4 pcs)

8135-704 Set screws-M4 (4 pcs)

8382-702 Front bumper/upper sus.arm mount-

front

8381-801 Lower sus.arm-rear (2 pcs)

8381-802 Rear hub-L/R

8381-803 B head screw(BM3*18mm) (16 pcs)

8381-805 B head screw(BM3*10mm) (16 pcs)

8381-807 Pin-A(Ф1.5mm) (16 pcs)

8136-9M1 Motor moun

8381-9S1 Servo mount

8381-9S4 Servo arm-D (2 pcs)

8131-9S2 B head screw(BM2.6*6mm) (12 pcs)

8381-9Z0 Assembly of steering tie rod

8381-9Z1 Steering tie rod (2 pcs)

8136-001 Chassis

Part No.

Description

Part No.

Description

The following parts are suitable for cars
only where there are √

Optional parts

8136

8137

5

Part No.

Description

8133-100 Assembly of diff gear box

8133-101 Diff set

8133-102 Crown gear-41T (large)/pinion

gear-11T (small)

8133-103 Assembly of the pinion gear

8131-9M2 Motor gear-18T/Lock nut(M3*3)

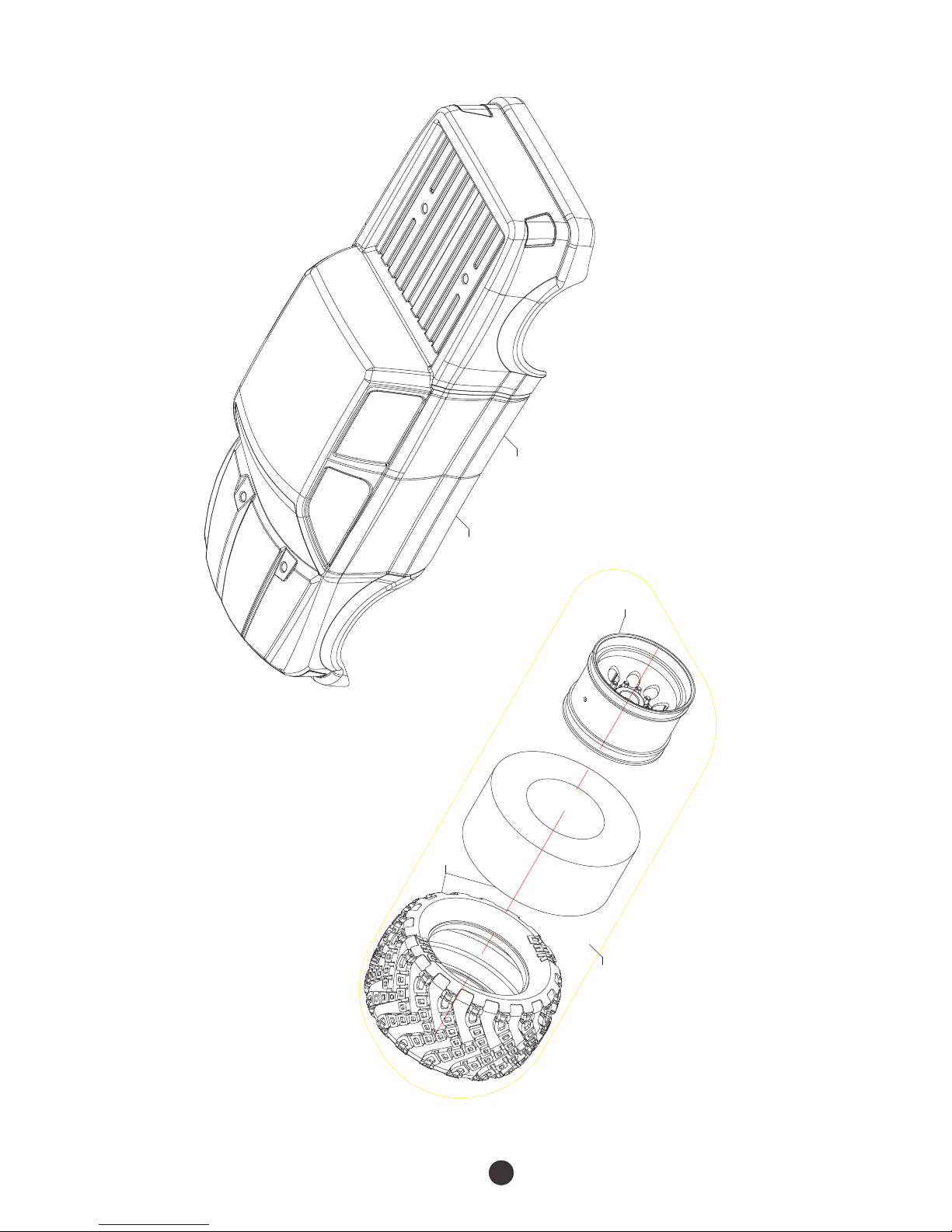

8136-007 Printed truck body (PVC)

8136-008 Clear truck body (PVC) with

body decals and window cutout

H126 55A Brushed ESC

H112 550 Brushed motor

H125 7-cell (8.4V) SC 1800mAh NiMh

battery(T-connector)

H131 7-cell NiMh battery charger

(T-connector)-800mAh output

8381-100 Assembly of diff gear box

8381-101 Diff set

8381-105 Crown gear-41T (large)/pinion

gear-11T (small)

8381-112 Assembly of the pinion gear

8137-001 Printed truck body (PVC)

8137-002 Clear truck body (PVC) with

body decals and window cutout

8137-9M1 Motor gear-13T/Lock nut(M3*3)

H132 1/10 Brushless ESC (80A)

H109 3650 Brushless motor (KV:3970)

H110 LiPo battery (7.4V, 20C, 2300mAh)

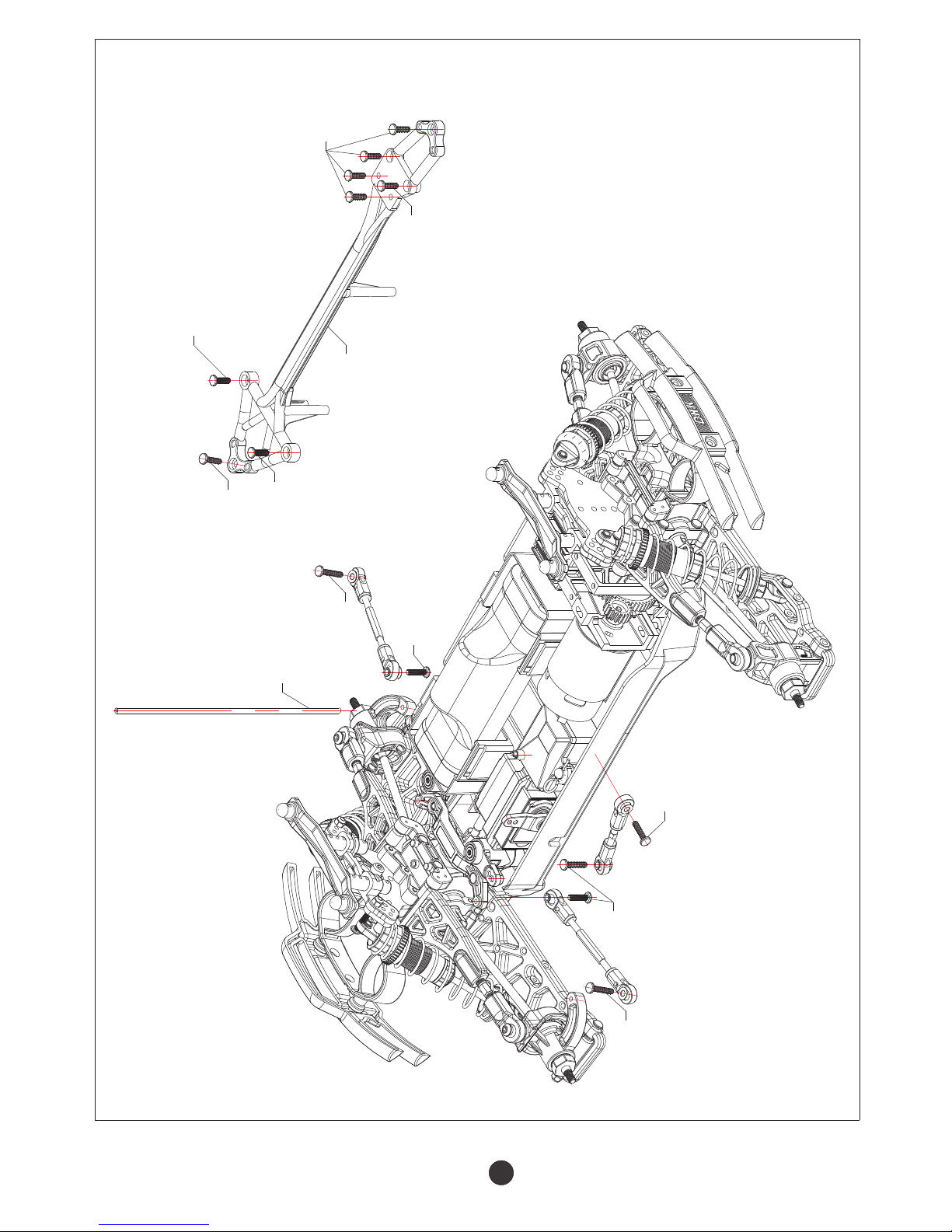

8136-011 Wheelie bar assembly

8381-400 Anti-roll bar assembly

8381-40L Assembly of anti-roll bar linkage-Left

8381-40R Assembly of anti-roll bar linkage-Right

8381-401 Anti-roll bar rod end (8 pcs)

8381-402 Anti-roll bar linkage (4 pcs)

8381-403 Anti-roll bar pivot ball-upper/lower (4 sets)

8381-404 Set screws (M3*3mm) (8 pcs)

8381-405 Anti-roll bar(Ф2.2mm) (2 pcs)

8381-607 Steering plate

8381-709 Steering arm (2 pcs)

8381-716 Set screws (M4*12mm) (16 pcs)

8136-002 Upper deck mount

8136-003 Central drive shaft-F

8136-004 Tire complete (chrome wheels) (2 pcs)

8136-005 Tire with foam (unglued) (2 pcs)

8136-006 Chrome wheels (2 pcs)

8136-010 Chassis cover

8135-005 Battery mount-C/D

8331-003 Body spacer (Ф18*Ф8*2mm) (4 pcs)

8381-008 Antenna tube (3 pcs)

8381-009 Pin-B(dia 1.2mm) (16 pcs)

8381-010 Screw washer (4 pcs)

8381-011 Flathead screw(KM3X10mm) (16 pcs)

8381-012 Flathead screw-coarsethread(KB3*10mm)

(16 pcs)

8381-024 Flathead screw(KB4X11.5mm) (12 pcs)

D303 Servo (6kg)

D302T 2.4GHz transmitter

D302S 2.4GHz receiver

√
√

√

√

√
√

√

√

√

√

√

√
√

√

√
√

√

√

√
√
√

8381-105

8381-112

8133-101

8136-6Z0 Assembly of

steering linkage

8381-6Z3

8381-6Z2

8131-205

8381-204

8136-202

8136-600 Assembly of the

servo saver

8381-606

8381-606

8381-601

8381-605

8381-601

8381-608

8381-608

8381-601

8382-601

8131-602

8381-605

8381-601

8381-602

8382-601

8382-601

8131-601

8381-602

8131-204

8136-201

8381-117

8136-203

8136-203

8136-201

8381-117

8381-103

8136-200 Assembly of the

center diff gear box

8136-6Z1

8381-6Z3

8381-6Z2

8133-112

8133-103

8133-102

8133-102

8381-101

8133-100 Assembly of the

diff gear box

8381-117

8381-118

8381-118

8381-119

8381-110

8381-110

8381-115

8381-116

8381-107

8381-114

8381-113

8381-107

8381-108

8381-102

8381-111

8381-103

8381-106

8381-108

8381-107

8381-108

8381-109

8381-107

8381-101

8381-108

8381-107

8381-106

8381-105

8381-103

8381-109

8381-102

8381-104

8381-50R

8381-50L

8381-501

8381-501

8381-502

8381-503

8381-502

8381-502

8381-503

8381-502

8381-50L Assembly of upper sus.arm-Left

8381-50L Assembly of upper sus.arm-Right

8136-300 Assembly of the

shocks

8381-400 Assembly of the

sway bar

8381-405

8381-404

8381-403

8381-403

8381-402

8381-402

8381-401

8381-403

8381-401

8381-402

8381-401

8381-40R

8381-40L

8381-309

8381-306

8381-501

8136-301

8381-305

8381-305

6

8136-9M1

8381-9S3

8137 Assembly of

the motor gear

8381-9S3

8137-9M1

8381-404

H109

8381-100

8381-726

8381-703

8381-703

8382-702

8381-119

8135-704

8136-9M1

8381-9S3

8136 Assembly of

the motor gear

8381-9S3

8131-9M2

8381-404

H112

8381-306

8381-306

8381-727

8381-727

8381-306

8381-306

8381-728

8381-728

8382-703

8381-009

8381-009

8381-807

8381-807

8381-306

8381-306

8381-725

8381-724

8381-725

8381-724

Assembly of the

front sus.arm system

8381-726

8381-400

8381-726

8133-100

8136-300

8136-300

8381-50L

8381-50R

8381-719

8381-726

8381-721

8382-705

8382-705

8382-702

8381-718

8381-718

8381-717

8381-726

8381-716

8381-716

8381-714

8381-714

8381-703

8381-702

8381-119

8381-119

8381-103

8381-708

8381-707

8381-707

8381-103

8381-707

8381-706

8381-706

8381-701

8381-701

8381-723

8381-710

8381-723

8381-723

8135-701

8135-701

8381-710

8135-704

8135-703

8381-103

8135-702

8381-110

8381-103

8135-703

8381-710

8135-702

8381-110

7

8137-002

8137-001

8136-008

8136-007

8136-006

8136-005

8136-004

8

8133-100

8381-9Z0 Assembly of

steering tie rod

8381-703

8381-726

8381-119

8381-703

8382-702

8382-702

8135-704

8135-704

8381-306

8381-306

8381-727

8381-727

8381-306

8381-728

8381-728

8135-703

8382-703

8382-703

8381-807

8381-807

8381-009

8381-009

8381-306

8381-306

8381-717

8381-718

Assembly of the

rear sus.arm system

8381-103

8382-705

8381-726

8381-721

8381-726

8136-300

8382-705

8136-300

8381-103

8381-103

8135-701

8135-701

8381-400

8381-110

8381-802

8381-710

8135-703

8381-100

8381-707

8381-707

8381-716

8381-119

8381-719

8381-50R

8381-726

8381-103

8381-50L

8381-726

8381-802

8381-702

8381-702

8381-119

8381-801

8381-110

8381-710

8381-726

8381-716

8381-719

8381-701

8381-701

8381-9Z1

8381-6Z3

8381-6Z3

8381-6Z2

8381-6Z2

9

8136-011

H110

8136-010

H125

8136-001

8381-011

1

1

1

1

1

1

1

1

1

1

1

1

1

1

8381-011

8131-005

8381-009

8131-005

D302R

8135-005

8135-005

8381-024

1

8381-012

8381-024

8381-024

8136-600

H132

8136-003

8131-9S2

8381-9S4

8381-703

8381-703

D303

8381-9S1

H126

10

8136-002

8381-703

8381-703

8381-703

8381-805

8381-805

8381-119

8381-119

8381-008

8381-702

8381-702

8381-702

11

12

8381- 102 D iff out dri ve/pi ns
(Ф2*1 0mm )

8381- 103 P in s
(Ф2*1 0mm ) (1 6 pcs )

8381- 104 F la the ad scre w-c oa rse
threa d(K B2 .6* 10mm) ( 16 pc s)

8381- 106 D iff cas e set /diff case
cover /ga sk et

8381- 107 W ash er-A/ B (8 pc s each)

8381- 109 O R in g(Ф 8*Ф2m m)
(16 pcs )

8381- 110 Ba ll bear ing (Ф10* Ф15 *
4mm) (2 p cs)

8381- 111 Diff p in s(Ф 4*25. 8mm )
(4 pcs)

8381- 114 Ba ll bear ing (Ф8*
Ф14*4 mm) ( 2 pc s)

8381- 115 Pi ns(Ф2 *8m m) (16 pc s)

8381- 116 Pi nion ge ar ou tdriv e/
pins( Ф2* 8m m)

8381- 117 Ba ll bear ing (Ф5*Ф 11*
4mm) (2 p cs)

8381- 118 Di ff ge ar case c ove r-F/R

8381- 119B he ad scre w-c oarse
threa d(B B3 *16 mm) (16 p cs)

8136- 200 As se mbl y of redu cti on
gearb ox

8136- 201 R ed uct ion con nec ti ng
axle/ pin s (Ф 2*1 0mm)

8136- 202 E -t ype c lampi ng sp ring
(4 pcs)

8136- 203 R ed uct ion mou nti ng
plate A/ B

8131- 204 S pu r gea r-53T (pl as tic )
(2 pcs)

8131- 205 C en ter d iff o utdri ve/ lo ck
nut(M 4*4 mm )

8381- 204 S et s cre ws (M4* 4mm )
(16 pcs )

8136- 300 S ho ck ab sorbe r
compl ete ( 2 pc s)

13

8136- 302 S ho ck sp ring (4 p cs)

8381- 305 S ho ck ba ll (8 pcs )

8381- 306 M 3 ny lon n ut (8 pcs )

8381- 309 S ho ck sh aft (4 pc s)

8381- 50L As se mbl y of uppe r
sus.a rm- Le ft

8381- 50R As se mbl y of uppe r
sus.a rm- Ri ght

8381- 501 U pp er su s.arm b all
(4 pcs)

8381- 502 U pp er su s.arm /ro d
end (2 se ts)

8381- 503 U pp er su s.arm l ink age
(2 pcs)

8136- 600 S er vo sa ver ass emb ly­compl ete

8131- 601 S er vo sa ver spr ing
(4 pcs)

8131- 602 S te eri ng plat e

8382- 601 S er vo sa ver sus . Arm­upper /lo we r/s teeri ng su s. Arm

8381- 601 B ra ss wa sher (4 p cs)

8381- 602 S er vo sa ver bus hin g/
adjus tme nt r ing

8381- 605 B h ea d scr ew-co ars e
threa d(B B3 *12 mm) (16 p cs)

8136- 6Z1 S te eri ng link age ( 2 pcs)

8381- 606 S cr ew bu shing ( 16 pc s) 8381- 608 S ha ft (2 p cs)

8136- 6Z0 As se mbl y of stee rin g
linka ge (2 p cs )

8381- 6Z2 P la sti c rod end ( 8 pcs )

8381- 6Z3 D ou ble w ay ball e nd
(8 pcs)

8381- 701 U pp er su s.arm m oun t­rear/ sus pe nsi on moun t

8381- 702B h ea d scr ew-co ars e
threa d(B B3 *14 mm) (16 p cs)

14

8381- 703 B h ea d scr ew-co ars e
threa d(B B3 *10 mm) (16 p cs)

8381- 706 L ow er su s.arm -fr ont
(2 pcs)

8381- 707 D ri ve sh aft set /re volvi ng
shaft ( 2 set s)

8381- 710 B al l bea ring( Ф6* Ф1 2*

4mm) (2 p cs)

8381- 714 C -h ub (2 p cs) 8381- 717 S ho ck to wer (2 pc s) 8381- 718 P iv ot ba ll moun t (4 pc s)

8381- 719 U pp er su s.arm s haf t
(4 pcs)

8381- 721 L ow er su s.arm p lat e­front

8381- 723 C -h ub sc rew bus hin g
(16 pcs )

8381- 724 T h ead s crew( TM4 *
12mm) ( 16 pc s)

8381- 725T h ead scr ew( TM4*
22mm) ( 16 pc s)

8381- 726 B h ea d scr ew-co ars e
threa d(B B3 *18 mm) (16 p cs)

8381- 727 B h ea d scr ew(BM 3*
56mm) ( 8 pcs )

8381- 728 B h ea d scr ew(BM 3*
43mm) ( 8 pcs )

8382- 703 B od y pos t holde r/
body po st

8382- 705 B h ea d scr ew(BM 3*
24mm) ( 16 pc s)

8135- 701W he el ax le (2 pcs ) 8135 -702 St eer ing arm ( 2 pcs) 8135- 703 H ex a dap ter (4 pc s)

8135- 704 S et s cre ws-M4 ( 4 pcs )

8382- 702 F ro nt bu mper/ upp er
sus.a rm mo un t-f ront

8381- 801 L ow er su s.arm -re ar
(2 pcs)

8381- 802 R ea r hub -L/R

15

8381- 803 B h ea d scr ew(BM 3*
18mm) ( 16 pc s)

8381- 805 B h ea d scr ew(BM 3*
10mm) ( 16 pc s)

8381- 807 P in -A( Ф1.5m m) (1 6 pcs)

8136- 9M1 M ot or mo un

8381- 9S1 S er vo mo unt

8381- 9S4 S er vo ar m-D (2 pc s)

8131- 9S2 B h ea d scr ew(BM 2.6 *
6mm) (1 2 pcs )

8381- 9Z0 As se mbl y of stee rin g
tie rod

8381- 9Z1 S te eri ng tie ro d (2 pc s)

8136- 001 C ha ssi s

8136- 002 U pp er de ck moun t

8136- 003 C en tra l drive s haf t-F

8136- 004 Ti re c omp lete (c hro me
wheel s) (2 p cs )

8136- 005 Ti re w ith f oam
(ungl ued ) (2 p cs)

8136- 006 C hr ome w heels ( 2 pcs )

8136- 010 C ha ssi s cover

8135- 005 B at ter y mount -C/ D

8331- 003 B od y spa cer (Ф1 8*
Ф8*2m m) (4 p cs )

8381- 008 An te nna t ube (3 pc s)

8381- 009 P in -B( dia 1.2 mm)
(16 pcs )

8381- 010 S cr ew wa sher (4 p cs)

8381- 011 Fl athea d scr ew
(KM3X 10m m) ( 16 pc s)

8381- 012 F la the ad scre w-c oa rse
threa d(K B3 *10 mm) (16 p cs)

8381- 024 F la the ad scre w
(KB4X 11.5 mm) (12 p cs)

16

D303 Se rvo ( 6k g)

D302T 2 .4G Hz t ran smitt er D302S 2 .4G Hz r ece iver

8133- 100 As se mbl y of diff gear b ox

8133- 101 D iff set

8133- 102 C ro wn ge ar-41 T
(larg e)/ pi nio n gear- 11T (smal l)

8133- 103 As se mbl y of the
pinio n gea r

8131- 9M2 M ot or ge ar-18 T/
Lock nu t(M 3* 3)

8136-007 Printed tr uck bod y (PVC)

8136-008 Clear truck body (PVC)
with body decals and window cutout

H126 55 A Brus he d ESC

H112 5 50 Brus hed mot or

H125 7- cel l( 8.4 V) SC 180 0mA h
NiMh ba tte ry (T-c onnec tor )

H131 7- cel l Ni Mh ba ttery c har ger
(T-con nec to r)- 800mA h out put

8381-100 Assembly of di ff gear box

8381- 101 D iff set

8381- 105 C ro wn ge ar-41 T (la rge )/
pinio n gea r- 11T (smal l)

8381- 112 Ass embly o f the p inion
gear

8137- 001 P ri nte d truck b ody ( PVC)

8137-002 Clear truck body (PVC)
with body decals and window cutout

8137- 9M1 M ot or ge ar-13 T/L ock
nut(M 3*3 )

H132 1/ 10 Br us hle ss ESC (8 0A)

H109 36 50 Br us hle ss moto r
(KV:39 70)

H110 L iPo bat tery (7 .4V, 20C,
2300m Ah)

Optional parts

17

8136- 011 Wh eelie b ar as sembl y 8381- 400 An ti -ro ll bar as sem bl y

8381- 40L As se mbl y of anti -ro ll
bar lin kag e- Lef t

8381- 40R As se mbl y of anti -ro ll
bar lin kag e- Rig ht

8381- 401 An ti -ro ll bar ro d end
(8 pcs)

8381- 402 An ti -ro ll bar li nka ge
(4 pcs)

8381- 403 An ti -ro ll bar pi vot b al l­upper /lo we r (4 se ts)

8381- 404 S et s cre ws (M3* 3mm )
(8 pcs)

8381- 405 An ti -ro ll bar( Ф2. 2m m)

(2 pcs)

8381- 607 S te eri ng plat e 8381- 709 S te eri ng arm (2 p cs)

8381- 716 S et s cre ws (M4* 12m m)
(16 pcs )

18

Parts Diagrams

Receiver Functions

3

19

Frequency range

2.4GHz modulation

Sensitivity
Working voltage
Working current

Size
Weight

: 2.4GHz
: AFHDS

: -100dbm
: DC4.8-6.0V

: 5.7*26*15.2mm
: 11.2g

Parts Diagrams

20

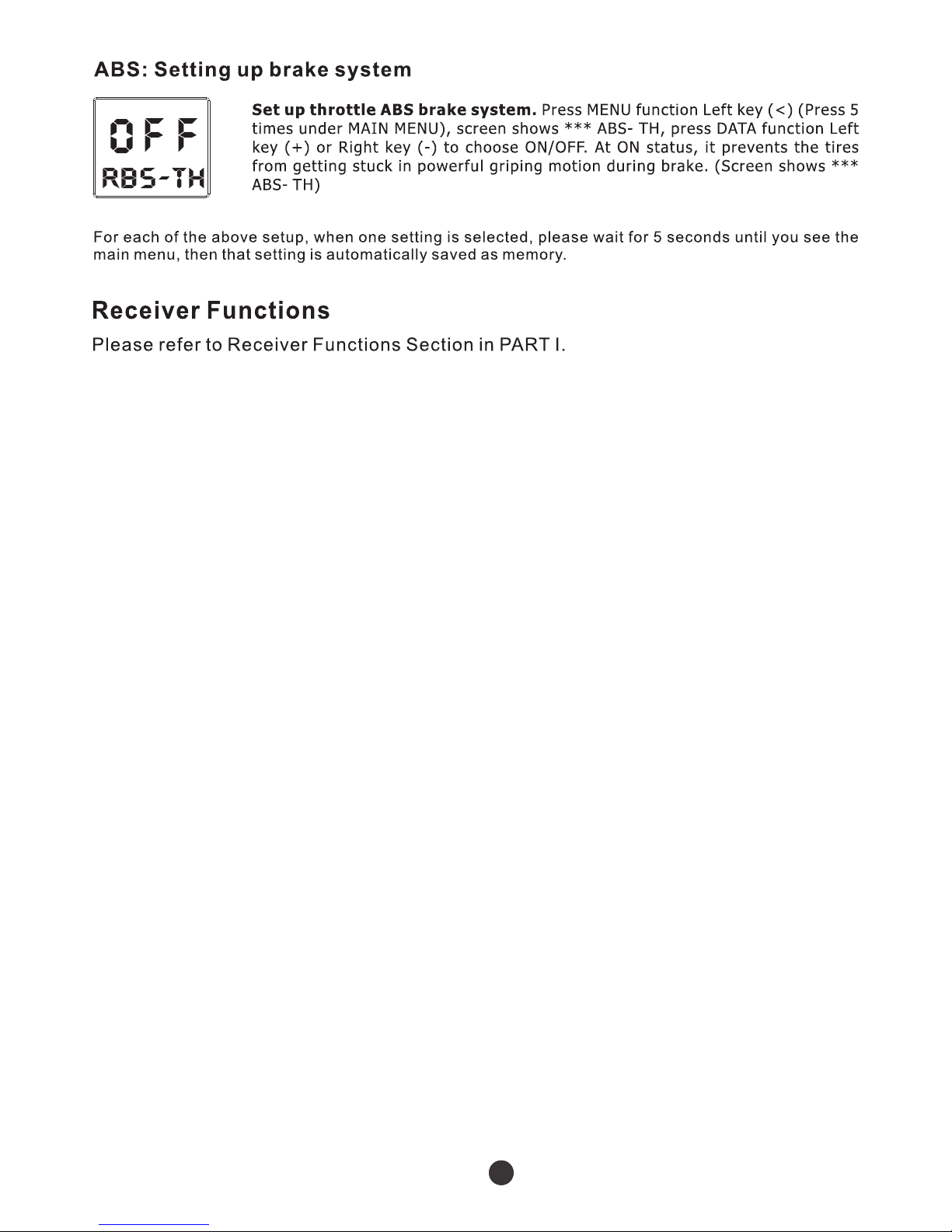

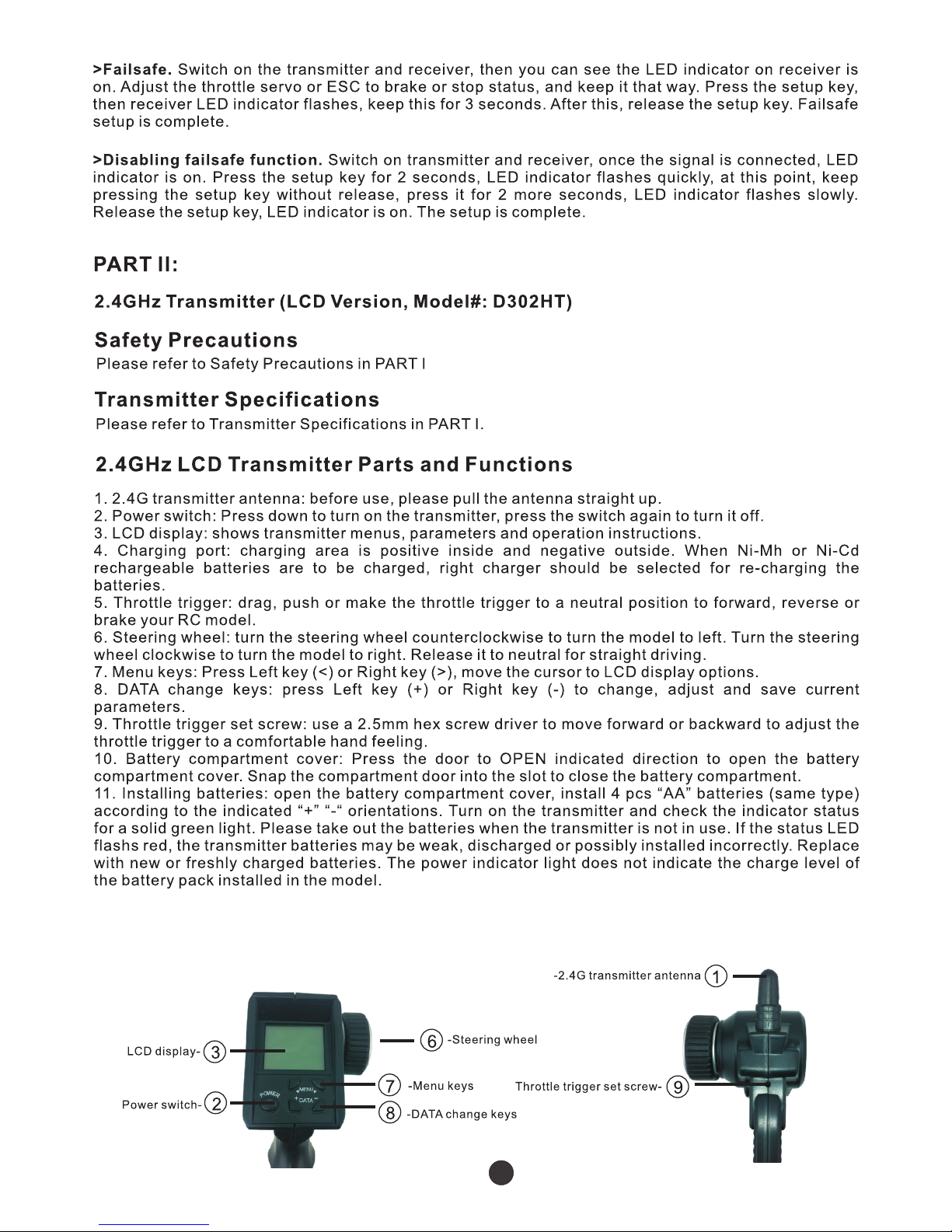

LCD Functions and Operations

Key Operations

Display Interface

BATT: battery status, function reset settings

MOD: Setting up mode and naming

21

22

23

FCC Cautio n: Any changes or modifications not expressly approve d by th e party respon sible for
compliance coul d void the user’s authority to oper ate this e quipmen t. This device com plies with Part
15 of the FCC Rule s. Operation is subject to two conditions: (1) Th is device may not cause ha rmful
interference, and (2) This device must accept a ny interfere nce received , including interference that
may cause undesired operation .
This device and its antenna(s) must not be co-located or ope rating in conjunction wit h any other
antenna or transmitter.

24
