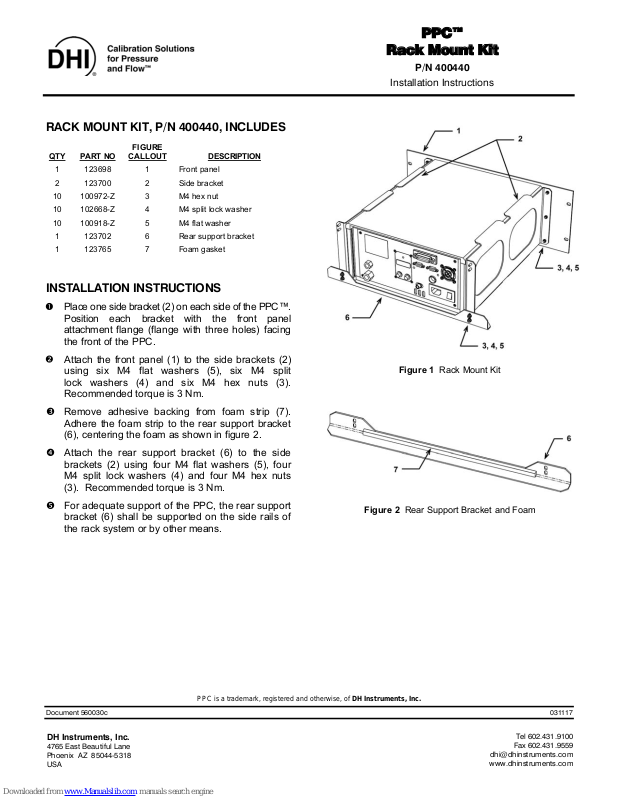

DH Instruments PPC - RACK MOUNT KIT, 400440 Installation Instructions Manual

RACK MOUNT KIT, P/N 400440, INCLUDES

PPC™

Rack Mount Kit

P/N 400440

Installation Instructions

QTY PART NO

1 123698 1 Front panel

2 123700 2 Side bracket

10 100972-Z 3 M4 hex nut

10 102668-Z 4 M4 split lock washer

10 100918-Z 5 M4 flat washer

1 123702 6 Rear support bracket

1 123765 7 Foam gasket

FIGURE

CALLOUT DESCRIPTION

INSTALLATION INSTRUCTIONS

Place one side bracket (2) on each side of the PPC™.

Position each bracket with the front panel
attachment flange (flange with three holes) facing
the front of the PPC.

Attach the front panel (1) to the side brackets (2)

using six M4 flat washers (5), six M4 split
lock washers (4) and six M4 hex nuts (3).
Recommended torque is 3 Nm.

 Remove adhesive backing from foam strip (7).

Adhere the foam strip to the rear support bracket
(6), centering the foam as shown in figure 2.

Figure 1 Rack Mount Kit

 Attach the rear support bracket (6) to the side

brackets (2) using four M4 flat washers (5), four
M4 split lock washers (4) and four M4 hex nuts
(3). Recommended torque is 3 Nm.

 For adequate support of the PPC, the rear support

bracket (6) shall be supported on the side rails of
the rack system or by other means.

PPC is a trademark, registered and otherwise, of DH Instruments, Inc.

Document 560030c 031117

DH Instruments, Inc.

4765 East Beautiful Lane
Phoenix AZ 85044-5318
USA

Figure 2 Rear Support Bracket and Foam
