Installation and Use of
32mm molbloc Cradle Kit
This kit is used to retrofit the 1/4” molstic-S™ platform in order to provide mounting for the molbloc-L™ laminar flow
elements with 32 mm square bodies.
PREPARING THE PLATFORM FOR CRADLE INSTALLATION
Early deliveries of the molstic-S platform did not include the holes necessary to mount the downstream cradles for 32
mm molbloc-L elements. If your platform does not have these holes, designated by sets 4, 5, and 6 in Figure 1, then
they will have to be drilled prior to installation of the cradles.
P/N 402134
Instruction Sheet
In order to locate and drill holes for the downstream cradles, use the following procedure:
Disassemble all of the existing cradles from the platform and retain the parts.
Determine in which location (4, 5, or 6) you will mount the downstream cradles.
Using a pencil and a straightedge, mark a line parallel to and 57 mm from the outlet end of the platform.
In order to locate the point on the platform to drill each new hole, mark a line that is parallel to the long side of the
platform and connects the centers of the existing holes. For example, if installing the downstream cradle in
location “4”, mark a line from the centers of the two holes in location “7” to the centers of those in location “1”.
Punch the intersection of the marked lines to facilitate drilling the platform.
Drill all necessary holes to a diameter of 4.6 mm.

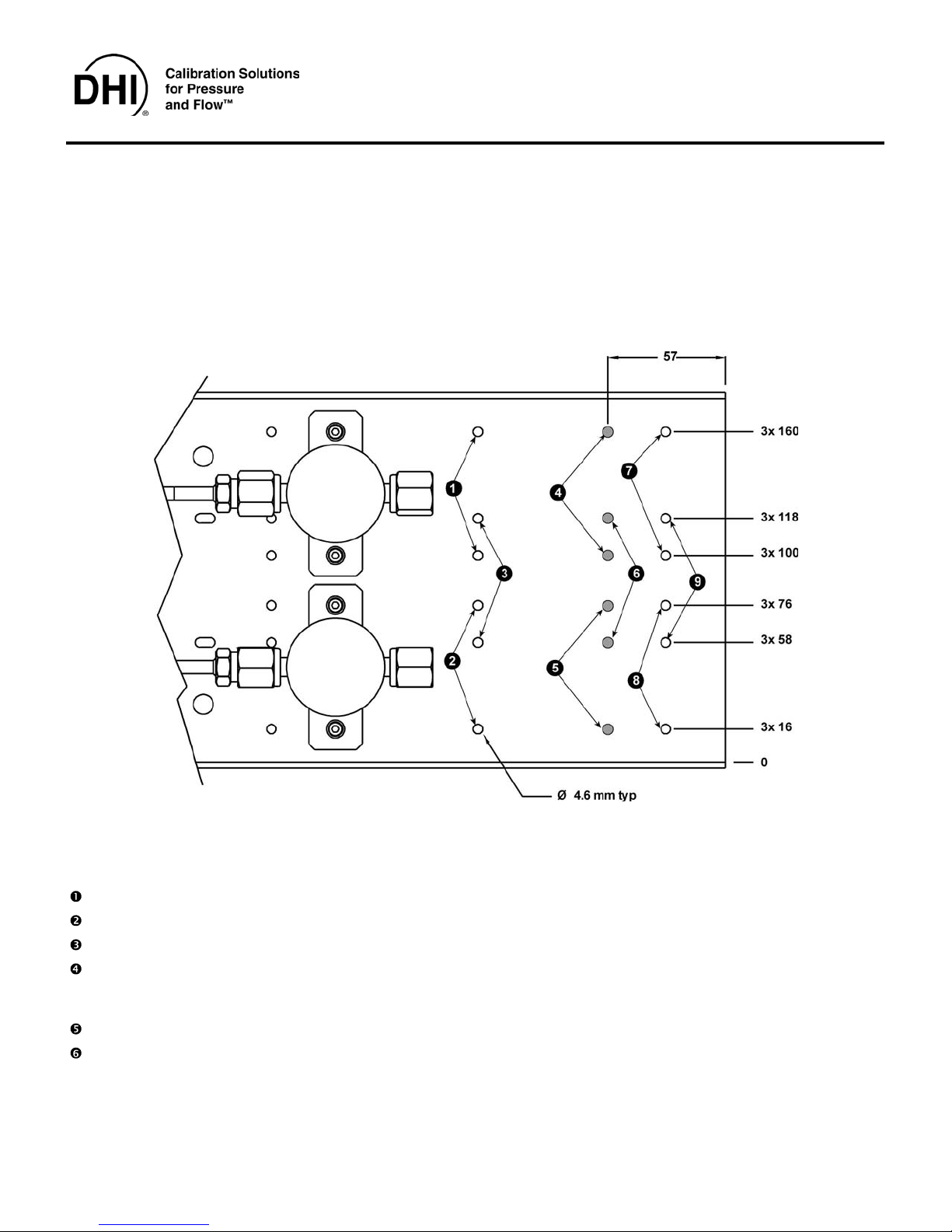

Figure 1 molstic-S Hole Pattern
INSTALLATION OF CRADLES ONTO MOLSTIC-S PLATFORM
With the molstic-S resting on its side, position the upstream cradle for the 32 mm molbloc-L into the desired
location, either 1, 2, or 3.
Place a lock washer and then a flat washer onto the socket head cap screw.
Thread the screw into the upstream cradle from the bottom side of the molstic platform and leave loose enough
to allow for later adjustment.
Thread another screw with lock washer and flat washer into the other side of the upstream cradle.
Position the downstream cradle for the 32 mm molbloc-L into the desired location, either 4, 5, or 6.
Thread screws into this cradle.
Repeat these step with any other cradles that might need to be installed.
For best alignment results, plumb the appropriate molbloc element into each branch of the molstic prior to final
tightening of the socket head cap screws.
The following parts are included in the shipment:
DESCRIPTION QTY PART NO.
Cradle, Low/Mid 2 122440
SHC screw, M4 x 10 4 101015-Z
Split lock washer, M4 4 102668-Z
Flat washer, M4 4 100918-Z
Instruction Sheet 1 560070
molbloc, molbloc-S, molbox, molstic and molstic-s are trademarks, registered and otherwise, of DH Instruments, Inc.
Document 560070 040907
