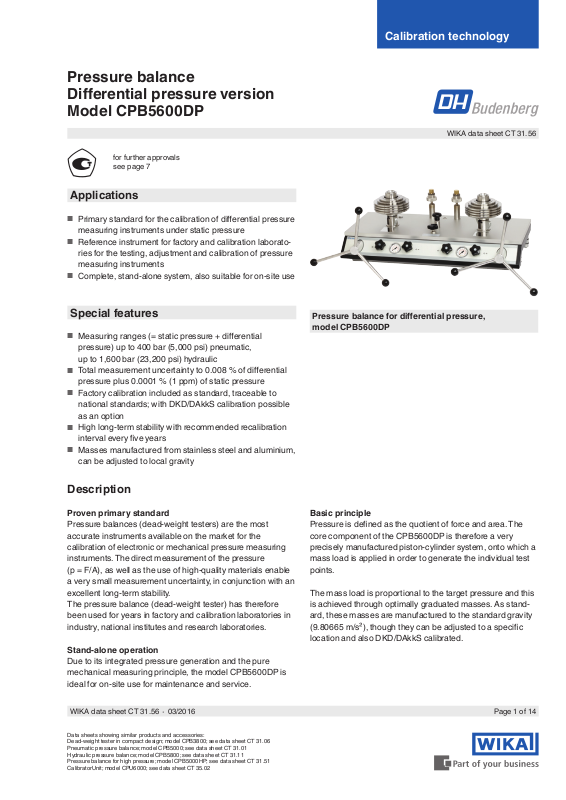

Page 1

Pressure balance

Dierential pressure version Model CPB5600DP

for further approvals see page 7

Applications

■

Primary standard for the calibration of dierential pressure

measuring instruments under static pressure

■

Reference instrument for factory and calibration laboratories for the testing, adjustment and calibration of pressure measuring instruments

■

Complete, stand-alone system, also suitable for on-site use

Calibration technology

WIKA data sheet CT 31.56

Special features

■

Measuring ranges (= static pressure + dierential

pressure) up to 400 bar (5,000 psi) pneumatic, up to 1,600 bar (23,200 psi) hydraulic

■

Total measurement uncertainty to 0.008 % of dierential

pressure plus 0.0001 % (1 ppm) of static pressure

■

Factory calibration included as standard, traceable to national standards; with DKD/DAkkS calibration possible as an option

■

High long-term stability with recommended recalibration

interval every ve years

■

Masses manufactured from stainless steel and aluminium, can be adjusted to local gravity

Description

Proven primary standard

Pressure balances (dead-weight testers) are the most accurate instruments available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p = F/A), as well as the use of high-quality materials enable a very small measurement uncertainty, in conjunction with an excellent long-term stability. The pressure balance (dead-weight tester) has therefore been used for years in factory and calibration laboratories in industry, national institutes and research laboratories.

Stand-alone operation

Due to its integrated pressure generation and the pure mechanical measuring principle, the model CPB5600DP is ideal for on-site use for maintenance and service.

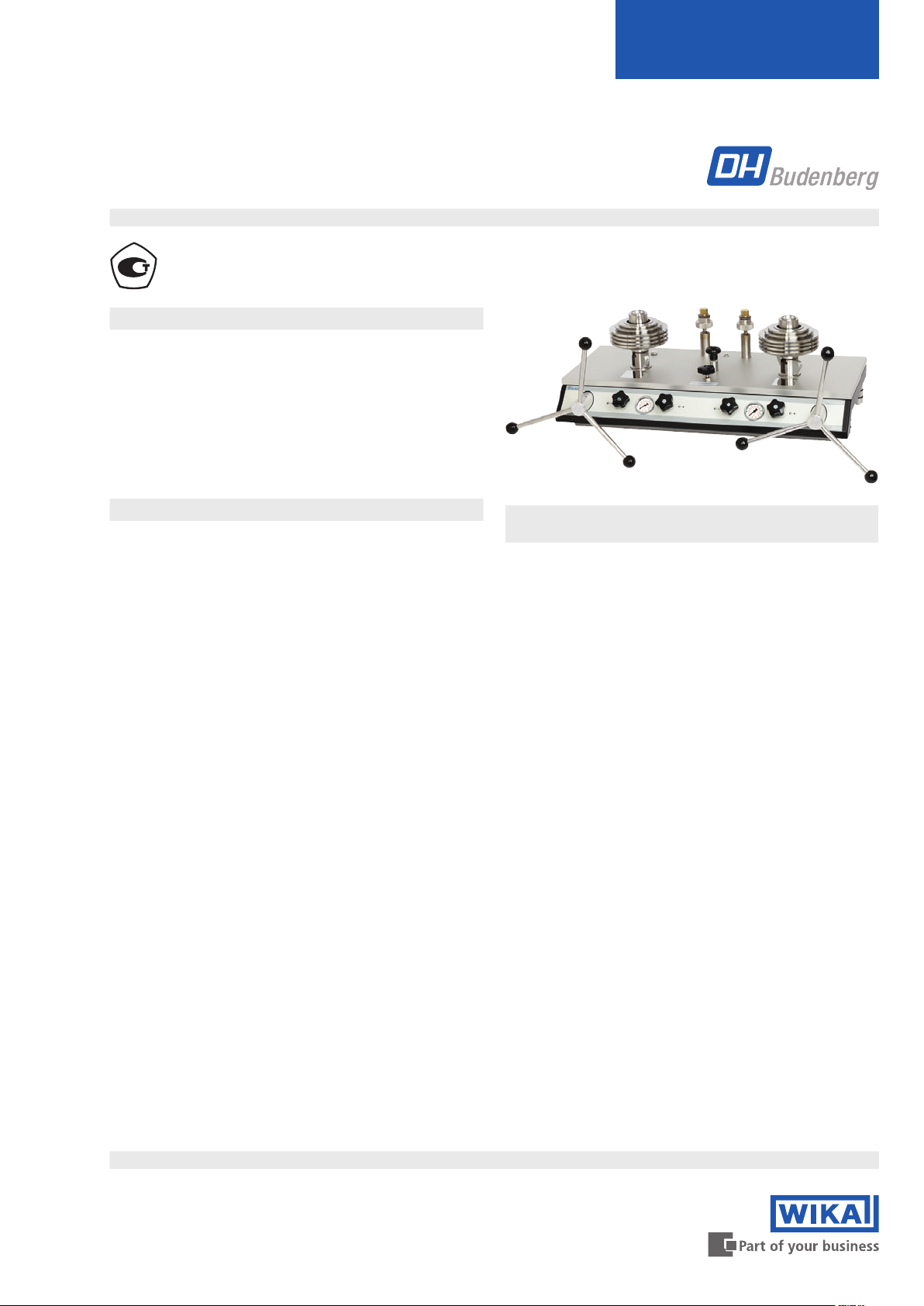

Pressure balance for dierential pressure, model CPB5600DP

Basic principle

Pressure is dened as the quotient of force and area. The

core component of the CPB5600DP is therefore a very precisely manufactured piston-cylinder system, onto which a mass load is applied in order to generate the individual test points.

The mass load is proportional to the target pressure and this is achieved through optimally graduated masses. As standard, these masses are manufactured to the standard gravity

(9.80665 m/s²), though they can be adjusted to a specic

location and also DKD/DAkkS calibrated.

WIKA data sheet CT 31.56

Data sheets showing similar products and accessories: Dead-weight tester in compact design; model CPB3800; see data sheet CT 31.06 Pneumatic pressure balance; model CPB5000; see data sheet CT 31.01 Hydraulic pressure balance; model CPB5800; see data sheet CT 31.11 Pressure balance for high pressure; model CPB5000HP; see data sheet CT 31.51 CalibratorUnit; model CPU6000; see data sheet CT 35.02

∙ 03/2016

Page 1 of 14

Page 2

Easy operation

The pressure setting depends on the instrument design and is either done via an integrated pump or from external

pressure supply via a metering valve. For ne adjustment, a very precisely controllable spindle pump is tted, with a

precision spindle running within it.

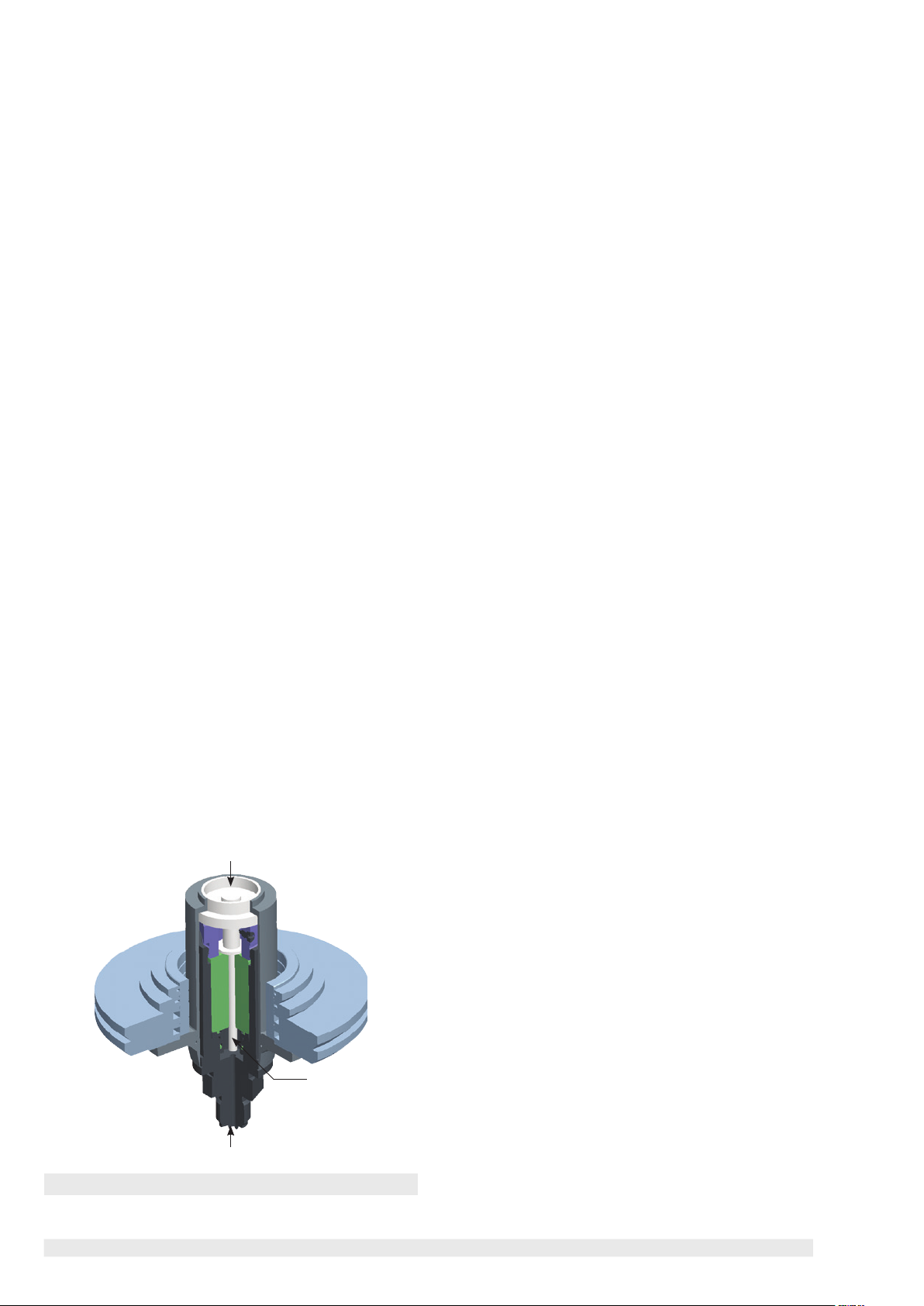

The piston-cylinder system

As soon as the measuring system reaches equilibrium, there is a balance of forces between the pressure and the masses. The excellent quality of the system ensures that this pressure remains stable over several minutes, so that the pressure value for comparative measurements can be read without any problems, or also so that more complex adjustments can be carried out on the test item.

Both the piston and cylinder are manufactured from tungsten carbide. This pairing of materials, in comparison to other materials, has very low pressure and temperature coecients of expansion, which results in a very good linearity for the eective area of the piston and a very high accuracy.

Piston and cylinder are very well protected against contact, impacts or contamination from outside in a solid stainless-steel case. At the same time, overpressure protection is integrated, which prevents the piston from being forced out vertically and avoids damage to the piston-cylinder system in the event of masses removal under pressure.

The masses are stacked on a mass carrier, which sits on the piston shaft. The construction of the mass carrier provides a very low centre of gravity for the stacked masses, which minimises both the side thrust on the piston-cylinder system and the friction. For relatively low starting pressures, a lighter aluminium plate can be used instead of the mass carrier.

The overall design of the piston-cylinder system and the very precise manufacturing of both the piston and the cylinder, ensures excellent operating characteristics with long free-rotation time and low sink rates. Thus a high long-term stability is ensured. Therefore, the recommended recalibration inter-

val is two or ve years depending on the conditions of use.

High-performance instrument range

The CPB5600DP instrument bases are available in the following four designs:

■

Pneumatic base

- up to max. 100 bar (1,500 psi)

- with integrated pressure generation through priming pump and spindle pump

- connection for external pressure supply

■

Pneumatic base with integrated gas to oil separator

- up to max. 400 bar (5,000 psi)

- connection for external pressure supply

- for use with hydraulic piston-cylinder systems with M30 x 2 connection

- test items can be easily, dryly and cleanly calibrated with air

■

Hydraulic base

- up to max. 1,000 bar (14,500 psi)

- with integrated pressure generation through priming pump and spindle pump

- special designs available to 1,200 bar (17,400 psi)

■

Hydraulic high-pressure base

- up to max. 1,600 bar (23,200 psi)

- with integrated pressure generation through priming pump and spindle pump

- for use with hydraulic high-pressure piston-cylinder systems with M30 x 2 connection with sealing cone

The instruments include the components of two pressure

Force F

balances in one case. For the calibration of dierential pressure gauges under a static pressure, the two systems are separated by a by-pass valve.

One of the systems is used to generate the static pressure

with the second system generating the dierential pressure

(incl. static pressure). It is recommended that one of the sets of ne increment masses is used for this (see accessories).

The instrument bases, pneumatic to 100 bar (1.450 psi) and

hydraulic, are tted with the patented ConTect quick-release

mechanism. This enables a quick and safe replacement of the piston-cylinder system without any tools. The pneumatic

Eective area A

instrument version with separator is tted with a connection for the piston-cylinder system with M30 x 2 female thread

and the hydraulic high-pressure base version is tted with a

M30 x 2 female thread with sealing cone.

Pressure p

The instrument bases are also available as individual

Piston-cylinder system

Page 2 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

instruments.

Page 3

Tables of masses

The following tables show the number of masses within a mass set with their nominal mass values and the resulting nominal pressures for the respective measuring ranges.

The masses are manufactured, as standard, to the standard gravity (9.80665 m/s²) although they can be adjusted for any

local gravity. Should the instrument not be operated under reference conditions (ambient temperature 20 °C (68 °F), atmospheric pressure 1,013 mbar (14.69 psi), relative humidity 40 %), the relevant corrections must be made, for example with the CPU6000 CalibratorUnit, see page 10.

Pneumatic models

Measuring range

0.03 ... 2 0.2 ... 10 0.4 ... 50 0.4 ... 100

[bar]

Quantity

Nominal

pressure

per piece

Quantity

Nominal

pressure

per piece

Quantity

Nominal

pressure

per piece

Quantity

[bar] [bar] [bar] [bar]

Piston 1 0.03 1 0.2 1 0.4 1 0.4

Mass carrier 1 0.16 1 0.8 1 4 1 4

Piston plate 1 0.01 1 0.05 1 0.25 1 0.25

Masses 2 kg - - - - - - 5 10

Masses 1 kg 9 0.2 9 1 9 5 9 5

Masses 0.5 kg 1 0.1 1 0.5 1 2.5 1 2.5

Masses 0.2 kg 1 0.04 1 0.2 1 1 1 1

Masses 0.12 kg 1 0.024 1 0.12 1 0.6 1 0.6

Masses 0.1 kg 1 0.02 1 0.1 1 0.5 1 0.5

Masses 0.07 kg 1 0.014 1 0.07 1 0.35 1 0.35

Masses 0.05 kg 1 0.01 1 0.05 1 0.25 1 0.25

Nominal

pressure

per piece

Measuring range

0.435... 30 2.9 ... 150 5.8 ... 500 5.8 ... 1,000 5.8 ... 1,500

[psi]

Quantity

Nominal

pressure

per piece

Quantity

Nominal

pressure

per piece

Quantity

Nominal

pressure

per piece

Quantity

Nominal

pressure

per piece

Quantity

Nominal

[psi] [psi] [psi] [psi] [psi]

Piston 1 0.435 1 2.9 1 5.8 1 5.8 1 5.8

Mass carrier 1 2.22 1 11.1 1 55.5 1 55.5 1 55.5

Piston plate 1 0.22 1 1.1 1 5.5 1 5.5 1 5.5

Masses 1.4 kg 5 4 5 20 - - 5 100 8 100

Masses 1 kg 2 3 2 15 2 75 2 75 2 75

Masses 0.7 kg 4 2 4 10 4 50 4 50 9 50

Masses 0.35 kg 3 1 3 5 3 25 3 25 3 25

Masses 0.19 kg 1 0.548 1 2.74 1 13.7 1 13.7 1 13.7

Masses 0.14 kg 1 0.4 1 2 1 10 1 10 1 10

Masses 0.12 kg 1 0.345 1 1.725 1 8.625 1 8.625 1 8.625

Masses 0.07 kg 1 0.2 1 1 1 5 1 5 1 5

pressure

per piece

WIKA data sheet CT 31.56 ∙ 03/2016 Page 3 of 14

Page 4

Hydraulic models

Measuring range

0.2 ... 60 0.2 ... 100 1 ... 250 1 ... 400 2 … 600 2 … 1,000 25 … 1,600

[bar]

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

[bar] [bar] [bar] [bar] [bar] [bar] [bar]

Piston 1 0.2 1 0.2 1 1 1 1 1 2 1 2 1 25

Mass carrier 1 1.6 1 1.6 1 8 1 8 1 16 1 16 - -

Piston plate 1 0.1 1 0.1 1 0.5 1 0.5 1 1 1 1 - -

Masses 4 kg 6 8 11 8 5 40 11 40 6 80 11 80 4 200

Masses 2 kg 2 4 2 4 2 20 2 20 2 40 2 40 8 100

Masses 1 kg 1 2 1 2 1 10 1 10 1 20 1 20 1 50

Masses 0.5 kg 1 1 1 1 1 5 1 5 1 10 1 10 2 25

Masses 0.2 kg 1 0.4 1 0.4 1 2 1 2 1 4 1 4 1 10

Masses 0.1 kg 1 0.2 1 0.2 1 1 1 1 1 2 1 2 1 5

Masses 0.05 kg 1 0.1 1 0.1 1 0.5 1 0.5 1 1 1 1 1 2.5

Measuring range

2.9 ... 1,000 14.5 ... 5,000 29 ... 10,000 29 ... 14,500 350 ... 23,200

[psi]

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

sure per piece

Quantity

Nominal pres-

[psi] [psi] [psi] [psi] [psi]

Piston 1 2.9 1 14.5 1 29 1 29 1 350

Mass carrier 1 23.1 1 115.5 1 231 1 231 - -

Piston plate 1 1.1 1 5.5 1 11 1 11 - -

Masses 7 kg - - - - - - - - 2 5,000

Masses 3.5 kg 9 100 9 500 9 1,000 14 1,000 3 2,500

Masses 1.4 kg 1 40 1 200 1 400 1 400 6 1,000

Masses 1 kg 1 30 1 150 1 300 1 300 1 750

Masses 0.7 kg 2 20 2 100 2 200 2 200 2 500

Masses 0.35 kg 1 10 1 50 1 100 1 100 1 250

Masses 0.175 kg 1 5 1 25 1 50 1 50 - -

Masses 0.14 kg 1 4 1 20 1 40 1 40 1 100

Masses 0.07 kg 1 2 1 10 1 20 1 20 1 50

sure per piece

Page 4 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

Page 5

Specications Model CPB5600DP

Piston-cylinder systems

Version pneumatic

Measuring range

Required masses kg 10 10 10 20

Smallest step bar

Sensitivity

Nominal eective area of the piston cm² 5 1 0.2 0.2

Version pneumatic

Measuring range

Required masses kg 10 10 7 13 20

Smallest step psi

Sensitivity

Nominal eective area of the piston cm² 5 1 0.2 0.2 0.2

Version hydraulic

Measuring range

Required masses kg 30 50 25 40 30

Smallest step bar

Sensitivity

Nominal eective area of the piston cm² 0.5 0.5 0.1 0.1 0.05

Version hydraulic hydraulic high pressure

Measuring range

Required masses kg 50 32

Smallest step bar

Sensitivity

Nominal eective area of the piston cm² 0.05 0.02

Version hydraulic hydraulic high

Measuring range

Required masses kg 34 34 34 50 33

Smallest step psi

Sensitivity

Nominal eective area of the piston cm² 0.5 0.1 0.05 0.05 0.02

Accuracies

Proportion of static pressure 0.0001 % of reading

Proportion of dierential pressure

standard

Proportion of dierential pressure

premium

5) 6)

Lower limiting value of the measurement uncertainty

1) Measuring range = static pressure + dierential pressure

2) Theroretical starting value; corresponds to the pressure value generated by the piston (by its own weight). To optimise the operating characteristics more masses should be loaded.

3) The smallest pressure change value that can be achieved based on the standard mass set. To reduce this, a set of ne increment masses is also available.

4) The sensitivity is the threshold of the measuring system. It is the pressure value of the smallest mass load, which brings the piston-cylinder system clearly and reproducibly out of balance.

5) Measurement uncertainty assuming reference conditions (ambient temperature 20 °C (68 °F), atmospheric pressure 1,013 mbar (14.69 psi), relative humidity 40 %). For operation without a CalibratorUnit, corrections must be made if required.

6) The accuracy of the dierential pressure is determined in accordance with the following calculation basis (see page 9).

bar

0.03 … 2 0.2 … 10 0.4 … 50 0.4 … 100

0.01 0.05 0.25 0.25

mbar 0.002 0.01 0.05 0.05

psi

0.435 … 30 2.9 … 150 5.8 … 500 5.8 … 1,000 5.8 … 1,500

0.2 1 5 5 5

psi 0.00003 0.00015 0.00075 0.00075 0.00075

bar

0.2 … 60 0.2 … 100 1 … 250 1 … 400 2 … 600

0.1 0.1 0.5 0.5 1

mbar 0.04 0.04 0.2 0.2 0.4

bar

2 … 1,000 25 … 1,600

1 2.5

mbar 0.4 5

pressure

psi

2.9 … 1,000 14.5 … 5,000 29 … 10,000 29 … 14,500 350 … 23,200

2 10 20 20 50

psi 0.006 0.003 0.006 0.006 5

0.015 % of reading

0.025 % of reading at hydraulic high pressure

0.008 % of reading

0.02 % of reading at hydraulic high pressure

depending on the measuring range; corresponds to the sensitivity of the piston

WIKA data sheet CT 31.56 ∙ 03/2016 Page 5 of 14

Page 6

Piston-cylinder systems

Material

Piston Tungsten carbide

hardened steel at hydraulic high pressure

Cylinder Tungsten carbide

Mass set 1.4305 stainless steel and aluminium, non-magnetic

Weight

Piston-cylinder system, pneumatic or hydraulic

Piston-cylinder system, hydraulic high pressure

bar basic mass set, pneumatic (incl. 2 carrying cases)

bar extension mass set, pneumatic (incl. 2 carrying cases)

bar basic mass set, hydraulic (incl. 2 carrying cases)

bar extension mass set, hydraulic (incl. 2 carrying cases)

bar basic mass set, hydraulic high pressure (incl. 2 carrying cases)

bar extension mass set, hydraulic high pressure (incl. 2 carrying cases)

psi basic mass set, pneumatic (incl. 2 carrying cases)

psi extension mass set 1, pneumatic (incl. 2 carrying cases)

psi extension mass set 2, pneumatic (only for 1,500 psi) (incl. 2 carrying cases)

psi basic mass set, hydraulic (incl. 2 carrying cases)

psi extension mass set, hydraulic (incl. 2 carrying cases)

psi basic mass set, hydraulic high pressure (incl. 2 carrying cases)

psi extension mass set, hydraulic high pressure (incl. 2 carrying cases)

Dimensions (W x D x H)

Carrying case for basic mass set 400 x 310 x 310 mm (15.8 x 12.2 x 12.2 in)

Carrying case for extension mass set 215 x 310 x 310 mm (8.5 x 12.2 x 12.2 in)

Storage case for the piston-cylinder system (optional)

1.5 kg / 5.7 kg / (3.3 lbs / 12.6 lbs) (incl. mass carrier and piston plate in optional storage case); 2 systems required

2.7 kg / 5.0 kg / (6.0 lbs / 11.0 lbs) (in optional storage case); 2 systems required

32.4 kg (71.4 lbs)

28.0 kg (61.7 lbs)

72.0 kg (158.8 lbs)

48.0 kg (105.8 lbs)

39.0 kg (86.0 lbs)

25.0 kg (55.1 lbs)

22.0 kg (48.5 lbs)

37.0 kg (81.6 lbs)

84.0 kg (185.2 lbs)

43.0 kg (94.8 lbs)

96.5 kg (212.8 lbs)

16.0 kg (35.3 lbs)

300 x 265 x 205 mm (11.8 x 10.4 x 8.1 in)

Base

Base version

Pneumatic up to max. 100 bar (1,500 psi); with priming pump, spindle pump and connection for external

supply

Pneumatic, with separator up to max. 400 bar (5,000 psi);

for external supply with integrated gas to oil separator for use with hydraulic pistons with M30 x 2 connection

Hydraulic up to max. 1,000 bar (14,500 psi); with internal pressure generation

up to max. 1,200 bar (17,400 psi) on request

Hydraulic, high pressure up to max. 1,600 bar (23,200 psi); with internal pressure generation

Page 6 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

Page 7

Base

Pressure transmission medium

Pneumatic Clean, dry, non-corrosive gases (e.g. air or nitrogen)

Hydraulic Operating uid (1 litre is included in delivery), other media on request

Reservoir 250 cm³

Connections

Connection for piston-cylinder system

Test item connection 2 pieces quick connector G ½ B female thread as standard, freely rotating, changeable; for further

External pressure connection 6 mm SWAGELOK

Material

Piping in base pneumatic: 1.4571 stainless steel, 3 x 1 mm

Weight

Pneumatic base 34.0 kg (75.0 lbs)

Pneumatic base with separator 32.0 kg (70.6 lbs)

Hydraulic base 38.5 kg (84.9 lbs)

Hydraulic high-pressure base 37.0 kg (81.6 lbs)

Permissible ambient conditions

Operating temperature 18 ... 28 °C (64 ... 82 °F)

Dimensions (W x D x H)

Base 800 x 375 x 265 mm (31.5 x 14.8 x 10.4 in), for details, see technical drawings

ConTect quick connector on pneumatic and hydraulic base versions M30 x 2 female thread on pneumatic base version with separator M30 x 2 female thread with sealing cone on hydraulic high-pressure base version

threaded inserts, see accessories

threaded pipe connection; max. 110 % of the assigned measuring range;

only with pneumatic base version and pneumatic version with separator

hydraulic: 1.4404 stainless steel, 6 x 2 mm

Approvals

Logo Description Country

GOST

Metrology/measurement technology

- MTSCHS

Permission for commissioning

Russia

Kazakhstan

Certicates

Certicate

Calibration Standard: factory calibration certicate

Option: DKD/DAkkS calibration certicate

Recommended recalibration interval 2 to 5 years (dependent on conditions of use)

Approvals and certicates, see website

WIKA data sheet CT 31.56 ∙ 03/2016 Page 7 of 14

Page 8

Transport dimensions for complete instrument

The complete instrument, in its standard version and standard scope of delivery, consists of 2 packaging units.

■

1 wooden box with instrument base, dimensions 980 x 580 x 560 mm (38.6 x 22.8 x 22.1 in)

■

1 pallet with piston and mass sets, dimensions 1,200 x 800 x 500 mm (47.3 x 31.5 x 19.7 in)

The overall weight is dependent on the instrument version and measuring range.

Weight

Wooden box net gross

Pneumatic base 34.0 kg (75.0 lbs) 43.5 kg (95.9 lbs)

Pneumatic base with separator 32.0 kg (70.6 lbs) 41.5 kg (91.5 lbs)

Hydraulic base 38.5 kg (84.9 lbs) 48.0 kg (105.8 lbs)

Hydraulic high-pressure base 37.0 kg (81.6 lbs) 46.5 kg (102.5 lbs)

Pallet Weight

Version in bar net gross

Pneumatic

2 bar / 10 bar / 50 bar 35.5 kg (78.3 lbs) 50.5 kg (111.4 lbs)

100 bar 63.5 kg (104.0 lbs) 78.5 kg (173.1 lbs)

Hydraulic

60 bar / 250 bar / 600 bar 75.0 kg (165.4 lbs) 90.0 kg (198.5 lbs)

100 bar / 400 bar / 1,000 bar 123.0 kg (271.2 lbs) 138.0 kg (304.3 lbs)

1,600 bar 92.5 kg (204.0 lbs) 107.5 kg (237.0 lbs)

Pallet Weight

Version in psi net gross

Pneumatic

30 psi / 150 psi / 1,000 psi 50.0 kg (110.3 lbs) 65.0 kg (143.3 lbs)

500 psi 28.0 kg (61.7 lbs) 43.0 kg (94.8 lbs)

1,500 psi 87.0 kg (191.8 lbs) 102.0 kg (224.9 lbs)

Hydraulic

1,000 psi / 5,000 psi / 10,000 psi 87.0 kg (191.8 lbs) 102.0 kg (224.9 lbs)

14,500 psi 130.0 kg (286.7 lbs) 145.0 kg (326.3 lbs)

23,200 psi 118.0 kg (260.2 lbs) 133.0 kg (293.3 lbs)

Page 8 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

Page 9

Calculation of the measurement uncertainty

The accuracy of the dierential pressure is the quadratic sum of the percentage of static pressure u and the percentage of the dierential pressure value u

. (normally distributed). In this way, the minimum values of each of the

di

. (normally distributed)

stat

individual components are taken into account. What is calculated is the expanded measurement uncertainty U (k = 2), in which the measurand lies with a probability of 95 %.

The measurement uncertainty is calculated as per the following equation:

U = k *

√

stat

. / 2)² + (u

di.

/ 2)²

(k = 2 for 95 %)

Example 1:

Measuring range of the piston-cylinder system: 10 bar Accuracy of the piston-cylinder system: 0.015 % Static pressure: 5 bar Dierential pressure measured value: 100 mbar

Measurement uncertainty Lower limiting value of the measurement

uncertainty

Proportion of static pressure 0.0001 % of 5 bar = 0.005 mbar 0.01 mbar

Proportion of dierential pressure 0.015 % of 100 mbar = 0.015 mbar 0.01 mbar

Overall accuracy

±2 *

√

(0.01 mbar/2)² + (0.015 mbar/2)² = 0.018 mbar which corresponds to ±0.018 % of reading

Example 2:

Measuring range of the piston-cylinder system: 250 bar Accuracy of the piston-cylinder system: 0.008 % Static pressure: 200 bar Dierential pressure measured value: 2 bar

Measurement uncertainty Lower limiting value of the measurement

Proportion of static pressure

Proportion of dierential pressure

Overall accuracy

0.0001 % of 200 bar = 0.2 mbar 0.2 mbar

0.008 % of 2 bar = 0.16 mbar 0.2 mbar

±2 * √(0.2 mbar/2)² + (0.2 mbar/2)² = 0.283 mbar which corresponds to ±0.014 % of reading

uncertainty

WIKA data sheet CT 31.56 ∙ 03/2016 Page 9 of 14

Page 10

Dimensions in mm (in)

The gure shows a pneumatic CPB5600DP base. The hydraulic version and hydraulic high-pressure version do not dier from

it dimensionally, only in the arrangement of the control elements.

Front view

Top view

Side view (left)

1 2 3 4 5 6

7 8 9 10 9 11 7

Test item connector

Outlet valve Test pressure gauge

(only to max. 1,000 bar (14,500 psi))

Inlet valve (only on pneumatic versions)

Threaded insert, changeable

Quick-release connector with knurled nut

Page 10 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

O-ring 8 x 2

Rotatable feet

Bypass valve

Spindle pump with star handle, removable

Connector for piston-cylinder system

Plug screw for oil reservoir (only on hydraulic versions)

Test item connection

Level

Priming pump

Page 11

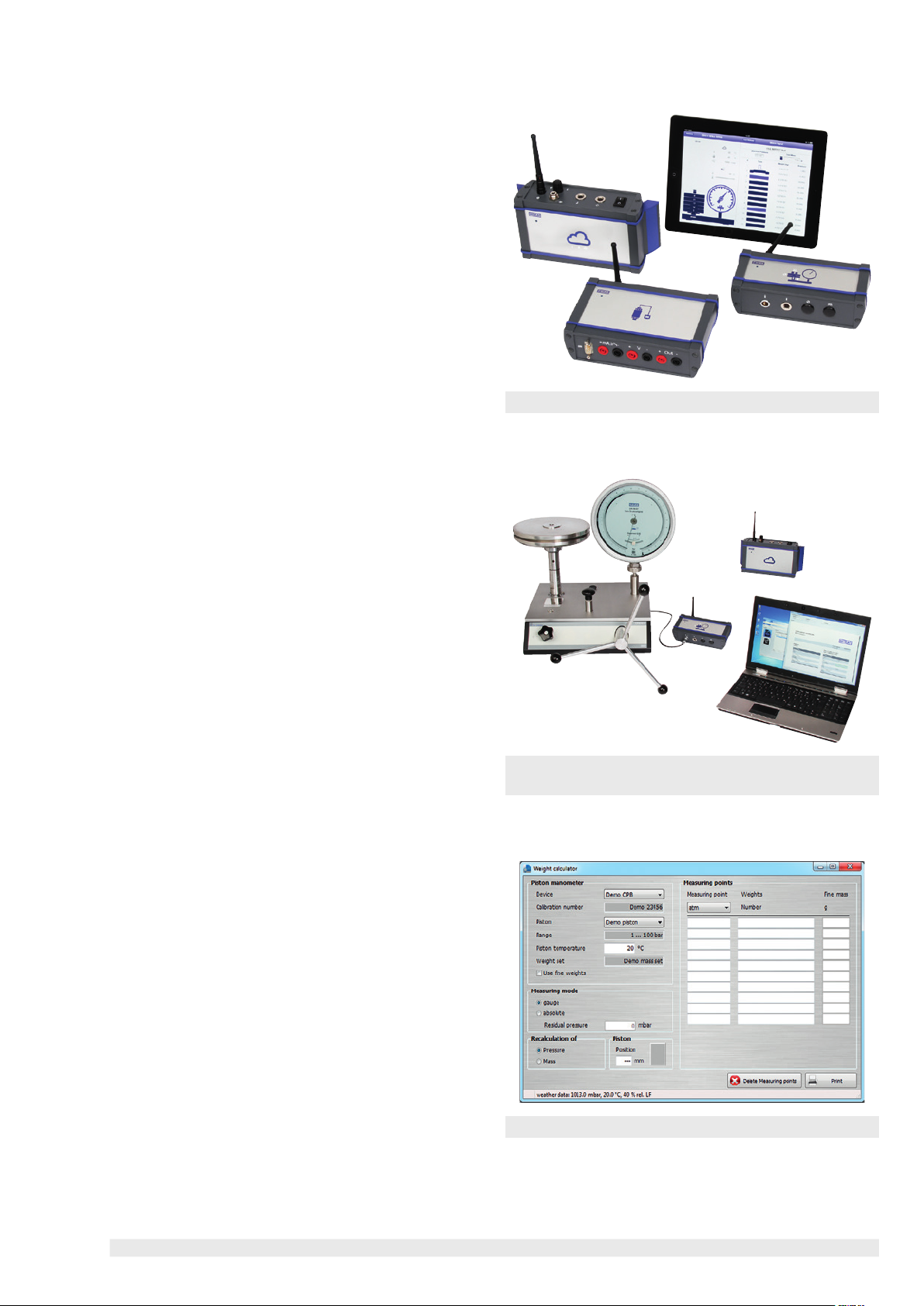

CalibratorUnit model CPU6000

The models of the CPU6000 series are compact tools for use with a pressure balance (dead-weight tester). In particular when highly accurate measuring values, with measurement uncertainties of less than 0.025 %, are required, complicated mathematical calculations and corrections are necessary. With the CPU6000 in combination with the CPB-CAL (iPad app) and/or WIKA-CAL (PC software) all critical ambient parameters can be registered and automatically corrected.

The CPU6000 series is made up of three instruments

Weather station, model CPU6000-W

The CPU6000-W provides measured values such as atmospheric pressure, relative humidity and the ambient temperature of the laboratory environment.

Pressure balance sensor box, model CPU6000-S

The CPU6000-S measures the piston temperature and

displays the oating position of the masses.

Digital multimeter, model CPU6000-M

The CPU6000-M fulls the function of a digital multimeter

and power supply unit when electronic pressure transmitters must be calibrated.

CPU6000 series and iPad® app CPB-CAL

Typical application

CPB-CAL iPad® app

The iPad balances (dead-weight testers) or the reference pressure while taking the measured parameters from the CPU6000 into account. The conversion can be carried out in all common pressure units. As an additional parameter, the local gravity can be given for location-independent measurements.

WIKA-CAL PC software - Weight calculator

With the demo version of the WIKA-CAL software and a CPB series pressure balance (dead-weight tester), the masses to be applied and the corresponding reference pressure can be determined. The pressure balance data (dead-weight tester data) can be entered into the database manually or imported

automatically via an XML le available online.

All ambient parameters and piston temperature can be entered manually into WIKA-CAL or can be measured automatically with the CPU6000 series, so that the highest accuracy can be achieved. WIKA-CAL demo version can be downloaded free of charge from the WIKA website.

Further specications on the CPU6000 series can be found

in data sheet CT 35.02. For details of the WIKA-CAL calibration software see data sheet CT 95.10.

application calculates the masses for pressure

Model CPU6000-W, CPU6000-S, CPB5800 and PC with WIKA-CAL software

WIKA-CAL PC software - Weight calculator

WIKA data sheet CT 31.56 ∙ 03/2016 Page 11 of 14

Page 12

Further pressure balances / dead-weight testers within our calibration technology programme

Dead-weight tester in compact design, model CPB3800

Measuring ranges:

Hydraulic 1 ... 120 to 10 ... 1,200 bar

(10 ... 1,600 to 100 ... 16,000 psi)

Accuracy: 0.05 % of reading

0.025 % of reading (optional)

For specications see data sheet CT 31.06

Pneumatic pressure balance, model CPB5000

Measuring ranges:

Pneumatic -0.03 ... -1 to +0.4 ... +100 bar

(-0.435 … -14 to +5.8 … +1,500 psi)

Accuracy: 0.015 % of reading

0.008 % of reading (optional)

Dead-weight tester in compact design, model CPB3800

For specications see data sheet CT 31.01

Hydraulic pressure balance, model CPB5800

Measuring ranges:

Hydraulic Single-piston measuring ranges:

1 ... 120 to 2 ... 300 bar (10 ... 1,600 to 30 ... 4,000 psi)

Dual-piston measuring ranges: 1 ... 60 bar / 10 ... 700 bar to 1 ... 60 bar / 20 ... 1,400 bar (10 ... 800 psi / 100 ... 10,000 psi to 10 ... 800 psi / 200 ... 20,000 psi)

Accuracy: 0.015 % of reading

up to 0.006 % of reading (optional)

For specications see data sheet CT 31.11

Pressure balance for high pressure, model CPB5000HP

Pneumatic pressure balance, model CPB5000

Hydraulic pressure balance, model CPB5800

Measuring ranges:

Hydraulic 25 ... 2,500, 25 ... 4,000 or 25 ... 5,000 bar

(350 ... 40,000, 350 ... 60,000 or 350 ... 70,000 psi)

Accuracy: 0.025 % of reading

0.02 % of reading (optional)

For specications see data sheet CT 31.51

Page 12 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

Pressure balance for high pressure, model CPB5000HP

Page 13

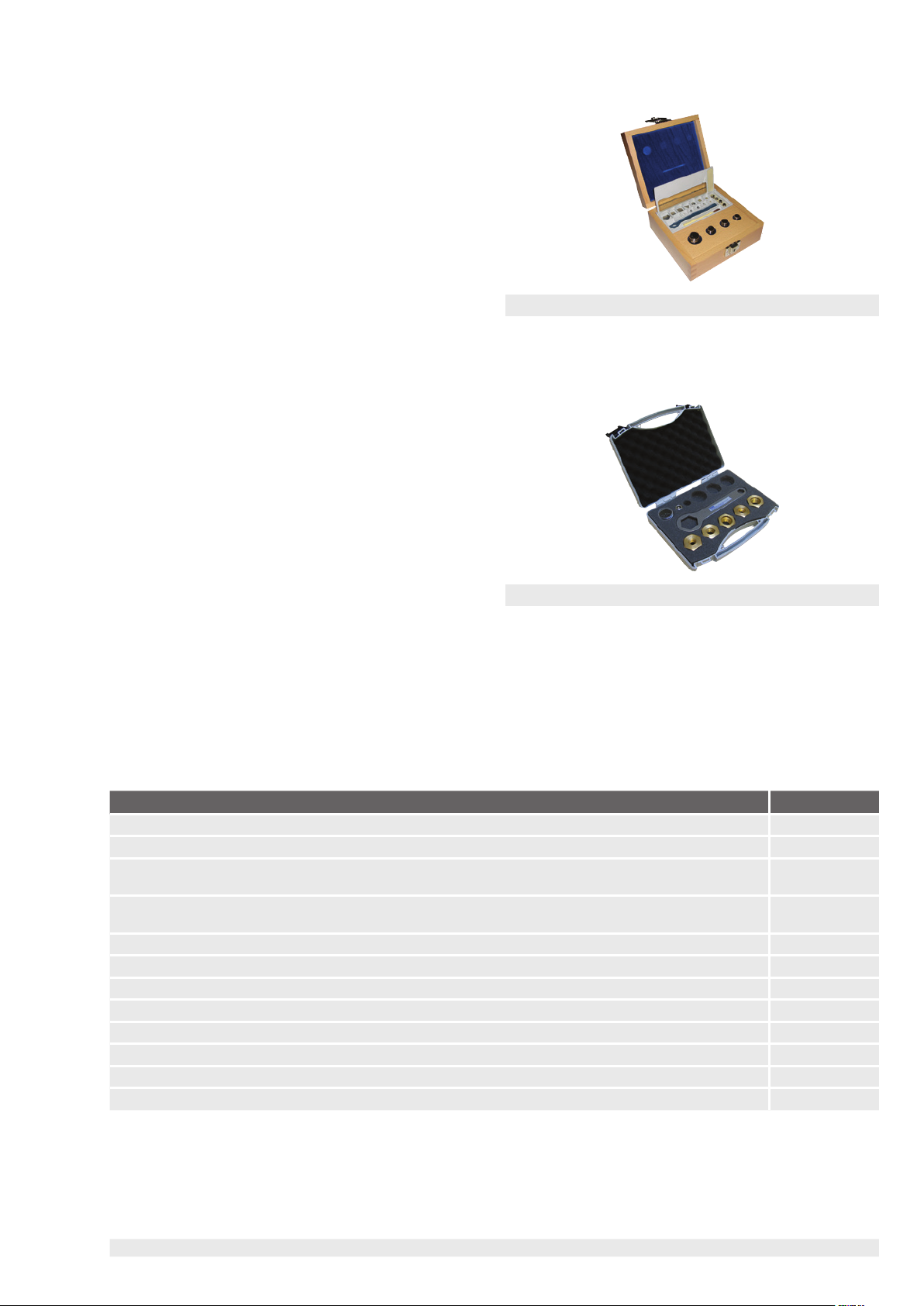

Accessories

Set of ne increment masses M1 and F1

The masses included in the standard scope of delivery are ideally suited for everyday use. If even smaller intermediate values need to be generated, using one of the class M1 or

F1 set of ne increment masses with the following masses is

recommended:

1 x 50 g, 2 x 20 g, 1 x 10 g, 1 x 5 g, 2 x 2 g, 1 x 1 g, 1 x 500 mg, 2 x 200 mg, 1 x 100 mg, 1 x 50 mg, 2 x 20 mg, 1 x 10 mg, 1 x 5 mg, 2 x 2 mg, 1 x 1 mg

Adapter sets for quick-release connector

As a standard, the pressure balance is equipped with a quick-release connector for connecting the test item. For this purpose, the following threaded inserts, which can be easily changed, are available:

■

Adapter set: G ¼, G ⅜, ½ NPT, ¼ NPT and M20 x 1.5

■

Adapter set NPT: ⅛ NPT, ¼ NPT, ⅜ NPT and ½ NPT

Additionally, the adapter sets include spare O-rings as well

as a spanner with SW32 ats and SW14 ats, for changing

the adapters. Other threaded inserts are available on request.

Set of ne increment masses

Adapter set

Designation/Version Order no.

Set of ne increment masses (1 mg up to 50 g), class F1 7093874

Set of ne increment masses (1 mg up to 50 g), class M1 14025325

Adapter set for quick-release connector in case with G ¼, G ⅜, ½ NPT, ¼ NPT and M20 x 1.5 threaded inserts for

insertion in the knurled nut on the test item connector

Adapter set “NPT” for quick-release connector in case with ⅛ NPT, ¼ NPT, ⅜ NPT and ½ NPT threaded inserts for

insertion in the knurled nut on the test item connector

90° angled connection piece, for test items with back mounting connection 1564838

Separator, max. 1,000 bar (14,500 psi) 1565389

Dirt trap, -1 ... +1,000 bar (14,500 psi), volume 0.2 litre 2015820

Dirt trap, -1 ... +1,000 bar (14,500 psi), volume 0.03 litre 2015714

O-ring set consisting of 5 pcs. 8 x 2 and 5 pcs. 4 x 2.2 12328562

Operating uid for CPB5000 up to max. 4,000 bar (60,000 psi), 1 litre 2099882

Cleaning set for ConTect systems, pneumatic 12485943

Cleaning set for ConTect systems, hydraulic 12481425

WIKA data sheet CT 31.56 ∙ 03/2016 Page 13 of 14

2036941

12563626

Page 14

Scope of delivery

Options

■

Base

■

Priming pump

■

Spindle pump for lling, pressure generation and ne

pressure adjustment

■

Piston connection with ConTect quick-release connector (on pneumatic and hydraulic base)

■

Piston connection with M30 x 2 female thread (on pneumatic base with separator and hydraulic high pressure)

■

2 quick connectors for test items

■

2 piston-cylinder systems with mass carrier

■

2 basic mass sets in carrying case

■

2 extension mass sets in carrying cases (depending on the measuring range)

■

Masses, manufactured to local gravity (standard value:

9.80665 m/s²)

■

Operating uid 1.0 litre (only for hydraulic version) or

0.25 litre (for separator version)

■

Additional sealing set

■

Operating instructions in German and English language

■

Factory calibration certicate

■

Systems with increased accuracy to 0.008 % (depending on measuring range)

■

Further pressure units

■

Storage case for piston-cylinder systems

■

DKD/DAkkS calibration certicate

Ordering information

Model / Instrument version / Measuring range / Accuracy / Gravity value g / Storage case for piston-cylinder systems / Installation of CPU6000-S CalibratorUnit sensor technology / Calibration for the pressure balance / Additional ordering information

The specications given in this document represent the state of engineering at the time of publishing. We reserve the right to make modications to the specications and materials.

Page 14 of 14 WIKA data sheet CT 31.56 ∙ 03/2016

WIKA Alexander Wiegand SE & Co. KG

Alexander-Wiegand-Straße 30 63911 Klingenberg/Germany Tel. +49 9372 132-0 Fax +49 9372 132-406 info@wika.de www.wika.de

03/2016 EN
