DH-Budenberg 80 Operating Manual

SDB-Nr.: 1297
Artikelnummer: 2099882; 2099954
Eingegangen am: 06.02.2015

Effective Date 12.12.2012
Regulation 1907/2006/EC

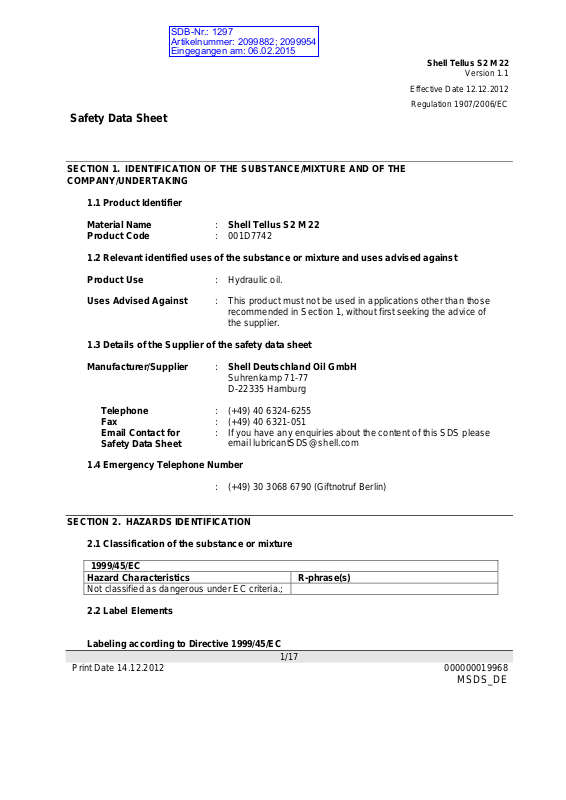

Safety Data Sheet

SECTION 1. IDENTIFICATION OF THE SUBSTANCE/MIXTURE AND OF THE
COMPANY/UNDERTAKING

1.1 Product Identifier
Material Name

Product Code

1.2 Relevant identified uses of the substance or mixture and uses advised against
Product Use
Uses Advised Against

1.3 Details of the Supplier of the safety data sheet
Manufacturer/Supplier

Telephone
Fax
Email Contact for
Safety Data Sheet

1.4 Emergency Telephone Number
: ([phone] (Giftnotruf Berlin)

SECTION 2. HAZARDS IDENTIFICATION

:

Shell Tellus S2 M 22

: 001D7742

: Hydraulic oil.
: This product must not be used in applications other than those

recommended in Section 1, without first seeking the advice of
the supplier.

:

Shell Deutschland Oil GmbH
Suhrenkamp 71-77
D-22335 Hamburg

: ([phone]
: ([phone]
: If you have any enquiries about the content of this SDS please

email [e-mail]

Shell Tellus S2 M 22

Version 1.1

2.1 Classification of the substance or mixture

1999/45/EC

Hazard Characteristics R-phrase(s)

Not classified as dangerous under EC criteria.;

2.2 Label Elements

Labeling according to Directive 1999/45/EC

1/17

Print Date 14.12.2012

000000019968

MSDS_DE

Safety Data Sheet

EC Symbols : No Hazard Symbol required

EC Classification : Not classified as dangerous under EC criteria.
EC Risk Phrases : Not classified.
EC Safety Phrases : Not classified.

2.3 Other Hazards
Health Hazards

Safety Hazards
Environmental Hazards

SECTION 3. COMPOSITION/INFORMATION ON INGREDIENTS

: Not expected to be a health hazard when used under normal

conditions. Prolonged or repeated skin contact without proper
cleaning can clog the pores of the skin resulting in disorders
such as oil acne/folliculitis. High-pressure injection under the
skin may cause serious damage including local necrosis. Used

oil may contain harmful impurities.
: Not classified as flammable but will burn.
: Not classified as dangerous for the environment.

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

3.1 Substance
Material Name

3.2 Mixtures
Mixture Description
Hazardous Components
Classification of components according to Regulation (EC) No 1272/2008

Chemical Name CAS No. EC Number REACH Registration

Interchangeable low

viscosity base oil
(<20,5 cSt @40°C) *

Chemical Name Hazard Class & Category Hazard Statement

Interchangeable low Asp. Tox., 1; H304;

Print Date 14.12.2012

: Not applicable.

: Highly refined mineral oils and additives.

No.

* * * 0,00 - 90,00%

2/17

Conc.

000000019968

MSDS_DE

Safety Data Sheet

viscosity base oil
(<20,5 cSt @40°C) *

Additional Information

SECTION 4. FIRST AID MEASURES

: The highly refined mineral oil contains <3% (w/w) DMSO-

extract, according to IP346.

Refer to Ch 16 for full text of H phrases.
* contains one or more of the following CAS-numbers (REACH

registration numbers): 64742-53-6 (01-2119480375-34), 64742-

54-7 (01-2119484627-25), 64742-55-8 (01-2119487077-29),

64742-56-9 (01-2119480132-48), 64742-65-0 (01-2119471299-

27), 68037-01-4 (01-2119486452-34), 72623-86-0 (01-

2119474878-16), 72623-87-1 (01-2119474889-13), 8042-47 -5

(01-2119487078-27), 848301-69-9 (01-0000020164-80).

This mixture does not contain any REACH registered

substances that are assessed to be a PBT or a vPvB.

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

4.1 Description of First Aid Measures
General Information
Inhalation
Skin Contact

Eye Contact
Ingestion
Self-protection of the first

aider

4.2 Most important
symptoms and effects,

Print Date 14.12.2012

: Not expected to be a health hazard when used under normal
: No treatment necessary under normal conditions of use. If
: Remove contaminated clothing. Flush exposed area with water

: Flush eye with copious quantities of water. If persistent
: In general no treatment is necessary unless large quantities
: When administering first aid, ensure that you are wearing the

: Oil acne/folliculitis signs and symptoms may include formation

conditions.
symptoms persist, obtain medical advice.
and follow by washing with soap if available. If persistent

irritation occurs, obtain medical attention. When using high
pressure equipment, injection of product under the skin can
occur. If high pressure injuries occur, the casualty should be
sent immediately to a hospital. Do not wait for symptoms to
develop. Obtain medical attention even in the absence of
apparent wounds.

irritation occurs, obtain medical attention.
are swallowed, however, get medical advice.
appropriate personal protective equipment according to the

incident, injury and surroundings.
of black pustules and spots on the skin of exposed areas.

3/17

000000019968

MSDS_DE

Safety Data Sheet

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

both acute and delayed

4.3 Indication of any
immediate medical
attention and special
treatment needed

SECTION 5. FIRE FIGHTING MEASURES

Clear fire area of all non-emergency personnel.

5.1 Extinguishing Media
Unsuitable Extinguishing

Media

5.2 Special hazards
arising from the
substance or mixture

5.3 Advice for firefighters

SECTION 6. ACCIDENTAL RELEASE MEASURES

Local necrosis is evidenced by delayed onset of pain and
tissue damage a few hours following injection. Ingestion may
result in nausea, vomiting and/or diarrhoea.

: Notes to doctor/physician:

Treat symptomatically.
High pressure injection injuries require prompt surgical
intervention and possibly steroid therapy, to minimise tissue
damage and loss of function.
Because entry wounds are small and do not reflect the
seriousness of the underlying damage, surgical exploration to
determine the extent of involvement may be necessary. Local
anaesthetics or hot soaks should be avoided because they can
contribute to swelling, vasospasm and ischaemia. Prompt
surgical decompression, debridement and evacuation of
foreign material should be performed under general
anaesthetics, and wide exploration is essential.

: Foam, water spray or fog. Dry chemical powder, carbon

dioxide, sand or earth may be used for small fires only.

: Do not use water in a jet.
: Hazardous combustion products may include: A complex

mixture of airborne solid and liquid particulates and gases
(smoke). Carbon monoxide. Unidentified organic and inorganic
compounds.

: Proper protective equipment including chemical resistant

gloves are to be worn; chemical resistant suit is indicated if
large contact with spilled product is expected. Self-Contained
Breathing Apparatus must be worn when approaching a fire in
a confined space. Select fire fighter's clothing approved to
relevant Standards (e.g. Europe: EN469).

Avoid contact with spilled or released material. For guidance on selection of personal protective
equipment see Chapter 8 of this Material Safety Data Sheet. Observe the relevant local and
international regulations.

6.1 Personal Precautions,

Print Date 14.12.2012

: 6.1.1 For non emergency personnel: Avoid contact with skin

4/17

000000019968

MSDS_DE

Safety Data Sheet

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

Protective Equipment and
Emergency Procedures

6.1.2 For emergency responders: Avoid contact with skin and

6.2 Environmental
Precautions

6.3 Methods and Material
for Containment and
Cleaning Up

Additional Advice

6.4 Reference to other
sections

SECTION 7. HANDLING AND STORAGE

General Precautions

7.1 Precautions for Safe
Handling

Product Transfer

7.2 Conditions for safe
storage, including any
incompatibilities

Refer to section 15 for any additional specific legislation
Recommended Materials

and eyes.

eyes.

: Use appropriate containment to avoid environmental

contamination. Prevent from spreading or entering drains,
ditches or rivers by using sand, earth, or other appropriate
barriers.

: Slippery when spilt. Avoid accidents, clean up immediately.

Prevent from spreading by making a barrier with sand, earth or
other containment material. Reclaim liquid directly or in an
absorbent. Soak up residue with an absorbent such as clay,
sand or other suitable material and dispose of properly.

: Local authorities should be advised if significant spillages

cannot be contained.

: For guidance on selection of personal protective equipment

see Chapter 8 of this Material Safety Data Sheet. For guidance
on disposal of spilled material see Chapter 13 of this Material
Safety Data Sheet.

: Use local exhaust ventilation if there is risk of inhalation of

vapours, mists or aerosols. Use the information in this data
sheet as input to a risk assessment of local circumstances to
help determine appropriate controls for safe handling, storage
and disposal of this material.

: Avoid prolonged or repeated contact with skin. Avoid inhaling

vapour and/or mists. When handling product in drums, safety
footwear should be worn and proper handling equipment
should be used. Properly dispose of any contaminated rags or
cleaning materials in order to prevent fires. Keep container
tightly closed and in a cool, well-ventilated place. Use properly
labelled and closeable containers.

: This material has the potential to be a static accumulator.

Proper grounding and bonding procedures should be used
during all bulk transfer operations.

: Store at ambient temperature.

covering the packaging and storage of this product.

: For containers or container linings, use mild steel or high

density polyethylene.

Print Date 14.12.2012

5/17

000000019968

MSDS_DE

Safety Data Sheet

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

Unsuitable Materials

7.3 Specific end use(s)
Additional Information

Storage class according to TRGS 510: 10
Fire hazard classification: B

SECTION 8. EXPOSURE CONTROLS/PERSONAL PROTECTION

If the American Conference of Governmental Industrial Hygienists (ACGIH) value is provided on this
document, it is provided for information only.

: PVC.
: Not applicable
: Polyethylene containers should not be exposed to high

temperatures because of possible risk of distortion.

8.1 Control Parameters

Occupational Exposure Limits

Material Source Type ppm mg/m3 Notation

Oil mist, mineral ACGIH TWA(Inhala

ble fraction.)

Biological Exposure Index (BEI)
No biological limit allocated.

PNEC related information
Monitoring Methods

National Institute of Occupational Safety and Health (NIOSH),

: Data not available
: Monitoring of the concentration of substances in the breathing

zone of workers or in the general workplace may be required to
confirm compliance with an OEL and adequacy of exposure
controls. For some substances biological monitoring may also
be appropriate. Validated exposure measurement methods
should be applied by a competent person and samples
analysed by an accredited laboratory. Examples of sources of
recommended exposure measurement methods are given
below or contact the supplier. Further national methods may be
available.

USA: Manual of Analytical Methods http://www.cdc.gov/niosh/

5 mg/m3

Print Date 14.12.2012

6/17

000000019968

MSDS_DE

Shell Tellus S2 M 22

Effective Date 12.12.2012
Regulation 1907/2006/EC

Safety Data Sheet

Occupational Safety and Health Administration (OSHA), USA:

Sampling and Analytical Methods http://www.osha.gov/

Health and Safety Executive (HSE), UK: Methods for the

Determination of Hazardous Substances
http://www.hse.gov.uk/

Institut für Arbeitsschutz Deutschen Gesetzlichen

Unfallversicherung (IFA), Germany.
http://www.dguv.de/inhalt/index.jsp

L'Institut National de Recherche et de Securité, (INRS), France

http://www.inrs.fr/accueil

8.2 Exposure Controls
General Information

Define procedures for safe handling and maintenance of

Occupational Exposure Controls

: The level of protection and types of controls necessary will vary

depending upon potential exposure conditions. Select controls
based on a risk assessment of local circumstances.
Appropriate measures include: Adequate ventilation to control
airborne concentrations. Where material is heated, sprayed or
mist formed, there is greater potential for airborne
concentrations to be generated.

controls. Educate and train workers in the hazards and control
measures relevant to normal activities associated with this
product. Ensure appropriate selection, testing and
maintenance of equipment used to control exposure, e.g.
personal protective equipment, local exhaust ventilation. Drain
down system prior to equipment break-in or maintenance.
Retain drain downs in sealed storage pending disposal or for
subsequent recycle. Always observe good personal hygiene
measures, such as washing hands after handling the material
and before eating, drinking, and/or smoking. Routinely wash
work clothing and protective equipment to remove
contaminants. Discard contaminated clothing and footwear that
cannot be cleaned. Practice good housekeeping.

Version 1.1

Personal Protective
Equipment

Print Date 14.12.2012

: The provided information is made in consideration of the PPE

directive (Council Directive 89/686/EEC) and the CEN
European Committee for Standardisation (CEN) standards.

7/17

000000019968

MSDS_DE

Safety Data Sheet

Personal protective equipment (PPE) should meet

recommended national standards. Check with PPE suppliers.

Eye Protection
Hand Protection

For continuous contact we recommend gloves with

Body protection
Respiratory Protection

Thermal Hazards

Environmental Exposure Controls

: Wear safety glasses or full face shield if splashes are likely to

occur. Approved to EU Standard EN166.

: Where hand contact with the product may occur the use of

gloves approved to relevant standards (e.g. Europe: EN374,
US: F739) made from the following materials may provide
suitable chemical protection: PVC, neoprene or nitrile rubber
gloves. Suitability and durability of a glove is dependent on
usage, e.g. frequency and duration of contact, chemical
resistance of glove material, dexterity. Always seek advice
from glove suppliers. Contaminated gloves should be replaced.
Personal hygiene is a key element of effective hand care.
Gloves must only be worn on clean hands. After using gloves,
hands should be washed and dried thoroughly. Application of a
non-perfumed moisturizer is recommended.

breakthrough time of more than 240 minutes with preference
for > 480 minutes where suitable gloves can be identified. For
short-term/splash protection we recommend the same, but
recognise that suitable gloves offering this level of protection
may not be available and in this case a lower breakthrough
time may be acceptable so long as appropriate maintenance
and replacement regimes are followed. Glove thickness is not
a good predictor of glove resistance to a chemical as it is
dependent on the exact composition of the glove material.

: Skin protection not ordinarily required beyond standard issue

work clothes.

: No respiratory protection is ordinarily required under normal

conditions of use. In accordance with good industrial hygiene
practices, precautions should be taken to avoid breathing of
material. If engineering controls do not maintain airborne
concentrations to a level which is adequate to protect worker
health, select respiratory protection equipment suitable for the
specific conditions of use and meeting relevant legislation.
Check with respiratory protective equipment suppliers. Where
air-filtering respirators are suitable, select an appropriate
combination of mask and filter. Select a filter suitable for
combined particulate/organic gases and vapours [boiling point
>65 °C (149 °F)] meeting EN14387.

: Not applicable.

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

Print Date 14.12.2012

8/17

000000019968

MSDS_DE

Safety Data Sheet

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

Environmental exposure
control measures

SECTION 9. PHYSICAL AND CHEMICAL PROPERTIES

9.1 Information on basic physical and chemical properties

Appearance : Amber. Liquid at room temperature.
Odour : Slight hydrocarbon.
Odour threshold : Data not available
pH : Not applicable.
Initial Boiling Point and
Boiling Range
Pour point : Typical -30 °C / -22 °F
Flash point : Typical 210 °C / 410 °F (COC)
Upper / lower Flammability
or Explosion limits
Auto-ignition temperature : > 320 °C / 608 °F
Vapour pressure : < 0,5 Pa at 20 °C / 68 °F (estimated value(s))
Relative Density : Typical 0,866 at 15 °C / 59 °F
Density : Typical 866 kg/m3 at 15
Water solubility : Negligible.
Solubility in other solvents : Data not available

: Minimise release to the environment. An environmental

assessment must be made to ensure compliance with local
environmental legislation. Information on accidental release
measures are to be found in section 6.

: > 280 °C / 536 °F estimated value(s)

: Typical 1 - 10 %(V) (based on mineral oil)

°C / 59 °F

n-octanol/water partition
coefficient (log Pow)
Dynamic viscosity : Data not available
Kinematic viscosity : Typical 22 mm2/s at 40 °C / 104 °F
Vapour density (air=1) : > 1 (estimated value(s))
Evaporation rate (nBuAc=1) : Data not available
Decomposition
Temperature
Flammability : Data not available
Oxidizing Properties : Data not available

Explosive Properties : Not classified

9.2 Other Information
Electrical conductivity : This material is not expected to be a static accumulator.

Other Information : not a VOC
Volatile organic compound : 0 %

Print Date 14.12.2012

: > 6 (based on information on similar products)

: Data not available

9/17

000000019968

MSDS_DE

Safety Data Sheet

SECTION 10. STABILITY AND REACTIVITY

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

10.1 Reactivity

10.2 Chemical stability

10.3 Possibility of
Hazardous Reactions

10.4 Conditions to Avoid

10.5 Incompatible
Materials

10.6 Hazardous
Decomposition Products

SECTION 11. TOXICOLOGICAL INFORMATION

11.1 Information on Toxicological effects
Basis for Assessment

Unless indicated otherwise, the data presented is

Likely Routes of
Exposure
Acute Oral Toxicity
Acute Dermal Toxicity
Acute Inhalation Toxicity

Skin corrosion/irritation

Serious eye
damage/irritation
Respiratory Irritation
Respiratory or skin
sensitisation
Aspiration Hazard

Germ cell mutagenicity
Carcinogenicity

: The product does not pose any further reactivity hazards in

addition to those listed in the following sub-paragraph.

: No hazardous reaction is expected when handled and stored

according to provisions.

:

Reacts with strong oxidising agents.
: Extremes of temperature and direct sunlight.
: Strong oxidising agents.

: Hazardous decomposition products are not expected to form

during normal storage.

: Information given is based on data on the components and the

toxicology of similar products.
representative of the product as a whole, rather than for

individual component(s).

: Skin and eye contact are the primary routes of exposure

although exposure may occur following accidental ingestion.
: Expected to be of low toxicity: LD50 > 5000 mg/kg , Rat
: Expected to be of low toxicity: LD50 > 5000 mg/kg , Rabbit
: Not considered to be an inhalation hazard under normal

conditions of use.
: Expected to be slightly irritating. Prolonged or repeated skin

contact without proper cleaning can clog the pores of the skin

resulting in disorders such as oil acne/folliculitis.
: Expected to be slightly irritating.

: Inhalation of vapours or mists may cause irritation.
: For respiratory and skin sensitisation: Not expected to be a

sensitiser.
: Not considered an aspiration hazard.

: Not considered a mutagenic hazard.
: Not expected to be carcinogenic. Product contains mineral oils

of types shown to be non-carcinogenic in animal skin-painting

Print Date 14.12.2012

10/17

000000019968

MSDS_DE

Shell Tellus S2 M 22

Effective Date 12.12.2012
Regulation 1907/2006/EC

Safety Data Sheet

studies. Highly refined mineral oils are not classified as
carcinogenic by the International Agency for Research on
Cancer (IARC).

Material

Highly refined mineral oil

(IP346 <3%)

Highly refined mineral oil

(IP346 <3%)

Highly refined mineral oil

(IP346 <3%)

Reproductive and
Developmental Toxicity

Summary on evaluation of the CMR properties

Carcinogenicity
Mutagenicity
Reproductive Toxicity

(fertility)

Specific target organ
toxicity - single exposure
Specific target organ
toxicity - repeated
exposure
Additional Information

Classifications by other authorities under varying regulatory

SECTION 12. ECOLOGICAL INFORMATION

:

Carcinogenicity Classification

: ACGIH Group A4: Not classifiable as a human carcinogen.
: IARC 3: Not classifiable as to carcinogenicity to humans.
: GHS / CLP: No carcinogenicity classification

: Not expected to be a hazard.

: This product does not meet the criteria for classification in

categories 1A/1B.,
: This product does not meet the criteria for classification in

categories 1A/1B.
: This product does not meet the criteria for classification in

categories 1A/1B.
: Not expected to be a hazard.
: Not expected to be a hazard.

: Used oils may contain harmful impurities that have

accumulated during use. The concentration of such impurities

will depend on use and they may present risks to health and

the environment on disposal. ALL used oil should be handled

with caution and skin contact avoided as far as possible. High

pressure injection of product into the skin may lead to local

necrosis if the product is not surgically removed.

frameworks may exist.

Version 1.1

Basis for Assessment

Print Date 14.12.2012

: Ecotoxicological data have not been determined specifically for

this product. Information given is based on a knowledge of the

components and the ecotoxicology of similar products. Unless

indicated otherwise, the data presented is representative of the

11/17

000000019968

MSDS_DE

Safety Data Sheet

product as a whole, rather than for individual component(s).

12.1 Toxicity
Acute Toxicity

12.2 Persistence and
degradability

12.3 Bioaccumulative
Potential

12.4 Mobility in Soil

12.5 Result of PBT and
vPvB assesment

12.6 Other Adverse
Effects

SECTION 13. DISPOSAL CONSIDERATIONS

: Poorly soluble mixture. May cause physical fouling of aquatic

organisms. Expected to be practically non toxic: LL/EL/IL50 >
100 mg/l (to aquatic organisms) LL/EL50 expressed as the
nominal amount of product required to prepare aqueous test
extract. Mineral oil is not expected to cause any chronic effects
to aquatic organisms at concentrations less than 1 mg/l.

: Expected to be not readily biodegradable. Major constituents

are expected to be inherently biodegradable, but the product

contains components that may persist in the environment.
: Contains components with the potential to bioaccumulate.

: Liquid under most environmental conditions. If it enters soil, it

will adsorb to soil particles and will not be mobile. Floats on

water.
: This mixture does not contain any REACH registered

substances that are assessed to be a PBT or a vPvB.

: Product is a mixture of non-volatile components, which are not

expected to be released to air in any significant quantities. Not

expected to have ozone depletion potential, photochemical

ozone creation potential or global warming potential.

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

13.1 Waste Treatment Methods

Material Disposal

Container Disposal

Local Legislation

Print Date 14.12.2012

: Recover or recycle if possible. It is the responsibility of the

waste generator to determine the toxicity and physical
properties of the material generated to determine the proper
waste classification and disposal methods in compliance with
applicable regulations. Do not dispose into the environment, in
drains or in water courses.

: Dispose in accordance with prevailing regulations, preferably to

a recognised collector or contractor. The competence of the
collector or contractor should be established beforehand.

: Disposal should be in accordance with applicable regional,

national, and local laws and regulations.

12/17

000000019968

MSDS_DE

Shell Tellus S2 M 22

Effective Date 12.12.2012
Regulation 1907/2006/EC

Safety Data Sheet

EU Waste Disposal Code (EWC): 13 01 10 mineral based non-

chlorinated hydraulic oils. Classification of waste is always the
responsibility of the end user.

SECTION 14. TRANSPORT INFORMATION

Land transport (ADR/RID):
ADR

This product is not classified as dangerous for this mode of transport. Therefore 14.1 UN
Number, 14.2 UN Proper Shipping name, 14.3 Transport hazard class(es), 14.4 Packing group,

14.5 Environmental hazards, 14.6 Special precautions for user do not apply.

RID

This product is not classified as dangerous for this mode of transport. Therefore 14.1 UN
Number, 14.2 UN Proper Shipping name, 14.3 Transport hazard class(es), 14.4 Packing group,

14.5 Environmental hazards, 14.6 Special precautions for user do not apply.

Inland waterways transport (ADN):

This product is not classified as dangerous for this mode of transport. Therefore 14.1 UN
Number, 14.2 UN Proper Shipping name, 14.3 Transport hazard class(es), 14.4 Packing group,

14.5 Environmental hazards, 14.6 Special precautions for user do not apply.
CDNI Inland Water Waste
Agreement

Sea transport (IMDG Code):

This product is not classified as dangerous for this mode of transport. Therefore 14.1 UN
Number, 14.2 UN Proper Shipping name, 14.3 Transport hazard class(es), 14.4 Packing group,

14.5 Environmental hazards, 14.6 Special precautions for user do not apply.

Air transport (IATA):

This product is not classified as dangerous for this mode of transport. Therefore 14.1 UN
Number, 14.2 UN Proper Shipping name, 14.3 Transport hazard class(es), 14.4 Packing group,

14.5 Environmental hazards, 14.6 Special precautions for user do not apply.

14.7 Transport in bulk according to Annex II of MARPOL 73/78 and the IBC Code
Pollution Category : Not applicable.
Ship Type : Not applicable.
Product Name : Not applicable.
Special Precaution : Not applicable.

Additional Information :

: NST 3411 Mineral Lubricanting Oils

MARPOL Annex 1 rules apply for bulk shipments by sea.

Version 1.1

Print Date 14.12.2012

13/17

000000019968

MSDS_DE

Shell Tellus S2 M 22

Effective Date 12.12.2012
Regulation 1907/2006/EC

Safety Data Sheet

SECTION 15. REGULATORY INFORMATION

The regulatory information is not intended to be comprehensive. Other regulations may apply to this
material.

15.1 Safety, health and environmental regulations/legislation specific for the substanc e or
mixture

Other regulatory Information
Authorisations and/or
restrictions on use

Recommended
Restrictions on Use
(Advice Against)

Chemical Inventory Status

EINECS : All components

TSCA : All components

National Legislation

Water Pollution Class : WGK 1 - low hazard to waters (appendix 4, VwVwS,

Other Information : Technische Anleitung Luft: Product not listed by name.

15.2 Chemical Safety
Assessment

SECTION 16. OTHER INFORMATION

: Product is not subject to Authorisation under REACh.

: This product must not be used in applications other than those

recommended in Section 1, without first seeking the advice of
the supplier.

listed or polymer
exempt.

listed.

preparations).

Observe section 5.2.5 in connection with section 5.4.9

: No Chemical Safety Assessment has been carried out for this

substance/mixture by the supplier.

Version 1.1

Not classified.

CLP Hazard Statements

H304 May be fatal if swallowed and enters airways.

14/17

Print Date 14.12.2012

000000019968

MSDS_DE

Safety Data Sheet

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

Additional Information

Other Information
Abbreviations and

Acronyms

: No Exposure Scenario annex is attached to this safety data

sheet. It is a non-classified mixture containing hazardous
substances as detailed in Section 3; relevant information from
Exposure Scenarios for the hazardous substances contained
have been integrated into the core sections 1-16 of this SDS.

: Acute Tox. = Acute toxicity

Asp. Tox. = Aspiration hazard
Aquatic Acute = Acute hazards to the aquatic environment
Aquatic Chronic = Hazardous to the aquatic environment ­Long-term Hazard
Eye Dam. = Serious eye damage/eye irritation
Flam. Liq. = Flammable liquids
Skin Corr. = Skin corrosion/irritation
Skin Sens. = Skin sensitizer
STOT SE = Specific target organ toxicity - single exposure
STOT RE = Specific target organ toxicity - repeated exposure

The standard abbreviations and acronyms used in this
document can be looked up in reference literature (e.g.
scientific dictionaries) and/or websites.

ADN = European Agreement concerning the international
carriage of dangerous goods by inland waterways (ADN)
DFG = Federal Institute of Hydrology
EG = European Community
EN = European Norm
IBC = Intermediate Bulk Container
ISO = International Standards Organisation
MAK = Maximum workplace concentration
OECD = Organisation for economic cooperation and
development
OEL = Occupational Exposure Limits
PSA = Personal protective equipment
TRGS = Technical rules for hazardous substances
VO = Regulation
VOC = Volatile Organic Compounds
VwVwS = Water administrative pollutants
WGK = Water Hazard Class

ACGIH = American Conference of Governmental Industrial
Hygienists
ADR = European Agreement concerning the International

Print Date 14.12.2012

15/17

000000019968

MSDS_DE

Safety Data Sheet

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

Carriage of Dangerous Goods by Road
AICS = Australian Inventory of Chemical Substances
ASTM = American Society for Testing and Materials
BEL = Biological exposure limits
BTEX = Benzene, Toluene, Ethylbenzene, Xylenes
CAS = Chemical Abstracts Service
CEFIC = European Chemical Industry Council
CLP = Classification Packaging and Labelling
COC = Cleveland Open-Cup
DIN = Deutsches Institut fur Normung
DMEL = Derived Minimal Effect Level
DNEL = Derived No Effect Level
DSL = Canada Domestic Substance List
EC = European Commission
EC50 = Effective Concentration fifty
ECETOC = European Center on Ecotoxicology and Toxicology
Of Chemicals
ECHA = European Chemicals Agency
EINECS = The European Inventory of Existing Commercial
Chemical Substances
EL50 = Effective Loading fifty
ENCS = Japanese Existing and New Chemical Substances
Inventory
EWC = European Waste Code
GHS = Globally Harmonised System of Classification and
Labelling of Chemicals
IARC = International Agency for Research on Cancer
IATA = International Air Transport Association
IC50 = Inhibitory Concentration fifty
IL50 = Inhibitory Level fifty
IMDG = International Maritime Dangerous Goods
INV = Chinese Chemicals Inventory
IP346 = Institute of Petroleum test method N° 346 for the
determination of polycyclic aromatics DMSO-extractables
KECI = Korea Existing Chemicals Inventory
LC50 = Lethal Concentration fifty
LD50 = Lethal Dose fifty per cent.
LL/EL/IL = Lethal Loading/Effective Loading/Inhibitory loading
LL50 = Lethal Loading fifty
MARPOL = International Convention for the Prevention of
Pollution From Ships
NOEC/NOEL = No Observed Effect Concentration / No
Observed Effect Level
OE_HPV = Occupational Exposure - High Production Volume

Print Date 14.12.2012

16/17

000000019968

MSDS_DE

Safety Data Sheet

SDS Distribution
SDS Version Number
SDS Effective Date
SDS Revisions
SDS Regulation
Disclaimer

Shell Tellus S2 M 22

Version 1.1
Effective Date 12.12.2012
Regulation 1907/2006/EC

PBT = Persistent, Bioaccumulative and Toxic
PICCS = Philippine Inventory of Chemicals and Chemical
Substances
PNEC = Predicted No Effect Concentration
REACH = Registration Evaluation And Authorisation Of
Chemicals
RID = Regulations Relating to International Carriage of
Dangerous Goods by Rail
SKIN_DES = Skin Designation
STEL = Short term exposure limit
TRA = Targeted Risk Assessment
TSCA = US Toxic Substances Control Act
TWA = Time-Weighted Average
vPvB = very Persistent and very Bioaccumulative

: The information in this document should be made available to

all who may handle the product.

: 1.1
: 12.12.2012
: A vertical bar (|) in the left margin indicates an amendment

from the previous version.

: Regulation 1907/2006/EC as amended by Regulation (EU)

453/2010

: This information is based on our current knowledge and is

intended to describe the product for the purposes of health,
safety and environmental requirements only. It should not
therefore be construed as guaranteeing any specific property
of the product.

Print Date 14.12.2012

17/17

000000019968

MSDS_DE
