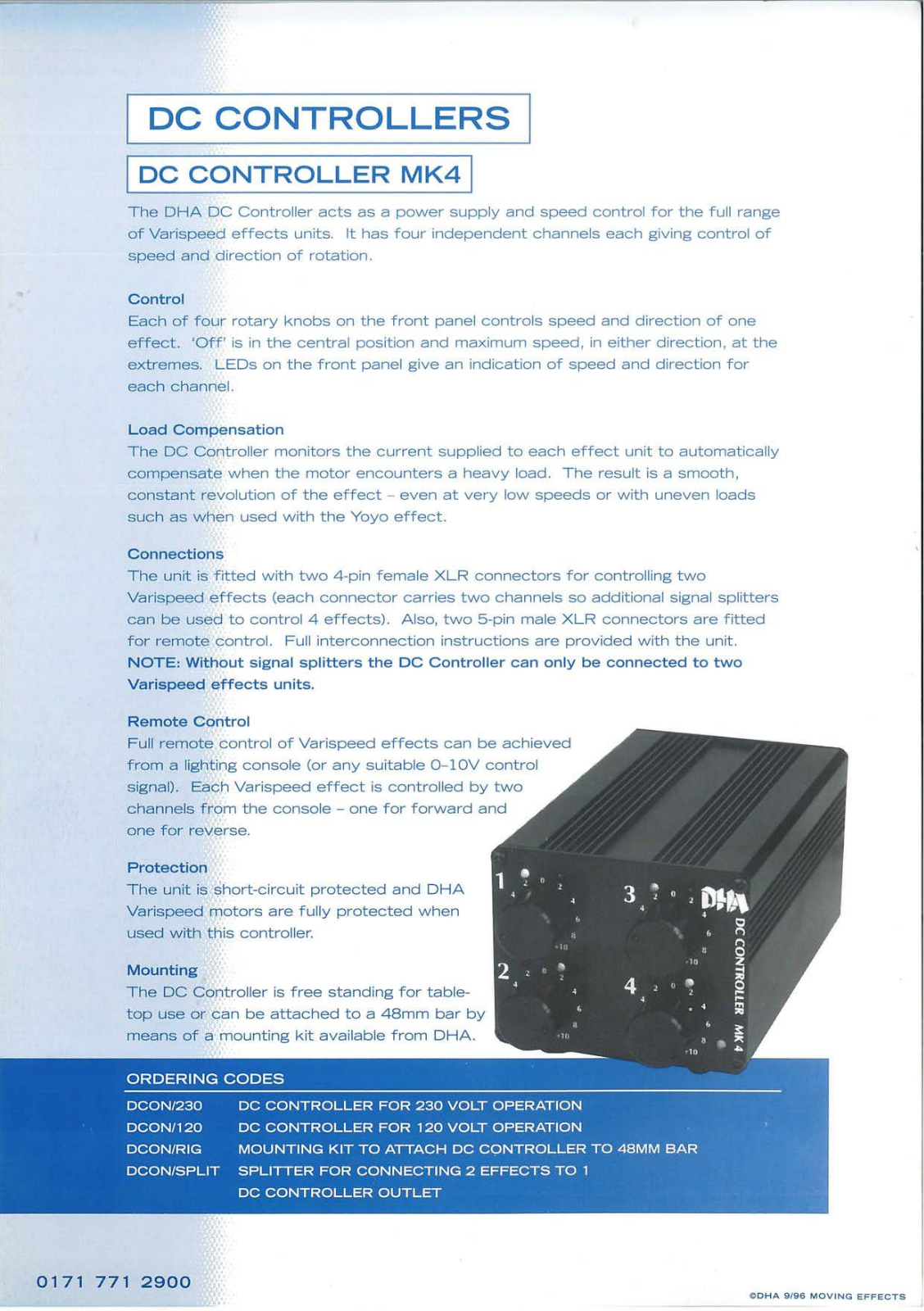

DC CONTROLLERS
I DC CONTROLLER MK4 I
The DHA DC Controller acts as a power supply and speed control for the full range
of Varispeed effects units. It has four independent channels each giving control of
speed and direction of rotation.
Control
Each of four rotary knobs on the front panel controls speed and direction of one
effect.
extremes . LEDs on the front panel give an indicat ion of speed and direction for
each channel.
Load Comp~nsation
The DC Controller monitors the current supplied to each effect unit to automatically
compensate when the motor encounters a heavy load . The result is a smooth ,
constant
such as
Connections
The unit is fitted with two 4-pin female XLR connectors for controlling two
Varispeed
can be us1:;d to control 4 effects). Also, two 5-pin male XLR connectors are fitted
for
NOTE: Without signal splitters the DC Controller can only be connected to two
Varispeed ,~ffects units.
'Off' is in the central position and maximum speed , in either direction, at the
rewolution of the effect - even at very low speeds or with uneven loads
wben used with the Yoyo effect .
(:,ffects (each connector carries two channels so additional signal splitters
remote /control. Full interconnection instructions are provided with the unit.
• y~-
~/
Remote C6 .~trol
Full remotE ? control of Varispeed effects can be achieved
from a
signal).
channels
one for rev~ ·rse .
lightJ~g console (or any suitable 0-lOV control
Ea8h Varispeed effect is controlled by two
f tg·m the console - one for forward and
·•jil<
"?:/
)i:;,
Protection /,;:;,
The unit isl~f,ort -circuit protected and DHA
Varispeed ;fuo tors are fully protected when
used with
.. ),; ~'
,£His controller.
't*·
:v\;::::
Mounting ~;'.:
The DC Cd .'troller is free standing for tabletop use
ORDERING CODES
DCON/230 DC CONTROLLER FOR 230 VOLT OPERATION
DCON/120 DC CONTROLLER FOR 120 VOLT OPERATION
OCON/RIG MOUNTING KIT TO ATTACH DC CONTROLLER TO 48MM BAR
OCON/SPLIT SPLITTER FOR CONNECTING 2 EFFECTS TO 1
·,!\ t
· · n be attached to a 48mm bar by
-
-
-
-·
DC CONTROLLER OUTLET
•
•
~
1
2
II
;
•
,I
f,
· l !i
~
"
'
f,
• lh
0171 771 2900
C>DH A 9/96 MOVING EFFECTS
---'
Page 2

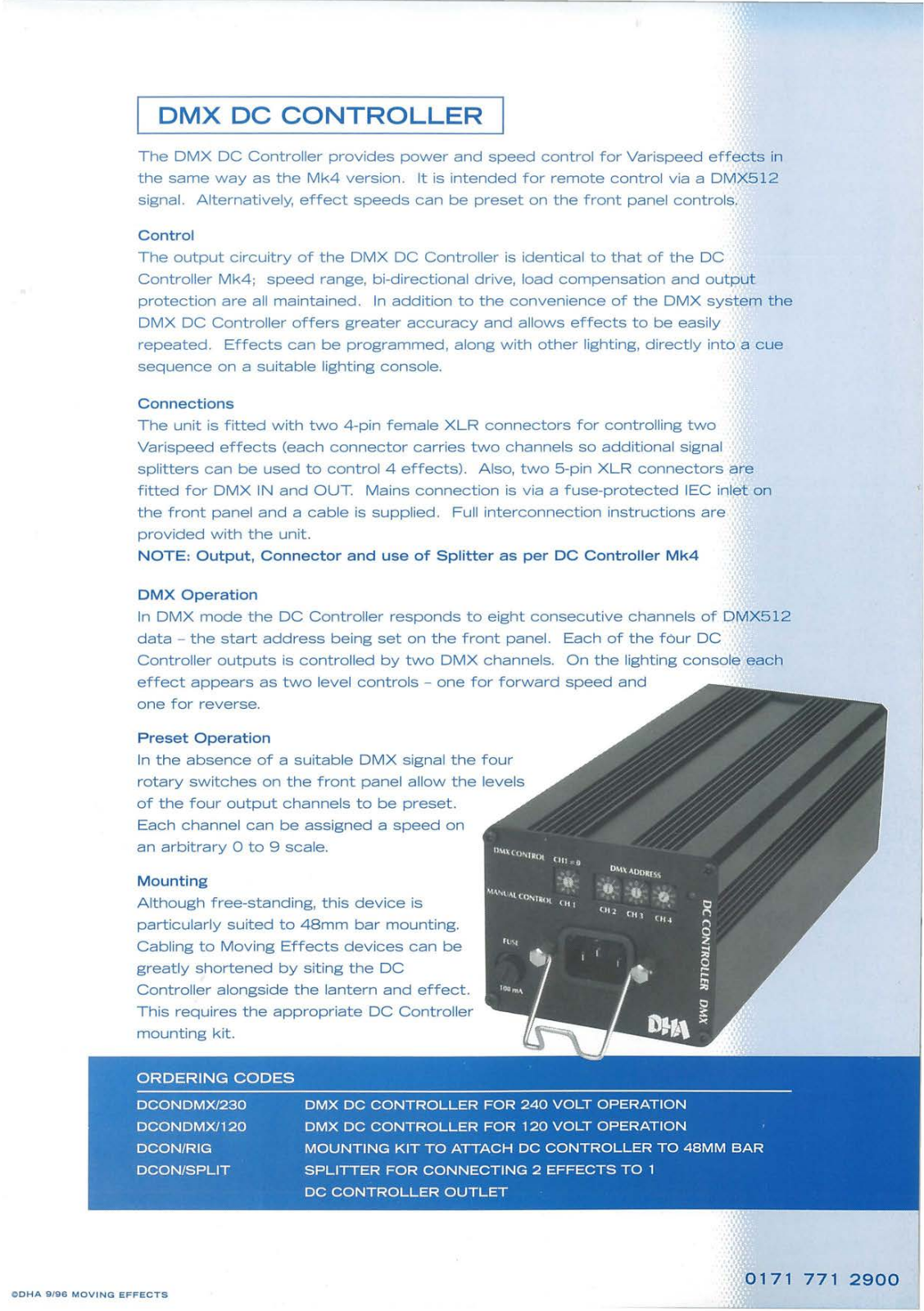

DMX DC CONTROLLER
The OMX DC Controller provides powe r and speed control for Varispeed effects in
t he same way as the Mk4 version . It is intended for remote control via a DMX512
signa l. Alt ernat ively, effect speeds can be preset on the front panel controls .
Control
The outpu t ci rcuitry of the OMX DC Cont rolle r is identical to that of the DC
Controlle r Mk4 ; speed range , bi-directional dr ive , load compensation and output
protection are all maintained . In addit ion to the c onvenience of the OMX system the
OMX DC Controller offers greater accuracy and allows effects to be easily
repeated . Effects can be programmed , along with other lighting , directly into a cue
sequence on a suitable lighting console.
Connections
The un it is fitted with two 4-pin female XLR connectors for controlling two
Varispeed effects (each connector carries two channels so additional signal
splitters can be used to control 4 effects) . Also , two 5-pin XLR connectors are
fitted for OMX IN and OUT. Mains connection is via a fuse-protected IEC inlet on
the front panel and a cable is supplied . Full interconnection instructions are
provided with the unit .
NOTE: Output, Connector and use of Splitter as per DC Controller Mk4
DMX Operation
In OMX mode the DC Controller responds to eight consecutive channels of DMX512
data - the start address being set on the front panel. Each of the
four DC ;' · .
. ,.
Controller outputs is controlled by two OMX channels. On the lighting console each
effect appears as two level controls - one for forward speed and
one for reverse .
Preset Operation
In the absence of a suitable OMX signal the four
rotary switches on the front panel allow the levels
of the four output channels to be preset.
Each channel can be assigned a speed on
an arbitrary
O to 9 scale .
Mounting
Although free-standing, this device is
particularly suited to 48mm bar mounting .
Cabling to Moving Effects devices can be
greatly shortened by siting the DC
Controller alongside the lantern and effect .
This requires the appropriate DC Controller
mounting kit.
ORDERING CODES
DCONDMX/230
DCONDMX/120
OCON/RIG
OCON/SPLIT
ODHA 9 / 96 MOVING EFFECTS
OMX DC CONTROLLER FOR 240 VOLT OPERATION
OMX DC CONTROLLER FOR 120 VOLT OPERATION
MOUNTING KIT TO ATTACH DC CONTROLLER TO 48MM BAR
SPLITTER FOR CONNECTING
DC CONTROLLER OUTLET
2 EFFECTS TO 1
771 2900
Page 3

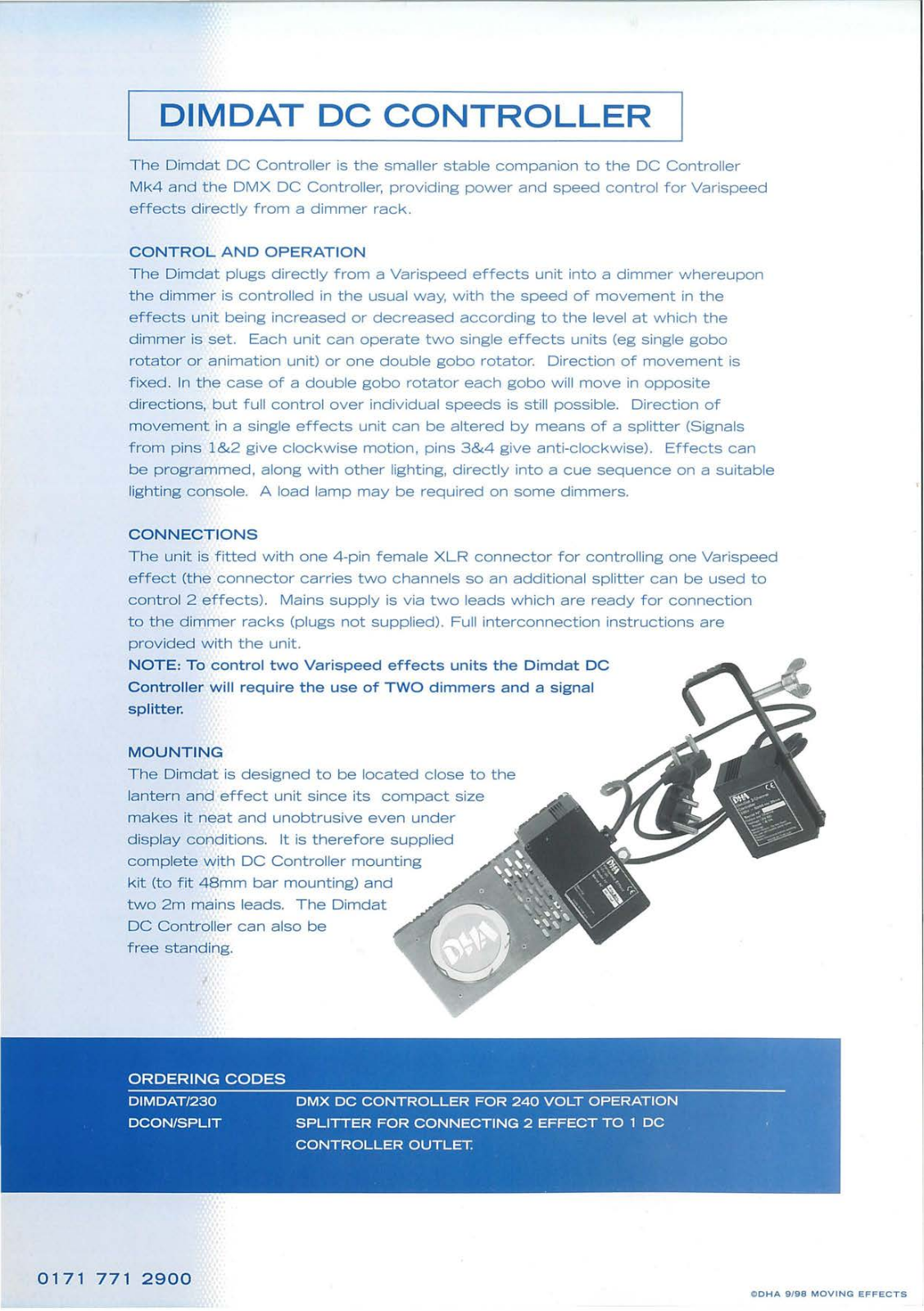

DIMDAT DC CONTROLLER
The Dimdat DC Controller is the smaller stable companion to the DC Controller
Mk4 and the OMX DC Controller, providing power and speed control for Varispeed
effects directly from a dimmer rack .
CONTROL AND OPERATION
The Dimdat plugs directly from a Varispeed effects unit into a dimmer whereupon
the dimmer is controlled in the usual way, with the speed of movement in the
effects unit being increased or decreased according to the level at which the
dimmer is set . Each unit can operate two single effects units (eg single gobo
rotator or animation unit) or one double gobo rotator . Direction of movement is
fixed. In the case of a double gobo rotator each gobo will move in opposite
directions, but full control over individual speeds is still possible. Direction of
movement in a single effects unit can be altered by means of a splitter (Signals
from pins 1&2 give clockwise motion, pins 3&4 give anti-clockwise) . Effects can
be programmed , along with other lighting, directly into a cue sequence on a suitable
lighting console . A load lamp may be required on some dimmers .
CONNE CTIONS
The unit is fitted with one 4-pin female XLR connector for controlling one Varispeed
effect (the connector carries two channels so an additional splitter can be used to
control 2 effects) . Mains supply is via two leads which are ready for connection
to the dimmer racks (plugs not supplied) . Full interconnection instructions are
provided with the unit.
NO T E: To control two Varispeed effects units the Dimdat DC
Controll er
splitter.
will require the use of TWO dimmers and a signal
MOUNTIN G
T he Dimdat is designed to be located close to the
lantern and effect unit since its compact size
makes it neat and unobtrusive even under
displa y conditions. It is therefore supplied
comple t e with DC Controller mounting
kit (to fit 48mm bar mounting) and
two 2m mains leads. The Dimdat
DC Con t roller can also be
fr ee standing.
ll'Ja.~-~~ --~~'
•
ORDERING CODES
DIMDAT/230
DCON/SPLIT
DMX DC CONTROLLER FOR 240 VOLT OPERATION
SPLITTER FOR CONNECTING 2 EFFECT TO 1 DC
CONTROLLER OUTLET.
.\
,,, .
~.~.'-.~.1t~ ··.
,.,,
::'
.,.
;_°,
I
.
'''y
0171 771 2900
C>DHA 9/98 MOVING EFFECTS
