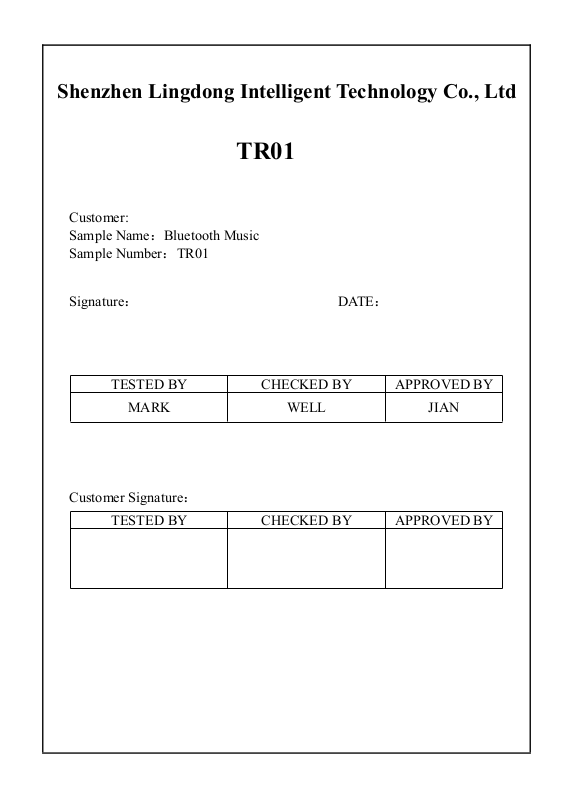

Shenzhen Lingdong Intelligent Technology Co., Ltd
TR01
Customer:
Sample Name：Bluetooth Music
Sample Number：TR01
Signature： DATE：
TESTED BY CHECKED BY APPROVED BY
MARK WELL JIAN
Customer Signature
TESTED BY CHECKED BY APPROVED BY
：
PCB Size：69.0mm*35.0mm*1.6mm
Power input
2.54mm X4
TOP Layer
Speaker Output
2.0mm X2
RGB LED
Output
2.0mmX4
Bottom layer
Function：
1、Driving 5V RGB LED；
2、Bluetooth Music；
3、Mono Output；
Port specification：
Power input
EN：Enable input boot up
GND：Power Ground
BAT+：Power Input
RX：UART TX Input
Speaker :Speaker Output
RGB LED Port:
BLUE：Blue light signal output
GREEN：Green light signal output
RED：Red light signal output
5V：5V Power Output
Product specification：
Input voltage range: 12V～42.5V
Enable input voltage range: 3.3V～5V
Hardware version: V4.2（MUSIC）
Speaker Spec: 4Ω 3W、2Ω 5W
Operating Ambient Temperature: -20 ~ +80℃
Frequency: 2.402GHz~2.480GHz
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
