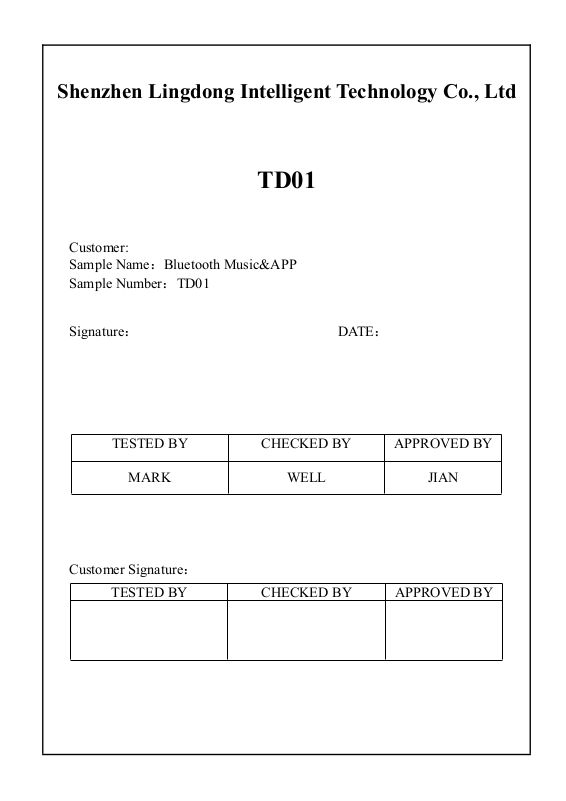

Shenzhen Lingdong Intelligent Technology Co., Ltd
TD01
Customer:
Sample Name：Bluetooth Music&APP
Sample Number：TD01
Signature： DATE：
TESTED BY CHECKED BY APPROVED BY
MARK WELL JIAN
Customer Signature：
TESTED BY CHECKED BY APPROVED BY
PCB 尺寸：69.0mm*35.0mm*1.6mm
Top layer
Speaker
2.0mm X2
Function：
1、BLE APP；
Bottom layer
2、Bluetooth Music；
3、Mono Output；
Port specification：
Power input
36V：Power Input
GND：Power Ground
RX：UART TX Input
Speaker :Speaker Output
BLE UART Port:
GND：UART Ground
BLE_RX：UART RX
BLE_TX：UART TX
RGB LED Port:
B：Blue light signal output
G：Green light signal output
R：Red light signal output
5V：5V Power Output
Product specification：
Input voltage range: 12V～42.5V
Hardware version: V4.0(APP)+V4.2（MUSIC）
Speaker Spec: 4Ω 3W、2Ω 5W
Operating Ambient Temperature: -20 ~ +80℃
Frequency: 2.402GHz~2.480GHz
FCC Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference,
and
(2) this device must accept any interfer
that may cause undesired operation.
ence received, including interference
