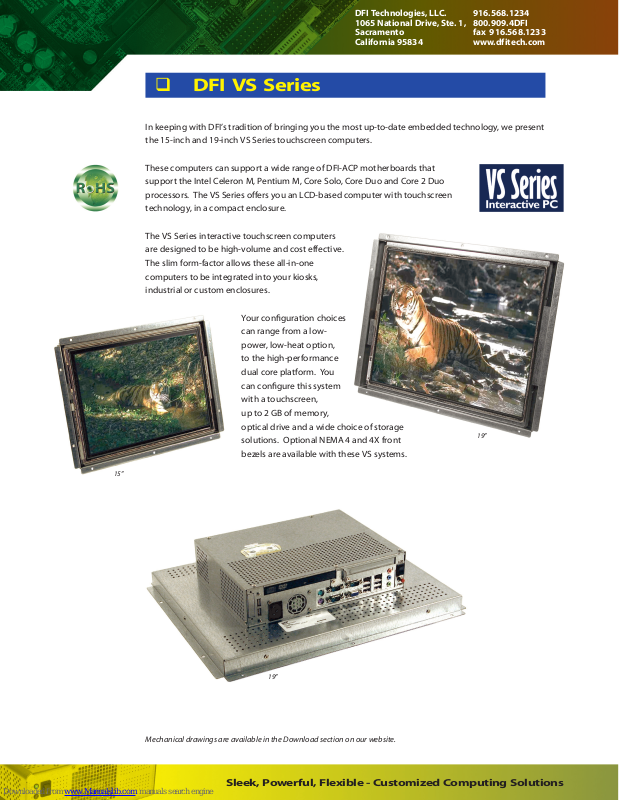

DFI VS Series, VS475, VS480, VS485 Specifications

DFI Technologies, LLC.
1065 National Drive, Ste. 1,
Sacramento
California 95834

916.568.1234

800.909.4DFI
fax [phone]
www.dfitech.com



In keeping with DFI’s tradition of bringing you the most up-to-date embedded technology, we present

the 15-inch and 19-inch VS Series touchscreen computers.

These computers can support a wide range of DFI-ACP motherboards that

support the Intel Celeron M, Pentium M, Core Solo, Core Duo and Core 2 Duo

processors. The VS Series offers you an LCD-based computer with touchscreen

technology, in a compact enclosure.

The VS Series interactive touchscreen computers

are designed to be high-volume and cost effective.

The slim form-factor allows these all-in-one

computers to be integrated into your kiosks,

industrial or custom enclosures.

DFI VS Series

Your conguration choices

can range from a low-

power, low-heat option,

to the high-performance

dual core platform. You

can congure this system

with a touchscreen,

up to 2 GB of memory,

optical drive and a wide choice of storage

solutions. Optional NEMA 4 and 4X front

bezels are available with these VS systems.

19”

15”

19”

Mechanical drawings are available in the Download section on our website.

Sleek, Powerful, Flexible - Customized Computing Solutions

VS Model

(Screen Size)

Enclosure Galvanized Steel Frame Construction

LCD Panel

Touchscreen

Main Board

Processor Type

Processor FSB 400 / 533 533 / 667 533 / 800 533 / 667 533 / 800

Main Chipsets

PCI Slot 1 Full-height, Half-length PCI Card Support

HDD and

Optical Drive Bays

PS/2 Keyboard and

Mouse Ports

DB-9 Serial Port 3 3 2 3 2

Video Port 1 DB-15 1 DB-15 1 DB-15 + 1 DVI-D 1 DB-15 1 DB-15 + 1 DVI-D

RJ45 LAN Port 1x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000)

USB Port 6 6 6 6 6

Audio Jacks 3 3 3 3 3

Internal CF Card 0 1 0 1 0

Dimension

W x H x D

Ventilation Two 60 mm enclosure fans

Power Supply

Operating

Temperature

Optional Items

VS475

(15”)

15” TFT, 1024x768, 350nits, 400:1 contrast,

Elo AccuTouch 5-Wire Resistive,

Elo IntelliTouch Surface Wave,

DFI-ACP

G5G100-P

Intel Celeron M

or Pentium M

(Mobile type)

Intel 915GME

+ ICH6M

Typical Conguration: 1 Notebook-type shock-mounted HDD, and 1 Notebook-type Optical Drive

1 pair 1 pair 1 pair 1 pair 1 pair

Internal auto-110/220V 180W power supply with

power factor correction and noise killer feature.

Notebook-type CD, CD R/W, DVD or DVD R/W Optical Drive, or Compact Flash Drive Kit

Front Bezel: NEMA 4 (black powder coated), or NEMA 4X (brushed stainless steel)

VS480

(15”)

256K Windows True Color

or without touchscreen

DFI-ACP

G5C100-N

Intel Celeron M,

Core Solo, Core Duo

or Core 2 Duo

(Mobile type)

Intel 945GME

+ ICH7M + GMA950

Without Optical drive: Up to 2 Notebook-type Shockmounted HDDs

14.7” x 11.4” x 3.7”

(373.6 x 289.9 x 93.1 mm)

0ºC - 50ºC (32ºF - 122ºF), 10% - 90% RH.

Note: The operating temperature is limited by the LCD’s thermal specs.

VS485

(15”)

DFI-ACP
SR100-N

Intel Core 2 Duo

(Mobile type)

Intel GME 965

+ ICH8M + GMA X3100

VS480

(19”)

19” TFT, 1280x1024, 300 nits, 700:1 contrast,

Windows True Color

Elo AccuTouch 5-Wire Resistive, Elo IntelliTouch

Surface Wave, 3M ClearTek II Capacitive,

or without touchscreen

DFI-ACP

G5C100-N

Intel Celeron M,

Core Solo, Core Duo

or Core 2 Duo

(Mobile type)

Intel 945GME

+ ICH7M + GMA950

18.1” x 14.6” x 3.9”

(460.1 x 371.8 x 98.8 mm)

Internal auto-110/220V 200W power supply

with power factor correction and noise killer

+ ICH8M + GMA X3100

feature.

VS485

(19”)

DFI-ACP
SR100-N

Intel Core 2 Duo

(Mobile type)

Intel GME 965

15”

19”

All pictures are for illustration only. The I/O port arrangement, motherboard inside, and other components will differ depending on the conguration.

Copyright (C) 2008, DFI Technologies, LLC. All product names, company names are trademarks or registered trademarks

of their respective companies. All specications, pictures and prices are subject to change without prior notice. OEM

customers with long-term supply agreements and revision control agreements will certainly be notied. v20081029
