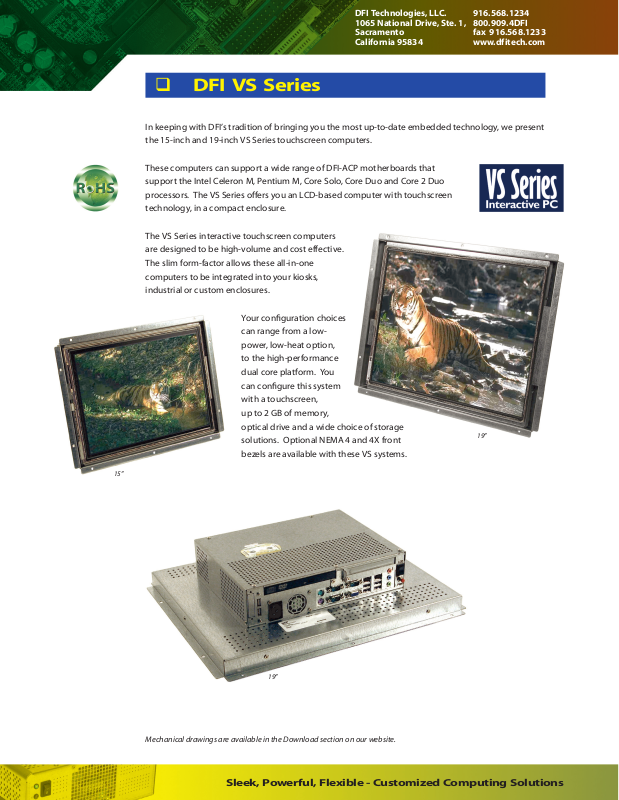

In keeping with DFI’s tradition of bringing you the most up-to-date embedded technology, we present
the 15-inch and 19-inch VS Series touchscreen computers.
These computers can support a wide range of DFI-ACP motherboards that
support the Intel Celeron M, Pentium M, Core Solo, Core Duo and Core 2 Duo
processors. The VS Series offers you an LCD-based computer with touchscreen
technology, in a compact enclosure.
The VS Series interactive touchscreen computers
are designed to be high-volume and cost effective.
The slim form-factor allows these all-in-one
computers to be integrated into your kiosks,
industrial or custom enclosures.
DFI VS Series
Your conguration choices
can range from a low-
power, low-heat option,
to the high-performance
dual core platform. You
can congure this system
with a touchscreen,
up to 2 GB of memory,
optical drive and a wide choice of storage
solutions. Optional NEMA 4 and 4X front
bezels are available with these VS systems.
19”
15”
19”
Mechanical drawings are available in the Download section on our website.
Sleek, Powerful, Flexible - Customized Computing Solutions
Page 2
VS Model
(Screen Size)
Enclosure Galvanized Steel Frame Construction
LCD Panel
Touchscreen
Main Board
Processor Type
Processor FSB 400 / 533 533 / 667 533 / 800 533 / 667 533 / 800
Main Chipsets
PCI Slot 1 Full-height, Half-length PCI Card Support
HDD and
Optical Drive Bays
PS/2 Keyboard and
Mouse Ports
DB-9 Serial Port 3 3 2 3 2
Video Port 1 DB-15 1 DB-15 1 DB-15 + 1 DVI-D 1 DB-15 1 DB-15 + 1 DVI-D
RJ45 LAN Port 1x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000)
USB Port 6 6 6 6 6
Audio Jacks 3 3 3 3 3
Internal CF Card 0 1 0 1 0
Dimension
W x H x D
Ventilation Two 60 mm enclosure fans
Power Supply
Operating
Temperature
Optional Items
VS475
(15”)
15” TFT, 1024x768, 350nits, 400:1 contrast,
Elo AccuTouch 5-Wire Resistive,
Elo IntelliTouch Surface Wave,
DFI-ACP
G5G100-P
Intel Celeron M
or Pentium M
(Mobile type)
Intel 915GME
+ ICH6M
Typical Conguration: 1 Notebook-type shock-mounted HDD, and 1 Notebook-type Optical Drive
1 pair 1 pair 1 pair 1 pair 1 pair
Internal auto-110/220V 180W power supply with
power factor correction and noise killer feature.
Notebook-type CD, CD R/W, DVD or DVD R/W Optical Drive, or Compact Flash Drive Kit
Front Bezel: NEMA 4 (black powder coated), or NEMA 4X (brushed stainless steel)
VS480
(15”)
256K Windows True Color
or without touchscreen
DFI-ACP
G5C100-N
Intel Celeron M,
Core Solo, Core Duo
or Core 2 Duo
(Mobile type)
Intel 945GME
+ ICH7M + GMA950
Without Optical drive: Up to 2 Notebook-type Shockmounted HDDs
14.7” x 11.4” x 3.7”
(373.6 x 289.9 x 93.1 mm)
0ºC - 50ºC (32ºF - 122ºF), 10% - 90% RH.
Note: The operating temperature is limited by the LCD’s thermal specs.
VS485
(15”)
DFI-ACP
SR100-N
Intel Core 2 Duo
(Mobile type)
Intel GME 965
+ ICH8M + GMA X3100
VS480
(19”)
19” TFT, 1280x1024, 300 nits, 700:1 contrast,
Windows True Color
Elo AccuTouch 5-Wire Resistive, Elo IntelliTouch
Surface Wave, 3M ClearTek II Capacitive,
or without touchscreen
DFI-ACP
G5C100-N
Intel Celeron M,
Core Solo, Core Duo
or Core 2 Duo
(Mobile type)
Intel 945GME
+ ICH7M + GMA950
18.1” x 14.6” x 3.9”
(460.1 x 371.8 x 98.8 mm)
Internal auto-110/220V 200W power supply
with power factor correction and noise killer
+ ICH8M + GMA X3100
feature.
VS485
(19”)
DFI-ACP
SR100-N
Intel Core 2 Duo
(Mobile type)
Intel GME 965
15”
19”
All pictures are for illustration only. The I/O port arrangement, motherboard inside, and other components will differ depending on the conguration.
Copyright (C) 2008, DFI Technologies, LLC. All product names, company names are trademarks or registered trademarks
of their respective companies. All specications, pictures and prices are subject to change without prior notice. OEM
customers with long-term supply agreements and revision control agreements will certainly be notied. v20081029
