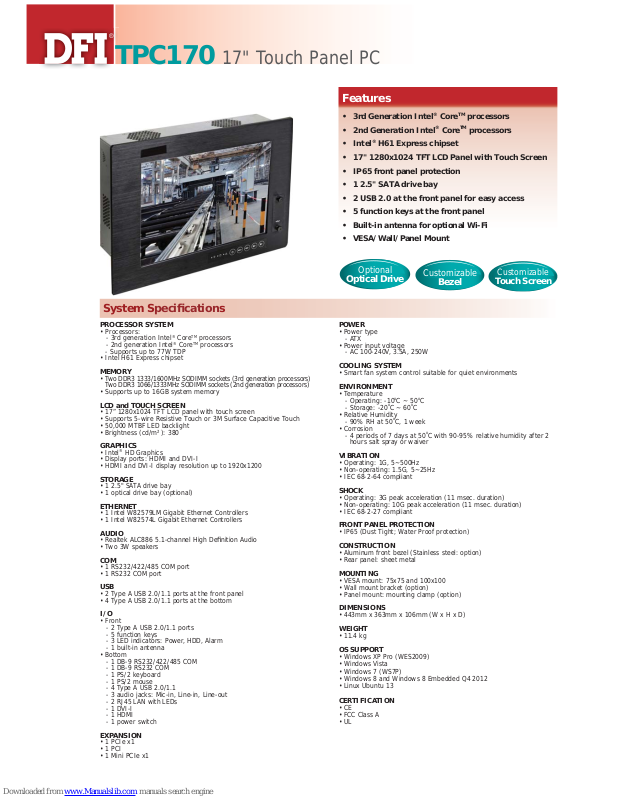

DFI TPC170 Quick Manual

TPC170

17" Touch Panel PC

Features

System Specifi cations

PROCESSOR SYSTEM

• Processors:

- 3rd generation Intel

®

CoreTM processors

- 2nd generation Intel

®

CoreTM processors

- Supports up to 77W TDP

• Intel H61 Express chipset

MEMORY

• Two DDR3 1333/1600MHz SODIMM sock ets (3rd generation processors)
Two DDR3 1066/1333MHz SODIMM sock ets (2nd generation processors)

• Supports up to 16GB system memory

LCD and TOUCH SCREEN

• 17” 1280x1024 TFT LCD panel with touch screen

• Supports 5-wire Resistive Touch or 3M Surface Capacitive Touch

• 50,000 MTBF LED backlight

• Brightness (cd/m²): 380

GRAPHICS

• Intel

®

HD Graphics

• Display ports: HDMI and DVI-I

• HDMI and DVI-I display resolution up to 1920x1200

STORAGE

• 1 2.5" SATA drive bay

• 1 optical drive bay (optional)

ETHERNET

• 1 Intel W82579LM Gigabit Ethernet Controllers

• 1 Intel W82574L Gigabit Ethernet Controllers

AUDIO

• Realtek ALC886 5.1-channel High Defi nition Audio

• Two 3W speakers

COM

• 1 RS232/422/485 COM port

• 1 RS232 COM port

USB

• 2 Type A USB 2.0/1.1 ports at the front panel

• 4 Type A USB 2.0/1.1 ports at the bottom

I/O

• Front

-

2 Type A USB 2.0/1.1 ports

-

5 function keys

-

3 LED indicators: Power, HDD, Alarm

- 1

built-in antenna

• Bottom

- 1 DB-9 RS232/422/485 COM

- 1 DB-9 RS232 COM

- 1 PS/2 keyboard

- 1 PS/2 mouse

-

4 Type A USB 2.0/1.1

-

3 audio jacks: Mic-in, Line-in, Line-out

- 2 RJ45 LAN with LEDs

- 1 DVI-I

- 1 HDMI

- 1 power switch

EXPANSION

• 1 PCIe x1

• 1 PCI

• 1 Mini PCIe x1

POWER

• Power type

- ATX

• Power input voltage

- AC 100-240V, 3.5A, 250W

COOLING SYSTEM

• Smart fan system control suitable for quiet environments

ENVIRONMENT

• Temperature

- Operating: -10

o

C ~ 50oC

- Storage: -20oC ~ 60oC

• Relative Humidity

- 90% RH at 50oC, 1 week

• Corrosion

- 4 periods of 7 days at 50oC with 90-95% relative humidity after 2
hours salt spray or waiver

VIBRATION

• Operating: 1G, 5~500Hz

• Non-operating: 1.5G, 5~25Hz

• IEC 68-2-64 compliant

SHOCK

• Operating: 3G peak acceleration (11 msec. duration)

• Non-operating: 10G peak acceleration (11 msec. duration)

• IEC 68-2-27 compliant

FRONT PANEL PROTECTION

• IP65 (Dust Tight; Water Proof protection)

CONSTRUCTION

• Aluminum front bezel (Stainless steel: option)

• Rear panel: sheet metal

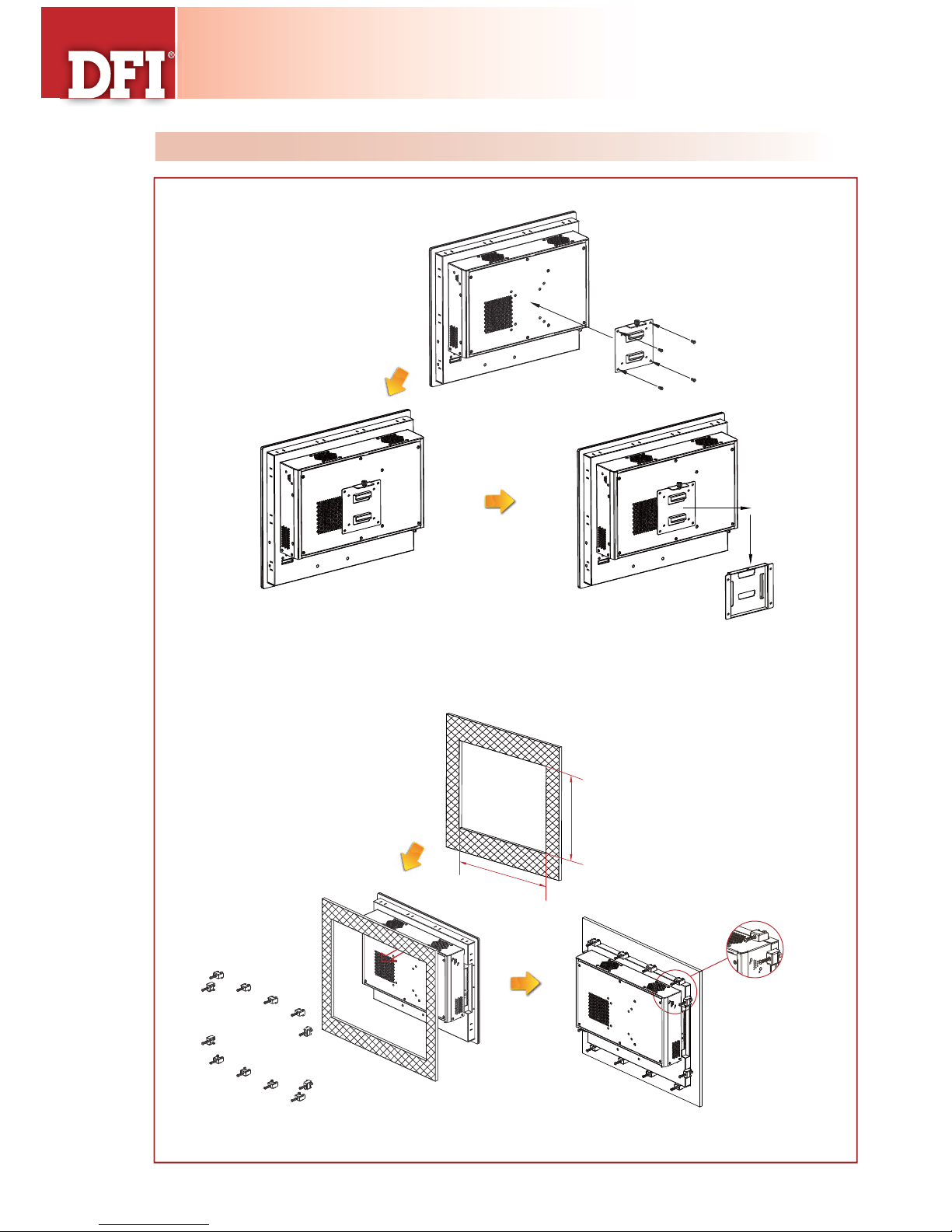

MOUNTING

• VESA mount: 75x75 and 100x100

• Wall mount bracket (option)

• Panel mount: mounting clamp (option)

DIMENSIONS

• 443mm x 363mm x 106mm (W x H x D)

WEIGHT

• 11.4 kg

OS SUPPORT

• Windows XP Pro (WES2009)

• Windows Vista

• Windows 7 (WS7P)

• Windows 8 and Windows 8 Embedded Q4 2012

• Linux Ubuntu 13

CERTIFICATION

• CE

• FCC Class A

• UL

• 3rd Generation Intel® CoreTM processors

• 2nd Generation Intel

®

CoreTM processors

• Intel

®

H61 Express chipset

• 17" 1280x1024 TFT LCD Panel with Touch Screen

• IP65 front panel protection

• 1 2.5" SATA drive bay

• 2 USB 2.0 at the front panel for easy access

• 5 function keys at the front panel

• Built-in antenna for optional Wi-Fi

• VESA/Wall/Panel Mount

Optional

Optical Drive

Customizable

Bezel

Customizable

Touch Screen

TPC170

17" Touch Panel PC

Bottom View

Right ViewLeft View

Top View

Front View

Dimensions

Panel

285.75

348.00

95.25

95.25

144.00

364.00

75.00

100.00

75.00

100.00

144.00

364.00

285.75

6.00

37.00

106.00

363.00

272.80

339.50

443.78

Bottom ViewFront View

USB

Function Keys

Alarm LED

HDD LED

Power LED

Line-in

Mic-in

Line-out

COM 2

COM 1

PS/2 KB

PS/2 Mouse

USB 2.0

Power Switch

LAN

DVI-I

HDMI
