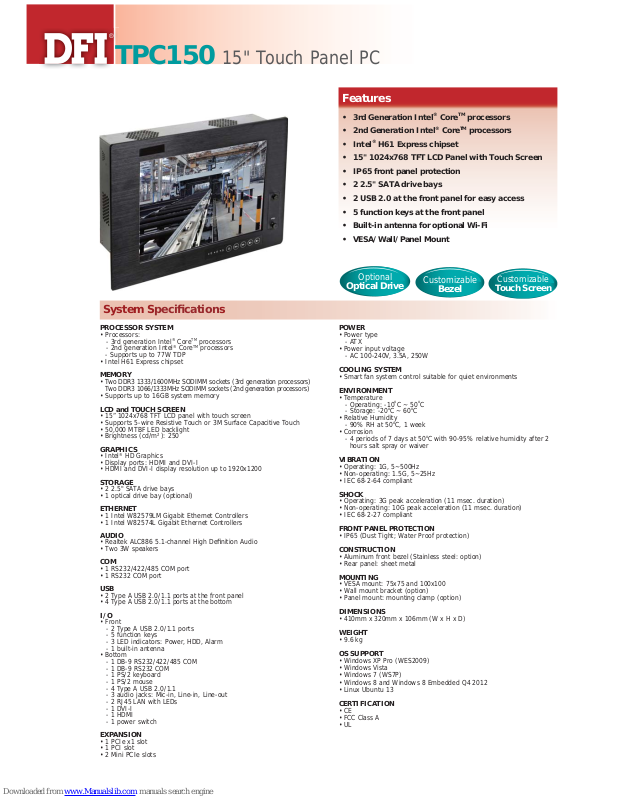

Page 1

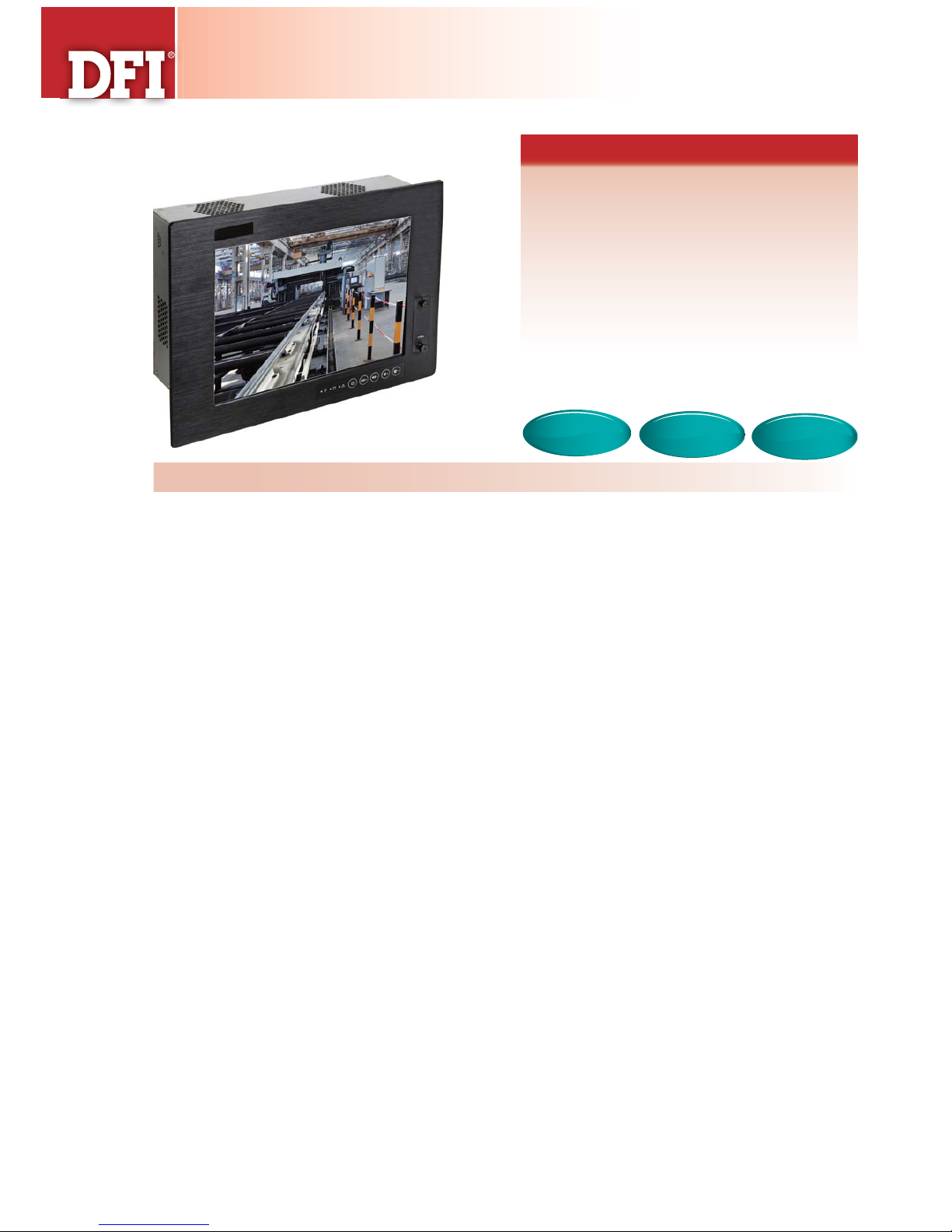

TPC150
15" Touch Panel PC
Features
System Specifi cations
PROCESSOR SYSTEM
• Processors:
- 3rd generation Intel® CoreTM processors
- 2nd generation Intel® CoreTM processors
- Supports up to 77W TDP
• Intel H61 Express chipset
MEMORY
• Two DDR3 1333/1600MHz SODIMM sock ets (3rd generation processors)
Two DDR3 1066/1333MHz SODIMM sock ets (2nd generation processors)
• Supports up to 16GB system memory
LCD and TOUCH SCREEN
• 15” 1024x768 TFT LCD panel with touch screen
• Supports 5-wire Resistive Touch or 3M Surface Capacitive Touch
• 50,000 MTBF LED backlight
• Brightness (cd/m²): 250
GRAPHICS
• Intel
®
HD Graphics
• Display ports: HDMI and DVI-I
• HDMI and DVI-I display resolution up to 1920x1200
STORAGE
• 2 2.5" SATA drive bays
• 1 optical drive bay (optional)
ETHERNET
• 1 Intel W82579LM Gigabit Ethernet Controllers
• 1 Intel W82574L Gigabit Ethernet Controllers
AUDIO
• Realtek ALC886 5.1-channel High Defi nition Audio
• Two 3W speakers
COM
• 1 RS232/422/485 COM port
• 1 RS232 COM port
USB
• 2 Type A USB 2.0/1.1 ports at the front panel
• 4 Type A USB 2.0/1.1 ports at the bottom
I/O
• Front
-
2 Type A USB 2.0/1.1 ports
-
5 function keys
-
3 LED indicators: Power, HDD, Alarm
- 1
built-in antenna
• Bottom
- 1 DB-9 RS232/422/485 COM
- 1 DB-9 RS232 COM
- 1 PS/2 keyboard
- 1 PS/2 mouse
-
4 Type A USB 2.0/1.1
-
3 audio jacks: Mic-in, Line-in, Line-out
- 2 RJ45 LAN with LEDs
- 1 DVI-I
- 1 HDMI
- 1 power switch
EXPANSION
• 1 PCIe x1 slot
• 1 PCI slot
• 2 Mini PCIe slots
POWER
• Power type
- ATX
• Power input voltage
- AC 100-240V, 3.5A, 250W
COOLING SYSTEM
• Smart fan system control suitable for quiet environments
ENVIRONMENT
• Temperature
- Operating: -10
o
C ~ 50oC
- Storage: -20oC ~ 60oC
• Relative Humidity
- 90% RH at 50oC, 1 week
• Corrosion
- 4 periods of 7 days at 50oC with 90-95% relative humidity after 2
hours salt spray or waiver
VIBRATION
• Operating: 1G, 5~500Hz
• Non-operating: 1.5G, 5~25Hz
• IEC 68-2-64 compliant
SHOCK
• Operating: 3G peak acceleration (11 msec. duration)
• Non-operating: 10G peak acceleration (11 msec. duration)
• IEC 68-2-27 compliant
FRONT PANEL PROTECTION
• IP65 (Dust Tight; Water Proof protection)
CONSTRUCTION
• Aluminum front bezel (Stainless steel: option)
• Rear panel: sheet metal
MOUNTING
• VESA mount: 75x75 and 100x100
• Wall mount bracket (option)
• Panel mount: mounting clamp (option)
DIMENSIONS
• 410mm x 320mm x 106mm (W x H x D)
WEIGHT
• 9.6 kg
OS SUPPORT
• Windows XP Pro (WES2009)
• Windows Vista
• Windows 7 (WS7P)
• Windows 8 and Windows 8 Embedded Q4 2012
• Linux Ubuntu 13
CERTIFICATION
• CE
• FCC Class A
• UL
• 3rd Generation Intel® CoreTM processors
• 2nd Generation Intel
®
CoreTM processors
• Intel
®
H61 Express chipset
• 15" 1024x768 TFT LCD Panel with Touch Screen
• IP65 front panel protection
• 2 2.5" SATA drive bays
• 2 USB 2.0 at the front panel for easy access
• 5 function keys at the front panel
• Built-in antenna for optional Wi-Fi
• VESA/Wall/Panel Mount
Optional
Optical Drive
Customizable
Bezel
Customizable
Touch Screen
Page 2
TPC150
15" Touch Panel PC
306.00
410.00
230.00
320.00
110.00
330.00
75.00
100.00
75.00
100.00
110.00
330.00
180.00
305.00
180.00
6.00
37.00
106.00
Bottom View
Right ViewLeft View
Top View
Front View

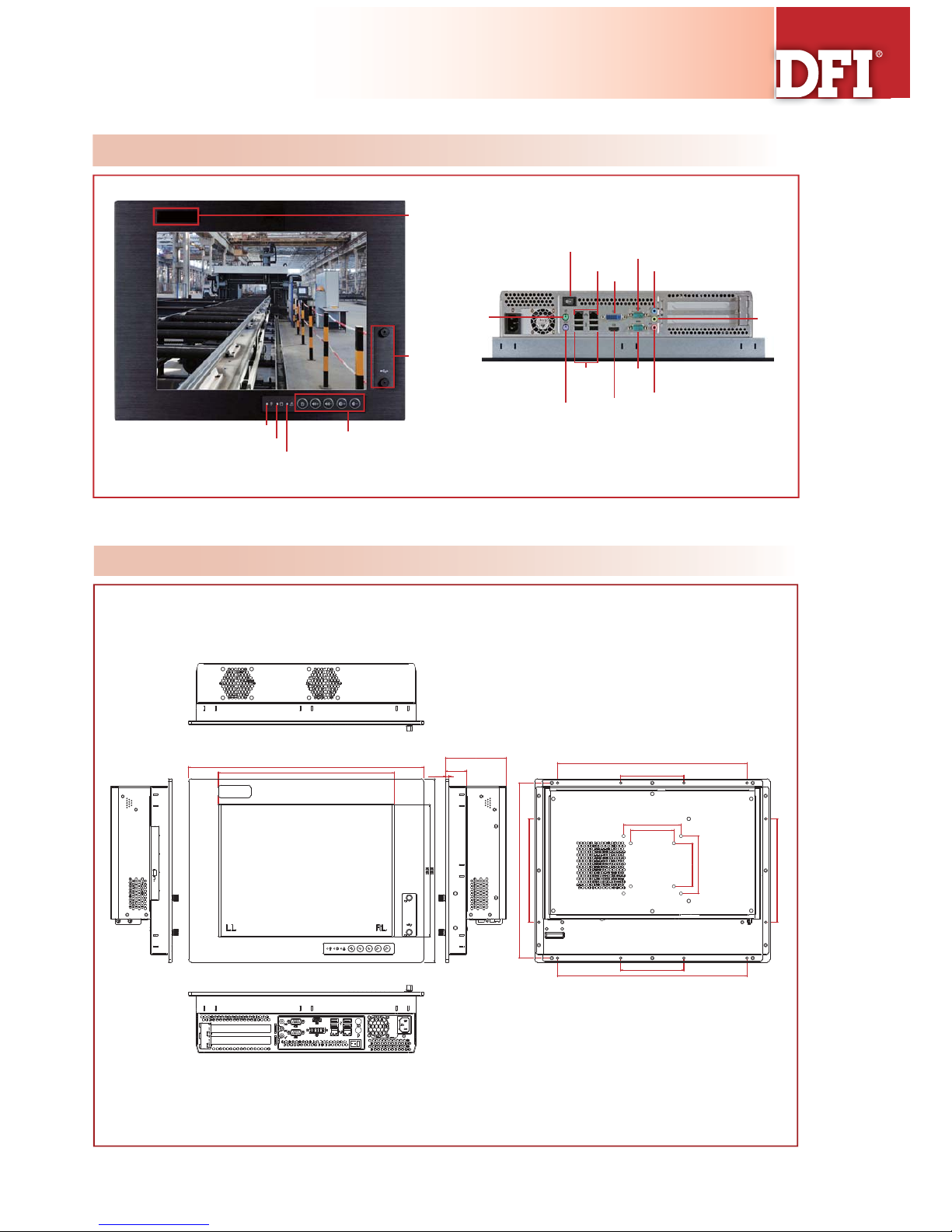

Dimensions
Panel
Bottom View
Front View
USB
Function Keys
Alarm LED
HDD LED
Power LED
Line-in
Mic-in
Line-out
COM 2
COM 1
PS/2 KB
PS/2 Mouse
USB 2.0
Power Switch
LAN
DVI-I
HDMI
Built-in antenna
Page 3
TPC150
15" Touch Panel PC

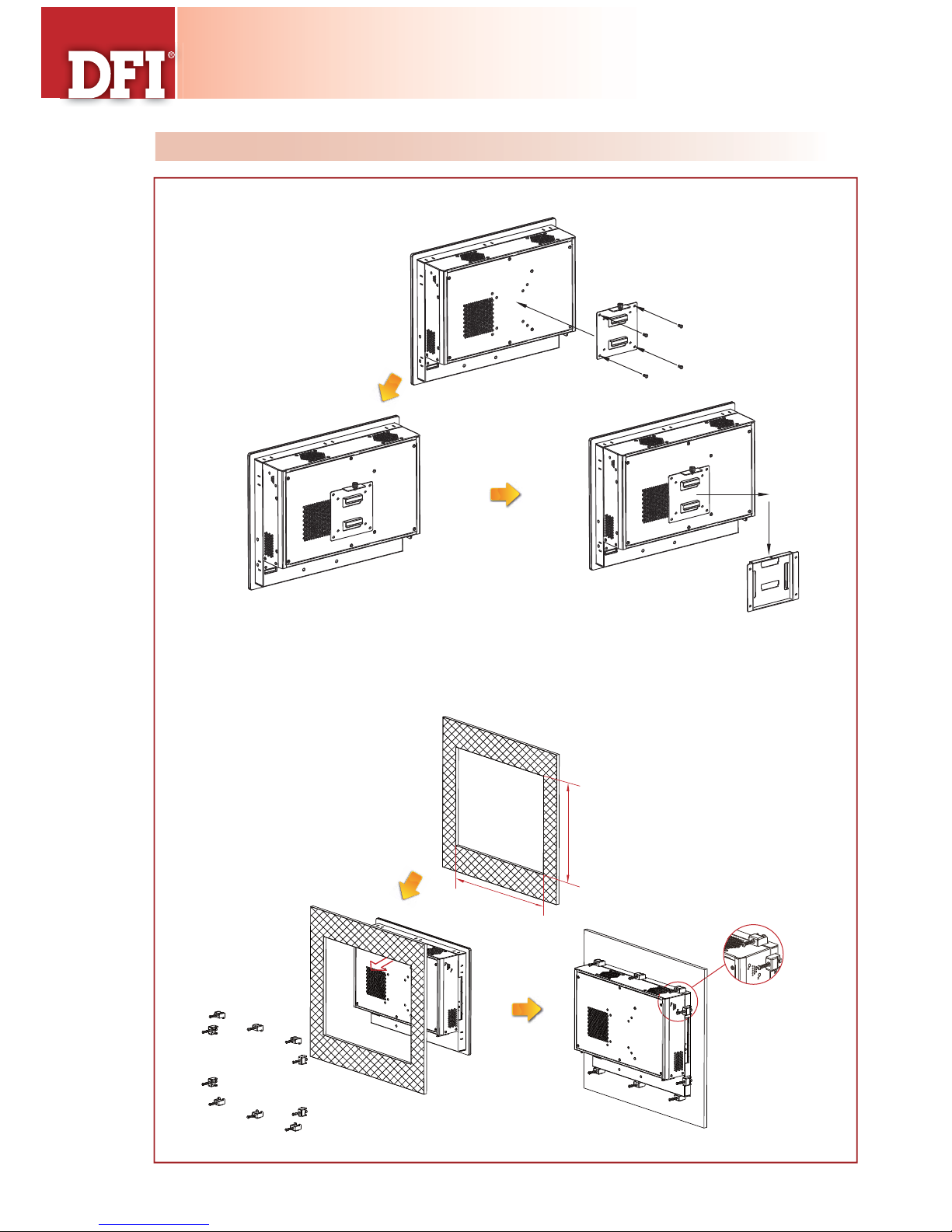

Mounting
Wall Mounting
296.00
386.00
Panel Mounting
Suggested cut out size
(The fl at panel thickness is less than 10mm)
Page 4
DFI reserves the right to change the specifi cations at any time prior to the product's release. Changes thereafter will be based on the product's revision.
Please contact your sales representative for the exact revision offered in your area. All product names mentioned are trademarks of their respective
companies. © November 16, 2012 DFI Inc.
www.dfi .com
Optional Items Part Number Description
CPU 785-CP1155DL CPU, LGA 1155, Long-term support, RoHS
Memory
785-RSOD31G SODIMM, DDR3, 1GB, RoHS
785-RSOD32G SODIMM, DDR3, 2GB, RoHS
785-RSOD34G SODIMM, DDR3, 4GB, RoHS
HDD
785-H25250G 2.5” SATA HDD, 250GB, RoHS
785-H25500G 2.5” SATA HDD, 500GB, RoHS
Power Cord 785-PWRD Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
Wall Mount 785-PPCWMK Standard Panel PC Wall Mount kit
Panel Mount 785-150PMK 15" Panel PC Panel Mount kit
DVD-ROM 785-STDDRW Slim Type SATA DVD-RW/DVD ROM
CD-RW ROM 785-STCDRW Slim Type SATA CD-RW/DVD ROM
Optional Items
Packing List
• 1 TPC150 Touch Panel PC
• 1 Quick Installation Guide
• 1 CD disk includes:
- Drivers / Manual
Ordering Information
Model Name Part Number Description
TPC-1502TR-
SBACR-R10
750-TPC150-000G
15" Panel PC, H61 chipset, Aluminum Front Bezel , Resistive Touch,
AC input, R10
TPC-1502TSSBACR-R10
750-TPC150-100G
15" Panel PC, H61 chipset, Aluminum Front Bezel, 3M Surface Capacitive
Touch, AC input, R10
TPC-1503TRSBACR-R10
750-TPC150-200G
15" Panel PC, H61 chipset, Stainless Front Bezel, Resistive Touch, AC input,
R10
TPC-1503TSSBACR-R10
750-TPC150-300G
15" Panel PC, H61 chipset, Stainless Front Bezel, 3M Surface Capacitive
Touch, AC input, R10
TPC-1501SBACR-R10
750-TPC150-500G 15" Panel PC, H61 chipset, Open Frame, AC input, R10
TPC150
