DFI SD101, SD103-H110, SD101/SD103-Q170 User Manual
1
SD101/SD103-H110
Mini-ITX Industrial Motherboard
User’s Manual
A41200611
2
Copyright
This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2016. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.
3
Table of Contents
Copyright ................................................. 2
Trademarks .............................................. 2
FCC and DOC Statement on Class B ......... 2
About this Manual .................................... 4
Warranty ................................................ 4
Static Electricity Precautions ..................... 4
Safety Measures....................................... 4
About the Package ................................... 5
Chapter 1 - Introduction ........................... 6
Chapter 2 - Hardware Installation ............. 9
Board Layout ...........................................................................9
System Memory .......................................................................9
Installing the DIMM Module ....................................................... 10
CPU ......................................................................................11
Installing the CPU .................................................................... 12
Installing the Fan and Heat Sink ................................................ 14
Jumper Settings ..................................................................... 15
Clear CMOS Data ..................................................................... 15
Auto Power-on Select ............................................................... 15
Panel Power Select ................................................................... 16
COM 1 RS232/Power Select ....................................................... 16
LCD/Inverter Power Select ........................................................ 17
Backlight Power Select .............................................................. 17
Rear Panel I/O Ports ..............................................................18
12V DC-in (SD101)/15~36V DC-in (SD103) ............................... 18
RJ45 LAN Ports ........................................................................ 19
Graphics Interfaces .................................................................. 19
USB Ports................................................................................ 20
I/O Connectors ...................................................................... 21
SATA (Serial ATA) Connectors .................................................... 21
SATA (Serial ATA) Power Connectors ..........................................21
Digital I/O Connector ................................................................ 22
Digital I/O Power Connector ...................................................... 22
Cooling Fan Connectors ............................................................. 22
Chassis Intrusion Connector ..................................................... 23
Front Panel Connector .............................................................. 23
Expansion Slots ....................................................................... 24
Standby Power LED .................................................................. 24
LVDS LCD Panel Connector ........................................................ 25
LCD/Inverter Power Connector ................................................... 25
COM (Serial) Ports ................................................................... 26
S/PDIF Connector ..................................................................... 26
SMBus Connector .................................................................... 27
Front Audio ............................................................................ 27
LPC Connector(Optional) ........................................................... 28
Battery ................................................................................... 28
Chapter 3 - BIOS Setup ..........................29
Overview .............................................................................. 29
Insyde BIOS Setup Utility .......................................................30
Main ....................................................................................... 30
Advanced ............................................................................... 30
Security .................................................................................. 38
Boot ....................................................................................... 39
Exit ........................................................................................ 40
Notice: BIOS SPI ROM ........................................................... 41
Chapter 4 - Supported Software ..............42
Appendix A - Troubleshooting Checklist ....59
4
About this Manual

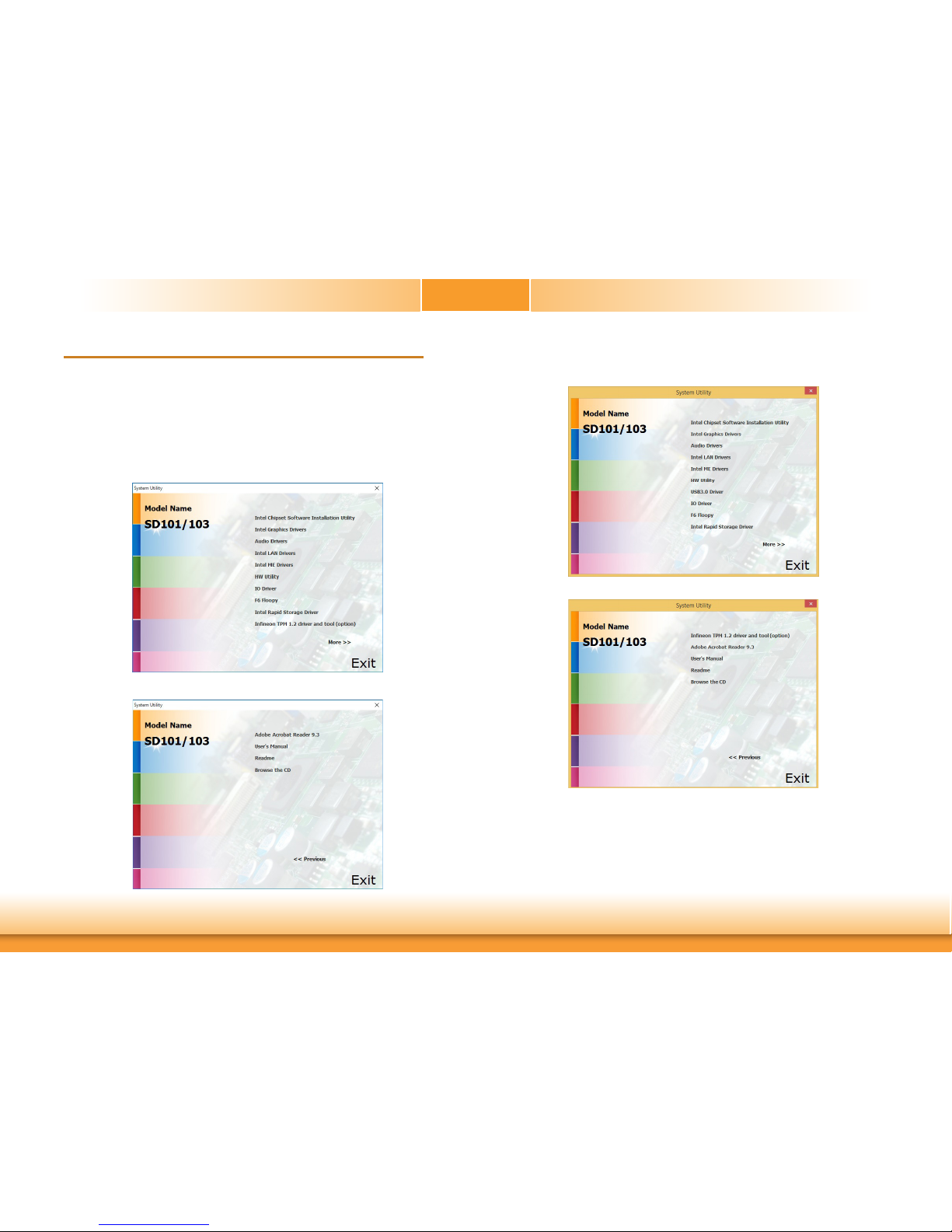

An electronic file of this manual is included in the DVD. To view the user’s manual in the DVD,
insert the DVD into a DVD-ROM drive. The autorun screen (Main Board Utility DVD) will appear. Click “User’s Manual” on the main menu.
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or
out of warranty. It must be returned to the purchase point, factory or authorized service
agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequencial damages to the
product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are
ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, contacts
or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power
cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by
wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system
chassis throughout any procedures requiring ESD protection.
5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• 1 SD101/SD103-H110 motherboard
• 1 COM port cable
• 1 Serial ATA data with power cable
• 1 Serial ATA power Y cable
• 1 DVD
• 1 QR (Quick Reference)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB port cable
• COM port cable
• Audio (Line-out/Mic-in) cable
• Power adapter (100W, 12V, Level 6)
• Power adapter (120W, 19V, Level 6)
• Thermal solution (For 35W, Height: 37.3mm)
• Thermal solution (For 65W, Height: 72.8mm)
• LPC EXT-RS232 module (4 x RS232 ports)
• LPC EXT-RS485 module (4 x RS485 ports)
• I/O shield
• DT122 Chassis
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.
If you are installing the system board in a new system, you will need at least the following
internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, DVD-ROM, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.
6
Chapter 1 - Introduction
Specifications
Chapter 1
Chapter 1 Introduction www.d.com
SYSTEM Processor
6th Generation Intel® CoreTM Processors, LGA 1151 Socket
Intel® CoreTM i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® CoreTM i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® CoreTM i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® CoreTM i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® CoreTM i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W
Intel® CoreTM i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W
Chipset
Intel® H110
Memory Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS Insyde SPI 128Mbit
GRAPHICS Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9,
JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS
1 x DVI-I (DVI-D signal)
1 x HDMI/DP (DP available upon request)
LVDS: dual channel, resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz
DP: resolution up to 4096x2304 @ 60Hz
Dual
Displays
LVDS + DVI-I (DVI-D signal) DVI-I (DVI-D signal) + HDMI
LVDS + HDMI
LVDS + DP (DP available upon request)
DVI-I (DVI-D signal) + DP (DP available upon request)
EXPANSION Interface
1 x PCIe x4 (Gen 2)
1 x Full-size mSATA (USB/SATA)
1 x Half-size Mini PCIe (USB/PCIe)
AUDIO Audio Codec
Realtek ALC888S-VD2-GR
ETHERNET Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219V PCIe (10/100/1000Mbps)
REAR I/O Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0
Display
1 x DVI-I (DVI-D signal)
1 x HDMI/DP (DP available upon request)
INTERNAL I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.00mm pitch)
3 x RS-232 (2.00mm pitch)
USB 4 x USB 2.0 (2.00mm pitch)
Display 1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio 1 x Audio (Line-out/Mic-in)
1 x S/PDIF
SATA 2 x SATA 3.0 (up to 6Gb/s)
DIO 1 x 8-bit DIO
LPC 1 x LPC (supports LPC EXT-RS232/RS485 module)(available upon request)
SMBus 1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255 Seconds
POWER Type Single 12V +/-10% DC (SD101) Wide Range 15~36V (SD103)
Connector DC-in Jack Right Angle Connector (4-pin) (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption TBD
RTC Battery CR2032 Coin Cell
OS SUPPORT Microsoft Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10 (64-bit)
Linux Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Ubuntu 15.10 (Intel graphic driver available)
ENVIRONMENT Temperature Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
SD101-H110 : 434,189 hrs @ 25°C; 253,023 hrs @ 45°C ; 160,261 hrs @ 60°C
SD103-H110 : 422,413 hrs @ 25°C; 245,506 hrs @ 45°C ; 155,547 hrs @ 60°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
MECHANICAL Dimensions Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height PCB: 1.6mm
Top Side: 20mm, Bottom Side: 7mm
7
Chapter 1
Chapter 1 Introduction www.d.comChapter 1 Introduction
Features
• Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
• DDR4
DDR4 delivers increased system bandwidth and improves performance. The advantages of
DDR4 provide an extended battery life and improve the performance at a lower power than
DDR3/DDR2.
• Graphics
The integrated Intel® HD graphics engine delivers an excellent blend of graphics performance
and features to meet business needs. It provides excellent video and 3D graphics with outstanding graphics responsiveness. These enhancements deliver the performance and compatibility needed for today’s and tomorrow’s business applications. Supports 1 LVDS, 1 DVI-I (DVID signal) and 1 HDMI/DP (DP available upon request) interfaces for display outputs.
• PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The PCI Express architecture also supports high performance graphics infrastructure by enhancing the capability of a PCIe x4.
• Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
• Gigabit LAN
Intel® I211AT PCIe Gigabit Ethernet and Intel® I219V PCIe Gigabit Ethernet Phy controllers
support up to 1Gbps data transmission.
• Audio
The Realtek ALC888S-VD2-GR audio codec provides 5.1-channel High Definition audio output.
• Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
• RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
• ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows® without having to
go through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the 5V_standby power source of your power supply must support ≥2A.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
• Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCIe LAN card that uses the PCIe PME (Power
Management Event) signal. However, if your system is in the Suspend mode, you can poweron the system only through an IRQ or DMA interrupt.
8
• Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
• USB
The system board supports the new USB 3.0. It is capable of running at a maximum transmission speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s)
and USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces
power consumption, and is backward compatible with USB 2.0. It is a marked improvement
in device transfer speeds between your computer and a wide range of simultaneously
accessible external Plug and Play peripherals.
Chapter 1
Chapter 1 Introduction www.d.com
www.d.com
9
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
Board Layout
System Memory
Features
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lights red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.
• Two 260-pin SODIMM up to 32GB
• Dual Channel DDR4 1866/2133MHz
• SD101-H110: 12V DC-in jack (default) or 4-pin power Right/Vertical Angle
Connector(optional).
SD103-H110: 15~36V DC-in jack (default) or 4-pin power Right/Vertical Angle
Connector(optional).
Socket LGA1151
2
1
39
40
LVDS LCD Panel
Mini PCIe 2
Mini PCIe 1
LAN 1
LAN 2
DC-in
4-pin Vertical Type (optional)
4-pin
Right Angle
(optional)
DDR4_2 SODIMM
DDR4_1 SODIMM
HDMI
DVI-D
USB 3-4
USB 3.0
USB 1-2
USB 3.0
S/PDIF
1
10
9
Front Audio
2
1
Buzzer
1
2
Battery
Intel
H110
SPI Flash
BIOS
PCIe x4
10912 10912 10912 10912
COM 2 COM 3 COM 4COM 1
1
1
SATA 0
SATA 3
91210 91210
USB
5-6
USB
7-8
SATA 3.0
1 2
1112
Front
Panel
Digital
I/O
1
USB 2.0
LCD/Inverter
Power
Standby
Power LED
1
1
System Fan 2
System Fan 1
1
1
CPU Fan
Digital
I/O Power
1
SATA
Power
51
62
65
21
1
1
1
1
1
1
1
256
SMBus
Auto Power-on
Select (JP1)
COM 1
RS232/Power
Select (JP2)
LCD/Inverter Power Select (JP7)
Backlight
Power
Select
(JP6)
Panel Power
Select (JP8)
(JP5)
(JP5)
Clear CMOS Data
ASMedia
ASM1442
ASMedia
ASM1442
Intel
WGI211AT
Chassis
Intrusion
ME Disable
DDR4_1
DDR4_2
Standby
Power LED
www.d.com
10
Chapter 2 Hardware Installation
Chapter 2
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits (8B) from the memory channels.
Dual Channel (DC)
Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides
better system performance because it doubles the data transfer rate.
Single Channel
DIMMs are on the same channel.
DIMMs in a channel can be identical or
completely different. However, we highly
recommend using identical DIMMs.
Not all slots need to be populated.
Dual Channel
DIMMs of the same memory configuration
are on different channels.
Installing the DIMM Module
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM socket on the system board.
4. Note the key on the socket. The key ensures the module can be plugged into the socket in
only one direction.
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
www.d.com
11
Chapter 2 Hardware Installation
Chapter 2
CPU
The system board is equipped with a surface mount LGA 1151 socket. This socket is exclusively designed for installing a LGA 1151 packaged Intel CPU.
Protective
cap
Important:
1. Before you proceed, make sure (1) the LGA 1151 socket comes with a protective
cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If
the cap is missing or the cap and/or contact pins are damaged, contact your dealer
immediately.
2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1151 socket comes with the protective cap.
Note:
The system board used in the following illustrations may not resemble the actual
board. These illustrations are for reference only.
6. Push down the module until the clips at each end of the socket lock into position. You will
hear a distinctive “click”, indicating the module is correctly locked into position.
5. Grasping the module by its edges, align the module into the socket at an approximately 30
degrees angle. Apply firm even pressure to each end of the module until it slips down into
the socket. The contact fingers on the edge of the module will almost completely disappear
inside the socket.
Clip
Clip
Important:
When installing one DDR4 SODIMM only, make sure to install it into the SODIMM 1
socket.
www.d.com
12
Chapter 2 Hardware Installation
Chapter 2
Important:
The CPU socket must not come in contact with anything other than the CPU. Avoid
unnecessary exposure. Remove the protective cap only when you are about to install
the CPU.
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the LGA 1151 CPU
socket on the system
board.
4. Unlock the socket by pushing the load lever down,
moving it sideways until it
is released from the retention tab; then lift the load
lever up.
Retention tab
Load lever
6. Remove the protective cap
from the CPU socket. The
cap is used to protect the
CPU socket against dust
and harmful particles.
Remove the protective cap
only when you are about
to install the CPU.
Load lever
Load
plate
5. Lifting the load lever will at
the same time lift the load
plate.
Lift the load lever up to
the angle shown on the
photo.
Protective cap
www.d.com
13
Chapter 2 Hardware Installation
Chapter 2
Important:
The CPU will fit in only one orientation and can easily be inserted without exerting
any force.
7. Insert the CPU into the
socket. The gold triangular
mark on the CPU must
align with the corner of
the CPU socket shown on
the photo.
The CPU’s notch will at
the same time fit into the
socket’s alignment key.
Alignment key
Alignment key
Gold triangular mark
8. Close the load plate then
push the load lever down.
While closing the load
plate, make sure the front
edge of the load plate
slides under the retention
knob.
Retention knob
9. Hook the load lever under
the retention tab.
Load lever
Retention tab
www.d.com
14
Chapter 2 Hardware Installation
Chapter 2
Installing the Fan and Heat Sink
The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system
board.
1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the
CPU. The thermal paste is usually supplied when you purchase the fan / heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on
top of the CPU, the compound will disperse evenly.
Some heat sinks come with a patch of pre-applied thermal paste. Do not apply thermal
paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the
strip that covers the paste before you place the fan / heat sink on top of the CPU.
2. Place the heat sink on top
of the CPU. The 4 pushpins around the heat sink,
which are used to secure
the heat sink onto the system board, must match the
4 mounting holes around
the socket.
3. Orient the heat sink such
that the CPU fan’s cable is
nearest the CPU fan connector.
Note:
A boxed Intel® processor already includes the CPU fan and heat sink assembly. If your
CPU was purchased separately, make sure to only use Intel®-certified fan and heat
sink.
CPU Fan connector
Mounting hole
5. Connect the CPU fan’s
cable to the CPU fan
connector on the system
board.
CPU fan connector
4. Rotate each screw that are
diagonally across the heat
sink. Perform the same
procedure for the other
screws.
Heat sink
“Locked” position of
screw
“Unlocked” position
of screw
www.d.com
15
Chapter 2 Hardware Installation
Chapter 2
Jumper Settings
Clear CMOS Data
If you encounter the following,
a) CMOS data becomes corrupted.
b) You forgot the supervisor or user password.
you can reconfigure the system with the default values stored in the ROM BIOS.
To load the default values stored in the ROM BIOS, please follow the steps below.
1. Power-off the system and unplug the power cord.
2. Set JP5 pins 2 and 3 to On. Wait for a few seconds and set JP5 back to its default setting,
pins 1 and 2 On.
3. Now plug the power cord and power-on the system.
2-3 On:
Clear CMOS Data
1-2 On:
Normal (default)
JP5
1
3
2
1
3
2
Auto Power-on Select
JP1 is used to select the method of powering on the system. If you want the system to power-on whenever AC power comes in, set JP1 pins 2 and 3 to On. If you want to use the power
button, set pins 1 and 2 to On.
When using the JP1 “Power On” feature to power the system back on after a power failure
occurs, the system may not power on if the power lost is resumed within 5 seconds (power
flicker).
1-2 On:
Power-on via Power Button
(default)
2-3 On:
Power-on via AC power
JP1
1 32
1 32
www.d.com
16
Chapter 2 Hardware Installation
Chapter 2
COM 1 RS232/Power Select
2
1 9
DCD
RD
TD DT R
JP2 (for COM 1) is designed to configure the Serial COM ports to pure RS232 or RS232 with
power.
JP2
COM 1:
RS232/422/485
JP2
COM 1/2/3/4
1-3 (RI), 2-4 (DCD) On:
RS232 (default)
3-5 (+5V), 4-6 (+12V) On:
RS232 with power
2
1
6
5
216
5
GND
DSR
RTS CTS
NC
RI
Panel Power Select
JP8
1-2 On: +12V
3-4 On:+5V
5-6 On: +3.3V (default)
1
6
4
2
5
3
JP8 is used to select the power supplied with the LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP8 match the
LCD panel’s specification. Selecting the incorrect voltage will seriously damage the
LCD panel.
1
5
3
1
5
3
6
4
2
6
4
2
2
1 9
65432
1
www.d.com
17
Chapter 2 Hardware Installation
Chapter 2
JP6
1-2 On:
+12V(default)
2-3 On: +5V
JP7
1
3
2
LCD/Inverter Power Select
JP7 is used to select the power level of the LVDS LCD/inverter power connector.
1
3
2
Backlight Power Select
JP6 is used to select the power level of backlight brightness control: +3.3V or +5V.
1-2 On: +3.3V
(default)
2-3 On: +5V
1
3
2
1
3
2
Important:
Before powering-on the system, make sure that the power settings of JP6 match the
power specification of backlight control. Selecting the incorrect voltage will seriously
damage the backlight.
18
Chapter 2 Hardware Installation
Chapter 2
www.d.com
Rear Panel I/O Ports
USB 3.0
DC-in
DVI-I
LAN 1 LAN 2
The rear panel I/O ports consist of the following:
• 1 DVI-I (DVI-D signal)
• 2 RJ45 LAN ports
• 4 USB 3.0 ports
• 1 HDMI/DP (DP available upon request)
• 1 DC-in
12V DC-in (SD101)/15~36V DC-in (SD103)
DC-in
HDMI
This jack is considered a low power solution. Connect a DC power cord to this jack. Using a
voltage more than the recommended range may fail to boot the system or cause damage to
the system board.
The DC-in jack on the system board co-lays with a 4-pin right angle connector (optional) or
4-pin vertical type connector (optional) as the photo displayed below.
DC-in (default)
4-pin Vertical Type (optional)
4-pin Right Angle
(optional)
Loading...
