Page 1

SB600-C

System Board User’s Manual

A19230435

Page 2

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

All trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

Page 3

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 4

Introduction

Table of Contents

Trademarks ........................................................................................ 2

FCC and DOC Statement on Class B .............................................. 3

About this Manual ............................................................................. 6

Warranty .......................................................................................... 6

Static Electricity Precautions ............................................................. 7

Safety Measures ................................................................................. 7

About the Package ............................................................................ 8

Before Using the System Board ........................................................8

Chapter 1 - Introduction ..................................................................9

Specifications .................................................................................. 9

Features ...................................................................................... 12

Chapter 2 - Hardware Installation .................................................. 15

System Board Layout .................................................................... 15

System Memory ........................................................................... 16

Installing the DIM Module ......................................................... 18

CPU ............................................................................................ 20

Installing the CPU .................................................................... 21

Installing the Fan and Heat Sink ................................................ 25

Jumper Settings ............................................................................. 27

Clear CMOS Data ..................................................................... 27

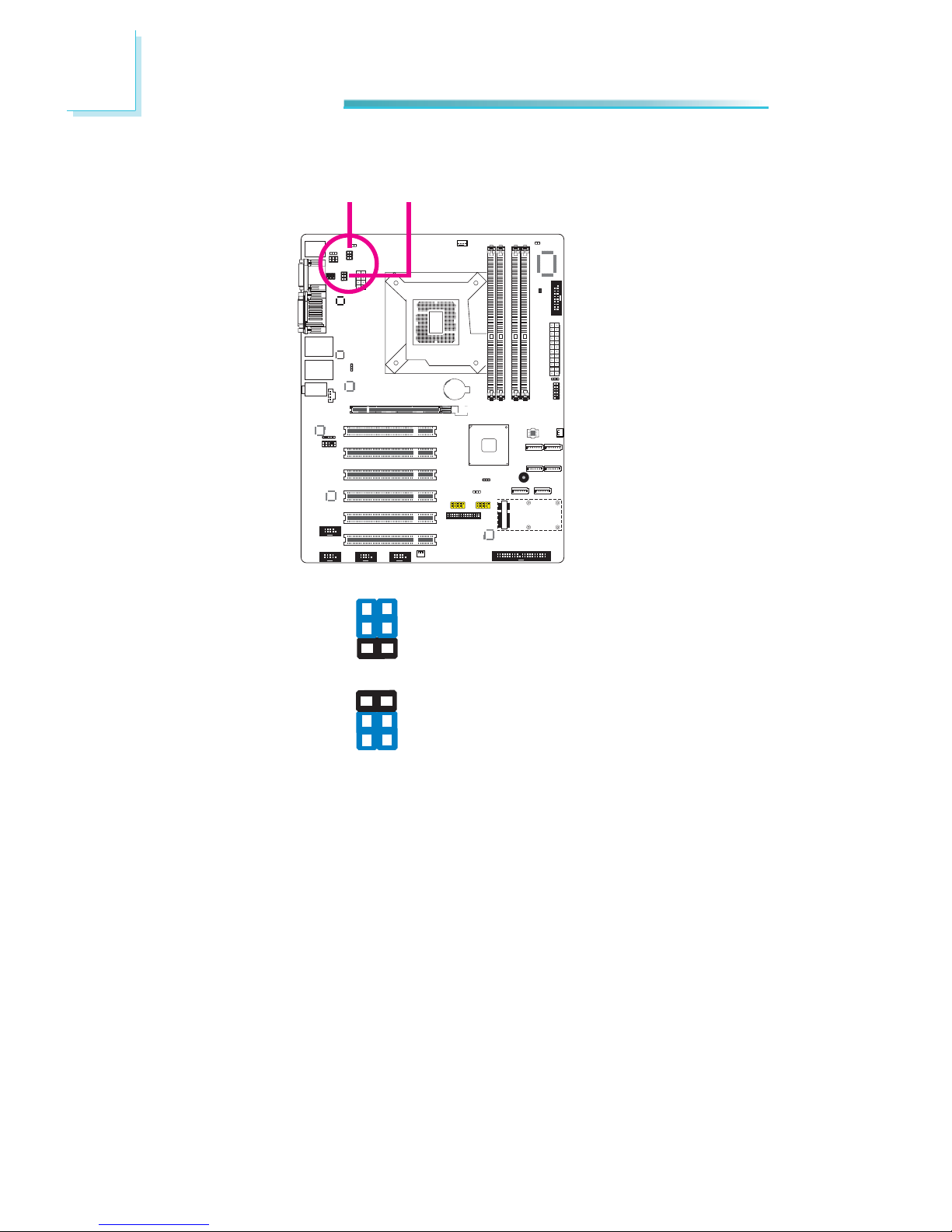

PS/2 Power Select .................................................................... 28

USB Power Select ..................................................................... 29

Power-on Select ....................................................................... 30

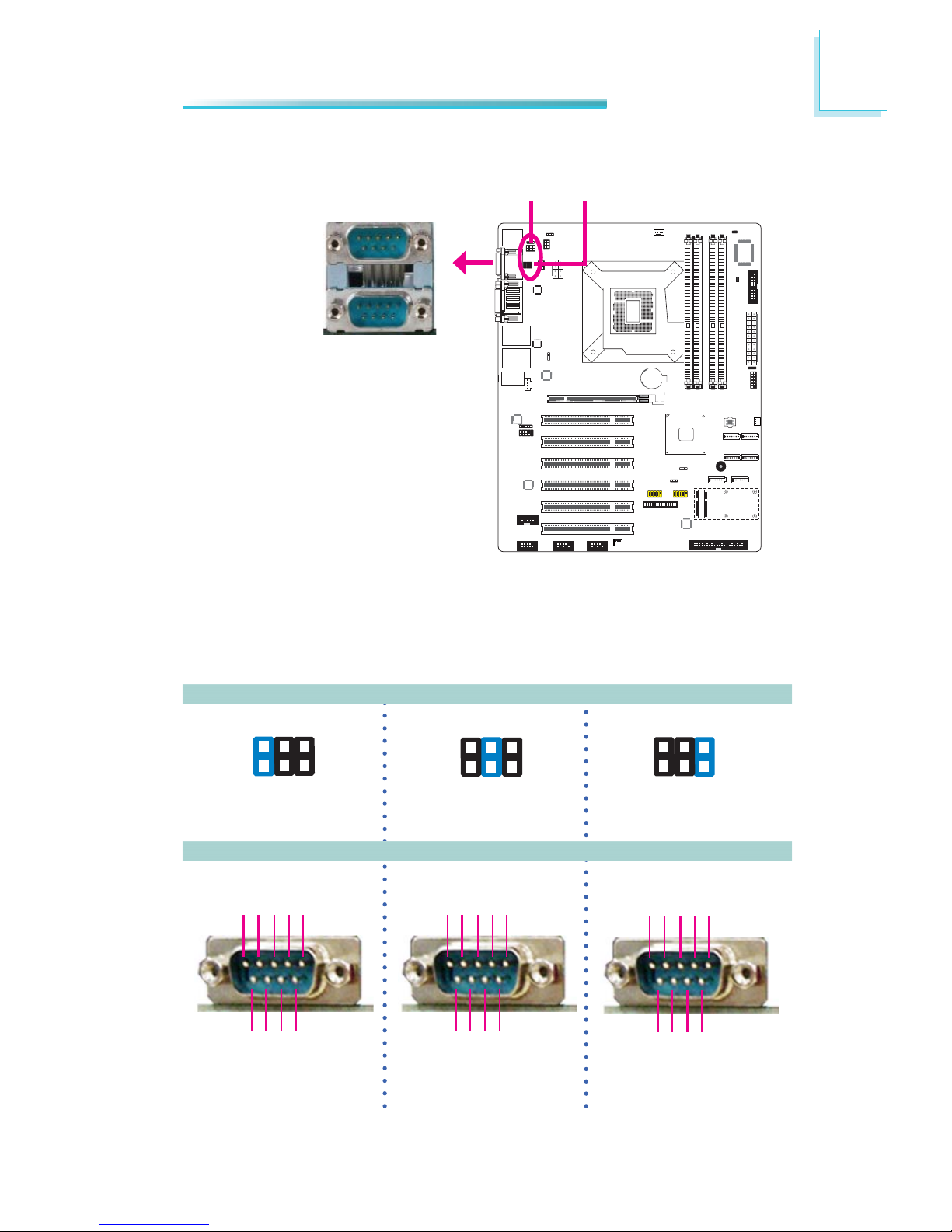

COM1/COM2 RS232/RS422/RS485 Select.................................... 31

COM1/COM2 RS232/Power Select............................................... 32

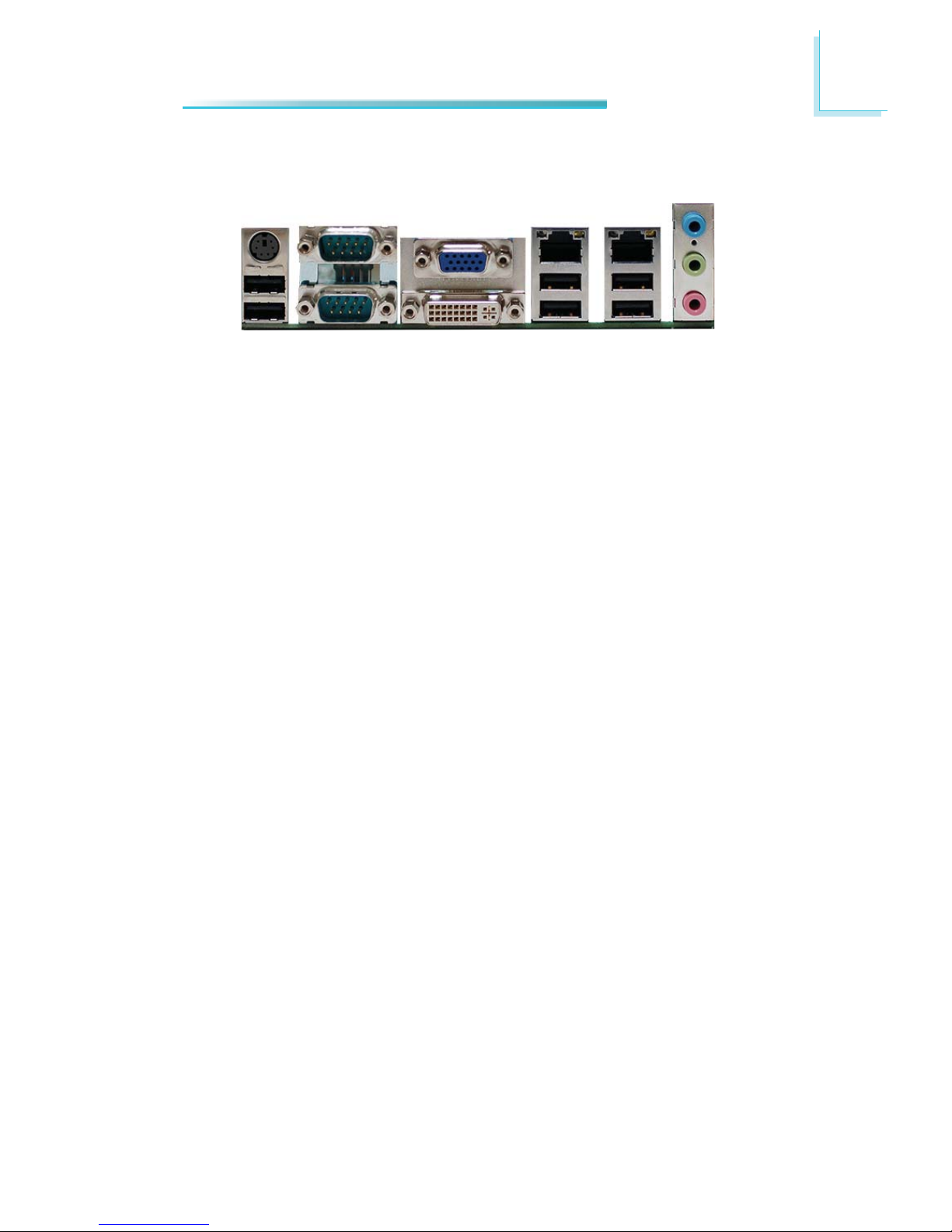

Rear Panel I/O Ports ..................................................................... 33

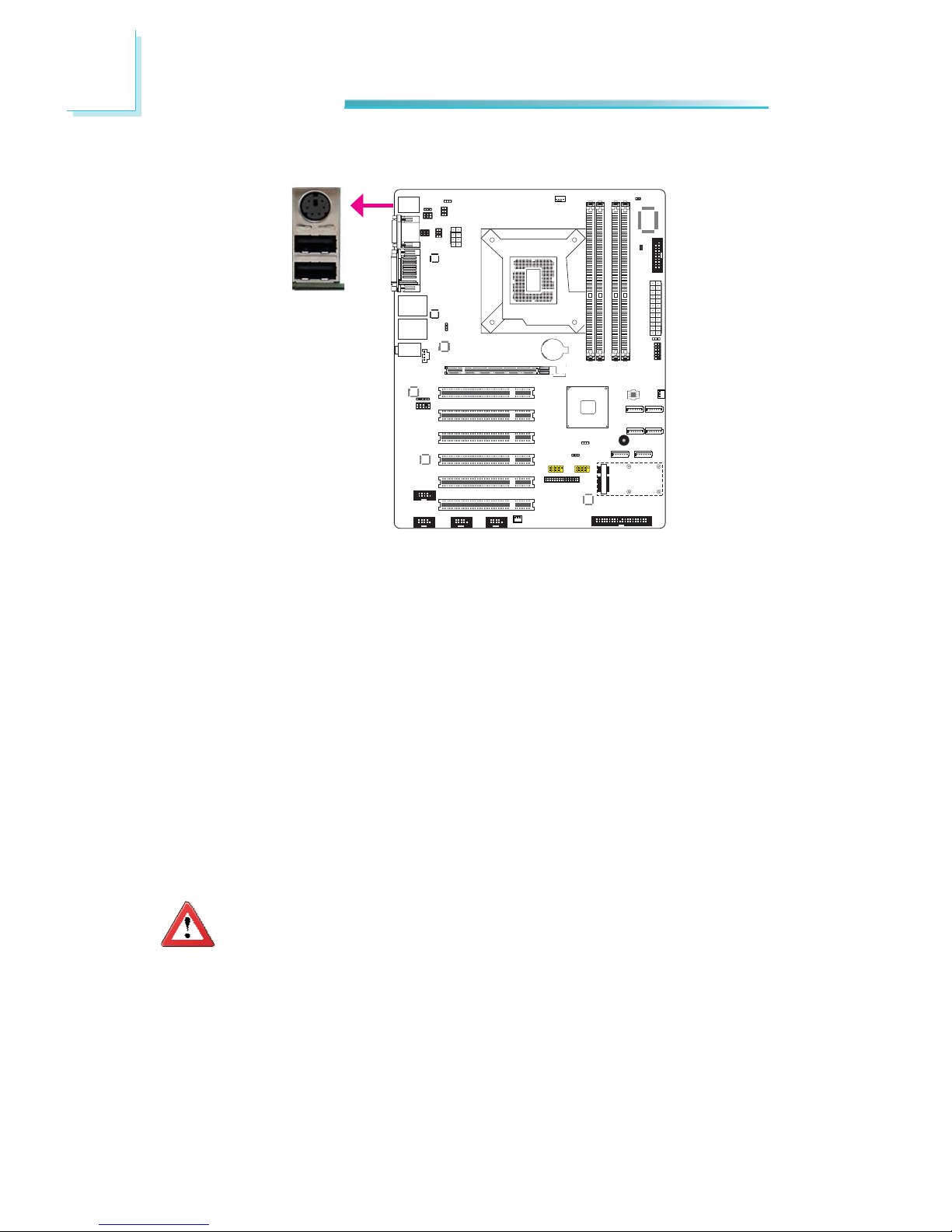

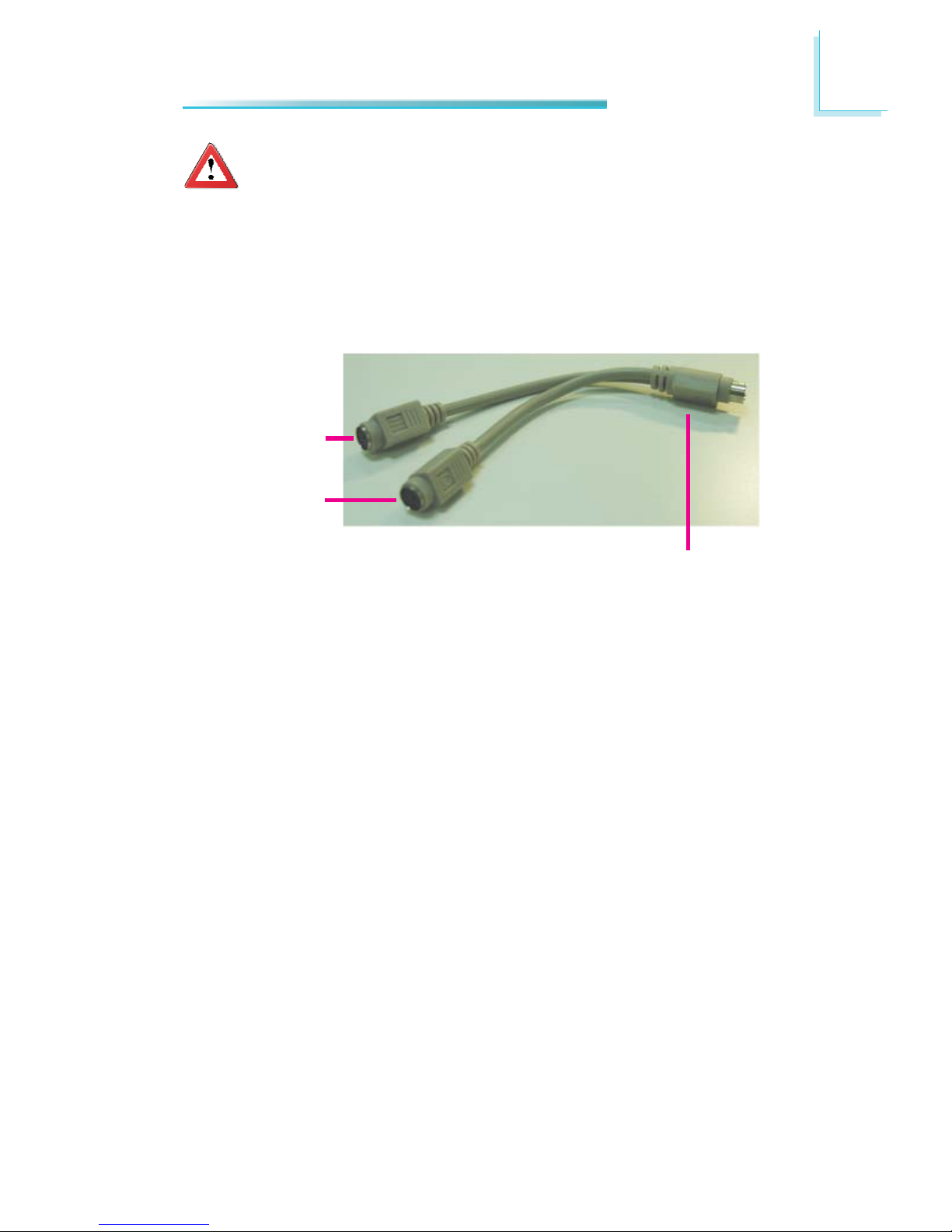

PS/2 Keyboard/ Mouse Port ....................................................... 34

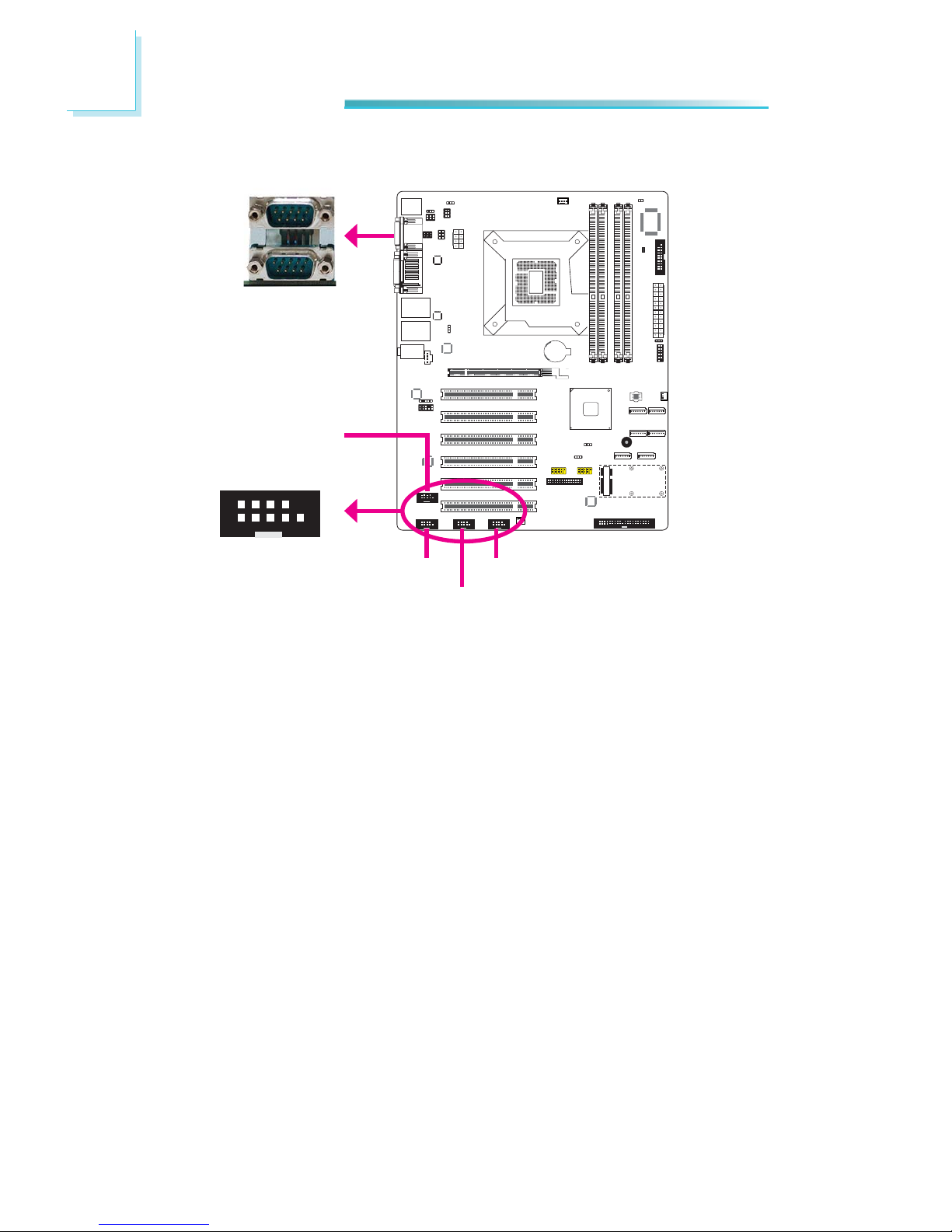

COM (Serial) Ports ................................................................... 36

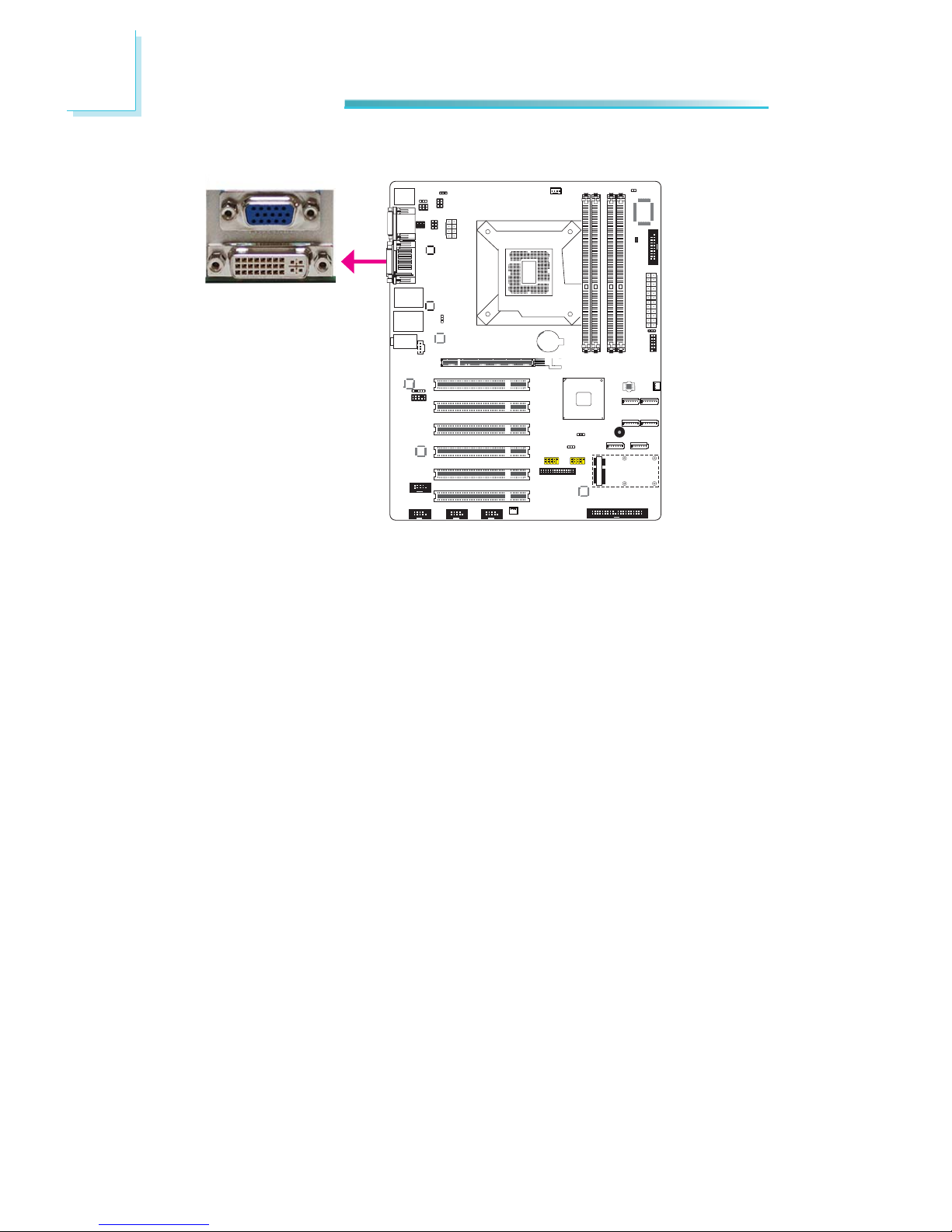

VGA Port ................................................................................. 37

DVI-I Port ............................................................................... 38

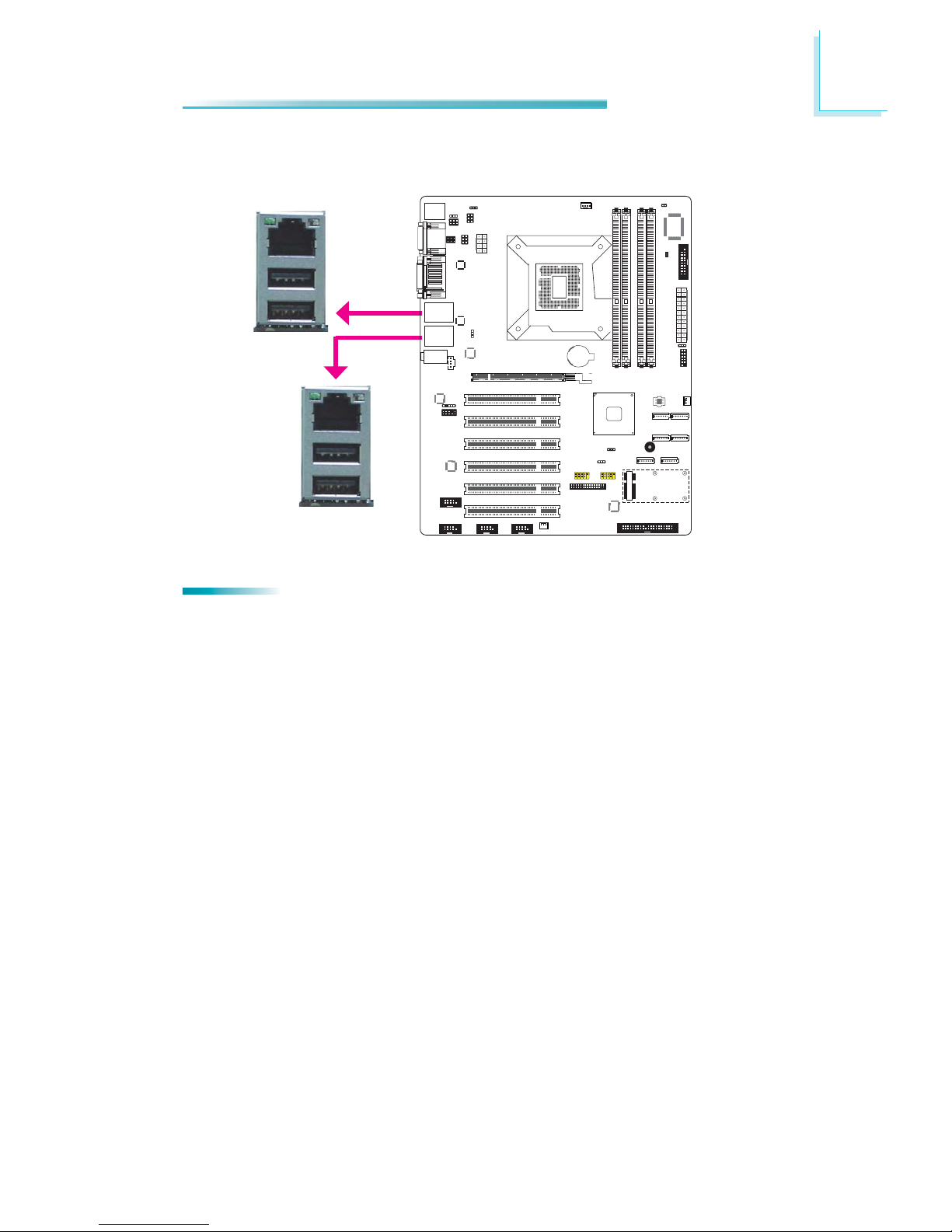

RJ45 LAN Ports ........................................................................ 39

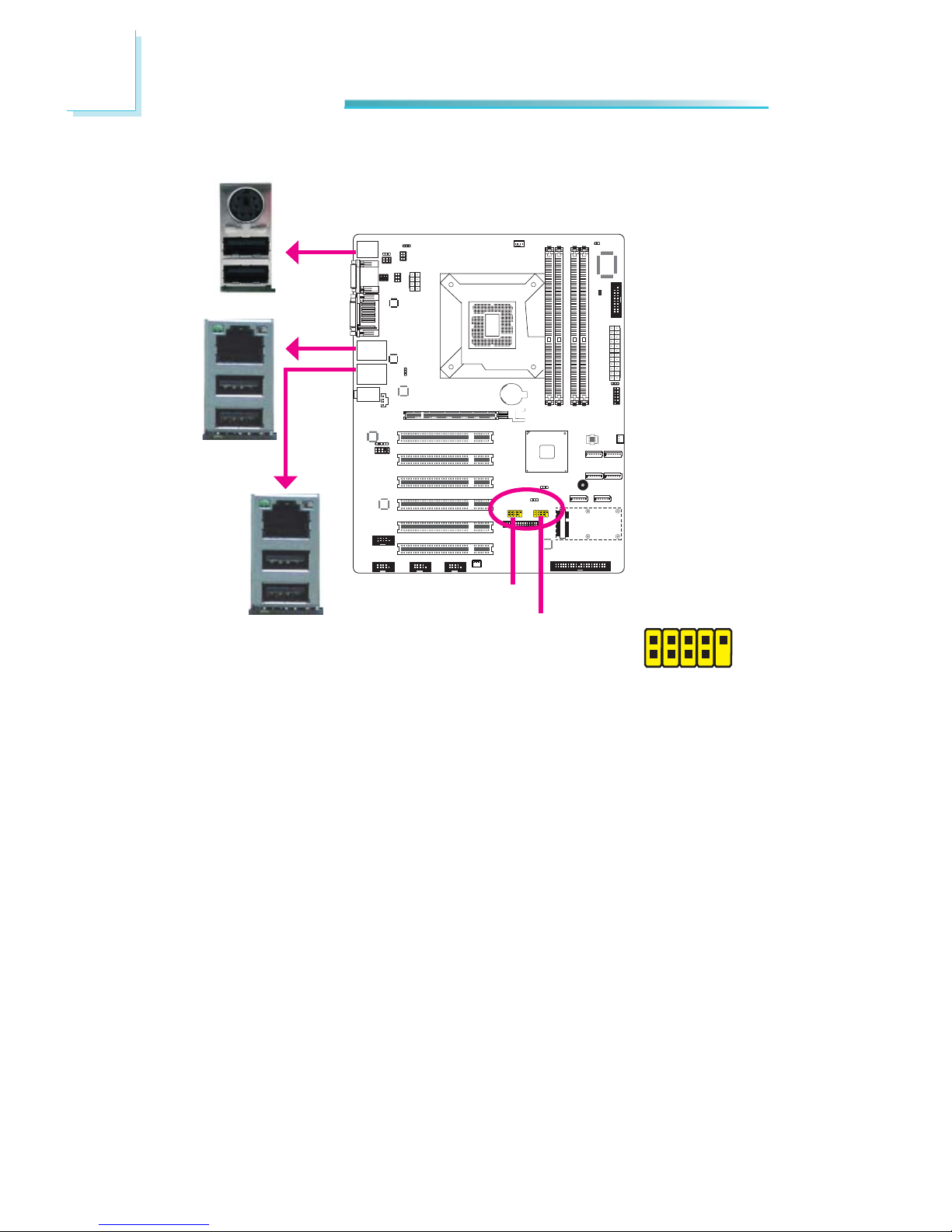

USB Ports................................................................................ 40

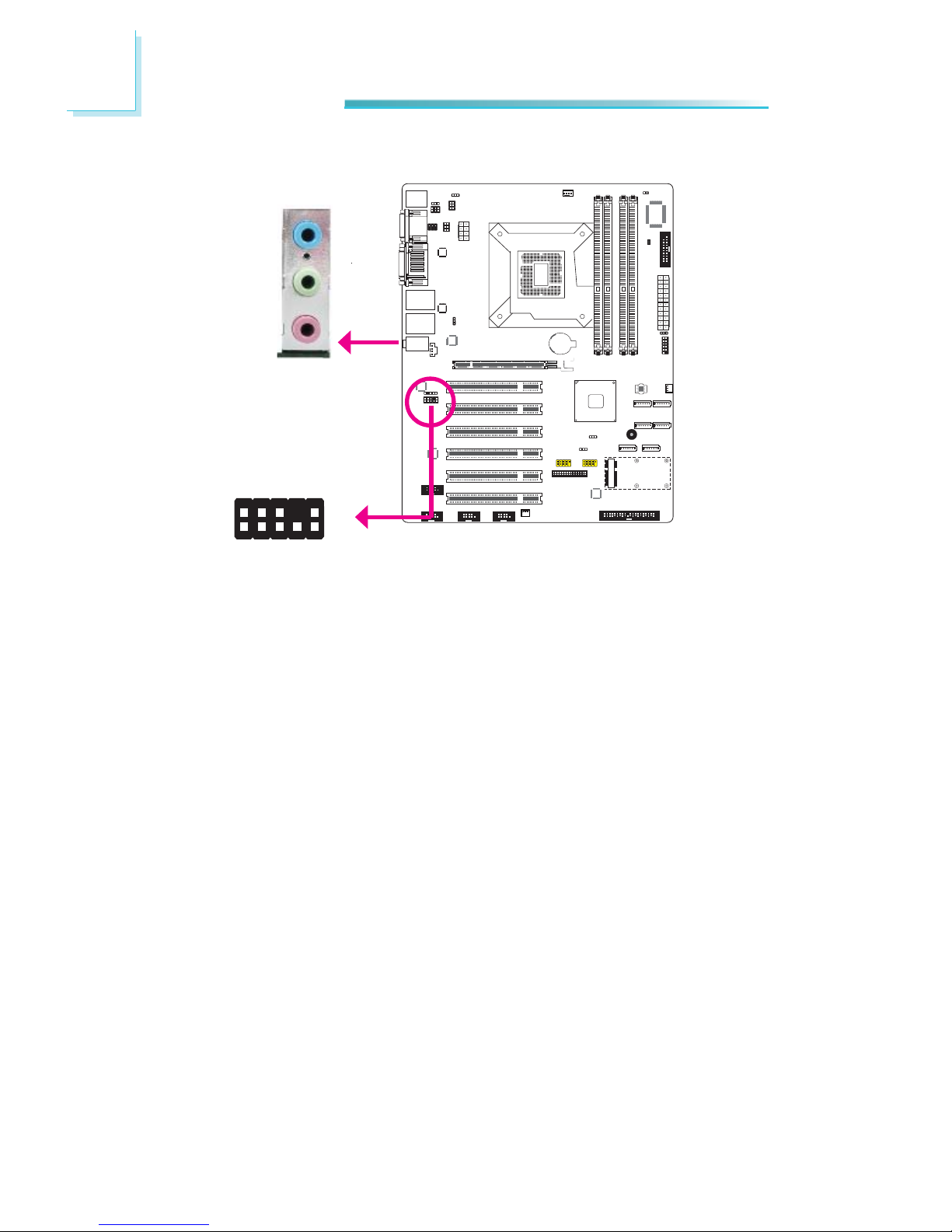

Audio ...................................................................................... 42

Page 5

Introduction

I/O Connectors ............................................................................ 44

CD-in Internal Audio Connector ................................................. 44

S/PDIF Connector ..................................................................... 45

Digital I/O Connectors .............................................................. 46

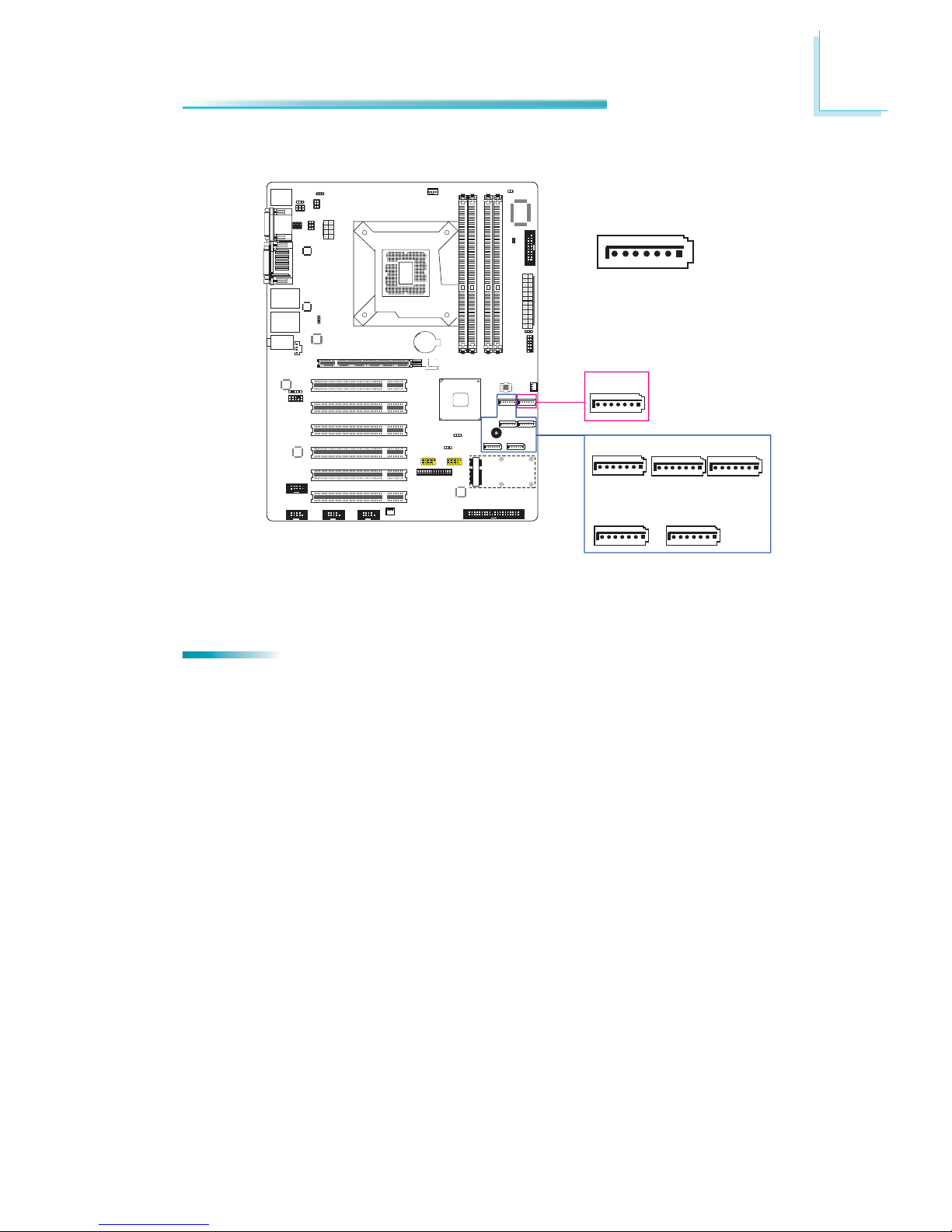

SATA (Serial ATA) Connectors .................................................... 47

Cooling Fan Connectors ............................................................. 48

Chassis Instrusion Connector .................................................... 49

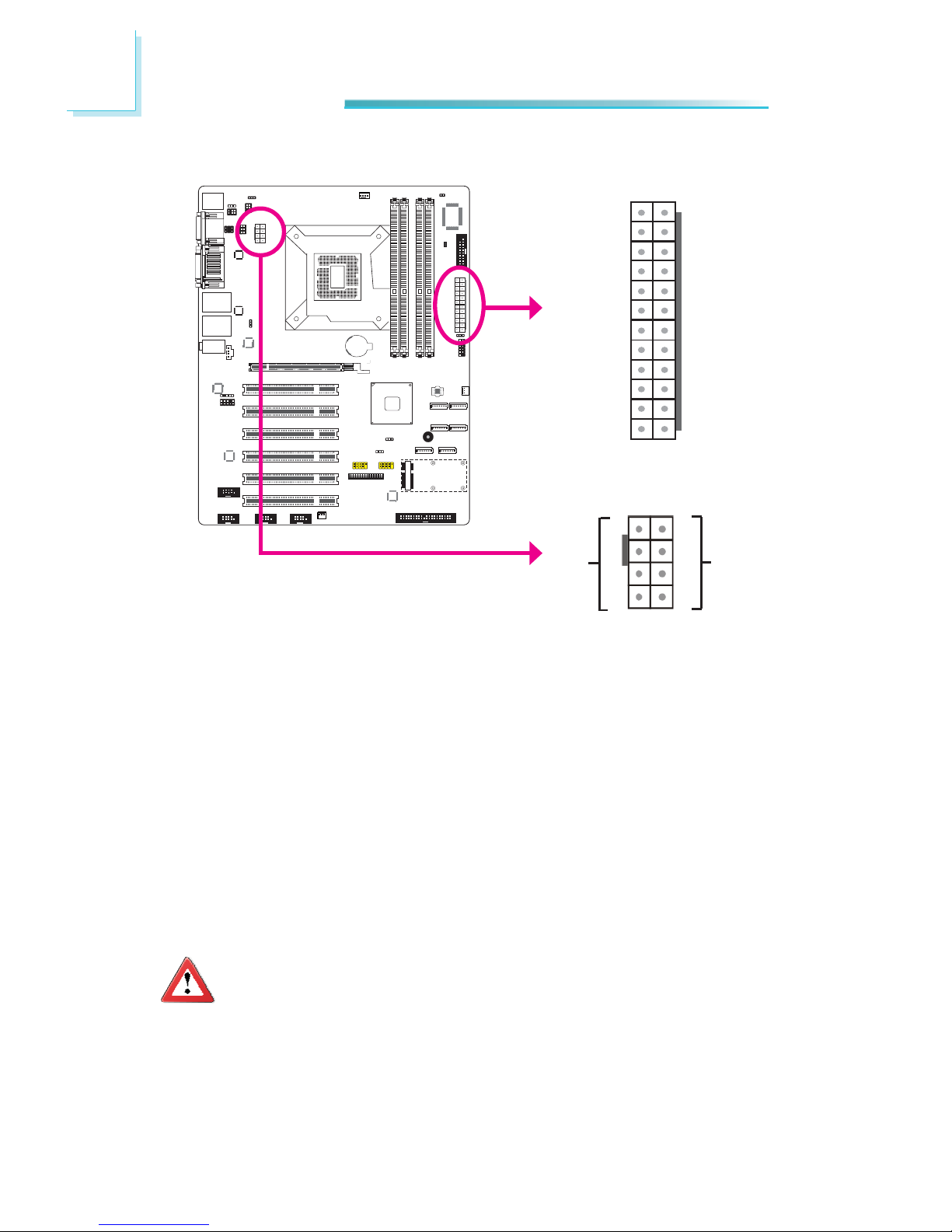

Power Connectors .................................................................... 50

Standby Power LED .................................................................. 51

Front Panel Connectors ............................................................. 52

Expansion Slots ....................................................................... 53

IDE Connector ......................................................................... 54

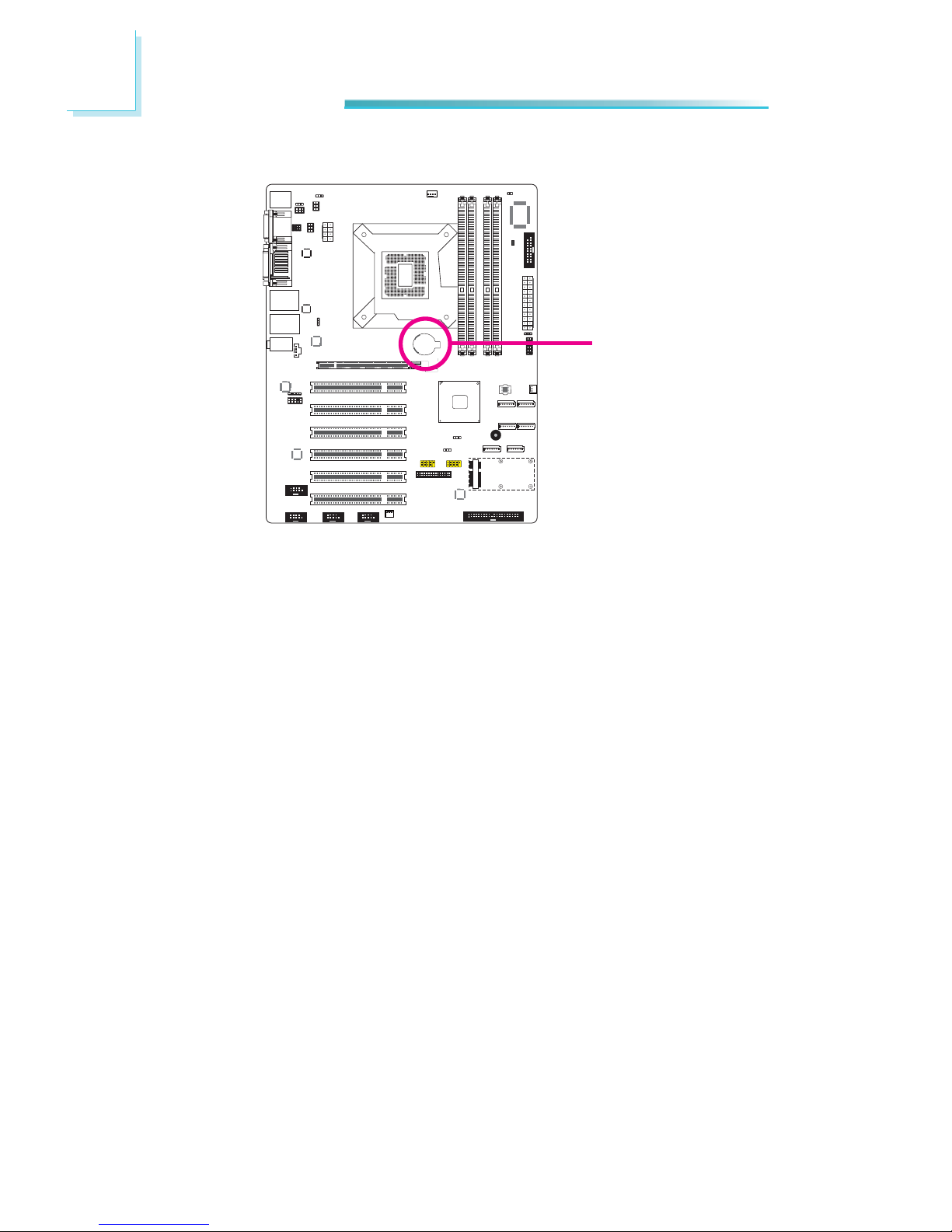

Battery ................................................................................... 56

SDVO Connector ...................................................................... 57

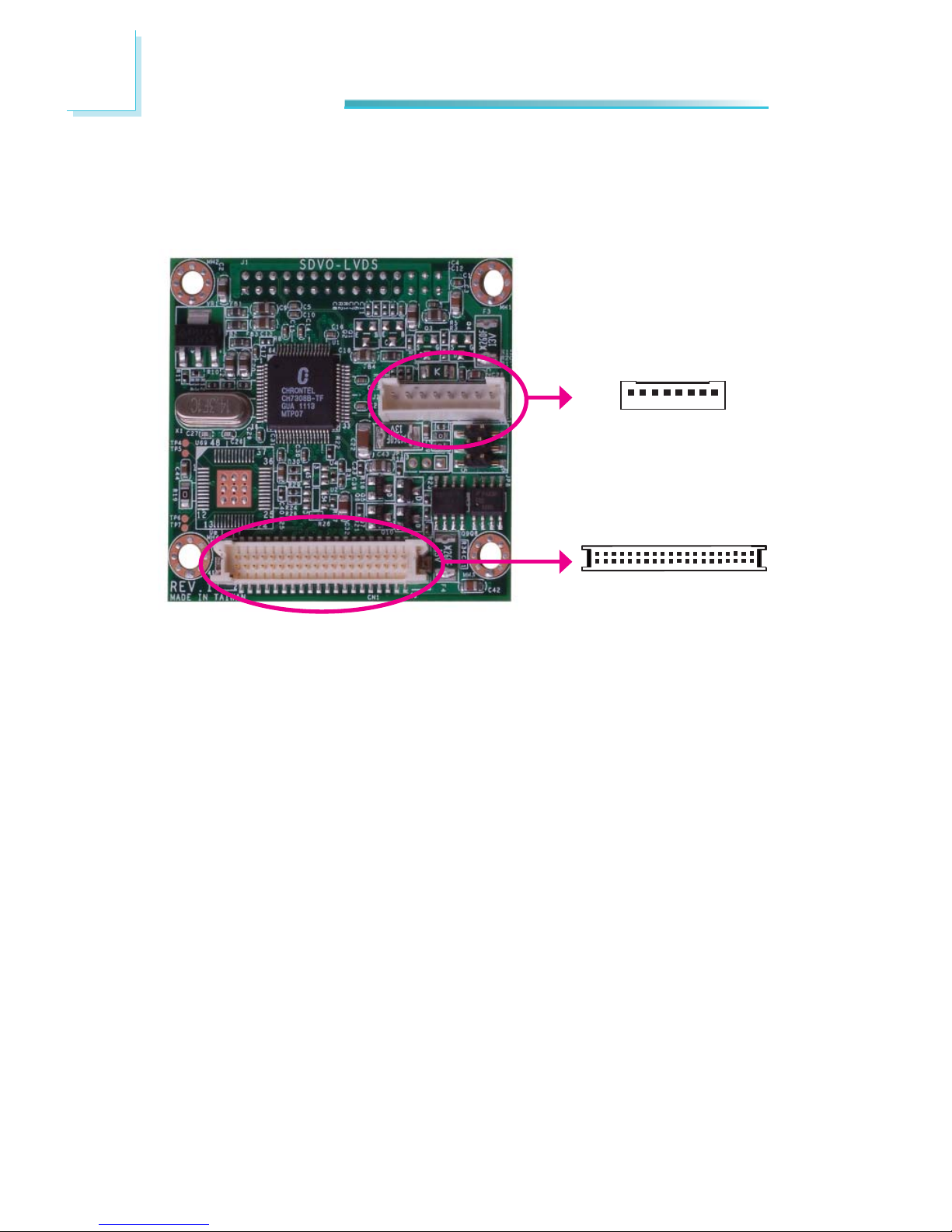

SDVO-LVDS Daughterboard (optional) ........................................... 58

Features .................................................................................. 58

Dimensions ............................................................................. 58

Jumper Settings ....................................................................... 59

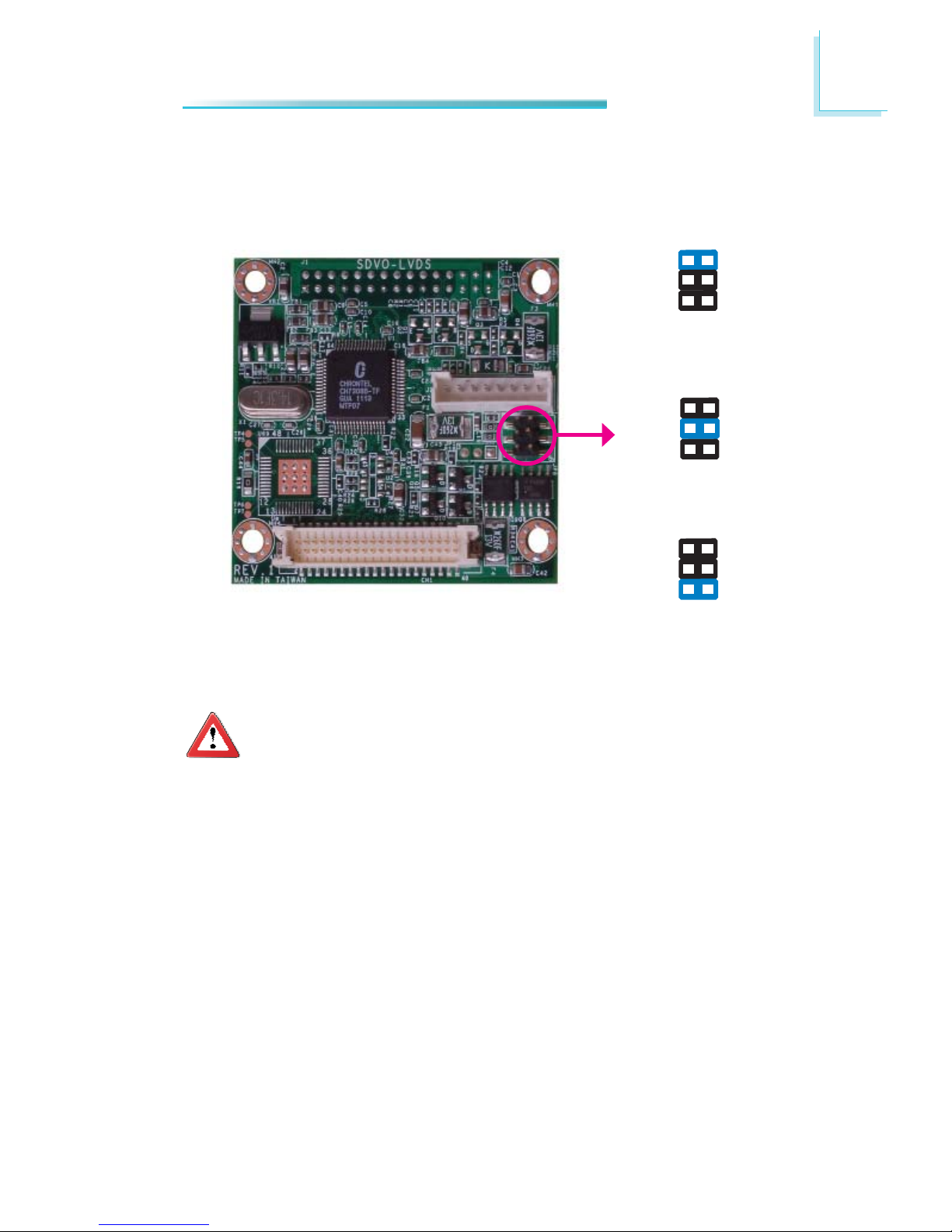

Panel Power Select ............................................................. 59

I/O Connectors ........................................................................ 60

LVDS LCD Panel Connector and LCD/Inverter Power Connector 60

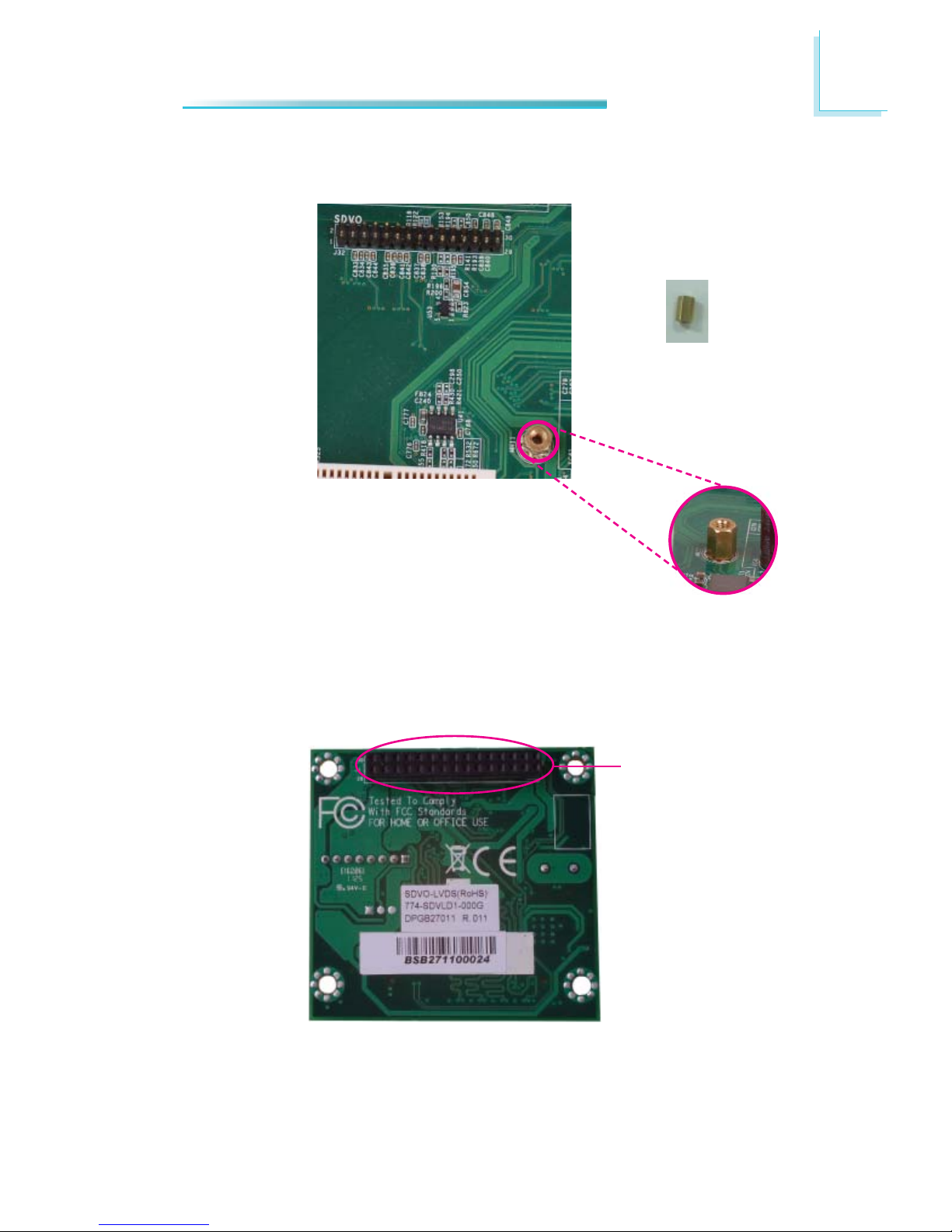

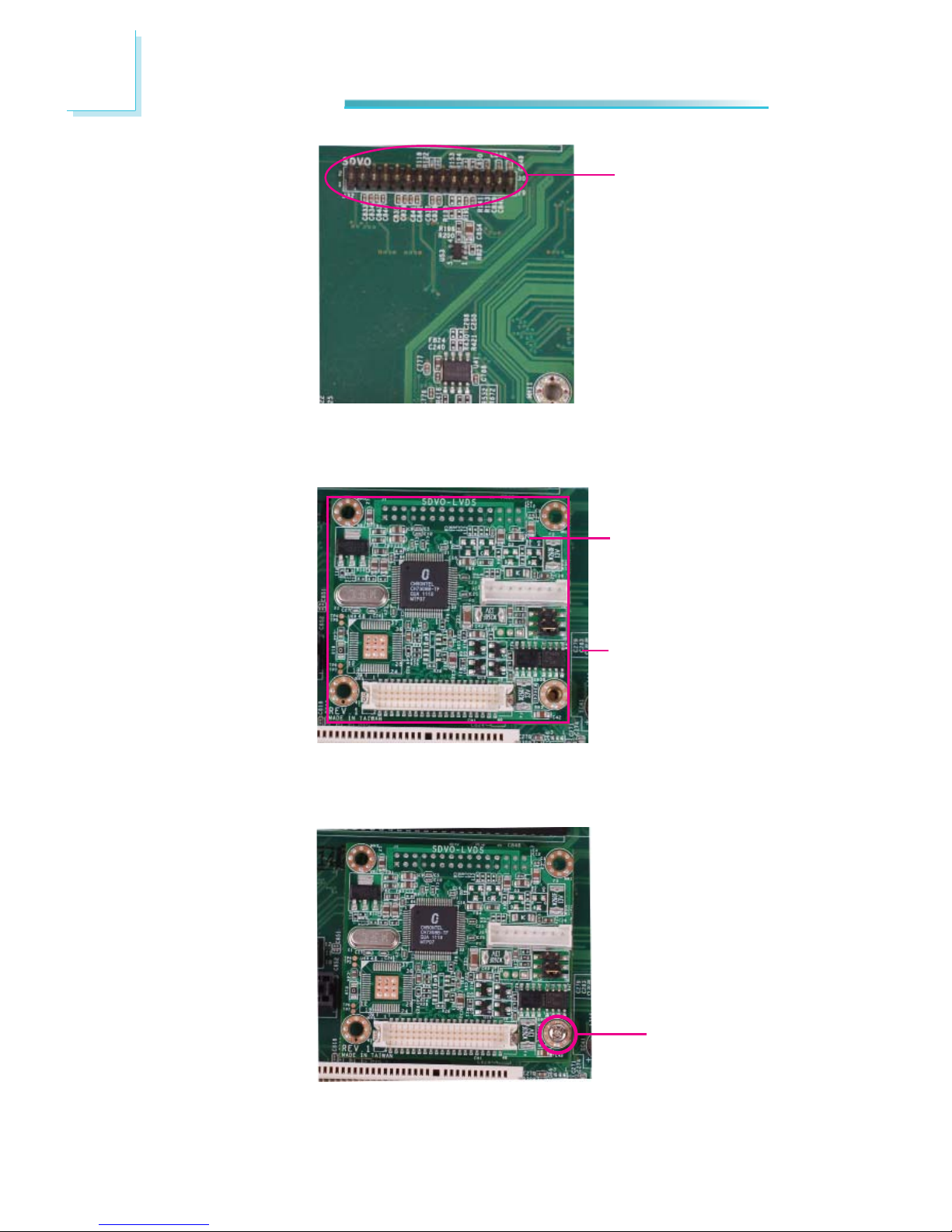

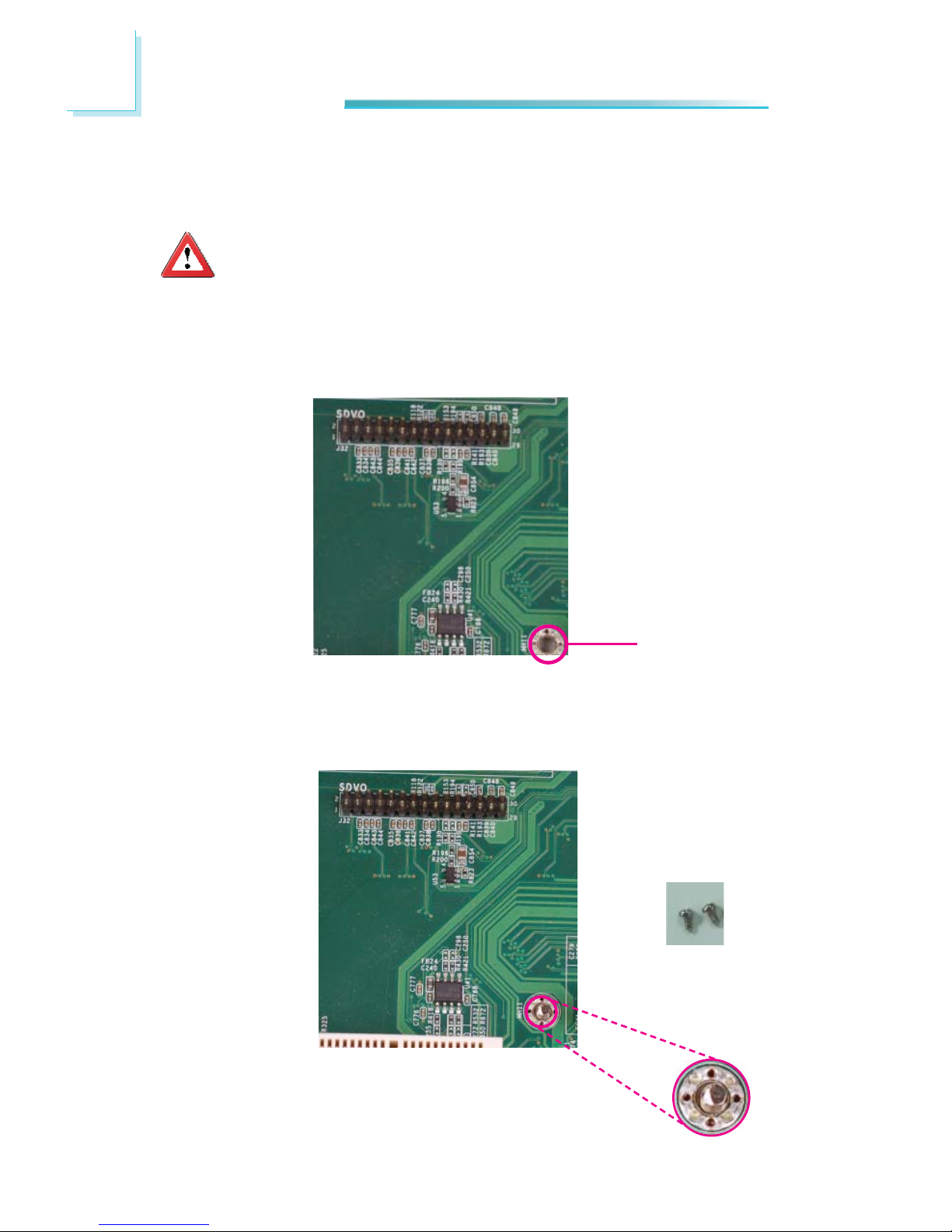

Installing the SDVO-LVDS Daughterboard onto the Motherboard .... 62

Chapter 3 - BIOS Setup .................................................................. 65

Overview .............................................................................................................. 65

AMI BIOS Setup Utility ................................................................. 67

Main ....................................................................................... 67

Advanced ................................................................................ 68

Chipset ................................................................................... 82

Boot ....................................................................................... 89

Security .................................................................................. 91

Save & Exit ............................................................................. 92

Updating the BIOS ........................................................................ 93

Chapter 4 - Supported Software ................................................... 94

Appendix A - NLITE and AHCI Installation Guide ....................... 116

Appendix B - Watchdog Sample Code ......................................... 128

Appendix C - System Error Message ............................................ 129

Appendix D - Troubleshooting ...................................................... 131

Page 6

Introduction

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Page 7

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Page 8

Introduction

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

 One motherboard  Two USB port cables (with bracket)  One IDE cable  Two COM port cables (with bracket)  Two Serial ATA data cables  One I/O shield  One DVD  One QR (Quick Reference)

Optional Items

 SDVO-LVDS daughterboard  PS/2 Keyboard/Mouse cable  USB port cable  COM port cable  Serial ATA data cable  Serial ATA power cable  IDE cable  I/O shield

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Page 9

Introduction

Processor

Chipset

System Memory

Expansion Slots

Graphics

Audio

Chapter 1 - Introduction

• LGA 1155 socket for:

- 3rd generation Intel

CoreTM processors (22nm process technology) (Rev. AB0 or later) : Intel

CoreTM i7-3770 (8M Cache, up to 3.9GHz); 77W

: Intel

CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W

: Intel

CoreTM i3-3220 (3M Cache, 3.3GHz); 55W

: Intel

Pentium® G2120 (3M Cache, 3.1 GHz); 65W

- 2nd generation Intel

CoreTM processors (32nm process technology) : Intel

CoreTM i7-2600 (8M Cache, up to 3.8 GHz); 95W

: Intel

CoreTM i5-2400 (6M Cache, up to 3.4 GHz); 95W

: Intel

CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W

: Intel

Pentium® G850 (3M Cache, 2.9 GHz); 65W

• Intel

Advanced Vector Extensions (Intel® AVX) Instructions

• Intel

Turbo Boost Technology

• Intel

B65

• Four 240-pin DDR3 DIMM sockets

• Supports DDR3 1333/1600MHz (3rd generation processors) Supports DDR3 1066/1333MHz (2nd generation processors)

• Supports dual channel memory interface

• Supports up to 32GB system memory

• DRAM device technologies: 1Gb, 2GB and 4Gb DDR3 DRAM

technologies are supported for x8 and x16 devices, unbuffered, non-ECC

• 1 PCIe x16 slot

- Supports Gen 3.0 (3rd generation processors)

- Supports Gen 2.0 (2nd generation processors)

• 1 Mini PCIe slot (PCIe 2.0)

- Supports half size and/or full size Mini PCIe card

• 6 PCI slots (PCI 2.3: supports universal PCI card)

• Intel

HD Graphics

• Display ports: DVI-I (DVI-D signal) and VGA

• DVI-I supports up to 1920x1200 @ 60Hz resolution

• VGA supports up to 2048x1536 @ 75Hz resolution

• Supports 6 Graphics Execution Units (EUs)

• Intel

Clear Video Technology

• DirectX Video Acceleration (DXVA) support for accelerating

video processing

• Realtek ALC886 5.1-channel High Definition Audio

• Audio outputs: Mic-in/Center+subwoofer, Line-in/Surround

and Line-out

• S/PDIF audio interface

Specifications

Page 10

Introduction

LAN

Serial ATA

TPM (optional)

Rear Panel I/O Ports

I/O Connectors

BIOS

Energy Efficient Design

• 2 Realtek RTL8111DL PCI Express Gigabit Ethernet controllers

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• 6 Serial ATA ports

- 5 SATA 2.0 ports with data transfer rate up to 3Gb/s

- 1 SATA 3.0 port with data transfer rate up to 6Gb/s

• Integrated Advanced Host Controller Interface (AHCI) con-

troller

• TPM - Trusted Platform Module

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

• 1 mini-DIN-6 port for PS/2 mouse/keyboard

• 2 DB-9 serial ports

- Supports RS232/422/485 (RS232 and/or Power)

• 1 DB-15 VGA port

• 1 DVI-I port (DVI-D signal)

• 2 RJ45 LAN ports

• 6 USB 2.0/1.1 ports

• Line-in/Surround, Line-out, Mic-in/Center+Subwoofer jacks

• 2 connectors for 4 external USB 2.0/1.1 ports

• 4 connectors for 4 external RS232 serial ports

• 1 SDVO connector for the optional SDVO-LVDS daughterboard

• 1 8-bit Digital I/O connector

• 1 front audio connector for line-out and mic-in jacks

• 1 CD-in connector

• 1 S/PDIF connector

• 6 Serial ATA ports

• 1 IDE connector

• 1 24-pin ATX power connector

• 1 8-pin 12V power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 3 fan connectors

• AMI BIOS

• 64Mbit SPI BIOS

• Supports ErP Lot6 power saving (optional)

• Supports ACPI

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• CPU stopped clock control

• AC power failure recovery

Page 11

Introduction

• Monitors CPU/system temperature and overheat alarm

• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

• 100.77 W with i7-2600 at 3.40GHz and 2x 2GB DDR3 DIMM

• Windows XP Professional x86 & SP3 (32-bit)

• Windows XP Professional x64 & SP2 (64-bit)

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

• Windows 8 Enterprise x86 (32-bit)

• Windows 8 Enterprise x64 (64-bit)

• Operating: 0

C to 60oC

• Storage: -20

C to 85oC

• 10% to 90%

• ATX form factor

• 305mm (12”) x 244mm (9.6”)

• CE, FCC Class B, UL, RoHS, KC

Damage Free Intelligence

Power Consumption

OS Support

Temperature

Humidity

PCB

Certification

Page 12

Introduction

Features

Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

DDR3

DDR3 delivers increased system bandwidth and improved performance. It offers peak data transfer rate of up to 21 Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.

Graphics

The integrated Intel HD graphics for graphics intensive applications delivers exceptional 3D, 2D and video capabilities. It supports VGA and DVI interfaces.

DVI

DVI (Digital Visual Interface) is a form of video interface technology made to maximize the quality of flat panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Signaling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.

PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The PCI Express architecture provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI Express lane to provide 8 Gigabytes per second transfer rate.

Audio

The Realtek ALC886 audio codec provides 5.1-channel High Definition audio output.

Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. SATA 3.0 supports speed up to 6Gb/s while SATA 2.0 supports speed up to 3Gb/s. This improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s.

Gigabit LAN

The Realtek RTL8111DL PCI Express Gigabit Ethernet controller supports up to 1Gbps data transmission.

Page 13

Introduction

USB

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/ second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (SoftOff) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The +5V_standby power source of your power supply must support ≥720mA.

Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Important:

The +5V_standby power source of your power supply must support ≥720mA.

Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the set date and time.

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at

Page 14

Introduction

once by pressing the power button or selecting “Standby” when you shut down Windows

without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The +5V_standby power source of your power supply must support 720mA.

Power Failure Recovery

When power returns after an AC power failure, you may choose to either poweron the system manually or let the system power-on automatically.

Page 15

Hardware Installation

System Board Layout

Chapter 2 - Hardware Installation

PS/2

KB/MS USB 11 USB 10

COM 2 COM 1

VGA

DVI -I

DVI-I port

(DVI-D signal only)

LAN 1

USB 1 USB 0

LAN 2 USB 9 USB 8

Line-in/ Surround Line-out Mic-in/ Center+Subwoofer

CD-in

1 5

2 6

JP1

JP2

5 6

1 2

+12V power

ASMedia

1442

Realtek RTL8111DL

USB 0-1/8-9 power select (JP4)

Realtek RTL8111DL

USB 10-11 power select (JP6)

COM 1 RS232/ Power select (JP9)

COM 2 RS232/Power select (JP10)

LGA 1155

COM 2 COM 1

Battery

CPU fan

Power-on

select (JP8)

Chassis intrusion

DIO

12 24

ATX power

Front panel

DDR3_1

DDR3_2

DDR3_3

DDR3_4

Realtek ALC886

S/PDIF

Front audio

2 1

Fintek

F81217U

COM 3

COM 4

COM 5 COM 6

IDE

USB 2-3/4-5 power select (JP5)

JMB 368

Clear CMOS (JP7)

USB 2-3

USB 4-5

SDVO

Mini PCIe

SATA 5

SATA 3 SATA 2

SATA 4

SATA 1

SATA 0

System

fan 1

SPI Flash BIOS

SATA 3.0

SATA 2.0

Standby Power LED

System fan 2

PS/2 power select (JP3)

COM1 RS232/422/485 select (JP1)

COM2 RS232/422/485 select (JP2)

PCIe x16

PCI 1

PCI 2

PCI 3

PCI 4

PCI 5

PCI 6

Intel

B65

Fintek

F71879F

Page 16

Hardware Installation

COM 2 COM 1

System Memory

Important:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

DDR3-2

DDR3-1

DDR3-4

DDR3-3

Channel A

Channel B

Standby Power LED

Important:

When the Standby Power LED lit red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Features

• The four DIMM sockets are divided into 2 channels:

Channel A - DDR3_1 and DDR3_2 Channel B - DDR3_3 and DDR3_4

• Dual channel memory interface

• Maximum of 32GB system memory

Page 17

Hardware Installation

DIMMs are on the same channel.

DIMMs in a channel can be identical or completely different. However, we highly recommend using identical DIMMs.

Not all slots need to be populated.

DIMMs of the same memory conﬁ guration are on different channels.

Single Channel

Dual Channel

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.

Important:

1. You can populate either Channel A or Channel B ﬁ rst.

2. When installing a DIMM in Channel A or Channel B, always populate the socket that is farthest the CPU. In this case, it will mean populating DDR3-2 and/or DDR3-4 ﬁ rst.

3. If you intend to use dual channel, the same rule applies - always the socket farthest the CPU. Populate DDR3-2 and/or DDR3-4 ﬁ rst; not DDR3-2 and DDR3-3 and not DDR3-1 and DDR3-4.

Page 18

Hardware Installation

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Installing the DIM Module

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DIMM socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch

Page 19

Hardware Installation

7. Seat the module vertically, pressing it down ﬁ rmly until it is completely seat- ed in the socket.

6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.

8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Page 20

Hardware Installation

CPU

The system board is equipped with a surface mount LGA 1155 socket. This socket is exclusively designed for installing a LGA 1155 packaged Intel CPU.

Important:

1. Before you proceed, make sure (1) the LGA 1155 socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins are damaged, contact your dealer immediately.

2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1155 socket comes with the protective cap.

Protective cap

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Page 21

Hardware Installation

COM 2 COM 1

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the LGA 1155 CPU socket on the system board.

Important:

The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

4. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

Retention tab

Load lever

Page 22

Hardware Installation

6. Remove the protective cap from the CPU socket. The cap is used to protect the CPU socket against dust and harmful particles. Remove the protective cap only when you are about to install the CPU.

Load lever

Load

plate

5. Lifting the load lever will at the same time lift the load plate.

Lift the load lever up to

the angle shown on the photo.

Protective cap

Page 23

Hardware Installation

7. Insert the CPU into the socket. The gold triangular mark on the CPU must align with the corner of the CPU socket shown on the photo.

The CPU’s notch will at

the same time ﬁ t into the socket’s alignment key.

Important:

The CPU will ﬁ t in only one orientation and can easily be inserted without exerting any force.

Alignment key

Gold triangular mark

Page 24

Hardware Installation

8. Close the load plate then push the load lever down.

While closing the load

plate, make sure the front edge of the load plate slides under the retention knob.

Retention knob

9. Hook the load lever under the retention tab.

Load lever

Retention tab

Page 25

Hardware Installation

COM 2 COM 1

Installing the Fan and Heat Sink

The CPU must be kept cool by using a CPU fan with heat sink. Without sufﬁ cient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board.

Note:

A boxed Intel

processor already includes the CPU fan and heat sink assembly. If your CPU was purchased separately, make sure to only use Intel

-certiﬁ ed fan and heat sink.

1. Before you install the fan / heat sink, you must apply a thermal paste onto the top of the CPU. The thermal paste is usually supplied when you purchase the fan / heat sink assembly. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Some heat sinks come with a patch of pre-applied thermal paste. Do not ap-

ply thermal paste if the fan / heat sink already has a patch of thermal paste on its underside. Peel the strip that covers the paste before you place the fan / heat sink on top of the CPU.

2. Place the heat sink on top of the CPU. The 4 pushpins around the heat sink, which are used to secure the heat sink onto the system board, must match the 4 mounting holes around the socket.

Mounting hole

3. Orient the heat sink such that the CPU fan’s cable is nearest the CPU fan connector.

CPU fan connector

COM 2 COM 1

Page 26

Hardware Installation

COM 2 COM 1

4. Rotate each push-pin according to the direction of the arrow shown on top of the pin.

Push down two pushpins

that are diagonally across the heat sink. Perform the same procedure for the other two push-pins.

Heat sink

“Locked” position of

push-pin

5. Connect the CPU fan’s cable to the CPU fan connector on the system board.

“Unlocked” position

of push-pin

CPU fan connector

Page 27

Hardware Installation

COM 2 COM 1

Jumper Settings

Clear CMOS Data

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconﬁ gure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP7 pins 2 and 3 to On. Wait for a few seconds and set JP7 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

JP7

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

312

Page 28

Hardware Installation

COM 2 COM 1

JP3 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

PS/2 Power Select

JP3

2-3 On: +5V_standby and

supports PS/2 keyboard/

mouse auto swap function

1-2 On: +5V

(default)

Important:

The +5V_standy power source of your power supply must support ≥720mA.

Important:

By default, the PS/2 port supports PS/2 keyboard only. If you intend to connect a PS/2 mouse, you must set JP3 to 2-3 On. This will support the auto-swap function allowing the system to auto-detect the PS/2 device.

To allow the system to detect devices that may be incorrectly plugged to the wrong port on the cable, set JP3 to 2-3 On. Setting JP3 to 2-3 On will enable the auto-swap function allowing you to use the devices without having to replug the devices.

Page 29

Hardware Installation

COM 2 COM 1

These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

Important:

USB Power Select

USB 0-1/8-9 (JP4)

2-3 On:

+5V_standby

1-2 On: +5V

(default)

2-3 On:

+5V_standby

1-2 On: +5V

(default)

USB 2-3/ 4-5 (JP5)

USB 10-11 (JP6)

312

2-3 On:

+5V_standby

1-2 On: +5V

(default)

312

Page 30

Hardware Installation

COM 2 COM 1

Power-on Select

To power-on via WOL after G3:

1. Set JP8 pins 2 and 3 to On.

2. Set the “After G3” ﬁ eld to Power Off/WOL.

3. Set the “GbE Wake Up From S5” to Enabled.

The BIOS ﬁ elds are in the “South Bridge Conﬁ guration” submenu (Chipset menu) of the AMI BIOS utility.

To power-on via AC Power:

1. Set JP8 pins 2 and 3 to On.

2. Set the “After G3” ﬁ eld to Power On.

1-2 On: Power-on via power button (default)

2-3 On: Power-on via AC power; or Power-on via WOL after G3

JP8

312

Page 31

Hardware Installation

COM 2 COM 1

COM1/COM2 RS232/RS422/RS485 Select

1-2 On: RS232

(default)

3-4 On: RS422

Full Duplex

5-6 On: RS485

531

JP1 (for COM1) and JP2 (for COM2) are used to conﬁ gure the COM ports to RS232, RS422 (Full Duplex) or RS485.

The pin function of the COM ports will vary according to the jumper’s setting.

JP1/JP2

531531

COM 1

COM 2

RS232 RS422

Full Duplex

RS485

COM 1 / COM 2

DCD-TDRD

DTR-

GND

12345

RTS-

RI-

DSR-

CTS-

6789

DATA+

N.C.

DATA-

N.C.

12345

N.C.

6789

RXD+

TXD+

RXD-

TXD-

N.C.

12345

N.C.

6789

JP1 JP2

Page 32

Hardware Installation

COM 2 COM 1

COM1/COM2 RS232/Power Select

JP9 JP10

1-3 (RI), 2-4 (DCD) On: RS232 (default)

3-5 (+5V), 4-6 (+12V) On: RS232 with power

Page 33

Hardware Installation

Rear Panel I/O Ports

The rear panel I/O ports consist of the following:

• PS/2 mouse/ keyboard port

• 2 COM ports

• VGA port

• DVI-I port (DVI-D signal only)

• 2 LAN ports

• 6 USB ports

• Mic-in/ Center+subwoofer jack

• Line-out jack

• Line-in/ Surround jack

USB 10-11 COM 1 USB 8-9USB 0-1

VGA

Mic-in/ Center+Subwoofer

Line-out

Line-in/ Surround

PS/2

KB/MS

LAN 1

COM 2

DVI-I

(DVI-D signal only)

LAN 2

Page 34

Hardware Installation

PS/2 Keyboard/ Mouse Port

The PS/2 port is used to connect a PS/2 keyboard and a PS/2 mouse by means of the provided cable.

Wake-On-PS/2 Keyboard/ Mouse

The Wake-On-PS/2 Keyboard/ Mouse function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system. To use this function:

• Jumper Setting

JP3 must be set to “2-3 On: +5V_standby”. Refer to “PS/2 Power Select” in

this chapter for more information.

• BIOS Setting

Conﬁ gure the PS/2 keyboard/mouse wake up function in the Advanced menu (“ACPI Power Management Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Important:

The +5V_standby power source of your power supply must support ≥720mA.

Make sure to turn off your computer prior to connecting or disconnecting a mouse or keyboard. Failure to do so may damage the system board.

PS/2 Keyboard/

Mouse

COM 2 COM 1

Page 35

Hardware Installation

PS/2 keyboard port

PS/2 mouse port

Connect to the board’s PS/2 port

Important:

Page 36

Hardware Installation

COM 2 COM 1

COM 2

COM (Serial) Ports

COM 1

COM 3 to COM 6 are ﬁ xed at RS232.

The pin function of COM 1 and COM 2 ports will vary according to JP1/JP2’s setting. Refer to “COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Connecting External Serial Ports

Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.

BIOS Setting

Conﬁ gure the serial ports in the Advanced menu (“Super IO Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

COM 4

COM 3

COM 5

COM 6

COM 1 and COM 2:

RS232/422/485

COM 3 to COM 6:

RS232

Page 37

Hardware Installation

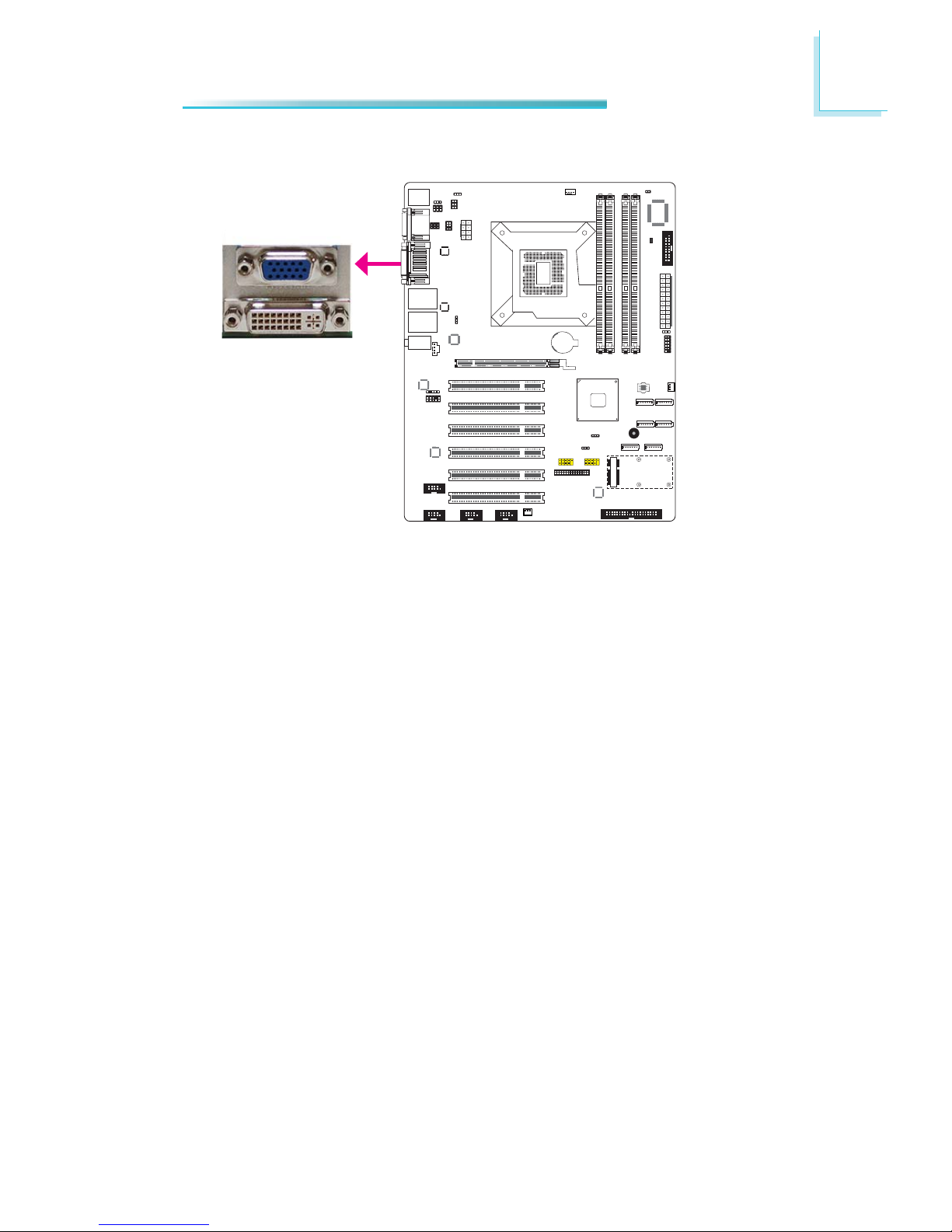

The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable connector to the VGA port

. After you plug the monitor’s cable con-

nector into the VGA port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Conﬁ gure VGA in the Chipset menu (“North Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

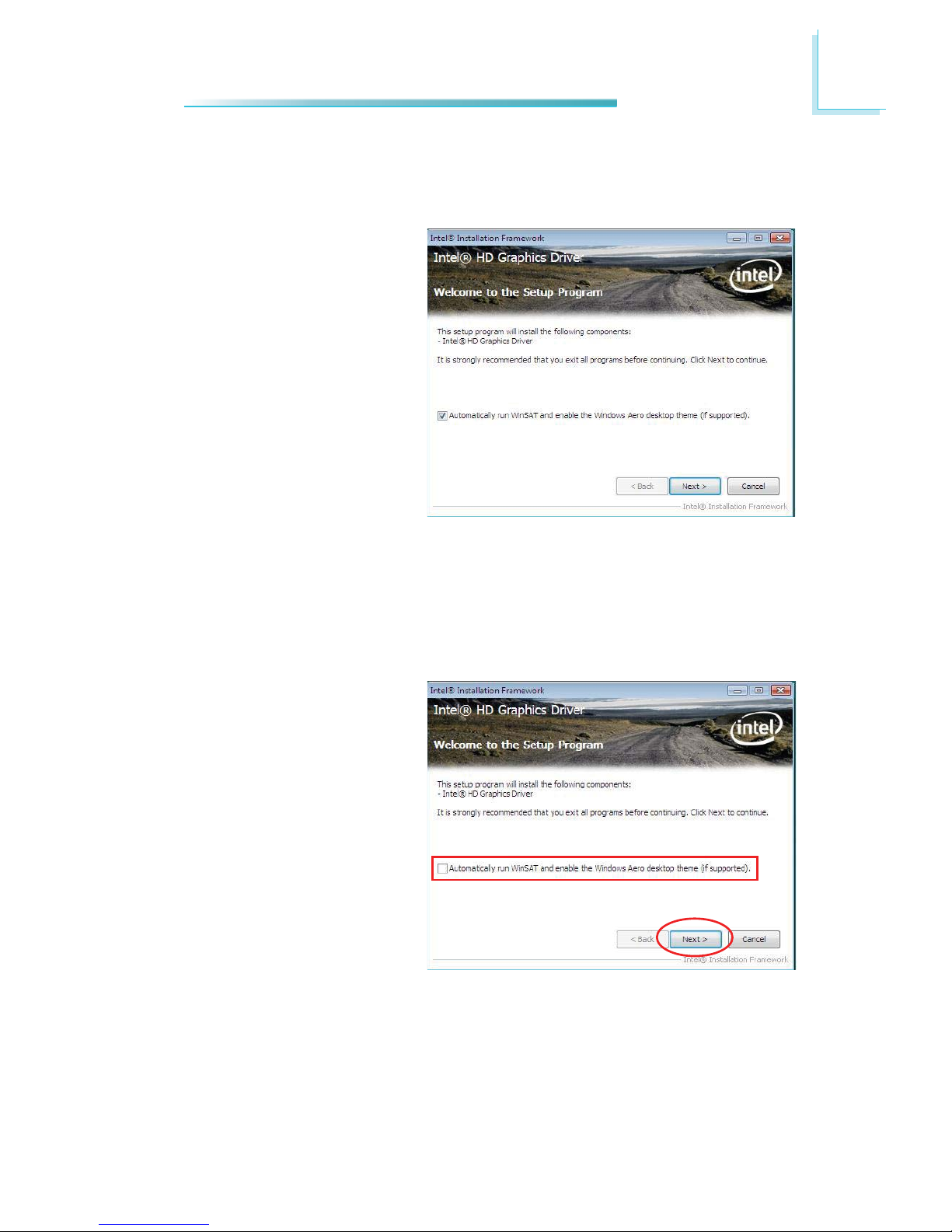

Install the graphics driver. Refer to chapter 4 for more information.

VGA Port

VGA

COM 2 COM 1

Page 38

Hardware Installation

DVI-I

(DVI-D signal only)

DVI-I Port

The DVI-I port is used to connect an LCD monitor. This port supports DVI-D signal only.

Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Conﬁ gure the display device in the Chipset menu (“North Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

COM 2 COM 1

Page 39

Hardware Installation

RJ45 LAN Ports

The LAN ports allow the system board to connect to a local area network by means of a network hub.

BIOS Setting

Conﬁ gure the onboard LAN in the Chipset menu (“South Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 4 for more information.

LAN 1

LAN 2

Features

• Realtek RTL8111DL PCI Express Gigabit Ethernet controller

COM 2 COM 1

Page 40

Hardware Installation

COM 2 COM 1

USB Ports

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with four onboard USB 2.0/1.1 ports. The four 10-pin connectors allow you to connect 8 additional USB 2.0/1.1 ports. The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

BIOS Setting

Conﬁ gure the onboard USB in the Advanced menu (“USB Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

VCC

-Data +Data

GND

Key

VCC

-Data

+Data

GND

N. C.

USB 2-3

USB 0

USB 1

USB 8

USB 9

USB 4-5

USB 11

USB 10

Page 41

Hardware Installation

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP3, JP4 and/or JP5 must be set to “2-3 On: +5V_standby”. Refer to “USB

Power Select” in this chapter for more information.

Important:

Page 42

Hardware Installation

COM 2 COM 1

Audio

Rear Audio

The system board is equipped with 3 audio jacks. A jack is a one-hole connecting interface for inserting a plug.

• Mic-in/ Center+Subwoofer Jack (Pink) This jack is used to connect an external microphone or to the center and

subwoofer speakers of the audio system.

• Line-in/ Surround Jack (Light Blue) This jack is used to connect any audio devices such as Hi-ﬁ set, CD player,

tape player, AM/FM radio tuner, synthesizer, etc.

• Line-out Jack (Lime) This jack is used to connect a headphone or external speakers.

Front Audio

The front audio connector allows you to connect to the second line-out and micin jacks that are at the front panel of your system.

Mic-in/ Center+Subwoofer

Line-out

Line-in/ Surround

Rear audio

Front audio

AUD_MIC

AUD_HPOUT_R

+5V Analog

AUD_GND

Key

AUD_HPRET_R

AUD_HPRET_L

AUD_MIC_BIAS

AUD_HPOUT_L

Page 43

Hardware Installation

BIOS Setting

Conﬁ gure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

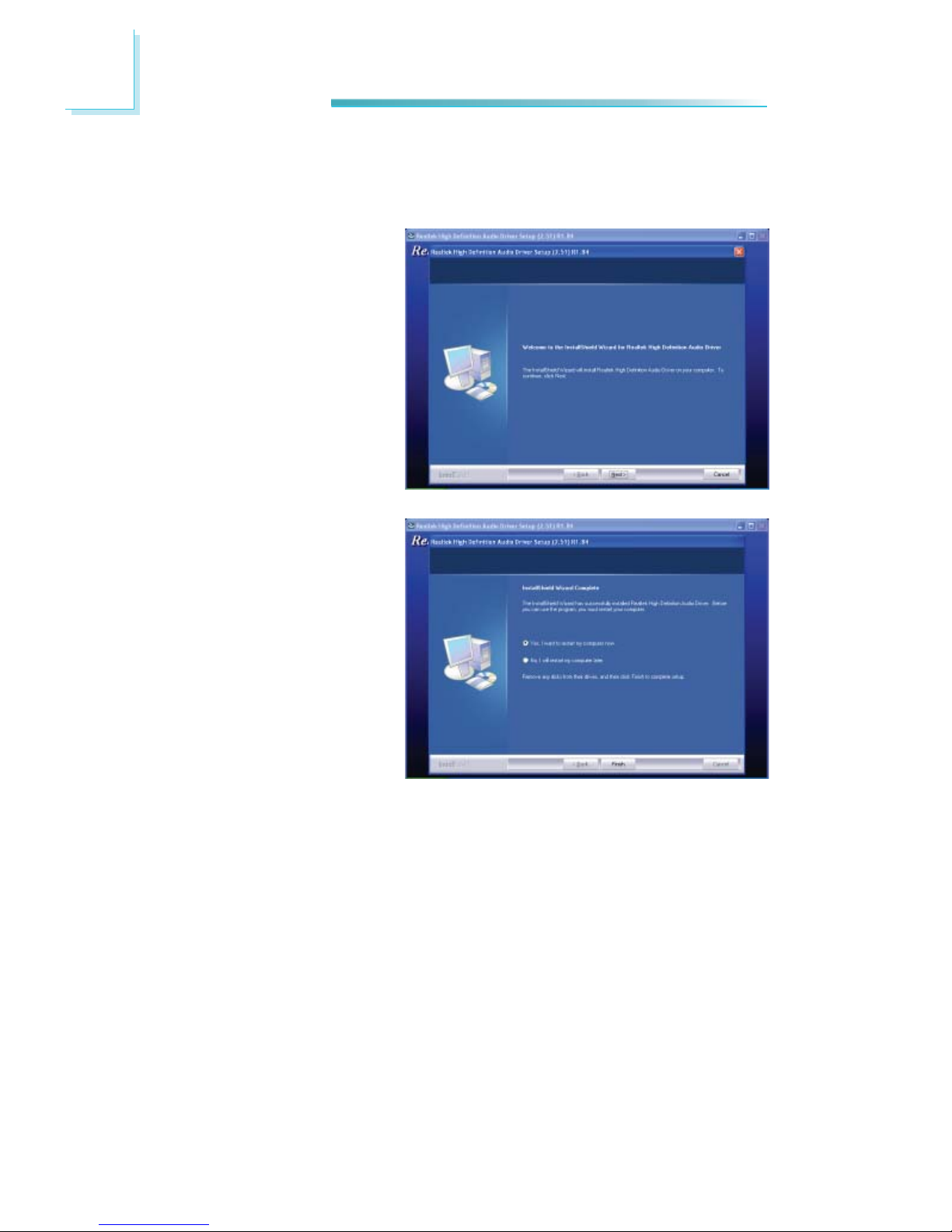

Install the audio driver. Refer to chapter 4 for more information.

Page 44

Hardware Installation

COM 2 COM 1

I/O Connectors

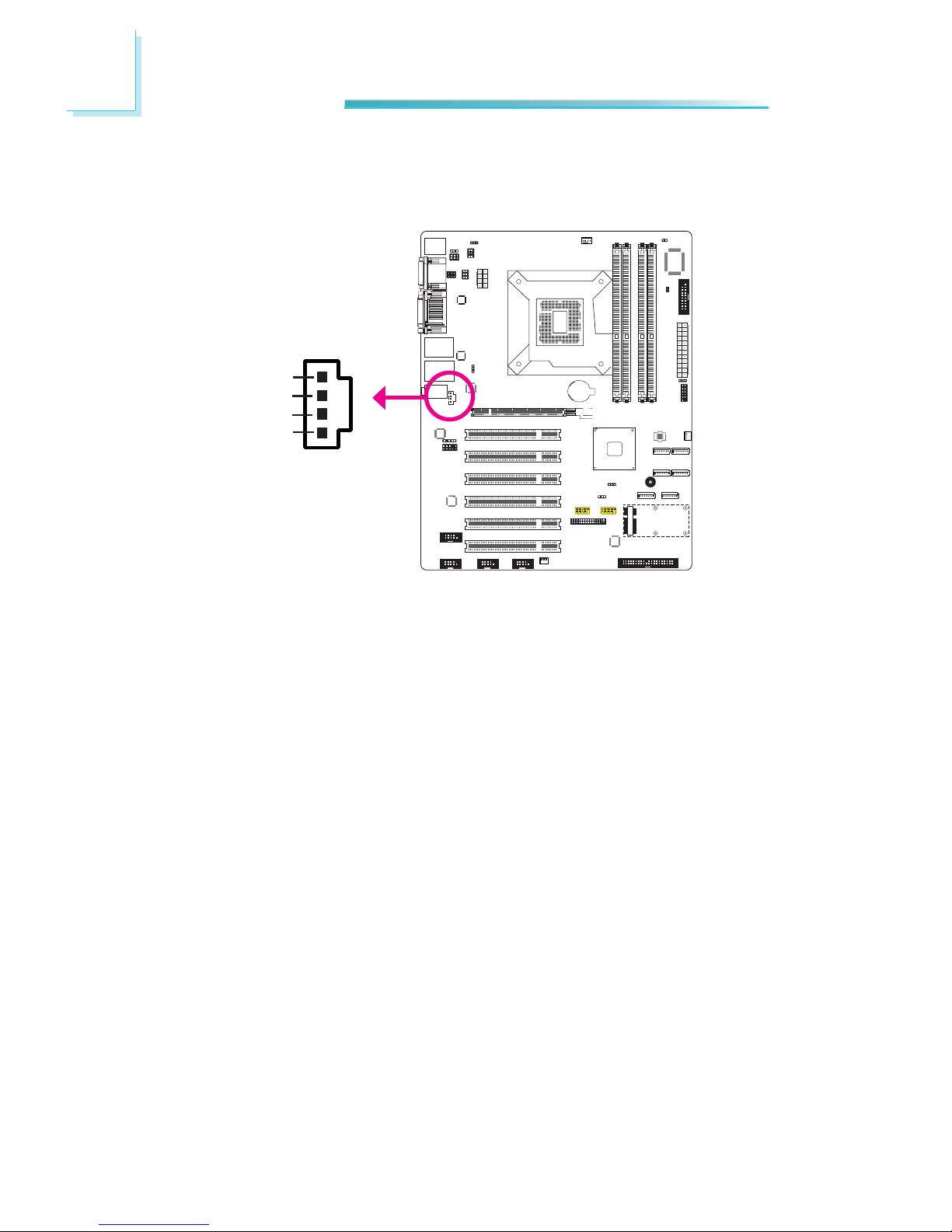

CD-in Internal Audio Connector

The CD-in connector is used to receive audio from a CD-ROM drive, TV tuner or MPEG card.

Left audio channel

Right audio channel

Ground

Page 45

Hardware Installation

S/PDIF Connector

The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.

+5V

Key

SPDIF out

Ground

SPDIF in

COM 2 COM 1

Page 46

Hardware Installation

COM 2 COM 1

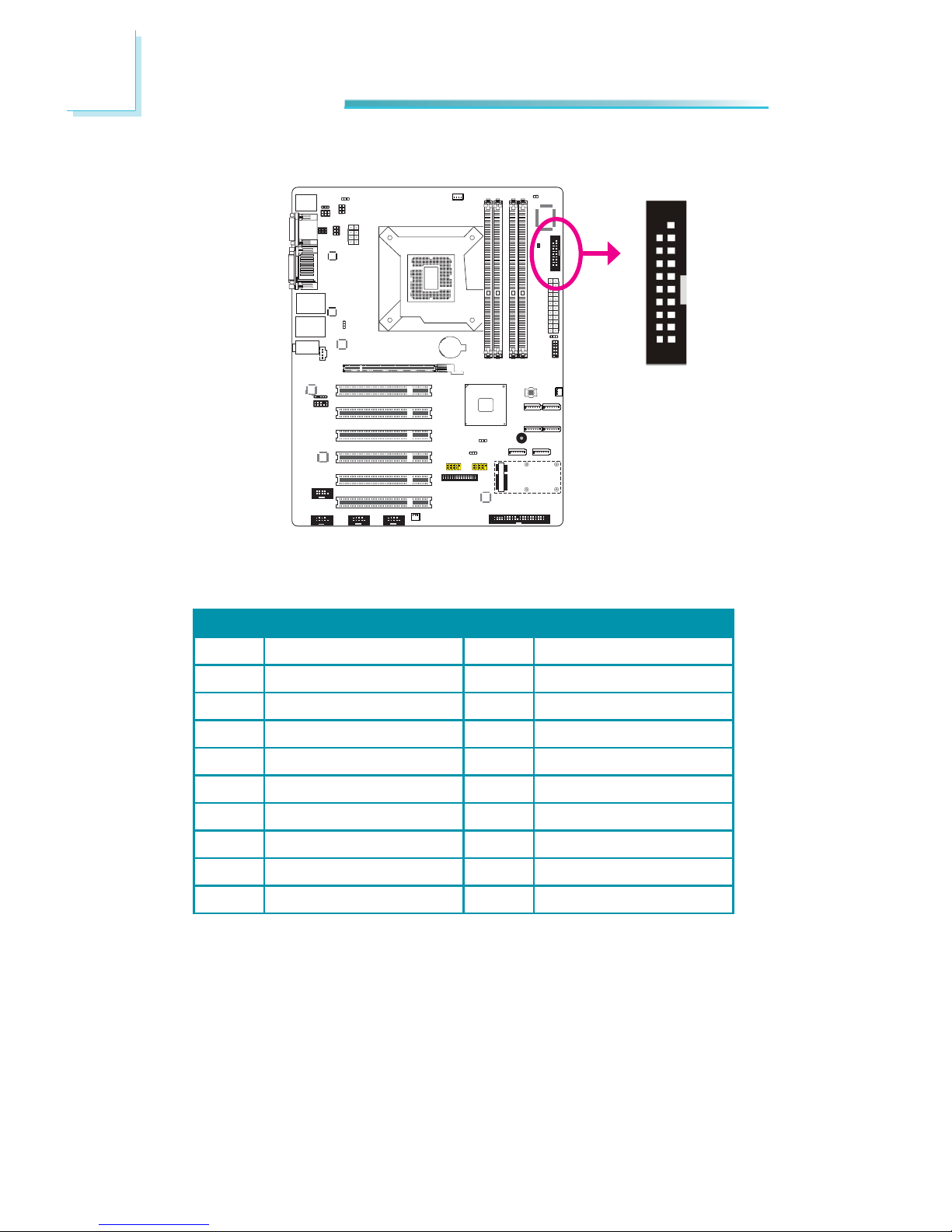

Digital I/O Connectors

The 8-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

Pin Pin Assignment Pin Pin Assignment

1 GND 2 +12V

3 DIO7 4 +12V

5 DIO6 6 GND

7 DIO5 8 VCC

9 DIO4 10 VCC

11 DIO3 12 GND

13 DIO2 14 V_5P0_STBY

15 DIO1 16 V_5P0_STBY

17 DIO0 18 GND

19 GND

Page 47

Hardware Installation

COM 2 COM 1

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.

BIOS Setting

Conﬁ gure the Serial ATA drives in the Advanced menu (“IDE Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

SATA (Serial ATA) Connectors

RXN

GND

TXP

TXN

GND

RXP

GND

SATA 3

SATA 0

SATA 2

SATA 1

SATA 5 SATA 4

SATA 3.0 6Gb/s

SATA 2.0 3Gb/s

Features

• SATA 0 supports data transfer rate up to 6Gb/s

• SATA 1 to SATA 5 support data transfer rate up to 3Gb/s

• Integrated Advanced Host Controller Interface (AHCI) controller

Page 48

Hardware Installation

COM 2 COM 1

Cooling Fan Connectors

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airﬂ ow throughout the chassis to prevent overheating the CPU and sys- tem board components.

BIOS Setting

The Advanced menu (“Hardware Health Conﬁ guration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

System fan 1

CPU fan

Sense

Power

Ground Speed

Control

Sense

Power

Ground

Power

Sense

System fan 2

Page 49

Hardware Installation

COM 2 COM 1

Chassis Intrusion Connector

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be conﬁ gured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.

Chassis

signal

Ground

Page 50

Hardware Installation

COM 2 COM 1

Power Connectors

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).

The power connectors from the power supply unit are designed to ﬁ t the 24-pin and 8-pin connectors in only one orientation. Make sure to ﬁ nd the proper orien- tation before plugging the connectors.

The system board requires a minimum of 300 Watt power supply to operate. Your system conﬁ guration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.

Important:

Insufﬁ cient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.

12 24

+3.3VDC

Ground

+5VDC

PWR_OK

+5VSB

+12VDC

+3.3VDC

-12VDC

Ground

PS_ON#

Ground

+5VDC

Ground

ATX power

12V power

Ground

12V

Ground

Page 51

Hardware Installation

COM 2 COM 1

Standby Power LED

This LED will light red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC and then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Page 52

Hardware Installation

COM 2 COM 1

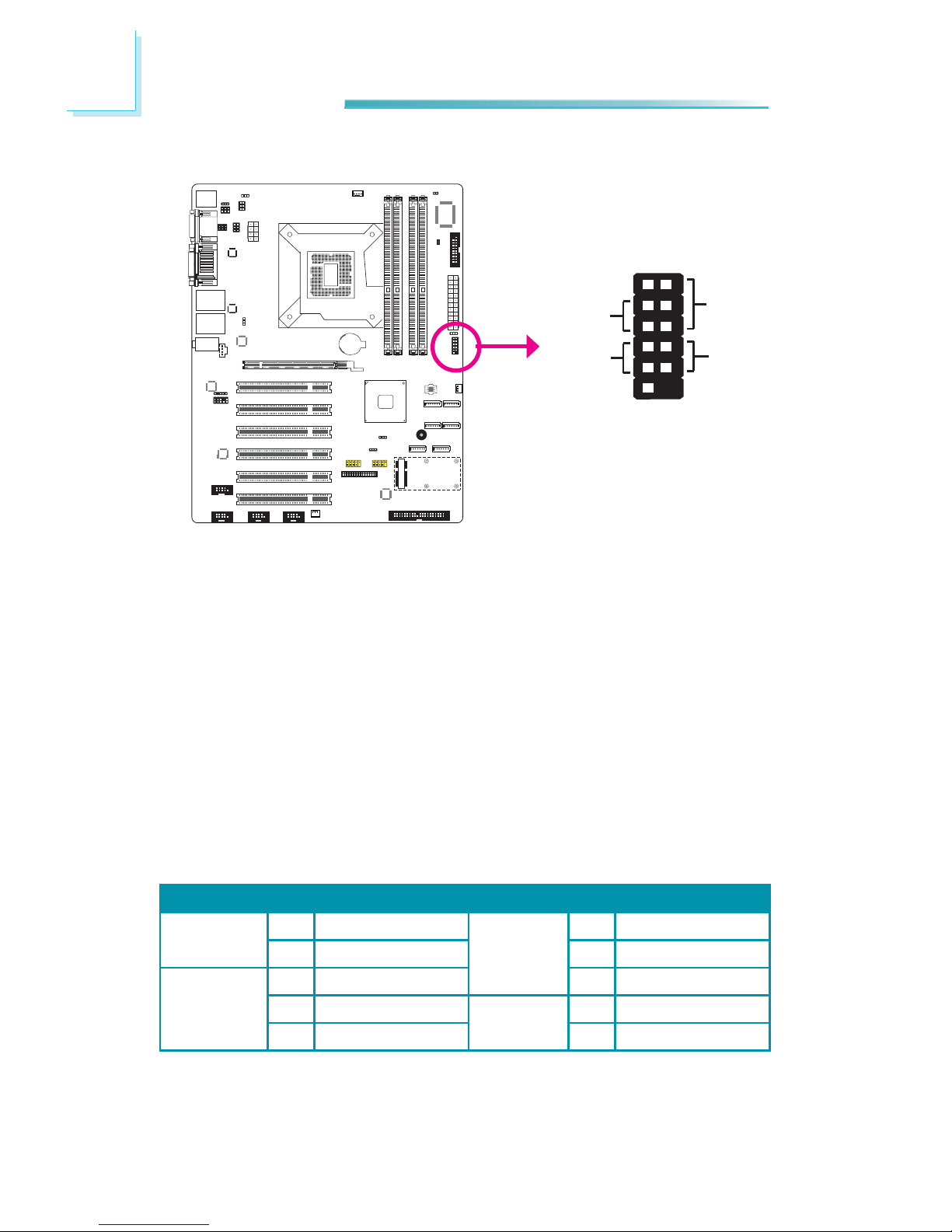

Front Panel Connectors

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

HDD-LED

RESET-SW

PWR-LED

PWR-BTN

Pin Pin Assignment Pin Pin Assignment

HDD-LED

3 HDD Power PWR-LED 2 LED Power

5 Signal 4 LED Power

RESET SW 7 Ground 6 Signal

9 RST Signal

PWR-BTN 8 Ground

11 N.C. 10 Signal

Page 53

Hardware Installation

Mini PCI Express

COM 2 COM 1

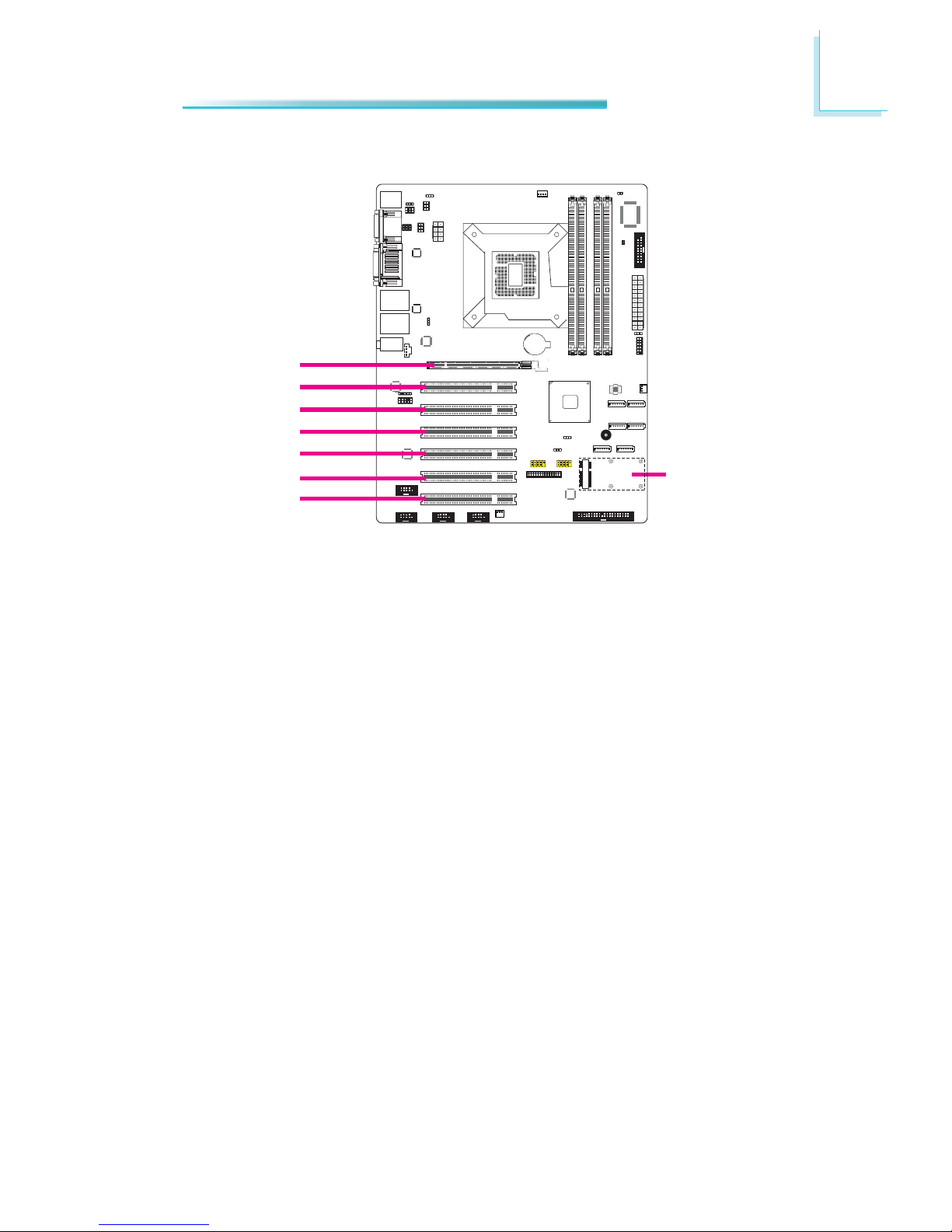

Expansion Slots

PCI Slots

The PCI slot supports expansion cards that comply with PCI speciﬁ cations.

Mini PCI Express Slot

Install mini PCI Express cards such as network cards or other cards that comply to the mini PCI Express speciﬁ cations into the mini PCI Express x1 slot.

PCI 1

PCI 3

PCI 4

PCI 5

PCI 2

PCI 6

PCIe x16

Page 54

Hardware Installation

COM 2 COM 1

IDE Connector

The IDE connector is used to connect hard drives. The connector on the IDE cable can be inserted into this connector only if pin 1 of the cable is aligned with pin 1 of this connector.

The IDE connector supports 2 devices, a Master and a Slave. Use an IDE ribbon cable to connect the drives to the system board. An IDE ribbon cable has 3 connectors on them, one that plugs into the IDE connector on the system board and the other 2 connects to IDE devices. The connector at the end of the cable is for the Master drive and the connector in the middle of the cable is for the Slave drive.

Note:

Refer to your disk drive user’s manual for information about selecting proper drive switch settings.

Adding a Second IDE Disk Drive

When using two IDE drives, one must be set as the master and the other as the slave. Follow the instructions provided by the drive manufacturer for setting the jumpers and/or switches on the drives.

The system board supports Enhanced IDE or ATA-2, ATA/33, ATA/66, ATA/100 and ATA/133 hard drives. We recommend that you use hard drives from the same manufacturer. In a few cases, drives from two different manufacturers will not function properly when used together. The problem lies in the hard drives, not the system board.

2 1

Page 55

Hardware Installation

Important:

If you encountered problems while using an ATAPI CD-ROM drive that is set in Master mode, please set the CD-ROM drive to Slave mode. Some ATAPI CD-ROMs may not be recognized and cannot be used if incorrectly set in Master mode.

BIOS Setting

Conﬁ gure the onboard IDE in the Integrated Peripherals submenu (“OnChip IDE Device” section) of the BIOS. Refer to chapter 3 for more information.

Page 56

Hardware Installation

COM 2 COM 1

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Battery

Page 57

Hardware Installation

COM 2 COM 1

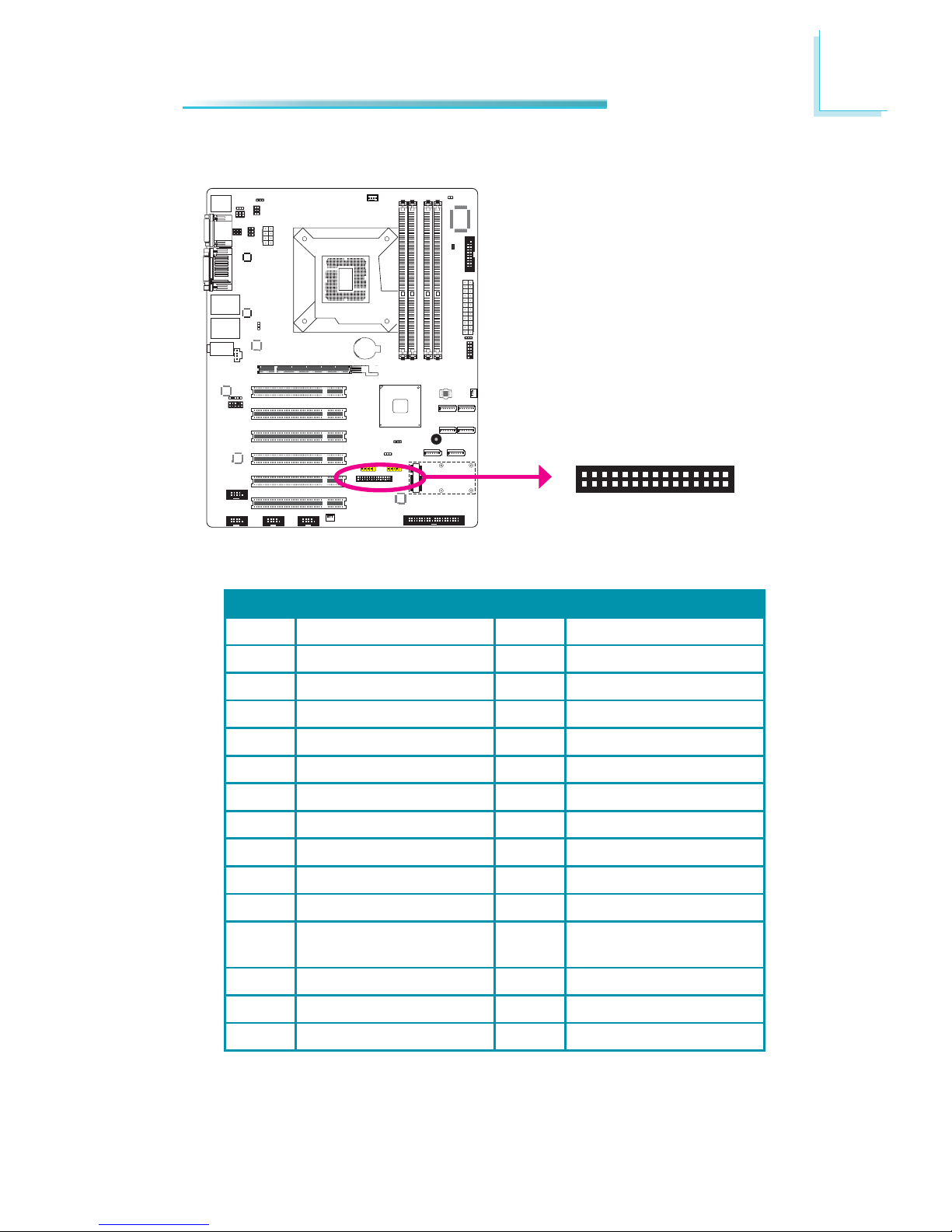

SDVO Connector

2 1

The SDVO connector is used to connect the optional SDVO-LVDS daughterboard.

Pin Pin Assignment Pin Pin Assignment

1 Ground 2 DPB_AUXP

3 DPB_LANE0_P 4 DPB_AUXN

5 DPB_LANE0_N 6 SDVO_STALLP

7 Ground 8 SDVO_STALLN

9 DPB_LANE1_P 10 SDVO_INTP

11 DPB_LANE1_N 12 SDVO_INTN

13 Ground 14 PCIE_RST

15 DPB_LANE2_P 16 DPB_CTRLCLK

17 DPB_LANE2_N 18 DPB_CTRLDATA

19 Ground 20 DPB_HPD

21 DPB_LANE3_P 22 GPIO/SMCLK

23 DPB_LANE3_N 24 GPIO/SMBDATA/L_

BKLTCTL

25 +3V3 26 +3V3

27 +5V 28 +5V

29 +12V 30 +12V

Page 58

Hardware Installation

SDVO-LVDS Daughterboard (optional)

Features

• Chrontel CH7308B

• Supports 18/24-bit 1600x1200 LVDS panel (default 1024x768)

• 1 LVDS LCD panel connector

• 1 LCD/Inverter power connector

• SDVO interface

• Supports dimming control via hot keys

Dimensions

• 45mm (1.77") x 38mm (1.49")

Page 59

Hardware Installation

Panel Power Select

JP8

3-4 On: +5V

5-6 On: +3.3V

(default)

1-2 On: +12V

JP8 is used to select the power supplied to the LCD panel.

Important:

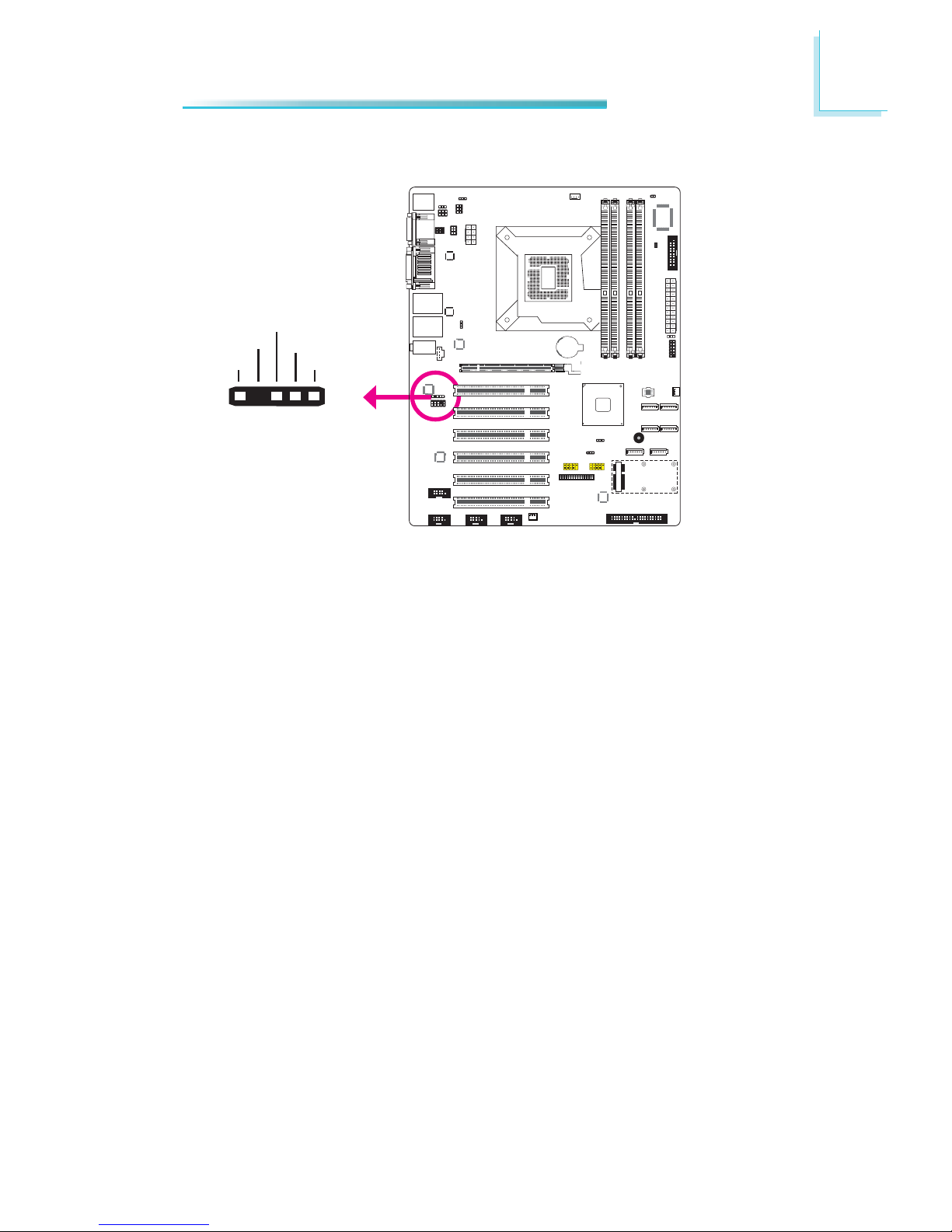

Before powering-on the system, make sure JP8’s setting matches the LCD panel’s speciﬁ cation. Selecting the incorrect voltage will seriously damage the LCD panel.

Jumper Settings

Page 60

Hardware Installation

I/O Connectors

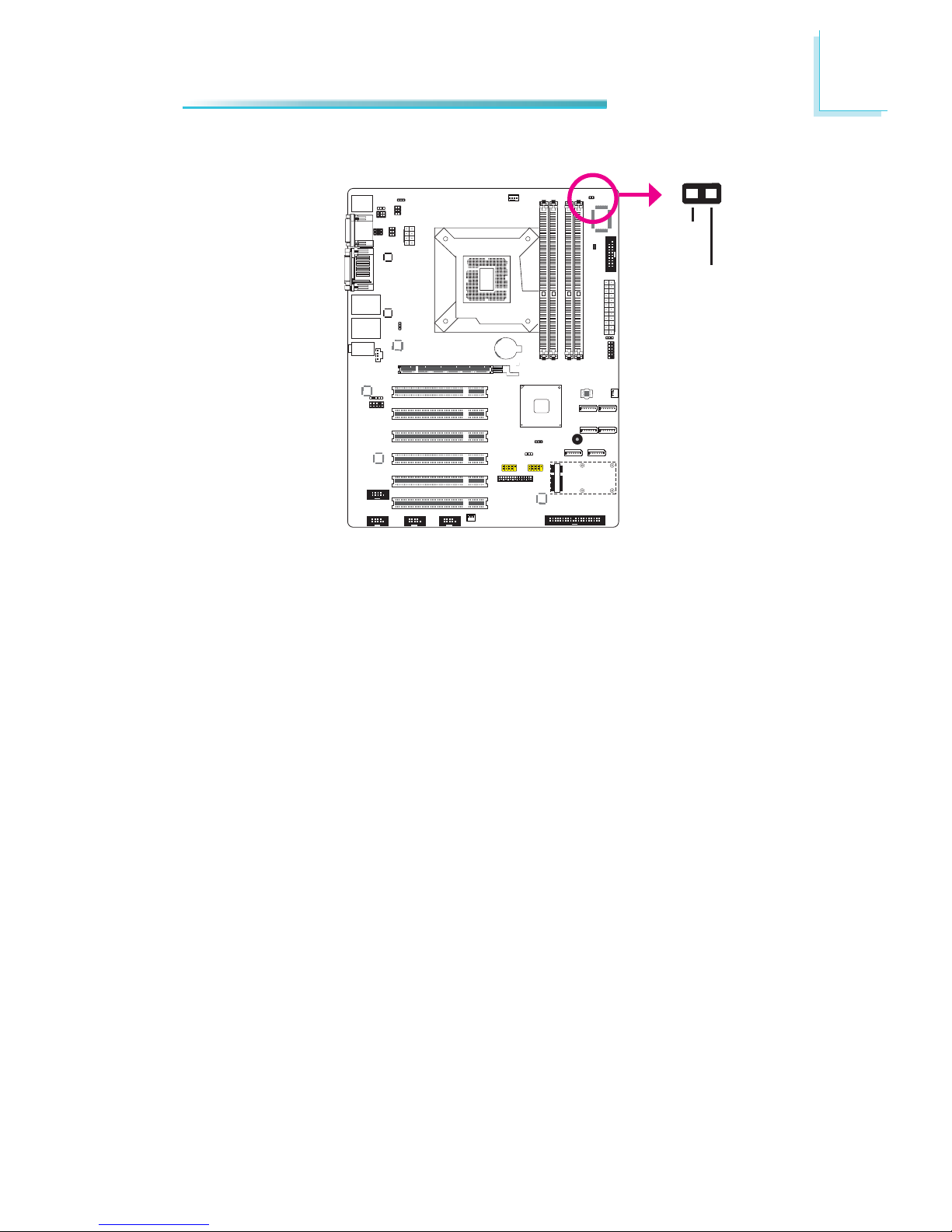

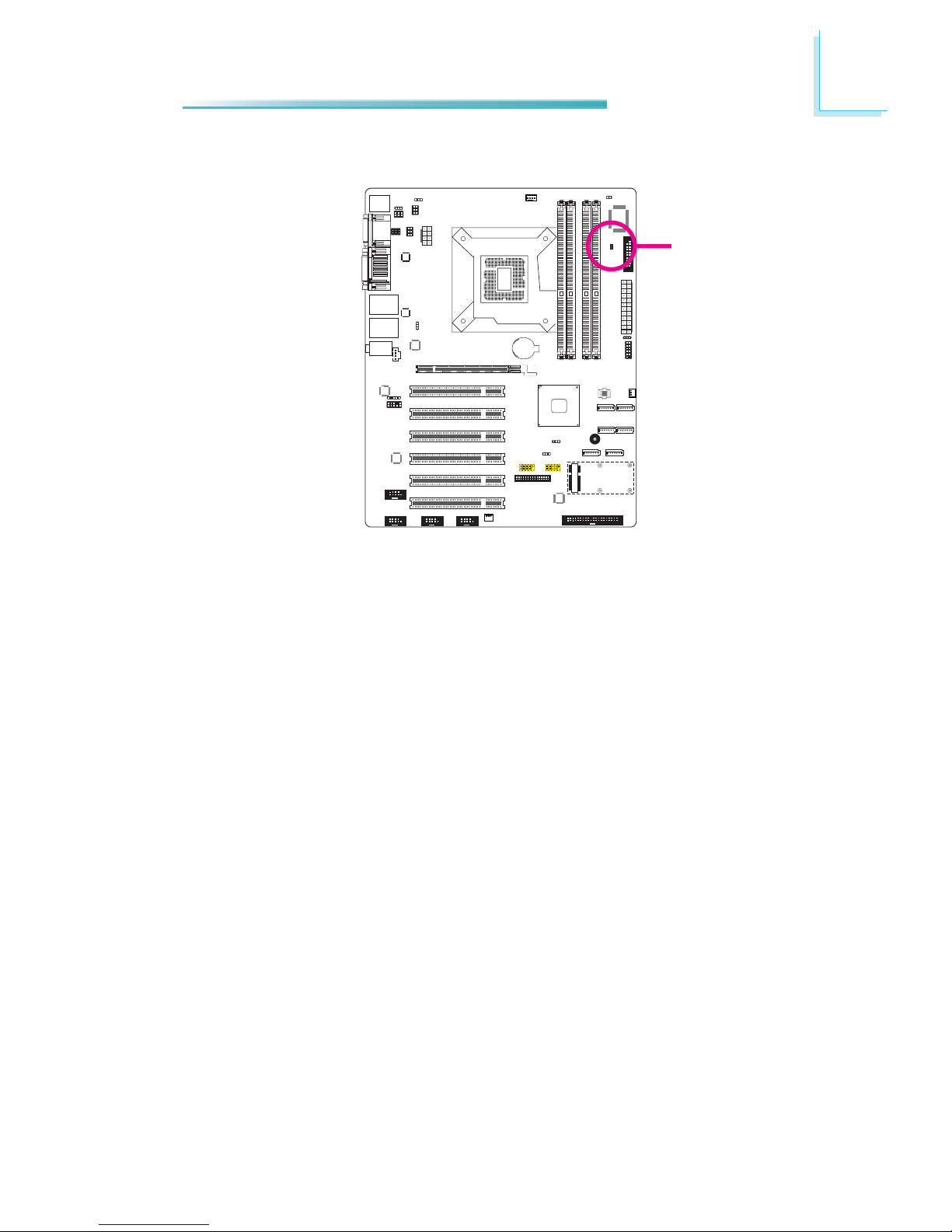

LVDS LCD Panel Connector LCD/Inverter Power Connector

LVDS LCD panel

LCD/Inverter

power

The system board allows you to connect a LCD Display Panel by means of the LVDS LCD panel connector and the LCD/Inverter power connector. These connectors transmit video signals and power from the system board to the LCD Display Panel.

Page 61

Hardware Installation

Pins

Function

GND

N. C.

GND

LVDS_Out2+

LVDS_Out2-

GND

LVDS_Out1+

LVDS_Out1-

GND

LVDS_Out0+

LVDS_Out0-

GND

LVDS_CLK1+

LVDS_CLK1-

GND

LVDS_DDCCLK

LVDS_DDCDAA

Panel Power

Pins

Function

GND

N. C.

GND

LVDS_Out6+

LVDS_Out6-

GND

LVDS_Out5+

LVDS_Out5-

GND

LVDS_Out4+

LVDS_Out4-

GND

LVDS_CLK2+

LVDS_CLK2-

GND

N. C.

Panel Power

LVDS LCD Panel Connector

LCD/Inverter Power Connector

Pins

Function

GND

Panel Inverter Brightness Voltage Control

Panel Power

+3.3V

Panel Backlight On/Off Control

+12V

Page 62

Hardware Installation

Installing the SDVO-LVDS Daughterboard onto the Motherboard (optional)

Important:

The motherboard used in this section is for reference purpose only and may not resemble your motherboard. These illustrations are mainly to guide you on how to install SDVO-LVDS onto the motherboard of your choice.

1. The photo below shows the location of the mounting hole on the motherboard.

Mounting hole

2. Insert the provided mounting screws into the mounting hole - from the bottom through the top of the motherboard.

Mounting screws

Page 63

Hardware Installation

3. While supporting the mounting screw at the bottom, from the top side of the board, fasten a bolt into the screw.

Bolt

4. The SDVO connector is located at the bottom of the daughterboard. Grasping SDVO-LVDS by its edges, position it on top of the motherboard’s SDVO connector with its mounting holes aligned with the bolts on the motherboard. This will also align the SDVO connector of the two boards to each other.

SDVO connector on the daughterboard

Page 64

Hardware Installation

SDVO connector on the motherboard

5. Press SDVO-LVDS down ﬁ rmly until it is completely seated on the SDVO con- nector of the motherboard.

Motherboard

SDVO-LVDS

6. Use the provided mounting screws to secure SDVO-LVDS to the motherboard.

Mounting screw

Page 65

BIOS Setup

Chapter 3 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to conﬁ gure the system and save the conﬁ guration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a conﬁ guration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconﬁ gure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Default Configuration

Most of the conﬁ guration settings are either predeﬁ ned according to the Load Op- timal Defaults settings which are stored in the BIOS or are automatically detected and conﬁ gured without requiring any actions. There are a few settings that you may need to change depending on your system conﬁ guration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Page 66

BIOS Setup

Legends

Keys

Right and Left arrows

Up and Down arrows

<Esc> + (plus key)

- (minus key)

Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or ﬁ elds.

Exits to the BIOS Setup Utility. Scrolls forward through the values

or options of the highlighted ﬁ eld. Scrolls backward through the values

or options of the highlighted ﬁ eld. Displays General Help. Previous Values. Optimized Defaults. Saves and exits the Setup program. Press <Enter> to enter the high-

lighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available ﬁ elds not shown on the screen. Use the up and down arrow keys to scroll through all the available ﬁ elds.

Submenu

When ““ appears on the left of a particular ﬁ eld, it indicates that a submenu which contains additional options are available for that ﬁ eld. To display the sub- menu, move the highlight to that ﬁ eld and press <Enter>.

Page 67

BIOS Setup

Main

The Main menu is the ﬁ rst screen that you will see when you enter the BIOS Setup Utility.

System Language

Choose the system default language.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Choose the system default language.

Save & ExitChipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information BIOS Vendor Core Version Compliency Project Version Build Date and Time

System Language

System Date System Time

Access Level

American Megatrends

4.6.5.3 UEFI 2.3; PI 1.2 1APTC 0.20 x64 09/05/2012 12:05:12

[English]

[Fri 09/07/2012] [14:42:57]

Administrator

Advanced

Boot Security

Main

AMI BIOS Setup Utility

Page 68

BIOS Setup

Advanced

The Advanced menu allows you to conﬁ gure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect ﬁ eld values may cause the system to malfunction.

Launch PXE OpROM

Enables or disables the boot option for legacy network devices.

Launch Storage OpROM

Enables or disables the boot option for legacy mass storage devices with option ROM.

ACPI Power Management Conﬁ guration.



ACPI Power Management Conﬁ guration



PC Health Status



Trusted Computing



CPU Conﬁ guration



SATA Conﬁ guration



Intel TXT(LT) Conﬁ guration



USB Conﬁ guration



F71879 Super IO Conﬁ guration



F81217 Second Super IO Conﬁ guration



Onboard ATA Controller Conﬁ guration



Network Stack

Save & ExitChipset Boot Security

Main

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 69

BIOS Setup

ACPI Power Management Conﬁ guration

This section is used to conﬁ gure the ACPI Power Management.

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

ACPI Power Management Conﬁ guration

ACPI Sleep State

Resume by PME Resume by Ring Resume by RTC Alarm

Advanced

[S3 (Suspend to RAM) ]

[Disabled] [Disabled] [Disabled]

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

Resume by PME

Enable this ﬁ eld to use the PME signal to wake up the system.

Resume by Ring

Set this ﬁ eld to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem.

Resume by RTC Alarm

When Enabled, the system uses the RTC to generate a wakeup event.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 70

BIOS Setup

PC Health Status

This section displays the SIO hardware health monitor.



Smart Fan Function

Case Open System Hardware Monitor

CPU Temperature System Temperature CPU FAN Speed System FAN1 Speed System FAN2 Speed VCore +5.0V +12V VDIMM +3.3V VSB5V VSB3V VBAT

Advanced

[Disabled]

: +40 C : +26 C : 2013 RPM : N/A : N/A : +1.168 V : +4.992 V : +11.880V : +1.520 V : +3.400 V : +5.032 V : +3.408 V : +3.344 V

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Function

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable CPU SmartFan

Smart Fan Function CPU Smart Fan Control

Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5 System Smart Fan(1) Control Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5 System Smart Fan(2) Control Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5

[Automatic]

60 50 40 30 100 75 50 40 30 [Automatic] 60 50 47 35 60 60 60 60 60 [Automatic] 60 50 47 35 100 90 80 70 60



Page 71

BIOS Setup

CPU Smart Fan Control

When this feature is set to Automatic, the CPU’s fan speed will rotate according to the CPU’s temperature. The higher the temperature, the faster the speed of rotation.

Boundary 1 to Boundary 4

The range is from 0-127.

Speed Count 1 to Speed Count 5

The range is from 1-100.

Case Open

Set this ﬁ eld to Enabled to allow the system to alert you of a chassis intru- sion event.

CPU Temperature to VBAT

These ﬁ elds will show the temperature, fan speed and output voltage of the monitored devices or components.

Page 72

BIOS Setup

Trusted Computing (optional)

This section conﬁ gures settings relevant to Trusted Computing innovations.

Enables or Disables BIOS support for security device O.S. will not show security device. TCG EFI protocol and INT1A interface will not be available.

Conﬁ guration

Security Device Support

Current Status Information NO Security Device Found

Advanced

Security Device Support

Enables or Disables BIOS. O.S. will not show security device. Resetting the platform is required.

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 73

BIOS Setup

CPU Conﬁ guration

This section is used to conﬁ gure the CPU. It will also display the detected CPU information.

Number of cores to enable in each processor package.

CPU Conﬁ guration Genuine Intel (R) CPU 0 @ 2.60GHz

CPU Signature Microcode Patch Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

Active Processor Cores

Intel Virtualization Technology

Advanced

206a5 Not loaded 2600 MHz 1600 MHz 2600 MHz 2 Not Supported Supported Not Supported Supported

32 kB x 2 32 kB x 2 256kB x 2 2048 kB

[All]

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults ESC: Exit

Active Processor Cores

Number of cores to enable in each processor package.

Intel Virtualization Technology

When this ﬁ eld is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Page 74

BIOS Setup

SATA Conﬁ guration

This section is used to conﬁ gure SATA functions.

Enable or disable SATA Device.

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve Serial ATA Port 2 Software Preserve Serial ATA Port 3 Software Preserve Serial ATA Port 4 Software Preserve Serial ATA Port 5 Software Preserve

Advanced

[Enabled]

[IDE]

Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults ESC: Exit

SATA Mode

IDE Mode

This option conﬁ gures the Serial ATA drives as Parallel ATA storage devices.

AHCI Mode

This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Interface).

SATA Mode Selection

Determines how SATA controller(s) operate.

Page 75

BIOS Setup

If AHCI is selected in the SATA Mode ﬁ eld, it will display the following informa- tion:

Aggressive LPM Support

Enable PCH to aggressively enter link power state.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support.

Serial ATA Port 0 to Serial ATA Port 5

These ﬁ elds are used to conﬁ gure the connected SATA devices.

Determines how SATA controller(s) operate.

SATA Controller(s)

SATA Mode Selection

Aggressive LPM Support SATA Controller Speed

Serial ATA Port 0 Software preserve Port 0

Hot Plug External SATA SATA device type Spin up device

Serial ATA Port 1 Software preserve Port 1

Hot Plug External SATA SATA device type Spin up device

Serial ATA Port 2 Software preserve Port 2

Hot Plug External SATA Spin up device

Serial ATA Port 3 Software preserve Port 3

Hot Plug External SATA Spin up device

Serial ATA Port 4 Software preserve Port 4

Hot Plug External SATA Spin up device

Serial ATA Port 5 Software preserve Port 5

Hot Plug External SATA Spin up device

Advanced

[Enabled]

[AHCI]

[Enabled] [Gen3]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



Page 76

BIOS Setup

Intel TXT (LT) Conﬁ guration

This section is used to conﬁ gure the Intel Trusted Execution technology.

Intel Trusted Execution Technology Conﬁ guration Intel TXT support only can be enabled/disabled if SMX

is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extension (SMX) Intel TXT(LT) Support

Advanced

Disabled [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 77

BIOS Setup

USB Conﬁ guration

This section is used to conﬁ gure USB.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conﬁ guration USB Devices:

2 Hubs

Legacy USB Support

EHCI Hand-off

Advanced

[Enabled]

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled

Enables legacy USB.

Auto

Disables support for legacy when no USB devices are connected.

Disabled

Keeps USB devices available only for EFI applications.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Page 78

BIOS Setup

F71879 Super IO Conﬁ guration

This section is used to conﬁ gure the I/O functions supported by the onboard Super I/O chip.

Restore AC Power Loss help.

F71879 Super IO Conﬁ guration Super IO Chip



Restore AC Power Loss

WatchDog Timer

Super IO WatchDog Timer



Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration

Advanced

Fintek F71879

[Power Off]

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore AC Power Loss

Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

When power returns after an AC power failure, the system will automatically power-on.

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

WatchDog Timer

This ﬁ eld is used to select the time interval of the Watchdog timer. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

Page 79

BIOS Setup

Enable or Disable Serial Port (COM)

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port 1 Conﬁ guration to Serial Port 2 Conﬁ guration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

Enable or Disable Serial Port (COM)

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=2F8h; IRQ=3;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 80

BIOS Setup

Enable or Disable Serial Port (COM)

Serial Port 3 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3E8h; IRQ=5;

[Auto]

Serial Port 3 Conﬁ guration to Serial Port 6 Conﬁ guration

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Second Super IO Conﬁ guration

This section is used to conﬁ gure the serial port functions.

Set Parameters of Serial Port 3 (COMC)

Second Super IO Conﬁ guration Super IO Chip



Serial Port 3 Conﬁ guration



Serial Port 4 Conﬁ guration



Serial Port 5 Conﬁ guration



Serial Port 6 Conﬁ guration

Advanced

Fintek F81217

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

Page 81

BIOS Setup

Onboard ATA Controller Conﬁ guration

This section conﬁ gures settings relevant to the onboard ATA Controller Conﬁ gura- tion.

PATA Primary Master PATA Primary Slave

ATA Controller

Advanced

Not Present Not Present

[IDE Mode]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Network Stack

This section conﬁ gures settings relevant to the network stack Conﬁ guration.

Enable or disable UEFI network stack.

Network Stack

Advanced

[Disable Link]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults ESC: Exit

Page 82

BIOS Setup

Chipset

Conﬁ gures relevant chipset functions.



South Bridge



North Bridge



ME Subsystem

Save & Exit

Advanced

Boot Security

Main

Chipset

South Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 83

BIOS Setup

South Bridge

Enable/Disable GbE control PME in S5.

Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID



PCI Express Ports Conﬁ guration



USB Conﬁ guration

High Precision Event Timer Conﬁ guration

High Precision Timer

1.5.0.0 B65 05/B3

[Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

High Precision Timer

Enable or disable the high precision timer.

Page 84

BIOS Setup

Onboard 8111DL LAN1 and Onboard 8111DL LAN2 Control

Enables or disables the onboard LAN.

PCI Express Conﬁ guration

Enable or disable the LAN.

PCI Express Conﬁ guration

Onboard 8111DL LAN2 Control

Onboard 8111DL LAN1 Control

[Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 85

BIOS Setup

USB Conﬁ guration

EHCI Controller 1 and EHCI Controller 2

These ﬁ elds are used to enable or disable Enhanced Host Controller Interface (USB 2.0).

USB Ports Per-Port Disable Control

Control each of the USB ports (0-13) disabling.

USB Port 0 to USB Port 12

Enables or disables the selected USB port.

Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

USB Conﬁ guration

EHCI 1

EHCI 2 USB Ports Per-Port Disable Control

USB Port #0 Disable USB Port #1 Disable USB Port #2 Disable USB Port #3 Disable USB Port #4 Disable USB Port #5 Disable USB Port #8 Disable USB Port #9 Disable USB Port #10 Disable USB Port #11 Disable USB Port #12 Disable

[Enabled]

[Enabled] [Enabled]

[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 86

BIOS Setup

North Bridge

Conﬁ g Graphics Settings.

System Agent Bridge Name System Agent RC Version VT-d Capability



Graphics Conﬁ guration



NB PCIe Conﬁ guration



Memory Conﬁ guration

Sandy Bridge

1.5.0.0 Unsupported

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Conﬁ guration

Select which of IGFX/ PEG/PCI graphics device should be primary display or select SG for switchable Gfx.

Graphics Conﬁ guration IGFX VBIOS Version IGfx Frequency

Primary Display

Internal Graphics DVMT Pre-Allocated DVMT Total Gfx Mem



LCD Control

2137 850 MHz

[Auto]

[Auto] [64M] [256M]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Internal Graphics

Keep IGD enabled based on the setup options.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the internal graphics device.

DVMT Total Gfx Memory

Select DVMT 5.0 Total Graphics Memory size used by the internal graphics device.

Page 87

BIOS Setup

LCD Control

Select the video device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary dispay.

LCD Control

Primary IGFX Boot Display

[VBIOS Default]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NB PCIe Conﬁ guration

Conﬁ gure PEG B0:D1:F0 Gen1-Gen3.

NB PCIe Conﬁ guration PEG

PEG - Gen x

Enable PEG

Not Present

[Gen 1]

[Auto]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable PEG

To enable or disable the PEG.

Page 88

BIOS Setup

ME Subsystem

Intel ME Subsystem Conﬁ guration ME FW Version

8.0.4.1141

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Memory Conﬁ guration

Memory Information Memory RC Version

Memory Frequency Total Memory DIMM#0 DIMM#1 DIMM#2 DIMM#3 CAS Latency (tCL) Minimum delay time CAS to RAS (tRCDmin) ROW Precharge (tRPmin) Active to Precharge (tRASmin) XMP Proﬁ le 1 XMP Proﬁ le 2

1.2.2.0 1067 Mhz 1024 MB (DDR3) Not Present Not Present Not Present 1024 MB (DDR3) 7

7 7 20 Not Supported Not Supported

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 89

BIOS Setup

Boot

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indeﬁ nite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enables or disables the quiet boot function.

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

CSM16 Module Version

Boot Option Priorities



CSM parameters

Save & ExitChipset

Advanced

Security

Main

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[On] [Disabled]

07.69

Page 90

BIOS Setup

This option controls if CSM will be launched.

Launch CSM

Boot option ﬁ lter Launch PXE OpROM policy Launch Storage OpROM policy

Other PCI device ROM priority

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[Enabled]

[UEFI and Legacy] [Do not launch] [Legacy only]

[UEFI OpROM]

CSM Parameters

Boot option ﬁ lter

This option controls what devices system can boot to.

Launch PXE OpROM policy

Controls the execution of UEFI and Legacy PXE OpROM.

Launch Storage OpROM policy

Controls the execution of UEFI and Legacy Storage OpROM.

Other PCI device ROM priority

For PCI devices other than Network, Mass storage or video deﬁ nes which OpROM to launch.

Page 91

BIOS Setup

Security

Set Setup Administrator Password

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password lenth must be in the following range: Minimum lenth 3 Maximum lenth 20

Administrator Password

User Password

UEFI Secure Boot Management

Save & ExitChipset

Advanced

Main

Boot Security

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Page 92

BIOS Setup

Save & Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset Restore Defaults

Boot Override

Launch EFI Shell from ﬁ le system device

Chipset

Advanced

Main

Boot Security Save & Exit

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Reset

To save the changes, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.

Discard Changes and Reset

To discard the changes, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Restore Defaults

To restore and load the optimized default values, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Launch EFI Shell from ﬁ le system device

Attempts to launch EFI shell application (Shellx64.eﬁ ) from one of the avail- able ﬁ lesystem devices.

Page 93

BIOS Setup

Updating the BIOS

To update the BIOS, you will need the new BIOS ﬁ le and a ﬂ ash utility, AFUDOS. EXE. Please contact technical support or your sales representative for the ﬁ les.

To execute the utility, type:

A:> AFUDOS BIOS_File_Name /b /p /n

then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

AMI Firmware Update Utility(APTIO) v2.25

+--------------------------------------------------------------------------------------------------------+

| |

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

done done done done done done done

Page 94

Supported Software

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

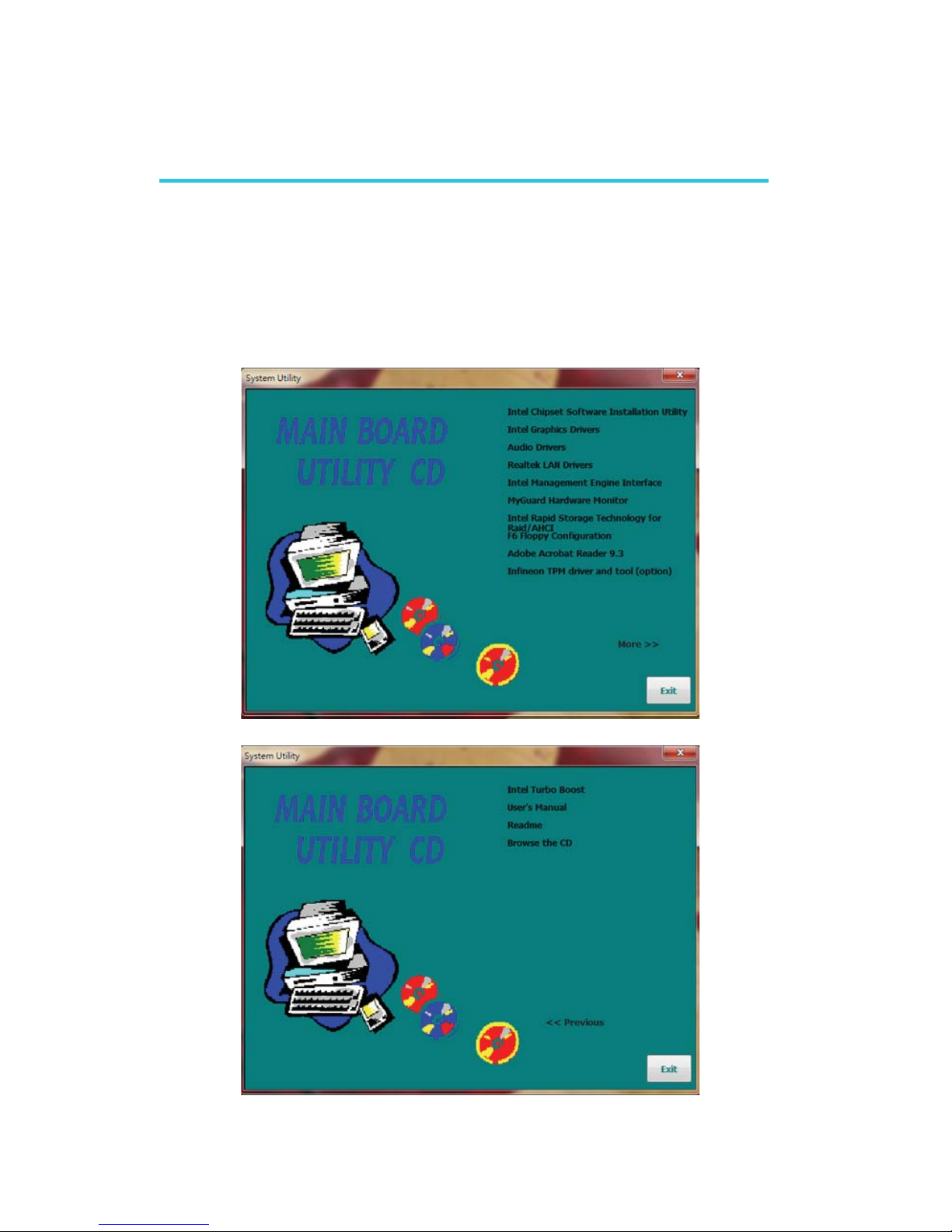

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Chapter 4 - Supported Software

Page 95

Supported Software

Intel Chipset Software Installation Utility

The Intel Chipset Software Installation Utility is used for updating Windows® INF ﬁ les so that the Intel chipset can be recognized and conﬁ gured properly in the system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

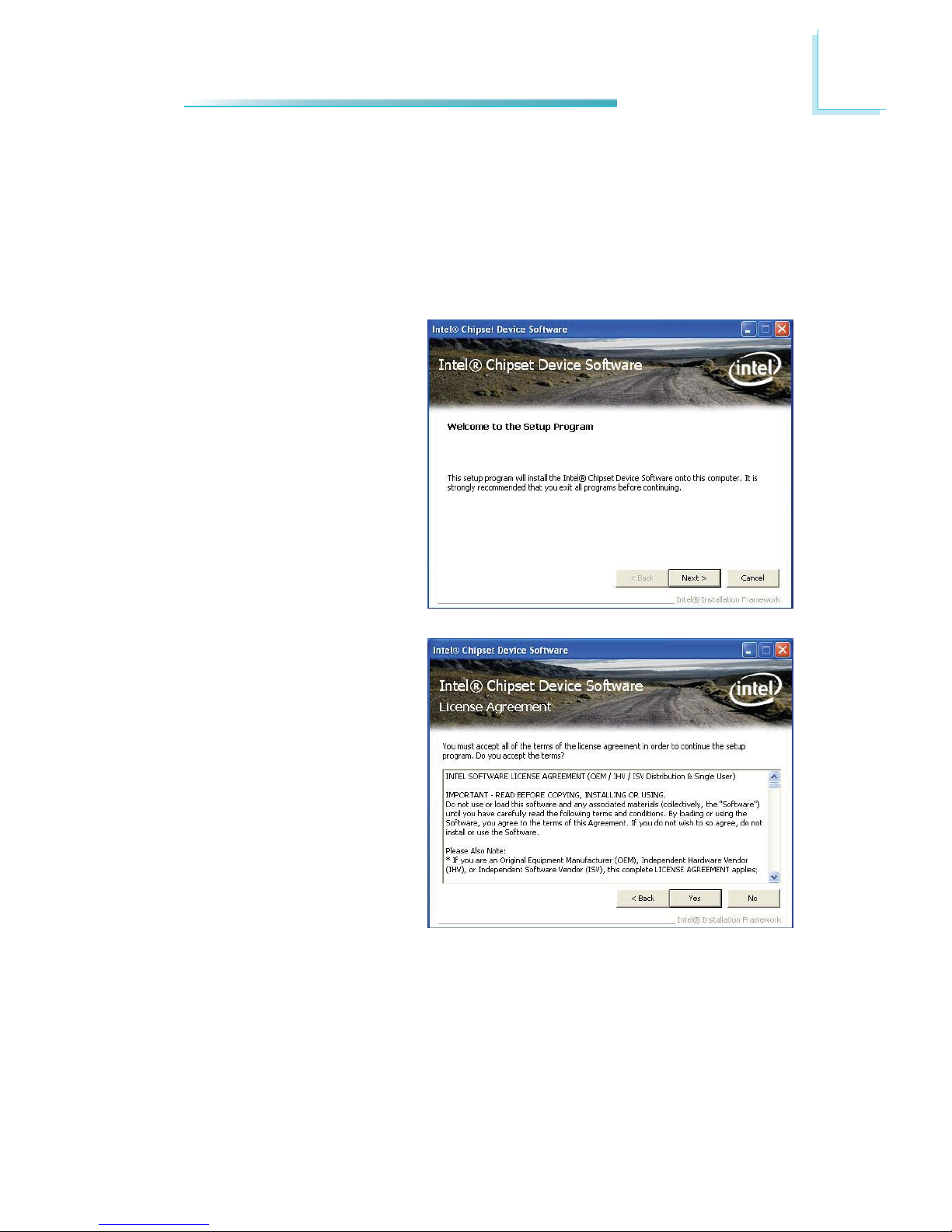

1. Setup is now ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

Page 96

Supported Software

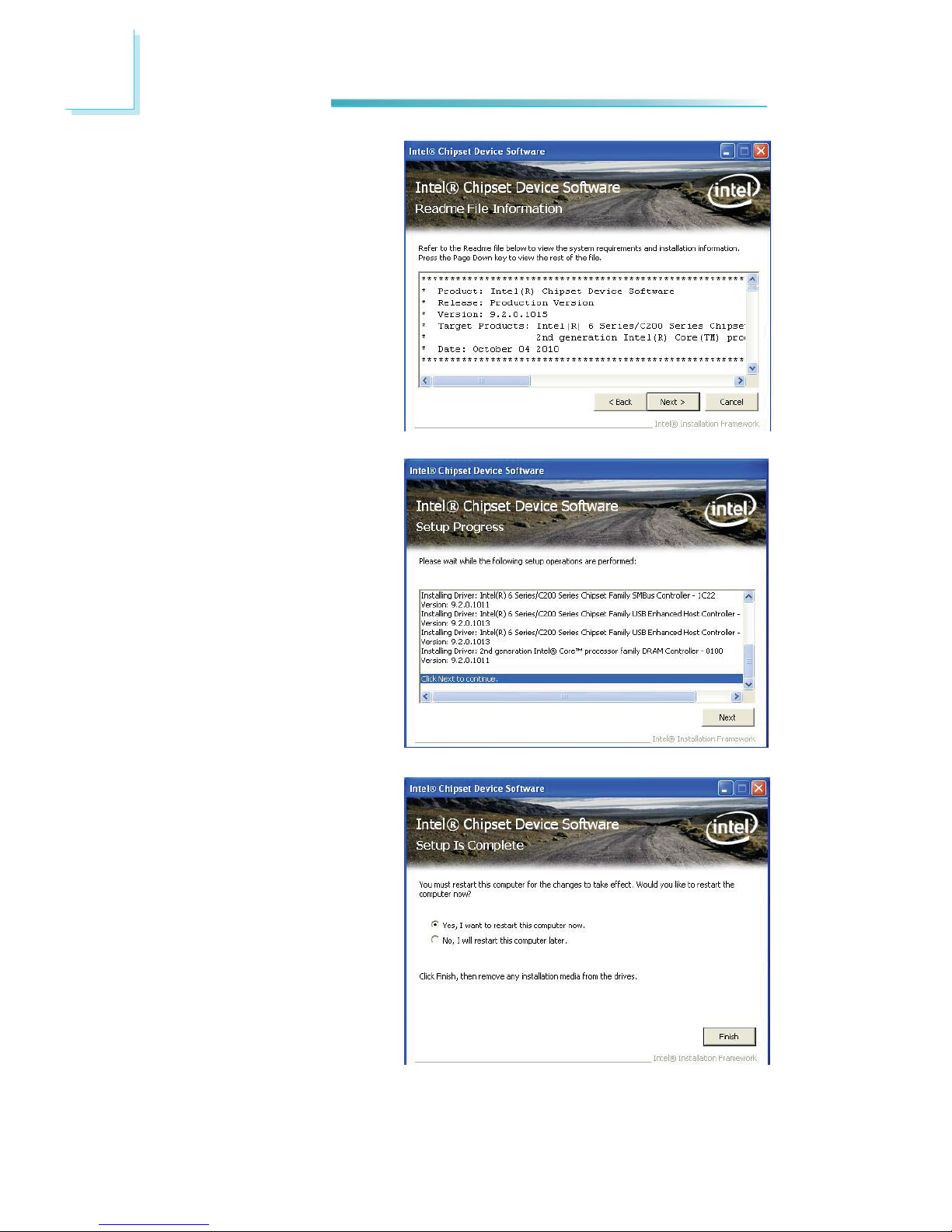

3. Go through the readme document for system requirements and installation tips then click Next.

4. Setup is now installing the driver. Click Next to continue.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Page 97

Supported Software

Intel Graphics Drivers

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows Vista desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that you

skip this process by disabling this function then click Next.

Page 98

Supported Software

3. Go through the readme document for system requirements and installation tips then click Next.

2. Read the license agreement then click Yes.

4. Setup is currently installing the driver. After installation has completed, click Next.

Page 99

Supported Software

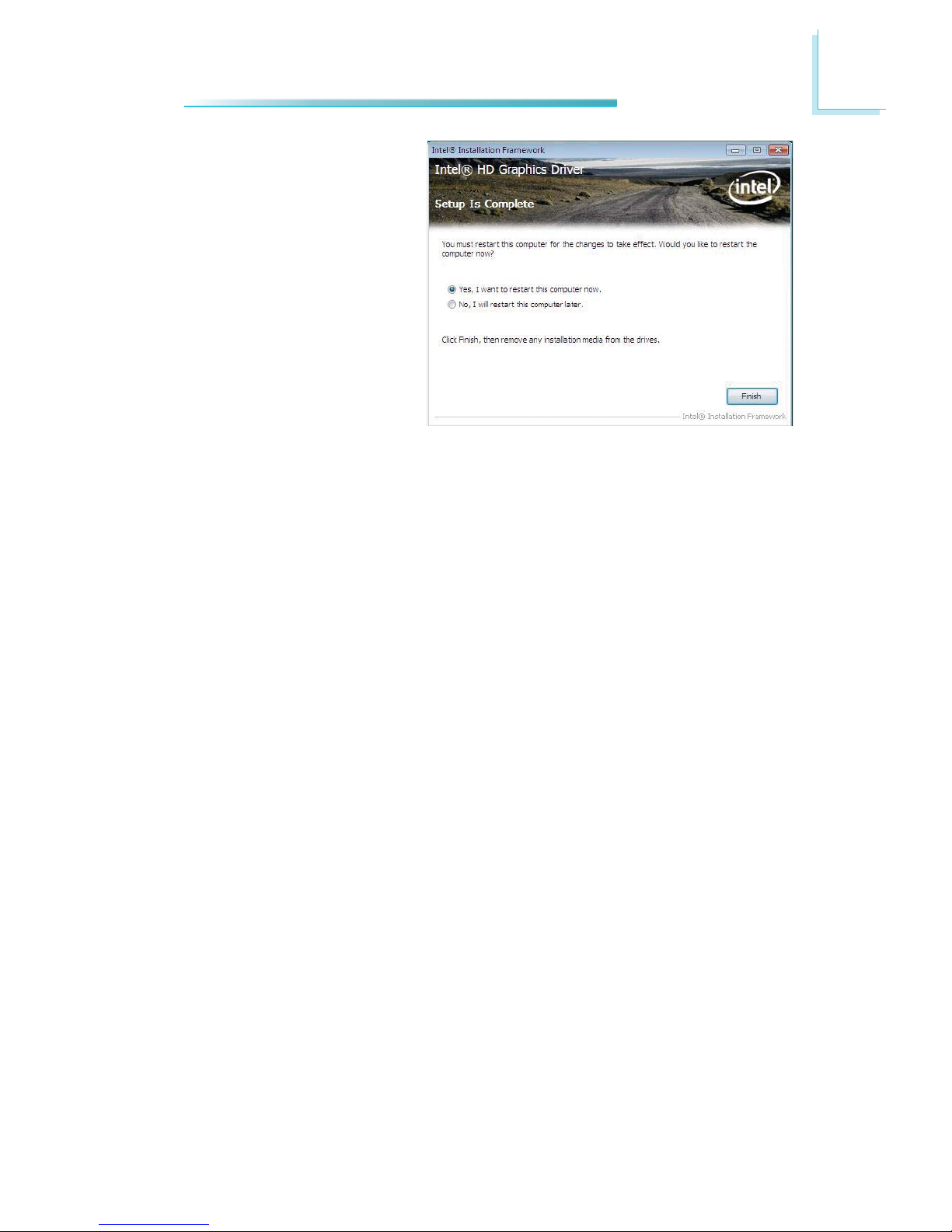

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Page 100

100

Supported Software

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you ﬁ nish a step.

3. Click “Yes, I want to restart my computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.
