DFI SB331-IPM User Manual

Download

Page 1

SB331-IPM

System Board User’s Manual

A18460433

Page 2

This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders.

This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.

Changes after the publication’s first release will be based on the product’s revision. The website will always provide the most updated information.

Trademarks

All trademarks and registered trademarks of products appearing in this manual are the properties of their respective holders.

Page 3

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for help.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables must be used in order to comply with the emission limits.

Page 4

Introduction

Table of Contents

Trademarks ........................................................................................ 2

FCC and DOC Statement on Class B .............................................. 3

About this Manual ............................................................................. 6

Warranty .......................................................................................... 6

Static Electricity Precautions ............................................................. 7

Safety Measures ................................................................................. 7

About the Package ............................................................................ 8

Before Using the System Board ........................................................8

Chapter 1 - Introduction ..................................................................9

Specifications .................................................................................. 9

Features ...................................................................................... 12

Chapter 2 - Hardware Installation .................................................. 15

System Board Layout .................................................................... 15

System Memory ........................................................................... 16

Installing the DIMM Module ....................................................... 18

CPU ............................................................................................ 20

Installing the CPU .................................................................... 21

Jumper Settings ............................................................................. 25

Clear CMOS Data ..................................................................... 25

PS/2 KB/MS Power Select ......................................................... 26

USB Power Select ..................................................................... 27

Power-on Select ....................................................................... 28

COM1/COM2 RS232/RS422/RS485 Select.................................... 29

COM1/COM2 RS232/Power Select............................................... 30

Rear Panel I/O Ports ..................................................................... 31

COM (Serial) Ports ................................................................... 32

HDMI Port ............................................................................... 33

DVI-I Port ............................................................................... 34

RJ45 LAN Ports ........................................................................ 35

USB Ports................................................................................ 36

Audio ...................................................................................... 38

Page 5

Introduction

I/O Connectors ............................................................................ 39

S/PDIF Connector ..................................................................... 39

SATA (Serial ATA) Connectors .................................................... 40

Cooling Fan Connectors ............................................................. 41

Power Connectors .................................................................... 42

Standby Power LED .................................................................. 43

Front Panel Connectors ............................................................. 44

Expansion Slots ....................................................................... 45

Battery ................................................................................... 46

SPI JTAG Connector.................................................................. 47

Digital I/O Connector ................................................................ 48

Chassis Intrusion Connector ...................................................... 50

Chapter 3 - BIOS Setup .................................................................. 51

Overview .............................................................................................................. 51

AMI BIOS Setup Utility ................................................................. 53

Main ....................................................................................... 53

Advanced ................................................................................ 54

Chipset ................................................................................... 67

Boot ....................................................................................... 74

Security .................................................................................. 76

Save & Exit ............................................................................. 77

Updating the BIOS ........................................................................ 78

Chapter 4 - Supported Software ................................................... 79

Chapter 5 - RAID ........................................................................ 103

RAID Levels .......................................................................................................103

Settings ................................................................................................................104

Chapter 6 - Intel AMT Settings ................................................... 109

Overview ............................................................................................................109

Enable Intel® AMT in the AMI BIOS ............................................................110

Enable Intel® AMT in the Intel® Management Engine BIOS

Extension (MEBX) Screen ..............................................................................

112

Appendix A - NLITE and AHCI Installation Guide ....................... 137

Appendix B - Watchdog Sample Code ......................................... 149

Appendix C - System Error Message ............................................ 150

Appendix D - Troubleshooting ...................................................... 152

Page 6

Introduction

About this Manual

An electronic file of this manual is included in the CD. To view the user’s manual in the CD, insert the CD into a CD-ROM drive. The autorun screen (Main Board Utility CD) will appear. Click “User’s Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications.

2. The warranty is void if the product has been subjected to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the product, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work.

4. We will not be liable for any indirect, special, incidental or consequencial damages to the product that has been modified or altered.

Page 7

Introduction

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor, disk drive and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Page 8

Introduction

About the Package

The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance.

 One SB331-IPM motherboard  Two Serial ATA data cables  Two Serial ATA power cables  Two USB cables  One PS2 cables  One I/O shield  One DVD  One QR (Quick Reference)

The system board and accessories in the package may not come similar to the information listed above. This may differ in accordance to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

Optional Items

 USB port cable  Serial ATA data cable  Serial ATA power cable  I/O shield

Before Using the System Board

Before using the system board, prepare basic system components.

If you are installing the system board in a new system, you will need at least the following internal components.

• A CPU

• Memory module

• Storage devices such as hard disk drive, CD-ROM, etc.

You will also need external system peripherals you intend to use which will normally include at least a keyboard, a mouse and a video display monitor.

Page 9

Introduction

Processor

Chipset

System Memory

Expansion Slots

Graphics

Audio

Chapter 1 - Introduction

• LGA 1155 socket for:

- 3rd generation Intel

CoreTM processors (22nm process technology) (Rev. AC0 or later) : Intel

CoreTM i7-3770 (8M Cache, up to 3.9GHz); 77W

: Intel

CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W

: Intel

CoreTM i3-3220 (3M Cache, 3.3GHz); 55W

: Intel

Pentium® G2120 (3M Cache, 3.1 GHz); 65W

- 2nd generation Intel

CoreTM processors (32nm process technology) : Intel

CoreTM i7-2600 (8M Cache, up to 3.8 GHz); 95W

: Intel

CoreTM i5-2400 (6M Cache, up to 3.4 GHz); 95W

: Intel

CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W

: Intel

Pentium® G850 (3M Cache, 2.9 GHz); 65W

• Intel

Advanced Vector Extensions (Intel

AVX) Instructions

• Intel

Turbo Boost Technology

• Intel® Q67 Express Chipset

• Two 240-pin DDR3 DIMM sockets

• Supports DDR3 1333/1600MHz (3rd generation processors) Supports DDR3 1066/1333MHz (2nd generation processors)

• Supports dual channel memory interface

• Supports up to 16GB system memory

• DRAM device technologies: 1Gb, 2GB and 4Gb DDR3 DRAM

technologies are supported for x8 and x16 devices, unbuffered, non-ECC

• 2 PCIe x16 slots

- Supports Gen 3.0 (3rd generation processors)

- Supports Gen 2.0 (2nd generation processors)

- 1 x16 signal and 1 x4 signal

• 2 PCI Express x1 slots (PCIe 2.0)

• Intel

HD Graphics

• Display ports: DVI-I (RGB and TMDS signals)-ASMedia1442 HDMI (TMDS signal)-ASMedia1442

• DVI and HDMI display resolution up to 1920x1200 @60Hz

• Supports 6 Graphics Execution Units (EUs)

• Intel

Clear Video Technology

• DirectX Video Acceleration (DXVA) support for accelerating

video processing

• Realtek ALC262 2-channel High Definition Audio

• DACs with 100dB SNR; two stereo DACs support 24-bit PCM

format for stereo audio playback

• ADCs with 90dB SNR; three stereo ADCs support 20-bit PCM

format for multiple input streaming

• S/PDIF audio interface

Specifications

Page 10

Introduction

LAN

Serial ATA

Intel Active Management Technology (AMT)

TPM (optional)

Rear Panel I/O Ports

I/O Connectors

BIOS

• 1 Intel® W82579LM with iAMT8.0 Gigabit Ethernet Phy (LAN1)

• 2 Intel

W82574 PCI Express Gigabit Ethernet controllers

(LAN2-3)

• Integrated 10/100/1000 transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• 6 Serial ATA ports

- 4 SATA 2.0 ports with data transfer rate up to 3Gb/s

- 2 SATA 3.0 ports with data transfer rate up to 6Gb/s

• Integrated Advanced Host Controller Interface (AHCI) con-

troller

• Supports RAID 0/1/5/10

• Supports iAMT8.0

• Out-of-band system access

• Remote troubleshooting and recovery

• Hardware-based agent presence checking

• Proactive alerting

• Remote hardware and software asset tracking

• Infineon SLB9635

• Provides a Trusted PC for secure transactions

• Provides software license protection, enforcement and password protection

• 2 DB-9 serial ports

- Supports RS232/422/485

- Pins 1 and 9 of RS232 functions as RS232 signal or power

(selectable via jumper)

• 1 DVI-I port

• 1 HDMI port

• 3 RJ45 LAN ports

• 6 USB 2.0/1.1 ports

• 4 connectors for 8 external USB 2.0/1.1 ports

• 1 PS/2 KB/Mouse connector

• 1 36-bit Digital I/O connector

• 1 front audio connector for line-out and mic-in jacks

• 1 S/PDIF connector

• 6 Serial ATA ports

• 1 24-pin ATX power connector

• 1 8-pin 12V power connector

• 1 chassis intrusion connector

• 1 front panel connector

• 2 fan connectors

• AMI BIOS

• 64Mbit SPI BIOS

Page 11

Introduction

Energy Efficient Design

Damage Free Intelligence

Temperature

Humidity

Power Consumption

OS Support

PCB

Certification

• Supports ErP Lot6 power saving (optional)

• Supports ACPI

• System Power Management

• Wake-On-Events include:

- Wake-On-PS/2 KB/Mouse

- Wake-On-USB KB/Mouse

- Wake-On-LAN

- RTC timer to power-on the system

• CPU stopped clock control

• AC power failure recovery

• Monitors CPU/system temperature and overheat alarm

• Monitors VCORE/5V/3.3V/V_DIMM/12V/5VSB voltages and failure alarm

• Monitors CPU/system fan speed and failure alarm

• Read back capability that displays temperature, voltage and fan speed

• Watchdog timer function

• 0

C to 60oC

• 10% to 90%

•

81.87 W with i7-2600 at 3.40GHz and 1x 2GB DDR3 DIMM

• Windows XP Professional x86 & SP3 (32-bit)

• Windows XP Professional x64 & SP2 (64-bit)

• Windows 7 Ultimate x86 & SP1 (32-bit)

• Windows 7 Ultimate x64 & SP1 (64-bit)

• Windows 8 Enterprise x86 (32-bit)

• Windows 8 Enterprise x64 (64-bit)

• microATX form factor

• 244mm (9.6”) x 244mm (9.6”)

• CE, FCC Class B, UL, RoHS

Page 12

Introduction

Features

Watchdog Timer

The Watchdog Timer function allows your application to regularly “clear” the system at the set time interval. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

DDR3

DDR3 delivers increased system bandwidth and improved performance. It offers peak data transfer rate of up to 16Gb/s bandwidth. The advantages of DDR3 are its higher bandwidth and its increase in performance at a lower power than DDR2.

Graphics

The integrated Intel HD graphics for graphics intensive applications delivers exceptional 3D, 2D and video capabilities. It supports HDMI and DVI-I interfaces.

DVI

DVI (Digital Visual Interface) is a form of video interface technology made to maximize the quality of flat panel LCD monitors and modern video graphics cards. Data is transmitted using the TMDS (Transition Minimized Differential Signaling) protocol, providing a digital signal from the PC’s graphics subsystem to the display.

PCI Express

PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds by forming multiple lanes. The PCI Express architecture also provides a high performance graphics infrastructure by enhancing the capability of a x16 PCI Express lane to provide 8 Gigabytes per second transfer rate.

Intel Active Management Technology (AMT)

Intel Active Management Technology (Intel® AMT) allows remote access and management of networked systems even while PCs are powered off, remotely repair systems after OS failures and has the capability to remotely update all systems with the latest security software.

Audio

The Realtek ALC262 audio codec provides 2-channel High Definition audio output.

Serial ATA

Serial ATA is a storage interface that is compliant with SATA 1.0a specification. SATA 3.0 supports speed up to 6Gb/s while SATA 2.0 supports speed up to 3Gb/s. This improves hard drive performance faster than the standard parallel ATA whose data transfer rate is 100MB/s. The board supports RAID 0/1/5/10.

Page 13

Introduction

Gigabit LAN

The Intel® W82579LM PHY and Intel® W82574 PCI Express Gigabit controllers support up to 1Gbps data transmission.

USB

The system board supports USB 2.0 and USB 1.1 ports. USB 1.1 supports 12Mb/ second bandwidth while USB 2.0 supports 480Mb/second bandwidth providing a marked improvement in device transfer speeds between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

Wake-On-LAN

This feature allows the network to remotely wake up a Soft Power Down (SoftOff) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Wake-On-PS/2

This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.

Important:

The 5V_standby power source of your power supply must support ≥720mA.

Wake-On-USB

This function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the 5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the 5V_standby power source of your power supply must support ≥2A.

RTC Timer

The RTC installed on the system board allows your system to automatically power-on on the set date and time.

ACPI STR

The system board is designed to meet the ACPI (Advanced Configuration and

Page 14

Introduction

Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

With the Suspend to RAM function enabled, you can power-off the system at once by pressing the power button or selecting “Standby” when you shut down Windows

without having to go through the sometimes tiresome process of closing files, applications and operating system. This is because the system is capable of storing all programs and data files during the entire operating session into RAM (Random Access Memory) when it powers-off. The operating session will resume exactly where you left off the next time you power-on the system.

Important:

The 5V_standby power source of your power supply must support 720mA.

Power Failure Recovery

When power returns after an AC power failure, you may choose to either poweron the system manually or let the system power-on automatically.

Page 15

Hardware Installation

System Board Layout

Chapter 2 - Hardware Installation

12 1

ATX p o wer

DDR3_2

DDR3_1

Front panel

CPU fan

Intel

W82574L

LGA 1155

PCIE x1

PCIE x16

SPI

2 1

USB 12-13

USB 2-3

SATA 5

SATA 3

SATA 2

SATA 4

System

fan

Battery

Intel

Q67

SATA 0

SATA 1

Realtek ALC262

S/PDIF

Front audio

USB 6-7

USB 4-5

PS/2 KB/MS Power select (J )P7

USB 12-13/6-7 power select (JP8)

USB 4-5/2-3 power select (JP9)

SATA 3.0

SATA 2.0

Clear CMOS

(J )P10

Power-on select ( )JP11

PS/2 KB/MS

DIO

PCIE x16 (x4 signal)

LAN 3 USB 8-9

LAN 2

USB 10-11

LAN 1

USB 0-1

DVI-I

HDMI

COM 2 COM 1

JP2

JP1

6 5

151

JP6

ASMedia

1442

Fintek

F71879F

+12V power

Intel W82579LM

Intel W82574L

COM1 RS232/422/485 select ( )JP5

COM2 RS232/422/485 select ( )JP6

COM1 RS232/Power select ( )JP1

COM2 RS232/Power select ( )JP2

USB 0-1/10-11 power select (JP3)

USB 8-9 power select (JP4)

Chassis intrusion

ASMedia

1442

JP5

1111

Standby Power LED

SPI Flash

BIOS

Page 16

Hardware Installation

System Memory

Important:

Electrostatic discharge (ESD) can damage your system board, processor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis. If a wrist strap is unavailable, establish and maintain contact with the system chassis throughout any procedures requiring ESD protection.

DDR3-1

DDR3-2

Important:

1. When the Standby Power LED lit red, it indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

2. When buying the DDR3, please consider the thickness of the memory to avoid problems with the ATX power connector at the moment of their installation.

Features

• DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM technologies are

supported for x8 and x16 devices, unbuffered, non-ECC

• Dual channel memory interface

• Maximum of 16GB system memory

Page 17

Hardware Installation

DIMMs are on the same channel.

DIMMs in a channel can be identical or completely different. However, we highly recommend using identical DIMMs.

Not all slots need to be populated.

DIMMs of the same memory conﬁ guration are on different channels.

Single Channel

Dual Channel

The system board supports the following memory interface.

Single Channel (SC)

Data will be accessed in chunks of 64 bits (8B) from the memory channels.

Dual Channel (DC)

Data will be accessed in chunks of 128 bits from the memory channels. Dual channel provides better system performance because it doubles the data transfer rate.

Important:

1. You can populate either Channel A or Channel B ﬁ rst.

2. When installing a DIMM in Channel A or Channel B, always populate the socket that is farthest the CPU. In this case, it will mean populating DDR3-2 and/or DDR3-4 ﬁ rst.

3. If you intend to use dual channel, the same rule applies - always the socket farthest the CPU. Populate DDR3-2 and/or DDR3-4 ﬁ rst; not DDR3-2 and DDR3-3 and not DDR3-1 and DDR3-4.

Page 18

Hardware Installation

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Installing the DIMM Module

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the DIMM socket on the system board.

4. Push the “ejector tabs” which are at the ends of the socket to the side.

Ejector tab

5. Note how the module is keyed to the socket.

Key

Notch

Page 19

Hardware Installation

7. Seat the module vertically, pressing it down ﬁ rmly until it is completely seat- ed in the socket.

6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way.

8. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Page 20

Hardware Installation

CPU

The system board is equipped with a surface mount LGA 1155 socket. This socket is exclusively designed for installing a LGA 1155 packaged Intel CPU.

Important:

1. Before you proceed, make sure (1) the LGA 1155 socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent. If the cap is missing or the cap and/or contact pins are damaged, contact your dealer immediately.

2. Make sure to keep the protective cap. RMA requests will be accepted and processed only if the LGA 1155 socket comes with the protective cap.

Protective cap

Note:

The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only.

Page 21

Hardware Installation

Installing the CPU

1. Make sure the PC and all other peripheral devices connected to it has been powered down.

2. Disconnect all power cords and cables.

3. Locate the LGA 1155 CPU socket on the system board.

Important:

The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

4. Unlock the socket by pushing the load lever down, moving it sideways until it is released from the retention tab; then lift the load lever up.

Retention tab

Load lever

Page 22

Hardware Installation

6. Remove the protective cap from the CPU socket. The cap is used to protect the CPU socket against dust and harmful particles. Remove the protective cap only when you are about to install the CPU.

Load lever

Load

plate

5. Lifting the load lever will at the same time lift the load plate.

Lift the load lever up to

the angle shown on the photo.

Protective cap

Page 23

Hardware Installation

7. Insert the CPU into the socket. The gold triangular mark on the CPU must align with the corner of the CPU socket shown on the photo.

The CPU’s notch will at

the same time ﬁ t into the socket’s alignment key.

Important:

The CPU will ﬁ t in only one orientation and can easily be inserted without exerting any force.

Alignment key

Gold triangular mark

Page 24

Hardware Installation

8. Close the load plate then push the load lever down.

While closing the load

plate, make sure the front edge of the load plate slides under the retention knob.

Retention knob

9. Hook the load lever under the retention tab.

Load lever

Retention tab

Page 25

Hardware Installation

Jumper Settings

Clear CMOS Data

If you encounter the following,

a) CMOS data becomes corrupted. b) You forgot the supervisor or user password.

you can reconﬁ gure the system with the default values stored in the ROM BIOS.

To load the default values stored in the ROM BIOS, please follow the steps below.

1. Power-off the system and unplug the power cord.

2. Set JP10 pins 2 and 3 to On. Wait for a few seconds and set JP10 back to its default setting, pins 1 and 2 On.

3. Now plug the power cord and power-on the system.

JP7

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

312

JP10

Page 26

Hardware Installation

JP7 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

PS/2 KB/MS Power Select

JP7

2-3 On:

+5V_standby

1-2 On: +5V

(default)

Important:

The +5VSB power source of your power supply must support ≥720mA.

Page 27

Hardware Installation

These jumpers are used to select the power of the USB ports. Selecting +5V_standby will allow you to use a USB device to wake up the system.

Important:

If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the +5V_standby power source of your power supply must support ≥1.5A. For 3 or more USB ports, the +5V_standby power source of your power supply must support ≥2A.

USB Power Select

USB 0-1/10-11 (JP3)

2-3 On:

+5V_standby

1-2 On: +5V

(default)

USB 12-13/6-7 (JP8)

2-3 On:

+5V_standby

1-2 On: +5V

(default)

USB 4-5/2-3 (JP9)

312

USB 8-9 (JP4)

Page 28

Hardware Installation

Power-on Select

To power-on via WOL after G3:

1. Set JP11 pins 2 and 3 to On.

2. Set the “After G3” ﬁ eld to Power Off/WOL.

3. Set the “GbE Wake Up From S5” to Enabled.

The BIOS ﬁ elds are in the “South Bridge Conﬁ guration” submenu (Chipset menu) of the AMI BIOS utility.

To power-on via AC Power:

1. Set JP11 pins 2 and 3 to On.

2. Set the “After G3” ﬁ eld to Power On.

1-2 On: Power-on via power button (default)

2-3 On: Power-on via AC power; or Power-on via WOL after G3

JP11

312

Page 29

Hardware Installation

COM1/COM2 RS232/RS422/RS485 Select

1-2 On: RS232

(default)

3-4 On: RS422

Full Duplex

5-6 On: RS485

531

JP5 (for COM1) and JP6 (for COM2) are used to conﬁ gure the COM ports to RS232, RS422 (Full Duplex) or RS485.

The pin function of the COM ports will vary according to the jumper’s setting.

JP5 / JP6

531531

COM 1

COM 2

JP5 JP6

RS232 RS422

Full Duplex

RS485

COM 1 / COM 2

DCD-TDRD

DTR-

GND

12345

RTS-

RI-

DSR-

CTS-

6789

DATA+

N.C.

DATA-

N.C.

12345

N.C.

6789

RXD+

TXD+

RXD-

TXD-

N.C.

12345

N.C.

6789

Page 30

Hardware Installation

COM1/COM2 RS232/Power Select

JP1

JP2

1-3 (RI), 2-4 (DCD) On: RS232 (default)

3-5 (+5V), 4-6 (+12V) On: RS232 with power

JP1 and JP2 are used to conﬁ gure COM 1 and COM 2 to pure RS232 or RS232 with power.

The pin function of COM 1 and COM 2 will vary according to JP1’s and JP2’s setting respectively.

JP1 / JP2

531

Page 31

Hardware Installation

Rear Panel I/O Ports

The rear panel I/O ports consist of the following:

• 2 COM ports

• HDMI port

• DVI-I port

• 3 LAN ports

• 6 USB ports

COM 1 USB 10-11USB 0-1

HDMI

LAN1

COM 2

DVI-I

LAN3

LAN2

USB 8-9

Page 32

Hardware Installation

COM 2

COM (Serial) Ports

COM 1

COM 1 to COM 2 are ﬁ xed at RS232.

The pin function of COM 1 and COM 2 ports will vary according to JP5/JP6’s setting. Refer to “COM1/COM2 RS232/RS422/RS485 Select” in this chapter for more information.

The serial ports are asynchronous communication ports with 16C550A-compatible UARTs that can be used with modems, serial printers, remote display terminals, and other serial devices.

Connecting External Serial Ports

Your COM port may come mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then insert the serial port cable to the COM connector. Make sure the colored stripe on the ribbon cable is aligned with pin 1 of the COM connector.

BIOS Setting

Conﬁ gure the serial ports in the Advanced menu (“Super IO Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

COM 1 and COM 2:

RS232/422/485

Page 33

Hardware Installation

HDMI Port

HDMI

The HDMI port which carries both digital audio and video signals is used to connect a LCD monitor or digital TV that has the HDMI port.

Page 34

Hardware Installation

DVI-I

DVI-I Port

The DVI-I port is used to connect an LCD monitor.

Connect the display device’s cable connector to the DVI-I port. After you plug the cable connector into the port, gently tighten the cable screws to hold the connector in place.

BIOS Setting

Conﬁ gure the display device in the Chipset menu (“North Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Page 35

Hardware Installation

RJ45 LAN Ports

The LAN ports allow the system board to connect to a local area network by means of a network hub.

BIOS Setting

Conﬁ gure the onboard LAN in the Chipset menu (“South Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

Install the LAN drivers. Refer to chapter 4 for more information.

Features

• Intel W82579LM with iAMT7.0 Gigabit Ethernet Phy

• Intel W82574 PCI Express Gigabit Ethernet controller

LAN Ports

Page 36

Hardware Installation

USB Ports

USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals.

The system board is equipped with four onboard USB 2.0/1.1 ports. The four 10-pin connectors allow you to connect 8 additional USB 2.0/1.1 ports. The additional USB ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and then insert the USB port cables to a connector.

BIOS Setting

Conﬁ gure the onboard USB in the Advanced menu (“USB Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

Driver Installation

You may need to install the proper drivers in your operating system to use the USB device. Refer to your operating system’s manual or documentation for more information.

USB 0-1

USB 10-11

USB 8-9

USB 12-13

USB 6-7

USB 4-5

USB 2-3

Page 37

Hardware Installation

Wake-On-USB Keyboard/Mouse

The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:

• Jumper Setting

JP3, JP4, JP8 and/or JP9 must be set to “2-3 On: +5V_standby”. Refer to

“USB Power Select” in this chapter for more information.

Important:

Page 38

Hardware Installation

Audio

Mic2-L

Line2-R

Front_IO_Sense

GND

N.C.

Key

Mic2-JD

Line2-JD

Mic2-R

Line2-L

Front Audio

The front audio connector allows you to connect to the second line-out and micin jacks that are at the front panel of your system.

BIOS Setting

Conﬁ gure the onboard audio in the Chipset menu (“South Bridge Conﬁ guration” submenu) of the BIOS. Refer to chapter 7 for more information.

Driver Installation

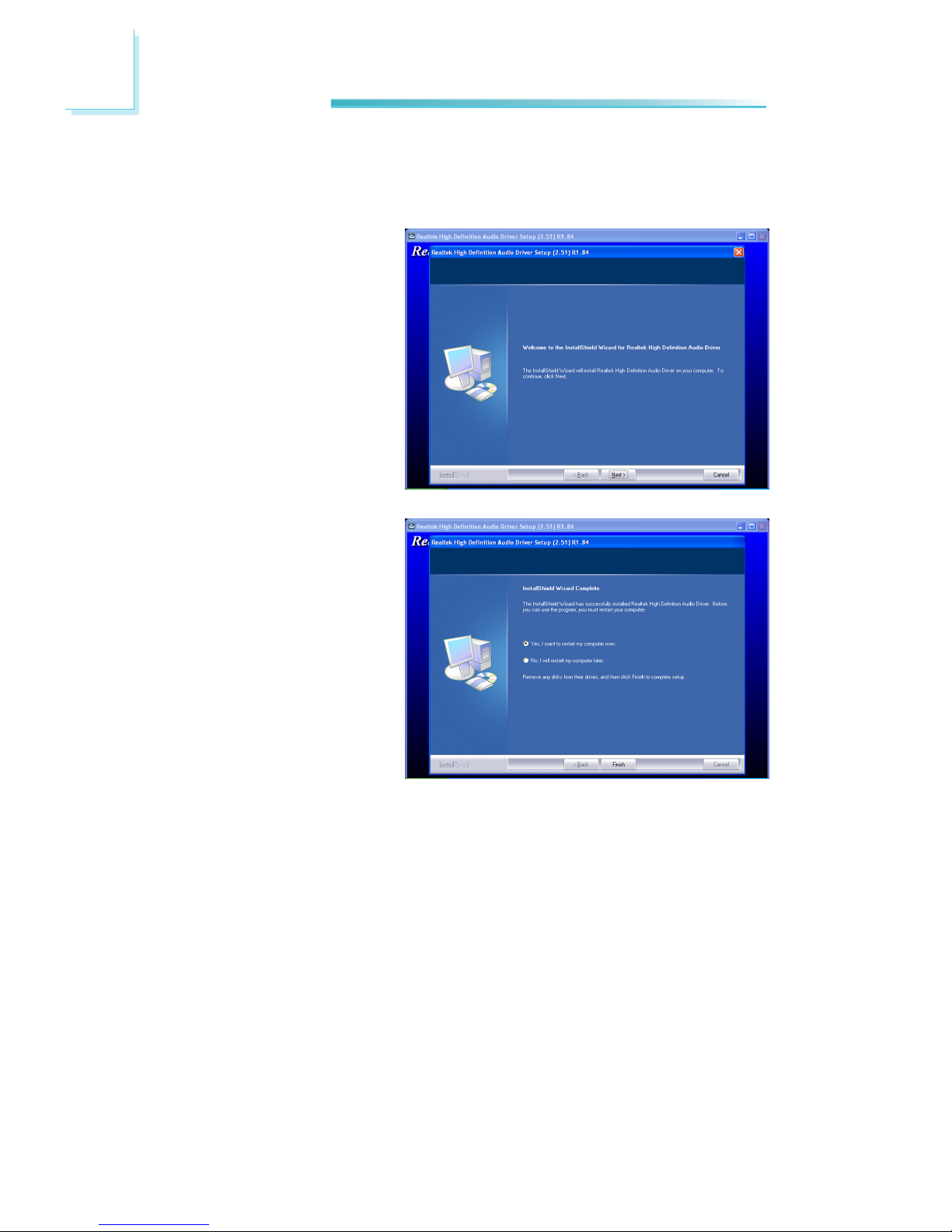

Install the audio driver. Refer to chapter 8 for more information.

Page 39

Hardware Installation

I/O Connectors

S/PDIF Connector

The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be mounted on a card-edge bracket. Install the card-edge bracket to an available slot at the rear of the system chassis then connect the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is aligned with pin 1 of the S/PDIF connector.

+5V

Key

SPDIF out

Ground

SPDIF in

Page 40

Hardware Installation

The Serial ATA connectors are used to connect Serial ATA devices. Connect one end of the Serial ATA cable to a SATA connector and the other end to your Serial ATA device.

BIOS Setting

Conﬁ gure the Serial ATA drives in the Advanced menu (“IDE Conﬁ guration” sub- menu) of the BIOS. Refer to chapter 3 for more information.

SATA (Serial ATA) Connectors

RXN

GND

TXP

TXN

GND

RXP

GND

SATA 4 SATA 3

SATA 5 SATA 2

SATA 2.0 3Gb/s

Features

• SATA 0 and SATA 1 support data transfer rate up to 6Gb/s

• SATA 2 to SATA 5 support data transfer rate up to 3Gb/s

SATA 4 provides adequate space for SATA DOM

• Integrated Advanced Host Controller Interface (AHCI) controller

• Supports RAID 0, RAID 1, RAID 5 and RAID 10

SATA 1

SATA 0

SATA 3.0 6Gb/s

Page 41

Hardware Installation

Cooling Fan Connectors

The fan connectors are used to connect cooling fans. The cooling fans will provide adequate airﬂ ow throughout the chassis to prevent overheating the CPU and sys- tem board components.

BIOS Setting

The Advanced menu (“Hardware Health Conﬁ guration” submenu) of the BIOS will display the current speed of the cooling fans. Refer to chapter 3 for more information.

System fan

CPU fan

Sense

Power

Ground

Sense Power

Ground

Speed

Control

Page 42

Hardware Installation

Power Connectors

Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into the 24-pin connector. The 8-pin +12V power connector enables the delivery of more +12VDC current to the processor’s Voltage Regulator Module (VRM).

The power connectors from the power supply unit are designed to ﬁ t the 24-pin and 8-pin connectors in only one orientation. Make sure to ﬁ nd the proper orien- tation before plugging the connectors.

The system board requires a minimum of 300 Watt power supply to operate. Your system conﬁ guration (CPU power, amount of memory, add-in cards, peripherals, etc.) may exceed the minimum power requirement. To ensure that adequate power is provided, we strongly recommend that you use a minimum of 400 Watt (or greater) power supply.

Important:

Insufﬁ cient power supplied to the system may result in instability or the add-in boards and peripherals not functioning properly. Calculating the system’s approximate power usage is important to ensure that the power supply meets the system’s consumption requirements.

Ground

ATX power

12V power

12V

+3.3VDC

-12VDC

GND

PS_ON#

GND

+5VDC

GND

+3.3VDC

GND

+5VDC

GND

+5VDC

GND

PWR_OK

+5VSB

+12VDC

+3.3VDC

Page 43

Hardware Installation

This LED will lit red when the system is in the standby mode. It indicates that there is power on the system board. Power-off the PC then unplug the power cord prior to installing any devices. Failure to do so will cause severe damage to the motherboard and components.

Standby Power LED

Page 44

Hardware Installation

Front Panel Connectors

HDD-LED - HDD LED

This LED will light when the hard drive is being accessed.

RESET SW - Reset Switch

This switch allows you to reboot without having to power off the system.

PWR-BTN - Power Switch

This switch is used to power on or off the system.

PWR-LED - Power/Standby LED

When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) state, it will blink every second. When the system is in the S3 (STR - Suspend To RAM) state, it will blink every 4 seconds.

HDD-LED

RESET-SW

PWR-LED

PWR-BTN

Pin Pin Assignment Pin Pin Assignment

HDD-LED

3 HDD Power PWR-LED 2 LED Power

5 Signal 4 LED Power

RESET SW 7 Ground 6 Signal

9 RST Signal

PWR-BTN 8 Ground

11 N.C. 10 Signal

Page 45

Hardware Installation

Expansion Slots

PCI Express x16 Slot

Install PCI Express x16 graphics card, that comply to the PCI Express speciﬁ ca- tions, into the PCI Express x16 slot. To install a graphics card into the x16 slot, align the graphics card above the slot then press it down ﬁ rmly until it is com- pletely seated in the slot. The retaining clip of the slot will automatically hold the graphics card in place.

PCI Express x1 Slot

Install PCI Express cards such as network cards or other cards that comply to the PCI Express speciﬁ cations into the PCI Express x1 slot.

PCI Express x1

PCI Express x16

PCI Express x1

PCI Express x16

(x4 signal)

Page 46

Hardware Installation

The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source of power when the main power is shut off.

Safety Measures

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend by the manufacturer.

• Dispose of used batteries according to local ordinance.

Battery

Page 47

Hardware Installation

SPI JTAG Connector

Pin Pin Assignment Pin Pin Assignment

1 3V_standby 2 Ground

3 CS 4 CK

5SO 6SI

7 HOLOD- 8

Page 48

Hardware Installation

Digital I/O Connector

The 36-bit Digital I/O connector provides powering-on function to external devices that are connected to these connectors.

143

Page 49

Hardware Installation

Pin Pin Assignment Pin Pin Assignment

1 PCA_GPIO0 2 PCA_GPIO22

3 PCA_GPIO1 4 PCA_GPIO23

5 PCA_GPIO2 6 PCA_GPIO24

7 PCA_GPIO3 8 PCA_GPIO25

9 PCA_GPIO4 10 PCA_GPIO26

11 PCA_GPIO5 12 PCA_GPIO27

13 PCA_GPIO6 14 PCA_GPIO28

15 PCA_GPIO7 16 PCA_GPIO29

17 PCA_GPIO8 18 PCA_GPIO30

19 PCA_GPIO9 20 PCA_GPIO31

21 PCA_GPIO10 22 PCA_GPIO32

23 PCA_GPIO11 24 PCA_GPIO33

25 PCA_GPIO12 26 PCA_GPIO34

27 PCA_GPIO13 28 PCA_GPIO35

29 PCA_GPIO14 30 N.C.

31 PCA_GPIO15 32 PCA_INT-

33 PCA_GPIO16 34 PCA_OE-

35 PCA_GPIO17 36 +12V

37 PCA_GPIO18 38 5VDU

39 PCA_GPIO19 40 5V

41 PCA_GPIO20 42 Ground

43 PCA_GPIO21 44 Ground

Page 50

Hardware Installation

Chassis Intrusion Connector

The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector. When the system’s power is on and a chassis intrusion occurred, an alarm will sound. When the system’s power is off and a chassis intrusion occurred, the alarm will sound only when the system restarts.

MyGuard Hardware Monitor

Install the “MyGuard Hardware Monitor” utility. By default, the chassis intrusion detection function is disabled. When enabled, a warning message will appear when the chassis is open. The utility can also be conﬁ gured so that a beeping alarm will sound when the chassis is open. Refer to the “MyGuard Hardware Monitor” section in chapter 4 for more information.

Chassis

signal

Ground

Page 51

BIOS Setup

Chapter 3 - BIOS Setup

Overview

The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to conﬁ gure the system and save the conﬁ guration in a battery-backed CMOS so that the data retains even when the power is off. In general, the information stored in the CMOS RAM of the EEPROM will stay unchanged unless a conﬁ guration change has been made such as a hard drive replaced or a device added.

It is possible that the CMOS battery will fail causing CMOS data loss. If this happens, you need to install a new CMOS battery and reconﬁ gure the BIOS settings.

Note:

The BIOS is constantly updated to improve the performance of the system board; therefore the BIOS screens in this chapter may not appear the same as the actual one. These screens are for reference purpose only.

Default Configuration

Most of the conﬁ guration settings are either predeﬁ ned according to the Load Op- timal Defaults settings which are stored in the BIOS or are automatically detected and conﬁ gured without requiring any actions. There are a few settings that you may need to change depending on your system conﬁ guration.

Entering the BIOS Setup Utility

The BIOS Setup Utility can only be operated from the keyboard and all commands are keyboard commands. The commands are available at the right side of each setup screen.

The BIOS Setup Utility does not require an operating system to run. After you power up the system, the BIOS message appears on the screen and the memory count begins. After the memory test, the message “Press DEL to run setup” will appear on the screen. If the message disappears before you respond, restart the system or press the “Reset” button. You may also restart the system by pressing the <Ctrl> <Alt> and <Del> keys simultaneously.

Page 52

BIOS Setup

Legends

Keys

Right and Left arrows

Up and Down arrows

<Esc> + (plus key)

- (minus key)

Tab <F1> <F4> <Enter>

Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or ﬁ elds.

Exits to the BIOS Setup Utility. Scrolls forward through the values

or options of the highlighted ﬁ eld. Scrolls backward through the values

or options of the highlighted ﬁ eld. Selects a ﬁ eld. Displays General Help. Saves and exits the Setup program. Press <Enter> to enter the high-

lighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available ﬁ elds not shown on the screen. Use the up and down arrow keys to scroll through all the available ﬁ elds.

Submenu

When ““ appears on the left of a particular ﬁ eld, it indicates that a submenu which contains additional options are available for that ﬁ eld. To display the sub- menu, move the highlight to that ﬁ eld and press <Enter>.

Page 53

BIOS Setup

Main

The Main menu is the ﬁ rst screen that you will see when you enter the BIOS Setup Utility.

System Language

Choose the system default language.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Choose the system default language.

Save & ExitChipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information BIOS Vendor Core Version Compliency Project Version Build Date and Time

System Language

System Date System Time

Access Level

American Megatrends

4.6.5.3 UEFI 2.3; PI 1.2 1APTC 0.20 x64 09/12/2012 12:49:53

[English]

[Tue 09/18/2012] [14:13:22]

Administrator

Advanced

Boot Security

Main

AMI BIOS Setup Utility

Page 54

BIOS Setup

Advanced

The Advanced menu allows you to conﬁ gure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Important:

Setting incorrect ﬁ eld values may cause the system to malfunction.

ACPI Power Management Conﬁ guration.



ACPI Power Management Conﬁ guration



PC Health Status



Trusted Computing



CPU Conﬁ guration



SATA Conﬁ guration



Intel TXT(LT) Conﬁ guration



AMT Conﬁ guration



USB Conﬁ guration



F71879 Super IO Conﬁ guration



Network Stack

Save & ExitChipset Boot Security

Main

Advanced

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 55

BIOS Setup

ACPI Power Management Conﬁ guration

This section is used to conﬁ gure the ACPI Power Management.

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

ACPI Power Management Conﬁ guration

ACPI Sleep State

Resume by PME Resume by Ring Resume by RTC Alarm

Advanced

[S1 (CPU Stop Clock) ]

[Disabled] [Disabled] [Disabled]

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

Resume by PME

Enable this ﬁ eld to use the PME signal to wake up the system.

Resume by Ring

Set this ﬁ eld to Enabled to use the modem ring-on function. This will allow your system to power-on to respond to calls coming through an external or internal modem.

Resume by RTC Alarm

When Enabled, the system uses the RTC to generate a wakeup event.

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 56

BIOS Setup

PC Health Status

This section displays the SIO hardware health monitor.

CPU Smart Fan Control

Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5 System Smart Fan(1) Control Boundary 1 Boundary 2 Boundary 3 Boundary 4 Speed Count 1 Speed Count 2 Speed Count 3 Speed Count 4 Speed Count 5

Advanced

[Automatic]

60 50 40 30 100 75 50 40 30 [Automatic] 60 50 40 30 100 75 50 40 30

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Function

CPU Smart Fan Control

When this feature is set to Automatic, the CPU’s fan speed will rotate according to the CPU’s temperature. The higher the temperature, the faster the speed of rotation.

Enable CPU SmartFan

System Hardware Monitor



Smart Fan Function

Case Open Beep CPU Temperature

System Temperature CPU FAN Speed System FAN Speed Vcore +5.0V +12V VDIMM +3.3V VS5V

Advanced

[Disabled]

: +47 C : +25 C : 3562 RPM : N/A : +1.144 V : +5.072 V : +11.968 V : +1.520 V : +3.352 V : +4.992V

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Smart Fan Function

Page 57

BIOS Setup

Boundary 1 to Boundary 4

The range is from 0-127.

Speed Count 1 to Speed Count 5

The range is from 1-100.

Case Open Beep

Set this ﬁ eld to Enabled to allow the system to alert you of a chassis intru- sion event.

Trusted Computing (optional)

This section conﬁ gures settings relevant to Trusted Computing innovations.

Conﬁ guration

Security Device Support

Current Status Information No Security Device Found

Advanced

TPM Support

Enables or Disables TPM. O.S. will not show TPM. Resetting the platform is required.

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

Page 58

BIOS Setup

CPU Conﬁ guration

This section is used to conﬁ gure the CPU. It will also display the detected CPU information.

CPU Conﬁ guration Intel (R) Core (TM) i3-2120S CPU @ 3.30GHz

CPU Signature Microcode Patch Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

Hyper-threading

Active Processor Cores Intel Virtualization Technology

Advanced

206a7 26 3300 MHz 1600 MHz 3300 MHz 2 Supported Supported Not Supported Supported

32 kB x 2 32 kB x 2 256 kB x 2 3072 kB

[Enabled]

[All] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable for Windows XP and Lunix (OS optimized for hyper-threading technology) and disabled for other OS (OS not optimized for HyperThreading Technology). When disabled only one thread per enabled core is enabled.

Active Processor Cores

Number of cores to enable in each processor package.

Intel Virtualization Technology

When this ﬁ eld is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Page 59

BIOS Setup

SATA Conﬁ guration

This section is used to conﬁ gure SATA functions.

Enable or disable SATA device.

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve Serial ATA Port 2 Software Preserve Serial ATA Port 3 Software Preserve Serial ATA Port 4 Software Preserve Serial ATA Port 5 Software Preserve

Advanced

[Enabled]

[IDE]

Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode

IDE Mode

This option conﬁ gures the Serial ATA drives as Parallel ATA storage devices.

AHCI Mode

This option allows the Serial ATA devices to use AHCI (Advanced Host Controller Interface).

RAID Mode

This option allows you to create RAID or Intel Matrix Storage conﬁ guration on Serial ATA devices.

SATA Mode Selection

Determines how SATA controller(s) operate.

Page 60

BIOS Setup

If AHCI or RAID is selected in the SATA Mode ﬁ eld, it will display the following information:

Determines how SATA controller(s) operate.

SATA Controller(s)

SATA Mode Selection

Aggressive LPM Support SATA Controller Speed

Serial ATA Port 0 Software preserve Port 0

Hot Plug External SATA SATA device type Spin up device

Serial ATA Port 1 Software preserve Port 1

Hot Plug External SATA SATA device type Spin up device

Serial ATA Port 2 Software preserve Port 2

Hot Plug External SATA Spin up device

Serial ATA Port 3 Software preserve Port 3

Hot Plug External SATA Spin up device

Serial ATA Port 4 Software preserve Port 4

Hot Plug External SATA Spin up device

Serial ATA Port 5 Software preserve Port 5

Hot Plug External SATA Spin up device

Advanced

[Enabled]

[AHCI]

[Enabled] [Gen3]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Driver] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit



Aggressive LPM Support

Enable PCH to aggressively enter link power state.

SATA Controller Speed

Indicates the maximum speed the SATA controller can support.

Serial ATA Port 0 to Serial ATA Port 5

These ﬁ elds are used to conﬁ gure the connected SATA devices.

Page 61

BIOS Setup

Intel TXT (LT) Conﬁ guration

This section is used to conﬁ gure the Intel Trusted Execution technology.

Intel TXT(LT) Support

The options are Enabled and Disabled.

Intel Trusted Execution Technology Conﬁ guration Intel TXT support only can be enabled/disabled if SMX

is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extension (SMX) Intel TXT(LT) Support

Advanced

Disabled [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 62

BIOS Setup

MEBx Selection Screen

OEMFLag Bit 2: enable or disable MEBx selection screen.

Un-conﬁ gure ME

OEMFLag Bit 15: Un-conﬁ gure ME without password.

AMT Conﬁ guration

This section is used to conﬁ gure the AMT function.

Enable or disable Intel (R) Active Management Technology. Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires additional ﬁ rmware in the SPI device.

Intel AMT

MEBx Selection Screen Un-conﬁ gure ME

Advanced

[Enabled]

[Disabled] [Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 63

BIOS Setup

USB Conﬁ guration

This section is used to conﬁ gure USB.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

USB Conﬁ guration USB Devices:

1 Keyboard, 2 Hubs

Legacy USB Support

EHCI Hand-off

Advanced

[Enabled]

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled

Enables legacy USB.

Auto

Disables support for legacy when no USB devices are connected.

Disabled

Keeps USB devices available only for EFI applications.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

Page 64

BIOS Setup

F71879 Super IO Conﬁ guration

This section is used to conﬁ gure the I/O functions supported by the onboard Super I/O chip.

Restore AC Power Loss

Off

When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

When power returns after an AC power failure, the system will automatically power-on.

Last State

When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

WatchDog Timer

This ﬁ eld is used to select the time interval of the Watchdog timer. If the system hangs or fails to function, it will reset at the set time interval so that your system will continue to operate.

Restore AC Power Loss help.

F71879 Super IO Conﬁ guration F71879 Super IO Chip

 

Restore AC Power Loss

WatchDog Timer

Super IO WatchDog Timer



Serial Port 1 Conﬁ guration



Serial Port 2 Conﬁ guration

Advanced

F71879

[Power Off]

[Disabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 65

BIOS Setup

Serial Port 1 Conﬁ guration to Serial Port 2 Conﬁ guration

Serial Port

Enables or disables the serial port.

Change Settings

Selects the IO/IRQ setting of the I/O device.

Enable or Disable Serial Port (COM)

Serial Port 1 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Serial Port (COM)

Serial Port 2 Conﬁ guration

Serial Port

Device Settings

Change Settings

Advanced

[Enabled]

IO=2F8h; IRQ=3;

[Auto]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 66

BIOS Setup

Network Stack

This section conﬁ gures settings relevant to the network stack Conﬁ guration.

Enable or disable UEFI network stack.

Network Stack

Advanced

[Enabled]

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults ESC: Exit

Page 67

BIOS Setup

Chipset

Conﬁ gures relevant chipset functions.



South Bridge



North Bridge



ME Subsystem

Save & Exit

Advanced

Boot Security

Main

Chipset

South Bridge Parameters

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 68

BIOS Setup

South Bridge

PCI Express Conﬁ guration Settings.

Intel PCH RC Version Intel PCH SKU name Intel PCH Rev ID



PCI Express Conﬁ guration



USB Conﬁ guration

PCH 82579 LAN Controller Wake on LAN

High Precision Event Timer Conﬁ guration

High Precision Timer After G3

1.5.0.0 Q67 05/B3

[Enabled] [Enabled]

[Enabled] [Power on]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH 82579 LAN Controller

Enables or disables LAN.

Wake on Lan

Enabled or disable intergrated LAN to wake the system. (The Wake On LAN cannot be disabled if ME is on at Sx state.)

High Precision Timer

Enables or disables the high precision event timer.

After G3

Power Off / WOL

Power-on the system via WOL after G3.

Power On

Power-on the system after G3.

Page 69

BIOS Setup

PCIE 1,2,4 Slot Setting

PCIE slot setting.

PCI Express Ports Conﬁ guration

Enable or disable LAN.

PCI Express Conﬁ guration

Onboard 82574 LAN2/LAN3 Controller [Enabled]

PCIE 1 Slot Setting [Gen 1]



PCIE 2 Slot Setting [Gen 1]

PCIE 4 Slot Setting [Gen 1]



Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 70

BIOS Setup

EHCI Controller 1 and EHCI Controller 2

These ﬁ elds are used to enable or disable Enhanced Host Controller Interface (USB 2.0).

USB Ports Per-Port Disable Control

Control each of the USB ports (0-13) disabling.

USB Port 0 to USB Port 13

Enables or disables the selected USB port.

USB Conﬁ guration

Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

USB Conﬁ guration

EHCI 1

EHCI 2 USB Ports Per-Port Disable Control

USB Port #0 Disable USB Port #1 Disable USB Port #2 Disable USB Port #3 Disable USB Port #4 Disable USB Port #5 Disable USB Port #8 Disable USB Port #9 Disable USB Port #10 Disable USB Port #11 Disable USB Port #12 Disable USB Port #13 Disable

[Enabled]

[Enabled] [Enabled]

[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 71

BIOS Setup

North Bridge

Conﬁ g Graphics Settings.

System Agent Bridge Name System Agent RC Version VT-d Capability



Graphics Conﬁ guration



NB PCIe Conﬁ guration



Memory Conﬁ guration

Ivy Bridge

1.5.0.0 Supported

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Conﬁ guration

Select which of IGFX/ PEG/PCI graphics device should be primary display or select SG for switchable Gfx.

Graphics Conﬁ guration IGFX VBIOS Version IGfx Frequency

Primary Display

Internal Graphics DVMT Pre-Allocated DVMT Total Gfx Mem

2137 850 MHz

[Auto]

[Auto] [64M] [256M]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 72

BIOS Setup

Internal Graphics

Keep IGD enabled based on the setup options.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the internal graphics device.

DVMT Total Gfx Memory

Select DVMT 5.0 Total Graphics Memory size used by the internal graphics device.

NB PCIe Conﬁ guration

Conﬁ gure PEG B0:D1:F0 Gen1-Gen3.

NB PCIe Conﬁ guration PEG

PEG- Gen x

Enable PEG

Not Present

[Gen1]

[Enabled]

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable PEG

To enable or disable the PEG.

Page 73

BIOS Setup

Memory Conﬁ guration

Memory Information Memory RC Version

Memory Frequency Total Memory DIMM#0 DIMM#1 CAS Latency (tCL) Minimum delay time CAS to RAS (tRCDmin) ROW Precharge (tRPmin) Active to Precharge (tRASmin) XMP Proﬁ le 1 XMP Proﬁ le 2

1.2.2.0 1333 Mhz 2048 MB (DDR3) 2048 MB (DDR3) Not Present 9

9 9 24 Not Supported Not Supported

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ME Subsystem

Intel ME Subsystem Conﬁ guration ME FW Version

8.0.4.1441

Chipset

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 74

BIOS Setup

Boot

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indeﬁ nite waiting.

Boot Conﬁ guration

Setup Prompt Timeout

Bootup NumLock State Quiet Boot

CSM16 Module Version

Boot Option Priorities



CSM parameters

Save & ExitChipset

Advanced

Security

Main

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[On] [Disabled]

07.69

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indeﬁ nite waiting.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot

Enables or disables the quiet boot function.

Page 75

BIOS Setup

This option controls if CSM will be launched.

Launch CSM

Boot option ﬁ lter Launch PXE OpROM policy Launch Storage OpROM policy

Other PCI device ROM priority

Boot

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

[Enabled]

[UEFI and Legacy] [Do not launch] [Legacy only]

[UEFI OpROM]

CSM Parameters

Boot option ﬁ lter

This option controls what devices system can boot to.

Launch PXE OpROM policy

Controls the execution of UEFI and Legacy PXE OpROM.

Launch Storage OpROM policy

Controls the execution of UEFI and Legacy Storage OpROM.

Other PCI device ROM priority

For PCI devices other than Network, Mass storage or video deﬁ nes which OpROM to launch.

Page 76

BIOS Setup

Security

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Set Setup Administrator Password

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password lenth must be in the following range: Minimum lenth 3 Maximum lenth 20

Administrator Password

User Password

UEFI Secure Boot Management

Save & ExitChipset

Advanced

Main

Boot Security

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Page 77

BIOS Setup

Save & Exit

Reset the system after saving the changes.

Save Changes and Reset

Discard Changes and Reset Resore Defaults

Boot Override

Launch EFI Shell from ﬁ le system device

Chipset

Advanced

Main

Boot Security Save & Exit

 Select Screen  Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Reset

To save the changes, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.

Discard Changes and Reset

To discard the changes, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to reset the system setup without saving any changes.

Restore Defaults

To restore and load the optimized default values, select this ﬁ eld and then press <Enter>. A dialog box will appear. Select Yes to restore the default values of all the setup options.

Page 78

BIOS Setup

Updating the BIOS

To update the BIOS, you will need the new BIOS ﬁ le and a ﬂ ash utility, AFUDOS. EXE. Please contact technical support or your sales representative for the ﬁ les.

To execute the utility, type:

A:> AFUDOS BIOS_File_Name /b /p /n

then press <Enter>.

C:\AFU\AFUDOS>afudos ﬁ lename /B /P /N

+--------------------------------------------------------------------------------------------------------+

AMI Firmware Update Utility(APTIO) v2.25

+--------------------------------------------------------------------------------------------------------+

| |

Reading ﬁ le ..............................

Erasing ﬂ ash .............................

Writing ﬂ ash .............................

Verifying ﬂ ash ..........................

Erasing BootBlock ....................

Writing BootBlock ....................

Verifying BootBlock .................

C:\AFU\AFUDOS>

done done done done done done done

Page 79

Supported Software

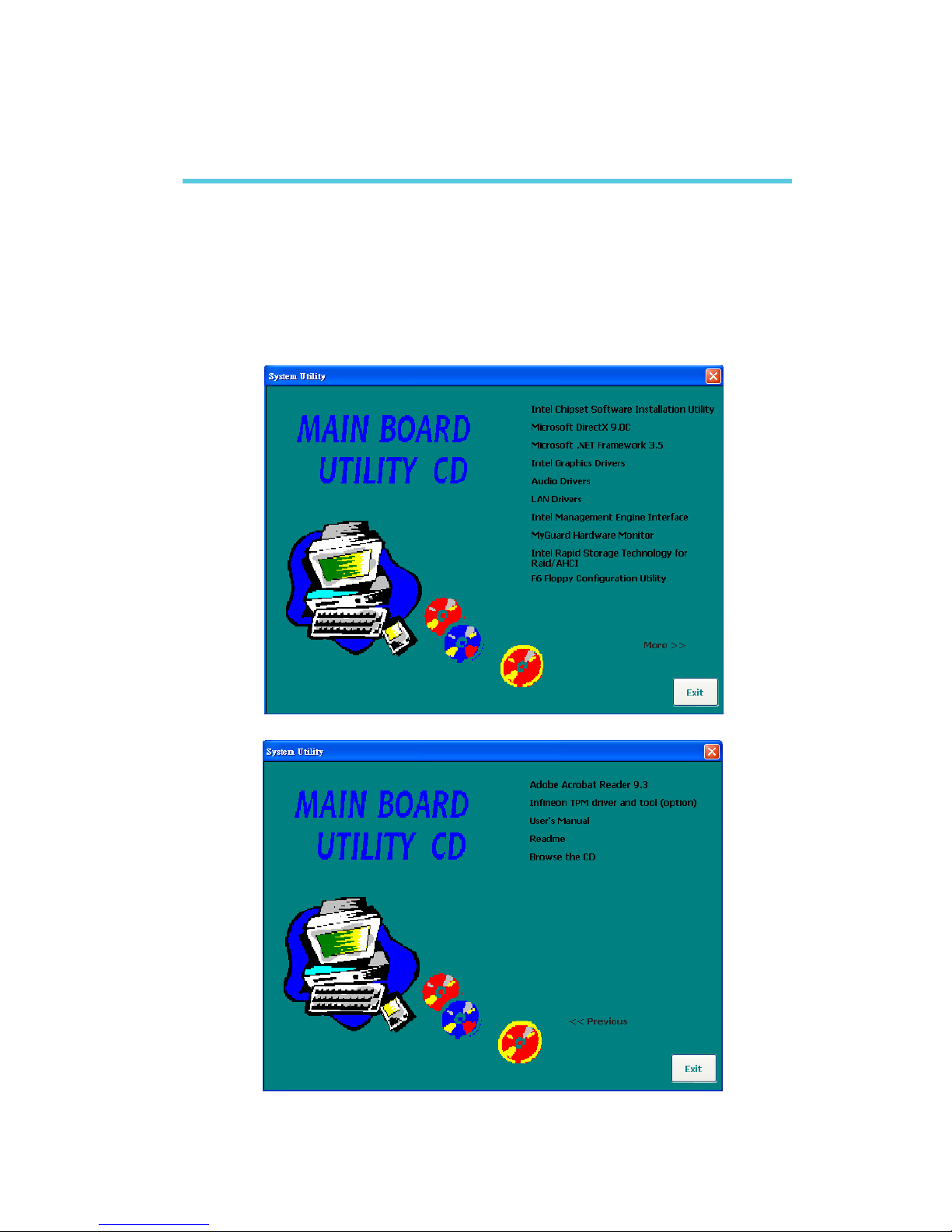

The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board.

Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If after inserting the CD, “Autorun” did not automatically start (which is, the Mainboard Utility CD screen did not appear), please go directly to the root directory of the CD and double-click “Setup”.

Chapter 4 - Supported Software

Page 80

Supported Software

Intel Chipset Software Installation Utility

The Intel Chipset Software Installation Utility is used for updating Windows® INF

les so that the Intel chipset can be recognized and congured properly in the

system.

To install the utility, click “Intel Chipset Software Installation Utility” on the main menu.

1. Setup is now ready to install the utility. Click Next.

2. Read the license agreement then click Yes.

Page 81

Supported Software

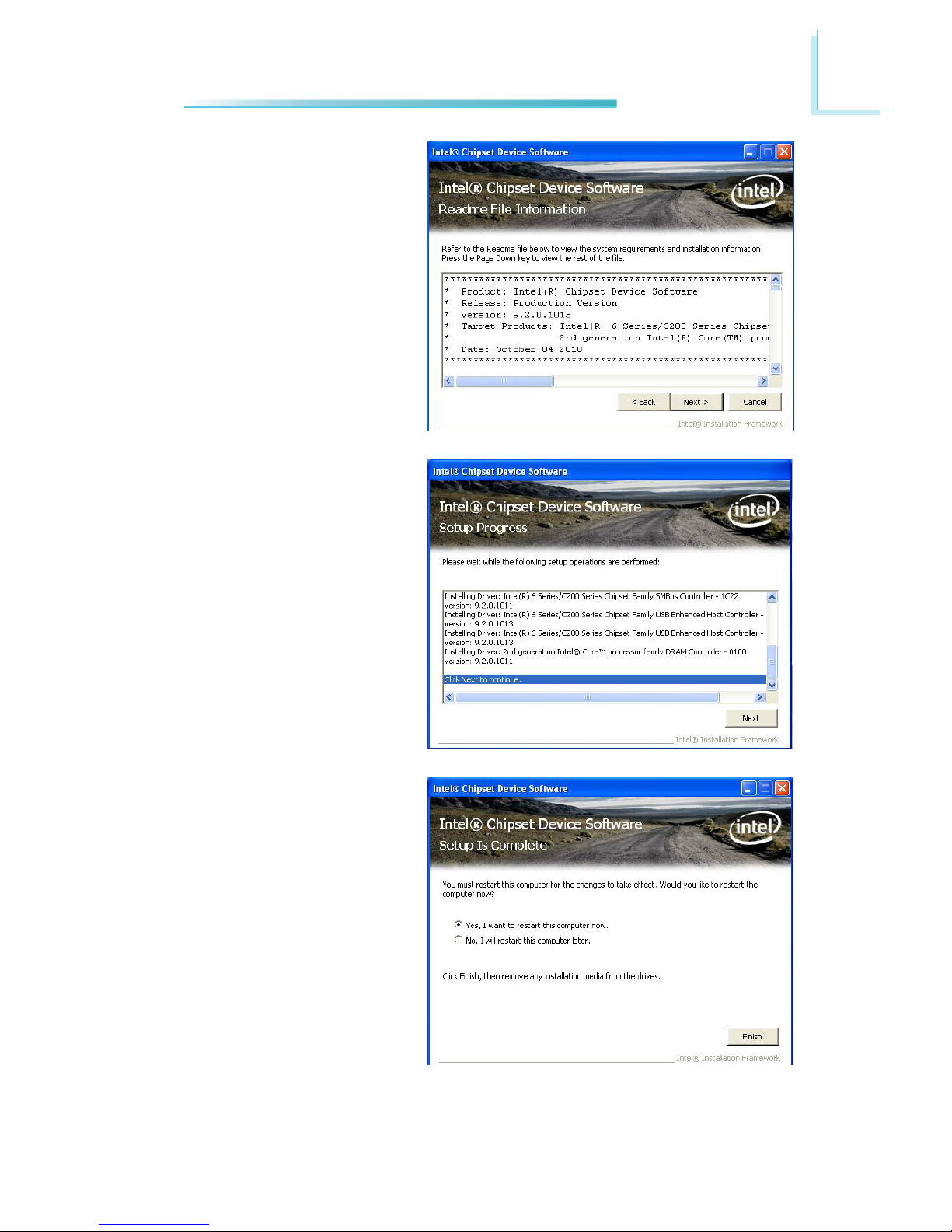

3. Go through t h e readme document for system requirements and installation tips then click Next.

4. Setup is now installing the driver. Click Next to continue.

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Page 82

Supported Software

1. C l i c k “ I a c c e p t t h e agreement” then click Next.

Microsoft DirectX 9.0C (for Windows XP only)

To install the utility, click “Microsoft DirectX 9.0C” on the main menu.

2. To start installation, click Next.

3. Click Finis h. Reboot the system for DirectX to take effect.

Page 83

Supported Software

Microsoft .NET Framework 3.5 (for Windows XP only)

Note:

Before installing Microsoft .NET Framework 3.5, make sure you have updated your Windows XP operating system to Service Pack 3.

To install the driver, click “Microsoft .NET Framework 3.5” on the main menu.

1. Read the license agreement carefully.

Click “ I h ave rea d a n d

accept t he terms of the License Agreement” then click Install.

2. Setup is now installing the driver.

Page 84

Supported Software

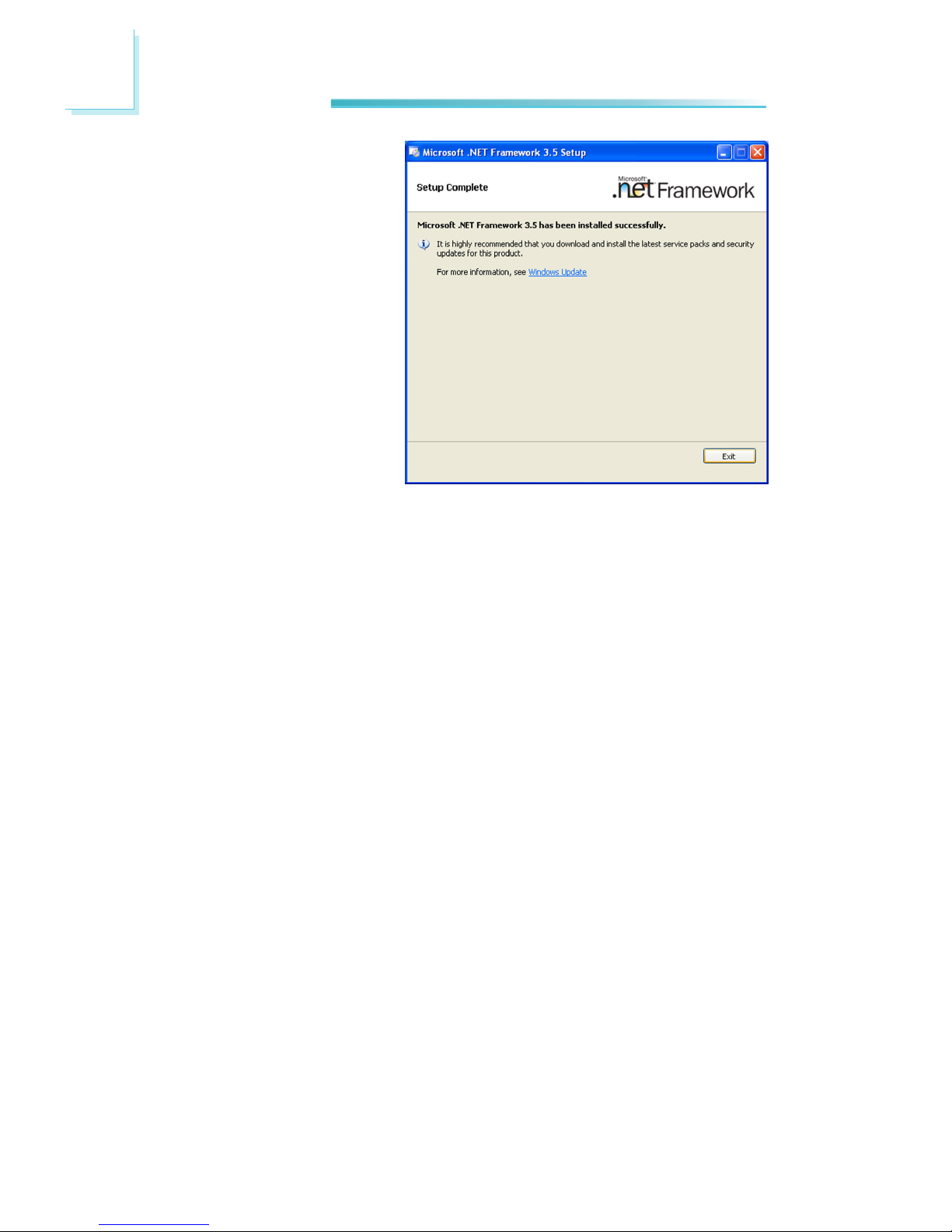

3. Click Exit.

Page 85

Supported Software

Intel Graphics Drivers (for Windows Vista)

To install the driver, click “Intel Graphics Drivers” on the main menu.

1. Setup is now ready to install the graphics driver. Click Next.

By default, the “Automatically run WinSAT and enable the Windows Aero desktop theme” is enabled. With this enabled, after installing the graphics driver and the system rebooted, the screen will turn blank for 1 to 2 minutes (while WinSAT is running) before the Windows Vista desktop appears. The “blank screen” period is the time Windows is testing the graphics performance.

We recommend that you

skip this process by disabling this function then click Next.

Page 86

Supported Software

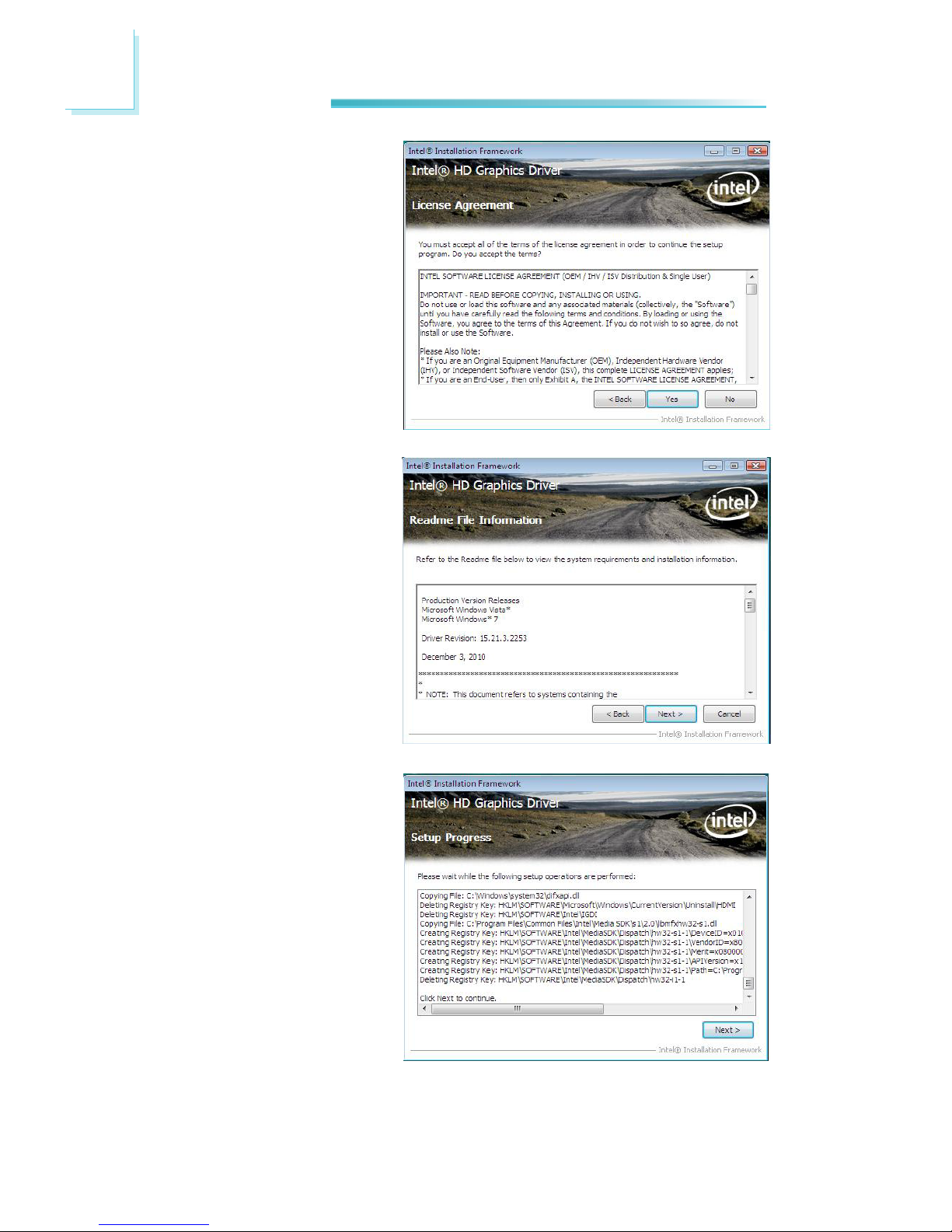

3. Go through the re a d m e document for system requirements and installation tips then click Next.

2. Read the license agreement then click Yes.

4. Setup is currently installing the driver. After installation has completed, click Next.

Page 87

Supported Software

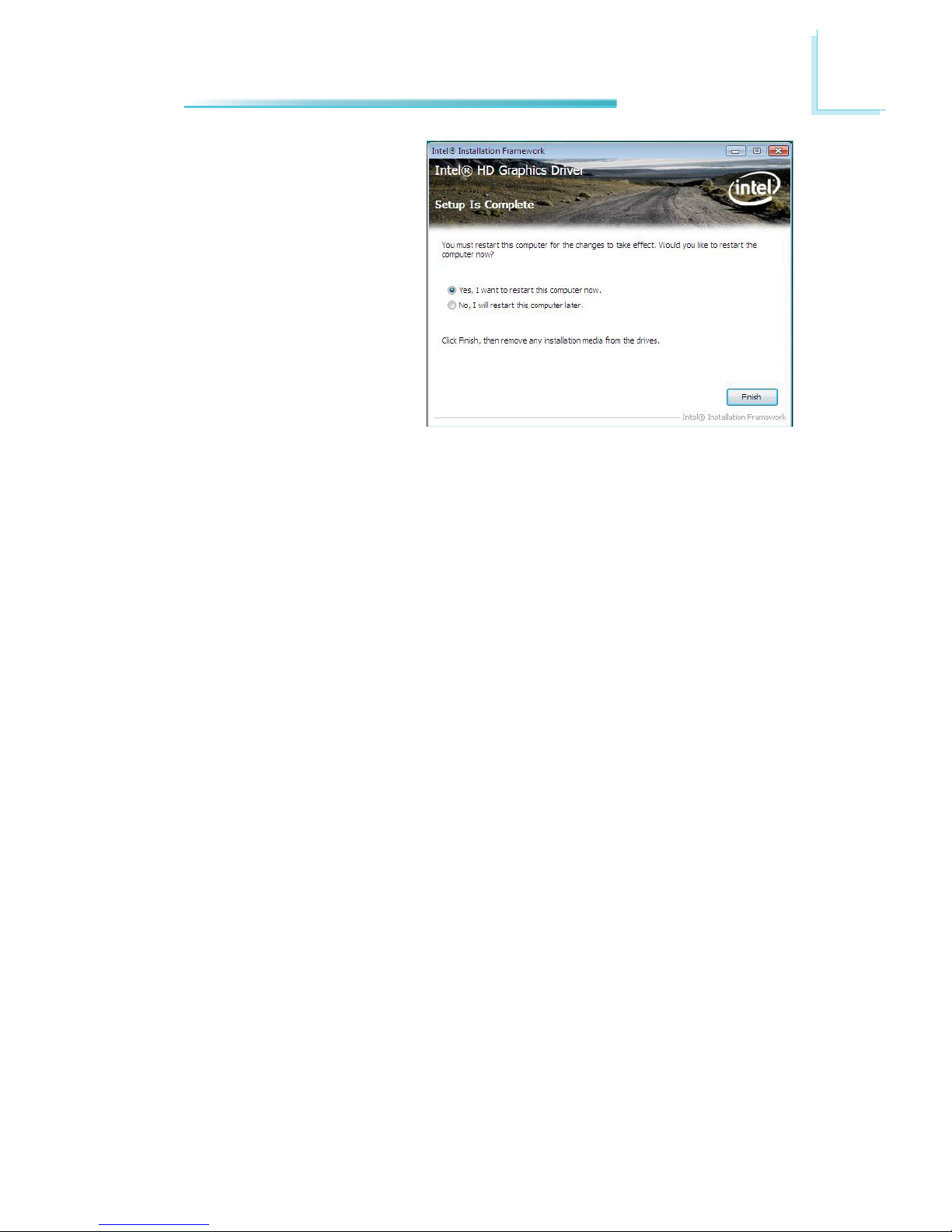

5. Click “Yes, I want to restart this computer now” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Page 88

Supported Software

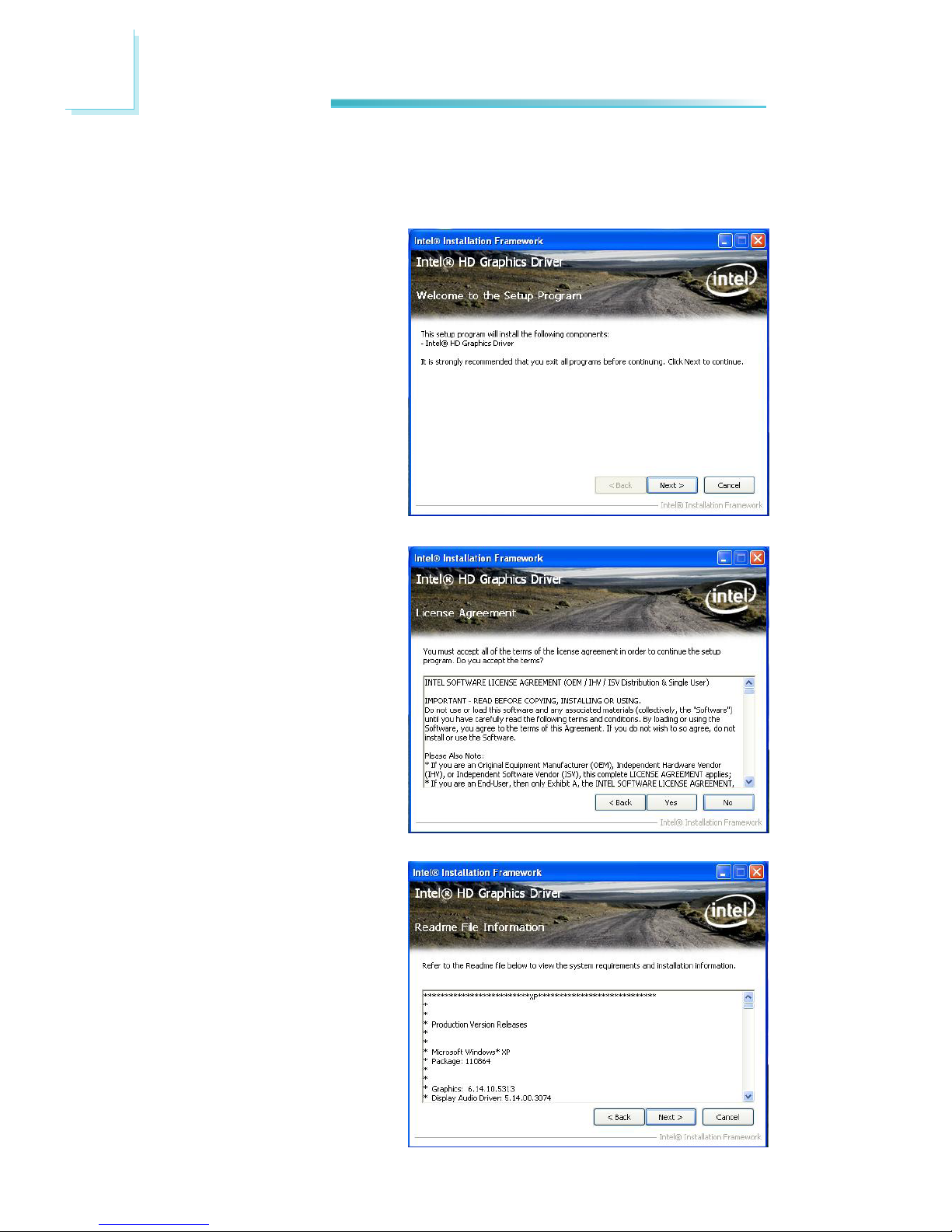

Intel Graphics Drivers (for Windows XP)

To install the driver, click “Intel Graphics Drivers” on the main menu.

3. Go through the re a d m e document for more installation tips then click Next.

1. Setup is ready to install the graphics driver. Click Next.

2. Read the license agreement then click Yes.

Page 89

Supported Software

4. Setup is currently installing the driver. After installation has completed, click Next.

5. Click “Yes, I want to restart this computer now.” then click Finish.

Restarting the system will

allow the new software installlation to take effect.

Page 90

Supported Software

Audio Drivers

To install the driver, click “Audio Drivers” on the main menu.

1. Setup is now ready to install the audio driver. Click Next.

2. Follow the remainder of the steps on the screen; clicking “Next” each time you

nish a step.

3. Click “Yes, I want to restart my co mput er n ow” then click Finish.

Restarting the system will

allow the new software installation to take effect.

Page 91

Supported Software

LAN Drivers

To install the driver, click “LAN Drivers” on the main menu.

1. Setup is ready to install the driver. Click Next.

2. Click “I accept the terms in the license agreement” then click “Next”.

3. Select the program featuers yo u want in s t alled the n click Next.

Page 92

Supported Software

4. Click Install to begin the installation.

5. After completing installation, click Finish.

Page 93

Supported Software

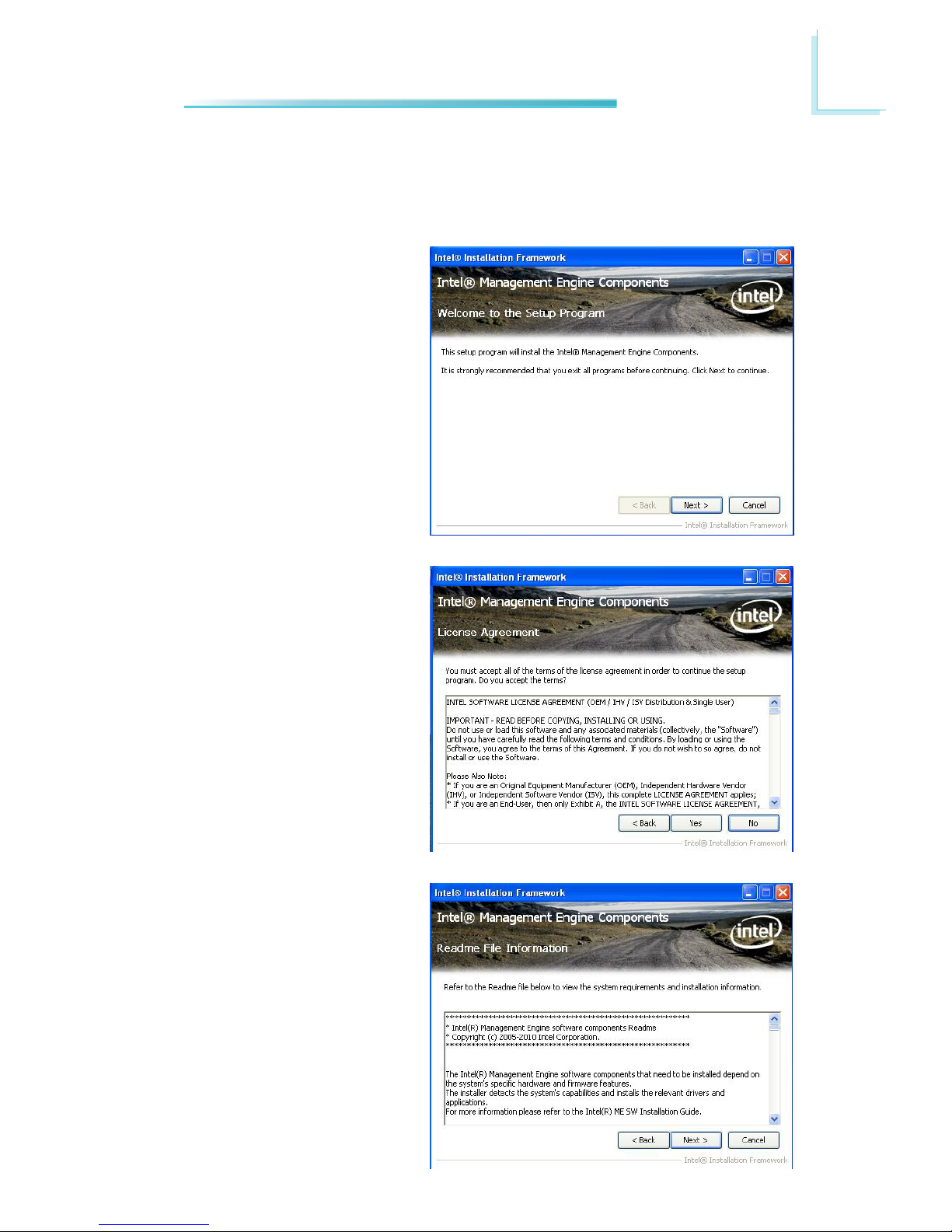

Intel Management Engine Interface

To install the driver, click “Intel Management Engine Interface” on the main menu.

1. Setup is ready to install the driver. Click Next.

3. Go through the re a d m e document for more installation tips then click Next.

2. Read the license agreement then click Yes.

Page 94

Supported Software

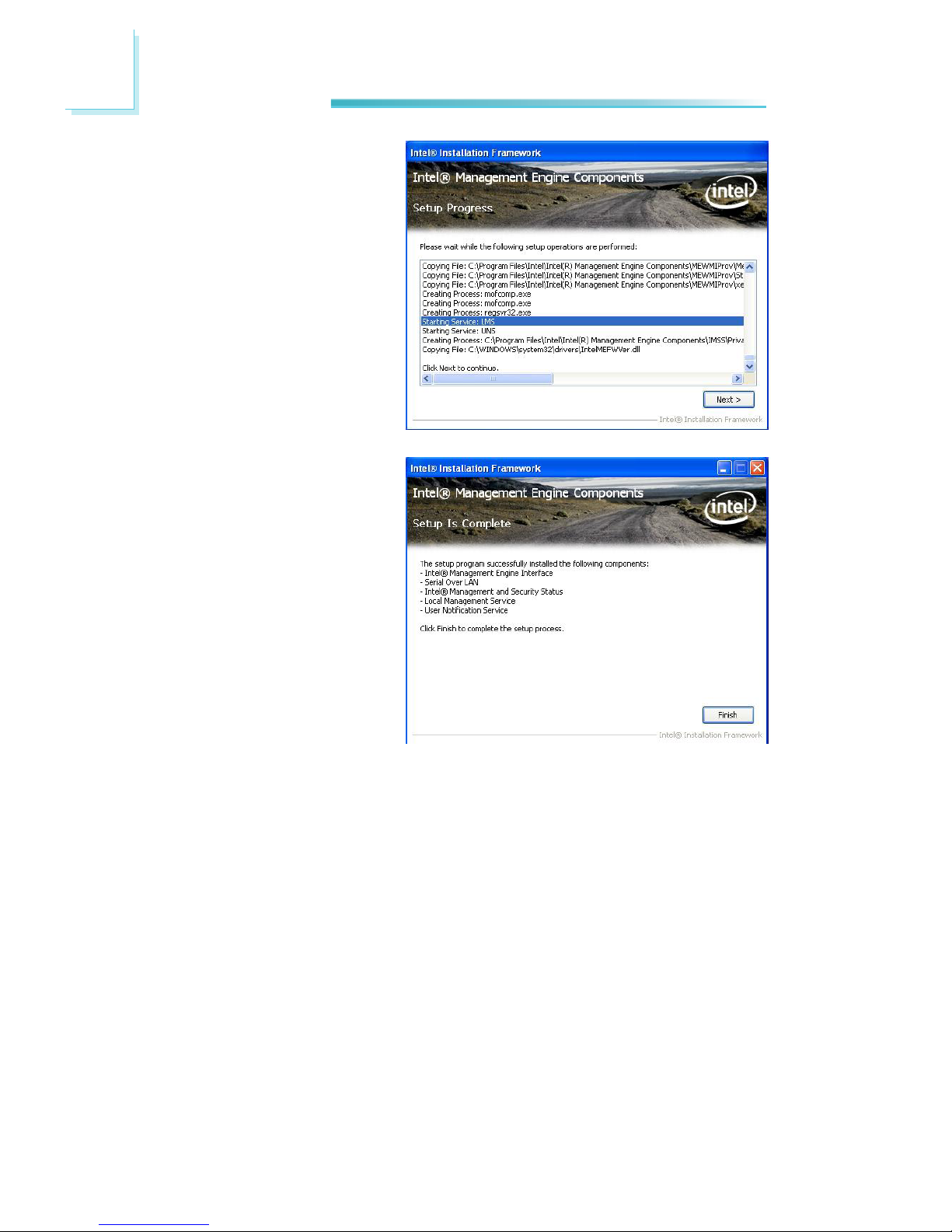

4. Setup is currently installing the driver. After installation has completed, click Next.

5. After completing installation, click Finish.

Page 95

Supported Software

MyGuard Hardware Monitor

5. Setup is ready to install the utility. Click Next.

6. Click Install to begin installation.

1. Locate f o r the MyGu a r d folder in the provided disc.

2. In th e M y Guar d fo lde r, right-click on the “setup”

le.

3. Select Run As Administrator.

4. Double-click Setup.

Important: Perform steps 1-3 only when using Windows 7 or Windows Vista.

Page 96

Supported Software

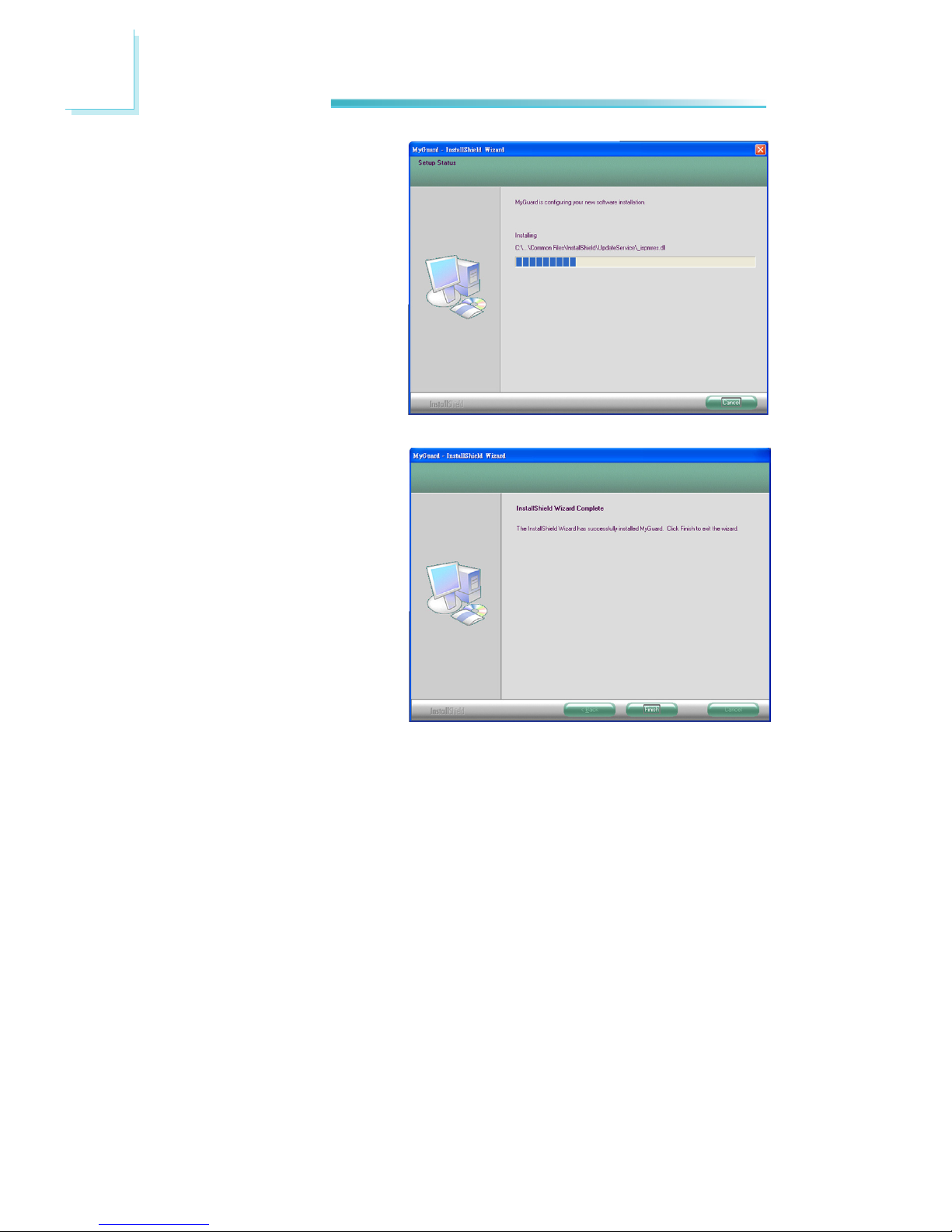

8. Af t e r c o m p l e t i ng installation, click Finish to exit setup.

7. Setup is currently installing the utility.

Page 97

Supported Software

F6 Floppy Configuration Utility

This is used to create a oppy driver diskette needed when you install Windows®

XP using the F6 installation method. This will allow you to install the operating system onto a hard drive when in AHCI mode.

1. Insert a blank oppy diskette.

2. Locate for the drivers in the CD then copy them to the oppy diskette. The

CD includes drivers for both 32-bit and 64-bit operating systems. The path to the drivers are shown below.

32-bit

CD Drive:\AHCI_RAID\F6FLOPPY\f6py32

64-bit

CD Drive:\AHCI_RAID\F6FLOPPY\f6py64

Page 98

Supported Software

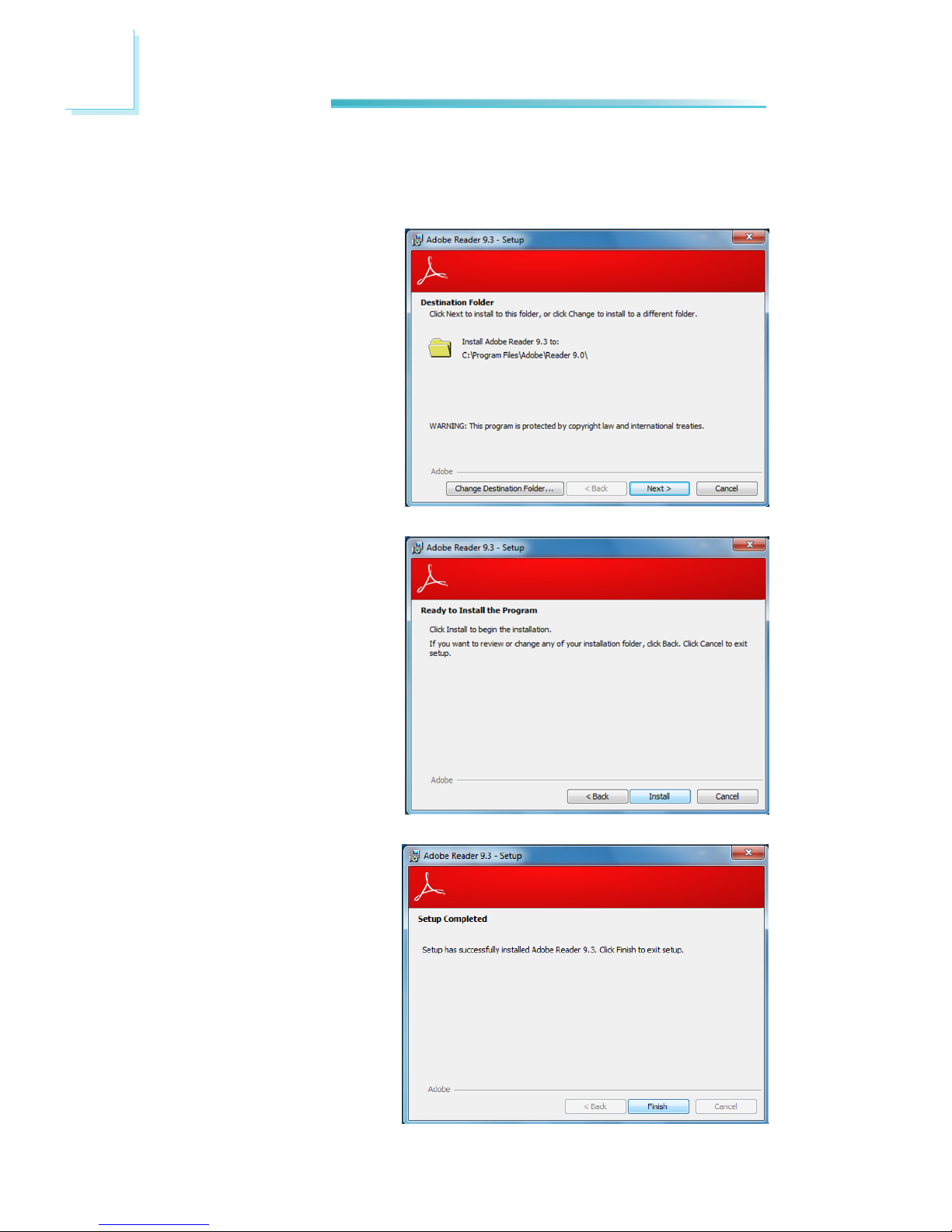

Adobe Acrobat Reader 9.3

To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu.

1. Click Next to install or click Change Destination Folder to select another folder.

2. Click Install to begin installation.

3. Click Finish to exit installation.

Page 99

Supported Software

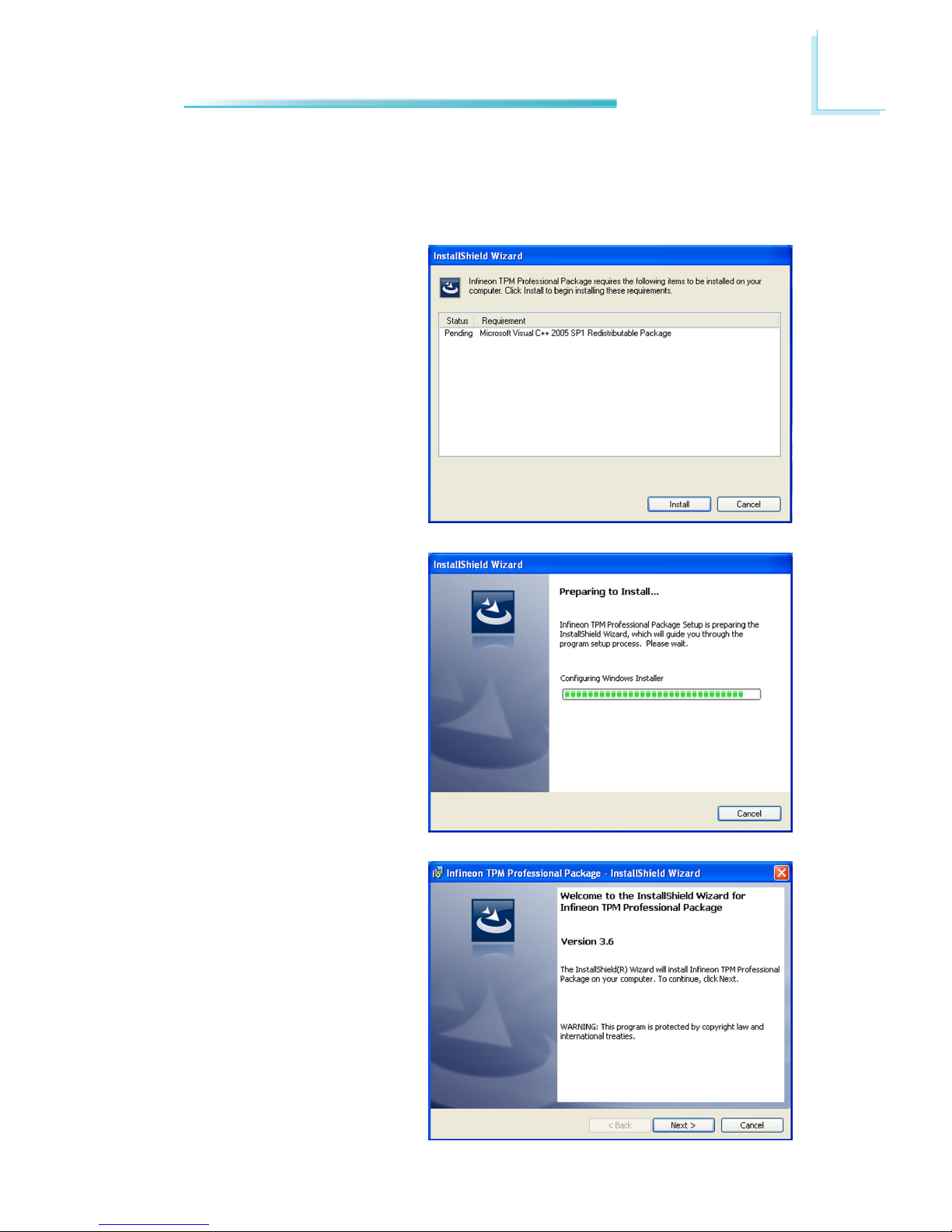

Infineon TPM Driver and Tool (optional)

To install the driver, click “Inneon TPM driver and tool (option)” on the main

menu.

1. TPM requires installing the Microsoft Visual C++ package prior to installing the driver. Click Install.

2. The setup program is preparing to install the driver.

3. The setup program is ready to install the driver. Click Next.

Page 100

100

Supported Software

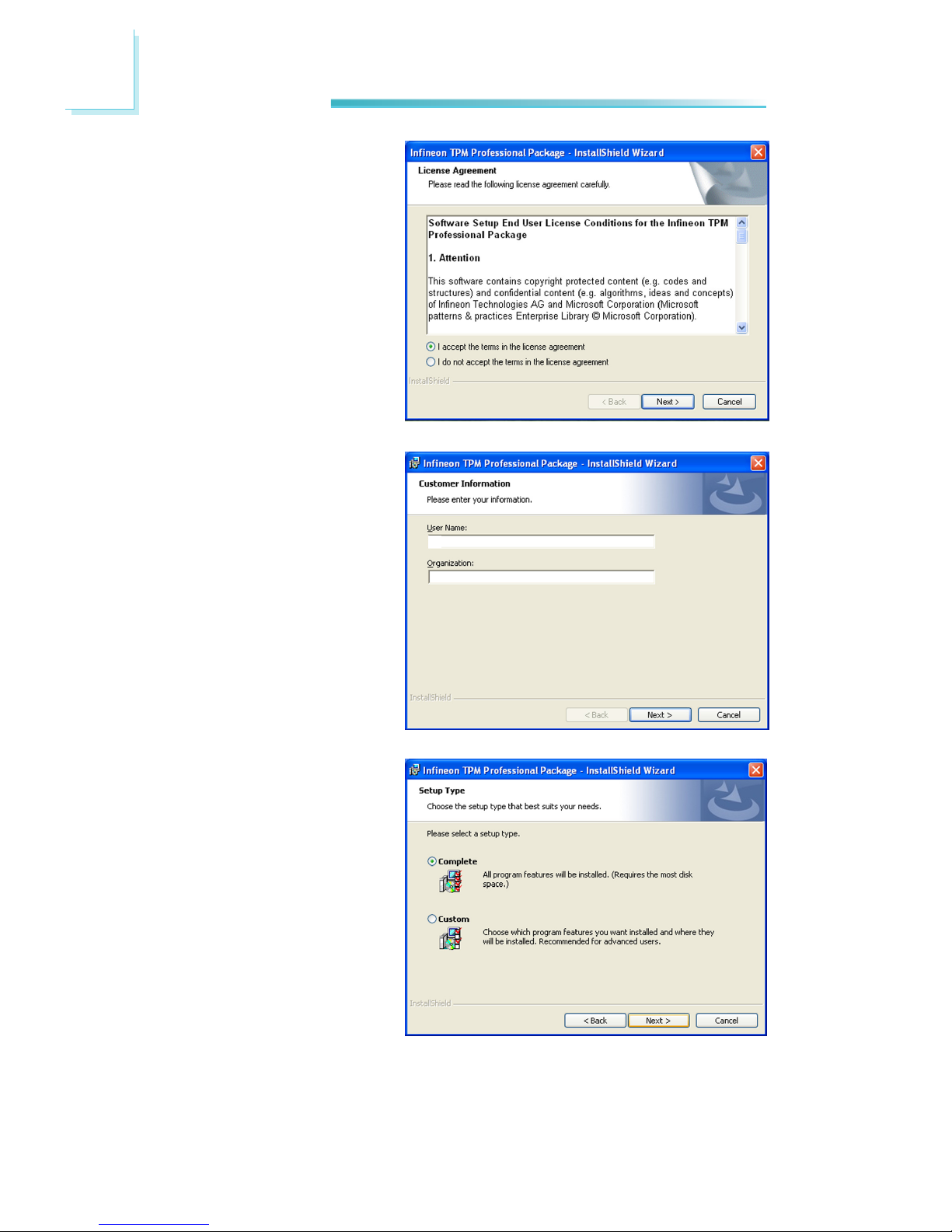

4. Click “I accept the terms in the license agreement” and then click “Next”.

5. Enter the necessary information and then click Next.

6. Select a setup type and then click Next.
